Explanations¶
This section explains how pkg_infra is designed and why the package is
structured the way it is.
Architecture overview¶

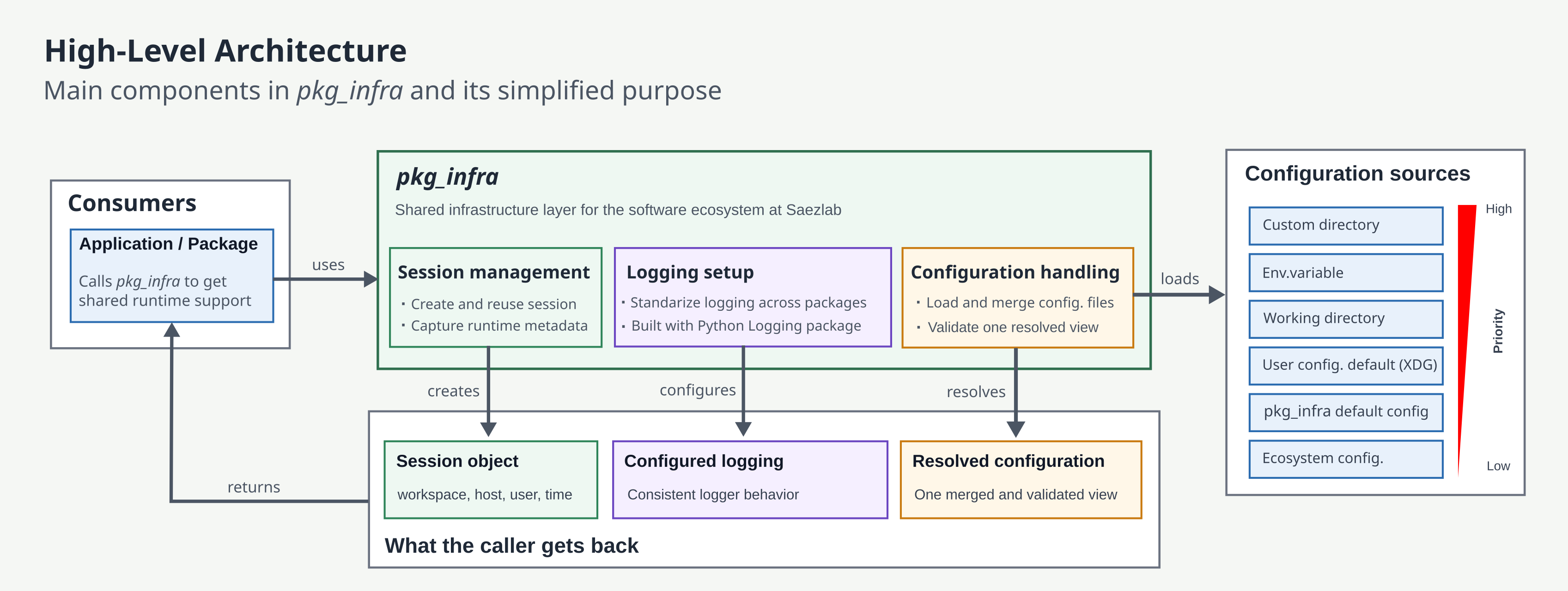

The following diagram shows the highest-level architecture of the current solution. It is intentionally simplified so the main building blocks are easy to understand before we zoom into runtime details.
At this level, pkg_infra can be understood as one package with three main
responsibilities:
- session management
- configuration handling
- logging setup
Once this overview feels right, we can add a second diagram for the internal runtime flow.
Configuration layering¶
The configuration system is designed to support shared defaults across an ecosystem while still allowing local overrides. The implementation resolves multiple config locations, merges the available files, and validates the final result before exposing it to the rest of the package.
The effective precedence is:
- Ecosystem config
- Packaged default config
- User config
- Working-directory config
- Config file referenced by
PKG_INFRA_CONFIG - Explicit custom path passed by the caller
For the shipped baseline structure, see Default schema and baseline configuration.
For a practical guide to writing override files, see Writing and Overriding Configuration.
Session lifecycle¶
The session is a process-wide singleton managed by SessionManager. The first
call to get_session(...) performs initialization work and creates a frozen
Session instance. Later calls reuse that object, which keeps downstream code
simple and avoids repeated reconfiguration.
Location lookup is intentionally lazy. It is only attempted if enabled and only
performed when session.location is accessed.
Logging model¶
The logging layer standardizes how downstream packages receive configured
loggers. It translates the merged configuration into a validated dictConfig
payload, prepares file handler paths, and supports package-group based policy
resolution.
This lets the package ecosystem share conventions without replacing the Python
logging module itself.
