Tissue metabolomics experiment is a standard metabolomics experiment using tissue samples (e.g. from animals or patients).

In this tutorial we showcase how to use MetaProViz:

  • to perform differential metabolite analysis (dma) to generate Log2FC and statistics and perform pathway analysis using Over Representation Analysis (ORA) on the results.
  • to do metabolite clustering analysis (MCA) to find clusters of metabolites with similar behaviors based on patients demographics like age, gender and tumour stage.
  • Find the main metabolite drivers that separate patients based on their demographics like age, gender and tumour stage.

    First if you have not done yet, install the required dependencies and load the libraries:
# 1. Install Rtools if you haven’t done this yet, using the appropriate version (e.g.windows or macOS).
# 2. Install the latest development version from GitHub using devtools
# devtools::install_github("https://github.com/saezlab/MetaProViz")

library(MetaProViz)

# dependencies that need to be loaded:
library(magrittr)
library(dplyr)
library(rlang)
library(tidyr)
library(tibble)
library(stringr)

# Please install the Biocmanager Dependencies:
# BiocManager::install("clusterProfiler")
# BiocManager::install("EnhancedVolcano")


1. Loading the example data


Here we choose an example datasets, which is publicly available in the paper “An Integrated Metabolic Atlas of Clear Cell Renal Cell Carcinoma”, which includes metabolomic profiling on 138 matched clear cell renal cell carcinoma (ccRCC)/normal tissue pairs (Hakimi et al. 2016). Metabolomics was done using The company Metabolon, so this is untargeted metabolomics. Here we use the median normalised data from the supplementary table 2 of the paper. We have combined the metainformation about the patients with the metabolite measurements and removed unidentified metabolites. Lastly, we have added a column “Stage” where Stage1 and Stage2 patients are summarised to “EARLY-STAGE” and Stage3 and Stage4 patients to “LATE-STAGE”. Moreover, we have added a column “Age”, where patients with “AGE AT SURGERY” <42 are defined as “Young” and patients with AGE AT SURGERY >58 as “Old” and the remaining patients as “Middle”.

#As part of the MetaProViz package you can load the example data into your global environment using the function toy_data():
1. Tissue experiment (Intra)
We can access the built-in dataset tissue_norm, which includes columns with Sample information and columns with the median normalised measured metabolite integrated peaks.

# Load the example data:
Tissue_Norm <- tissue_norm%>%
  column_to_rownames("Code")
Preview of the DF Tissue_Norm including columns with sample information and metabolite ids with their measured values.
TISSUE_TYPE GENDER AGE_AT_SURGERY TYPE-STAGE STAGE AGE 1,2-propanediol 1,3-dihydroxyacetone
DIAG-16076 TUMOR Male 74.7778 TUMOR-STAGE I EARLY-STAGE Old 0.710920 0.809182
DIAG-16077 NORMAL Male 74.7778 NORMAL-STAGE I EARLY-STAGE Old 0.339390 0.718725
DIAG-16078 TUMOR Male 77.1778 TUMOR-STAGE I EARLY-STAGE Old 0.413386 0.276412
DIAG-16079 NORMAL Male 77.1778 NORMAL-STAGE I EARLY-STAGE Old 1.595697 4.332451
DIAG-16080 TUMOR Female 59.0889 TUMOR-STAGE I EARLY-STAGE Old 0.573787 0.646791

2. Additional information mapping the trivial metabolite names to KEGG IDs, HMDB IDs, etc. and selected pathways (MappingInfo)

Tissue_MetaData <- tissue_meta%>%
  column_to_rownames("Metabolite")
Preview of the DF Tissue_MetaData including the trivial metabolite identifiers used in the experiment as well as IDs and pathway information.
SUPER_PATHWAY SUB_PATHWAY CAS PUBCHEM KEGG Group_HMDB
1,2-propanediol Lipid Ketone bodies 57-55-6; NA C00583 HMDB01881
1,3-dihydroxyacetone Carbohydrate Glycolysis, gluconeogenesis, pyruvate metabolism 62147-49-3; 670 C00184 HMDB01882
1,5-anhydroglucitol (1,5-AG) Carbohydrate Glycolysis, gluconeogenesis, pyruvate metabolism 154-58-5; NA C07326 HMDB02712
10-heptadecenoate (17:1n7) Lipid Long chain fatty acid 29743-97-3; 5312435 NA NA
10-nonadecenoate (19:1n9) Lipid Long chain fatty acid 73033-09-7; 5312513 NA NA

2. Run MetaProViz Analysis

Pre-processing

This has been done by the authors of the paper and we will use the median normalized data. If you want to know how you can use the MetaProViz pre-processing module, please check out the vignette:
- Standard metabolomics data
- Consumption-Release (core) metabolomics data from cell culture media

Metadata analysis

We can use the patient’s metadata to find the main metabolite drivers that separate patients based on their demographics like age, gender, etc.

Here the metadata analysis is based on principal component analysis (PCA), which is a dimensionality reduction method that reduces all the measured features (=metabolites) of one sample into a few features in the different principal components, whereby each principal component can explain a certain percentage of the variance between the different samples. Hence, this enables interpretation of sample clustering based on the measured features (=metabolites).
The MetaProViz::metadata_analysis() function will perform PCA to extract the different PCs followed by annova to find the main metabolite drivers that separate patients based on their demographics.

MetaRes <- MetaProViz::metadata_analysis(data=Tissue_Norm[,-c(1:13)],
                                     metadata_sample= Tissue_Norm[,c(2,4:5,12:13)],
                                     scaling = TRUE,
                                     percentage = 0.1,
                                     cutoff_stat= 0.05,
                                     cutoff_variance = 1)
#> The column names of the 'metadata_sample' contain special character that where removed.

Ultimately, this is leading to clusters of metabolites that are driving the separation of the different demographics.

We generated the general anova output DF:
Preview of the DF MetaRes[[res_aov]] including the main metabolite drivers that separate patients based on their demographics.
PC tukeyHSD_Contrast term anova_sumsq anova_meansq anova_statistic anova_p.value tukeyHSD_p.adjusted Explained_Variance
1 PC1 TUMOR-NORMAL TISSUE_TYPE 7375.2212254 7375.2212254 90.1352800 0.0000000 0.0000000 19.0079573
2 PC1 Black-Asian RACE 156.7549451 52.2516484 0.4795311 0.6967838 0.9992824 19.0079573
1777 PC232 White-Asian RACE 0.2726952 0.0908984 0.9544580 0.4147472 0.5495634 0.0166997
1778 PC232 LATE-STAGE-EARLY-STAGE STAGE 0.0360319 0.0360319 0.3776760 0.5393596 0.5393596 0.0166997
3191 PC9 White-Other RACE 20.2626222 6.7542074 0.7090398 0.5473277 0.8897908 1.6658973
3192 PC9 Young-Middle AGE 49.2030973 24.6015486 2.6213834 0.0745317 0.9979475 1.6658973

We generated the summarised results output DF, where each feature (=metabolite) was assigned a main demographics parameter this feature is separating:
Preview of the DF MetaRes[[res_summary]] including the metabolite drivers in rows and list the patients demographics they can separate.
feature term Sum(Explained_Variance) MainDriver MainDriver_Term MainDriver_Sum(VarianceExplained)
N2-methylguanosine AGE, GENDER, RACE, STAGE, TISSUE_TYPE 3.7598809871366, 2.75344828467363, 1.43932034747081, 25.2803273612931, 33.9484968841434 FALSE, FALSE, FALSE, FALSE, TRUE TISSUE_TYPE 33.9485
5-methyltetrahydrofolate (5MeTHF) AGE, GENDER, RACE, STAGE, TISSUE_TYPE 0.35114340819656, 0.29468807988021, 0.252515004077172, 19.4058160726611, 32.5442969233501 FALSE, FALSE, FALSE, FALSE, TRUE TISSUE_TYPE 32.5443
N-acetylalanine AGE, GENDER, RACE, STAGE, TISSUE_TYPE 0.381811888038144, 1.82507161869685, 2.97460134435356, 19.0079573465896, 32.5442969233501 FALSE, FALSE, FALSE, FALSE, TRUE TISSUE_TYPE 32.5443
N-acetyl-aspartyl-glutamate (NAAG) AGE, GENDER, RACE, STAGE, TISSUE_TYPE 0.212976478603115, 2.75344828467363, 0.235952044704099, 20.3572056704699, 32.2825995362096 FALSE, FALSE, FALSE, FALSE, TRUE TISSUE_TYPE 32.2826
1-heptadecanoylglycerophosphoethanolamine* AGE, GENDER, RACE, STAGE, TISSUE_TYPE 4.33031140898825, 0.267851018697989, 0.437853800763464, 22.8424358182214, 30.8783995754163 FALSE, FALSE, FALSE, FALSE, TRUE TISSUE_TYPE 30.8784
1-linoleoylglycerophosphoethanolamine* AGE, STAGE, TISSUE_TYPE 4.2011500430443, 22.7555733683955, 30.8783995754163 FALSE, FALSE, TRUE TISSUE_TYPE 30.8784


##1. Tissue_Type
TissueTypeList <- MetaRes[["res_summary"]]%>%
  filter(MainDriver_Term == "TISSUE_TYPE")%>%
  filter(`MainDriver_Sum(VarianceExplained)`>30)%>%
  select(feature)%>%
  pull()

# select columns tissue_norm that are in TissueTypeList if they exist
Input_Heatmap <- Tissue_Norm[ , names(Tissue_Norm) %in% TissueTypeList]#c("N1-methylguanosine", "N-acetylalanine", "lysylmethionine")

# Heatmap: Metabolites that separate the demographics, like here TISSUE_TYPE
MetaProViz:::viz_heatmap(data = Input_Heatmap,
                       metadata_sample = Tissue_Norm[,c(1:13)],
                       metadata_info = c(color_Sample = list("TISSUE_TYPE")),
                       scale ="column",
                      plot_name = "MainDrivers")

DMA

Here we use Differential Metabolite Analysis (dma) to compare two conditions (e.g. Tumour versus Healthy) by calculating the Log2FC, p-value, adjusted p-value and t-value.
For more information please see the vignette:
- Standard metabolomics data
- Consumption-Release (core) metabolomics data from cell culture media

We will perform multiple comparisons based on the different patient demographics available: 1. Tumour versus Normal: All patients 2. Tumour versus Normal: Subset of Early Stage patients 3. Tumour versus Normal: Subset of Late Stage patients 4. Tumour versus Normal: Subset of Young patients 5. Tumour versus Normal: Subset of Old patients

# Prepare the different selections
EarlyStage <- Tissue_Norm %>%
  filter(STAGE== "EARLY-STAGE")
LateStage <- Tissue_Norm %>%
  filter(STAGE=="LATE-STAGE")
Old <- Tissue_Norm %>%
  filter(AGE=="Old")
Young <- Tissue_Norm%>%
  filter(AGE=="Young")

DFs <- list("TissueType"= Tissue_Norm,"EarlyStage"= EarlyStage, "LateStage"= LateStage, "Old"= Old, "Young"=Young)

# Run dma
ResList <- list()
for(item in names(DFs)){
  #Get the right DF:
  data <- DFs[[item]]

  message(paste("Running dma for", item))
  #Create folder for saving each comparison
  dir.create(paste(getwd(),"/MetaProViz_Results/dma/", sep=""), showWarnings = FALSE)
  dir.create(paste(getwd(),"/MetaProViz_Results/dma/", item, sep=""), showWarnings = FALSE)

  #Perform dma
  TvN <- MetaProViz::dma(data =  data[,-c(1:13)],
                   metadata_sample =  data[,c(1:13)],
                   metadata_info = c(Conditions="TISSUE_TYPE", Numerator="TUMOR" , Denominator = "NORMAL"),
                   shapiro=FALSE, #The data have been normalized by the company that provided the results and include metabolites with zero variance as they were all imputed with the same missing value.
                   path = paste(getwd(),"/MetaProViz_Results/dma/", item, sep=""))

  #Add Results to list
  ResList[[item]] <- TvN
}

#> Running dma for TissueType
#> There are no NA/0 values

#> Running dma for EarlyStage
#> There are no NA/0 values

#> Running dma for LateStage
#> There are no NA/0 values

#> Running dma for Old
#> There are no NA/0 values

#> Running dma for Young
#> There are no NA/0 values




We can see from the different Volcano plots have smaller p.adjusted values and differences in Log2FC range.

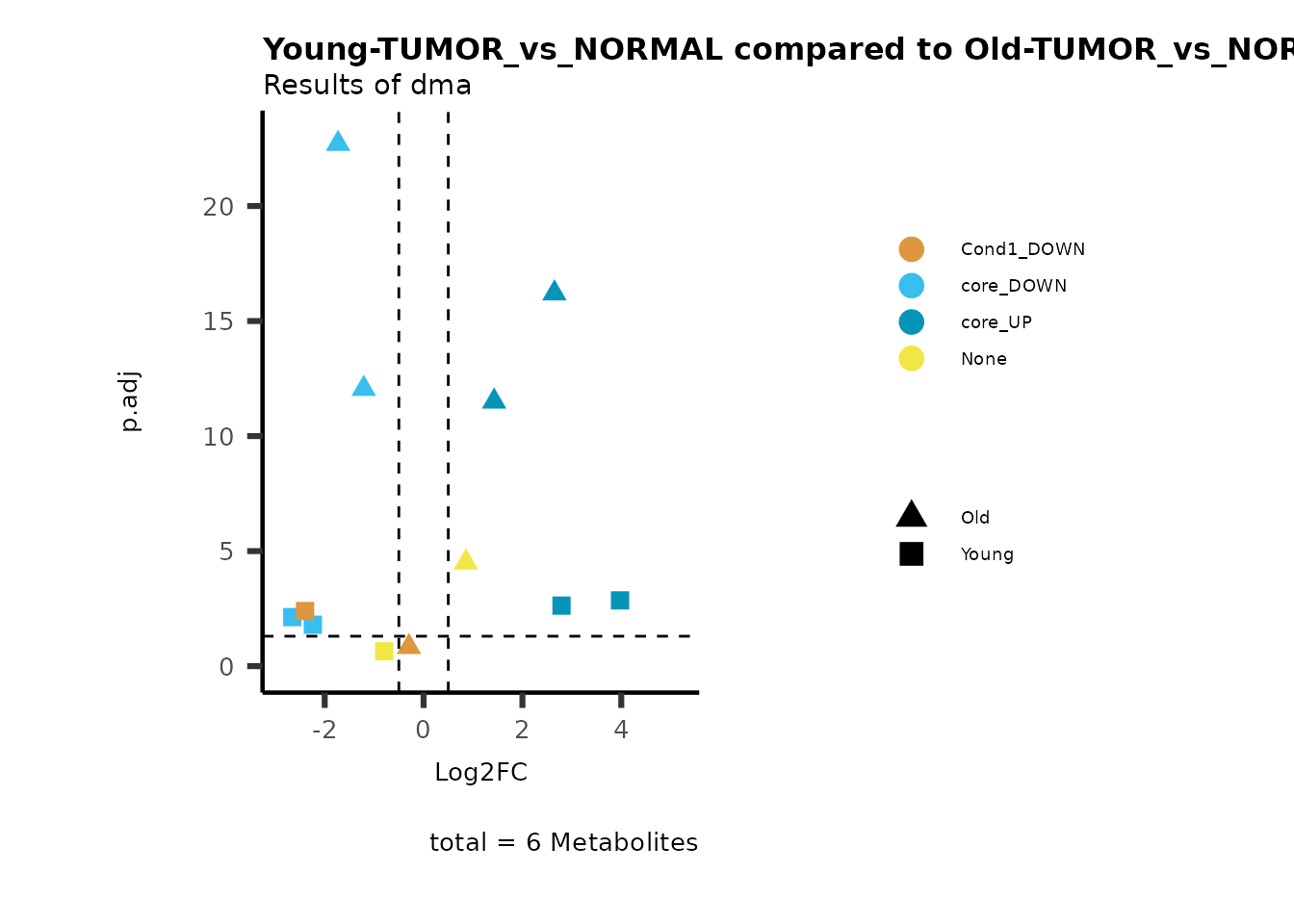

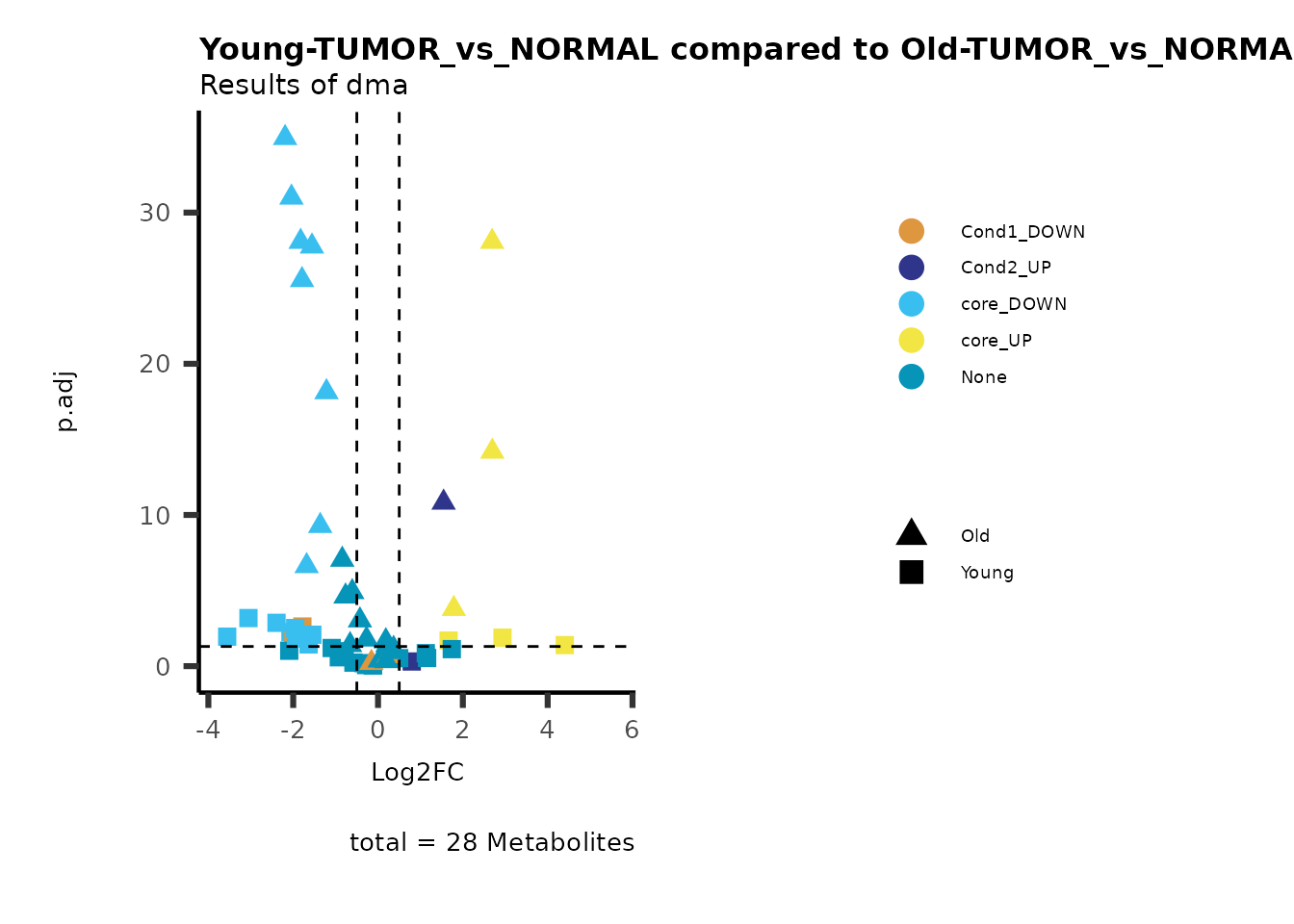

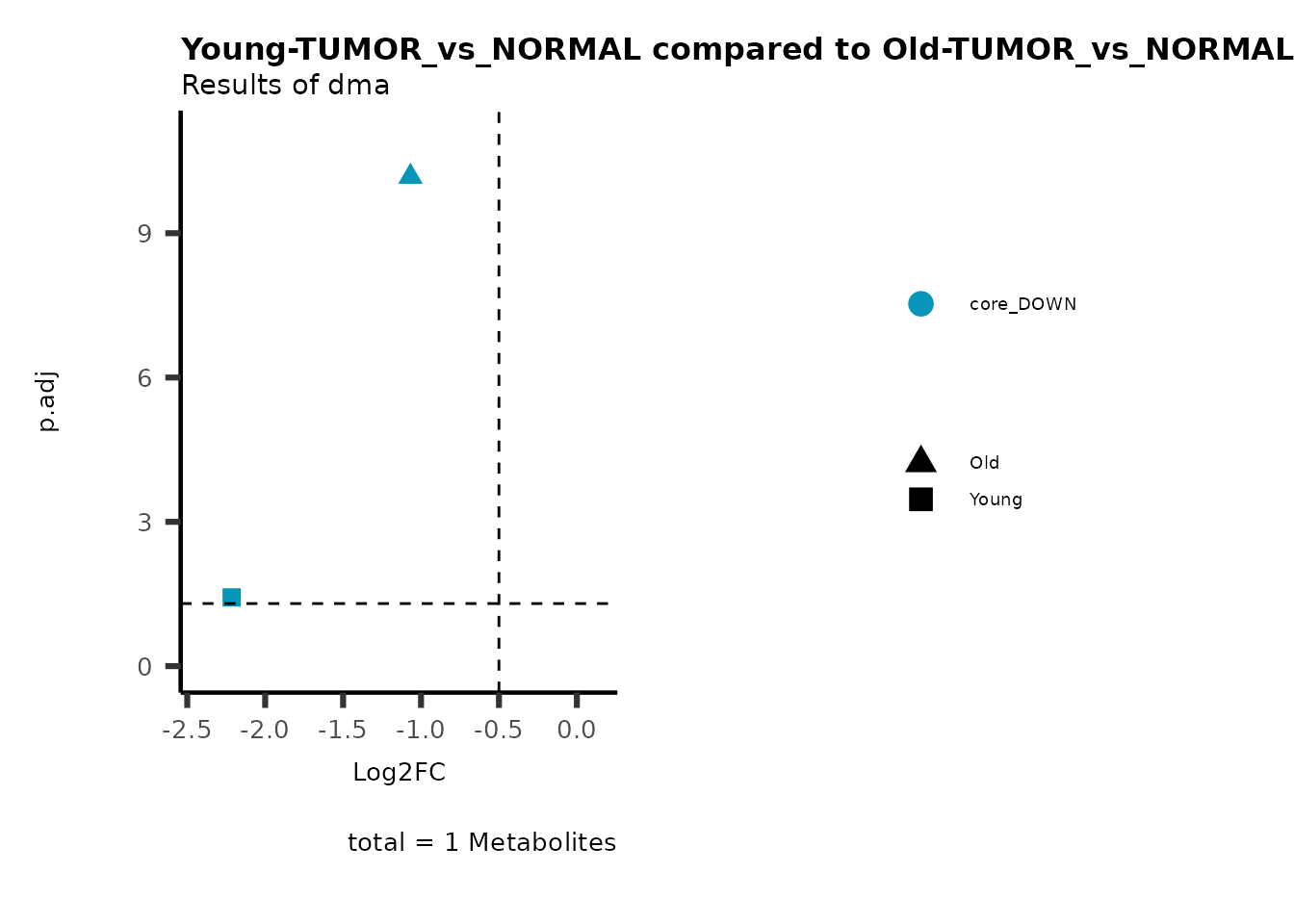

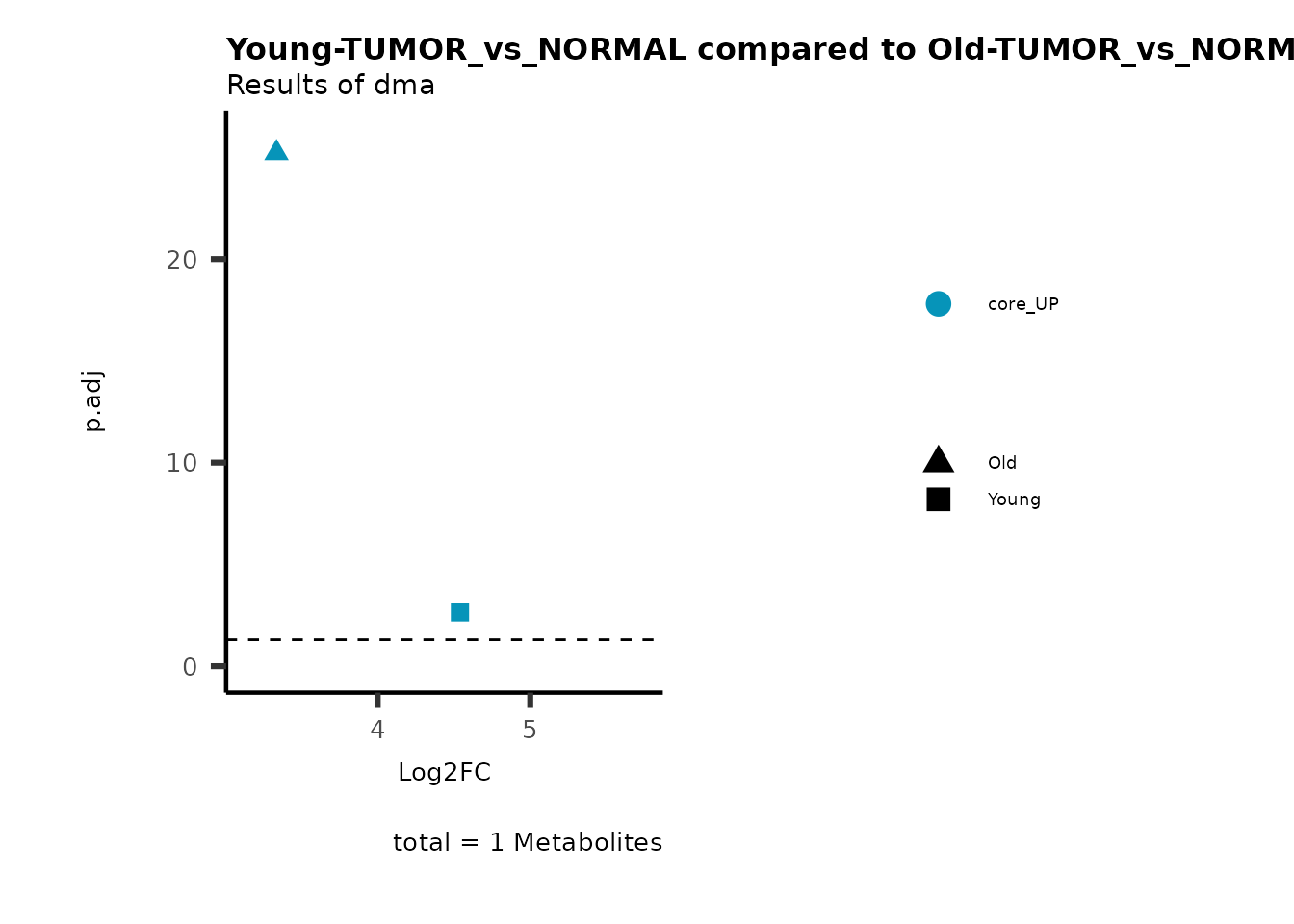

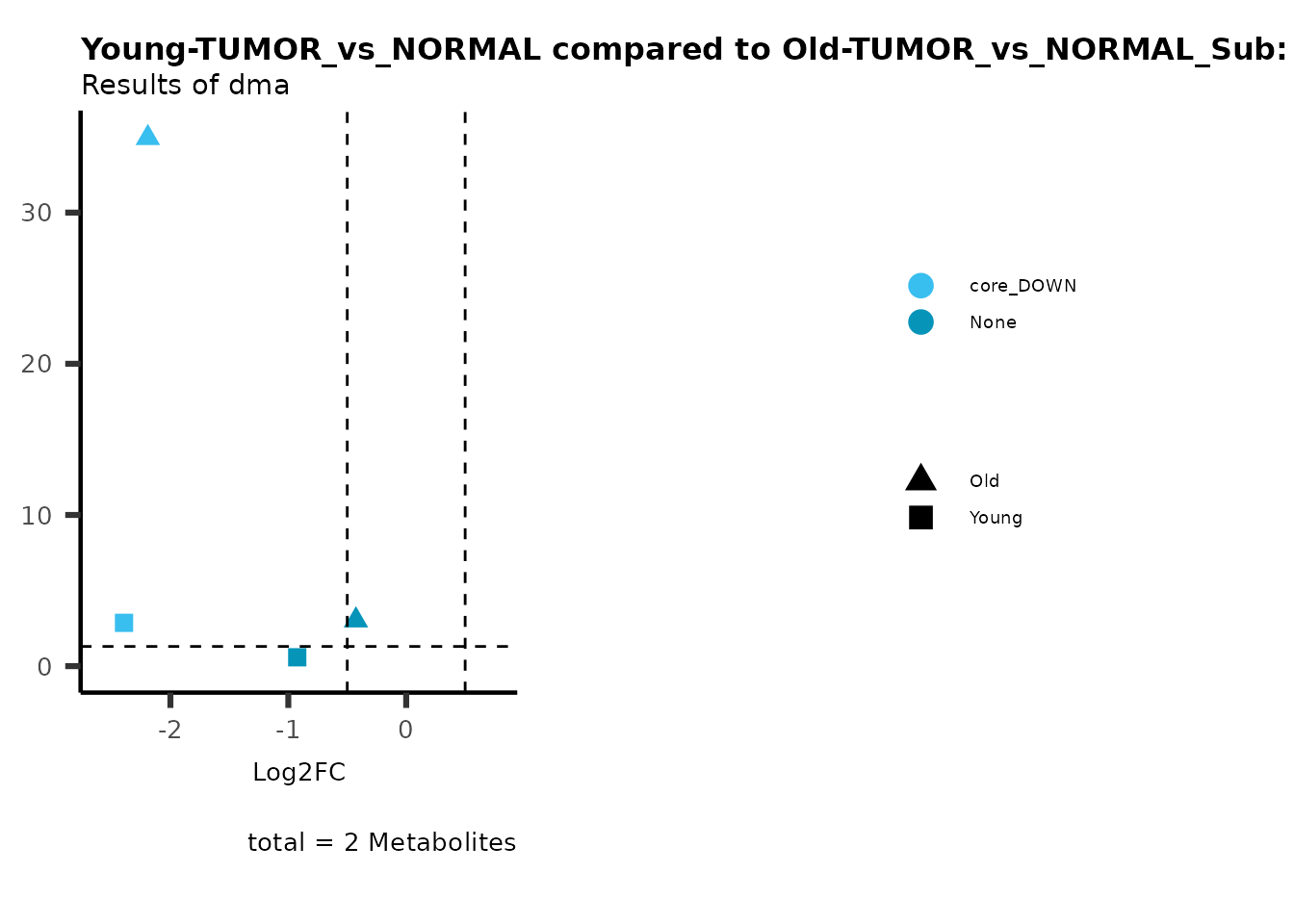

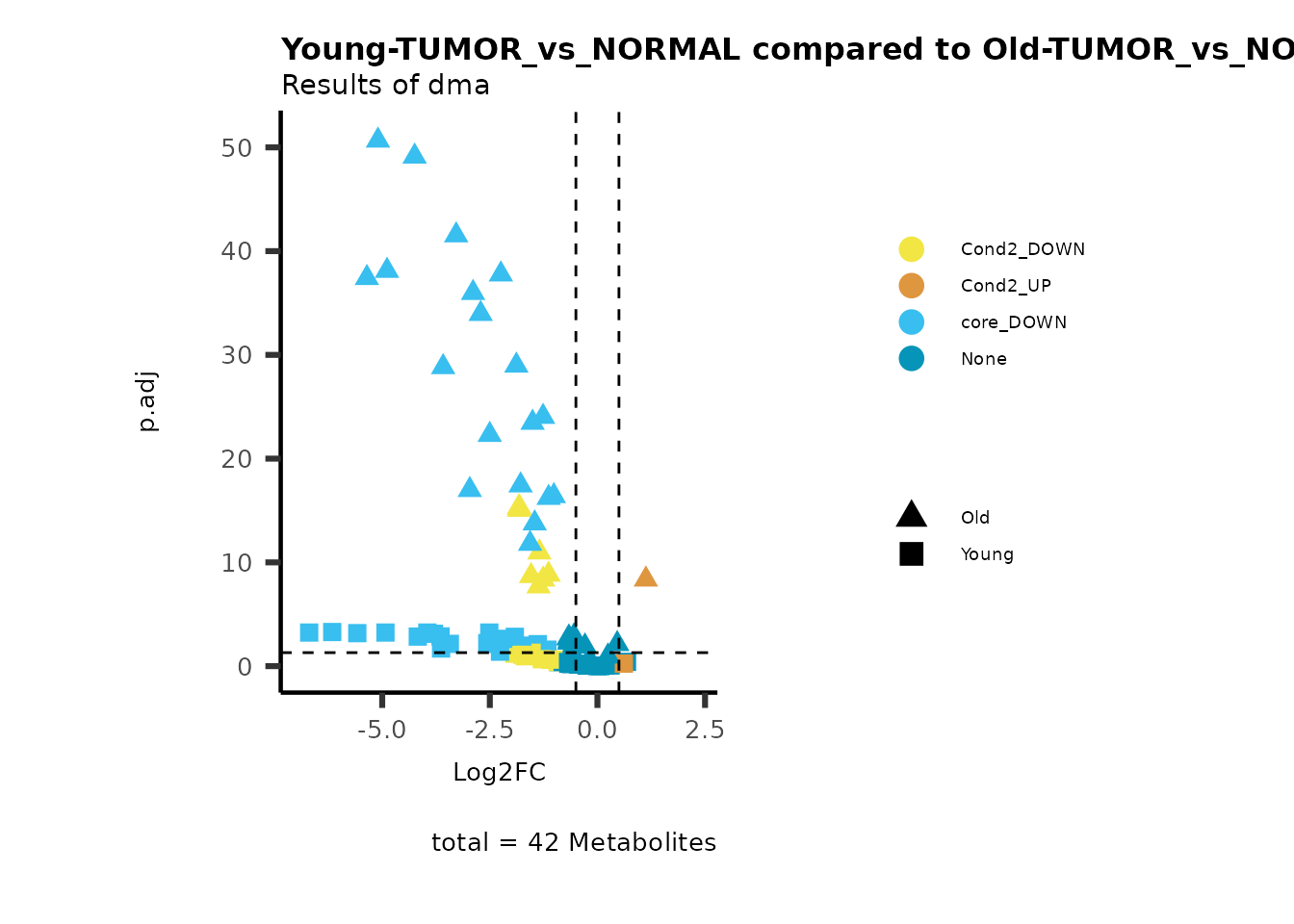

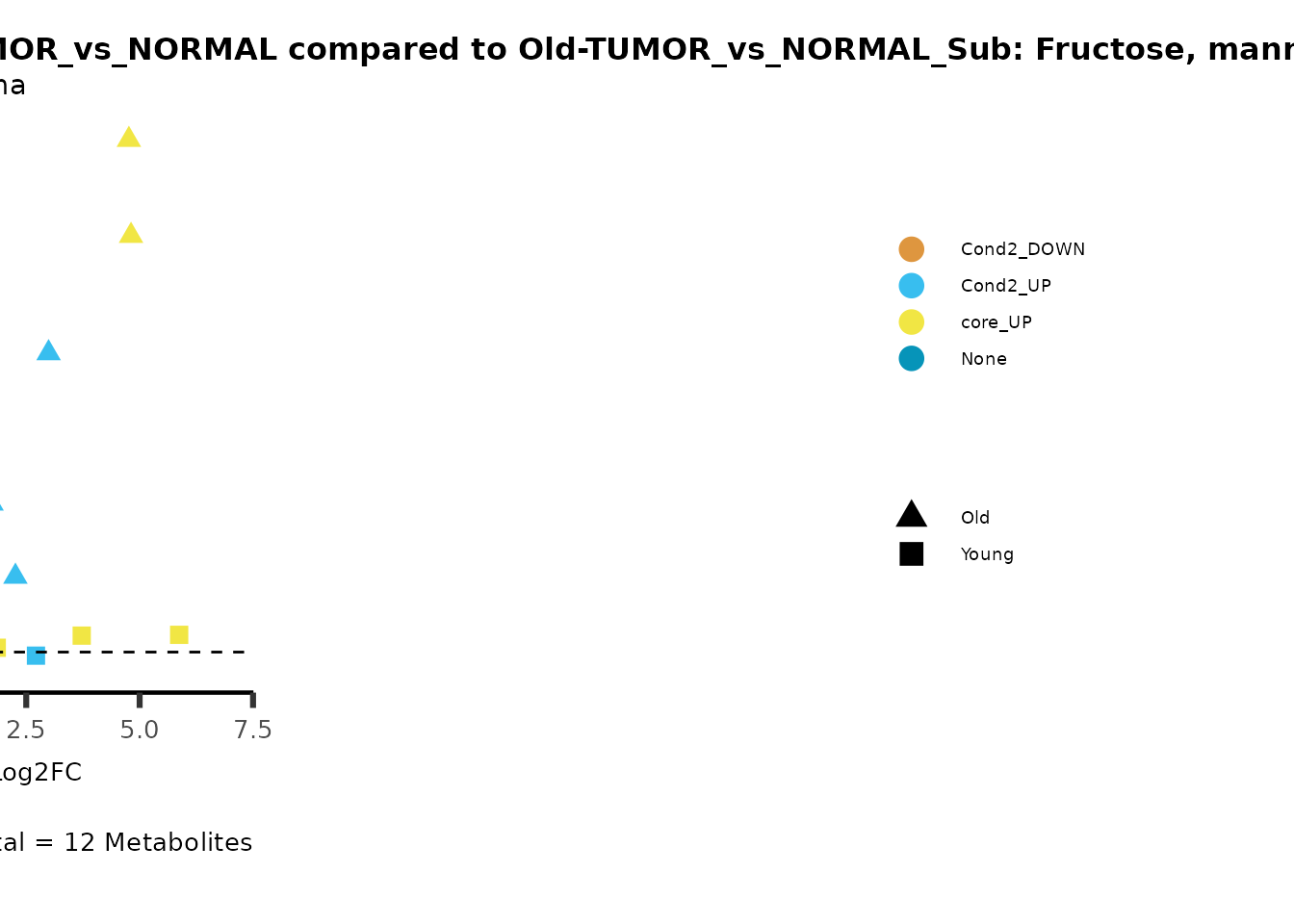

Here we can also use the MetaproViz::viz_volcano() function to plot comparisons together on the same plot, such as Tumour versus Normal of young and old patients:

# Early versus Late Stage
MetaProViz::viz_volcano(plot_types="Compare",
                       data=ResList[["EarlyStage"]][["dma"]][["TUMOR_vs_NORMAL"]]%>%tibble::column_to_rownames("Metabolite"),
                       data2= ResList[["LateStage"]][["dma"]][["TUMOR_vs_NORMAL"]]%>%tibble::column_to_rownames("Metabolite"),
                       name_comparison= c(data="EarlyStage", data2= "LateStage"),
                       plot_name= "EarlyStage-TUMOR_vs_NORMAL compared to LateStage-TUMOR_vs_NORMAL",
                       subtitle= "Results of dma" )

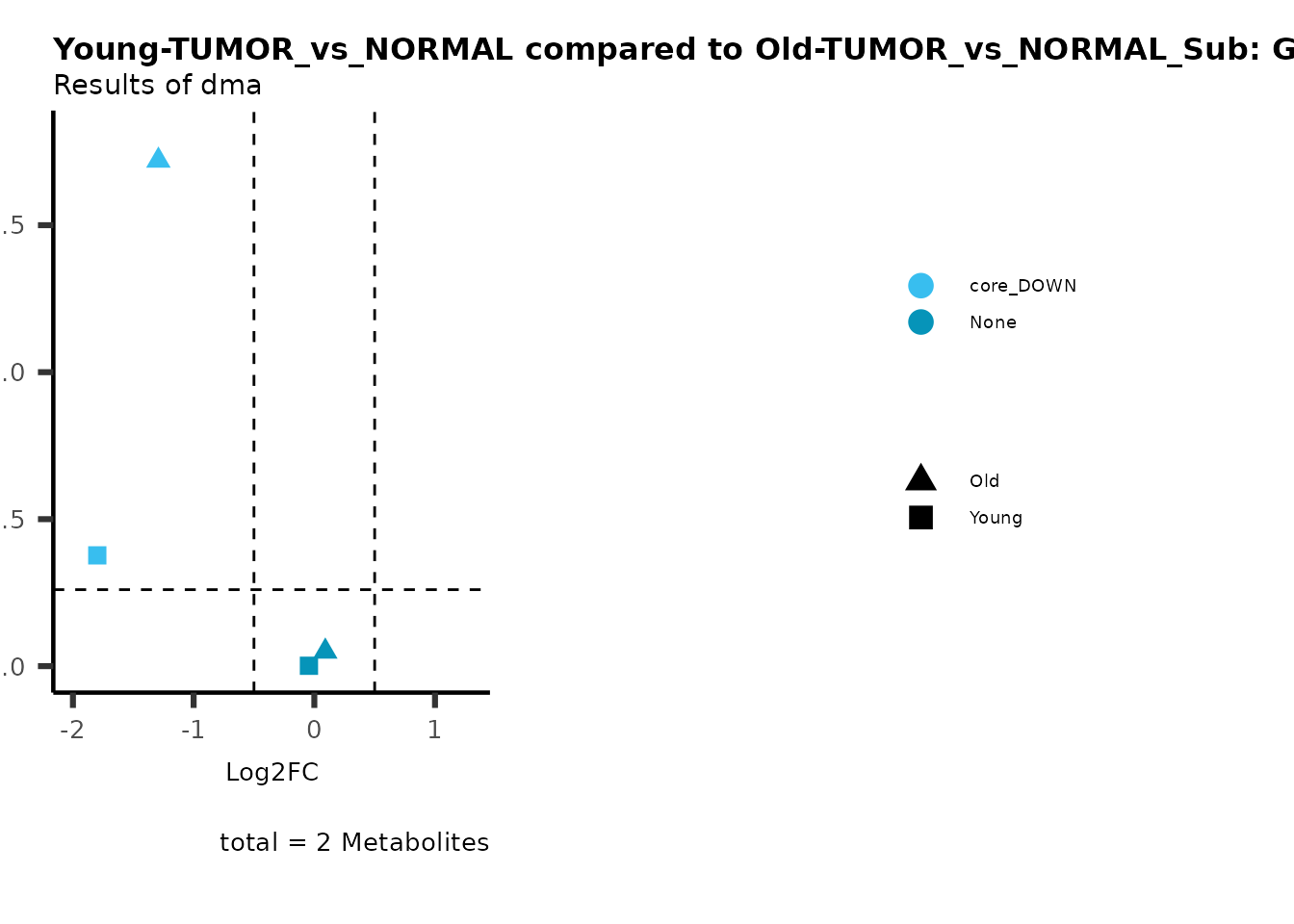

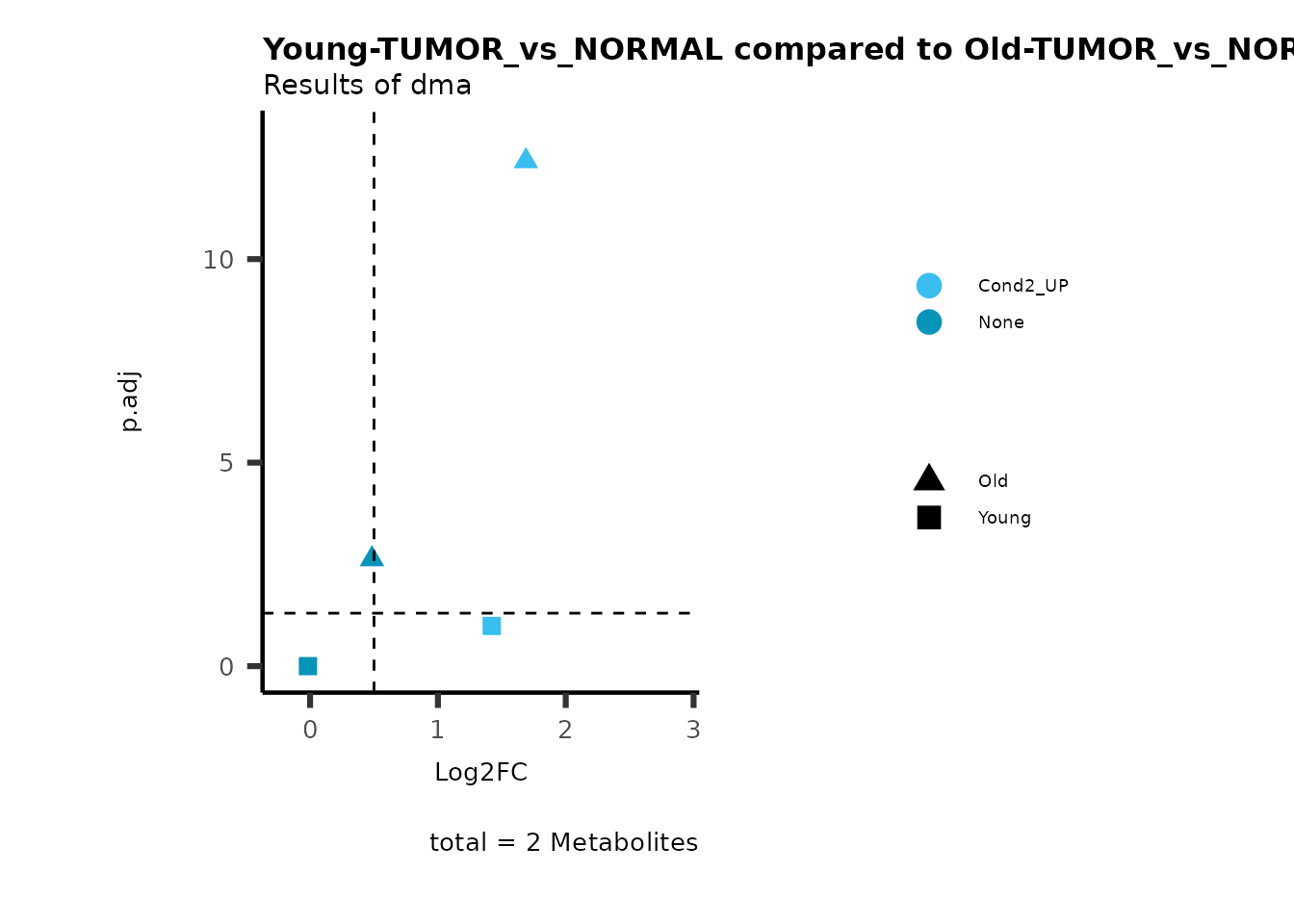

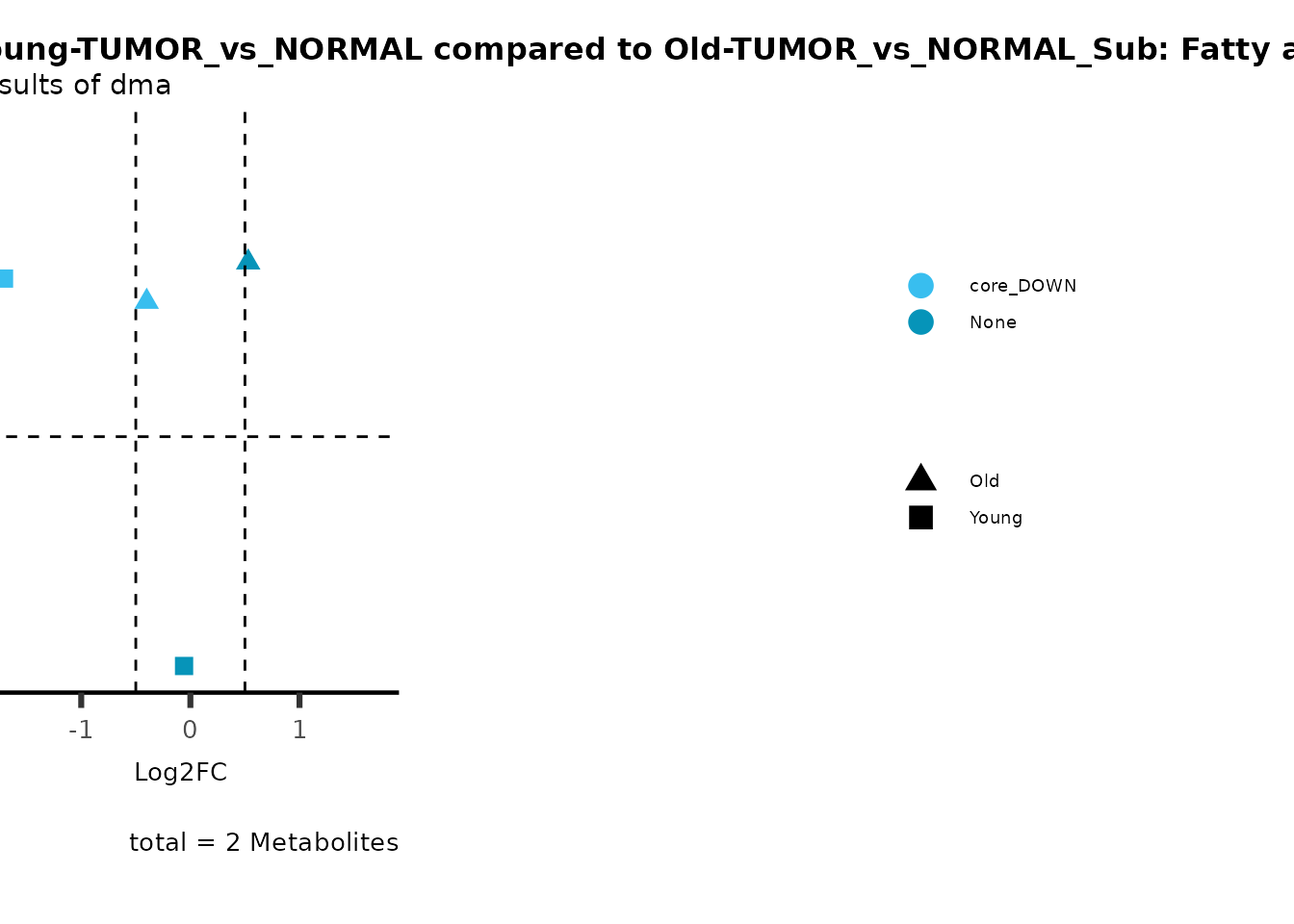

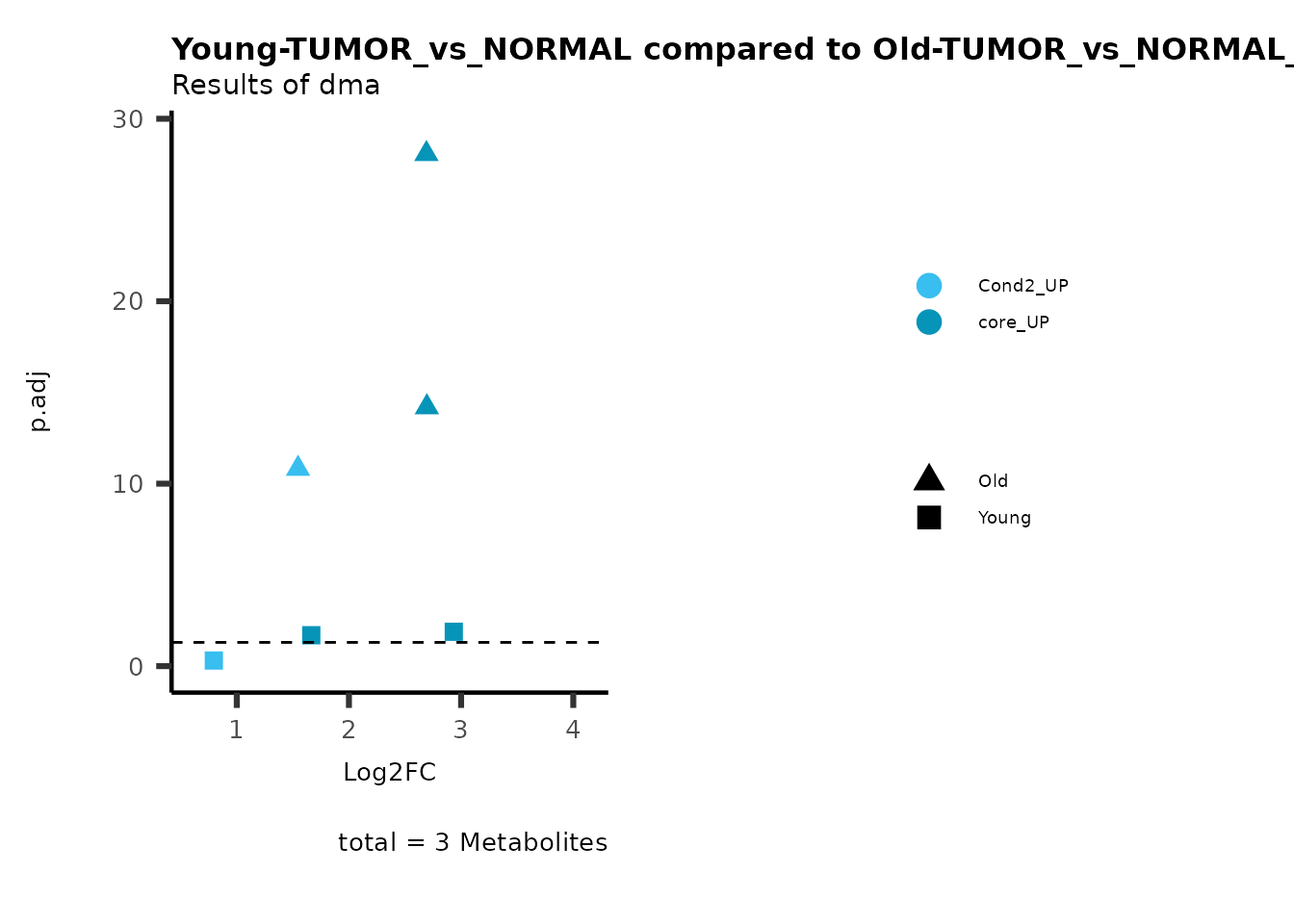

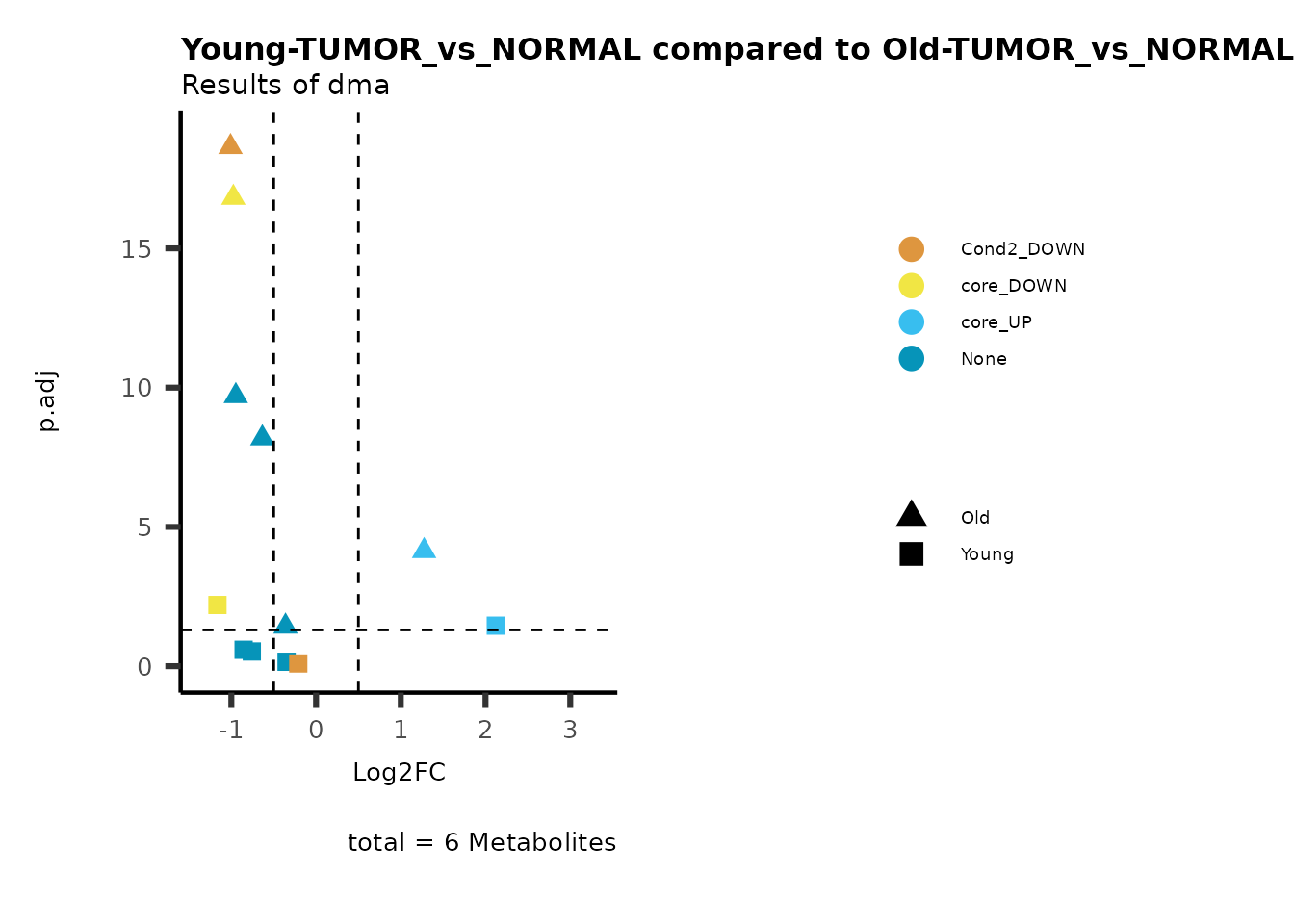

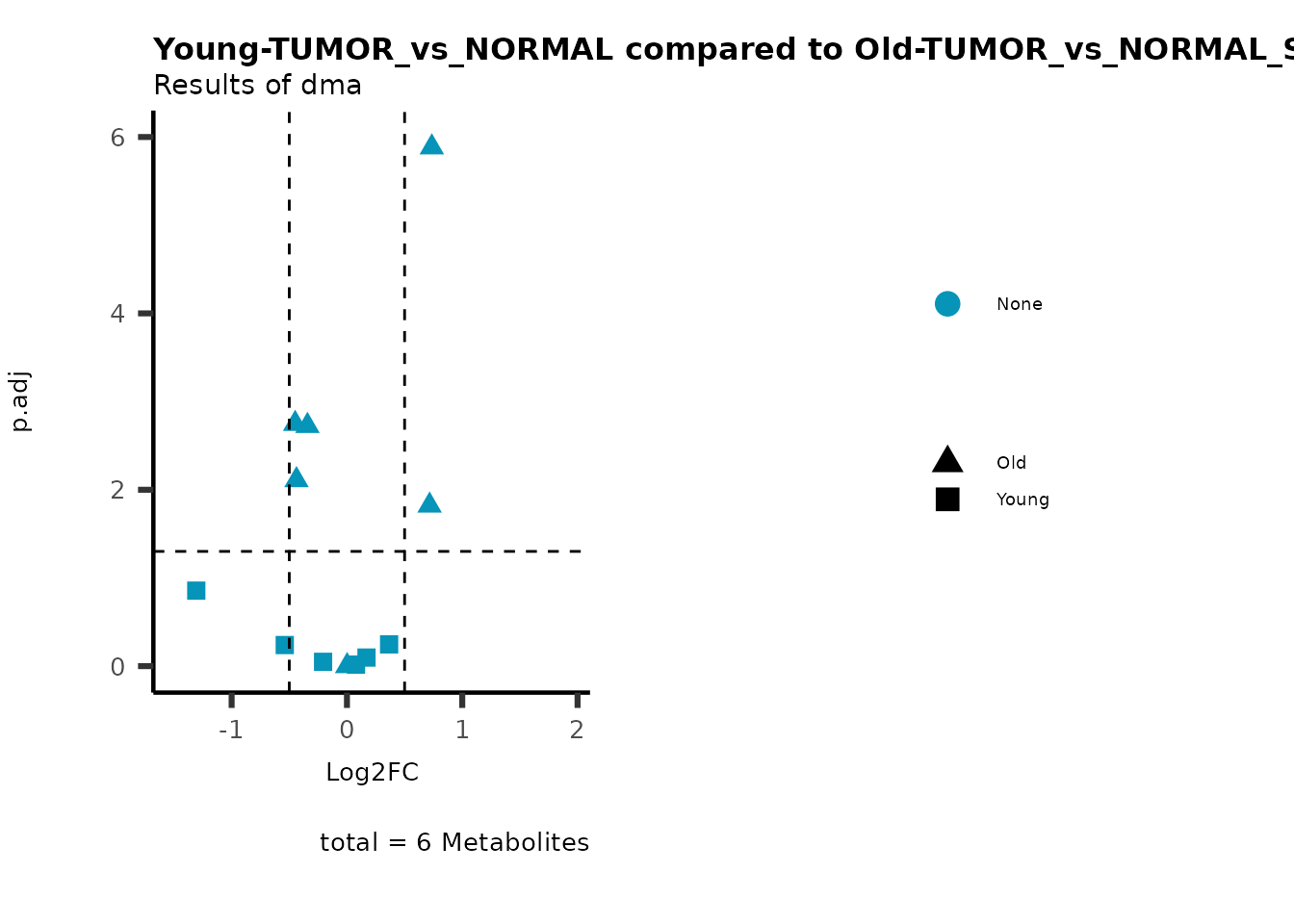

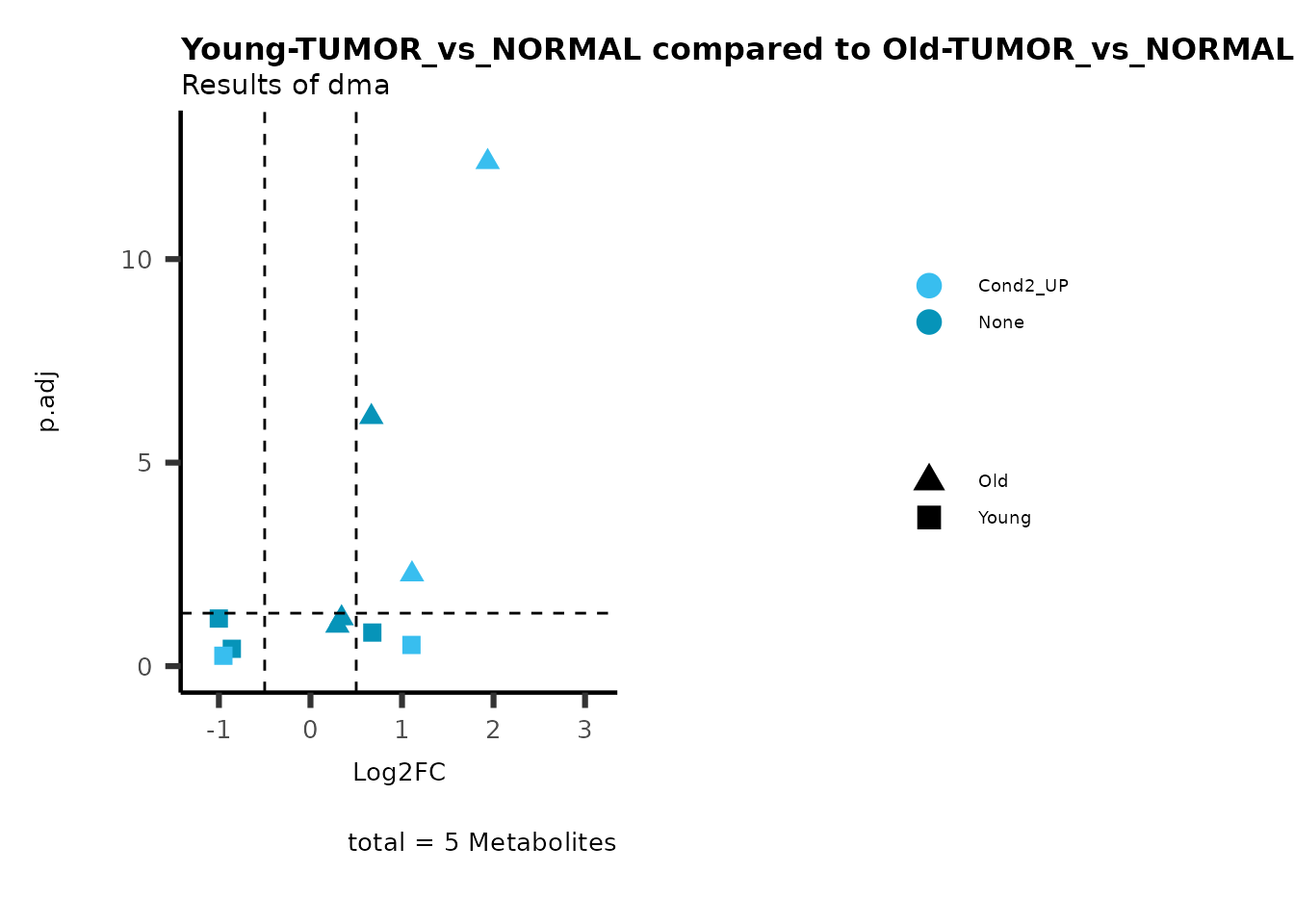

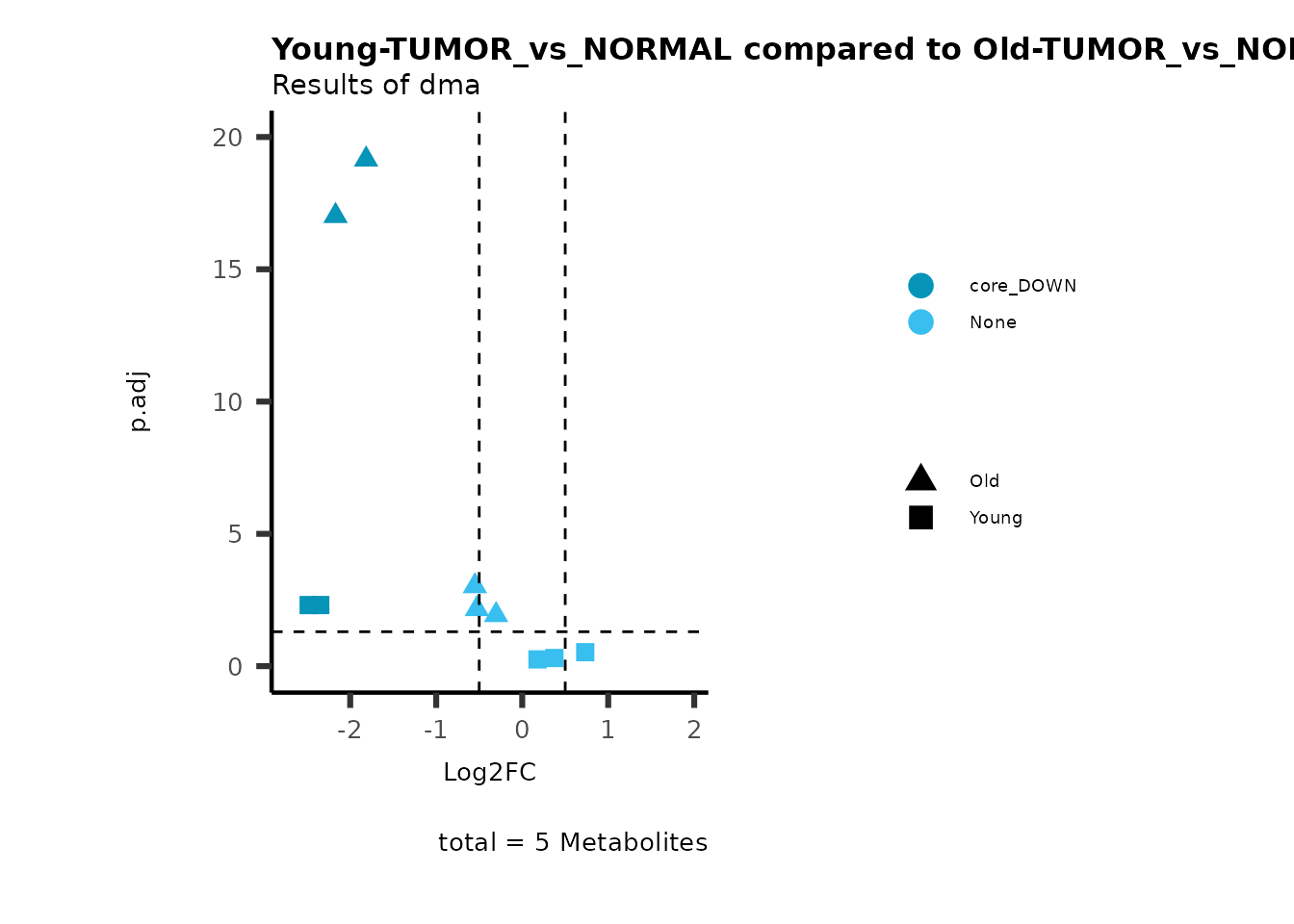

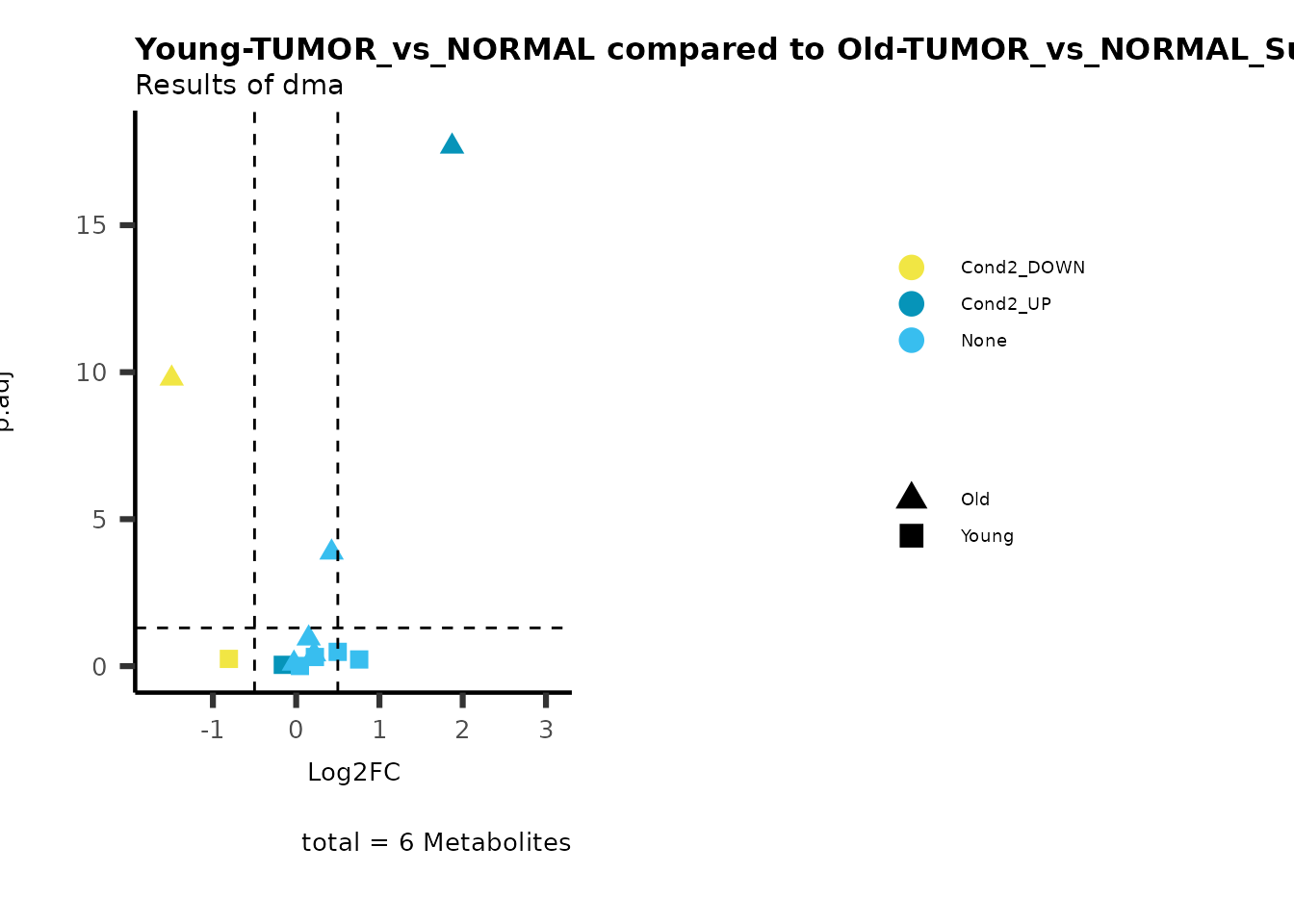

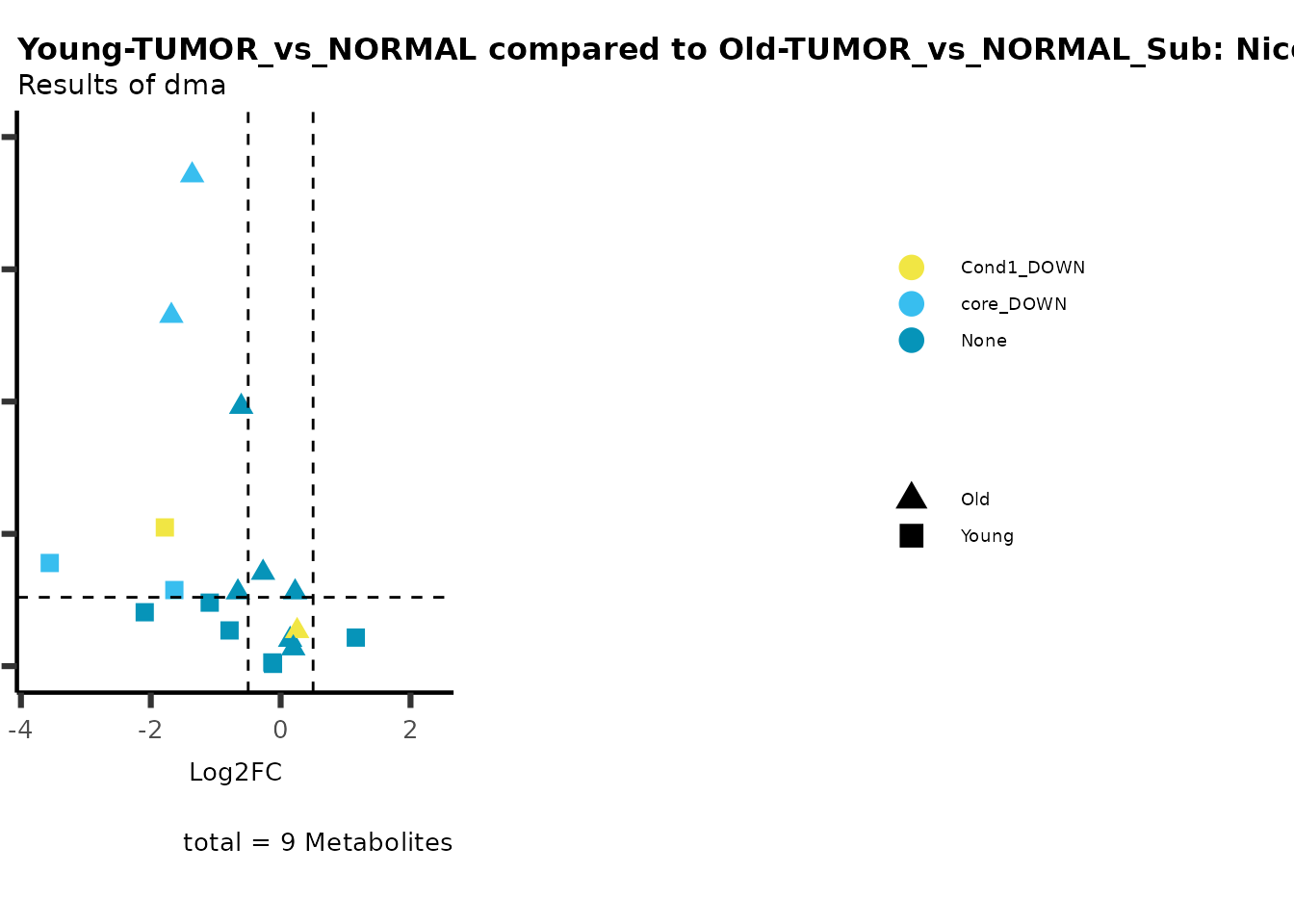

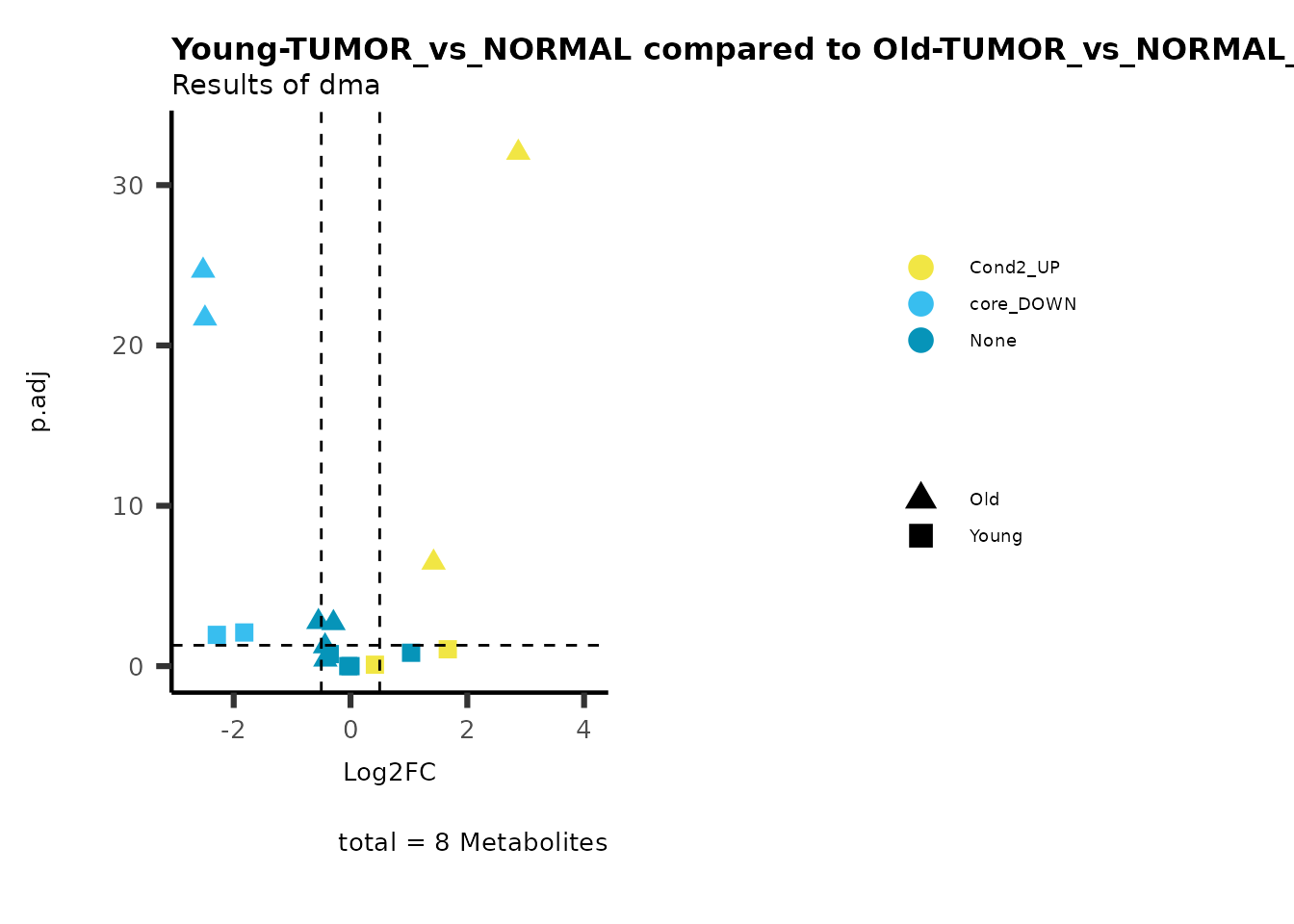

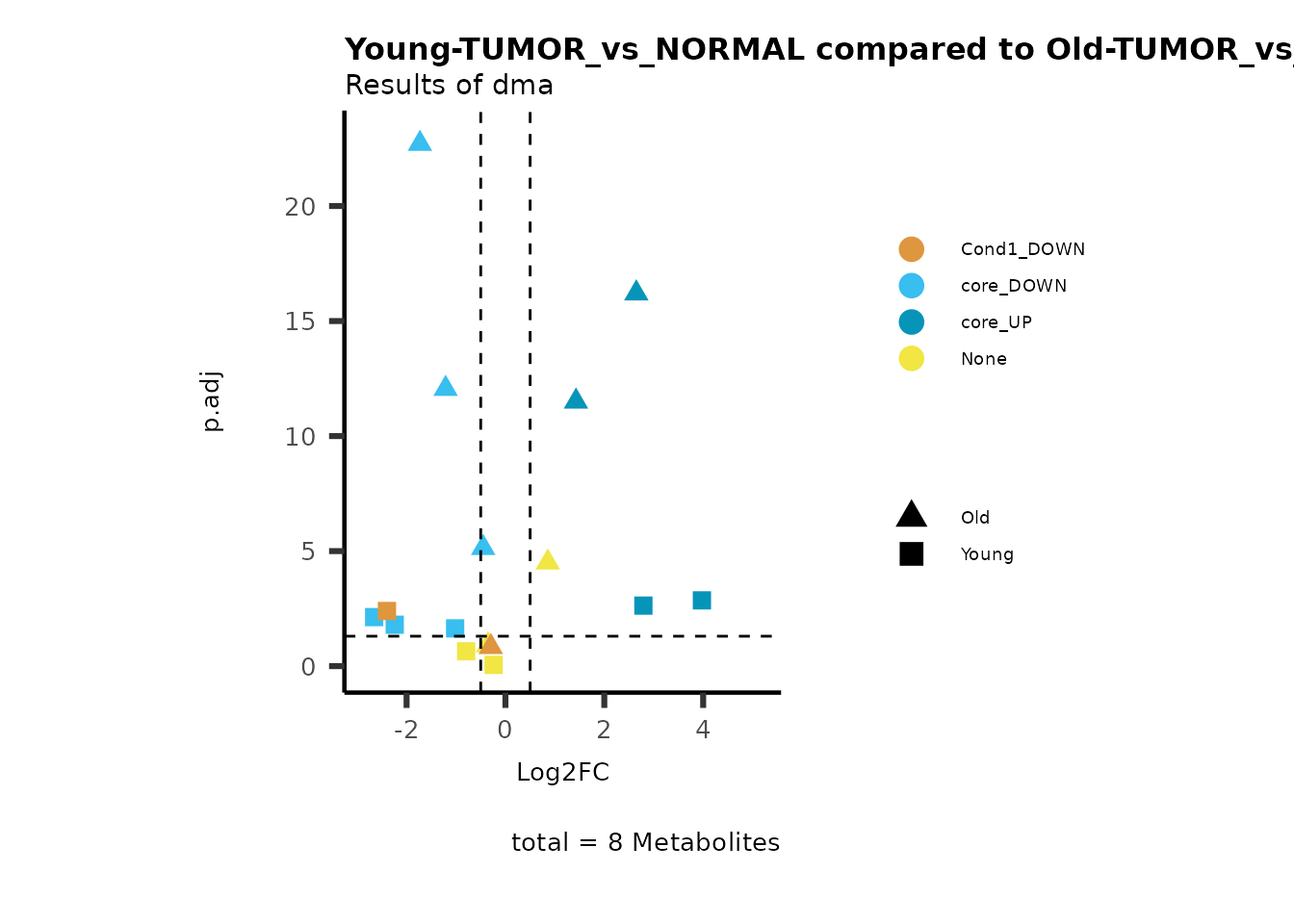

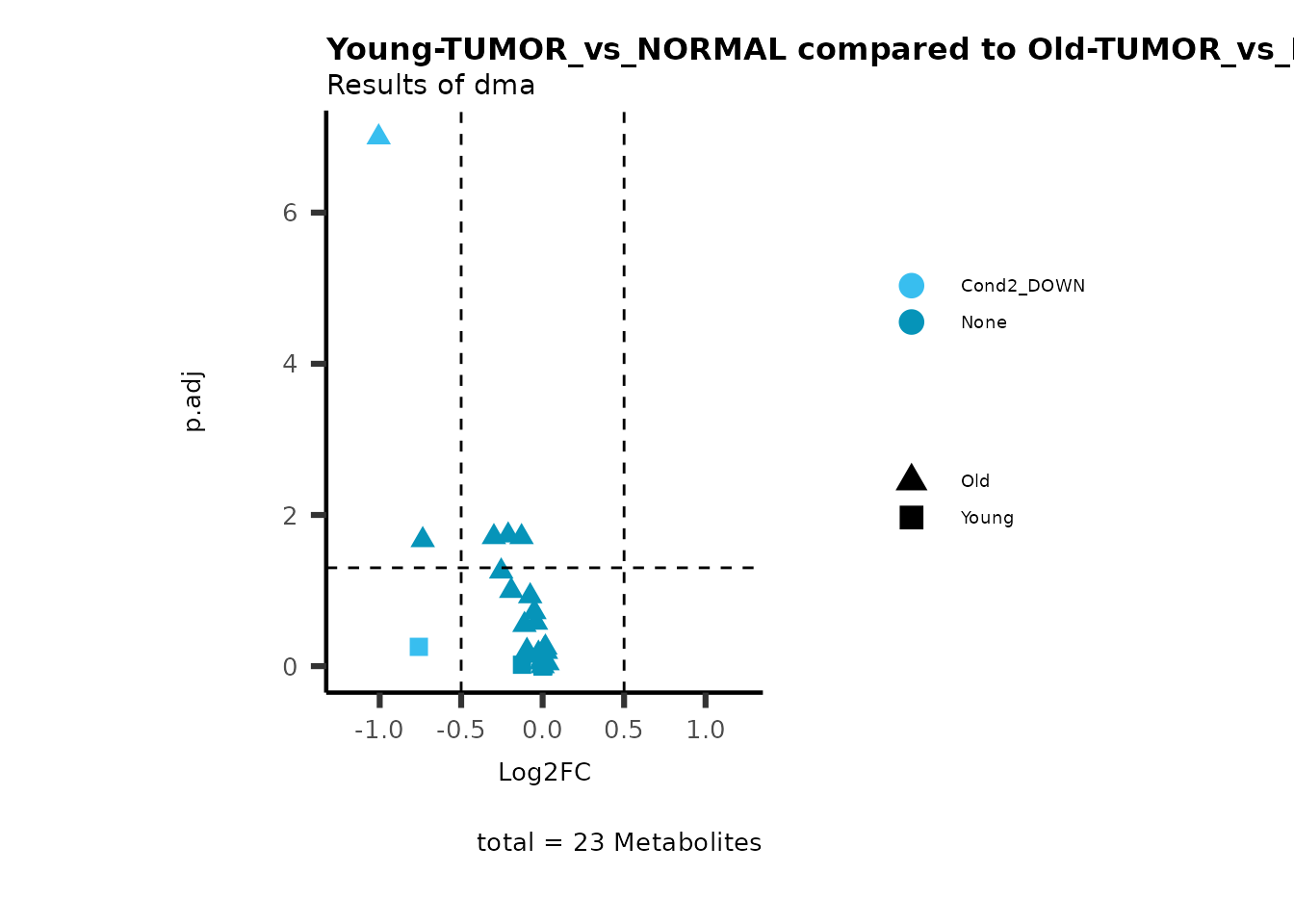

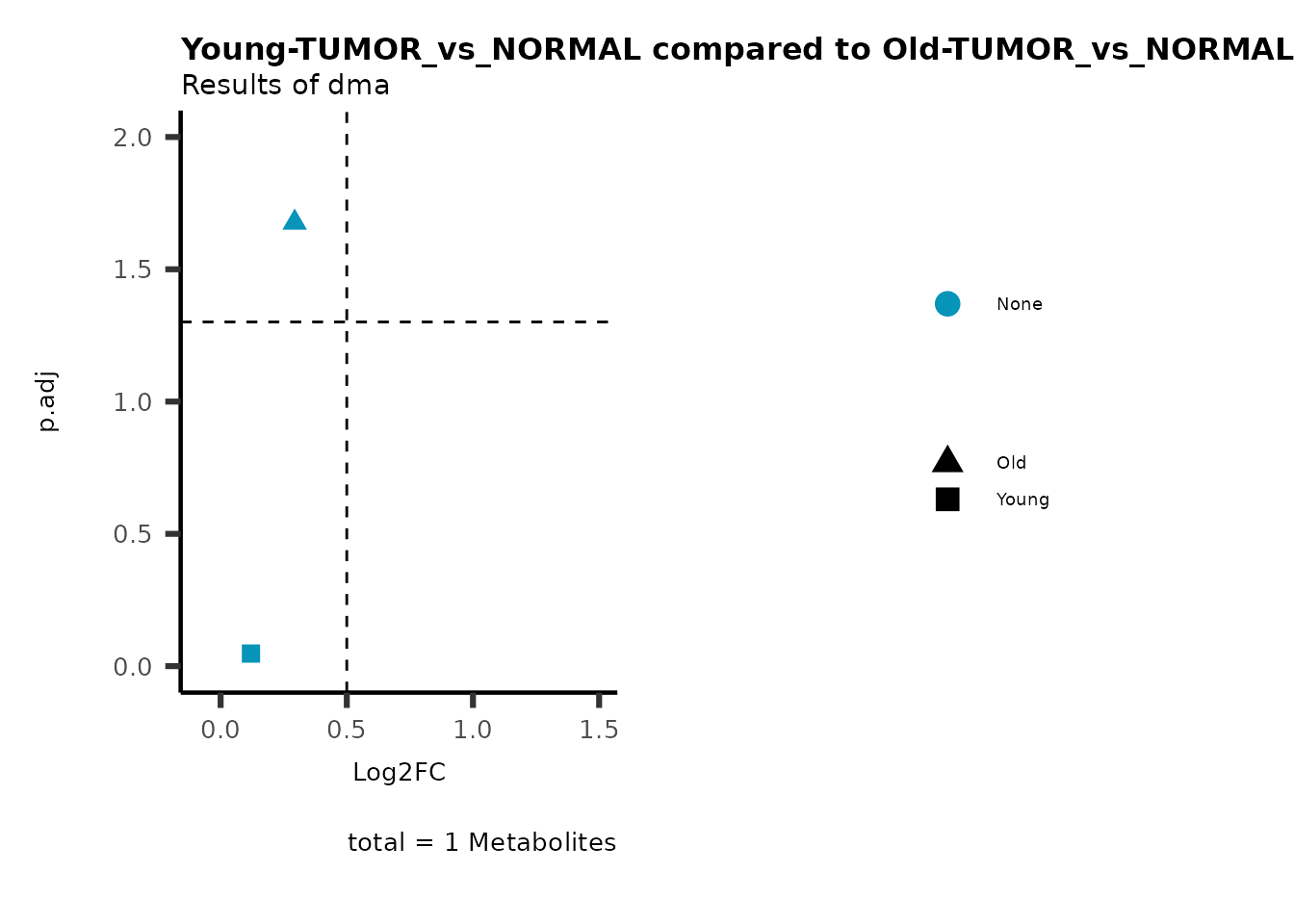

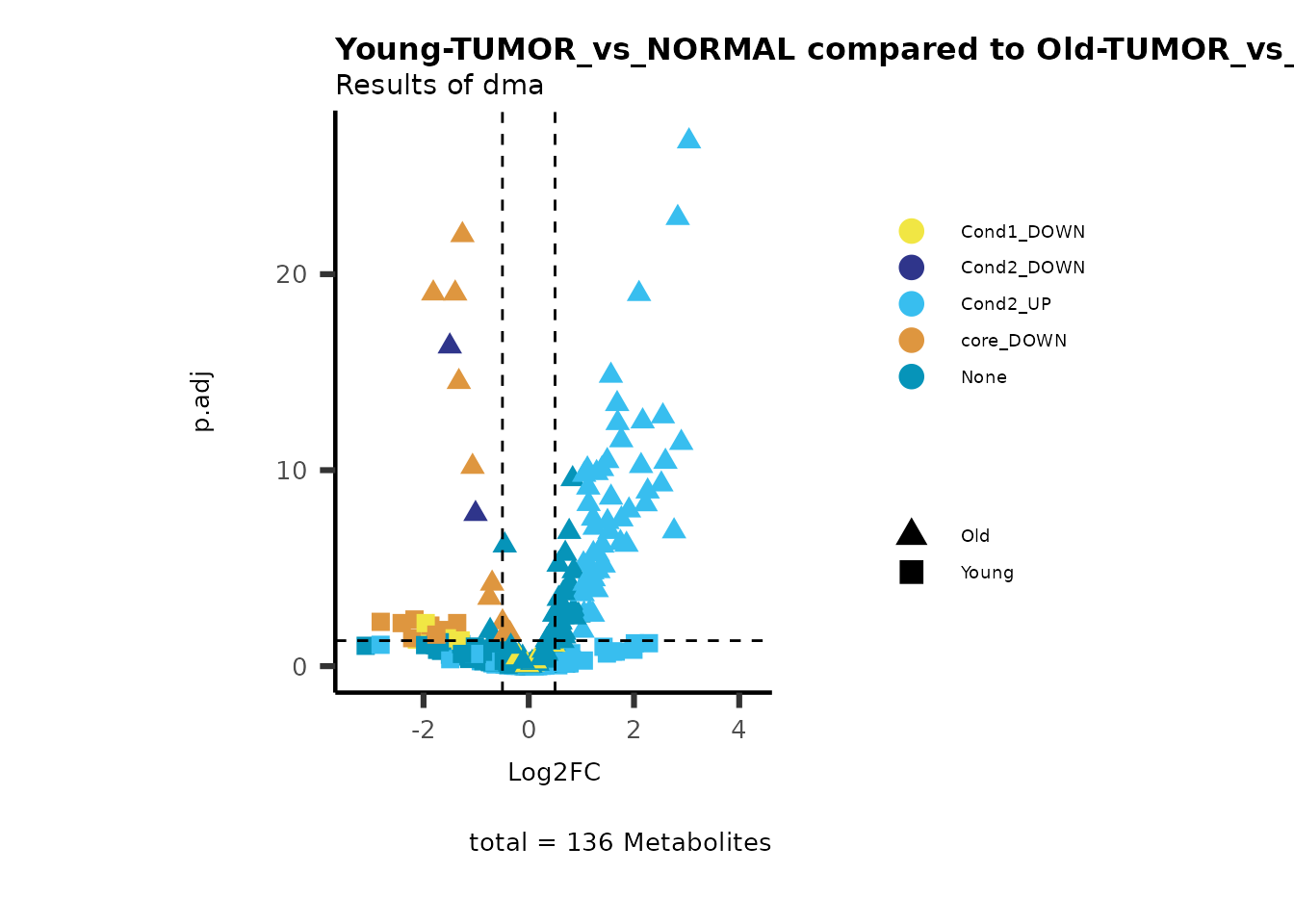

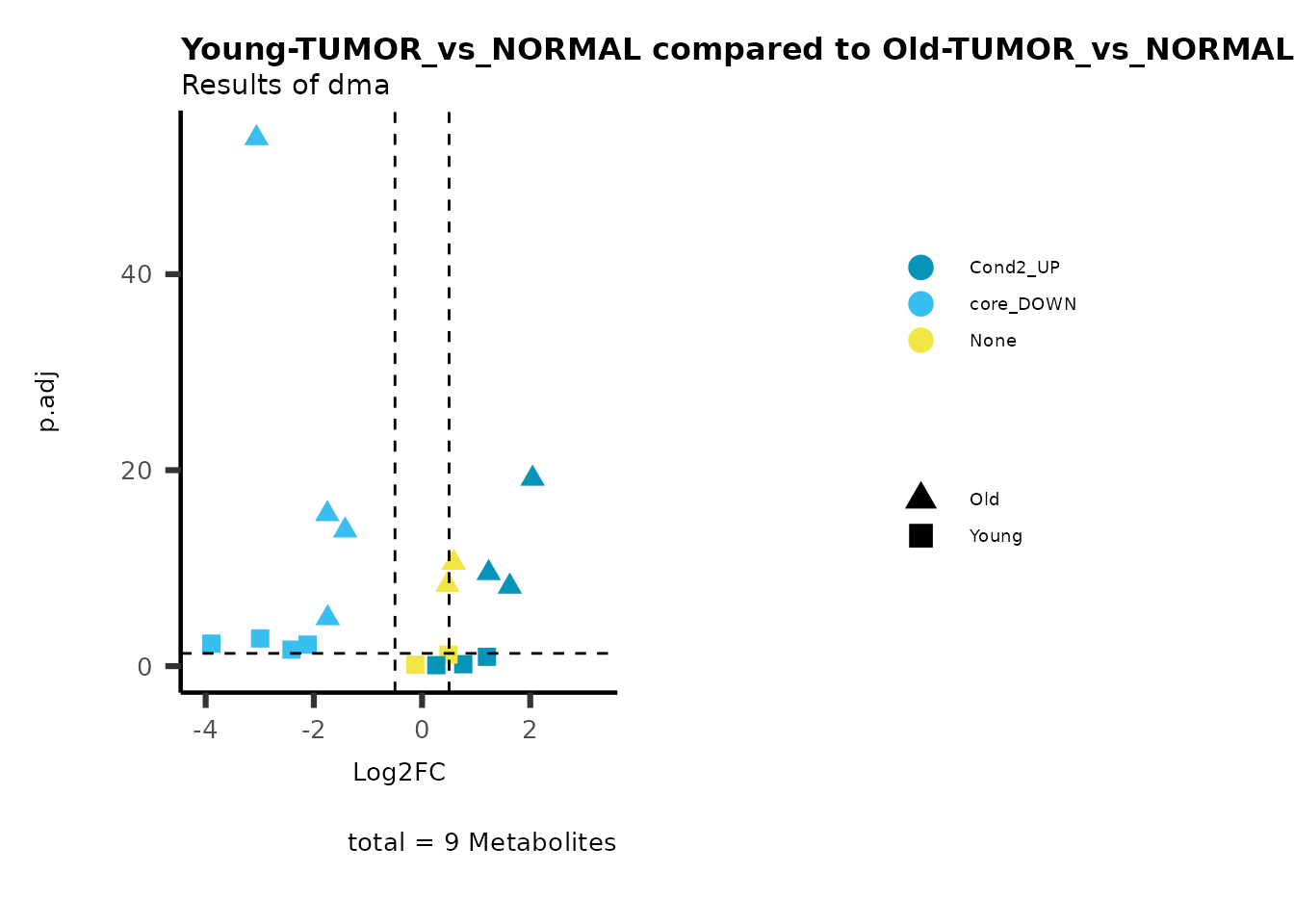

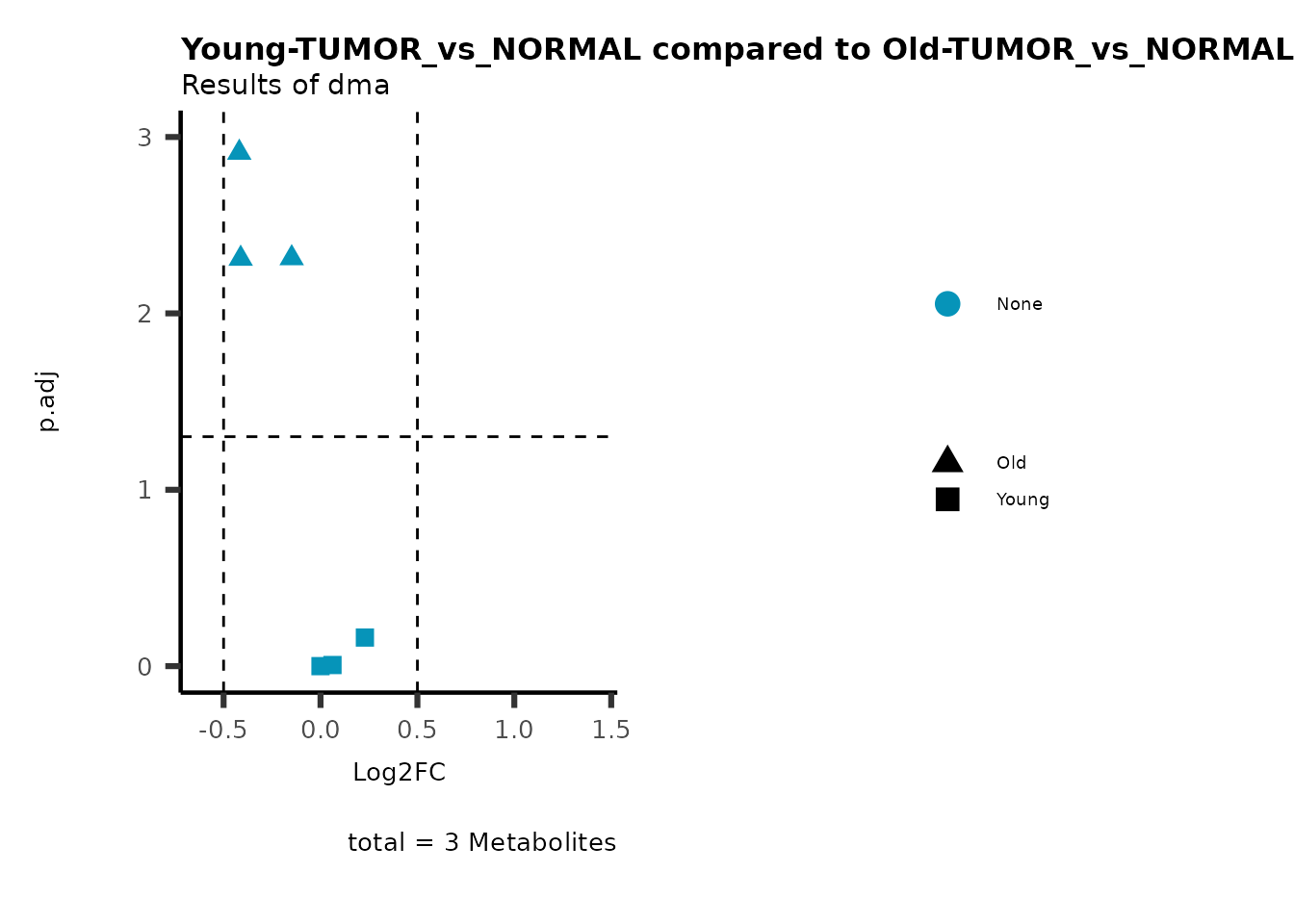

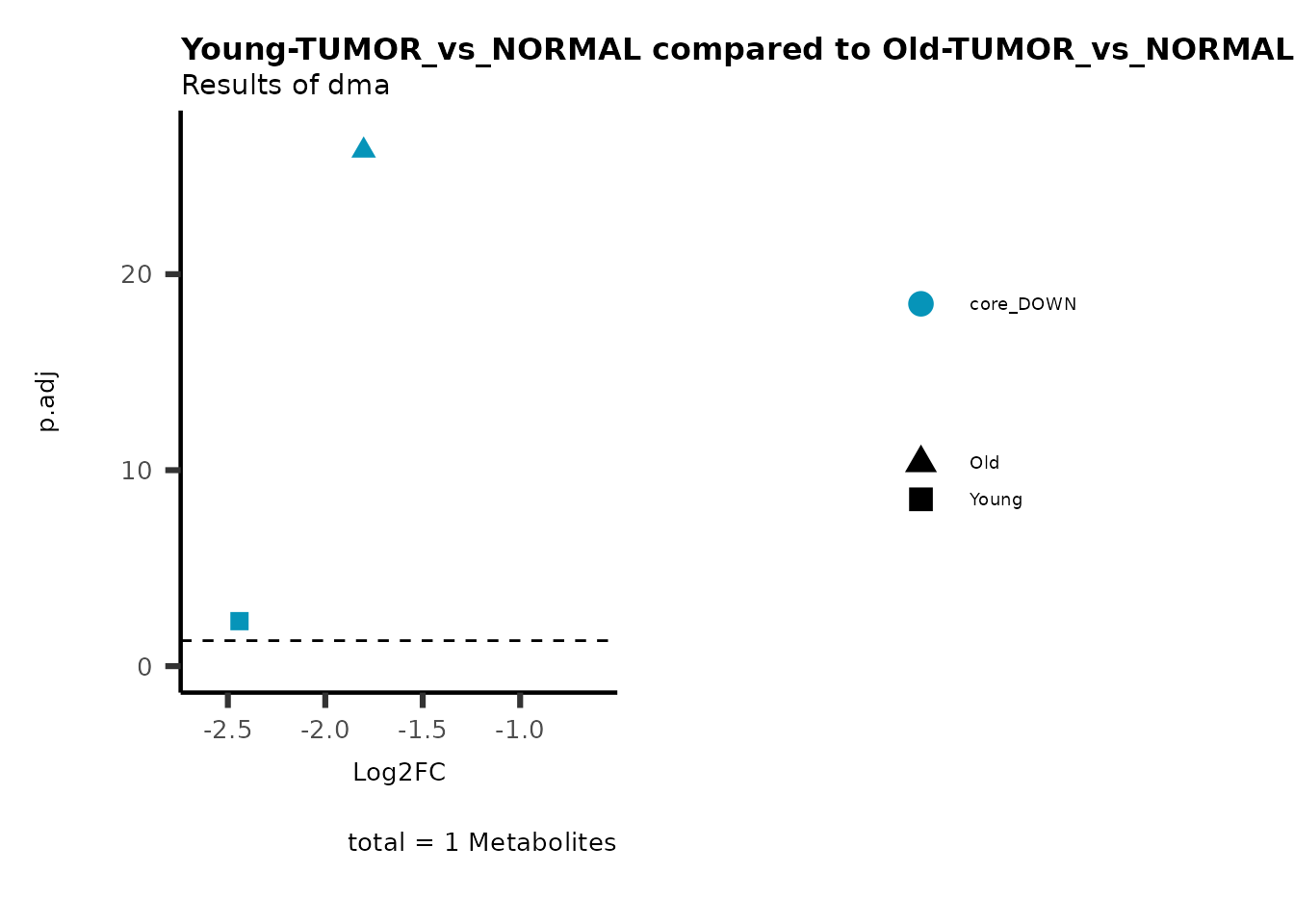

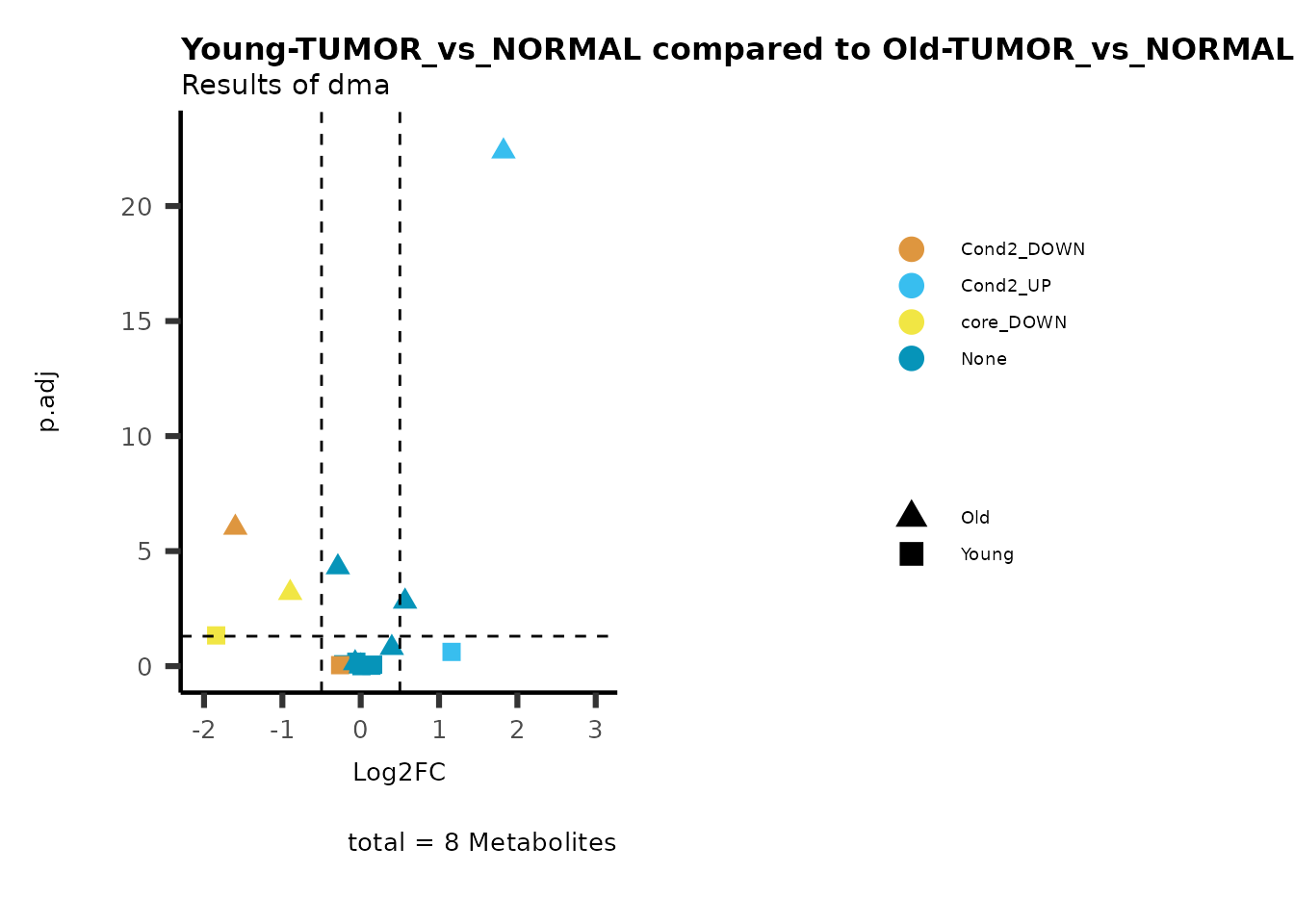

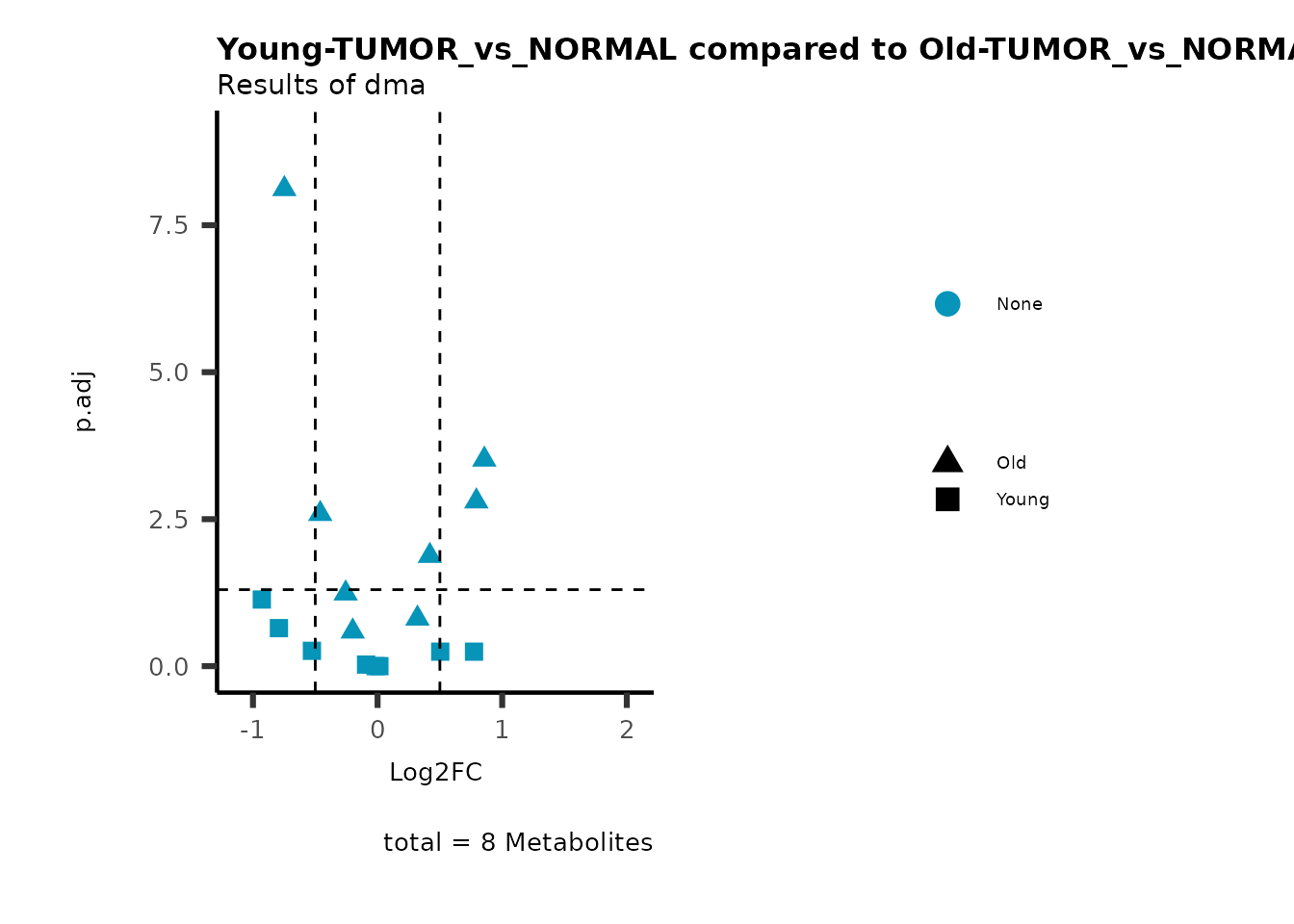

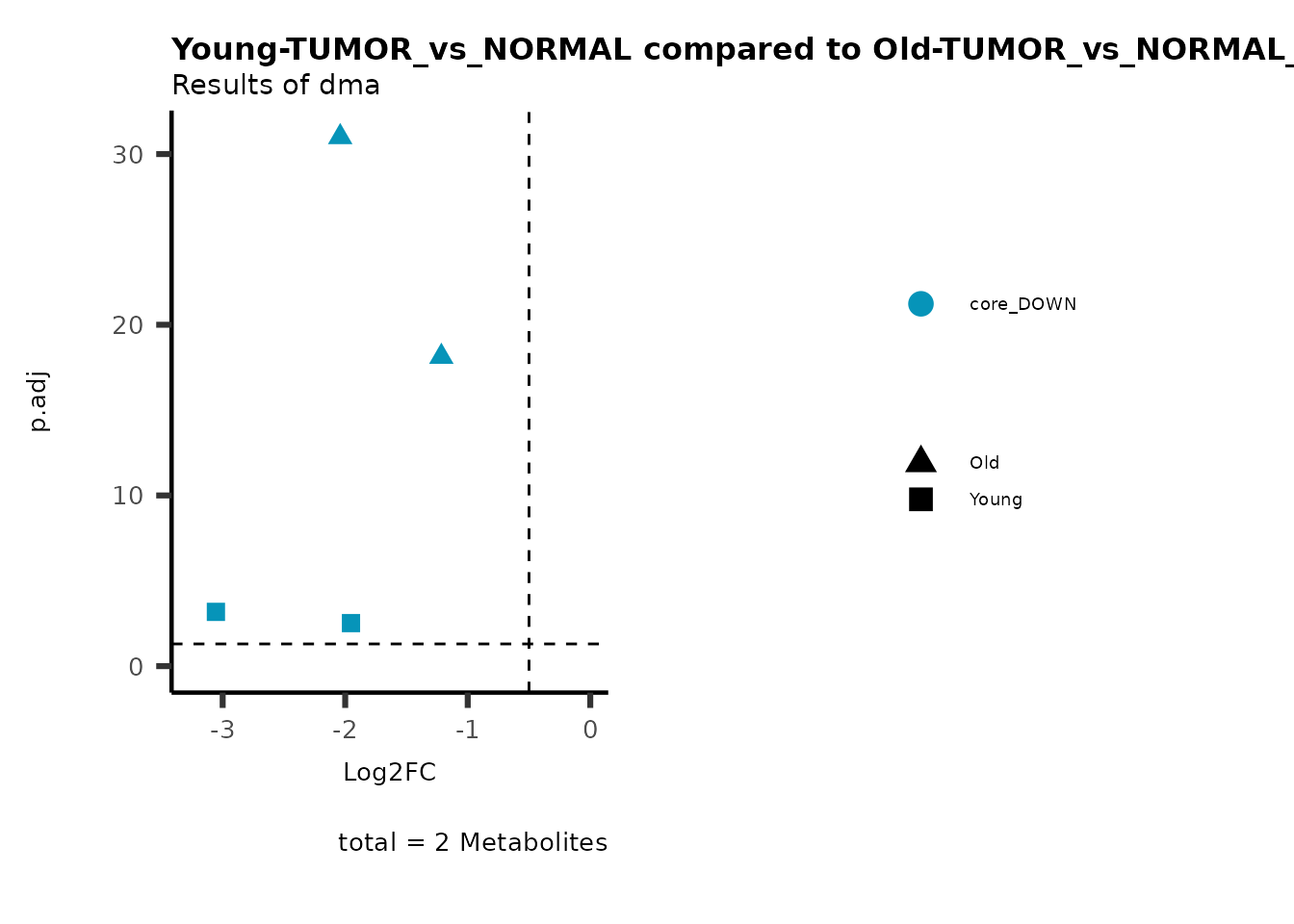

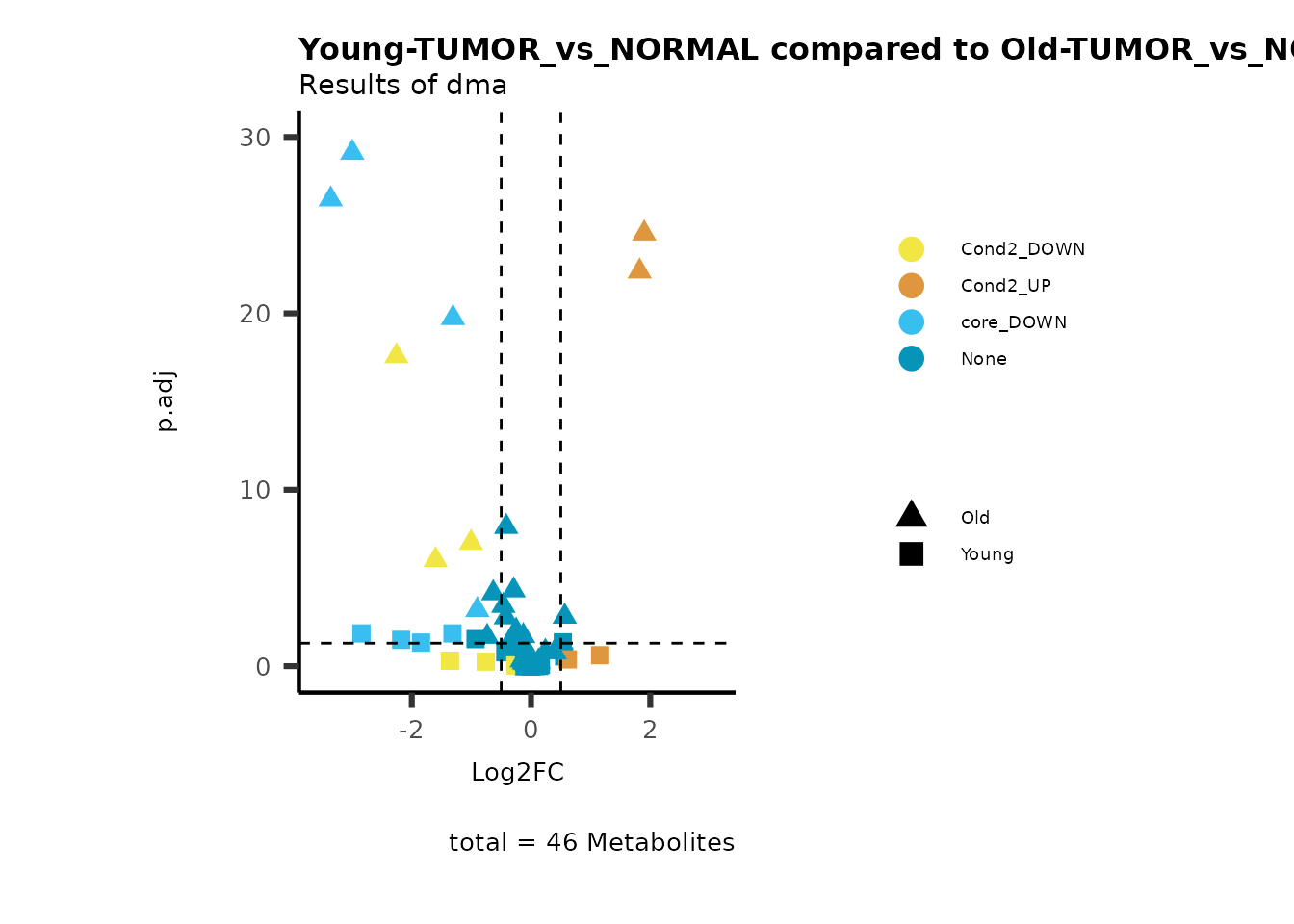

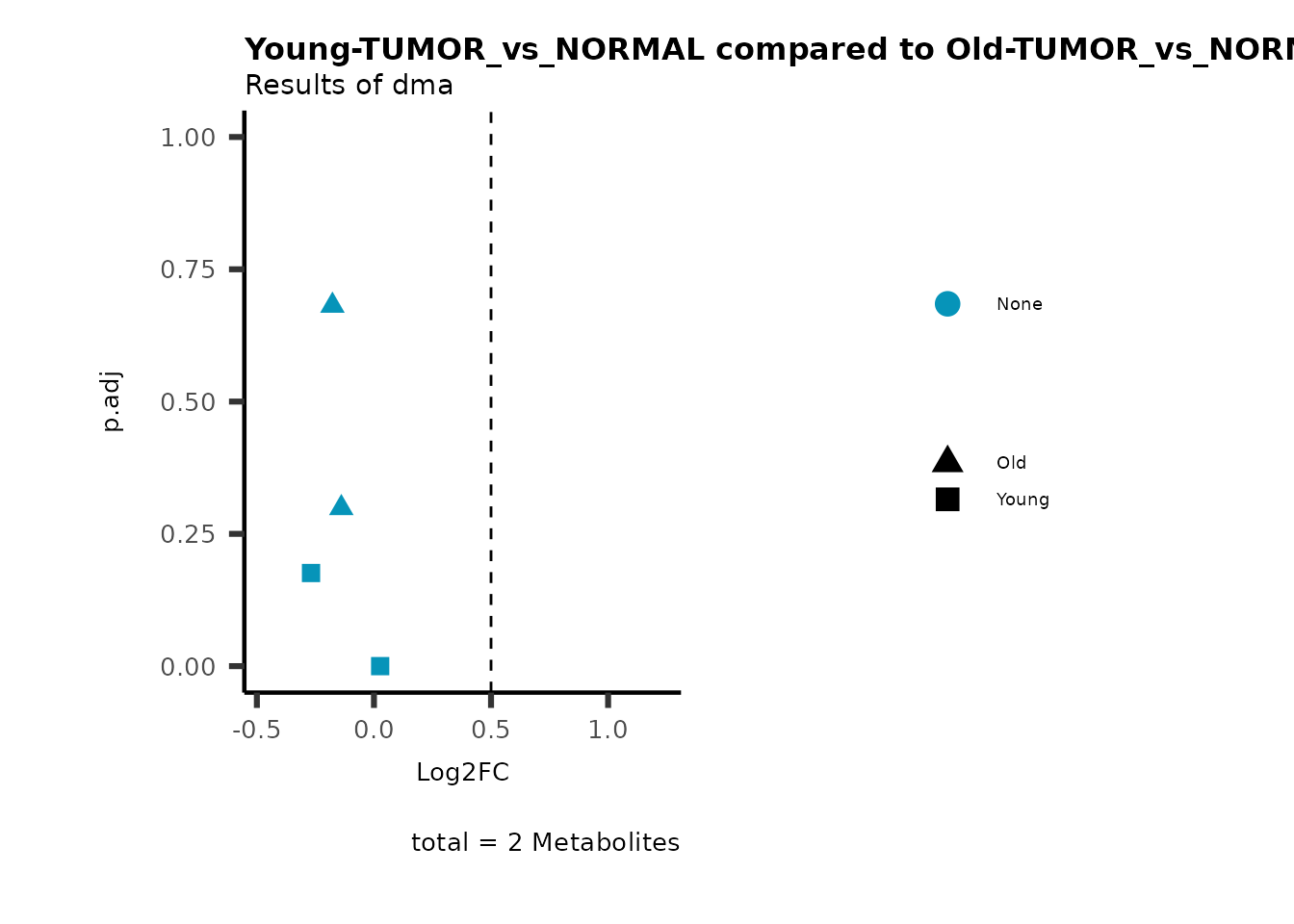

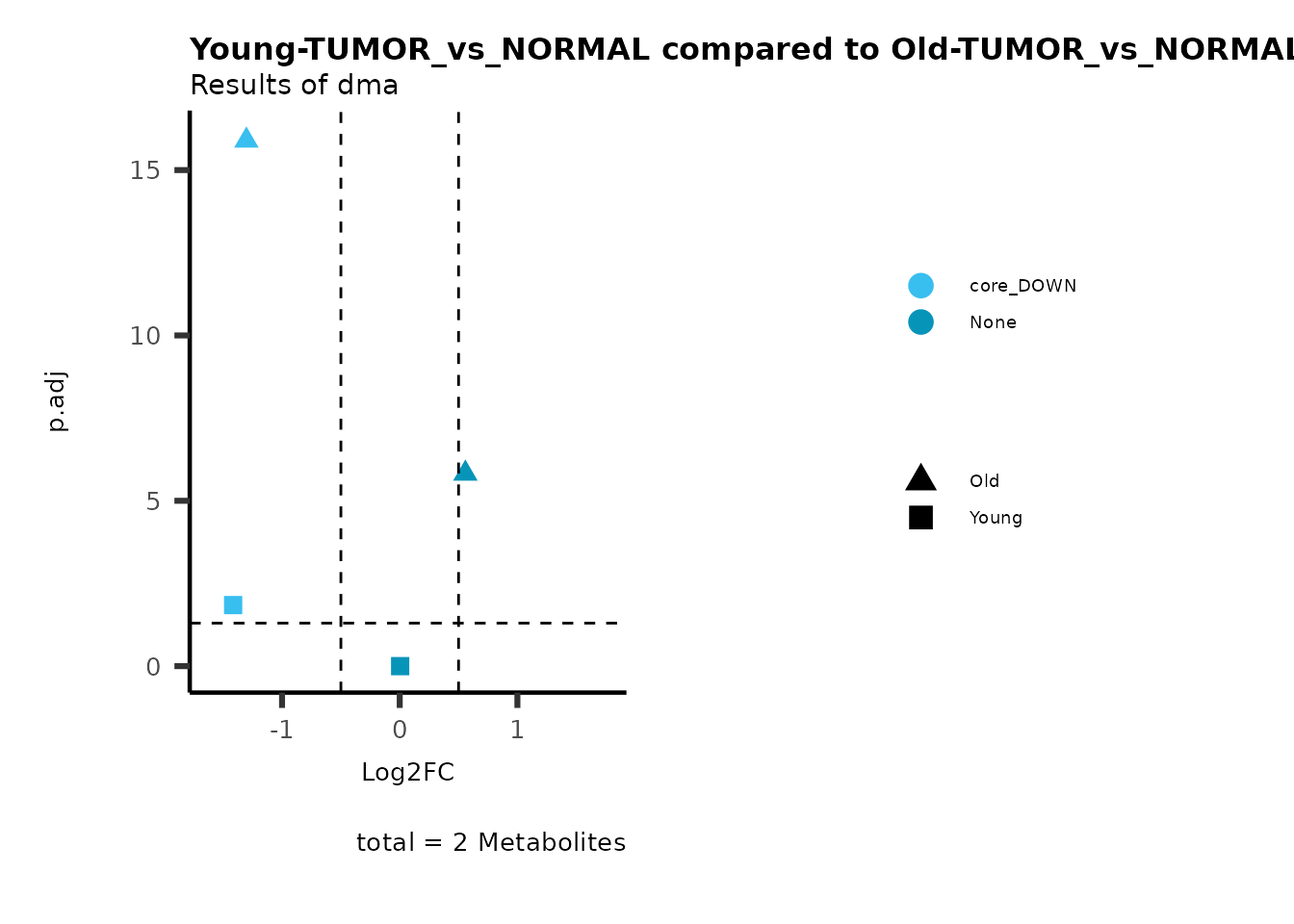

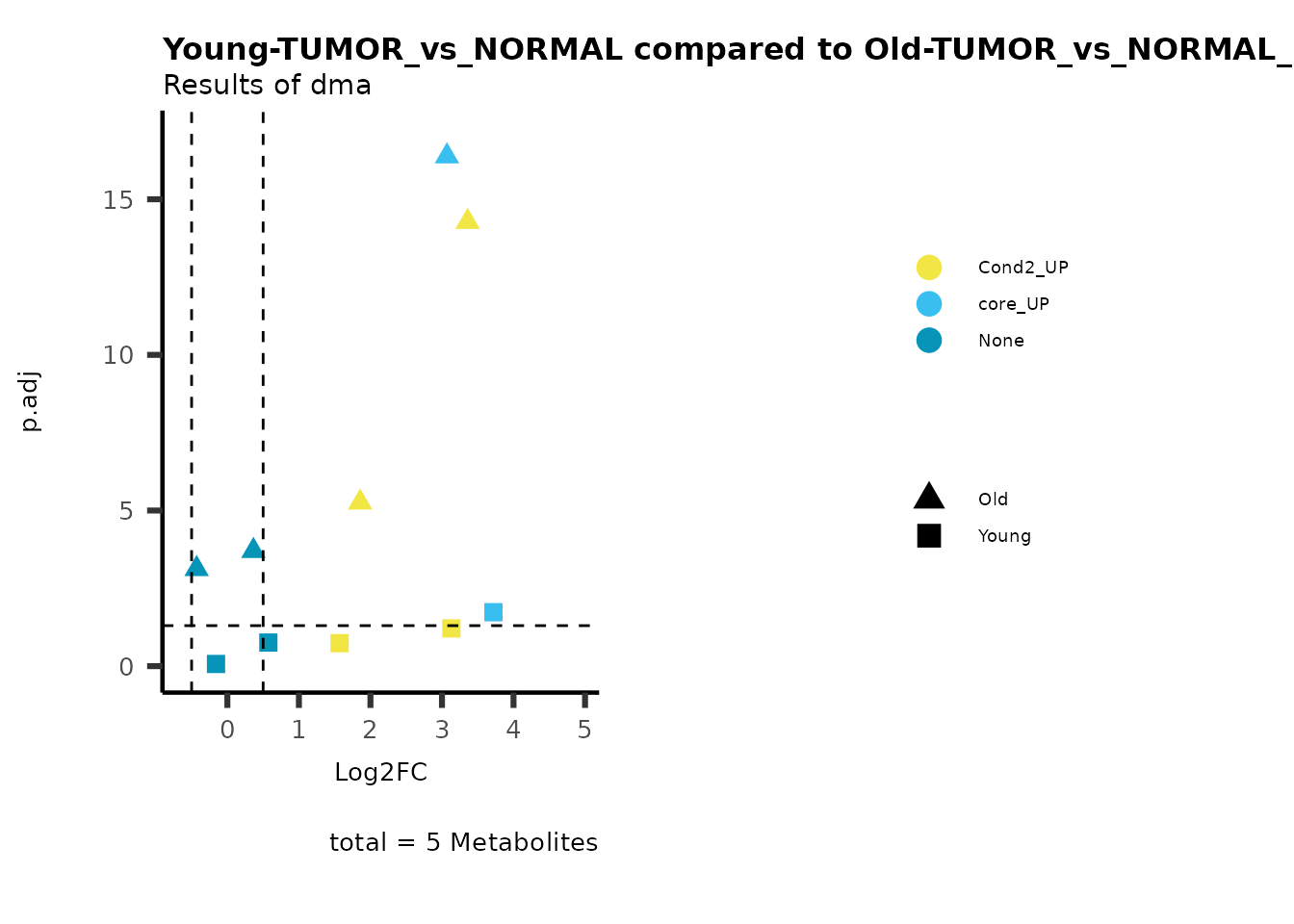

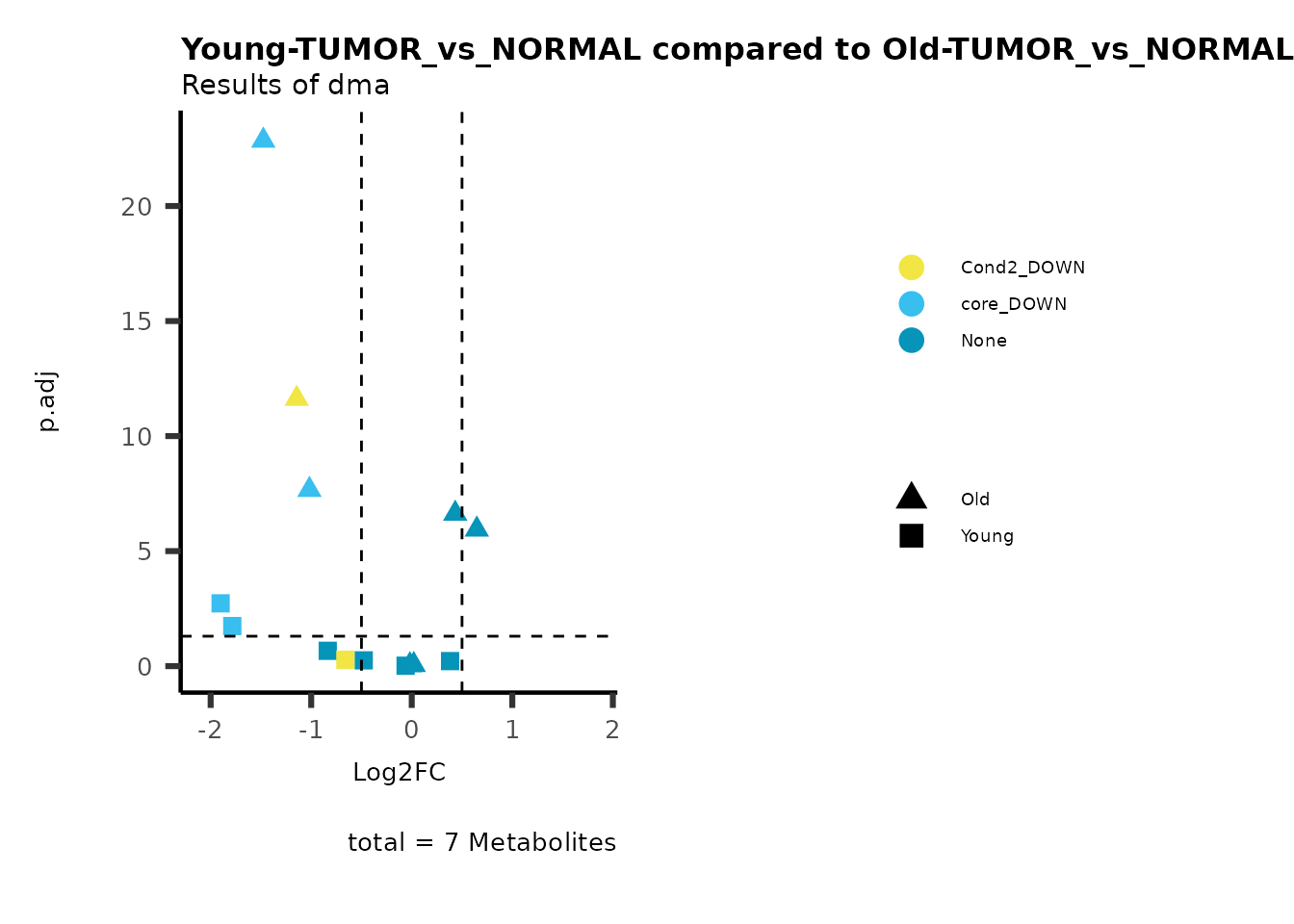

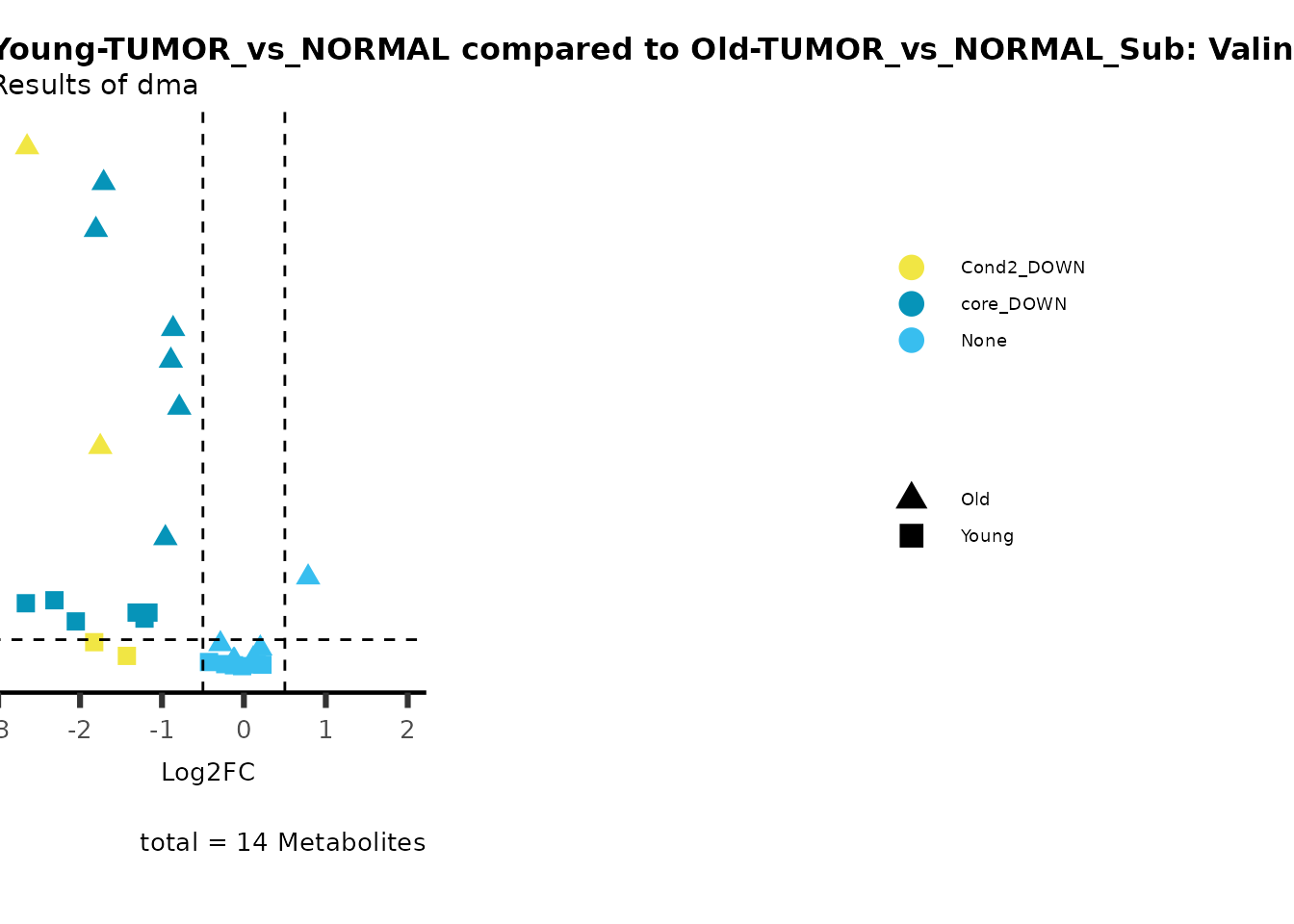

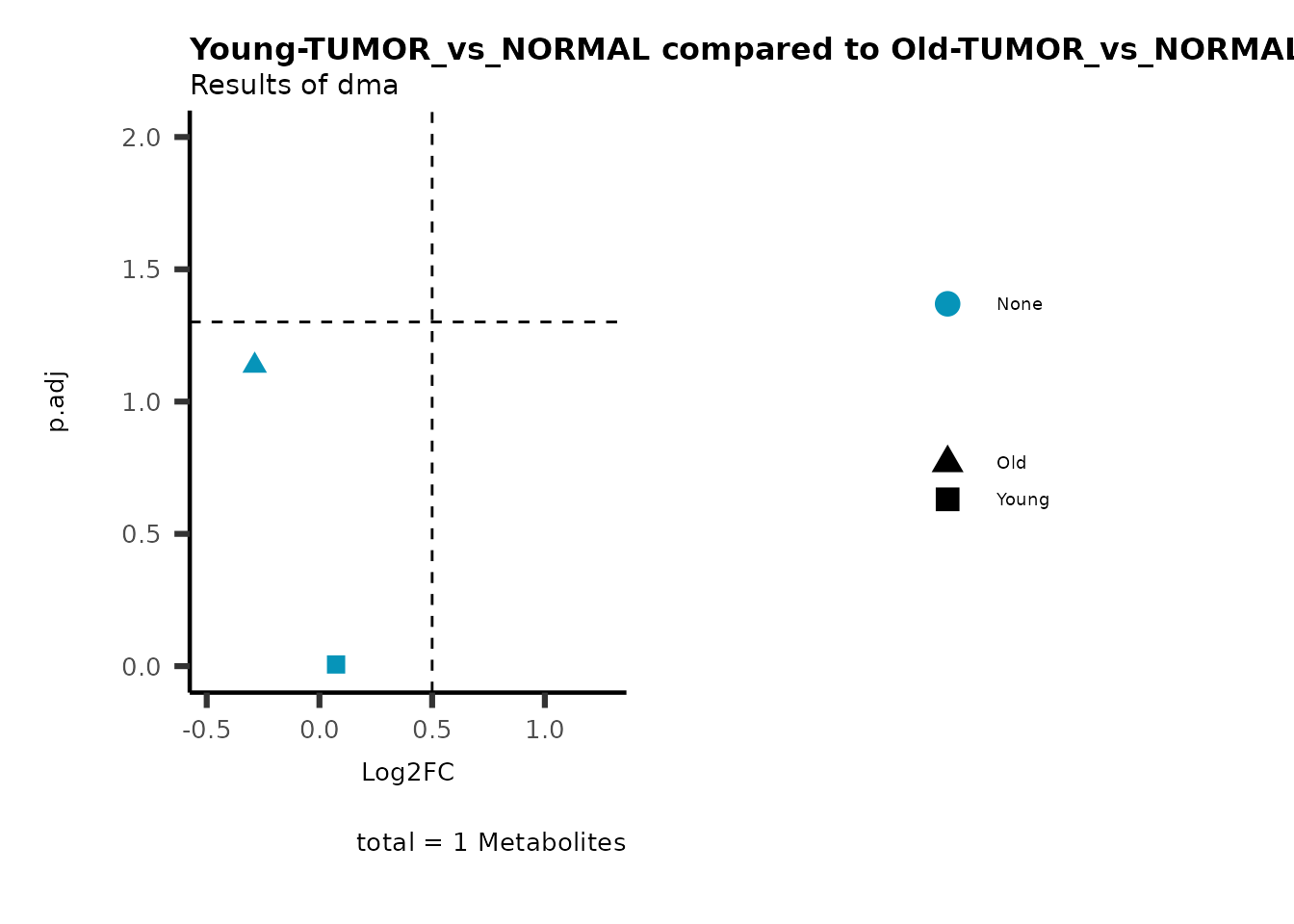

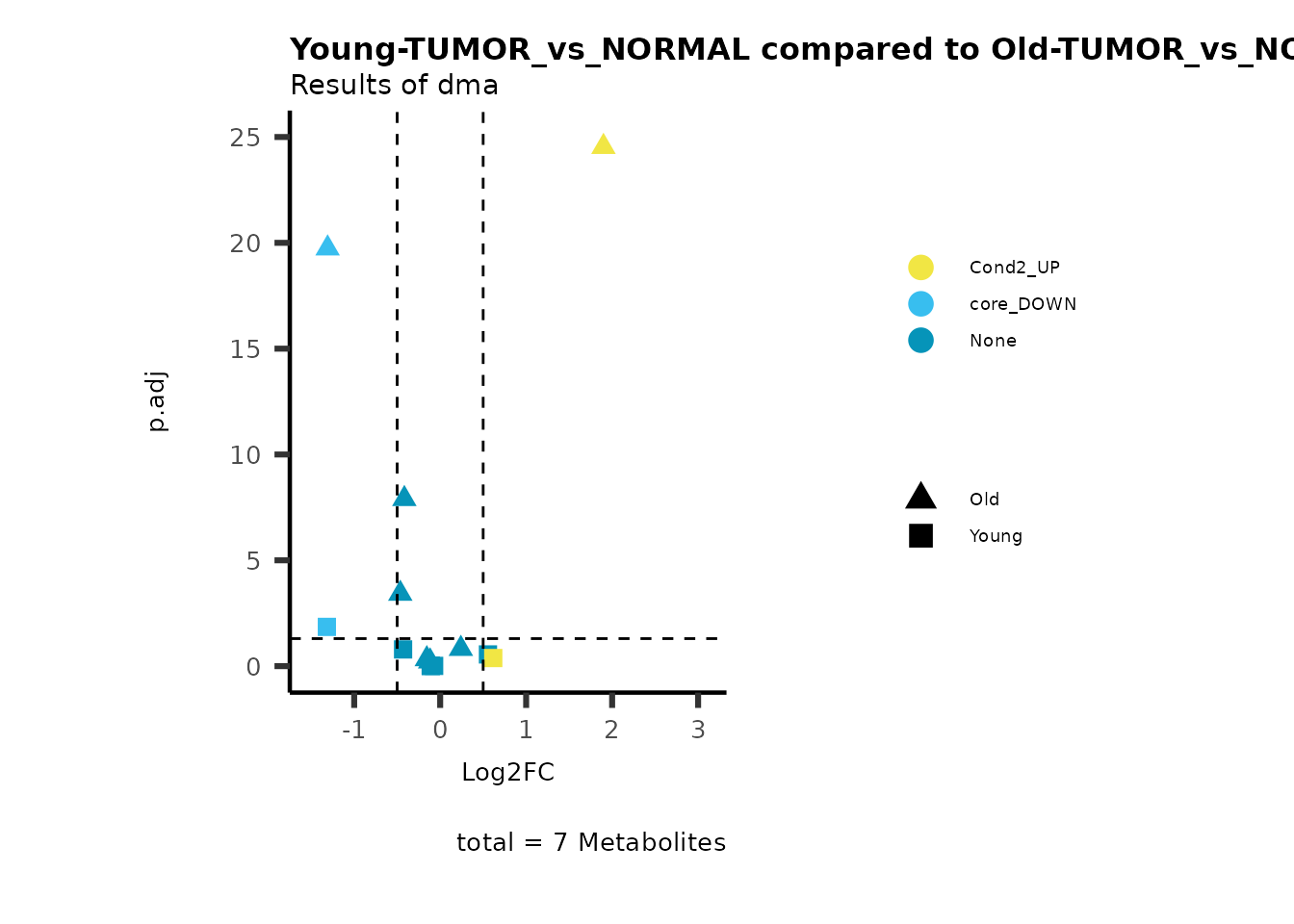

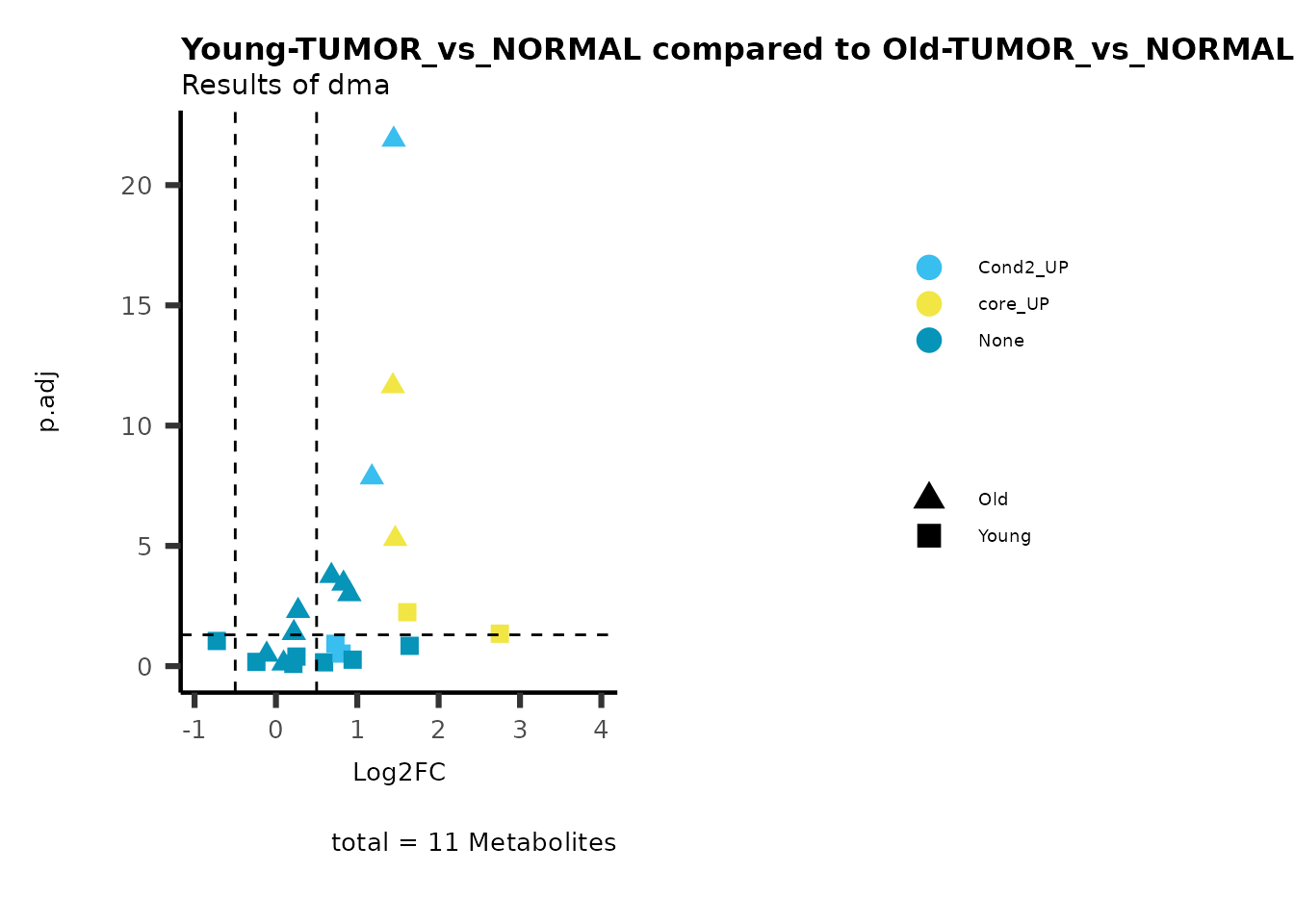

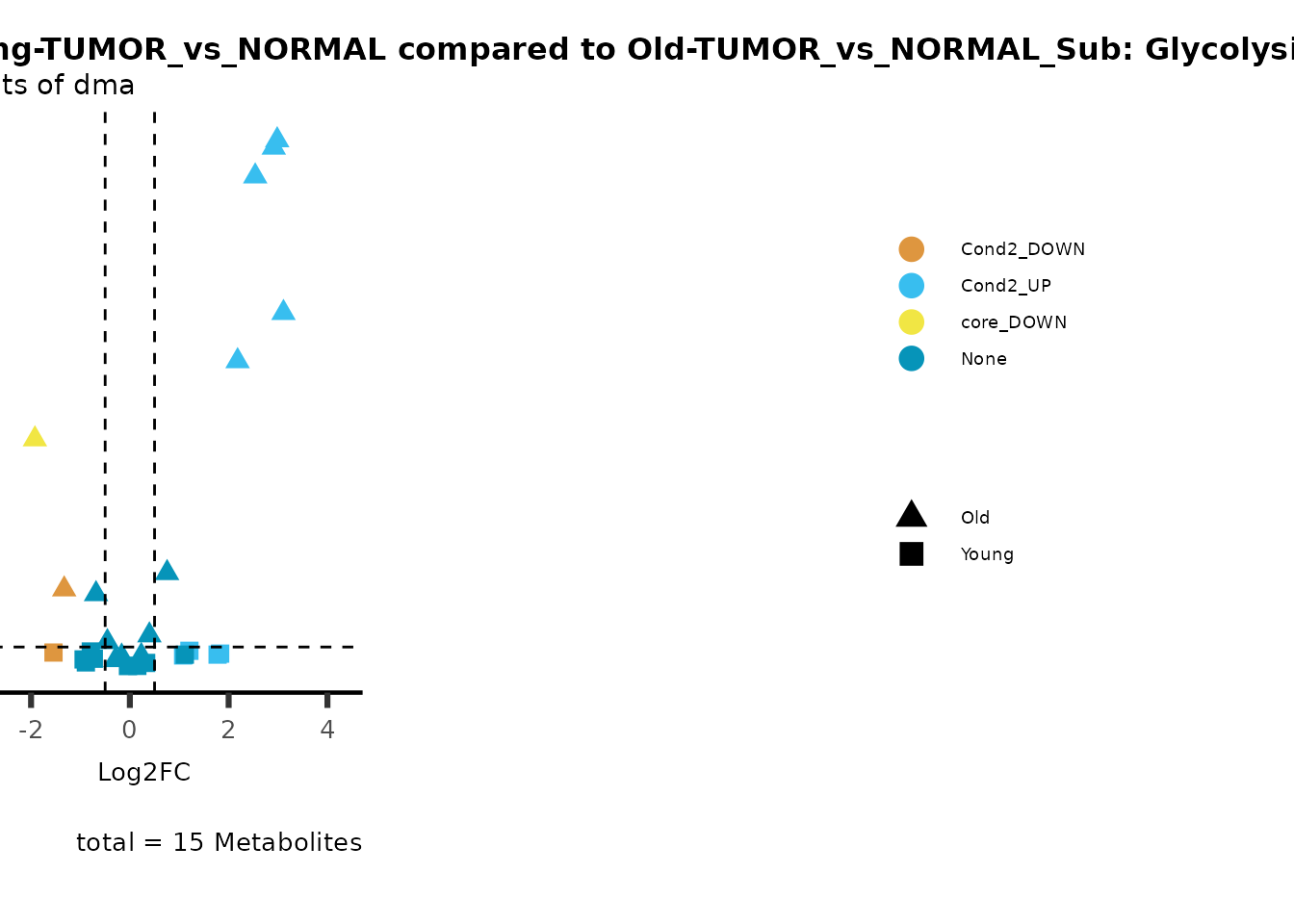

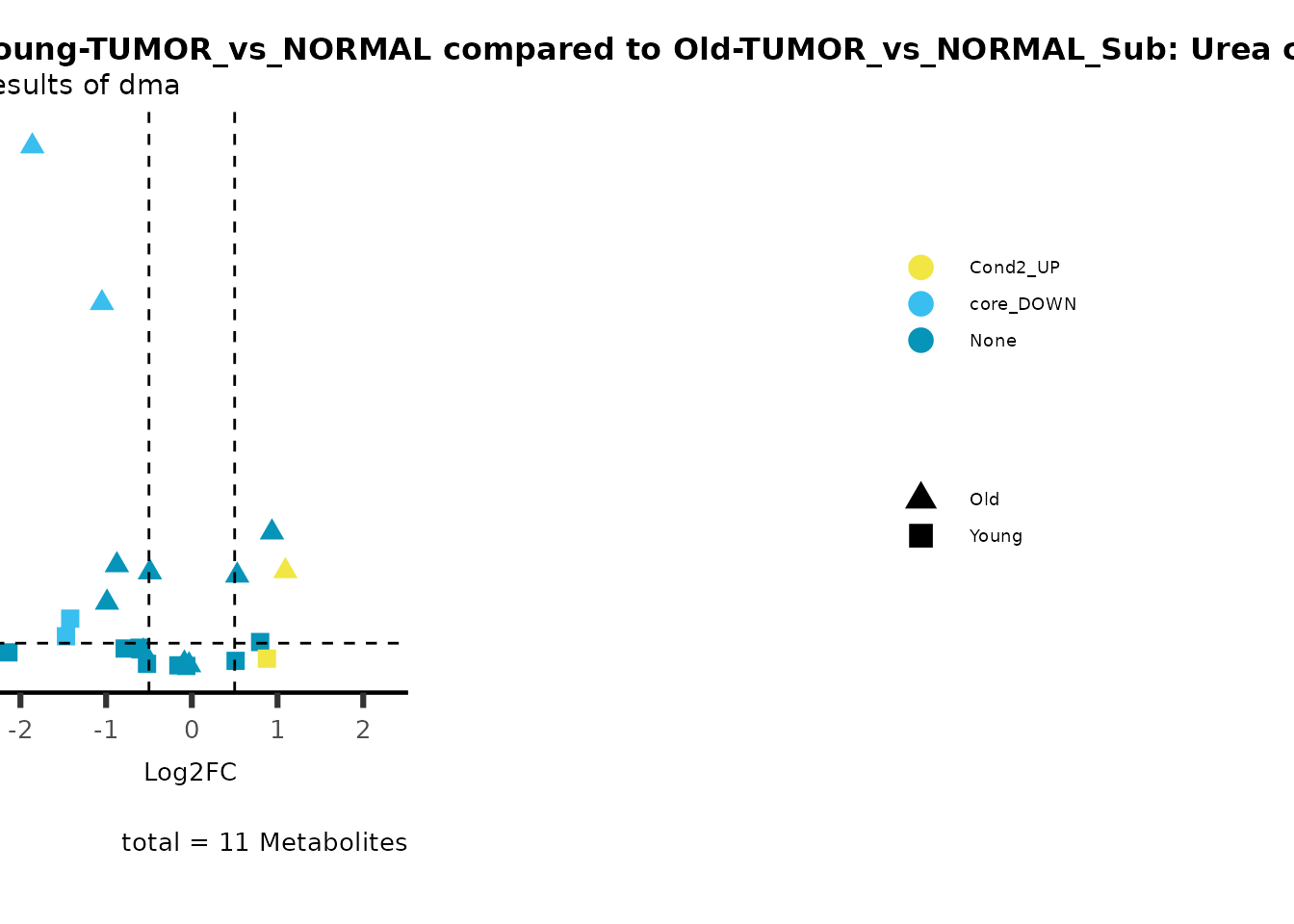

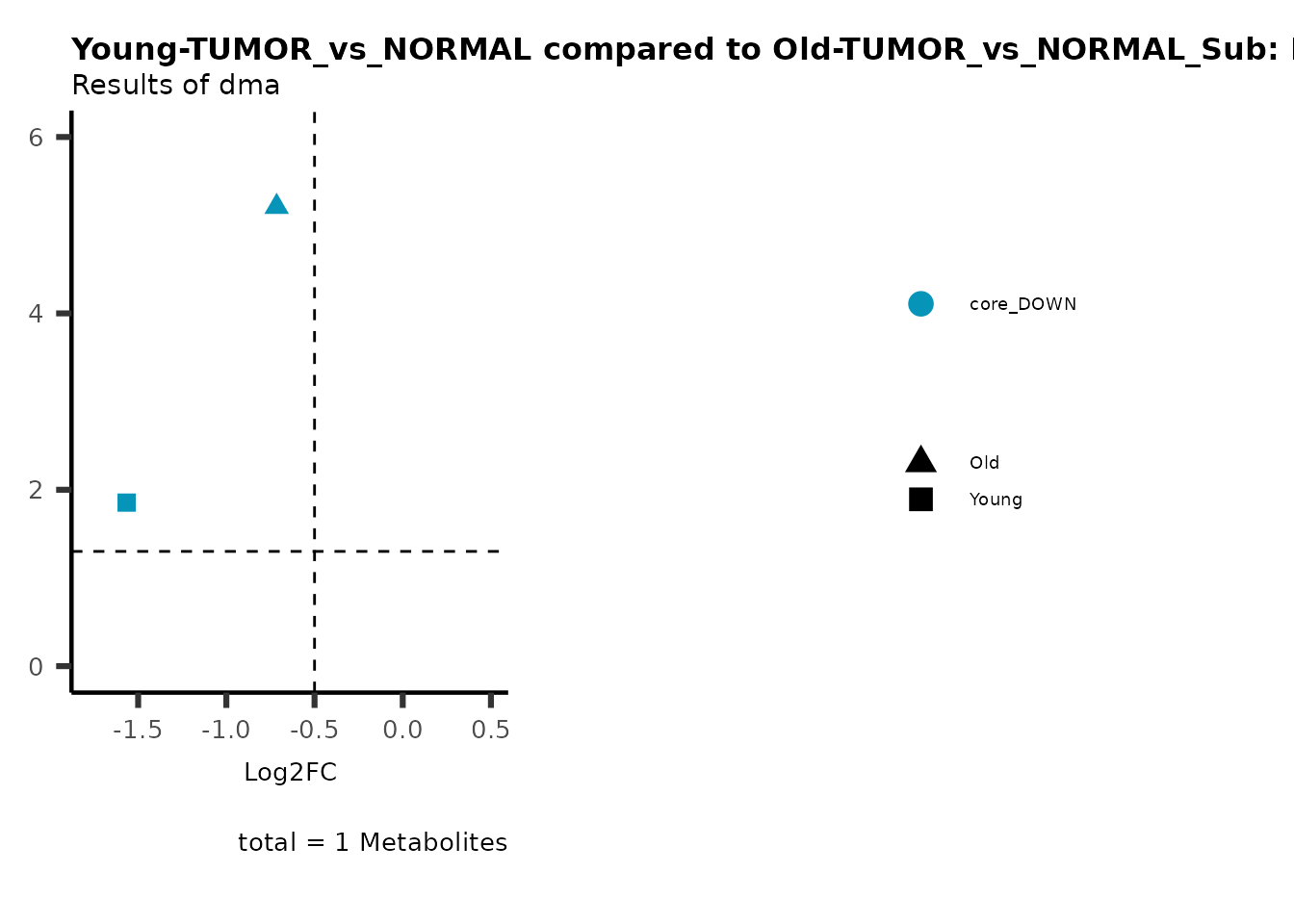

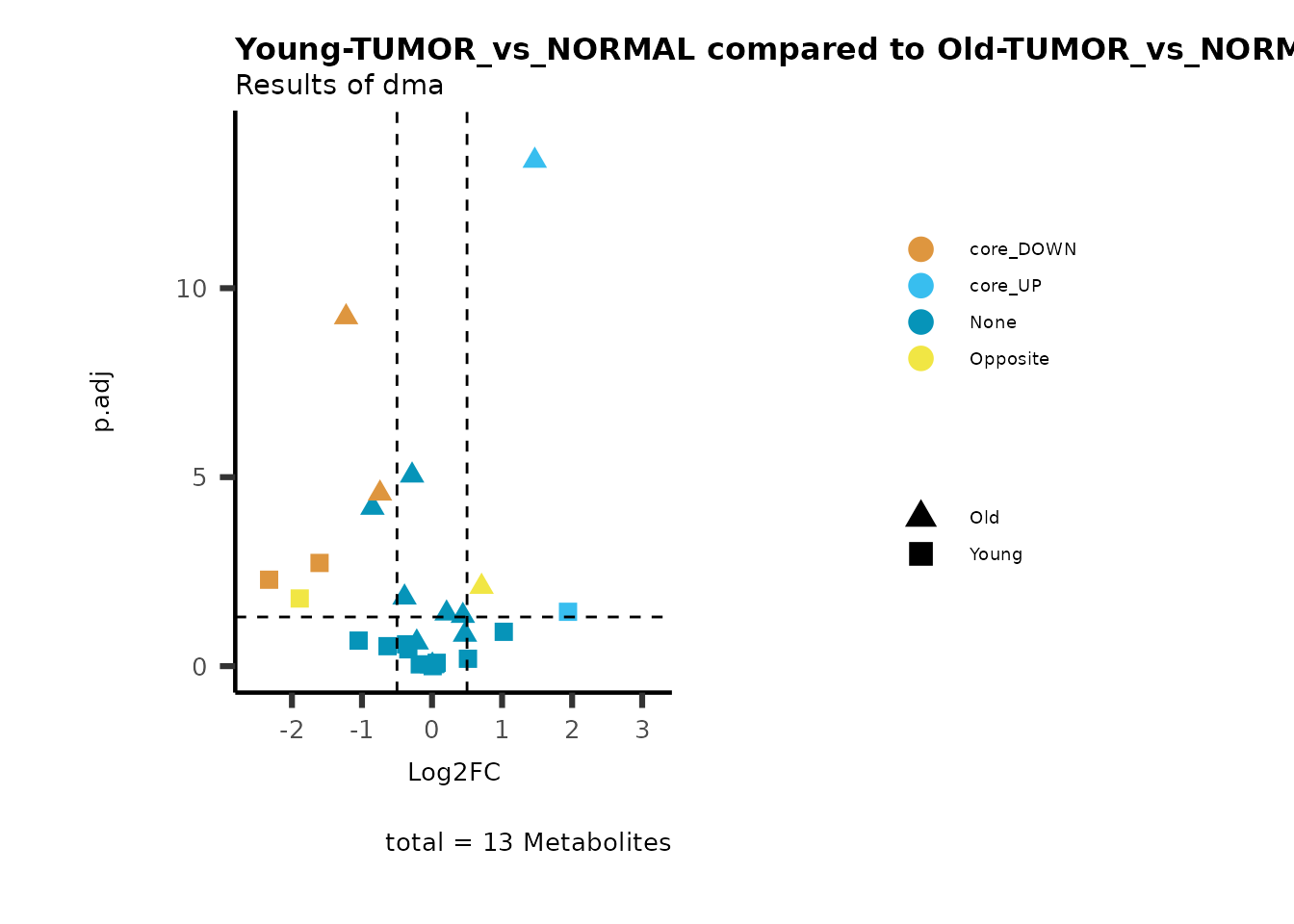

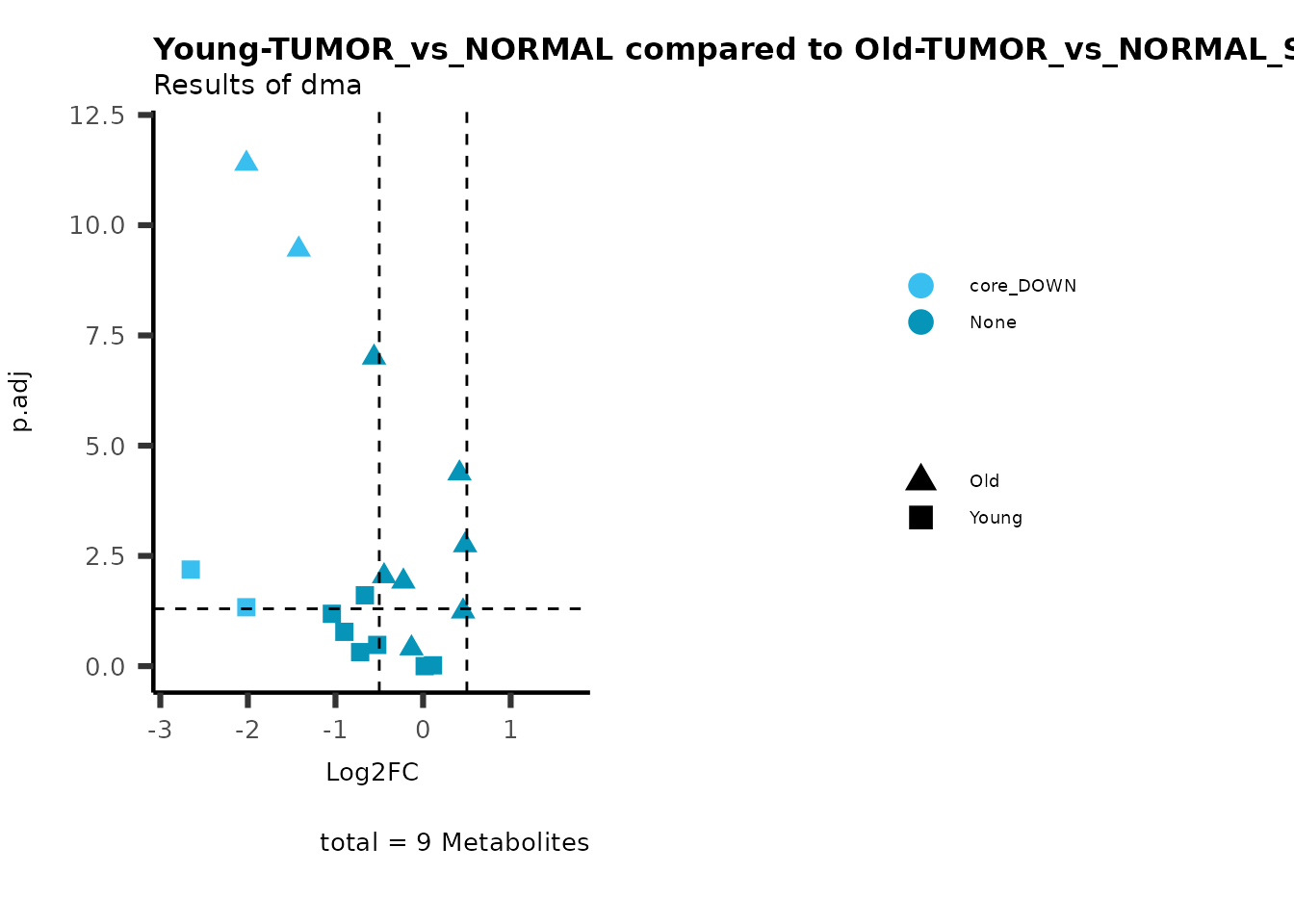

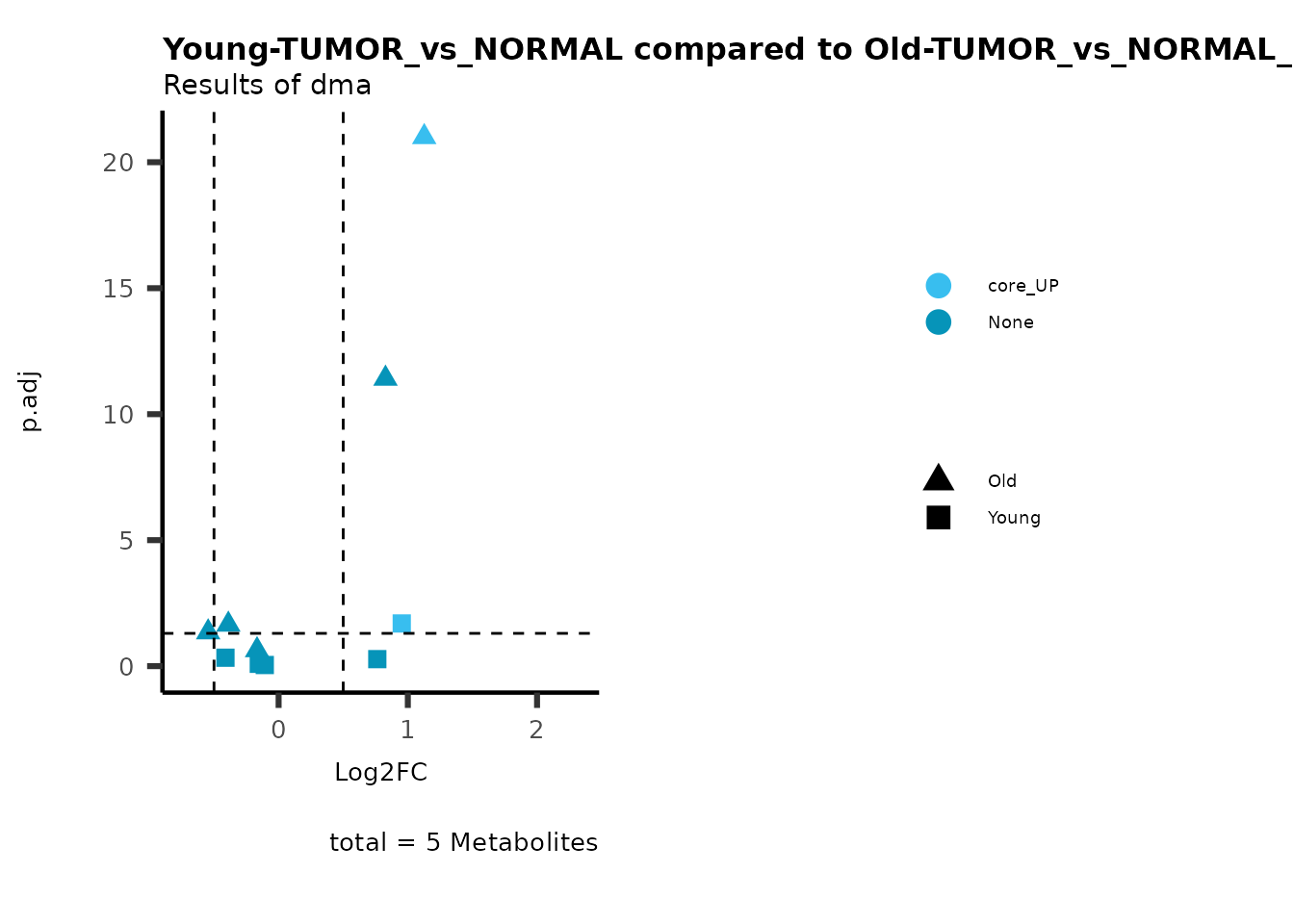

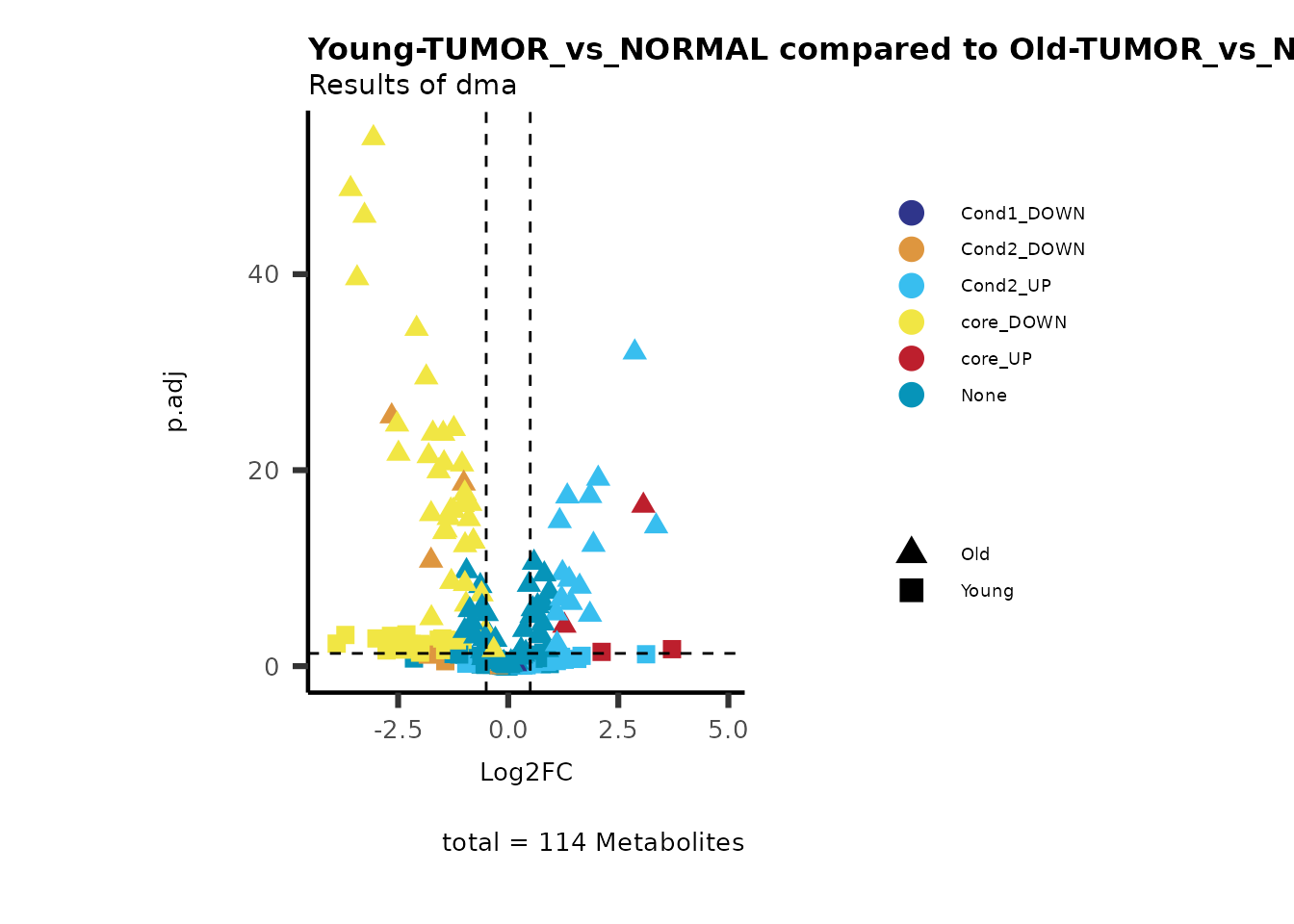

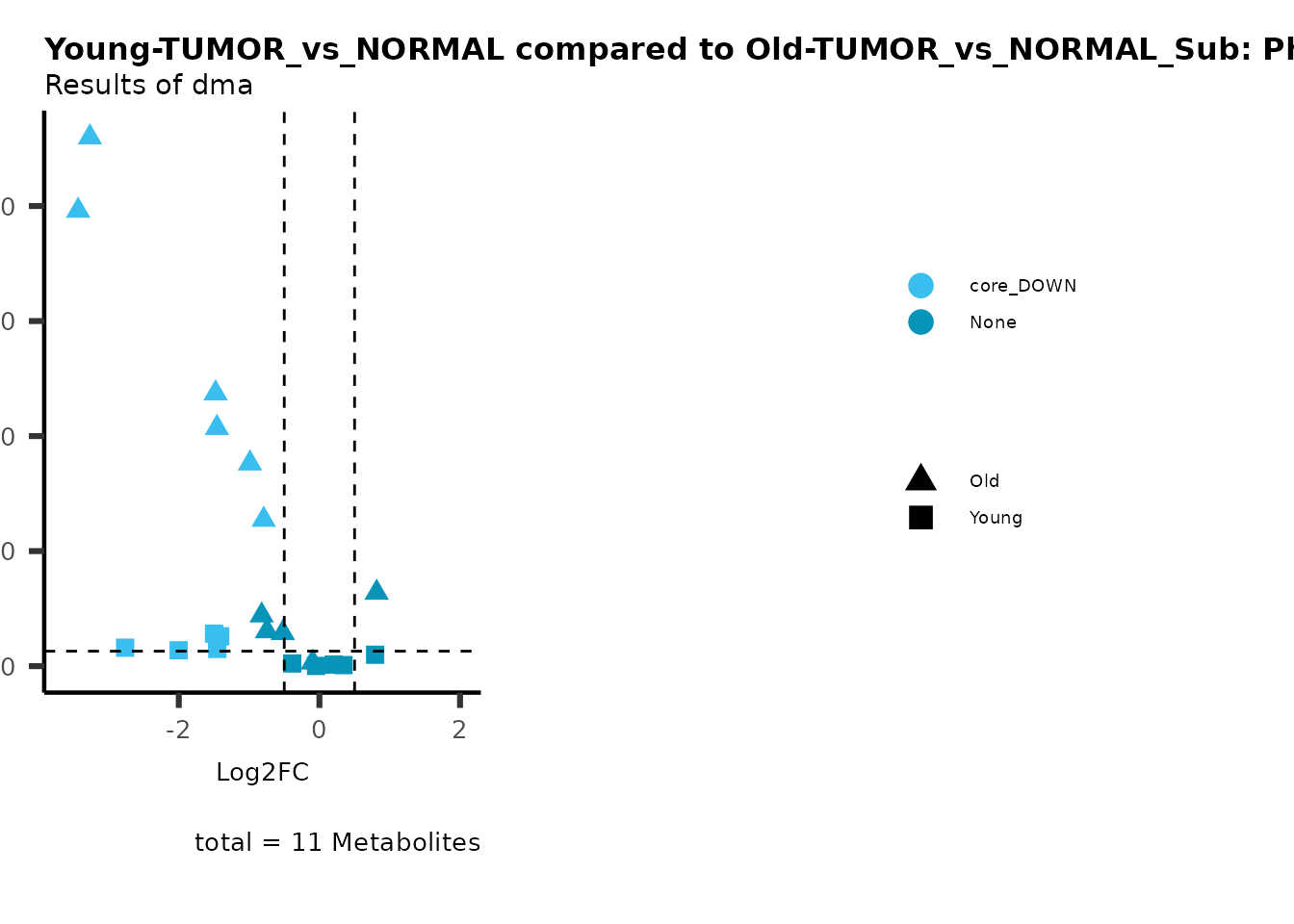

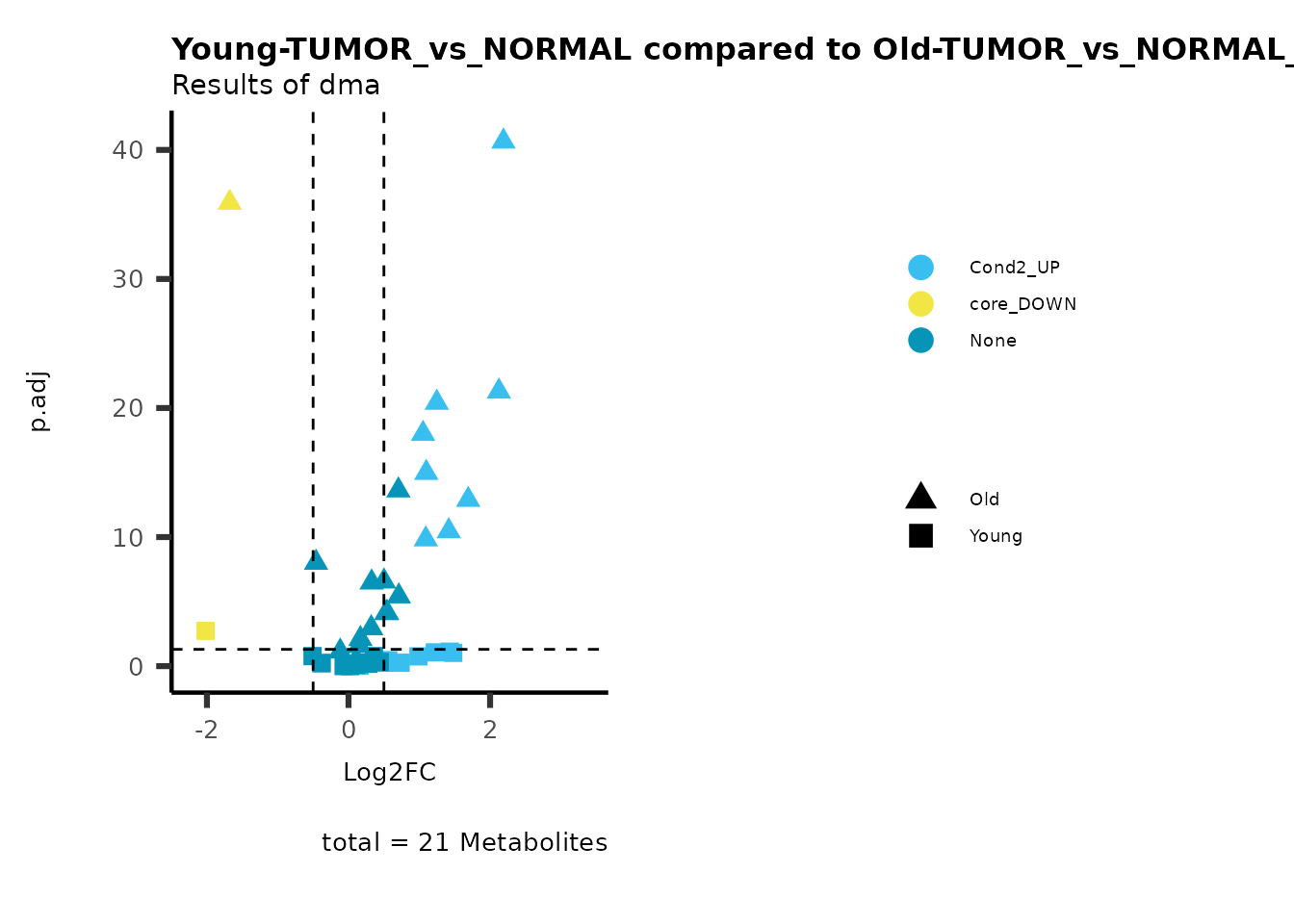

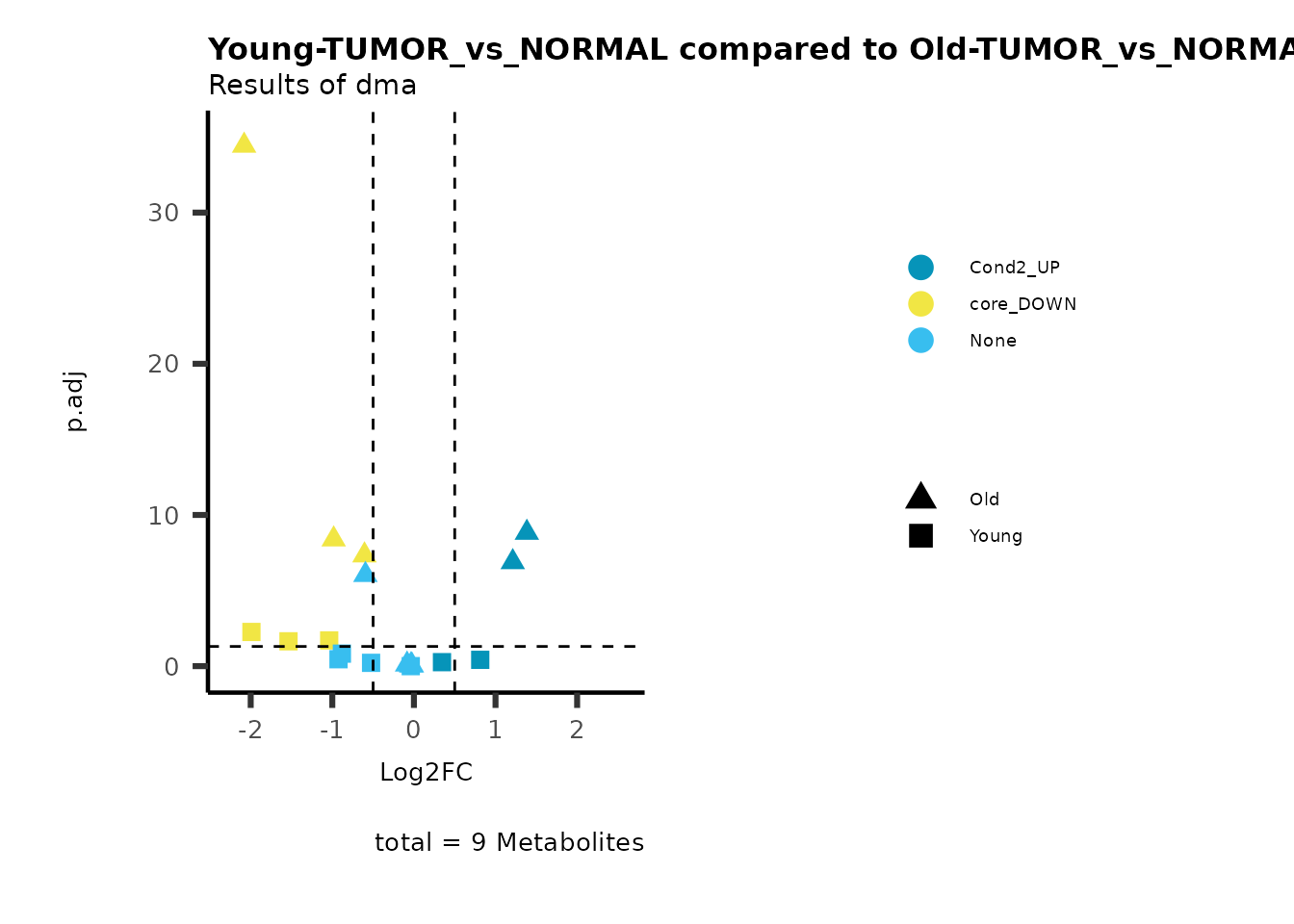

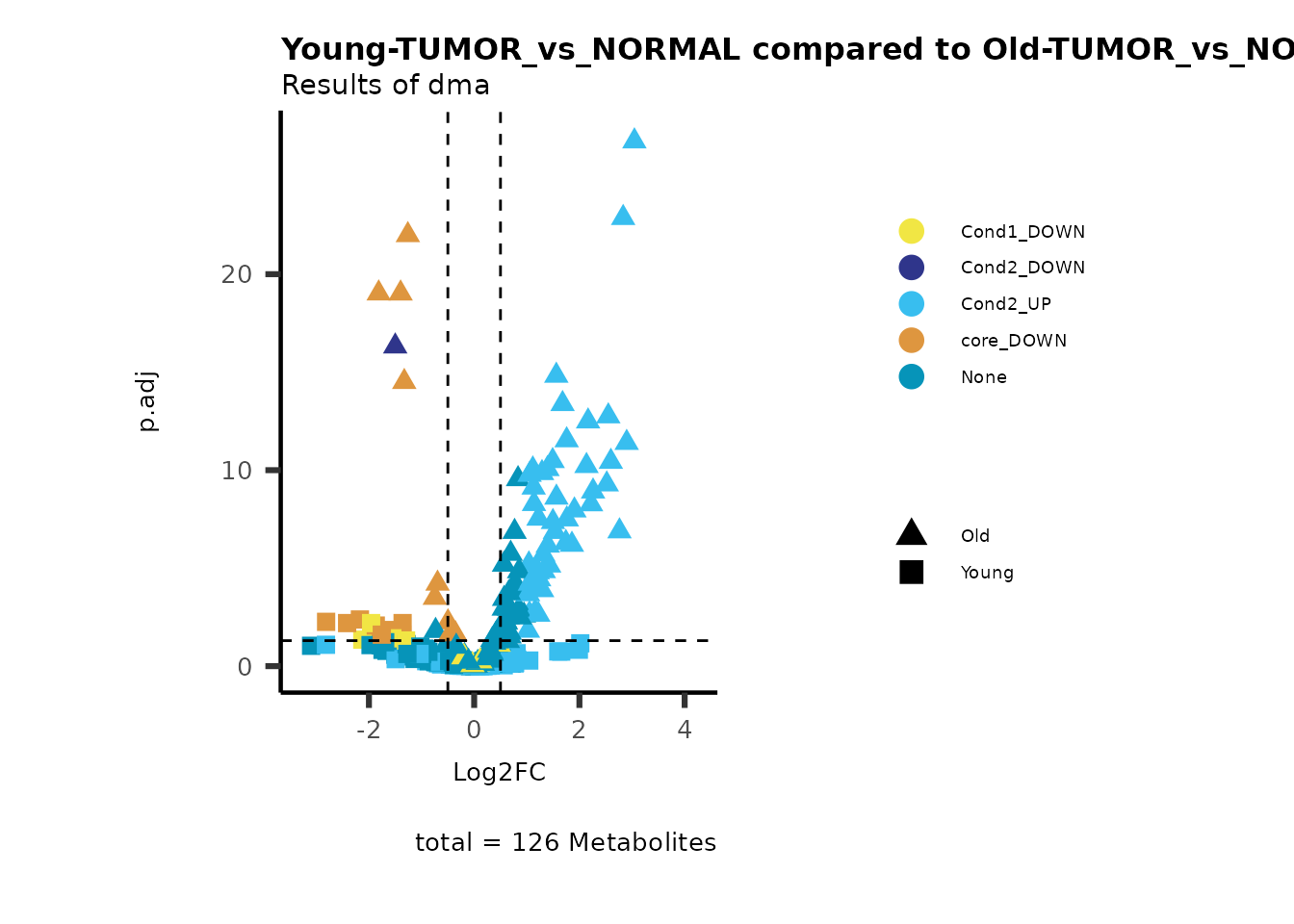

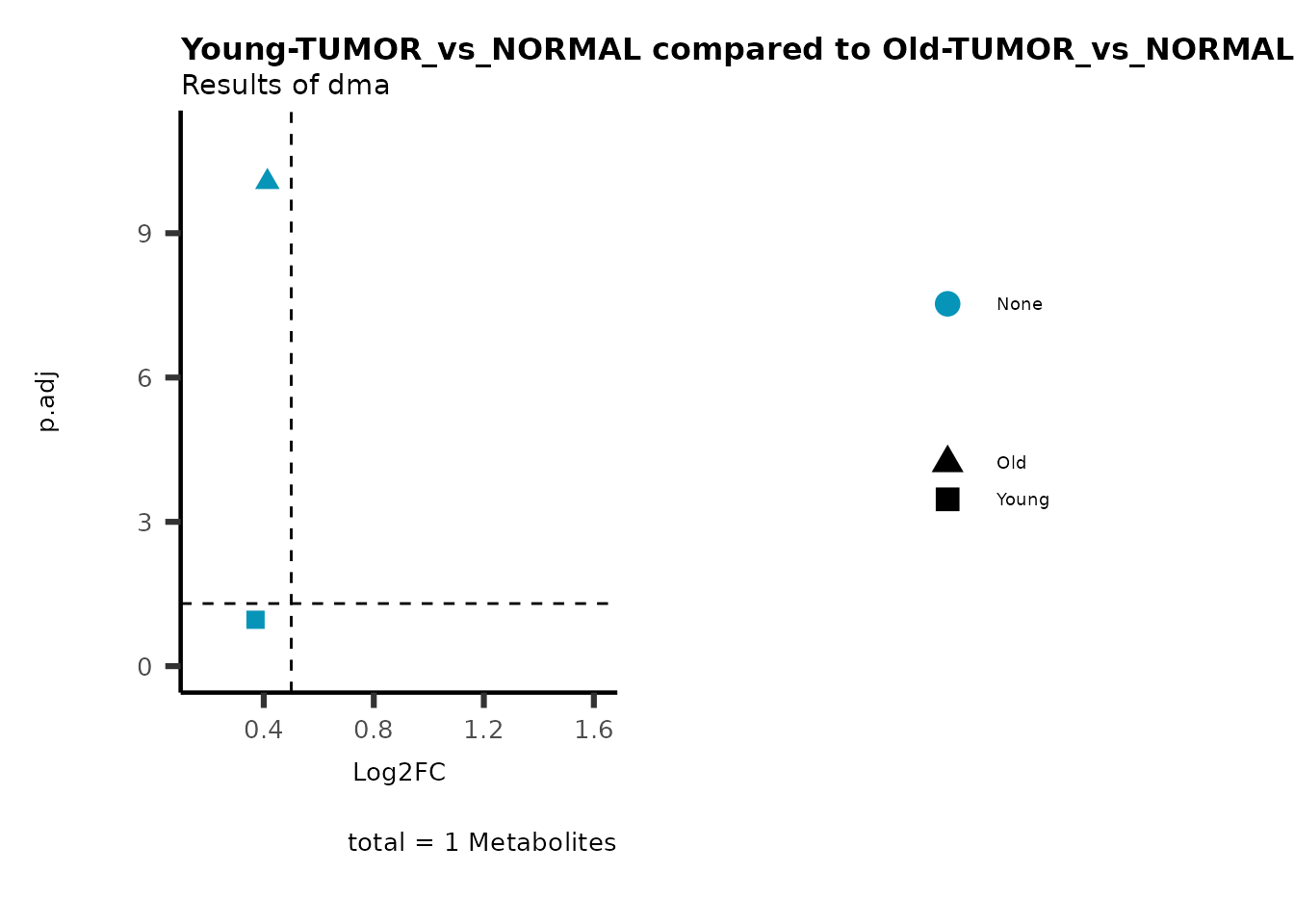

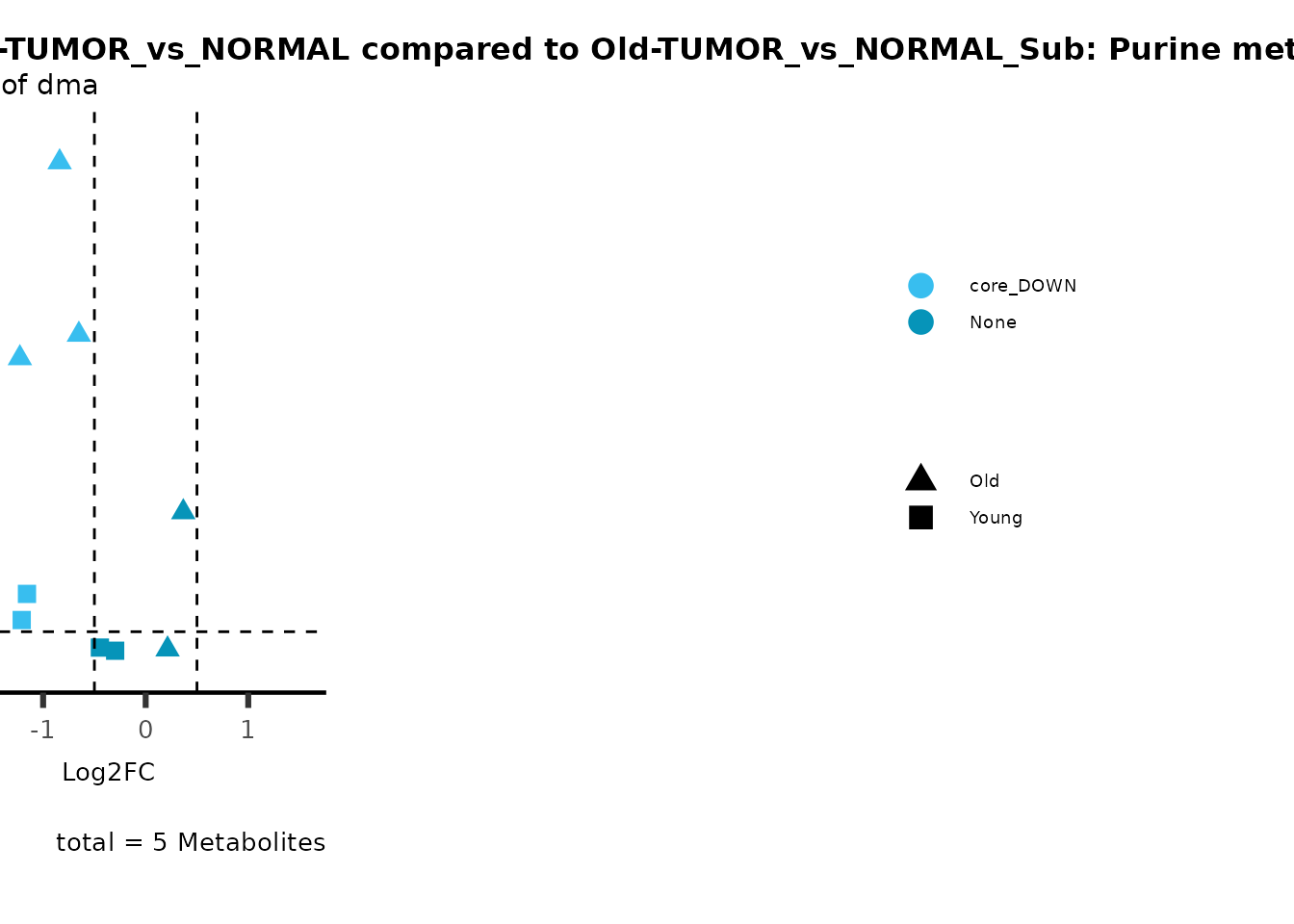

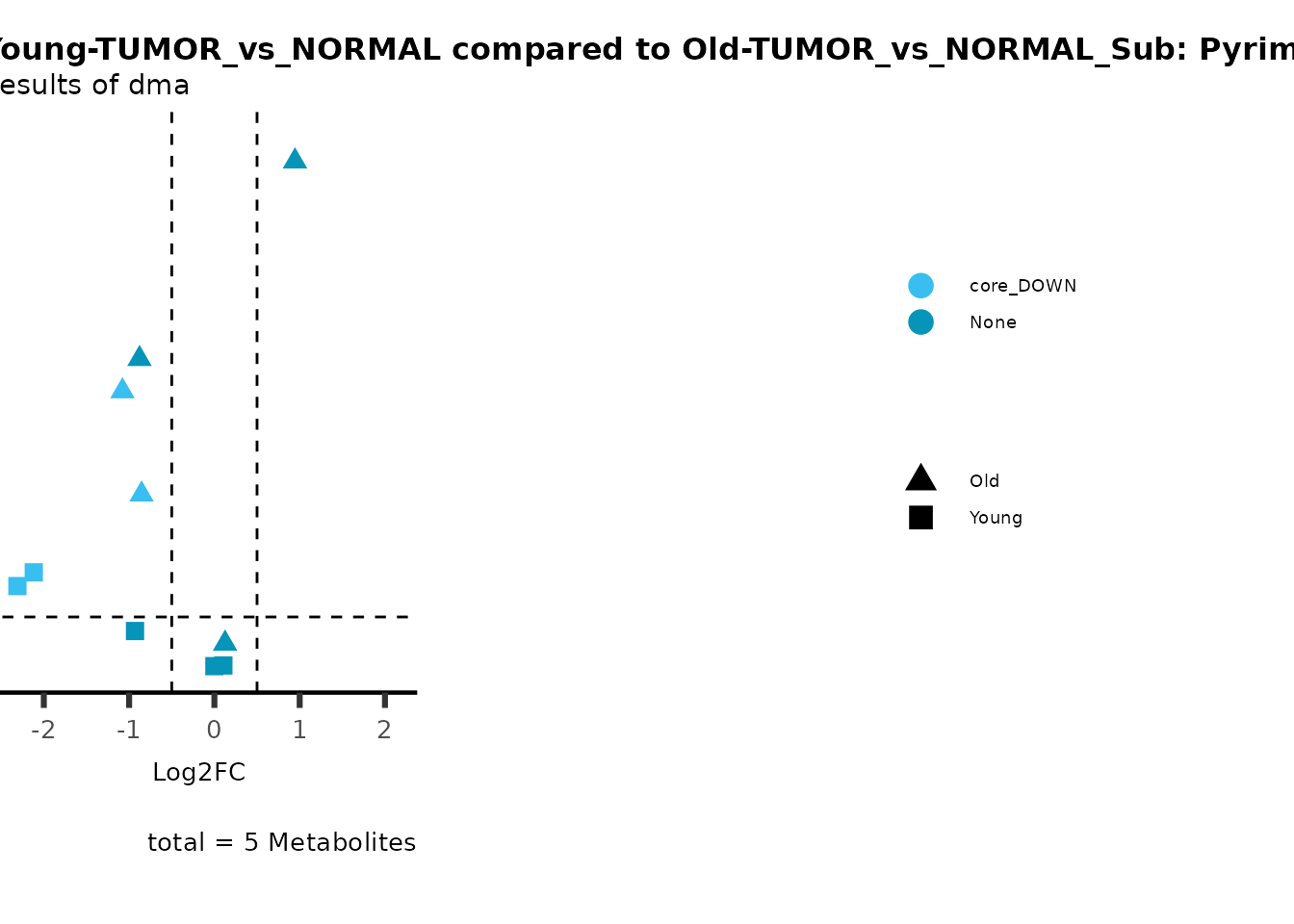

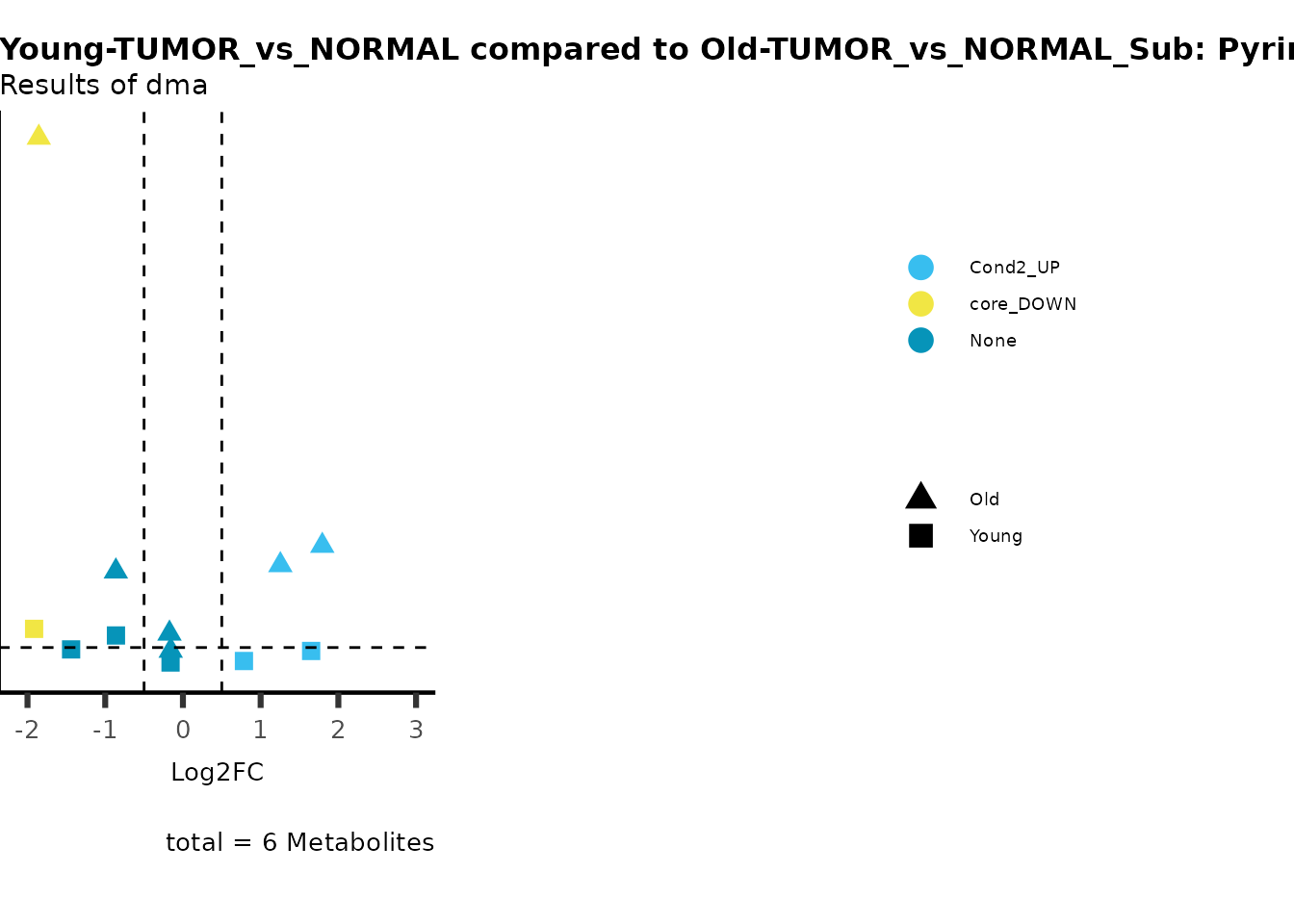

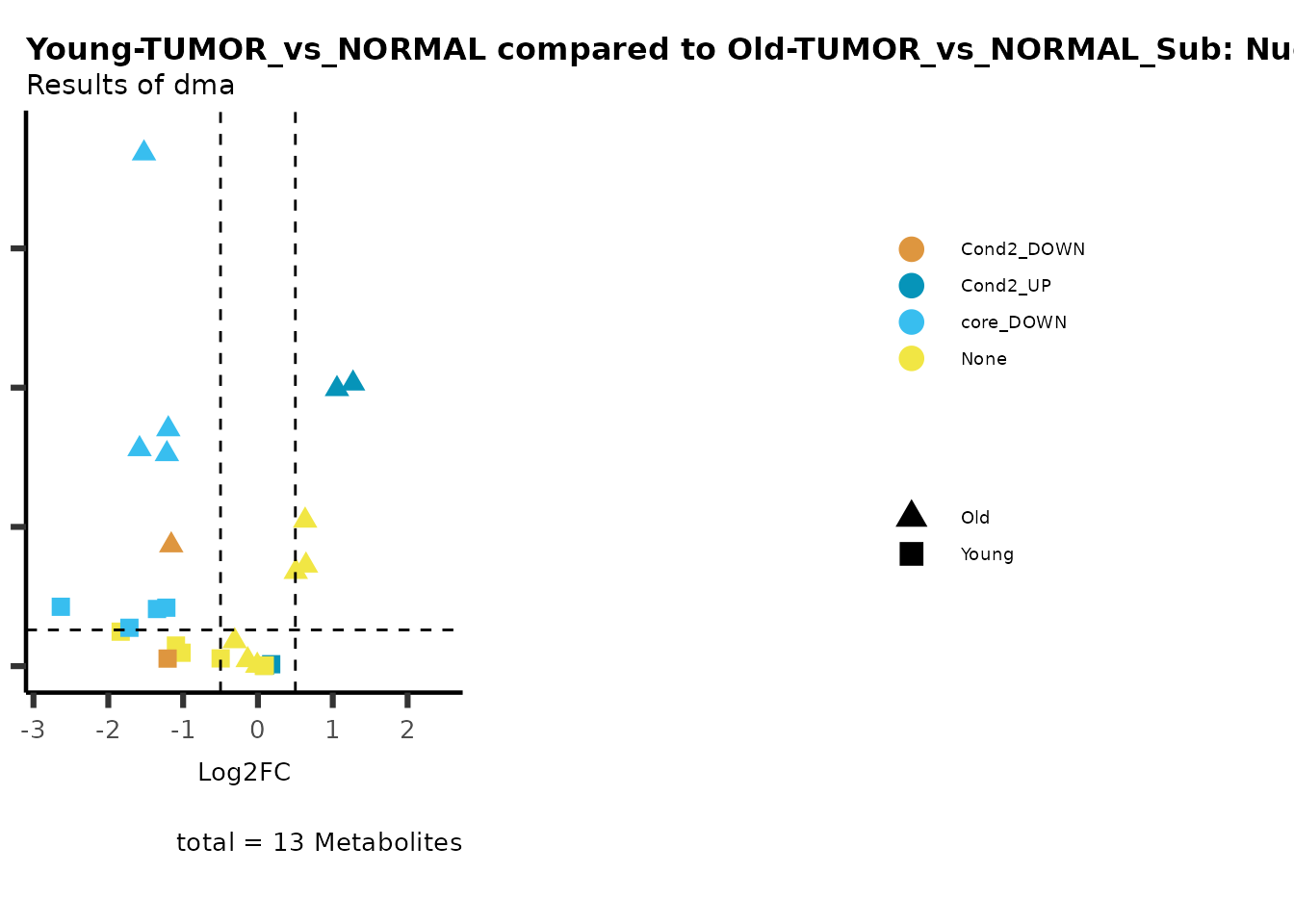

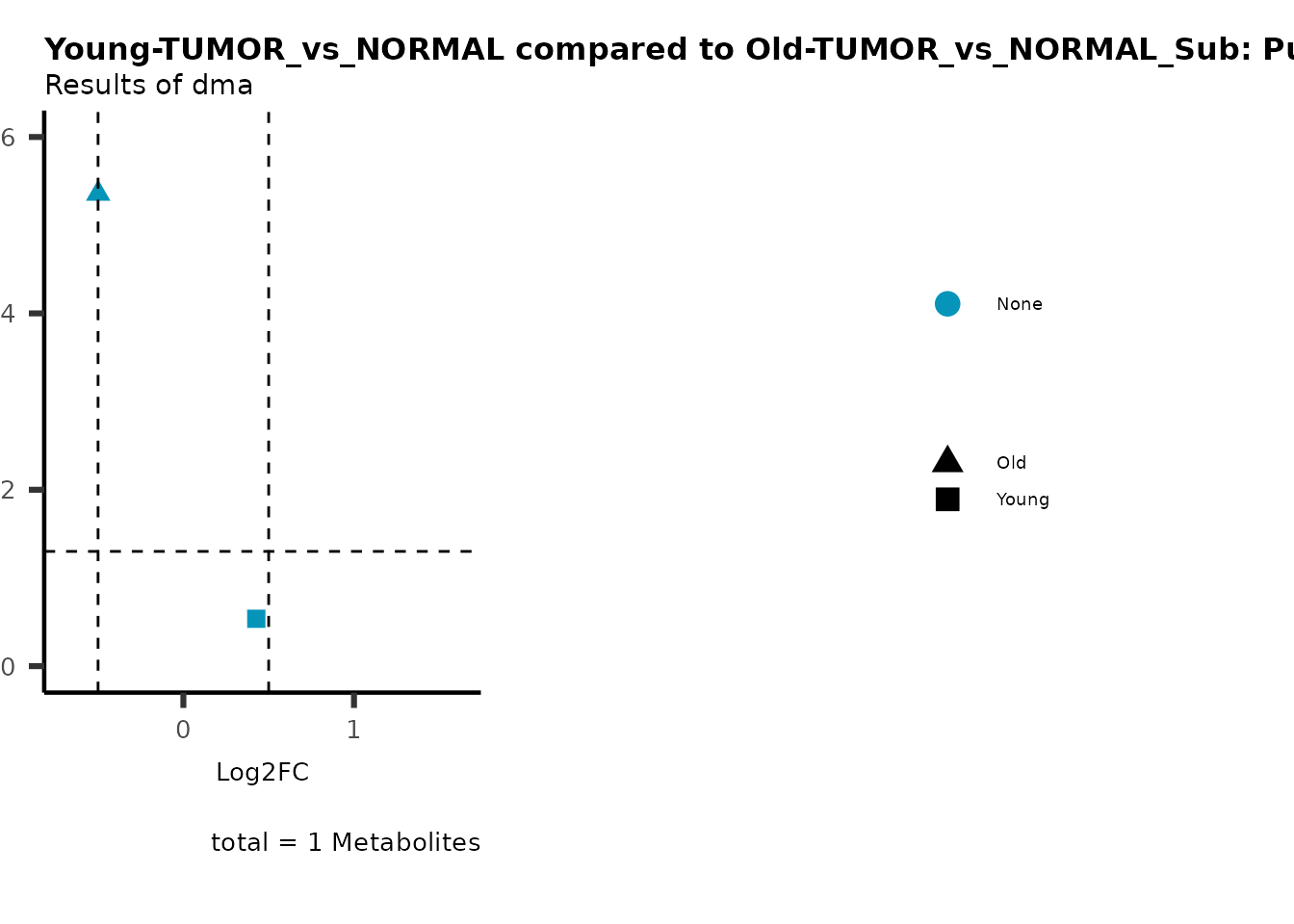

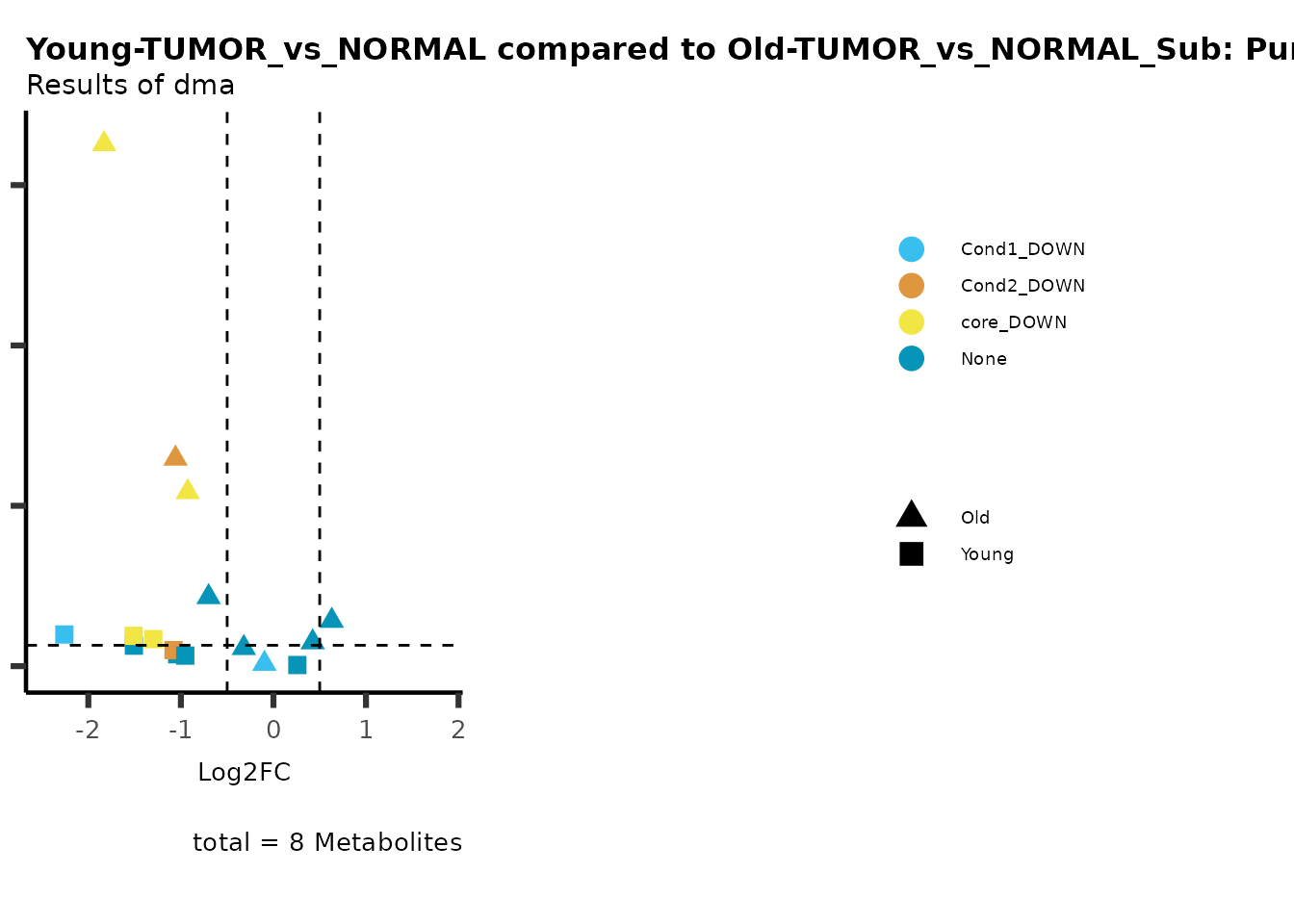

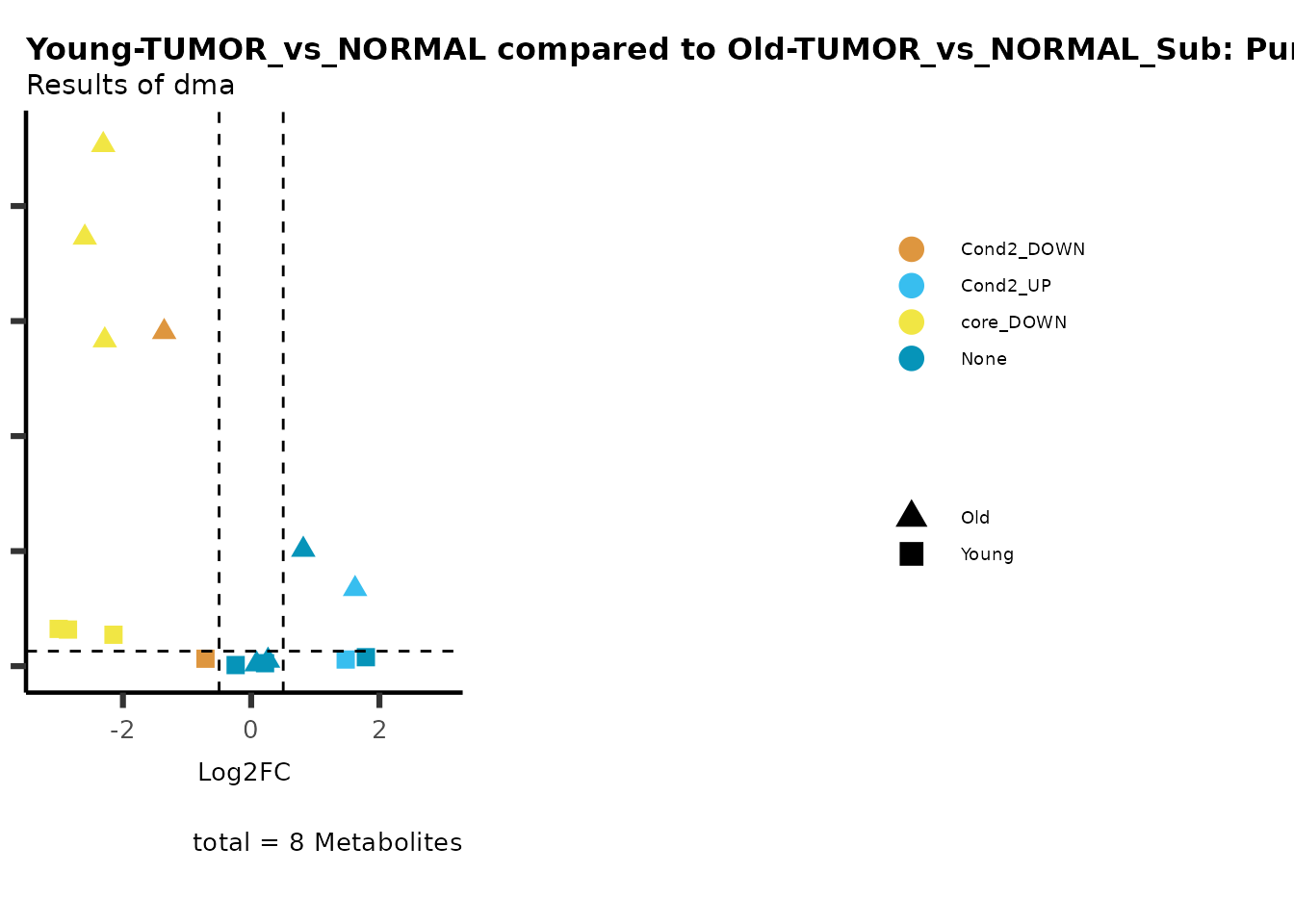

# Young versus Old

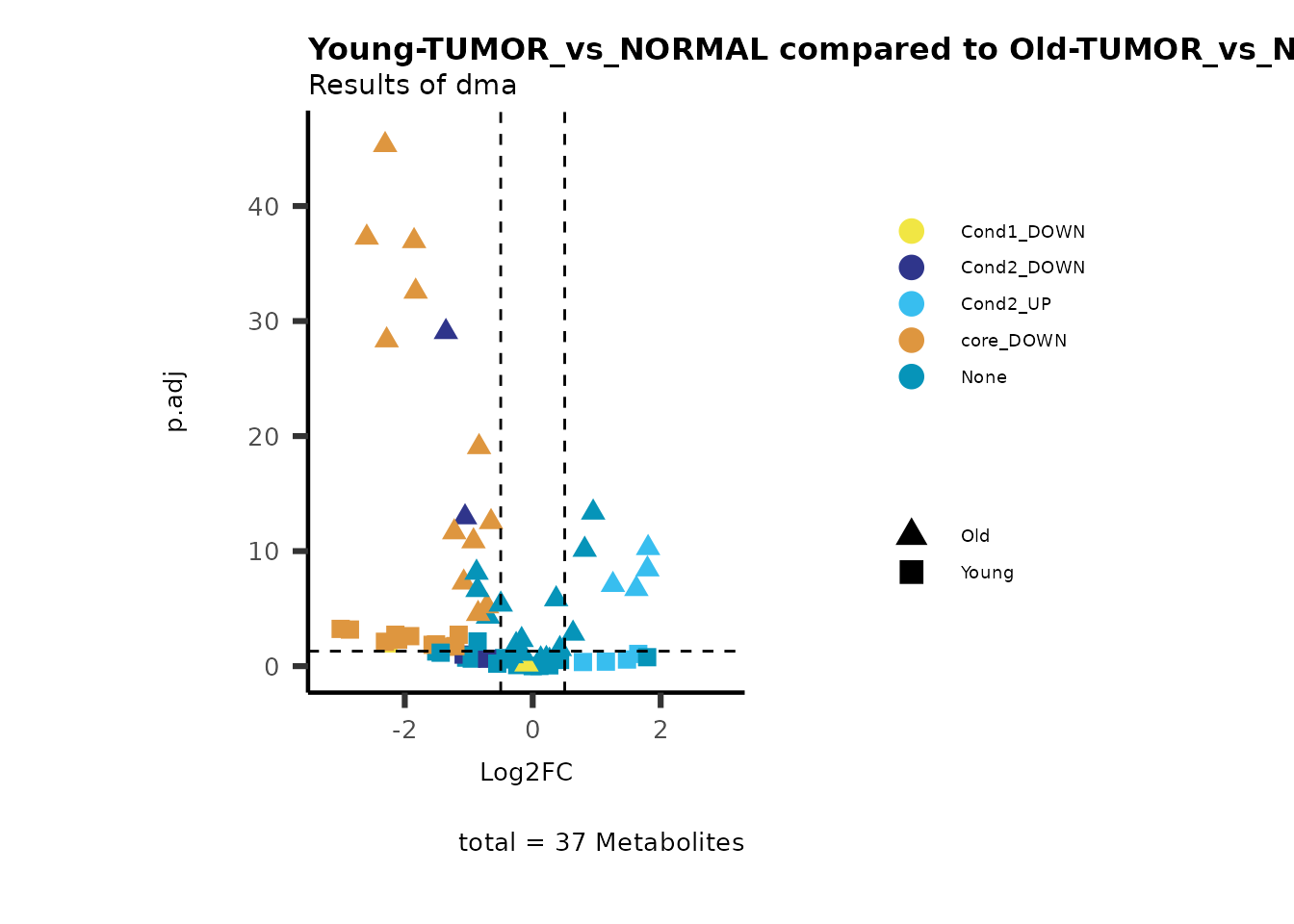

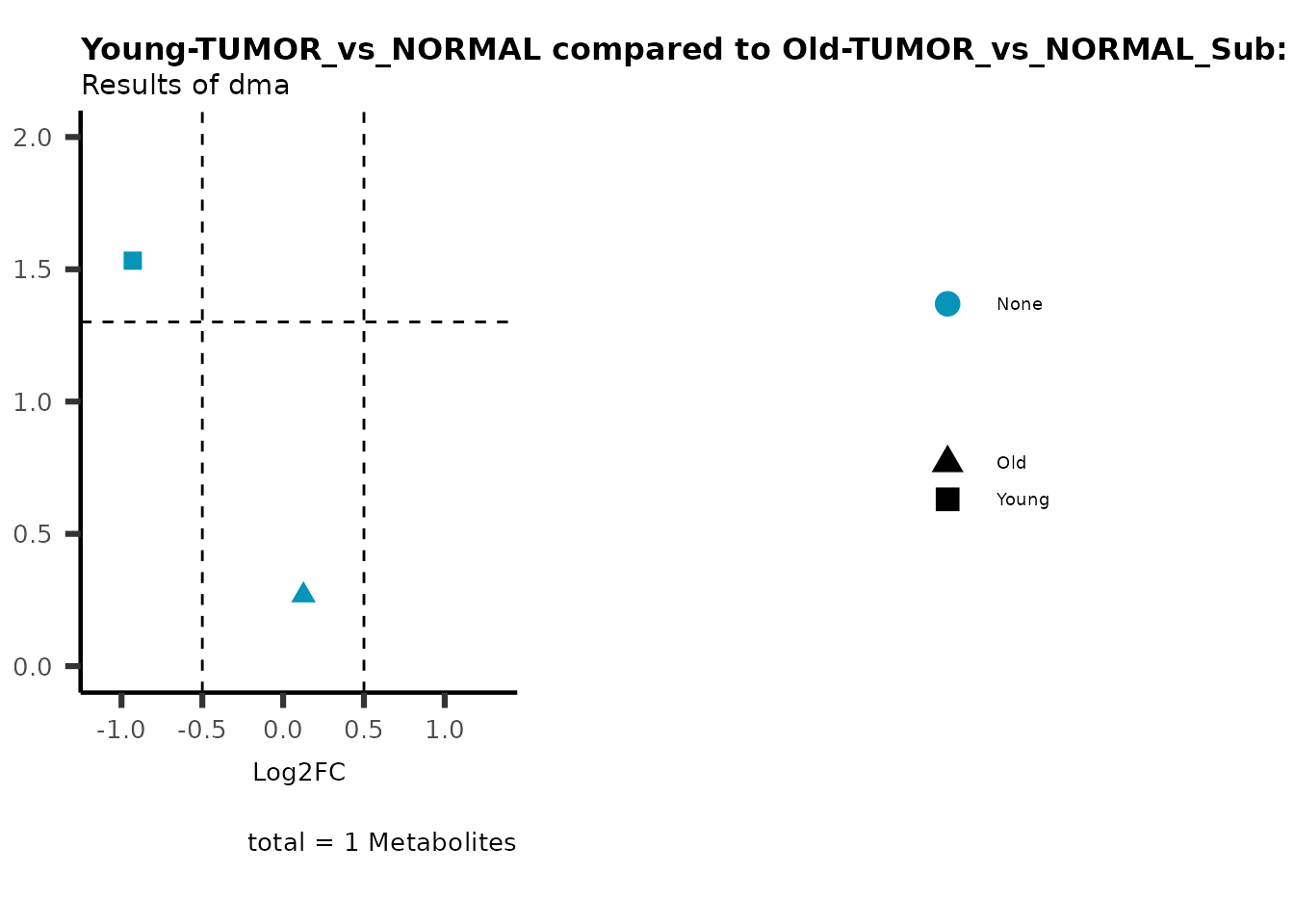

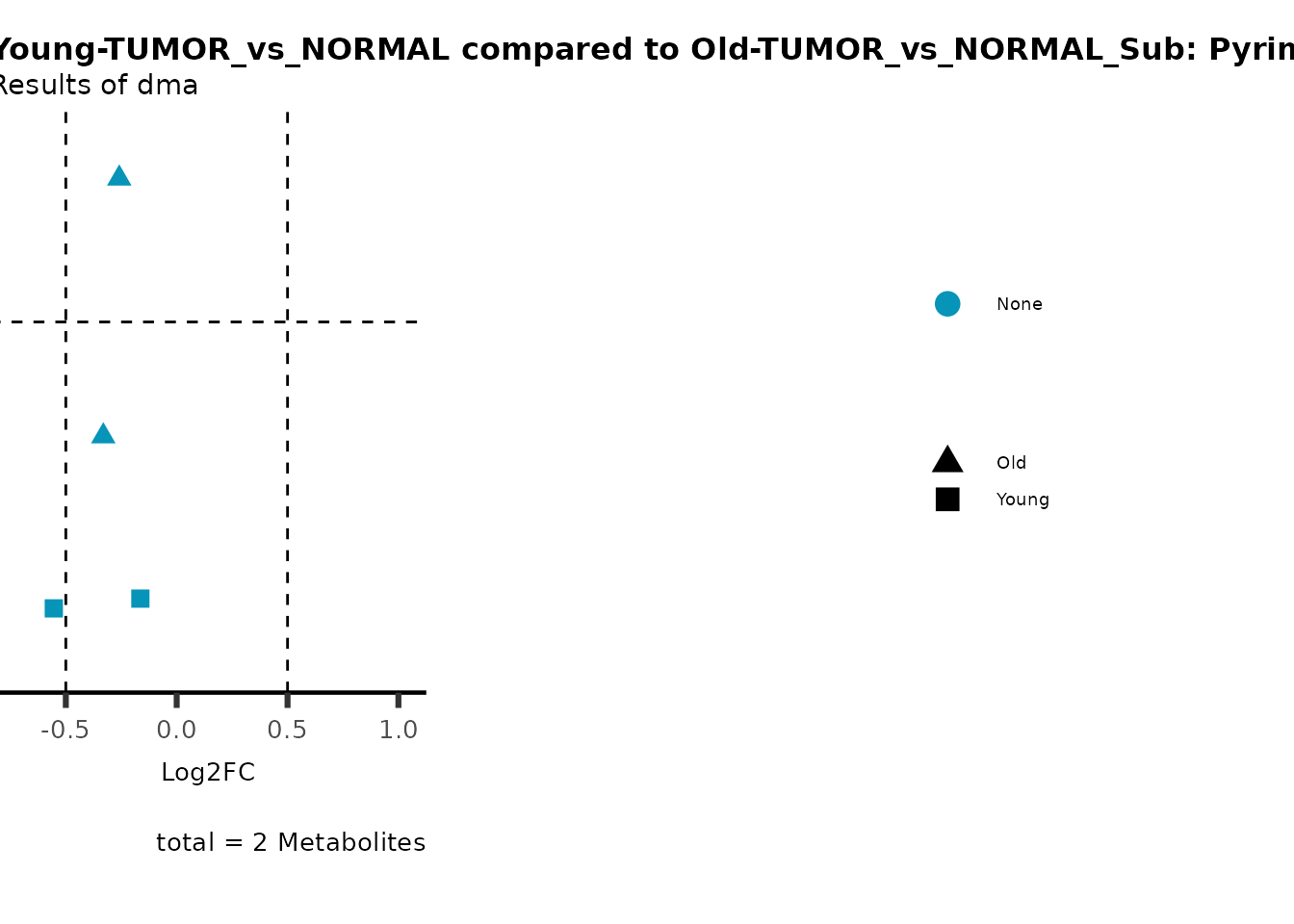

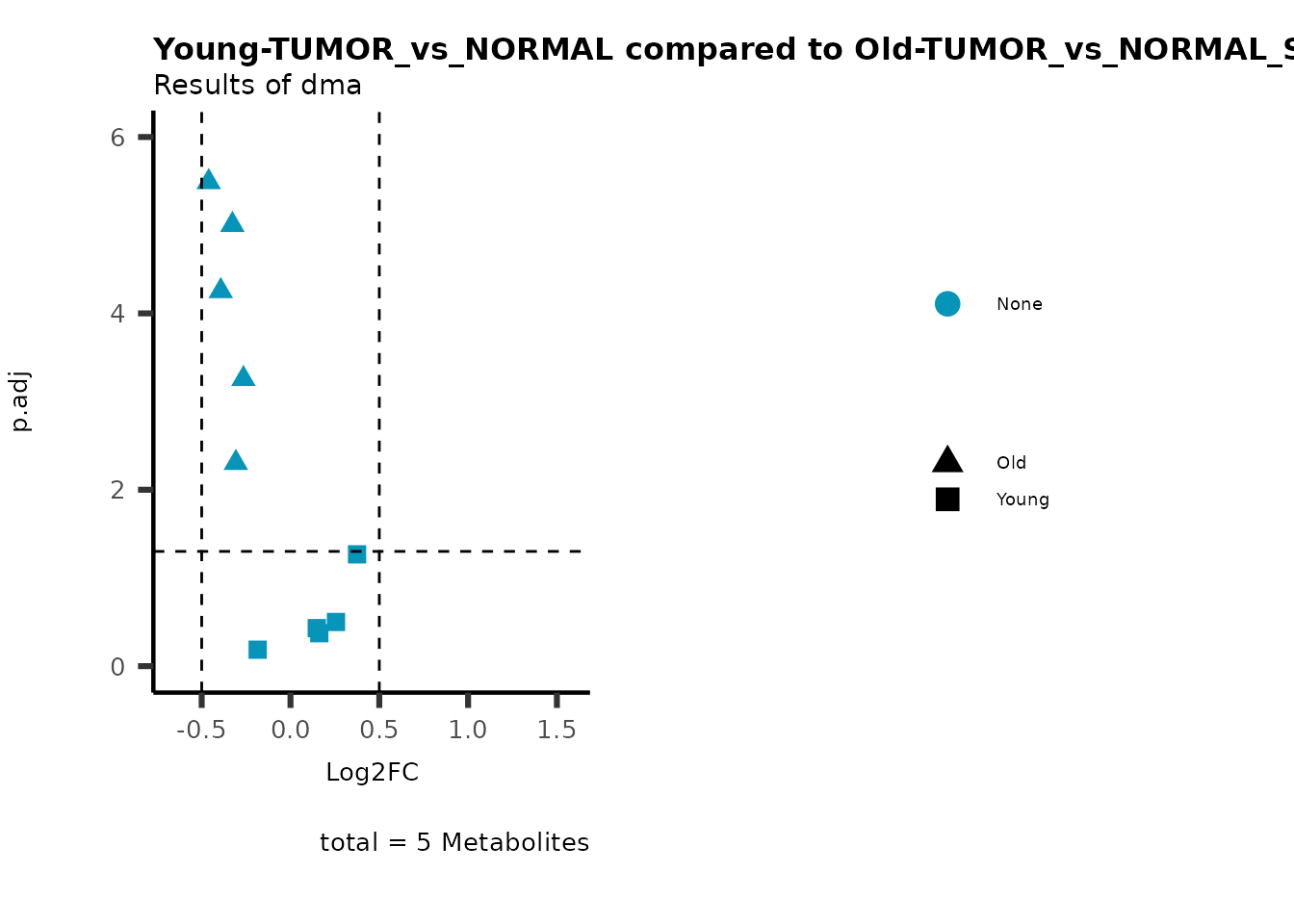

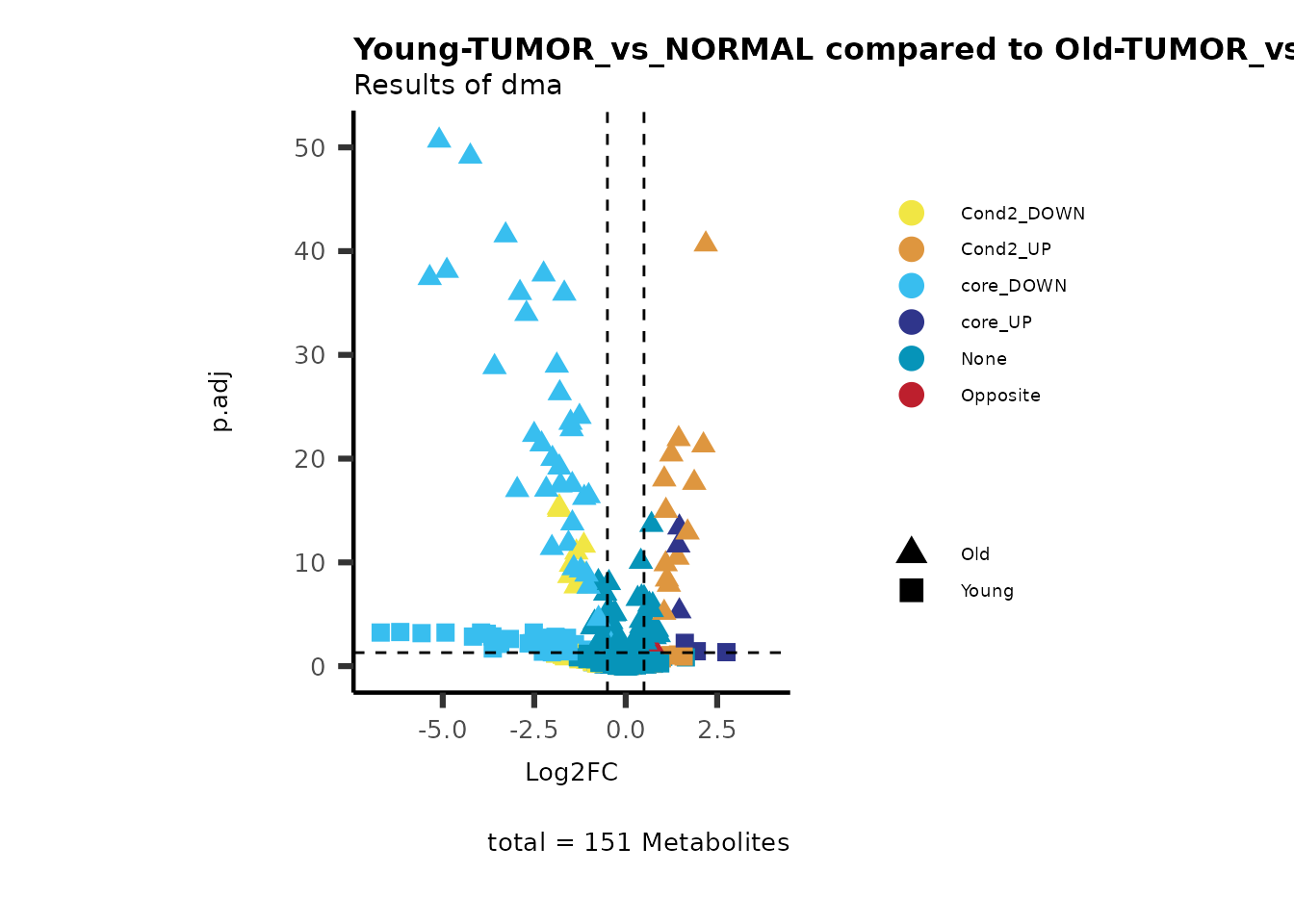

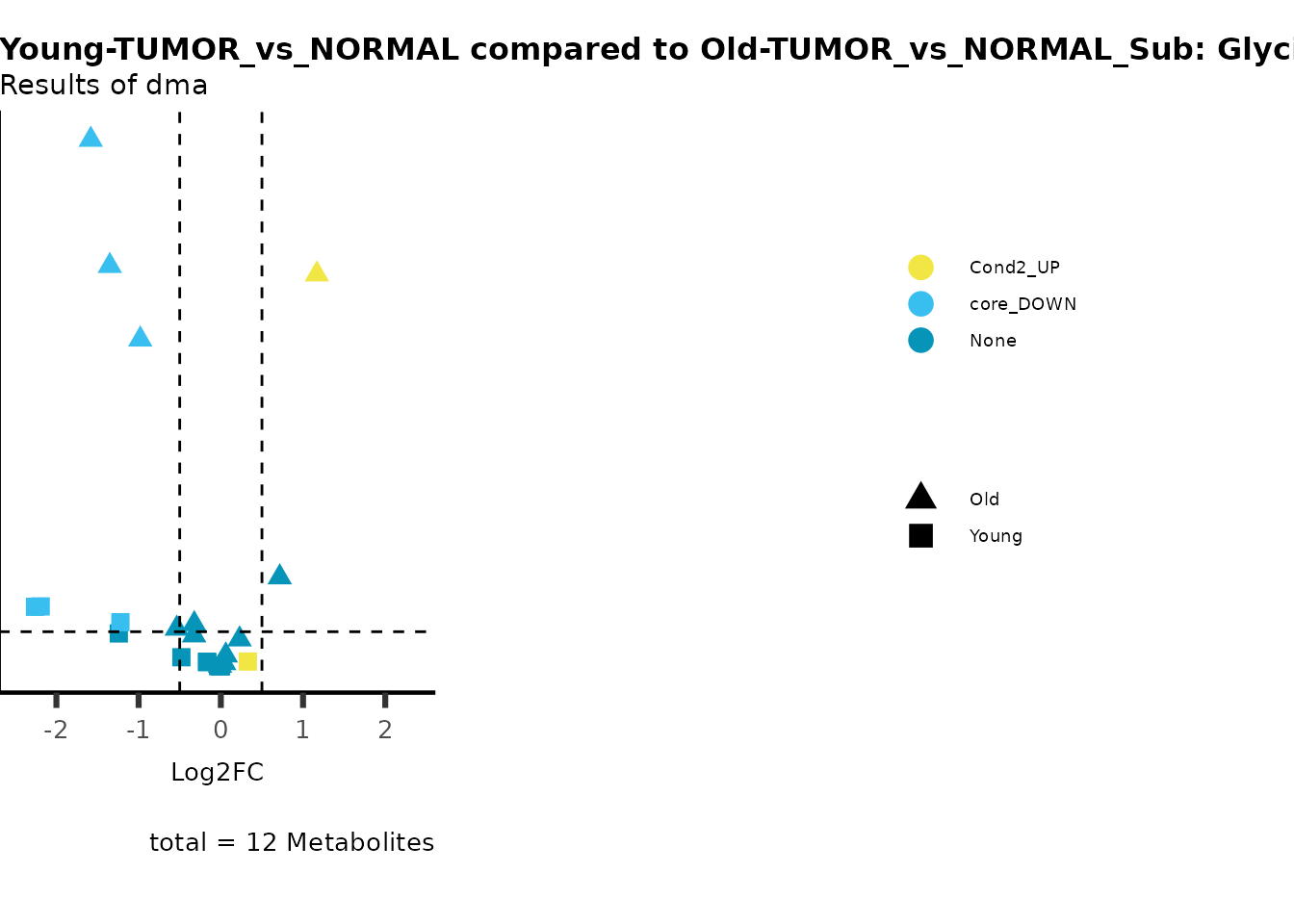

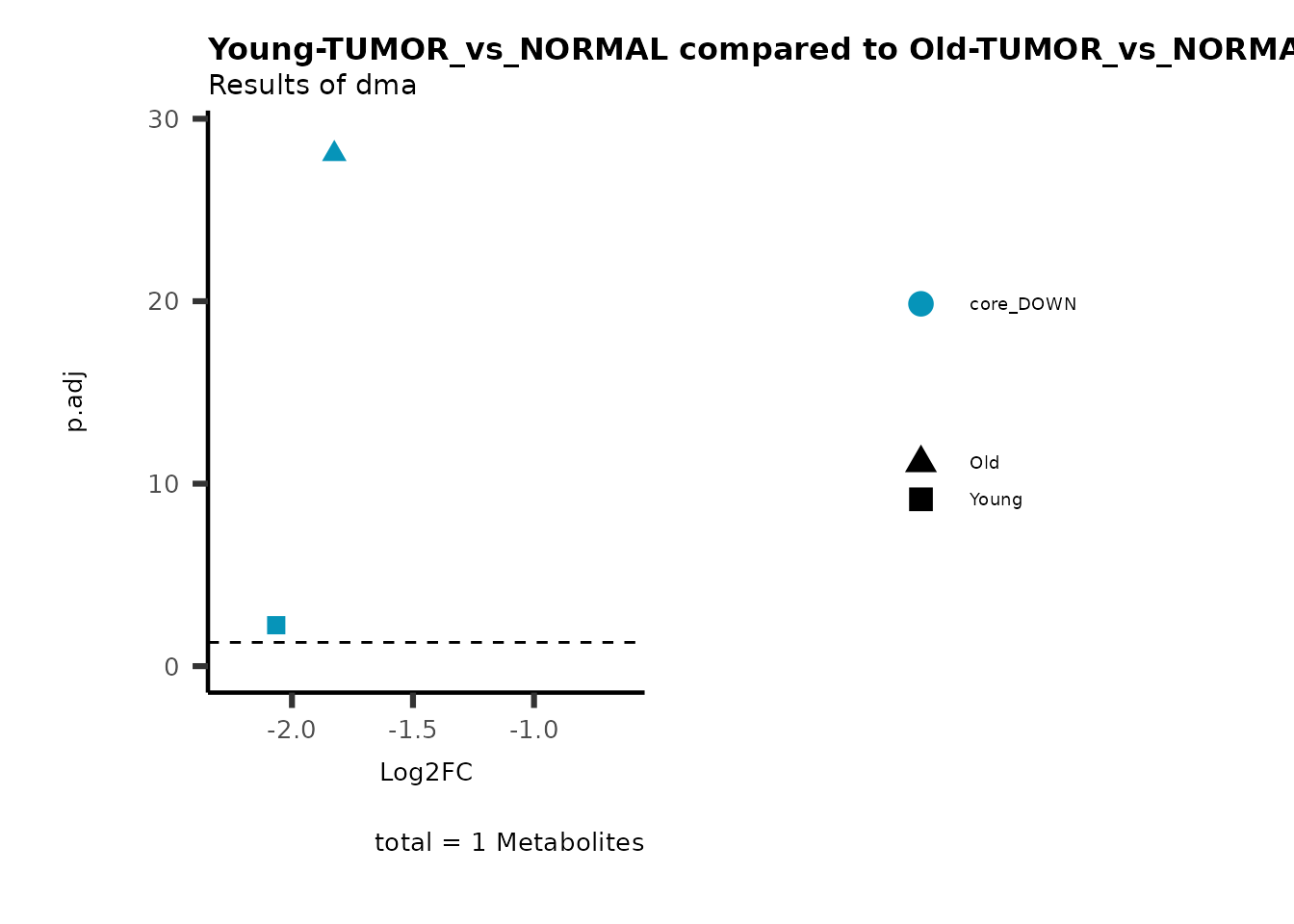

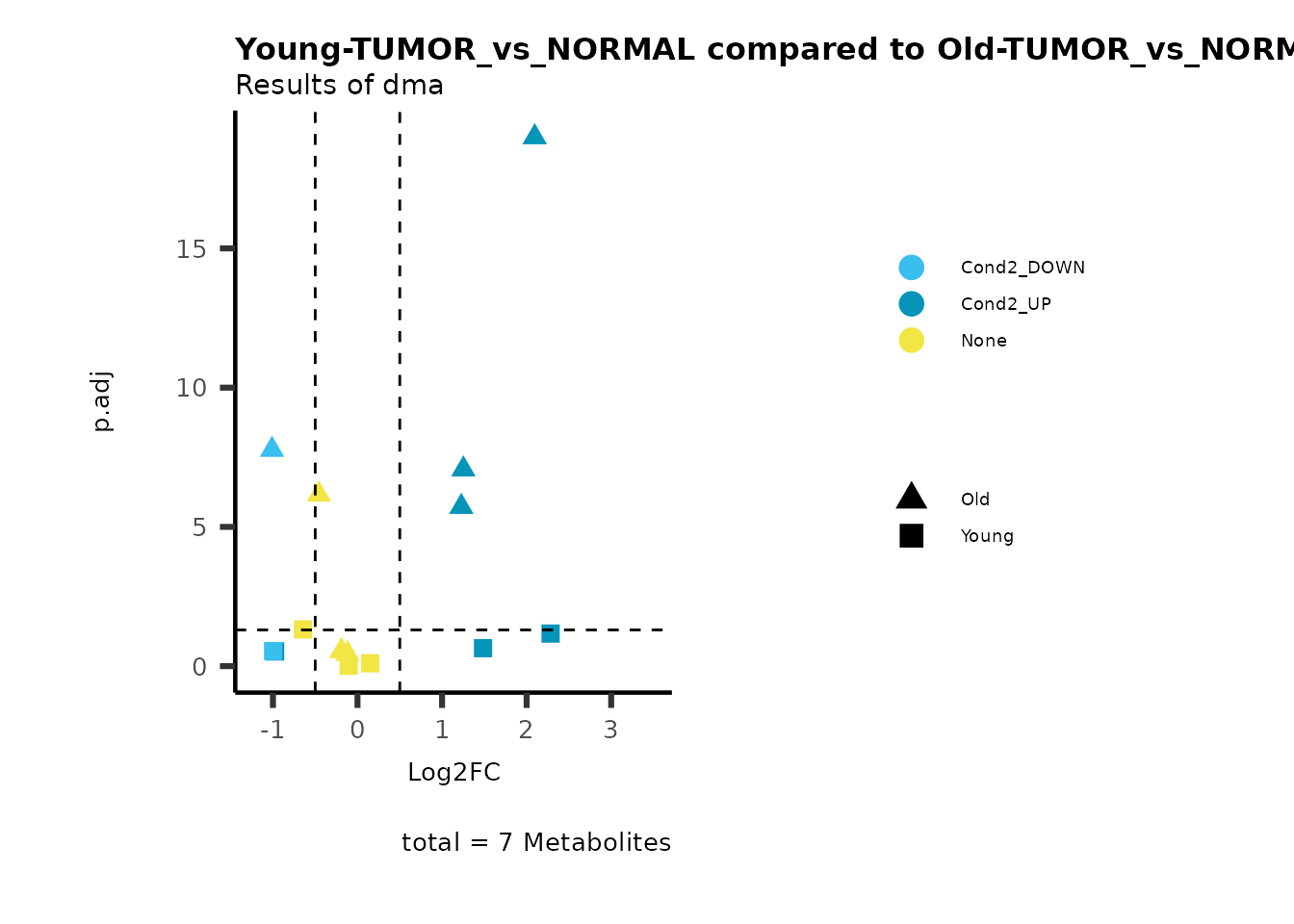

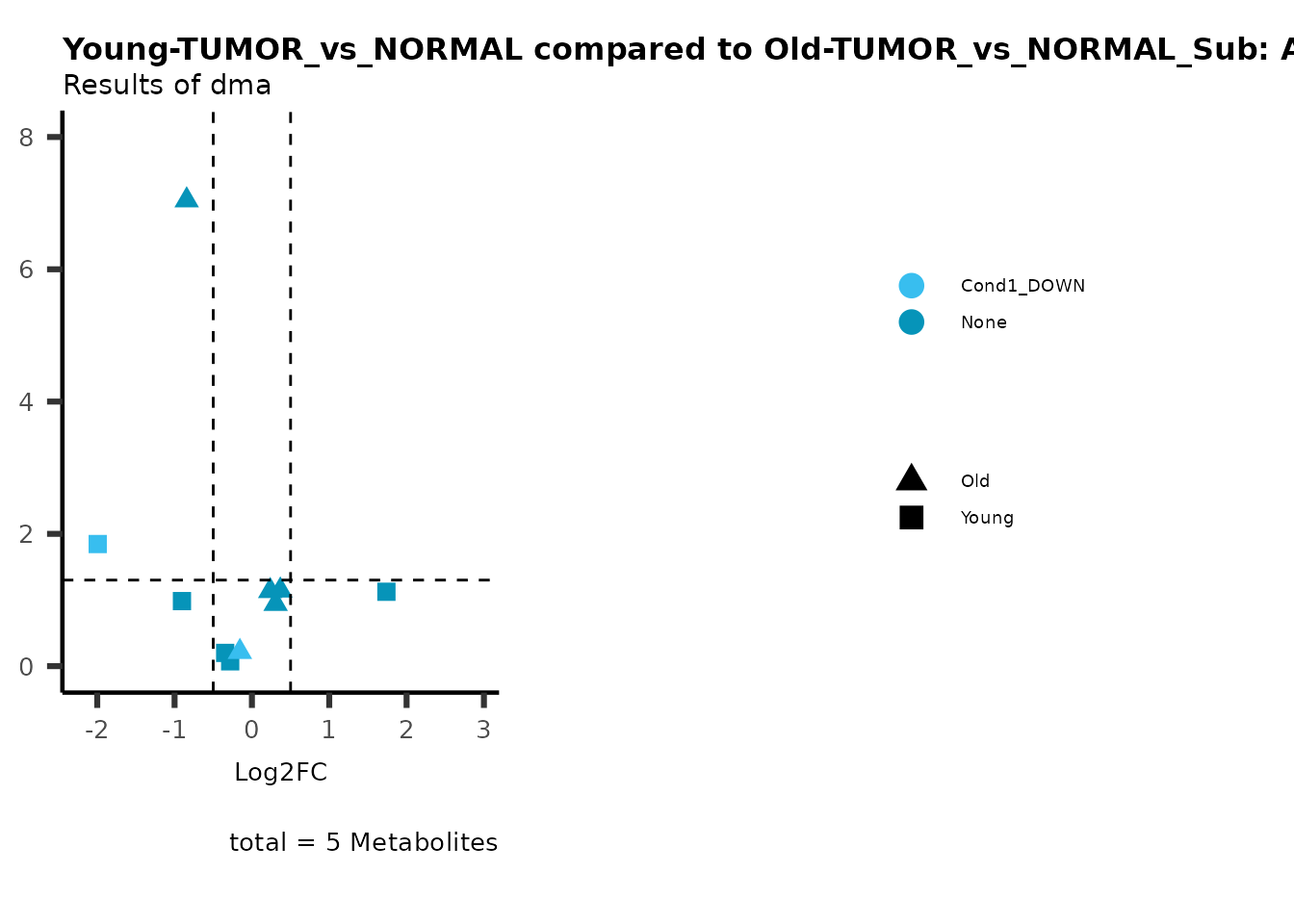

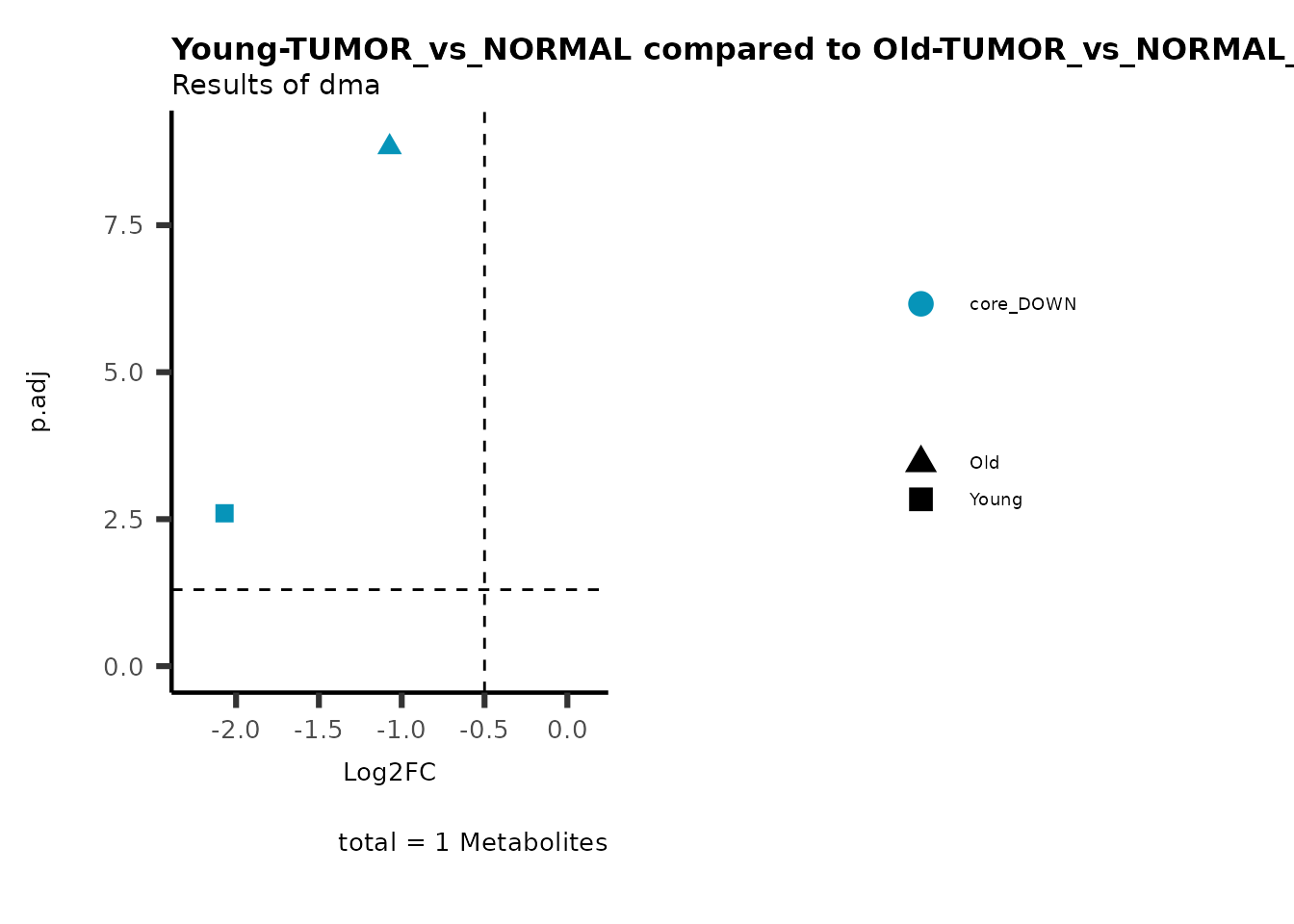

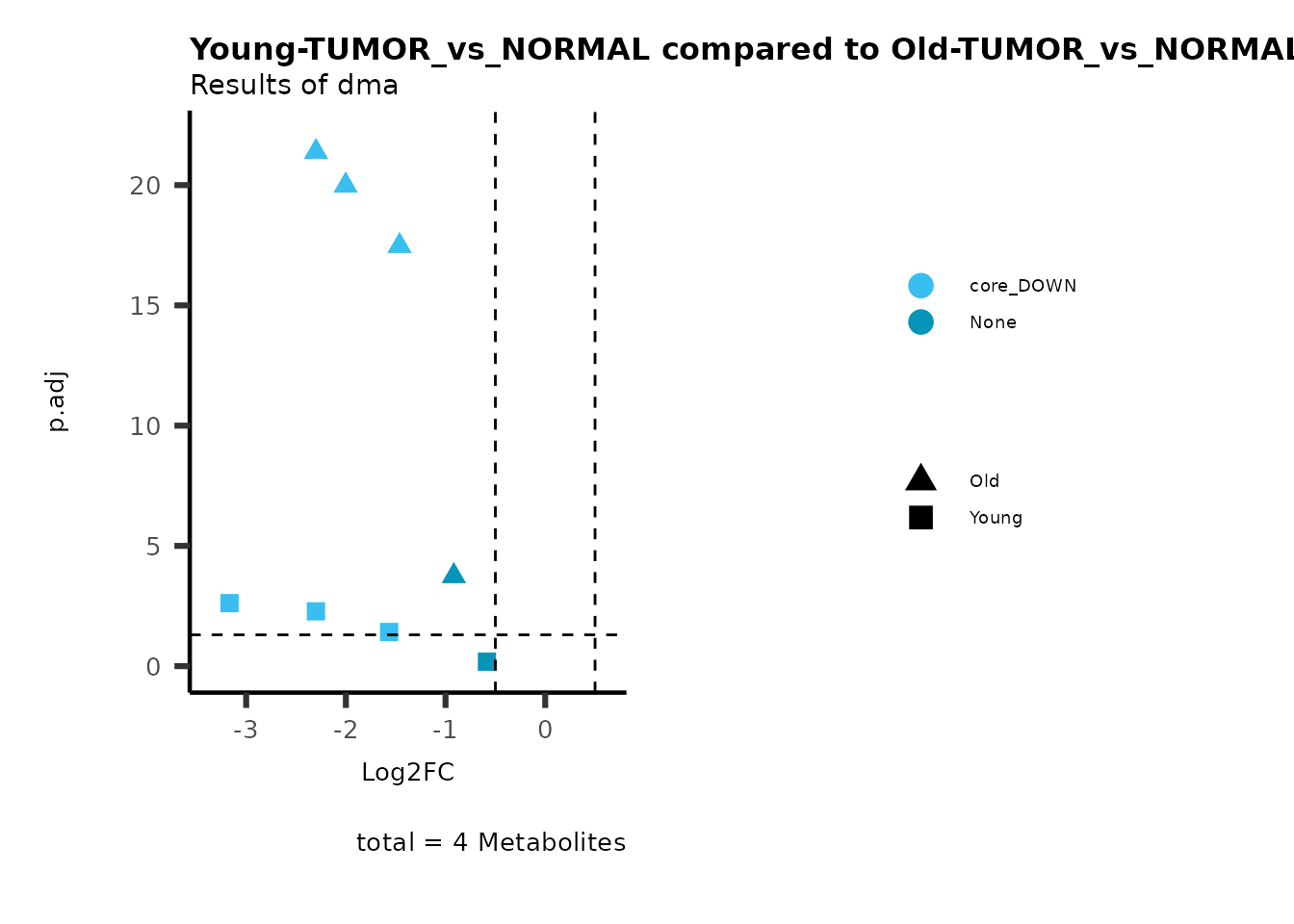

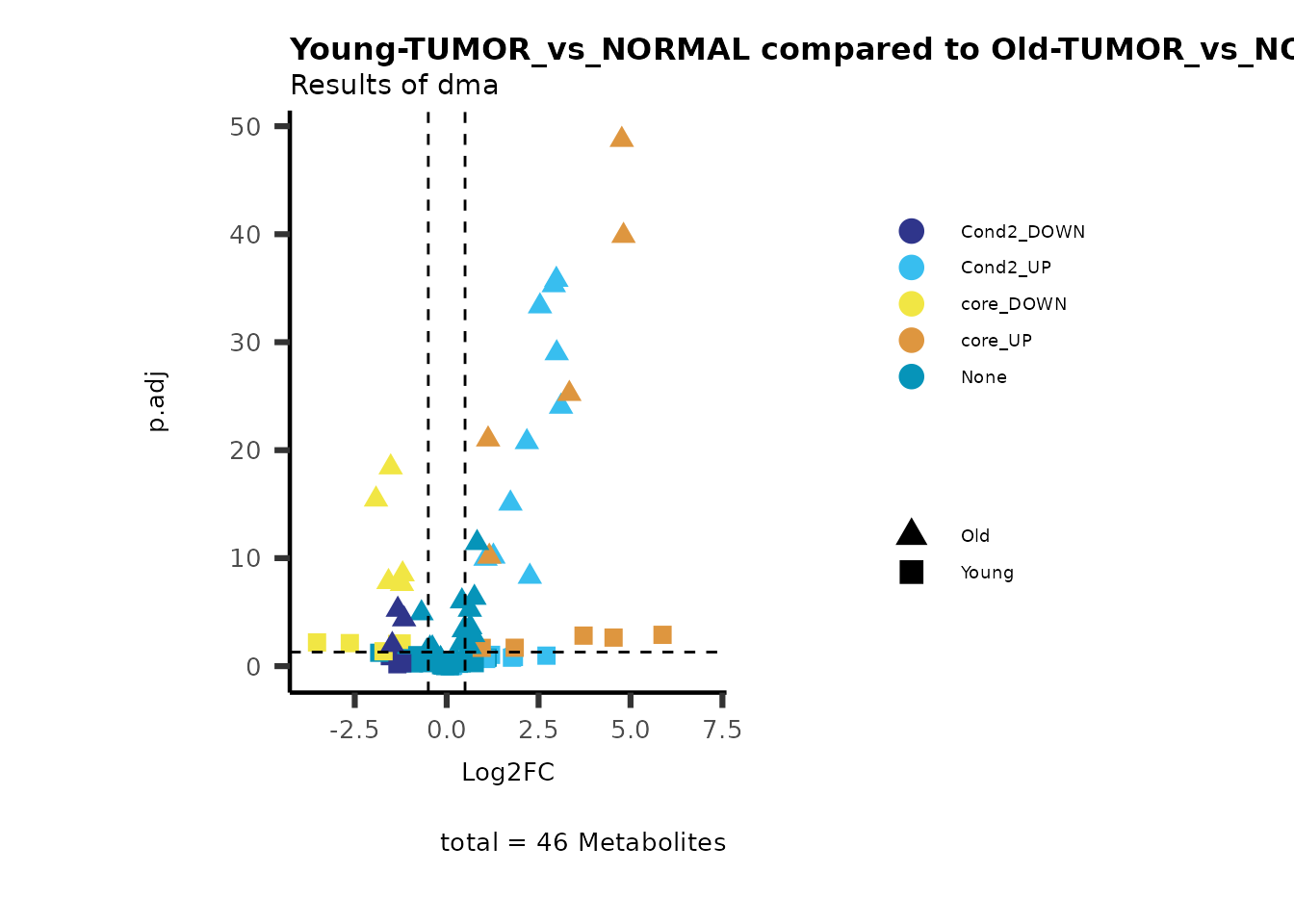

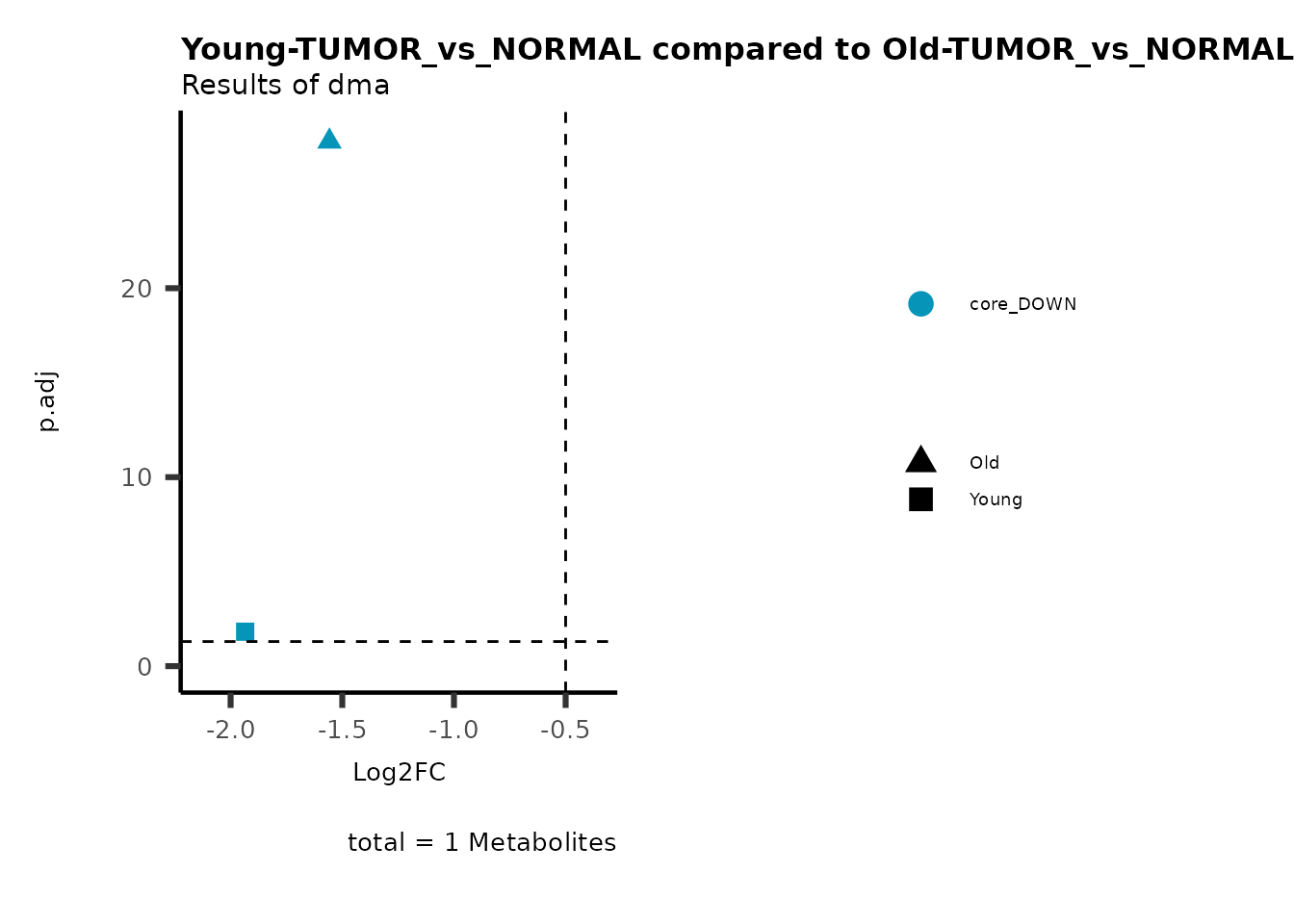

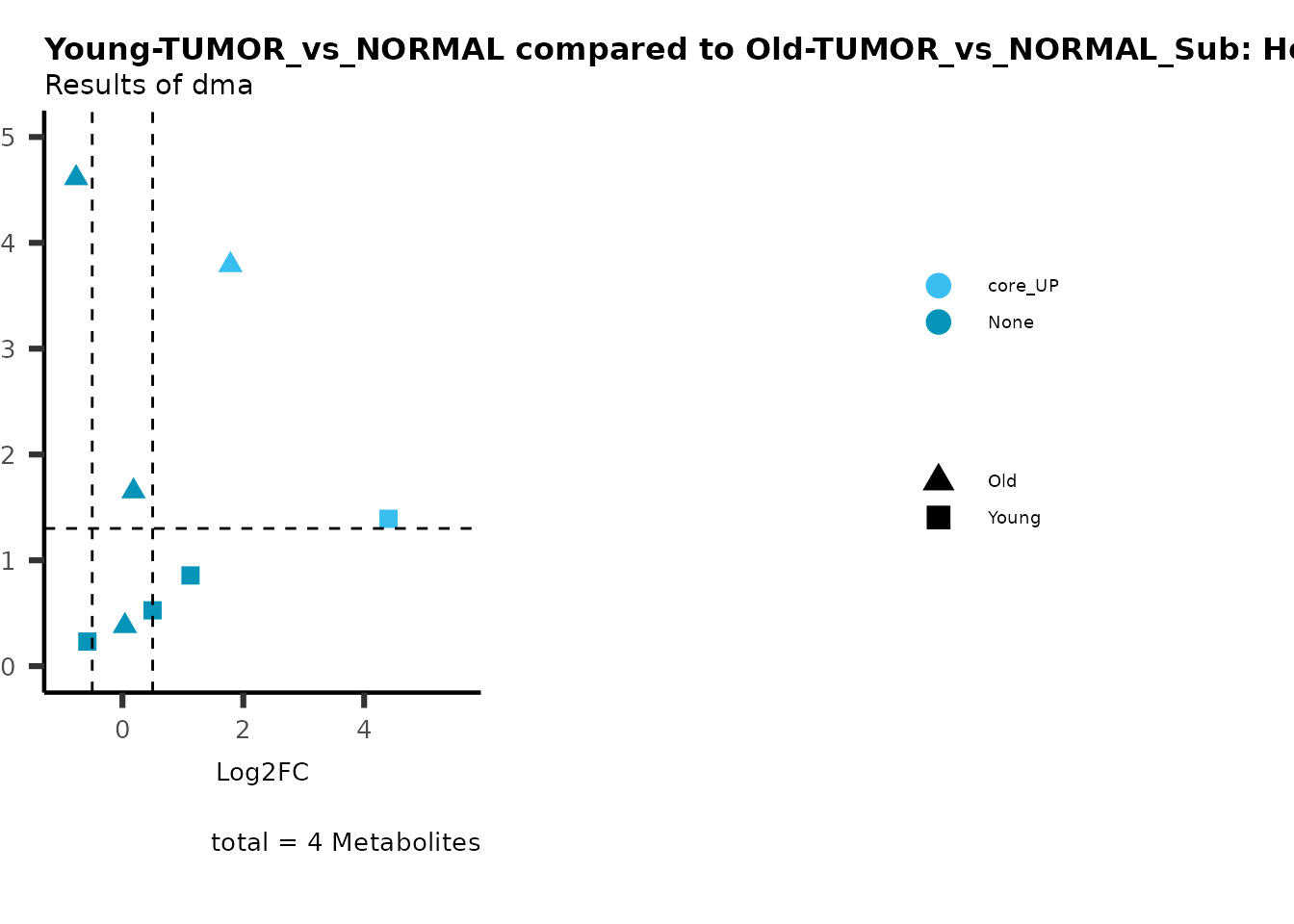

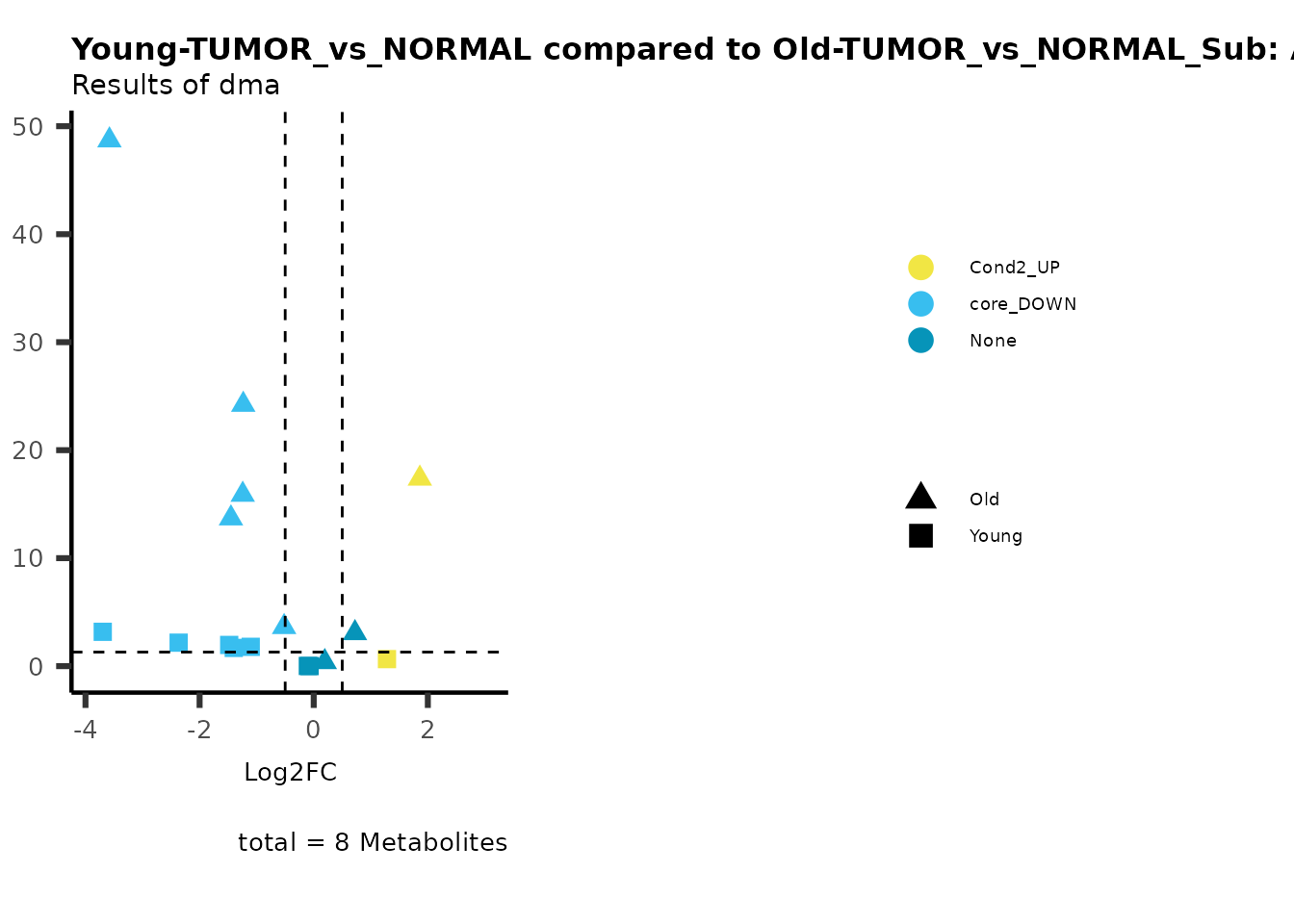

MetaProViz::viz_volcano(plot_types="Compare",
                       data=ResList[["Young"]][["dma"]][["TUMOR_vs_NORMAL"]]%>%tibble::column_to_rownames("Metabolite"),
                       data2= ResList[["Old"]][["dma"]][["TUMOR_vs_NORMAL"]]%>%tibble::column_to_rownames("Metabolite"),
                       name_comparison= c(data="Young", data2= "Old"),
                       plot_name= "Young-TUMOR_vs_NORMAL compared to Old-TUMOR_vs_NORMAL",
                       subtitle= "Results of dma" )


Here we can observe that Tumour versus Normal has lower significance values for the Young patients compared to the Old patients. This can be due to higher variance in the metabolite measurements from Young patients compared to the Old patients.
We can also check if the top changed metabolites comparing Tumour versus Normal correlate with the main metabolite drivers that separate patients based on their TISSUE_TYPE, which are Tumour or Normal.

# Get the top changed metabolites
top_entries <- ResList[["TissueType"]][["dma"]][["TUMOR_vs_NORMAL"]] %>%
  arrange(desc(t.val)) %>%
  slice(1:25)%>%
  select(Metabolite)%>%
  pull()
bottom_entries <- ResList[["TissueType"]][["dma"]][["TUMOR_vs_NORMAL"]] %>%
  arrange(desc(t.val)) %>%
  slice((n()-24):n())%>%
  select(Metabolite)  %>%
  pull()

# Check if those overlap with the top demographics drivers
ggVennDiagram::ggVennDiagram(list(top = top_entries,
                                  Bottom = bottom_entries,
                                  TissueTypeList = TissueTypeList))+
  ggplot2::scale_fill_gradient(low = "blue", high = "red")



MetaData_Metab <- merge(x=tissue_meta,
                   y= MetaRes[["res_summary"]][, c(1,5:6) ]%>%tibble::column_to_rownames("feature"),
                   by=0,
                   all.y=TRUE)%>%
  column_to_rownames("Row.names")

# Make a Volcano plot:
MetaProViz::viz_volcano(plot_types="Standard",
                       data=ResList[["TissueType"]][["dma"]][["TUMOR_vs_NORMAL"]]%>%tibble::column_to_rownames("Metabolite"),
                       metadata_feature =  MetaData_Metab,
                       metadata_info = c(color = "MainDriver_Term"),
                      plot_name= "TISSUE_TYPE-TUMOR_vs_NORMAL",
                       subtitle= "Results of dma" )

Metabolite ID QC

Before we perform enrichment analysis,it is important to check the availability of metabolite IDs that we aim to use. We can first create an overview plot:

#Load the feature metadata:
MetaboliteIDs <- Tissue_MetaData %>%
  rownames_to_column("Metabolite")%>%
  dplyr::rename("HMDB"= "Group_HMDB")%>%
  slice(1:577)# only keep entrys with trivial names

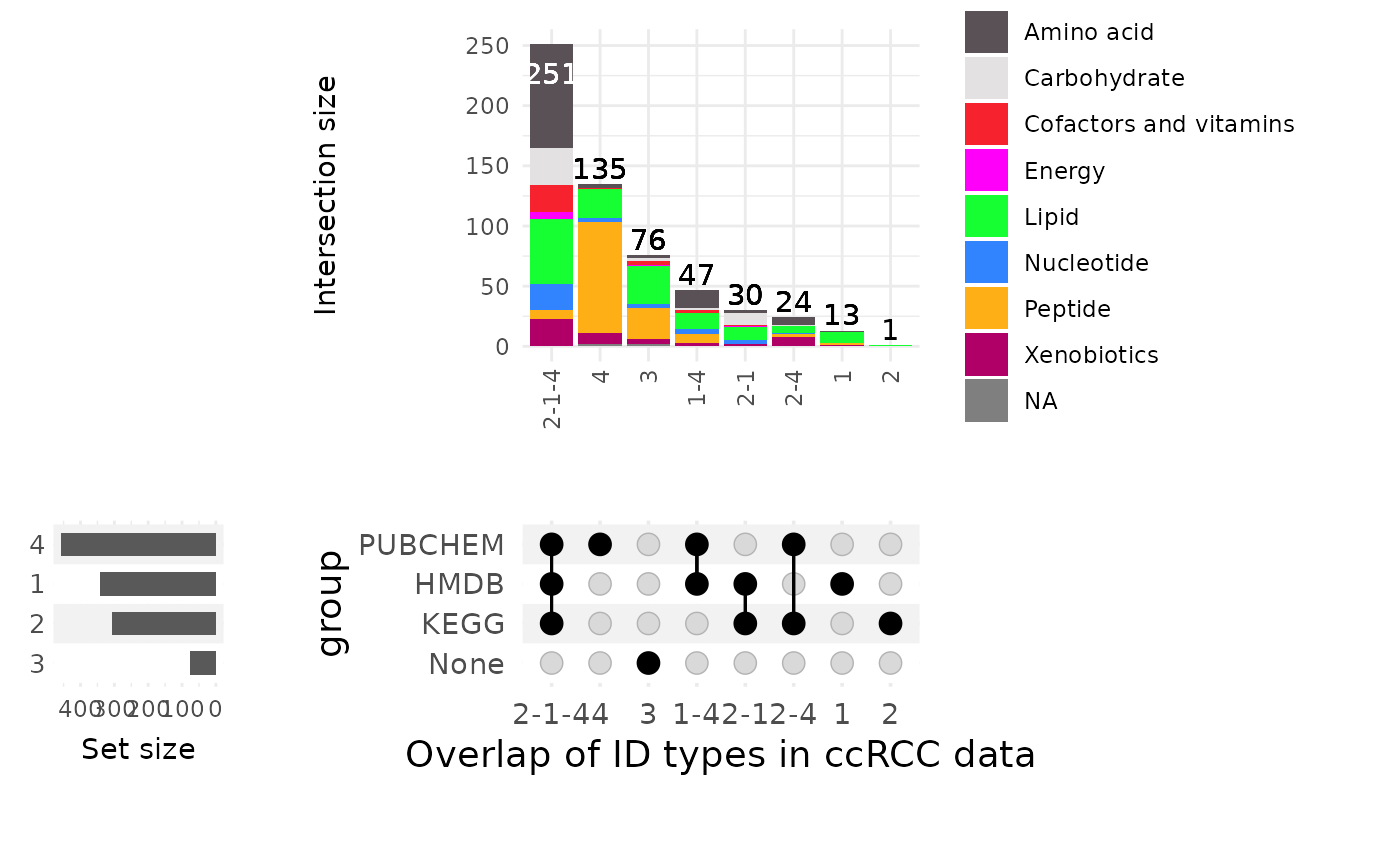

ccRCC_CompareIDs <- MetaProViz::compare_pk(data = list(Biocft = MetaboliteIDs |> dplyr::rename("Class"="SUPER_PATHWAY")),
                                           name_col = "Metabolite",
                                           metadata_info = list(Biocft = c("KEGG", "HMDB", "PUBCHEM")),
                                           plot_name = "Overlap of ID types in ccRCC data")


Here we notice that 76 features have no metabolite ID assigned, yet have a trivial name and a metabolite class assigned. For 135 metabolites we only have a pubchem ID, yet no HMDB or KEGG ID. Next, we will try to understand the missing IDs focusing on HMDb as an example:

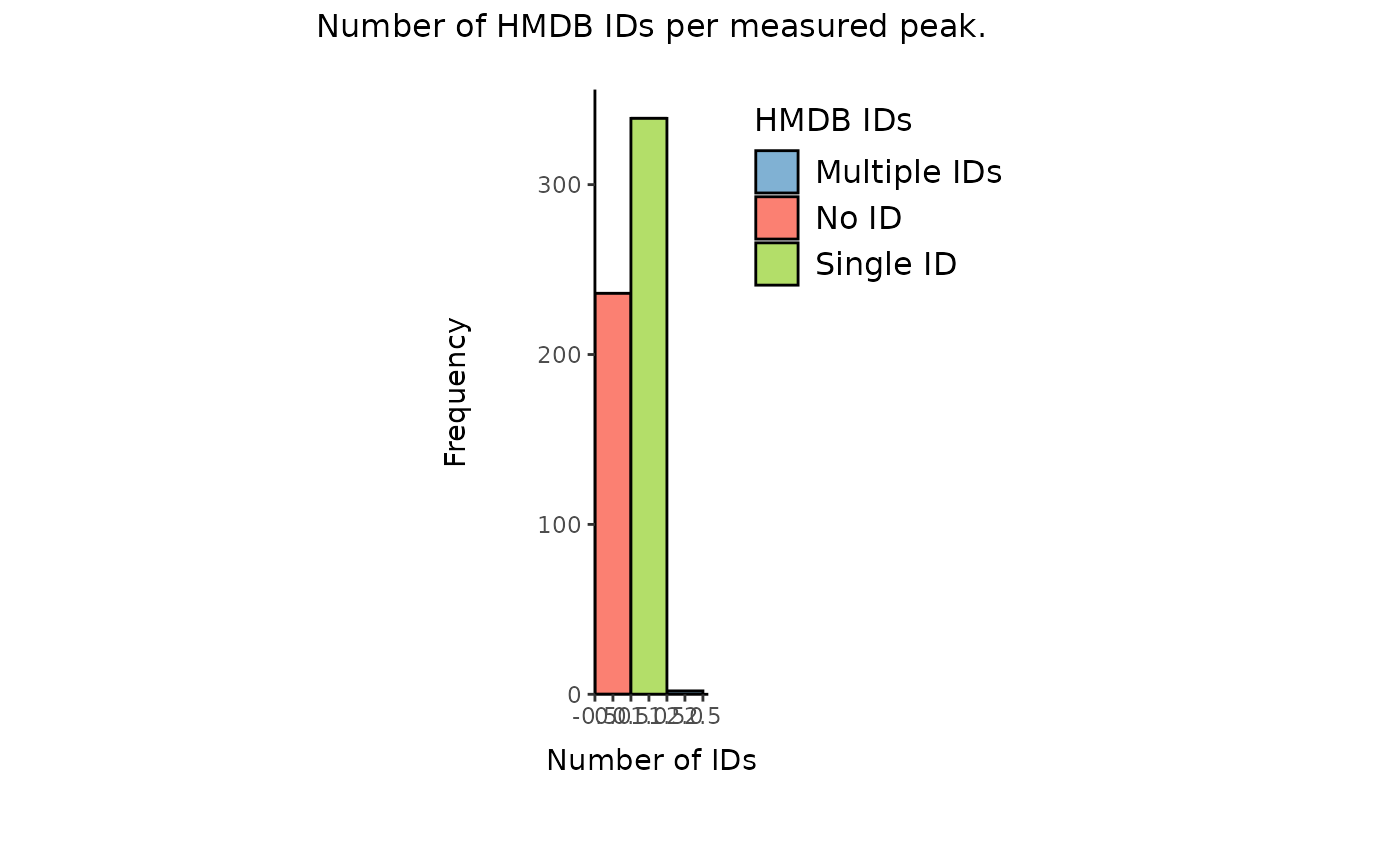

Plot1_HMDB <- MetaProViz::count_id(MetaboliteIDs, "HMDB")


Over 200 metabolites have no HMDB ID and if there is a HMDB ID assigned, we only have one HMDB ID. Here we assume the experimental setup does not account for stereoisomers and that other IDs are with different degrees of ambiguity are possible (e.g. L-Alanine HMDB ID is present and we will add D-Alanine HMDB ID, see PK vignette for more details). This enables us to assign additional potential HMDB IDs per feature.

Input_HMDB <- MetaboliteIDs %>%
  dplyr::filter(!is.na(HMDB)) %>% # ID in the measured data we want to use, hence we remove NA's
  dplyr::select("Metabolite", "HMDB", "SUPER_PATHWAY") # only keep relevant columns

# Add equivalent IDs:
tissue_meta_AddIDs_HMDB <- MetaProViz::equivalent_id(data= Input_HMDB,
                                                           metadata_info = c(InputID="HMDB"),# ID in the measured data, here we use the HMDB ID
                                                           from = "hmdb")
#> Warning in MetaProViz::equivalent_id(data = Input_HMDB, metadata_info =
#> c(InputID = "HMDB"), : The following IDs are duplicated and removed: HMDB01859
#> chebi is used to find additional potential IDs for hmdb.
# Let's see how this has changed the number of entries:
tissue_meta_AddIDs_HMDB <- merge(x=MetaboliteIDs,
                                       y=tissue_meta_AddIDs_HMDB,
                                       by="HMDB",
                                       all.x=TRUE)

# Plot 2 after equivalent IDs where added

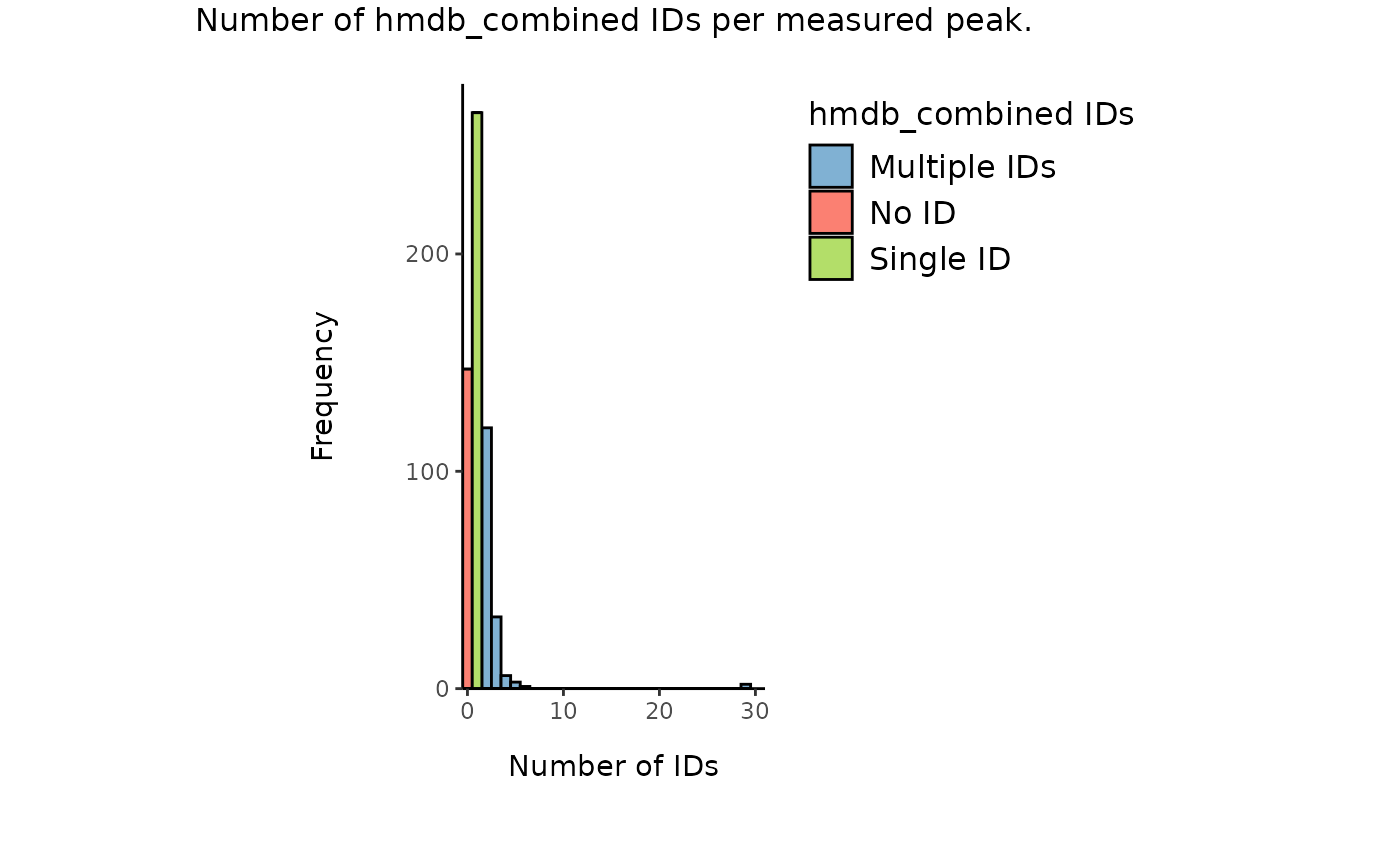

Plot2_HMDB <- MetaProViz::count_id(tissue_meta_AddIDs_HMDB, "AllIDs")

Additionally, for the metabolites without HMDB ID we can check if a HMDB ID is available using the other ID types. First we check if we have cases in which we do have no HMDB ID, but other available IDs:
Overview of other ID types for metabolites without HMDB ID.
Total_Cases Not_NA_PUBCHEM Not_NA_KEGG Both_Not_NA
160 159 25 24
no_hmdb <- dplyr::filter(MetaboliteIDs, is.na(HMDB) & (!is.na(PUBCHEM) | !is.na(KEGG)))

tissue_meta_translated_HMDB <-
  MetaProViz::translate_id(no_hmdb, metadata_info = list(InputID = "PUBCHEM", grouping_variable = "SUPER_PATHWAY"), from = "pubchem", to = "hmdb") |>
  extract2("TranslatedDF") |>
  rename(hmdb_from_pubchem = hmdb) |>
  MetaProViz::translate_id(metadata_info = list(InputID = "KEGG", grouping_variable = "SUPER_PATHWAY"), from = "kegg", to = "hmdb") |>
  extract2("TranslatedDF") |>
  rename(hmdb_from_kegg = hmdb)
#> Warning in MetaProViz::translate_id(no_hmdb, metadata_info = list(InputID =
#> "PUBCHEM", : The following IDs are duplicated within one group: 5.24601e+13,
#> 6.99312e+13

# Here we combine the tables above, created by equivalent_id and translate_id:
Tissue_MetaData_HMDB <-
  left_join(
    tissue_meta_AddIDs_HMDB |>
      select(Metabolite = Metabolite.x, SUPER_PATHWAY = SUPER_PATHWAY.x, SUB_PATHWAY ,COMP_ID, PLATFORM, RI, MASS, CAS, PUBCHEM, KEGG,  HMDB, hmdb_from_equivalentid = AllIDs),
    tissue_meta_translated_HMDB |>
      select(COMP_ID, hmdb_from_pubchem, hmdb_from_kegg) |> mutate(across(starts_with("hmdb_from"), ~na_if(., ""))),
    by = 'COMP_ID'
  ) |>
  rowwise() |>
  mutate(hmdb_combined = list(unique(na.omit(unlist(stringr::str_split(across(starts_with("hmdb_from")), ",")))))) |>
  mutate(hmdb_combined = paste0(hmdb_combined, collapse = ',')) |>  # we concatenate by "," only for the sake of printing in notebook
  ungroup()

# Plot 3:
Plot3_HMDB <- MetaProViz::count_id(Tissue_MetaData_HMDB, "hmdb_combined")


If we inspect the tables we can check that for example, 16-hydroxypalmitate certainly has an HMDB ID, yet was missing from the original metadata table. We can check the structures associated to it on PubChem:10466 and KEGG:C18218 are indeed identical, and as we expect, the same structure is in HMDB too, under the ID HMDB0006294.

We can of course do the same for other IDs, such as the KEGG IDs:

Plot1_KEGG <- MetaProViz::count_id(MetaboliteIDs, "KEGG")


##################################################################################################################
Input_KEGG <- Tissue_MetaData_HMDB %>%
  dplyr::filter(!is.na(KEGG)) %>% # ID in the measured data we want to use, hence we remove NA's
  dplyr::select("Metabolite", "KEGG", "SUPER_PATHWAY") # only keep relevant columns

# Add equivalent IDs:
tissue_meta_AddIDs_KEGG <- MetaProViz::equivalent_id(data= Input_KEGG,
                                                metadata_info = c(InputID="KEGG"),# ID in the measured data, here we use the HMDB ID
                                                from = "kegg")
#> Warning in MetaProViz::equivalent_id(data = Input_KEGG, metadata_info =
#> c(InputID = "KEGG"), : The following IDs are duplicated and removed: C01585,
#> C00474, C06804, C03594, C06429
#> chebi is used to find additional potential IDs for kegg.

# Let's see how this has changed the number of entries:
tissue_meta_AddIDs_KEGG <- merge(x=Tissue_MetaData_HMDB,
                                 y=tissue_meta_AddIDs_KEGG,
                                 by="KEGG",
                                 all.x=TRUE)

Plot2_KEGG <-  MetaProViz::count_id(tissue_meta_AddIDs_KEGG, "AllIDs")


###################################################################################################################
no_KEGG <- dplyr::filter(Tissue_MetaData_HMDB, is.na(KEGG) & (!is.na(PUBCHEM) | !is.na(HMDB)))

tissue_meta_translated_KEGG <-
  MetaProViz::translate_id(no_KEGG, metadata_info = list(InputID = "PUBCHEM", grouping_variable = "SUPER_PATHWAY"), from = "pubchem", to = "kegg") |>
  extract2("TranslatedDF") |>
  rename(kegg_from_pubchem = kegg) |>
  MetaProViz::translate_id(metadata_info = list(InputID = "HMDB", grouping_variable = "SUPER_PATHWAY"), from = "hmdb", to = "kegg") |>
  extract2("TranslatedDF") |>
  rename(kegg_from_hmdb = kegg)
#> Warning in MetaProViz::translate_id(no_KEGG, metadata_info = list(InputID =
#> "PUBCHEM", : The following IDs are duplicated within one group: 5.24601e+13,
#> 6.99312e+13

# here we combine the tables above, created by equivalent_id and translate_id:
Tissue_MetaData_KEGG <-
  left_join(
    tissue_meta_AddIDs_KEGG |>
      select(Metabolite = Metabolite.x, SUPER_PATHWAY = SUPER_PATHWAY.x,SUB_PATHWAY, COMP_ID, PLATFORM, RI, MASS, CAS, PUBCHEM, HMDB=hmdb_combined , HMDB_Original = HMDB, hmdb_from_equivalentid, hmdb_from_kegg, hmdb_from_pubchem, , KEGG_Original = KEGG, kegg_from_equivalentid = AllIDs),
    tissue_meta_translated_KEGG |>
      select(COMP_ID, kegg_from_pubchem, kegg_from_hmdb) |> mutate(across(starts_with("kegg_from"), ~na_if(., ""))),
    by = 'COMP_ID'
  ) |>
  rowwise() |>
  mutate(KEGG= list(unique(na.omit(unlist(stringr::str_split(across(starts_with("kegg_from")), ",")))))) |>
  mutate(KEGG = paste0(KEGG, collapse = ',')) |>  # we concatenate by "," only for the sake of printing in notebook
  ungroup()

# Lets see the count now:
Plot3_KEGG <- MetaProViz::count_id(Tissue_MetaData_KEGG, "KEGG")


Lastly, we will have the new metadata table, which we can use for enrichment analysis:

Tissue_MetaData_Extended <-  Tissue_MetaData_KEGG[, c(1:10,19, 11:18)]%>%
  mutate(
    KEGG = ifelse(KEGG == "", NA, KEGG),
    HMDB = ifelse(HMDB == "", NA, HMDB)
  )

ccRCC_CompareIDs_Extended <- MetaProViz::compare_pk(data = list(Biocft = Tissue_MetaData_Extended |> dplyr::rename("Class"="SUPER_PATHWAY")),
                                                    name_col = "Metabolite",
                                                    metadata_info = list(Biocft = c("KEGG", "HMDB", "PUBCHEM")),
                                                    plot_name = "Overlap of ID types in ccRCC data")


If we compare the results to the upset plot from the original metadata we can see that initially 251 metabolites had a pubchem, HMDB and KEGG ID, whilst after adding the equivalent IDs and translating the IDs, we now have 285 metabolites with all three IDs. 135 metabolite had only a Pubchem ID, whilst now we have found HMDB and/or KEGG IDs for half of these metabolites with only 65 metabolites remaining with only a Pubchem ID.

ORA

We can perform Over Representation Analysis (ORA) using KEGG pathways for each comparison and plot significant pathways. Noteworthy, since not all metabolites have KEGG IDs, we will lose information.


Given that in some cases we have multiple KEGG IDs for a measured feature, we will check if this causes mapping to multiple, different entries in the KEGG pathway-metabolite sets:

#Load Kegg pathways:
KEGG_Pathways <- metsigdb_kegg()

#check mapping with metadata

ccRCC_to_KEGGPathways <- MetaProViz::checkmatch_pk_to_data(data = Tissue_MetaData_Extended,
                                                           input_pk = KEGG_Pathways,
                                                           metadata_info = c(InputID = "KEGG", PriorID = "MetaboliteID", grouping_variable = "term"))
#> Warning in MetaProViz::checkmatch_pk_to_data(data = Tissue_MetaData_Extended, :
#> 251 NA values were removed from column KEGG
#> Warning in MetaProViz::checkmatch_pk_to_data(data = Tissue_MetaData_Extended, :
#> 8 duplicated IDs were removed from column KEGG
#> data has multiple IDs per measurement = TRUE. input_pk has multiple IDs per entry = FALSE.
#> data has 318 unique entries with 334 unique KEGG IDs. Of those IDs, 245 match, which is 73.3532934131736%.
#> input_pk has 6502 unique entries with 6502 unique MetaboliteID IDs. Of those IDs, 245 are detected in the data, which is 3.76807136265764%.
#> Warning in MetaProViz::checkmatch_pk_to_data(data = Tissue_MetaData_Extended, :
#> There are cases where multiple detected IDs match to multiple prior knowledge
#> IDs of the same category

problems_terms <- ccRCC_to_KEGGPathways[["GroupingVariable_summary"]]%>%
  filter(!Group_Conflict_Notes== "None")
Terms in KEGG pathways where the same measured feature mapps with more than one ID, which will inflate the enrichment analysis.
KEGG original_count matches_count MetaboliteID term
C00221, C00031 2 2 C00031 Glycolysis / Gluconeogenesis
C00221, C00031 2 2 C00221 Pentose phosphate pathway
C00221, C00031 2 2 C00221 Biosynthesis of secondary metabolites
C00221, C00031 2 2 C00221 Glycolysis / Gluconeogenesis
C00221, C00031 2 2 C00031 Metabolic pathways
C00221, C00031 2 2 C00221 Metabolic pathways
C00221, C00031 2 2 C00031 Biosynthesis of secondary metabolites
C00221, C00031 2 2 C00031 Pentose phosphate pathway
C03460, C03722 2 2 C03460 Metabolic pathways
C03460, C03722 2 2 C03722 Metabolic pathways
C17737, C00695 2 2 C00695 Secondary bile acid biosynthesis
C17737, C00695 2 2 C17737 Secondary bile acid biosynthesis


Dependent on the biological question and the organism and prior knowledge, one can either maintain the metabolite ID of the more likely metabolite (e.g. in human its moire likely that we have L-aminoacid than D-aminoacid) or the metabolite ID that is represented in more/less pathways (specificity). If we are looking into the cases where we do have multiple IDs, for cases with no match to the prior knowledge we can just maintain one ID, whilst for cases with exactly one match we should maintain the ID that is found in the prior knowledge.

# Select the cases where a feature has multiple IDs
multipleIDs <- ccRCC_to_KEGGPathways[["data_summary"]]%>%
  filter(original_count>1)
Terms in KEGG pathways where the same measured feature mapps with more than one ID, which may inflate the enrichment analysis.
KEGG InputID_select original_count matches_count matches Group_Conflict_Notes ActionRequired Action_Specific
C00065, C00716 NA 2 2 C00065, C00716 None Check KeepEachID
C00155, C05330 C00155 2 1 C00155 None None None
C00221, C00031 NA 2 2 C00221, C00031 None || Glycolysis / Gluconeogenesis || Pentose phosphate pathway || Biosynthesis of secondary metabolites || Metabolic pathways Check KeepOneID
C00671, C06008 C00671 2 1 C00671 None None None
C01835, C00721, C00420 NA 3 2 C01835, C00721 None Check KeepEachID
C01991, C00989 C00989 2 1 C00989 None None None
C02052, C00464 C00464 2 1 C00464 None None None
C03460, C03722 NA 2 2 C03460, C03722 Metabolic pathways || None Check KeepOneID
C07202,D02358 C07202 2 0 NA None None None
C17737, C00695 NA 2 2 C17737, C00695 None || Secondary bile acid biosynthesis Check KeepOneID
D00095,C00788,D02149 C00788 3 1 C00788 None None None
D00567,C07589 D00567 2 0 NA None None None
D00887,C06834 D00887 2 0 NA None None None
D02362,C07415 D02362 2 0 NA None None None


In case of ActionRequired=="Check", we can look into the column Action_Specific which contains additional information. In case of the entry KeepEachID, multiple matches to the prior knowledge were found, yet the features are in different pathways (=GroupingVariable). Yet, in case of KeepOneID, the different IDs map to the same pathway in the prior knowledge for at least one case and therefore keeping both would inflate the enrichment analysis.

SelectedIDs <- ccRCC_to_KEGGPathways[["data_summary"]]%>%
  #Expand rows where Action == KeepEachID by splitting `matches`
  dplyr::mutate(matches_split = if_else(Action_Specific == "KeepEachID", matches, NA_character_)) %>%
  separate_rows(matches_split, sep = ",\\s*") %>%
  mutate(InputID_select = if_else(Action_Specific  == "KeepEachID", matches_split, InputID_select)) %>%
  select(-matches_split) %>%
  #Select one ID for AcionSpecific==KeepOneID
  dplyr::mutate(InputID_select = case_when(
    Action_Specific == "KeepOneID" & matches == "C03460, C03722" ~ "C03722", # 2-Methylprop-2-enoyl-CoA versus Quinolinate. No evidence, hence we keep the one present in more pathways ( C03722=7 pathways, C03460=2 pathway)
    Action_Specific == "KeepOneID" & matches ==  "C00221, C00031" ~ "C00031", # These are D- and L-Glucose. We have human samples, so in this conflict we will maintain L-Glucose
    Action_Specific == "KeepOneID" & matches ==  "C17737, C00695" ~ "C00695", # Allocholic acid versus Cholic acid. No evidence, hence we keep the one present in more pathways (C00695 = 4 pathways, C17737 = 1 pathway)
    Action_Specific == "KeepOneID" ~ InputID_select,  # Keep NA where not matched manually
    TRUE ~ InputID_select
  ))


Lastly, we need to add the column including our selected IDs to the metadata table:

Tissue_MetaData_Extended <- merge(x= SelectedIDs %>%
                                        dplyr::select(KEGG, InputID_select),
                                  y= Tissue_MetaData_Extended,
                                  by= "KEGG",
                                  all.y=TRUE)


For results with p.adjusted value < 0.1 and a minimum of 10% of the pathway detected will be visualized as Volcano plots:

# Since we have performed multiple comparisons (all_vs_HK2), we will run ORA for each of this comparison
DM_ORA_res<- list()

for(comparison in names(ResList)){#Res list includes the different comparisons we performed above <-
  #Ensure that the Metabolite names match with KEGG IDs or KEGG trivial names.
  dma_res <- merge(x= Tissue_MetaData_Extended,
                   y= ResList[[comparison]][["dma"]][["TUMOR_vs_NORMAL"]],
                   by="Metabolite",
                   all=TRUE)

  #Ensure unique IDs and full background --> we include measured features that do not have a KEGG ID.
  dma_res <- dma_res[,c(3,21:25)]%>%
    dplyr::mutate(InputID_select = if_else(
      is.na(InputID_select),
      paste0("NA_", cumsum(is.na(InputID_select))),
      InputID_select
      ))%>% #remove duplications and keep the higher Log2FC measurement
    group_by(InputID_select) %>%
    slice_max(order_by = Log2FC, n = 1, with_ties = FALSE) %>%
    ungroup()%>%
    remove_rownames()%>%
    tibble::column_to_rownames("InputID_select")

  #Perform ORA
  Res <- MetaProViz::standard_ora(data= dma_res, #Input data requirements: column `t.val` and column `Metabolite`
                                 metadata_info=c(pvalColumn="p.adj", percentageColumn="t.val", PathwayTerm= "term", PathwayFeature= "MetaboliteID"),
                                 input_pathway=KEGG_Pathways,#Pathway file requirements: column `term`, `Metabolite` and `Description`. Above we loaded the Kegg_Pathways using MetaProViz::Load_KEGG()
                                 pathway_name=paste0("KEGG_", comparison, sep=""),
                                 min_gssize=3,
                                 max_gssize=1000,
                                 cutoff_stat=0.01,
                                 cutoff_percentage=10)

  DM_ORA_res[[comparison]] <- Res

  #Select to plot:
  Res_Select <- Res[["ClusterGosummary"]]%>%
    filter(p.adjust<0.1)%>%
    #filter(pvalue<0.05)%>%
    filter(percentage_of_Pathway_detected>10)

  if(is.null(Res_Select)==FALSE){

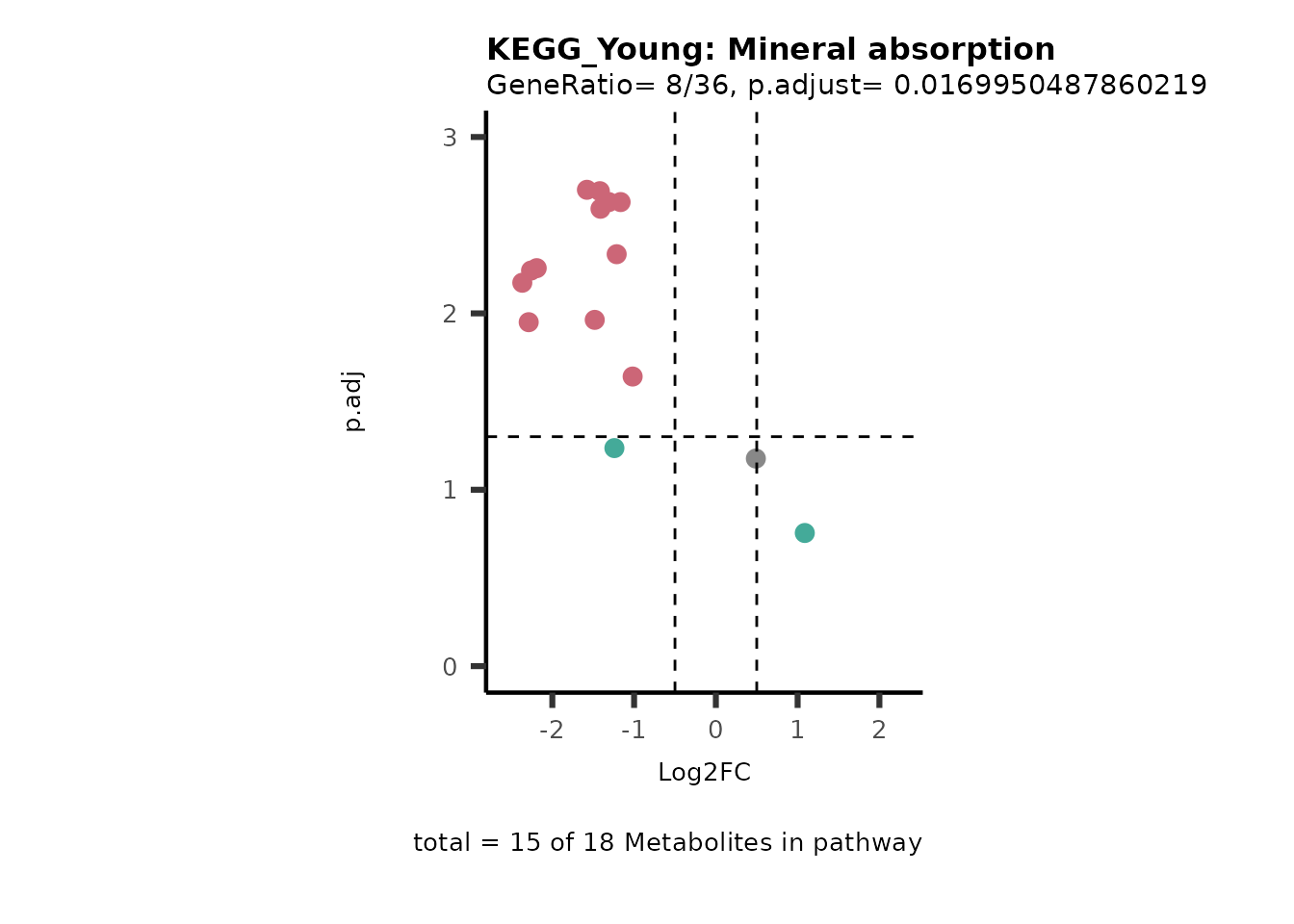

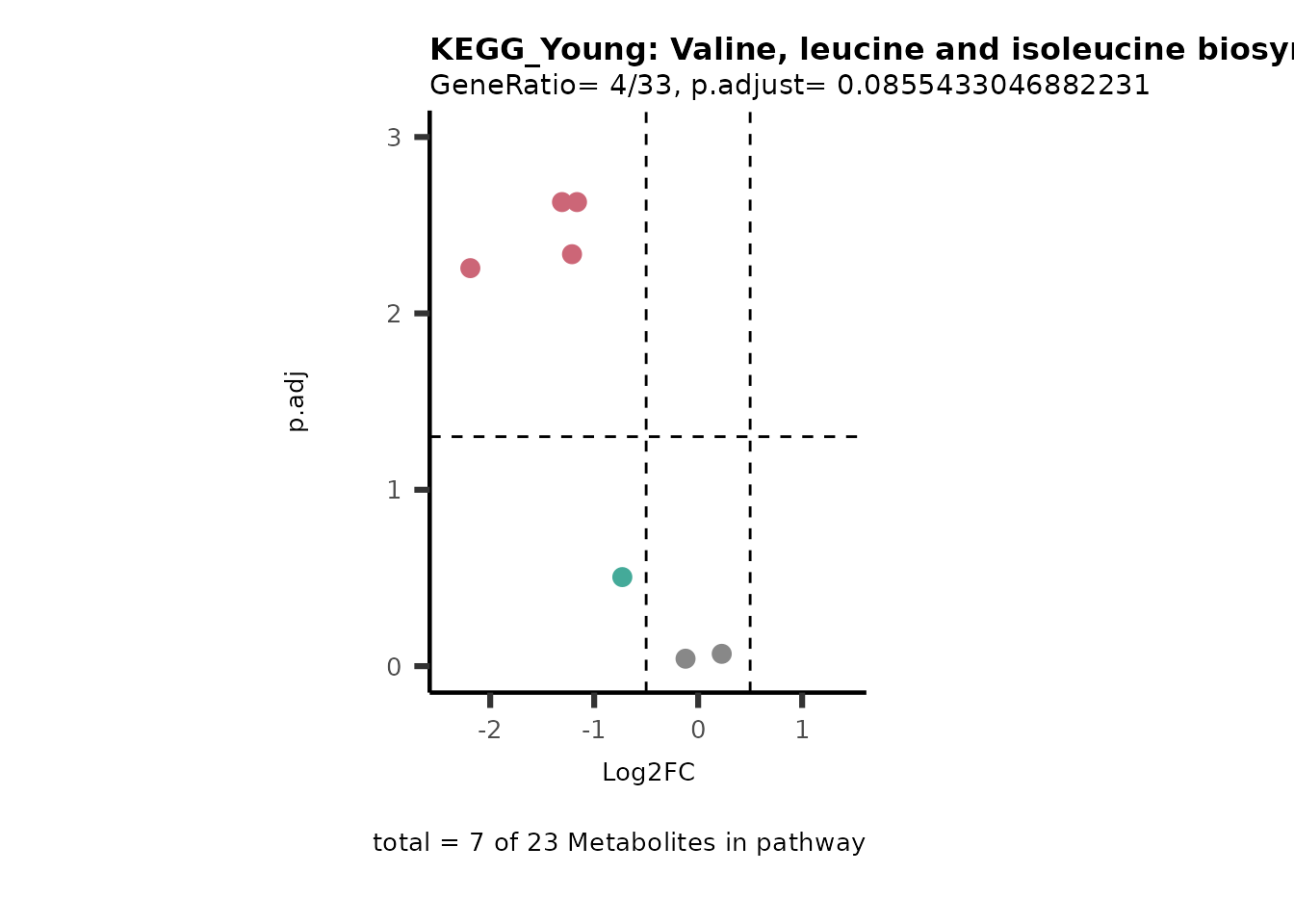

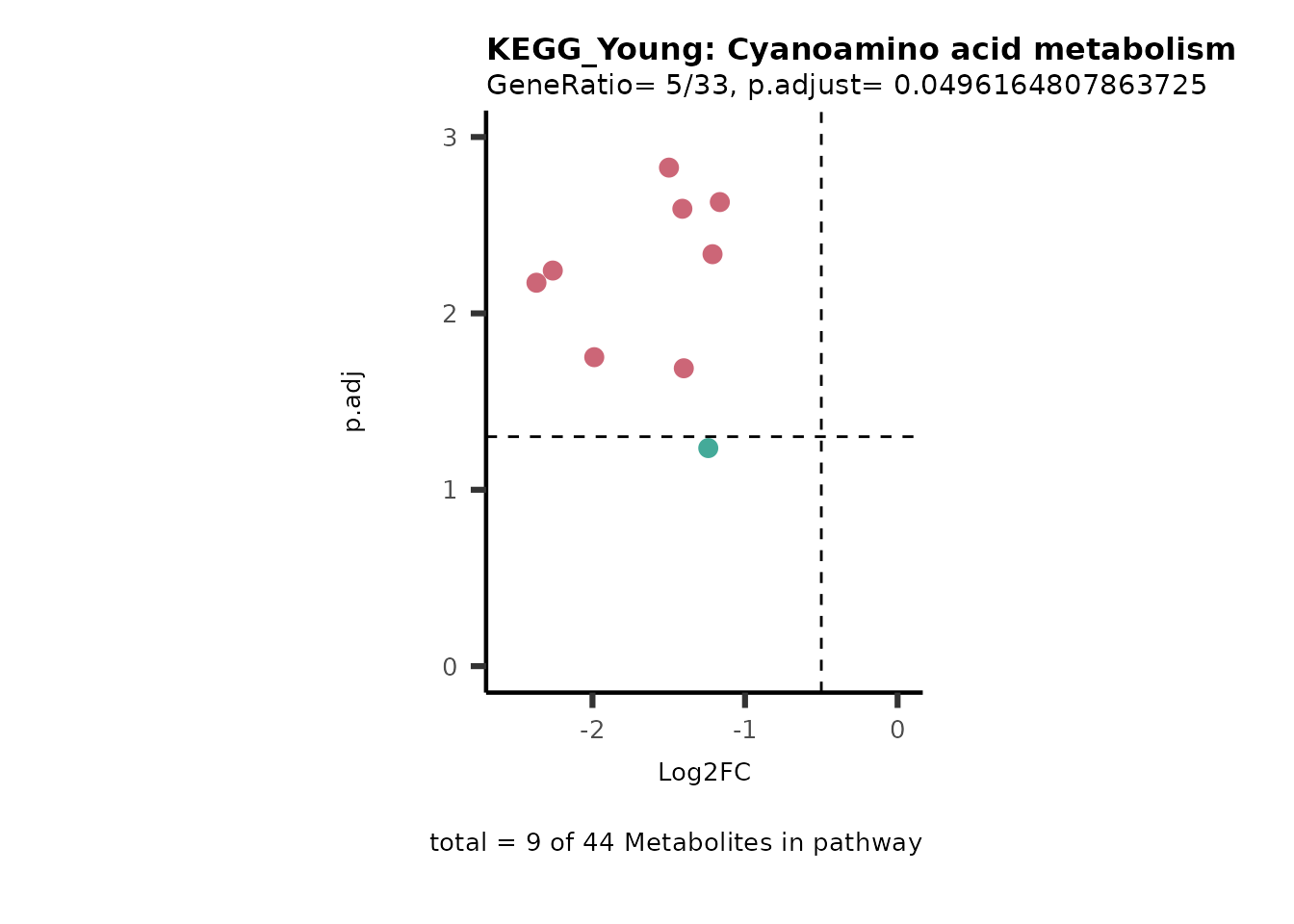

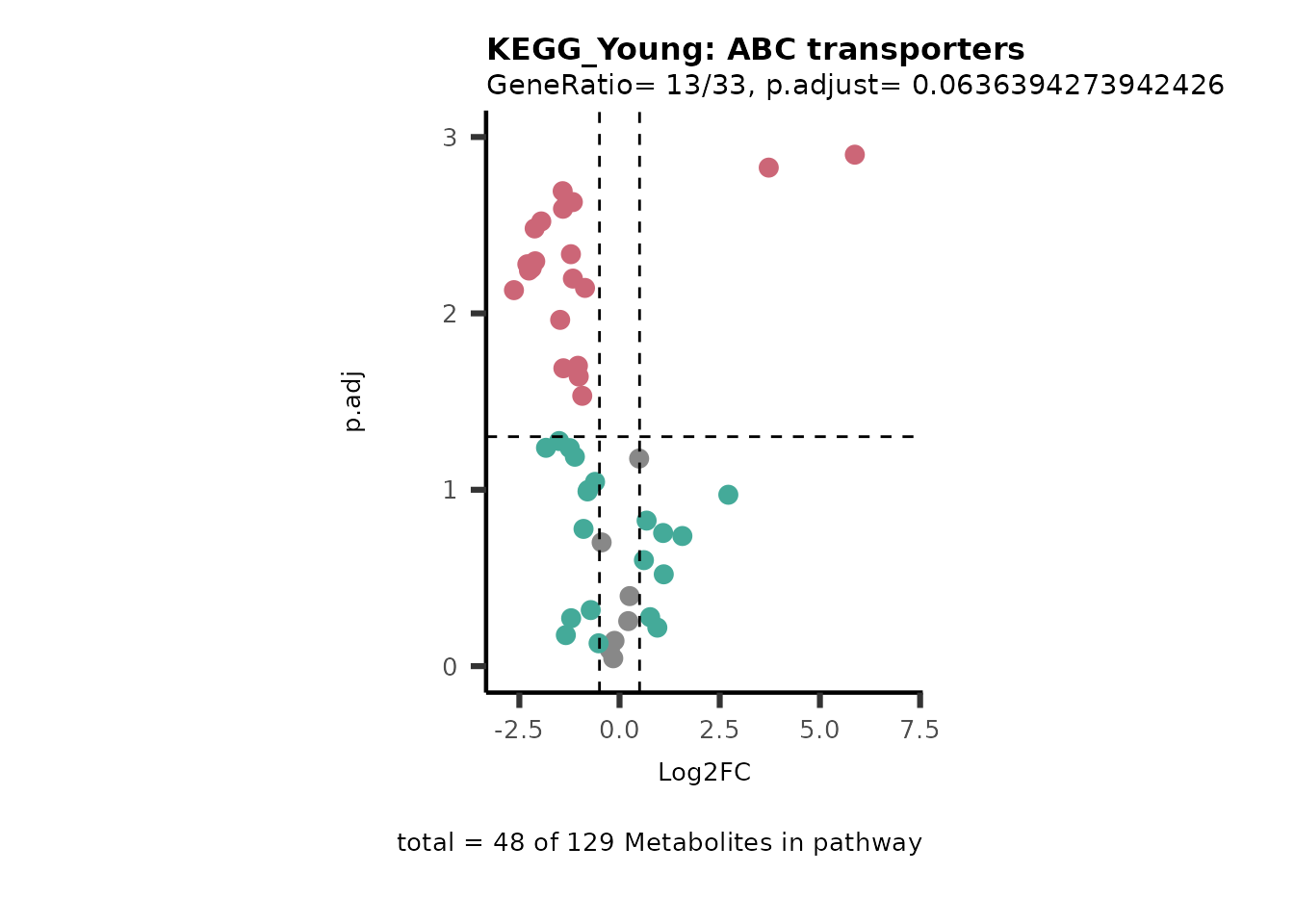

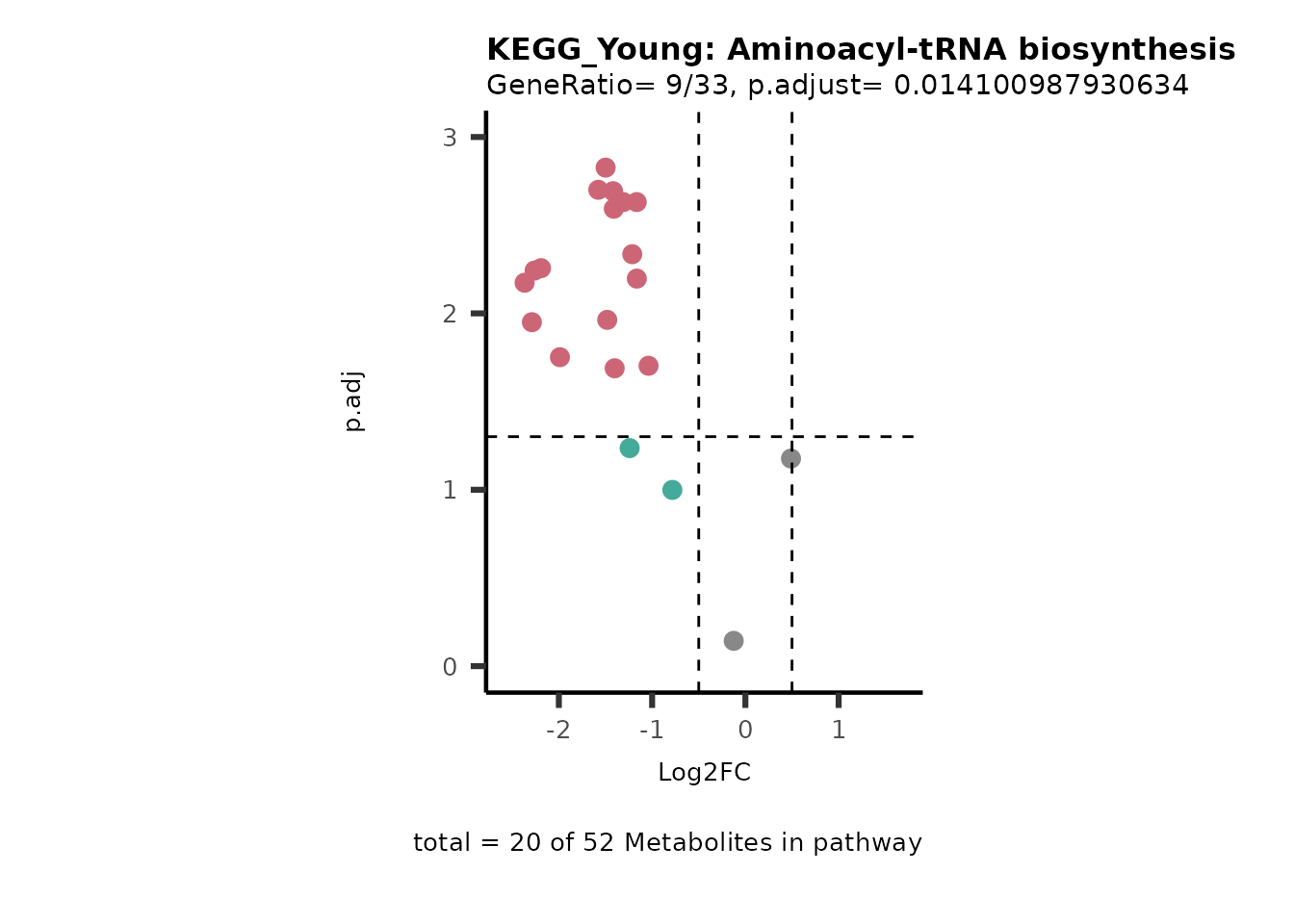

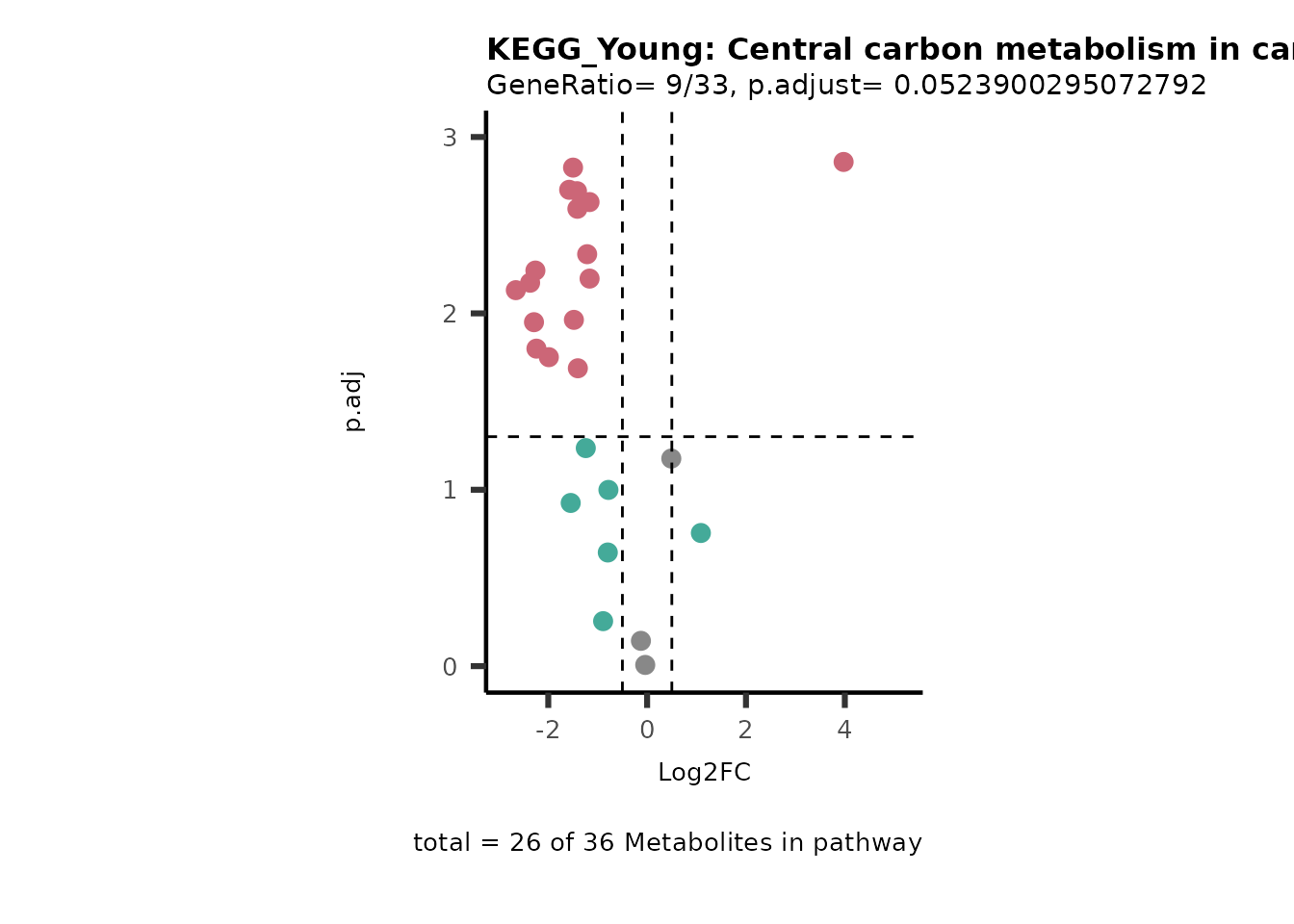

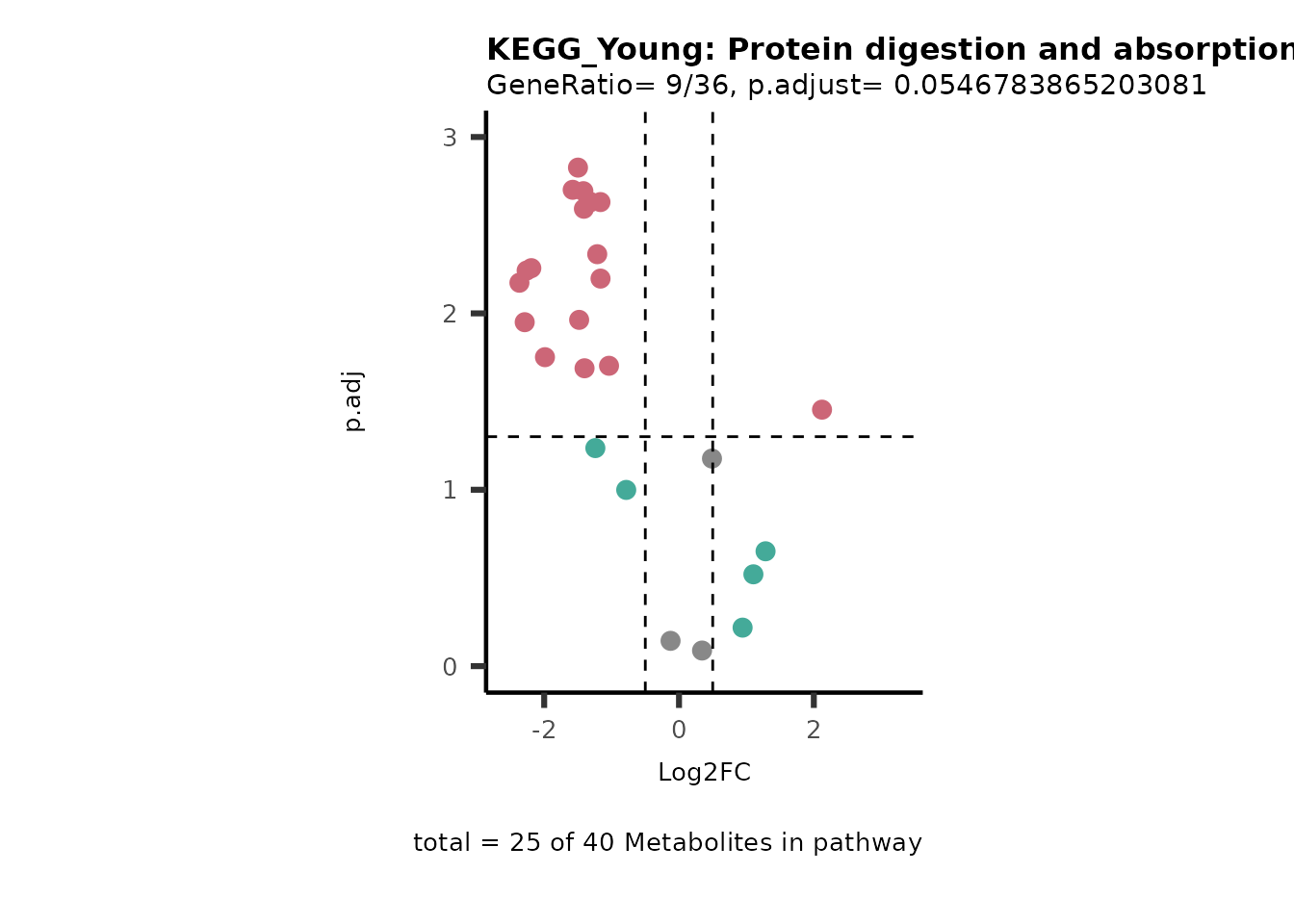

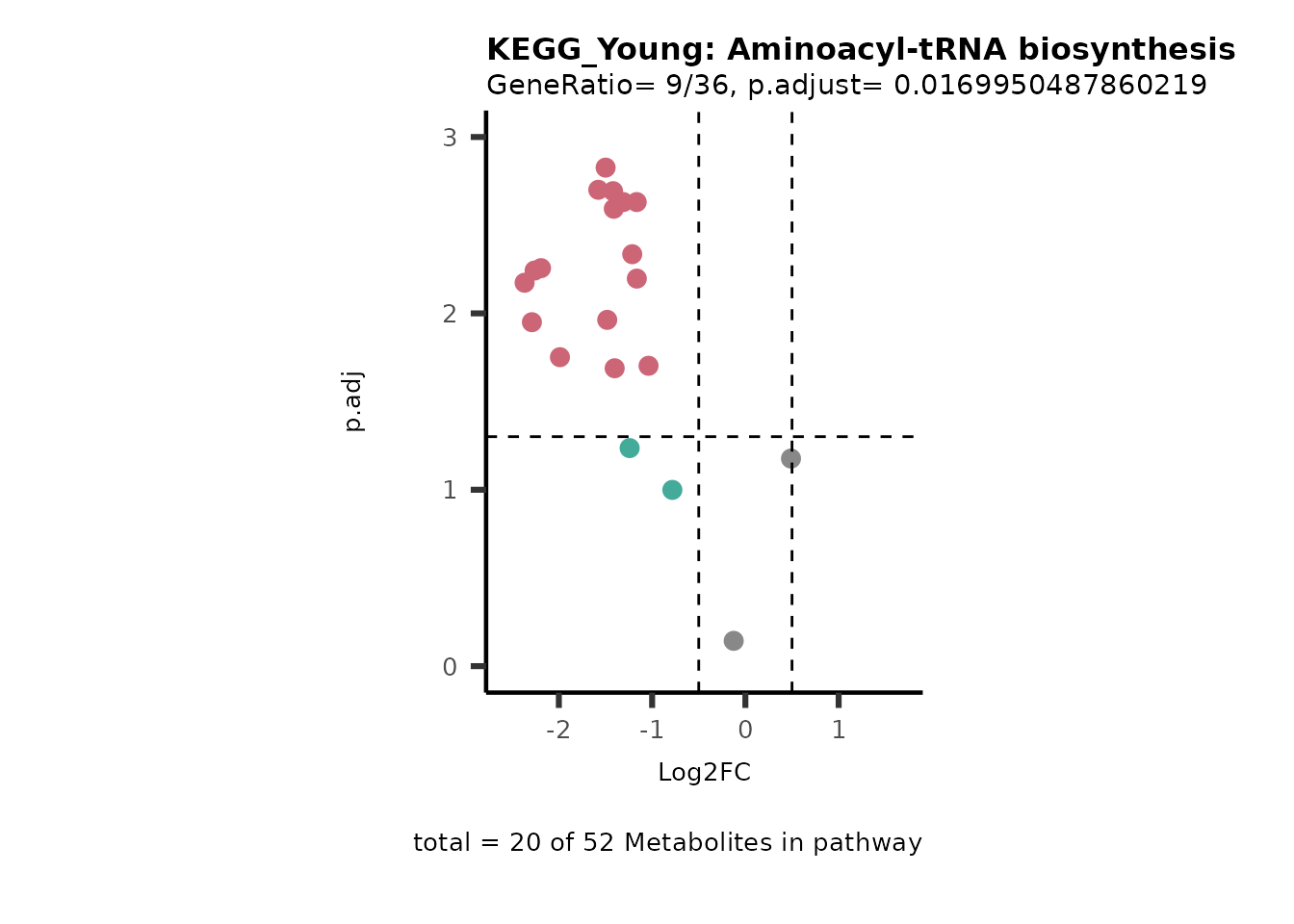

     MetaProViz::viz_volcano(plot_types="PEA",
                       data= dma_res, #Must be the data you have used as an input for the pathway analysis
                       data2=as.data.frame(Res_Select )%>%dplyr::rename("term"="ID"),
                       metadata_info= c(PEA_Pathway="term",# Needs to be the same in both, metadata_feature and data2.
                                       PEA_stat="p.adjust",#Column data2
                                       PEA_score="GeneRatio",#Column data2
                                       PEA_Feature="MetaboliteID"),# Column metadata_feature (needs to be the same as row names in data)
                       metadata_feature= KEGG_Pathways,#Must be the pathways used for pathway analysis
                       plot_name= paste("KEGG_", comparison, sep=""),
                       subtitle= "PEA" )
  }
}




Biological regulated clustering

to understand which metabolites are changing independent of the patients age, hence only due to tumour versus normal, and which metabolites change independent of tumour versus normal, hence due to the different age, we can use the MetaProViz::mca_2cond() function.
Metabolite Clustering Analysis (MCA) enables clustering of metabolites into groups based on logical regulatory rules. Here we set two different thresholds, one for the differential metabolite abundance (Log2FC) and one for the significance (e.g. p.adj). This will define if a feature (= metabolite) is assigned into:
1. “UP”, which means a metabolite is significantly up-regulated in the underlying comparison.
2. “DOWN”, which means a metabolite is significantly down-regulated in the underlying comparison.
3. “No Change”, which means a metabolite does not change significantly in the underlying comparison and/or is not defined as up-regulated/down-regulated based on the Log2FC threshold chosen.

Thereby “No Change” is further subdivided into four states:
1. “Not Detected”, which means a metabolite is not detected in the underlying comparison.
2. “Not Significant”, which means a metabolite is not significant in the underlying comparison.
3. “Significant positive”, which means a metabolite is significant in the underlying comparison and the differential metabolite abundance is positive, yet does not meet the threshold set for “UP” (e.g. Log2FC >1 = “UP” and we have a significant Log2FC=0.8).
4. “Significant negative”, which means a metabolite is significant in the underlying comparison and the differential metabolite abundance is negative, yet does not meet the threshold set for “DOWN”.

For more information you can also check out the other vignettes.

MCAres <-  MetaProViz::mca_2cond(data_c1=ResList[["Young"]][["dma"]][["TUMOR_vs_NORMAL"]],
                                 data_c2=ResList[["Old"]][["dma"]][["TUMOR_vs_NORMAL"]],
                                 metadata_info_c1=c(ValueCol="Log2FC",StatCol="p.adj", cutoff_stat= 0.05, ValueCutoff=1),
                                 metadata_info_c2=c(ValueCol="Log2FC",StatCol="p.adj", cutoff_stat= 0.05, ValueCutoff=1),
                                 feature = "Metabolite",
                                 save_table = "csv",
                                 method_background="C1&C2"#Most stringend background setting, only includes metabolites detected in both comparisons
                                 )


Now we can use this information to colour code our volcano plot. We will plot individual vocano plots for each metabolite pathway as defined by the feature metadata provided as part of the data in (Hakimi et al. 2016).

# Add metabolite information such as KEGG ID or pathway to results
MetaData_Metab <- merge(x=Tissue_MetaData,
                   y= MCAres[["MCA_2Cond_Results"]][, c(1, 14:15)]%>%tibble::column_to_rownames("Metabolite"),
                   by=0,
                   all.y=TRUE)%>%
  tibble::column_to_rownames("Row.names")

MetaProViz::viz_volcano(plot_types="Compare",
                       data=ResList[["Young"]][["dma"]][["TUMOR_vs_NORMAL"]]%>%tibble::column_to_rownames("Metabolite"),
                       data2= ResList[["Old"]][["dma"]][["TUMOR_vs_NORMAL"]]%>%tibble::column_to_rownames("Metabolite"),
                       name_comparison= c(data="Young", data2= "Old"),
                       metadata_feature =  MetaData_Metab,
                      plot_name= "Young-TUMOR_vs_NORMAL compared to Old-TUMOR_vs_NORMAL",
                       subtitle= "Results of dma",
                       metadata_info = c(individual = "SUPER_PATHWAY",
                                        color = "RG2_Significant"))

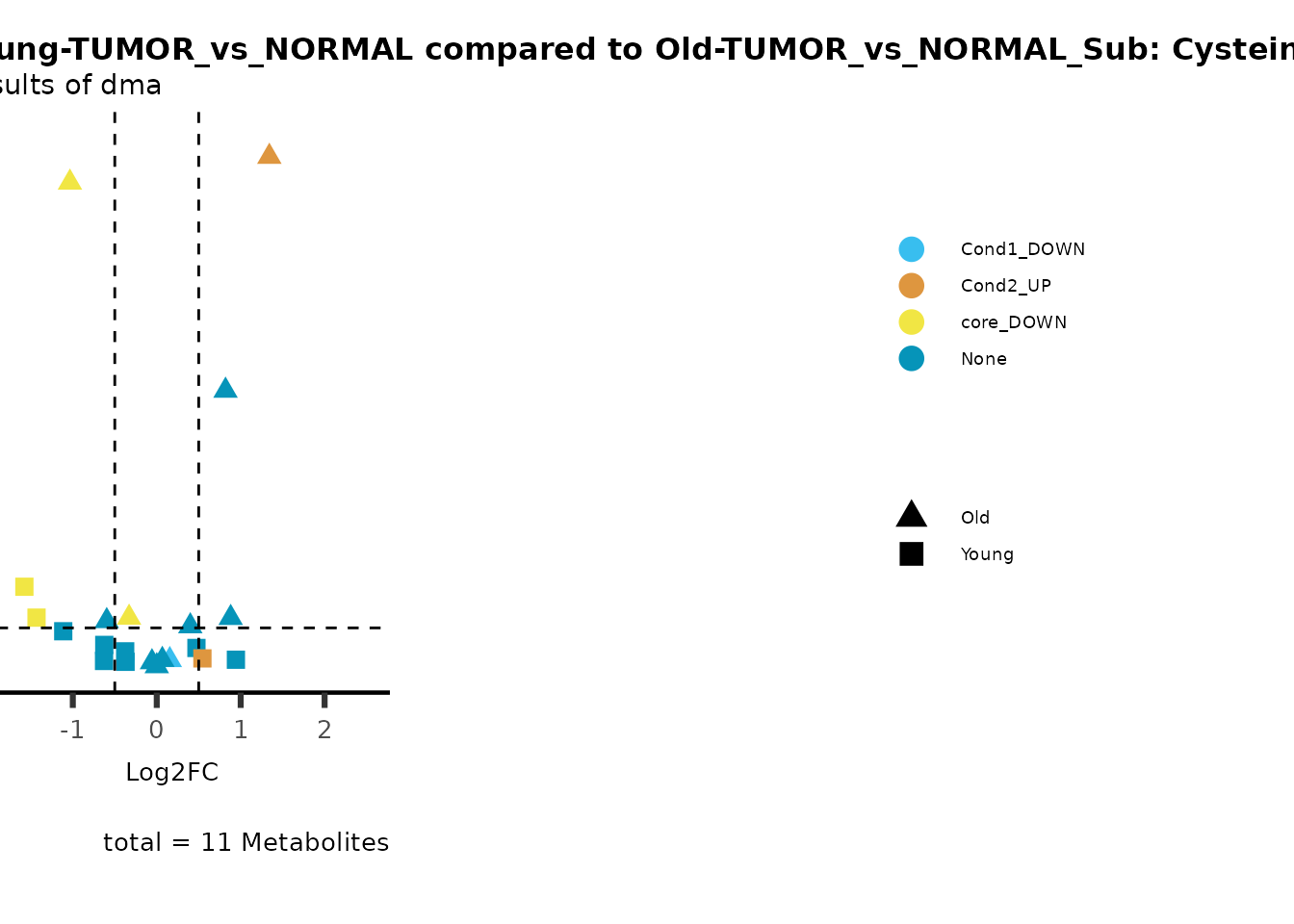

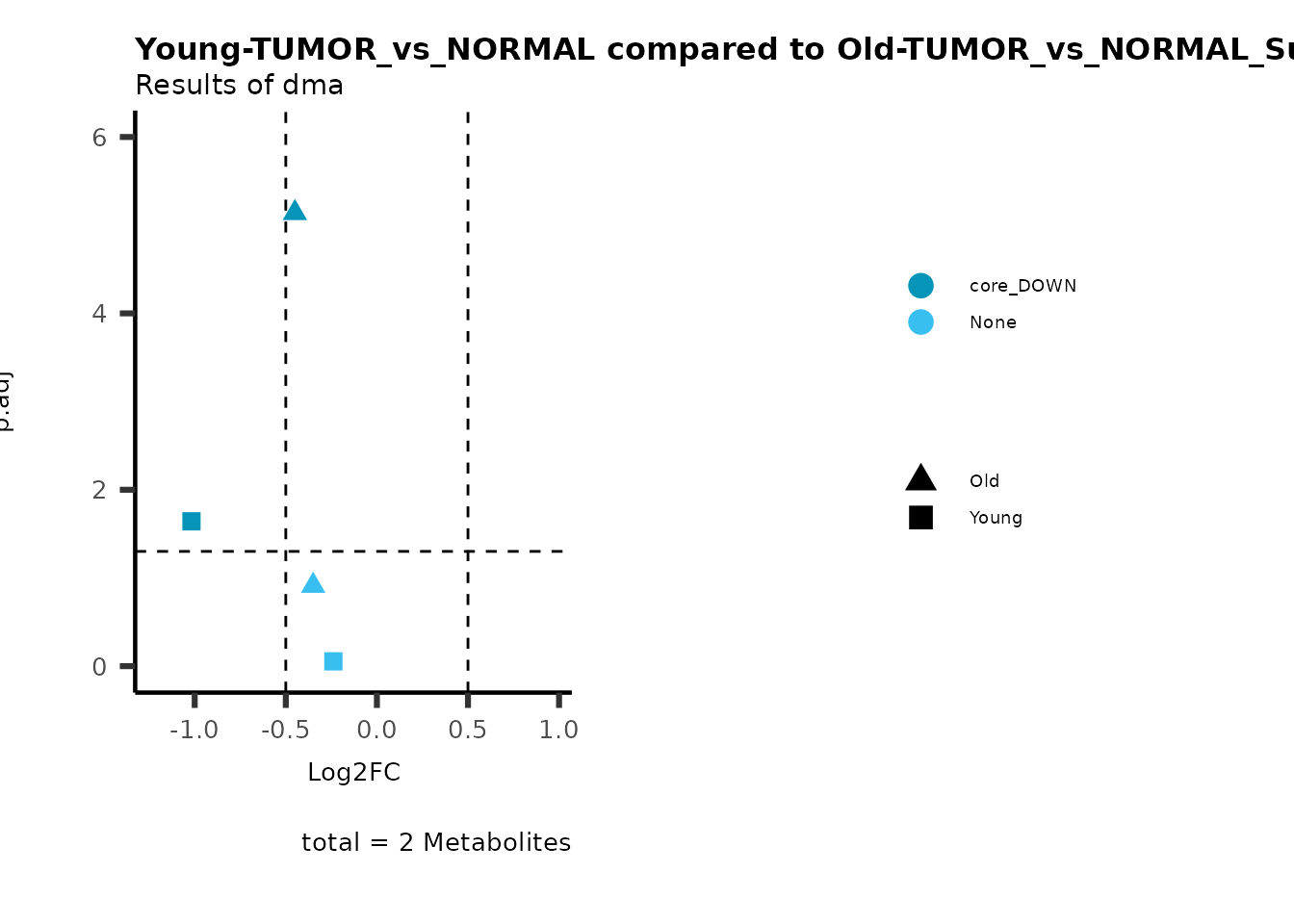

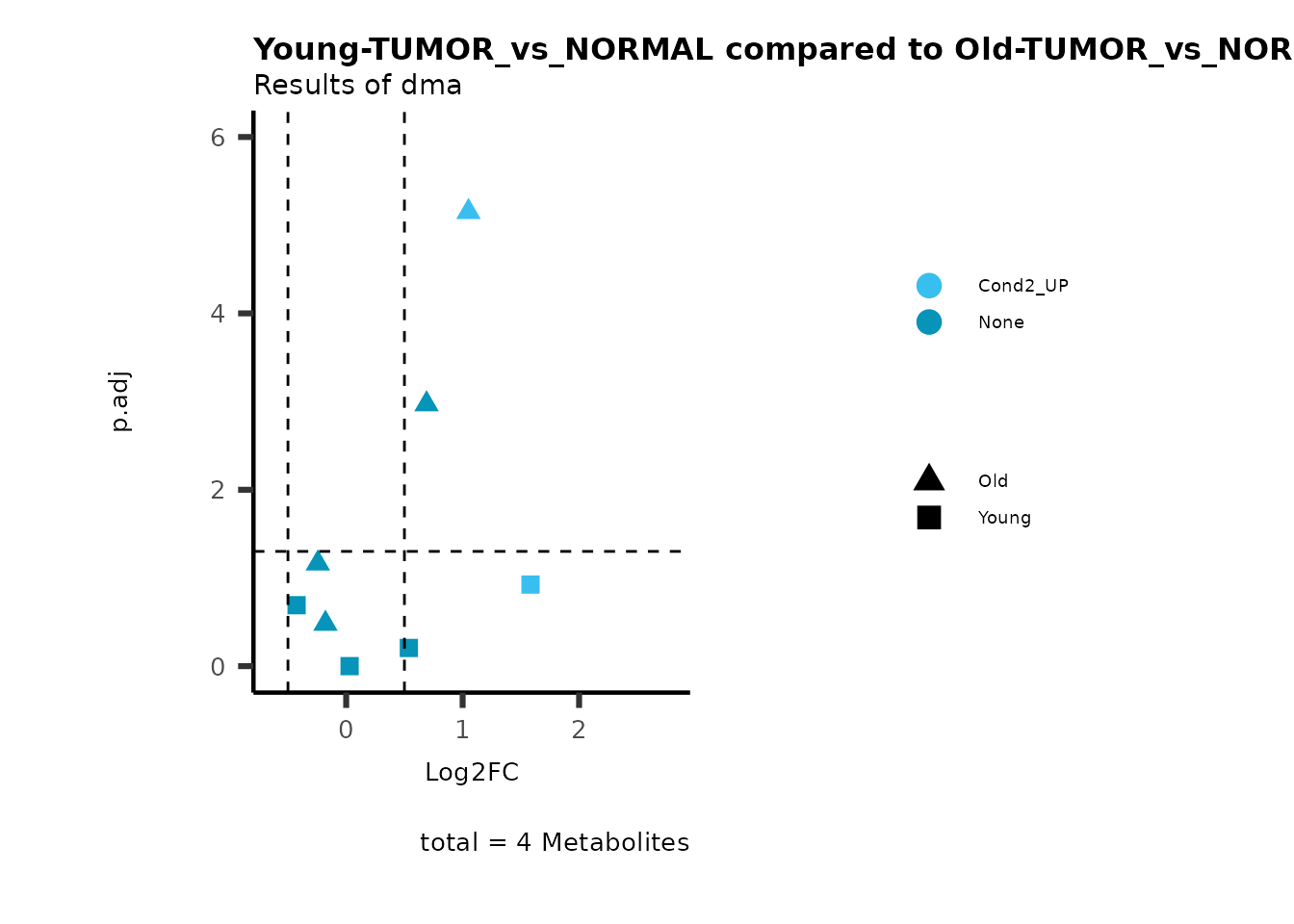

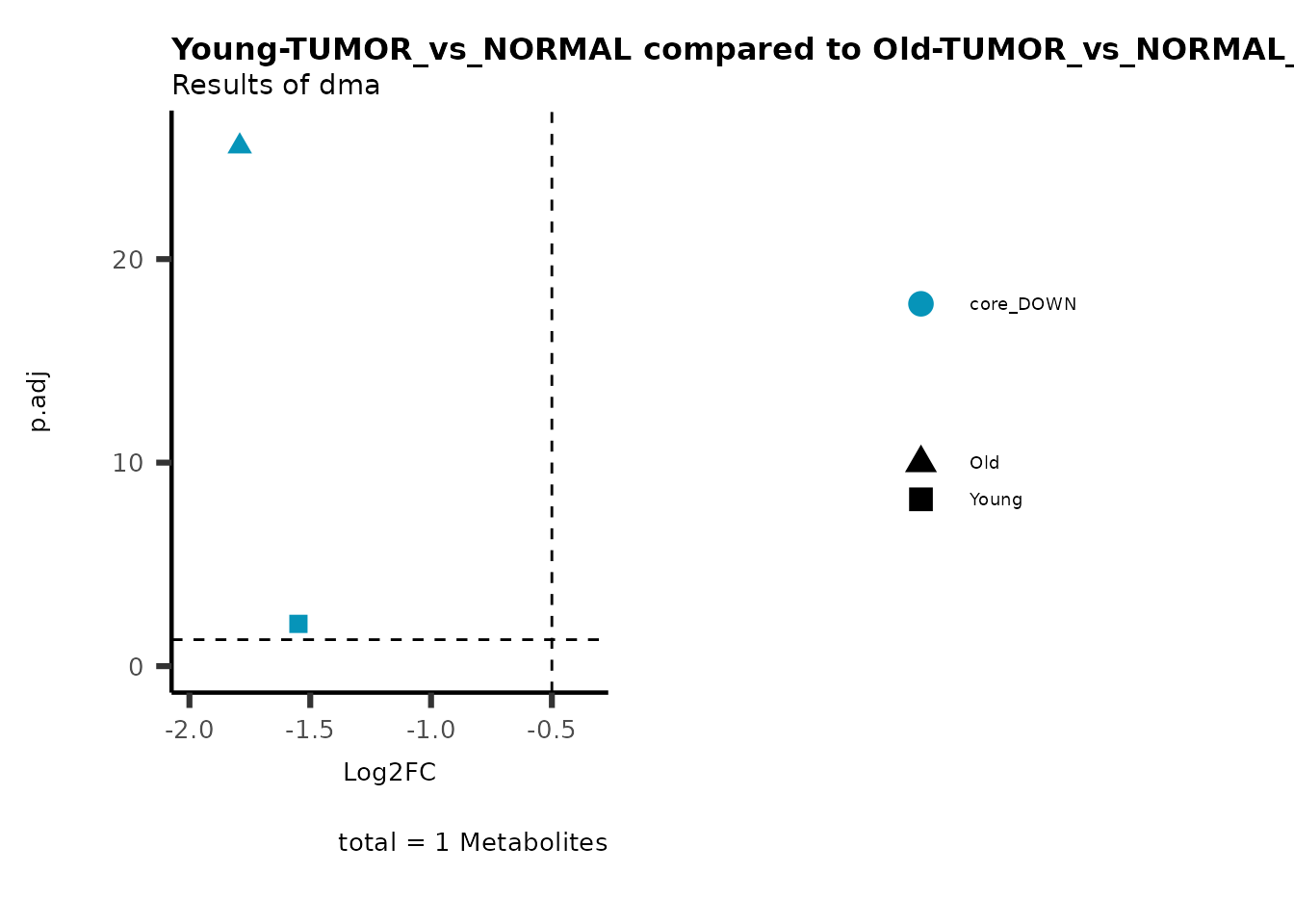

MetaProViz::viz_volcano(plot_types="Compare",
                       data=ResList[["Young"]][["dma"]][["TUMOR_vs_NORMAL"]]%>%tibble::column_to_rownames("Metabolite"),
                       data2= ResList[["Old"]][["dma"]][["TUMOR_vs_NORMAL"]]%>%tibble::column_to_rownames("Metabolite"),
                       name_comparison= c(data="Young", data2= "Old"),
                       metadata_feature =  MetaData_Metab,
                      plot_name= "Young-TUMOR_vs_NORMAL compared to Old-TUMOR_vs_NORMAL_Sub",
                       subtitle= "Results of dma",
                       metadata_info = c(individual = "SUB_PATHWAY",
                                        color = "RG2_Significant"))




Pathway enrichment

Next, we perform Over Representation Analysis (ORA) using KEGG pathways for each comparison.

# Since we have performed multiple comparisons (all_vs_HK2), we will run ORA for each of this comparison
DM_ORA_res<- list()

KEGG_Pathways <- MetaProViz::metsigdb_kegg()

for(comparison in names(ResList)){
  dma_res <- merge(x= Tissue_MetaData_Extended,
                   y=ResList[[comparison]][["dma"]][["TUMOR_vs_NORMAL"]],
                   by="Metabolite",
                   all=TRUE)

  #Ensure unique IDs and full background --> we include measured features that do not have a KEGG ID.
  dma_res <- dma_res[,c(3,21:25)]%>%
    dplyr::mutate(InputID_select = if_else(
      is.na(InputID_select),
      paste0("NA_", cumsum(is.na(InputID_select))),
      InputID_select
      ))%>% #remove duplications and keep the higher Log2FC measurement
    group_by(InputID_select) %>%
    slice_max(order_by = Log2FC, n = 1, with_ties = FALSE) %>%
    ungroup()%>%
    remove_rownames()%>%
    tibble::column_to_rownames("InputID_select")


  #Perform ORA
  Res <- MetaProViz::standard_ora(data= dma_res, #Input data requirements: column `t.val` and column `Metabolite`
                                 metadata_info=c(pvalColumn="p.adj", percentageColumn="t.val", PathwayTerm= "term", PathwayFeature= "MetaboliteID"),
                                 input_pathway=KEGG_Pathways,#Pathway file requirements: column `term`, `Metabolite` and `Description`. Above we loaded the Kegg_Pathways using MetaProViz::Load_KEGG()
                                 pathway_name=paste0("KEGG_", comparison, sep=""),
                                 min_gssize=3,
                                 max_gssize=1000,
                                 cutoff_stat=0.01,
                                 cutoff_percentage=10)

  DM_ORA_res[[comparison]] <- Res

  #Select to plot:
  Res_Select <- Res[["ClusterGosummary"]]%>%
    filter(p.adjust<0.1)%>%
    #filter(pvalue<0.05)%>%
    filter(percentage_of_Pathway_detected>10)

  if(is.null(Res_Select)==FALSE){
     MetaProViz::viz_volcano(plot_types="PEA",
                       data= dma_res, #Must be the data you have used as an input for the pathway analysis
                       data2=as.data.frame(Res_Select )%>%dplyr::rename("term"="ID"),
                       metadata_info= c(PEA_Pathway="term",# Needs to be the same in both, metadata_feature and data2.
                                       PEA_stat="p.adjust",#Column data2
                                       PEA_score="GeneRatio",#Column data2
                                       PEA_Feature="MetaboliteID"),# Column metadata_feature (needs to be the same as row names in data)
                       metadata_feature= KEGG_Pathways,#Must be the pathways used for pathway analysis
                      plot_name= paste("KEGG_", comparison, sep=""),
                       subtitle= "PEA" )
  }
}




Session information

#> R version 4.4.3 (2025-02-28)
#> Platform: x86_64-pc-linux-gnu
#> Running under: Ubuntu 24.04.2 LTS
#>
#> Matrix products: default
#> BLAS:   /usr/lib/x86_64-linux-gnu/blas/libblas.so.3.12.0
#> LAPACK: /usr/lib/x86_64-linux-gnu/lapack/liblapack.so.3.12.0
#>
#> locale:
#>  [1] LC_CTYPE=en_US.UTF-8       LC_NUMERIC=C               LC_TIME=en_US.UTF-8        LC_COLLATE=en_US.UTF-8
#>  [5] LC_MONETARY=en_US.UTF-8    LC_MESSAGES=en_US.UTF-8    LC_PAPER=en_US.UTF-8       LC_NAME=C
#>  [9] LC_ADDRESS=C               LC_TELEPHONE=C             LC_MEASUREMENT=en_US.UTF-8 LC_IDENTIFICATION=C
#>
#> time zone: UTC
#> tzcode source: system (glibc)
#>
#> attached base packages:
#> [1] stats     graphics  grDevices utils     datasets  methods   base
#>
#> other attached packages:
#> [1] stringr_1.5.1    tibble_3.3.0     tidyr_1.3.1      rlang_1.1.6      dplyr_1.1.4      magrittr_2.0.3
#> [7] MetaProViz_3.0.2
#>
#> loaded via a namespace (and not attached):
#>   [1] DBI_1.2.3              gridExtra_2.3          httr2_1.1.2            tcltk_4.4.3            logger_0.4.0
#>   [6] readxl_1.4.5           compiler_4.4.3         RSQLite_2.4.1          systemfonts_1.2.3      vctrs_0.6.5
#>  [11] reshape2_1.4.4         rvest_1.0.4            pkgconfig_2.0.3        crayon_1.5.3           fastmap_1.2.0
#>  [16] backports_1.5.0        labeling_0.4.3         rmarkdown_2.29         sessioninfo_1.2.3      tzdb_0.5.0
#>  [21] ggbeeswarm_0.7.2       ragg_1.4.0             ggfortify_0.4.17       purrr_1.0.4            bit_4.6.0
#>  [26] xfun_0.52              cachem_1.1.0           jsonlite_2.0.0         progress_1.2.3         blob_1.2.4
#>  [31] later_1.4.2            broom_1.0.8            parallel_4.4.3         prettyunits_1.2.0      R6_2.6.1
#>  [36] bslib_0.9.0            stringi_1.8.7          RColorBrewer_1.1-3     ComplexUpset_1.3.3     limma_3.62.2
#>  [41] car_3.1-3              lubridate_1.9.4        jquerylib_0.1.4        cellranger_1.1.0       Rcpp_1.0.14
#>  [46] knitr_1.50             R.utils_2.13.0         readr_2.1.5            splines_4.4.3          igraph_2.1.4
#>  [51] timechange_0.3.0       tidyselect_1.2.1       rstudioapi_0.17.1      qvalue_2.38.0          abind_1.4-8
#>  [56] yaml_2.3.10            ggVennDiagram_1.5.2    curl_6.3.0             plyr_1.8.9             withr_3.0.2
#>  [61] inflection_1.3.6       evaluate_1.0.3         desc_1.4.3             zip_2.3.3              xml2_1.3.8
#>  [66] pillar_1.10.2          ggpubr_0.6.0           carData_3.0-5          checkmate_2.3.2        generics_0.1.4
#>  [71] vroom_1.6.5            hms_1.1.3              ggplot2_3.5.2          scales_1.4.0           gtools_3.9.5
#>  [76] OmnipathR_3.15.99      glue_1.8.0             pheatmap_1.0.13        scatterplot3d_0.3-44   tools_4.4.3
#>  [81] ggsignif_0.6.4         fs_1.6.6               XML_3.99-0.18          grid_4.4.3             qcc_2.7
#>  [86] colorspace_2.1-1       patchwork_1.3.0        beeswarm_0.4.0         vipor_0.4.7            Formula_1.2-5
#>  [91] cli_3.6.5              rappdirs_0.3.3         kableExtra_1.4.0       textshaping_1.0.1      Polychrome_1.5.4
#>  [96] viridisLite_0.4.2      svglite_2.2.1          gtable_0.3.6           R.methodsS3_1.8.2      rstatix_0.7.2
#> [101] hash_2.2.6.3           selectr_0.4-2          EnhancedVolcano_1.24.0 sass_0.4.10            digest_0.6.37
#> [106] ggrepel_0.9.6          htmlwidgets_1.6.4      farver_2.1.2           memoise_2.0.1          htmltools_0.5.8.1
#> [111] pkgdown_2.1.3          R.oo_1.27.1            factoextra_1.0.7       lifecycle_1.0.4        httr_1.4.7
#> [116] statmod_1.5.0          bit64_4.6.0-1          MASS_7.3-64

Bibliography

Hakimi, A Ari, Ed Reznik, Chung-Han Lee, Chad J Creighton, A Rose Brannon, Augustin Luna, B Arman Aksoy, et al. 2016. “An Integrated Metabolic Atlas of Clear Cell Renal Cell Carcinoma.” Cancer Cell 29 (1): 104–16. https://doi.org/10.1016/j.ccell.2015.12.004.
