Network of metabolites and their prior knowledge terms

Plot measured metabolites together with the prior knowledge (PK) terms they are linked to, e.g. proteins from metsigdb_metalinks(), pathways from metsigdb_kegg() or cancer types from metsigdb_macdb(). Every link between a metabolite and a term in input_pk becomes an edge.

Usage

viz_pk_network(
  feature_metadata,
  input_pk,
  metadata_info,
  term_metadata = NULL,
  id_type = "HMDB",
  id_sep = ";",
  label_mode = c("reduced", "all"),
  label_max_chars = 20,
  label_degree_min = 2,
  label_repel = TRUE,
  seed = NULL,
  layout = "fr",
  plot_name = "PK_Network",
  save_plot = "svg",
  save_table = NULL,
  print_plot = TRUE,
  path = NULL,
  plot_width = 25,
  plot_height = 20,
  plot_unit = "cm"
)

Arguments

feature_metadata

Data frame with one row per measured feature, holding the ID column and optional label and attribute columns.

input_pk

Prior knowledge in long format, i.e. one metabolite ID per row, such as the tables returned by the metsigdb_*() functions.

metadata_info

Named character vector mapping roles to column names:

InputID: Required. ID column in feature_metadata.
PriorID: Required. ID column in input_pk.
PriorTerm: Required. Column in input_pk whose values become the term nodes, e.g. "gene_symbol" or "term".
InputLabel: Metabolite label column in feature_metadata. Without it, or for missing labels, the IDs are used.
MetaboliteColor, MetaboliteSize: Columns in feature_metadata for the fill and size of metabolite nodes. Size must be numeric.
TermColor, TermSize: Columns in term_metadata, or else in input_pk, for the fill and size of term nodes. Size must be numeric.
EdgeColor, EdgeLinetype, EdgeWidth: Columns in input_pk for the colour, line type and width of edges. Width must be numeric; by default it is the number of input_pk rows behind an edge.
EdgeDirection: Column in input_pk holding the edge direction (see Details).

term_metadata

Optional: Data frame with one row per term, e.g. the result of cluster_ora(), containing the PriorTerm column. Used for TermColor and TermSize. Default = NULL

id_type

Optional: "HMDB" to normalise HMDB IDs before matching. Any other value (e.g. "KEGG", "PubChem") matches IDs exactly. Default = "HMDB"

id_sep

Optional: Separator of multiple IDs in one cell of the InputID column. Default = ";"

label_mode

Optional: "reduced" labels only nodes with a degree of at least label_degree_min; "all" labels all nodes. Default = "reduced"

label_max_chars

Optional: Labels longer than this are shortened with "...". Default = 20

label_degree_min

Optional: Minimum degree of labelled nodes if label_mode = "reduced". Default = 2

label_repel

Optional: If TRUE, labels are repelled from each other. Default = TRUE

seed

Optional: Seed for random layouts such as "fr". With NULL the layout changes between calls. The global random seed is not changed. Default = NULL

layout

Optional: Graph layout passed to ggraph::ggraph(), e.g. "fr" (force-directed), "kk" or "stress". Default = "fr"

plot_name

Optional: Plot title and name of the saved files. Default = "PK_Network"

save_plot

Optional: File type of the saved plot: "svg", "pdf", "png" or NULL. Default = "svg"

save_table

Optional: File type of the saved tables: "csv", "xlsx", "txt" or NULL. Default = NULL

print_plot

Optional: If TRUE, the plot is printed. Default = TRUE

path

Optional: Path to the folder the results are saved in. Default = NULL

plot_width, plot_height, plot_unit

Optional: Size of the saved plot. Default = 25 x 20 cm

Value

A list with

DF: List of edges (one row per metabolite-term link with the mapped attributes and n_pk_rows), nodes (one row per node with node_type, degree and the mapped attributes), matched_features and unmatched_features (the split and normalised feature IDs with or without a match in input_pk).
Plot: List with the ggraph plot pk_network, or NULL if no feature matched input_pk.

Details

The metabolites in feature_metadata are matched to input_pk by ID. A cell may hold several IDs separated by id_sep. With id_type = "HMDB", HMDB IDs are brought into the same 7-digit form on both sides (e.g. "HMDB00123" and "HMDB0000123" match); all other IDs are matched exactly. Use translate_id() beforehand if the data and the PK use different ID types.

Node colours and sizes and edge colours, line types and widths can be mapped to columns via metadata_info. Numeric columns get a continuous scale (diverging around 0 if the values have both signs, e.g. Log2FC), other columns a discrete one. If several rows map to the same node or edge, numeric values are averaged and otherwise the first non-missing value is used. Nodes without a size value are drawn at the smallest size.

Edges are undirected unless metadata_info contains EdgeDirection. This column must hold "to_term" (arrow from metabolite to term) or "to_metabolite" (arrow from term to metabolite); edges with other values stay undirected. metsigdb_metalinks() provides such a column, direction, together with the interaction category interaction.

Examples

# Biocrates amino acids and the transporters they interact with
data(biocrates_features)
amino_acids <- biocrates_features %>%
    dplyr::filter(Class == "Aminoacids") %>%
    dplyr::select(TrivialName, HMDB)
aa_hmdb <- trimws(unlist(strsplit(amino_acids$HMDB, ",")))

transporters <- metsigdb_metalinks(
    hmdb_ids = aa_hmdb,
    save_table = NULL,
    exclude_metabolites = NULL
) %>%
    dplyr::filter(interaction_family == "Transporter-metabolite")

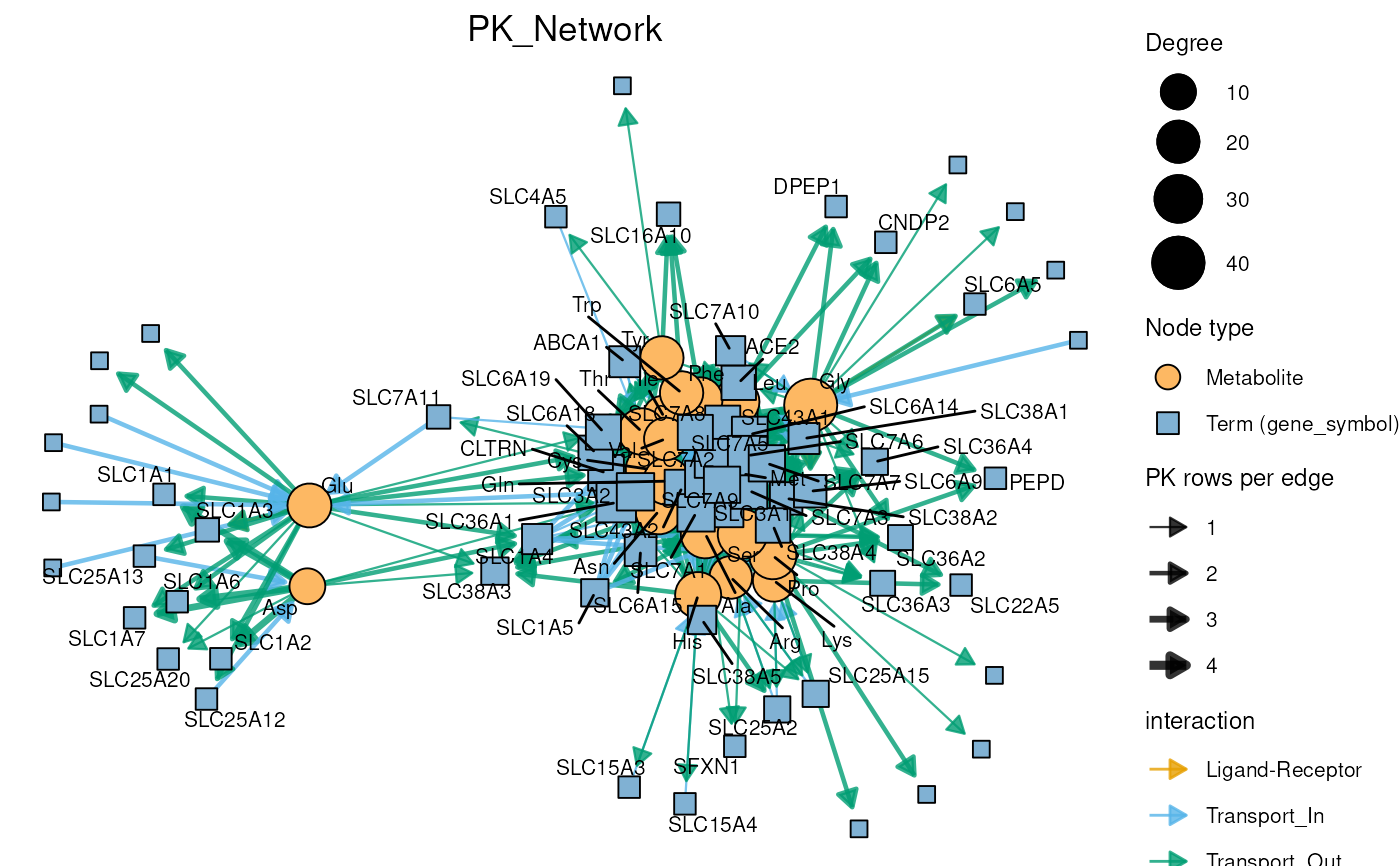

network <- viz_pk_network(
    feature_metadata = amino_acids,
    input_pk = transporters,
    metadata_info = c(
        InputID = "HMDB",
        InputLabel = "TrivialName",
        PriorID = "hmdb",
        PriorTerm = "gene_symbol",
        EdgeColor = "interaction",
        EdgeDirection = "direction"
    ),
    id_sep = ",",
    seed = 1,
    save_plot = NULL
)
