First if you have not done yet, install the required dependencies and load the libraries:

# 1. Install Rtools if you haven’t done this yet, using the appropriate version (e.g.windows or macOS).
# 2. Install the latest development version from GitHub using devtools
# devtools::install_github("https://github.com/saezlab/MetaProViz")

library(MetaProViz)

# dependencies that need to be loaded:
library(magrittr)
library(dplyr)
library(rlang)
library(ggfortify)
library(tibble)

<div class="progress-bar progress-bar-success" style="width: 100%"></div>

1. Loading the example data

<div class="progress-bar progress-bar-success" style="width: 100%"></div>

Here we choose an example datasets, which is publicly available on metabolomics workbench project PR001418 including metabolic profiles of human renal epithelial cells HK2 and cell renal cell carcinoma (ccRCC) cell lines cultured in Plasmax cell culture media (Sciacovelli et al. 2022). Here we use the integrated raw peak data as example data using the trivial metabolite name in combination with the KEGG ID as the metabolite identifiers.

As part of the MetaProViz package you can load the example data into your global environment using the function toy_data():
Intracellular experiment (Intra)
The raw data are available via metabolomics workbench study ST002224 were intracellular metabolomics of HK2 and ccRCC cell lines 786-O, 786-M1A and 786-M2A were performed.
We can access the built-in dataset intracell_raw, which includes columns with Sample information and columns with the measured metabolite integrated peaks.

data(intracell_raw)

Intra <- intracell_raw%>%
column_to_rownames("Code")

Preview of the DF `Intra` including columns with sample information and metabolite ids with their measured values.
	Conditions	Analytical_Replicates	Biological_Replicates	valine-d8	ADP-ribose	citrulline
MS55_01	HK2	1	1	1910140239	2417484	514024322
MS55_02	HK2	2	1	2030901280	2159520	507001076
MS55_03	HK2	3	1	2001950756	2427805	551503662
MS55_04	HK2	4	1	1971520079	1988317	483751307
MS55_05	786-O	1	1	2150817213	1732016	272896668

<div class="progress-bar progress-bar-success" style="width: 550%"></div>

2. Pre-processing

<div class="progress-bar progress-bar-success" style="width: 550%"></div>

MetaProViz includes a pre-processing module with the function processing() that has multiple parameters to perform customize data processing.
Feature_Filtering applies the 80%-filtering rule on the metabolite features either on the whole dataset (=“Standard”) (Bijlsma et al. 2006) or per condition (=“Modified”) (Wei et al. 2018). This means that metabolites are removed were more than 20% of the samples (all or per condition) have no detection. With the parameter cutoff_featurefilt we enable the adaptation of the stringency of the filtering based on the experimental context. For instance, patient tumour samples can contain many unknown subgroups due to gender, age, stage etc., which leads to a metabolite being detected in only 50% (or even less) of the tumour samples, hence in this context it could be considered to change the cutoff_featurefilt from the default (=0.8). If featurefilt = "None", no feature filtering is performed. In the context of featurefilt it is also noteworthy that the function pool_estimation() can be used to estimate the quality of the metabolite detection and will return a list of metabolites that are variable across the different pool measurements (pool = mixture of all experimental samples measured several times during the LC-MS run) . Variable metabolite in the pool sample should be removed from the data.

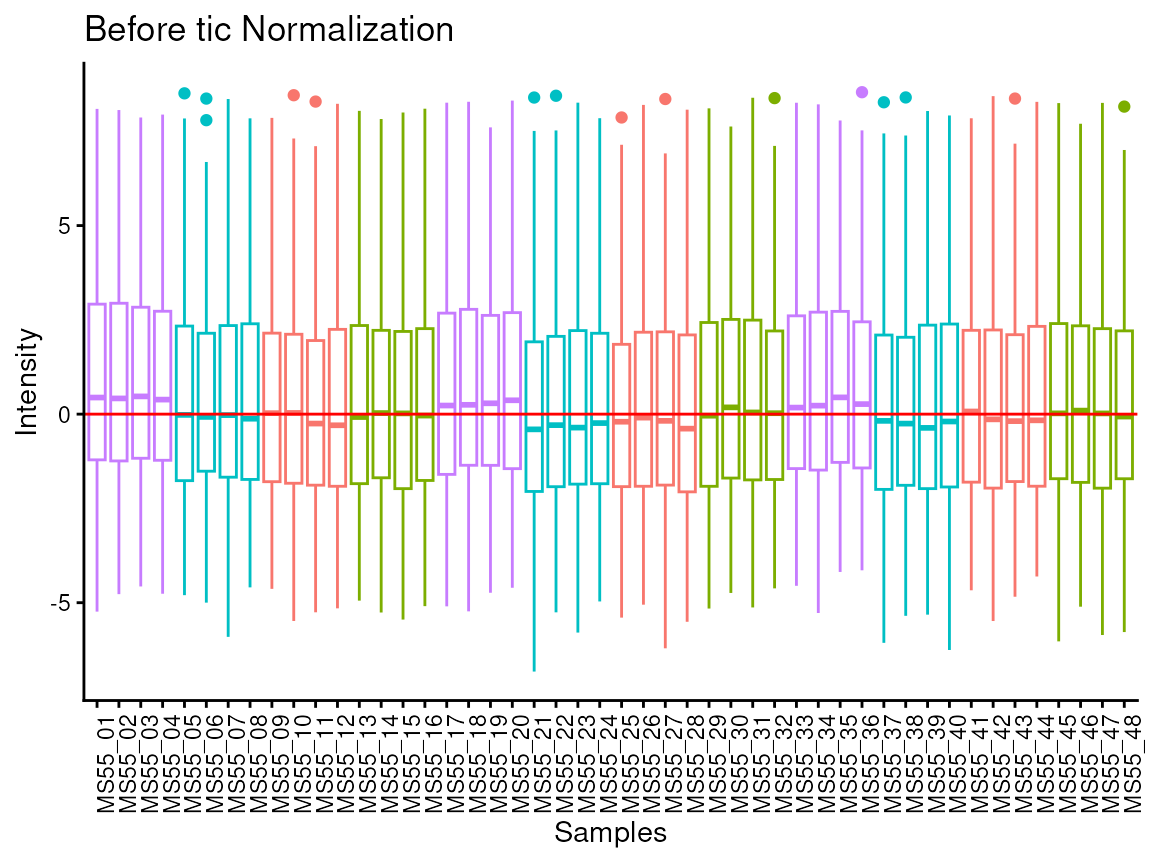

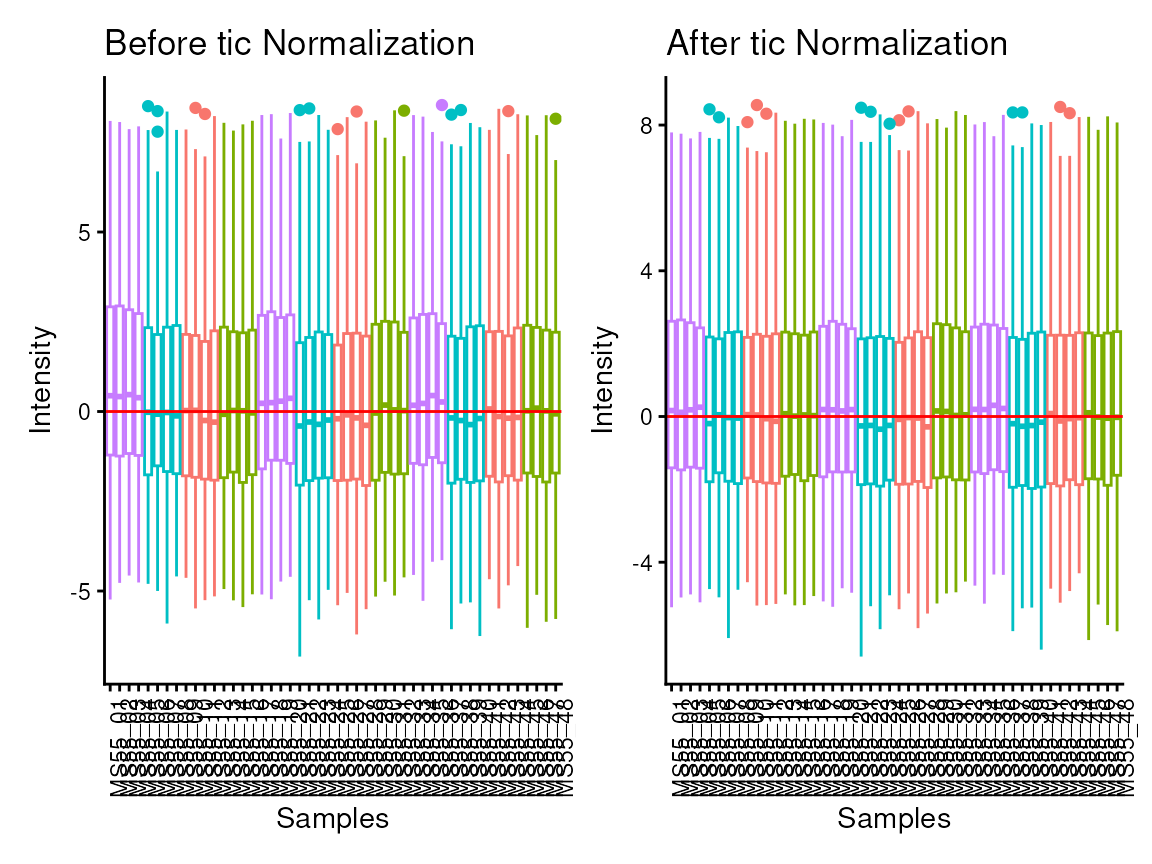

The parameter tic refers to total Ion Count (tic) normalisation, which is often used with LC-MS derived metabolomics data. If tic = TRUE, each feature (=metabolite) in a sample is divided by the sum of all intensity value (= total number of ions) for the sample and finally multiplied by a constant ( = the mean of all samples total number of ions). Noteworthy, tic normalisation should not be used with small number of features (= metabolites), since tic assumes that on “average” the ion count of each sample is equal if there were no instrument batch effects (Wulff and Mitchell 2018).
The parameter mvi refers to Missing Value Imputation (mvi) and if mvi = TRUE half minimum (HM) missing value imputation is performed per feature (= per metabolite). Here it is important to mention that HM has been shown to perform well for missing vales that are missing not at random (MNAR) (Wei et al. 2018).

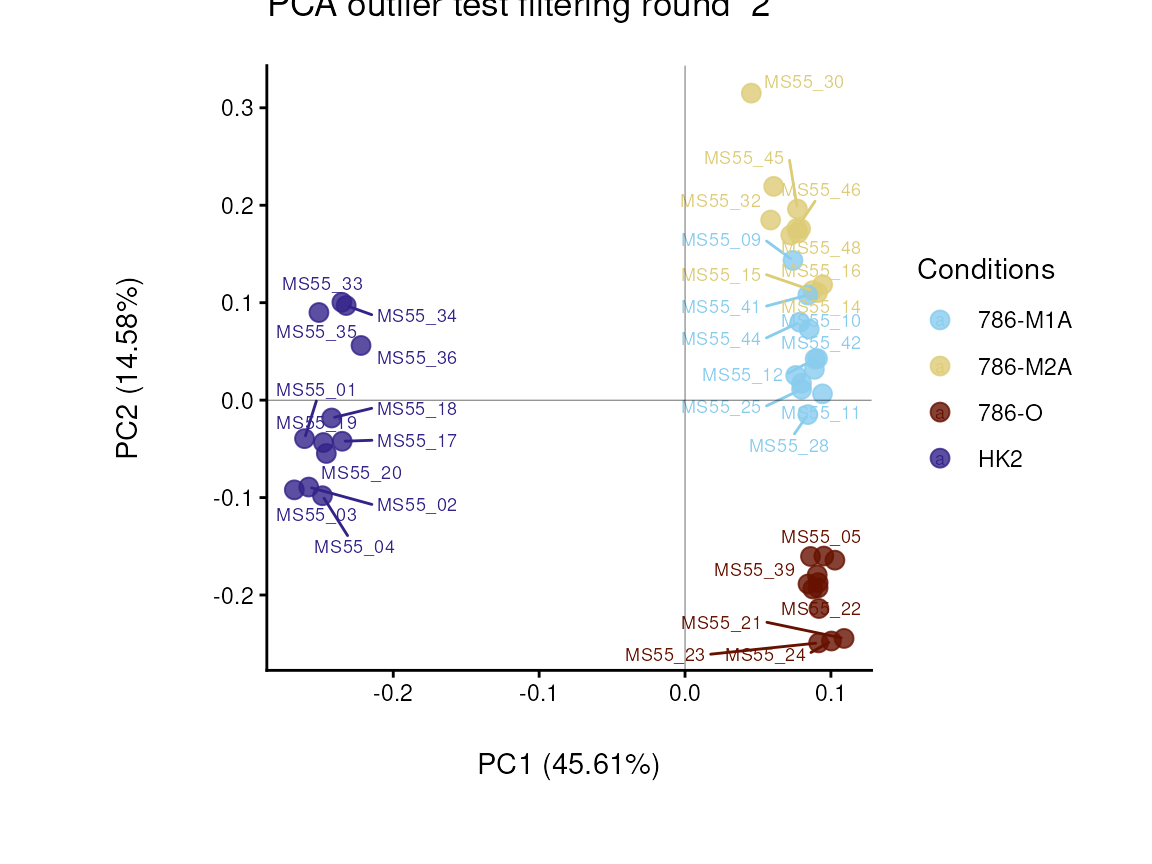

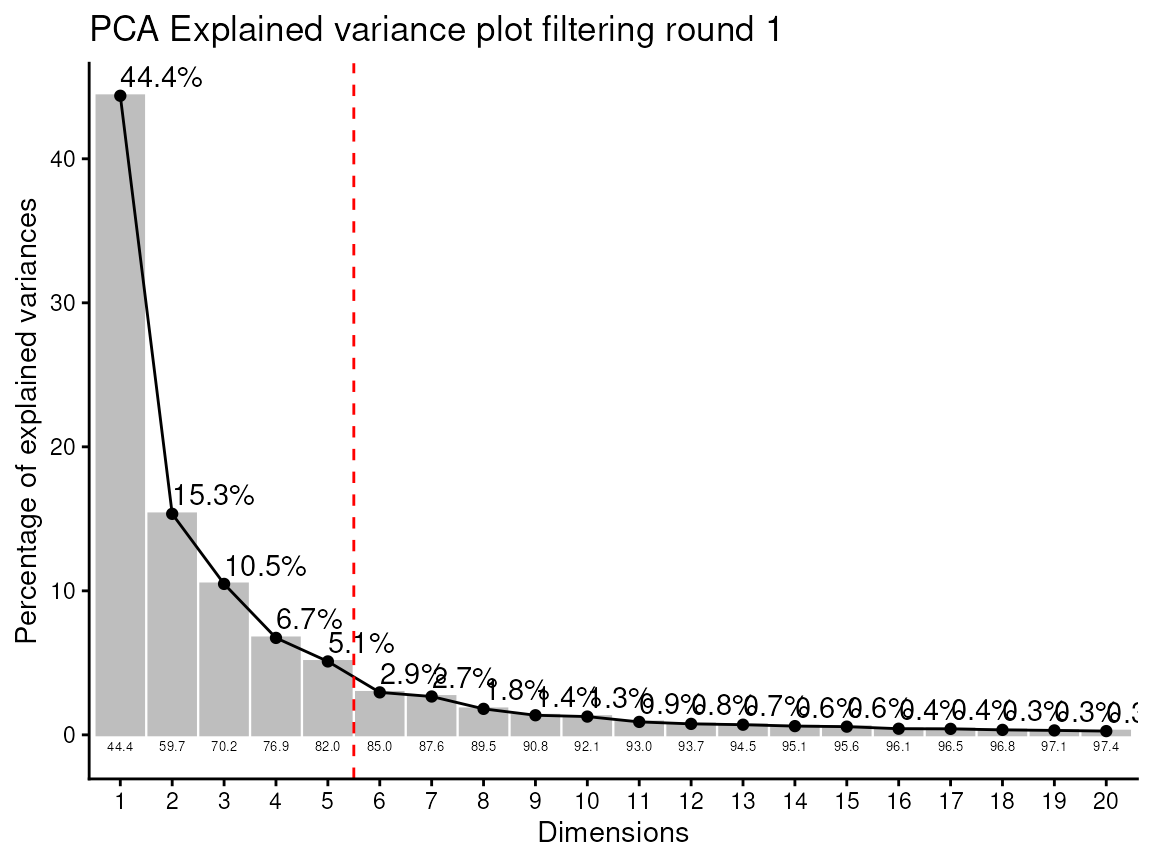

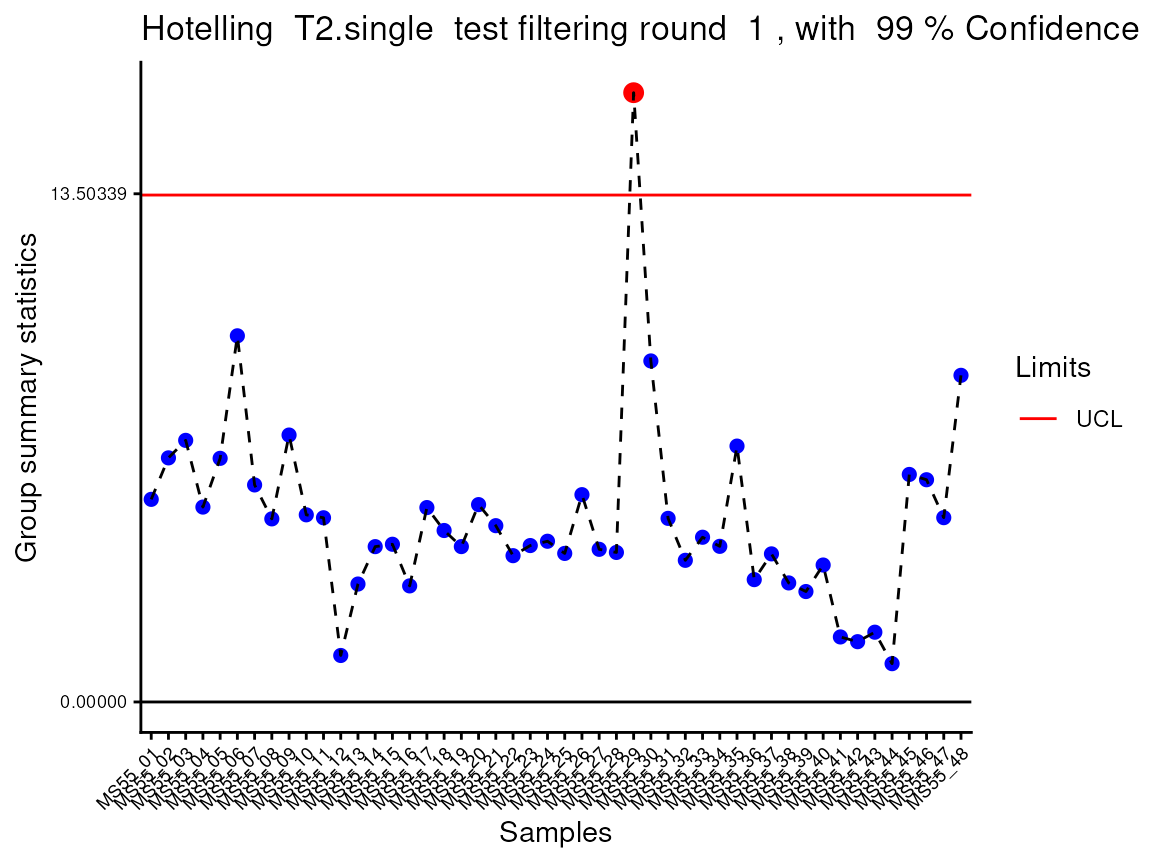

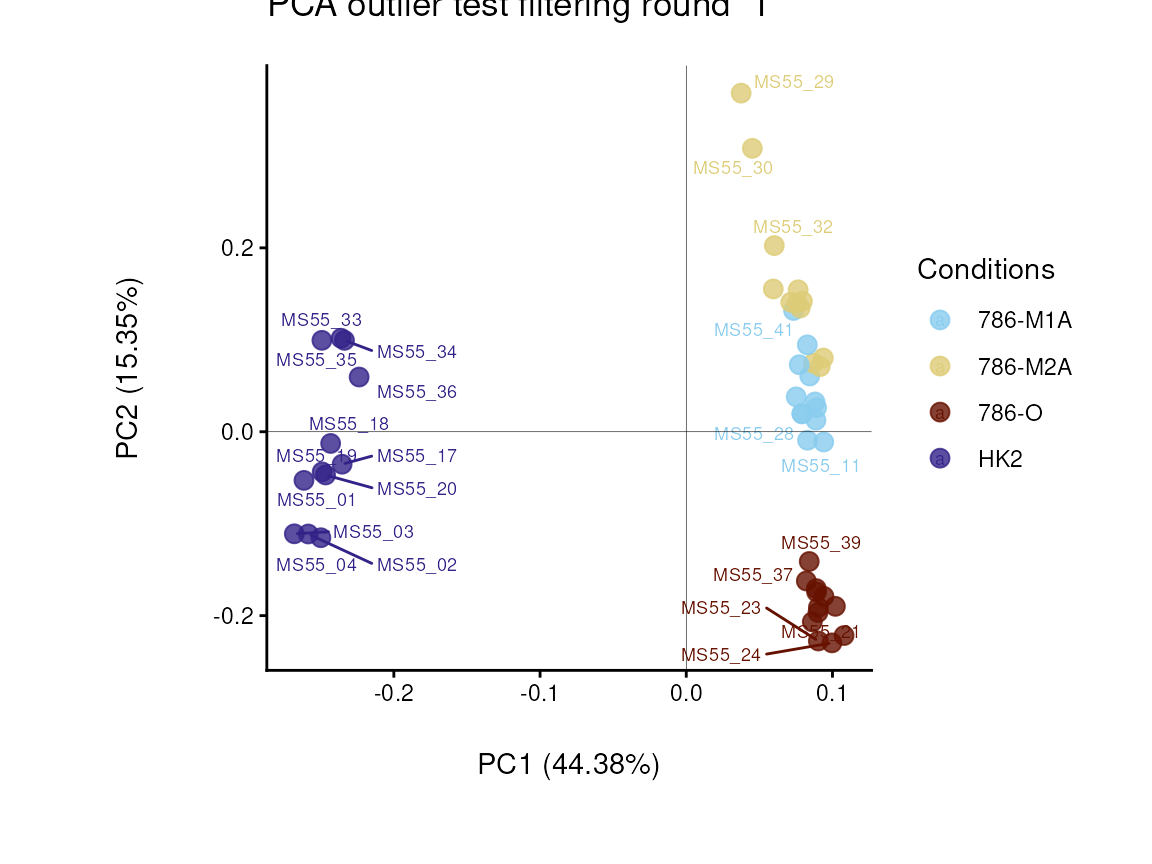

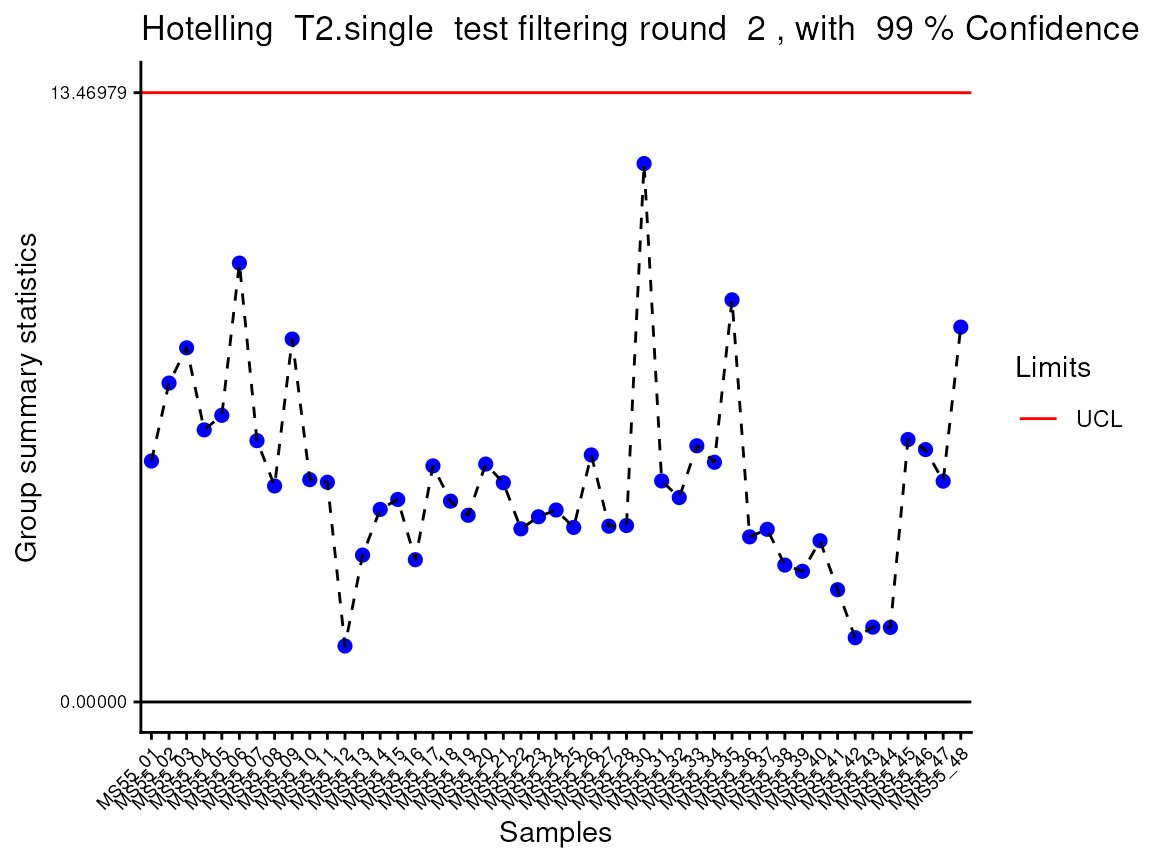

Lastly, the function processing() performs outlier detection and adds a column “Outliers” into the DF, which can be used to remove outliers. The parameter hotellins_confidence can be used to choose the confidence interval that should be used for the Hotellins T2 outlier test (Hotelling 1931).

If your data contain pool samples, you can do pool_estimation() before applying the processing() function. This is important, since one should remove the features (=metabolites) that are too variable prior to performing any data transformations such as tic as part of the processing() function. If there is a high variability (high CVs), you should consider to remove those features from the data. If you have used internal standard in your experiment you should specifically check their CV as this would indicate technical issues.You can find details on this in the extended vignettes:
- Standard metabolomics data
- Consumption-Release (CoRe) metabolomics data from cell culture media

Now we will apply the processing() function to example data and have a look at the output produced. You will notice that all the chosen parameters and results are documented in messages. All the results data tables, the Quality Control (QC) plots and outlier detection plots are returned and can be easily viewed.

PreprocessingResults <- processing(data=Intra[-c(49:58) ,-c(1:3)], #remove pool samples and columns with sample information
metadata_sample=Intra[-c(49:58) , c(1:3)], #remove pool samples and columns with metabolite measurements
metadata_info = c(Conditions = "Conditions",
Biological_Replicates = "Biological_Replicates"),
featurefilt = "Modified",
cutoff_featurefilt = 0.8,
tic = TRUE,
mvi = TRUE,
hotellins_confidence = 0.99,# We perform outlier testing using 0.99 confidence intervall
core = FALSE,
save_plot = "svg",
save_table= "csv",
print_plot = TRUE,
path = NULL)
#> feature_filtering: Here we apply the modified 80%-filtering rule that takes the class information (Column `Conditions`) into account, which additionally reduces the effect of missing values (REF: Yang et. al., (2015), doi: 10.3389/fmolb.2015.00004). Filtering value selected: 0.8
#> 3 metabolites where removed: AICAR, FAICAR, SAICAR
#> Missing Value Imputation: Missing value imputation is performed, as a complementary approach to address the missing value problem, where the missing values are imputing using the `half minimum value`. REF: Wei et. al., (2018), Reports, 8, 663, doi:https://doi.org/10.1038/s41598-017-19120-0
#> Warning: `aes_string()` was deprecated in ggplot2 3.0.0.
#> ℹ Please use tidy evaluation idioms with `aes()`.
#> ℹ See also `vignette("ggplot2-in-packages")` for more information.
#> ℹ The deprecated feature was likely used in the MetaProViz package.
#>   Please report the issue at <https://github.com/saezlab/MetaProViz/issues>.
#> This warning is displayed once every 8 hours.
#> Call `lifecycle::last_lifecycle_warnings()` to see where this warning was
#> generated.
#> total Ion Count (tic) normalization: total Ion Count (tic) normalization is used to reduce the variation from non-biological sources, while maintaining the biological variation. REF: Wulff et. al., (2018), Advances in Bioscience and Biotechnology, 9, 339-351, doi:https://doi.org/10.4236/abb.2018.98022
#> Outlier detection: Identification of outlier samples is performed using Hotellin's T2 test to define sample outliers in a mathematical way (Confidence = 0.99 ~ p.val < 0.01) (REF: Hotelling, H. (1931), Annals of Mathematical Statistics. 2 (3), 360-378, doi:https://doi.org/10.1214/aoms/1177732979). hotellins_confidence value selected: 0.99
#> There are possible outlier samples in the data
#> Filtering round  1  Outlier Samples:  MS55_29

#> Warning: ggrepel: 26 unlabeled data points (too many overlaps). Consider
#> increasing max.overlaps

#> Warning: ggrepel: 25 unlabeled data points (too many overlaps). Consider
#> increasing max.overlaps
#> Warning in geom_bar(stat = "identity", fill = barfill, color = barcolor, :
#> Ignoring empty aesthetic: `width`.

#> Warning in geom_bar(stat = "identity", fill = barfill, color = barcolor, :
#> Ignoring empty aesthetic: `width`.

#> Warning: ggrepel: 16 unlabeled data points (too many overlaps). Consider
#> increasing max.overlaps

#> Warning: ggrepel: 12 unlabeled data points (too many overlaps). Consider increasing max.overlaps
#> Ignoring empty aesthetic: `width`.

#> Warning in geom_bar(stat = "identity", fill = barfill, color = barcolor, :
#> Ignoring empty aesthetic: `width`.

#> Warning: ggrepel: 26 unlabeled data points (too many overlaps). Consider
#> increasing max.overlaps

#> Warning: ggrepel: 24 unlabeled data points (too many overlaps). Consider
#> increasing max.overlaps
#> Warning: ggrepel: 26 unlabeled data points (too many overlaps). Consider
#> increasing max.overlaps

#> Warning: ggrepel: 24 unlabeled data points (too many overlaps). Consider
#> increasing max.overlaps



# This is the results table:
Intra_Preprocessed <- PreprocessingResults[["DF"]][["Preprocessing_output"]]

Preview of the pre-processing results, which has an additional column `Outlier` including the results of Hotellins T2.
	Conditions	Analytical_Replicates	Biological_Replicates	Outliers	valine-d8	hippuric acid-d5	2/3-phosphoglycerate	2-aminoadipic acid	2-hydroxyglutarate
MS55_29	786-M2A	1	2	Outlier_filtering_round_1	2387588900	4569088590	40184147	6064712	447702444
MS55_30	786-M2A	2	2	no	2129509827	3909434732	40901362	5928248	438592007
MS55_31	786-M2A	3	2	no	2008257641	3820133317	45656317	6122422	423960574
MS55_32	786-M2A	4	2	no	2023353119	3808913048	46166031	6633984	434158266

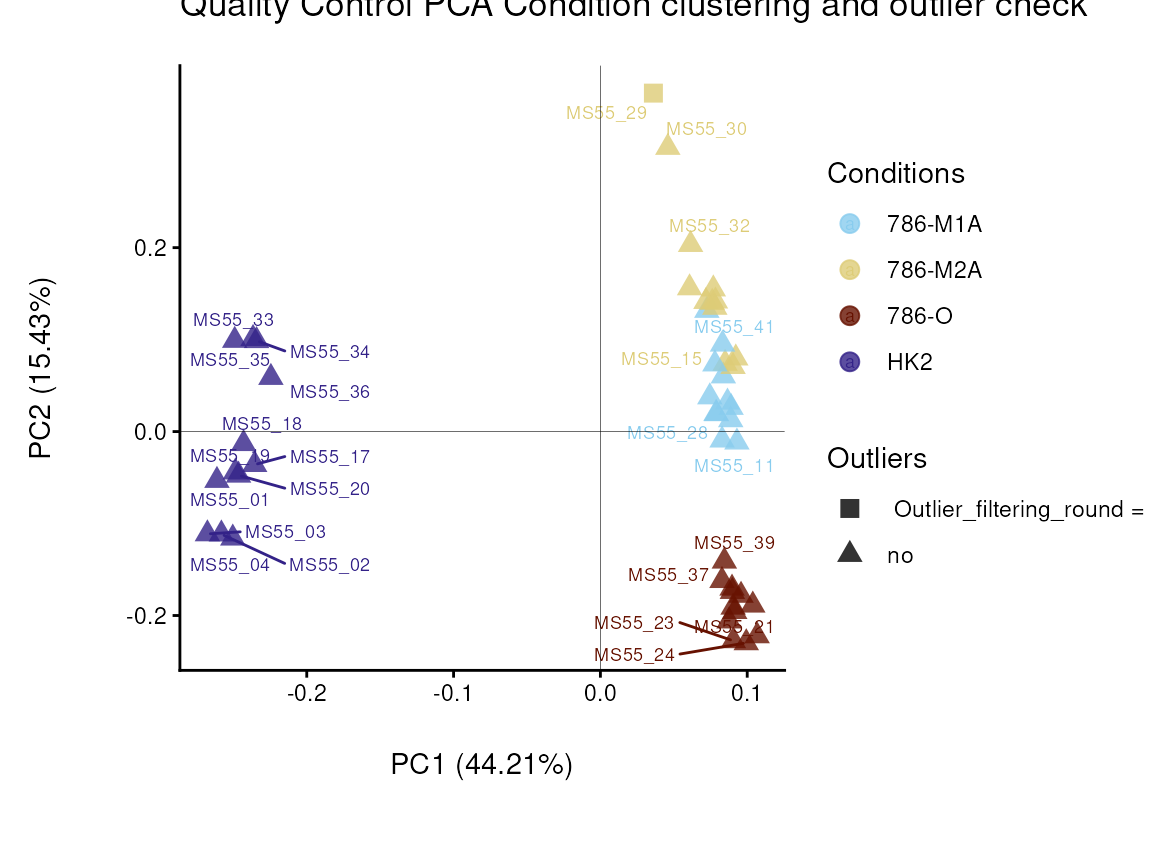

In the output table you can now see the column “Outliers” and for the Condition 786-M2A, we can see that based on Hotellin’s T2 test, one sample was detected as an outlier in the first round of filtering.

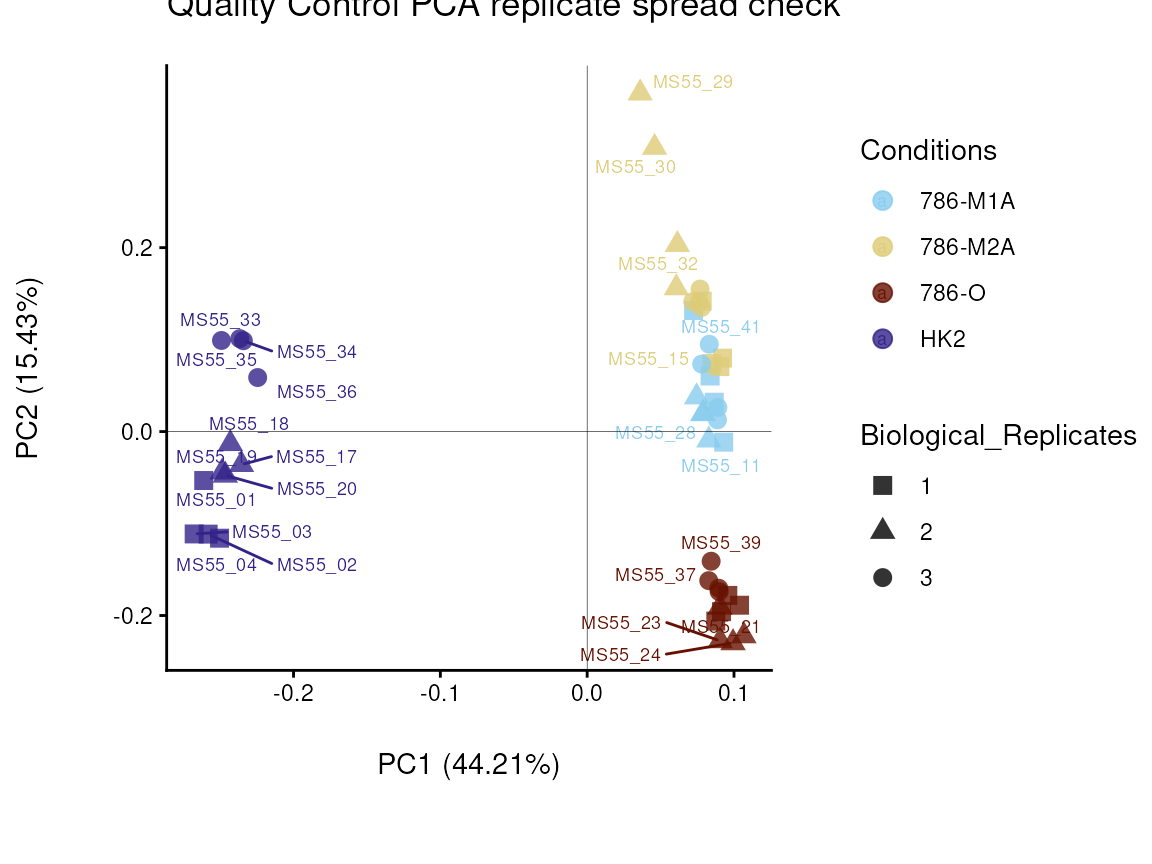

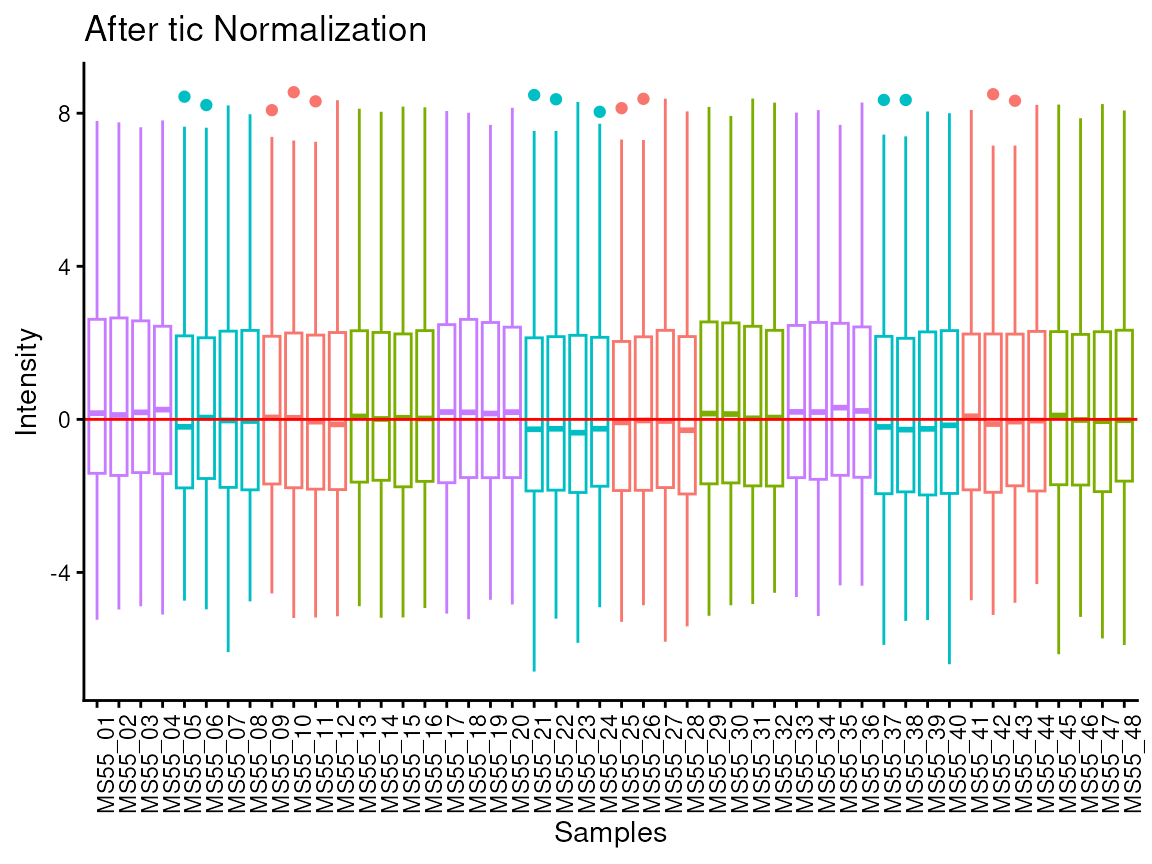

As part of the processing() function several plots are generated and saved. Additionally, the ggplots are returned into the list to enable further modifiaction using the ggplot syntax. These plots include plots showing the outliers for each filtering round and other QC plots.

Before we proceed, we will remove the outlier:

Intra_Preprocessed <- Intra_Preprocessed%>%
filter(Outliers=="no")#remove MS55_29

As you may have noticed, in this example dataset we have several biological replicates that were injected (=measured) several times, which can be termed as analytical replicates. The MetaProViz pre-processing module includes the function replicate_sum(), which will do this task and save the results:

Intra_Preprocessed <- replicate_sum(data=Intra_Preprocessed[,-c(1:4)],
metadata_sample=Intra_Preprocessed[,c(1:4)],
metadata_info = c(Conditions="Conditions", Biological_Replicates="Biological_Replicates", Analytical_Replicates="Analytical_Replicates"))

In case you have performed a Consumption-Release (core) metabolomics experiment, which usually refers to a cell culture experiment where metabolomics is performed on the cell culture media, you will also need to set the parameter core=TRUE in the processing() function. Now additional data processing steps are applied:
1. Blank sample: This refers to media samples where no cells have been cultured in, which will be used as blank. In detail, the mean of the blank sample of a feature (= metabolite) will be substracted from the values measured in each sample for the same feature. In the column “Condition” of the Experimental_design DF, you will need to label your blank samples with “blank”.
2. Growth factor or growth rate: This refers to the different conditions and is either based on cell count or protein quantification at the start of the experiment (t0) and at the end of the experiment (t1) resulting in the growth factor (t1/t0). Otherwise, one can experimentally estimate the growth rate of each condition. Ultimately, this measure is used to normalize the data, since the amount of growth will impact the consumption and release of metabolites from the media and hence we need to account for this. If you do not have this information, this will be set to 1, yet be aware that this may affect the results.
For details see extensive vignette Consumption-Release (CoRe) metabolomics data from cell culture media.

PCA plot and Heatmap

Using the processed data, we can now use the MetaProViz visualization module and generate some overview Heatmaps viz_heatmap() or PCA plots viz_pca(). 1. PCA
Principal component analysis (PCA) is a dimensionality reduction method that reduces all the measured features (=metabolites) of one sample into a few features in the different principal components, whereby each principal component can explain a certain percentage of the variance between the different samples. Hence, this enables interpretation of sample clustering based on the measured features (=metabolites).
We can interactively choose shape and color using the additional information of interest from our Metadata. Especially for complex data, such as patient data, it can be valuable to use different demographics (e.g. age, gender, medication,…) for this.
Here the different cell lines are either control or cancerous, so we can display this as colour. The cancerous cell lines can further be divided into metastatic or primary, whcih we display by shape. This shows us that this is separated on the y-axis and accounts for 30%of the variance.Here is becomes apparent that the cell status is responsible for 64% of the variance (x-axis).

#Create the metadata file:
MetaData_Sample <- Intra_Preprocessed[,c(1:2)]%>%
mutate(Celltype = case_when(Conditions=="HK2" ~ 'Healthy',
Conditions=="786-O" ~ 'Primary Tumour',
TRUE ~ 'Metastatic Tumour'))%>%
mutate(Status = case_when(Conditions=="HK2" ~ 'Healthy',
TRUE ~ 'Cancer'))
#Make PCA plot
viz_pca(metadata_info= c(color="Celltype", shape="Status"),
                    metadata_sample= MetaData_Sample,
                    data= Intra_Preprocessed[,-c(1:5)],
                    plot_name = "Cell type")

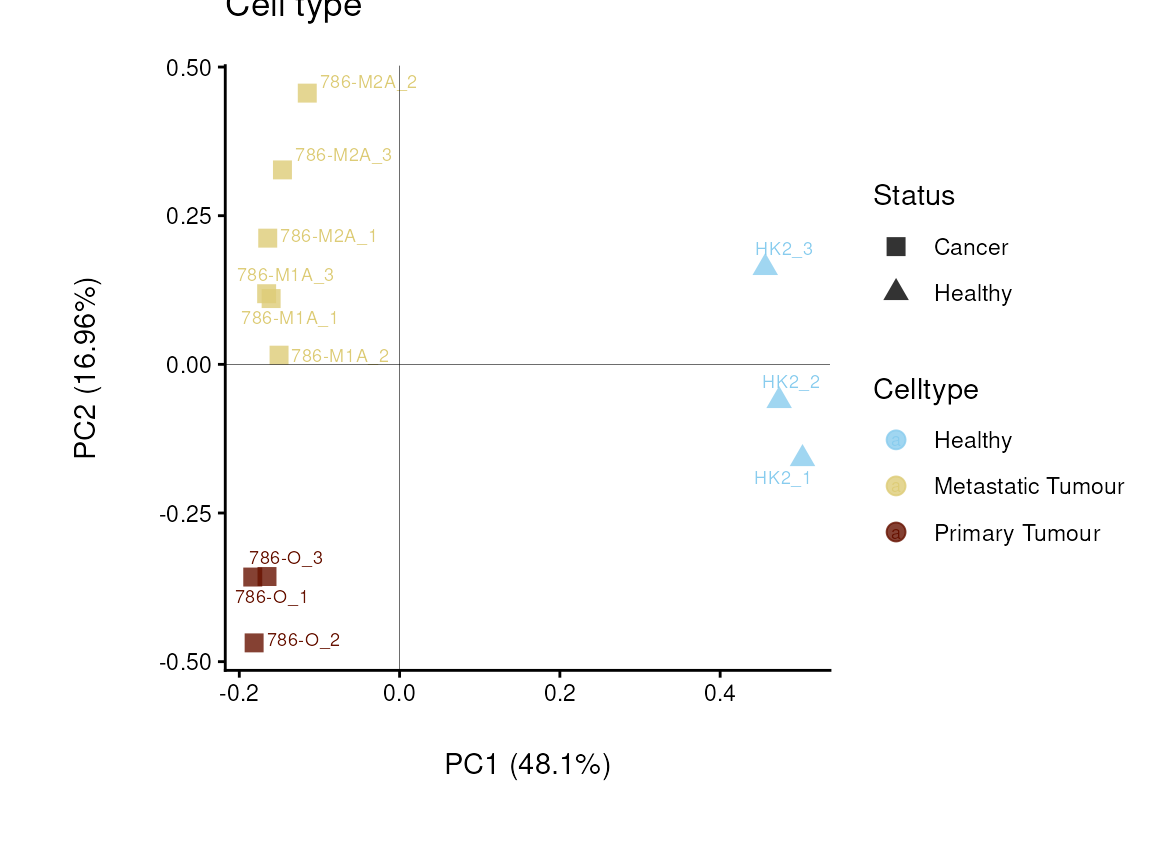

Figure: Do the samples cluster for the Cell type?

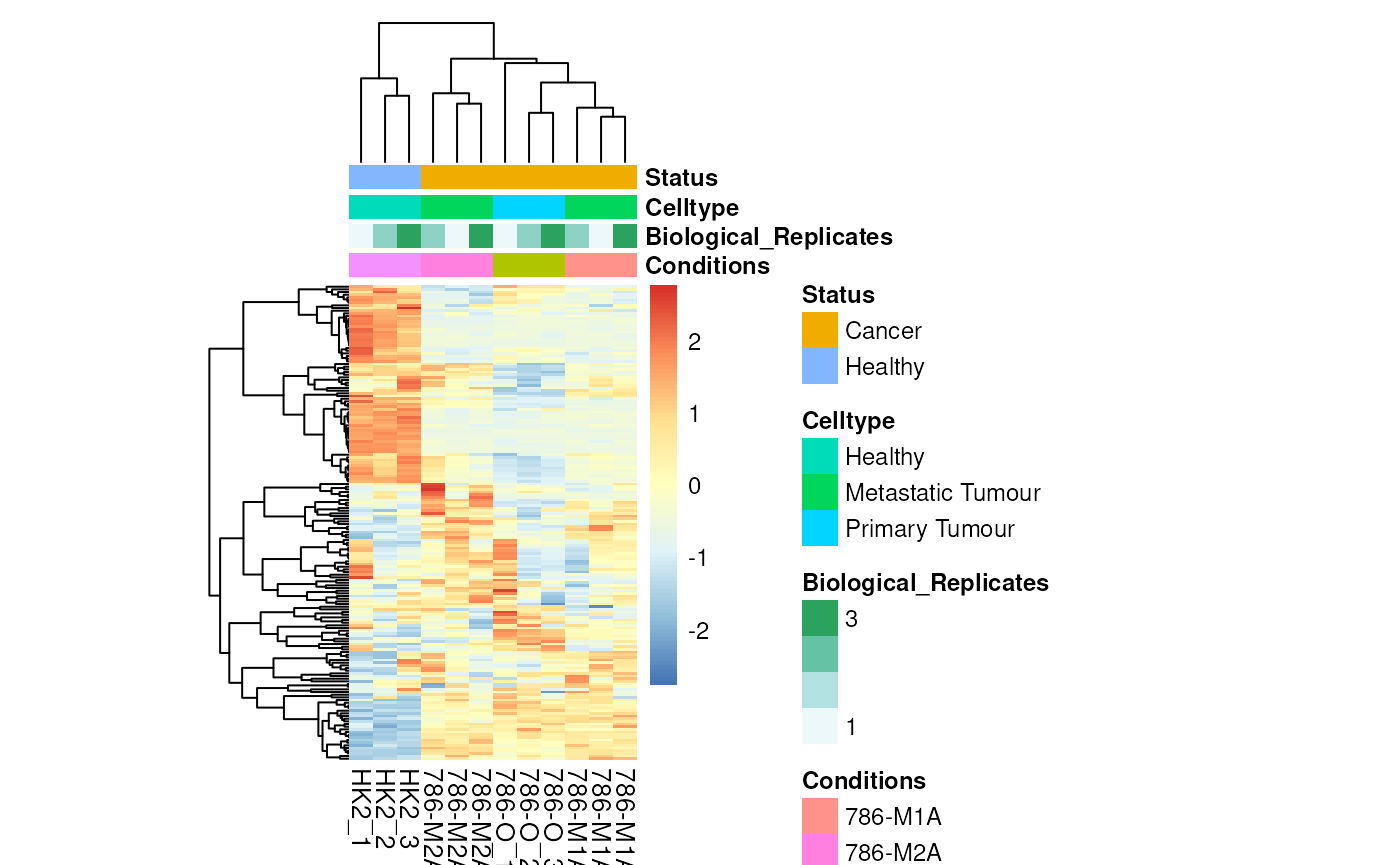

Similarly, we can use the data and sample information to make a heatmap:

viz_heatmap(data = Intra_Preprocessed[,-c(1:4)],
                        metadata_sample = MetaData_Sample,
                        metadata_info = c(color_Sample = list("Conditions","Biological_Replicates", "Celltype", "Status")))

Colour for sample metadata.

<div class="progress-bar progress-bar-success" style="width: 550%"></div>

3. Differential Metabolite Analysis

<div class="progress-bar progress-bar-success" style="width: 550%"></div>

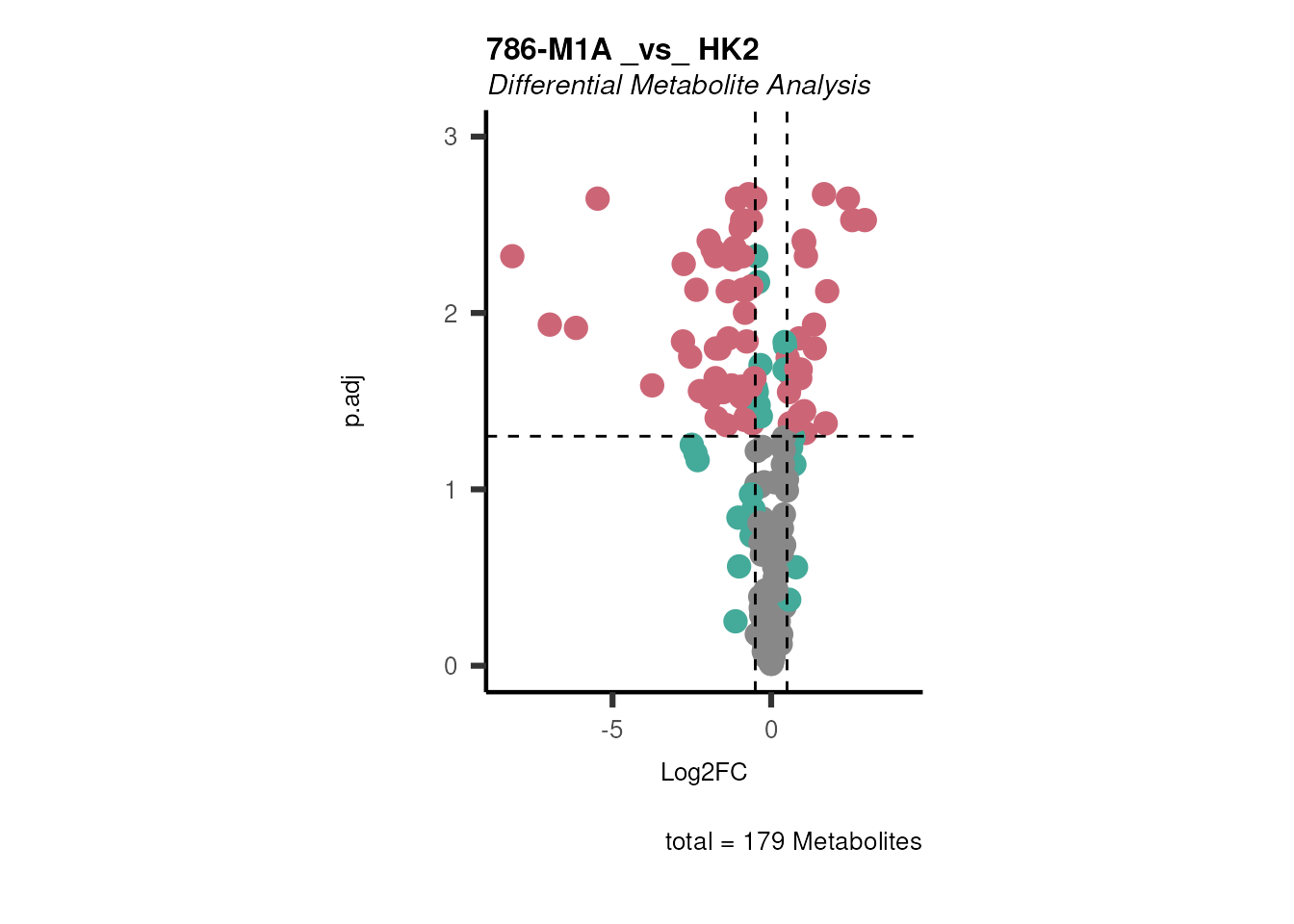

Differential Metabolite Analysis (dma) is used to compare two conditions (e.g. Tumour versus Healthy) by calculating the Log2FC, p-value, adjusted p-value and t-value. With the different parameters pval and padj one can choose the statistical tests such as t.test, wilcoxon test, limma, annova, kruskal walles, etc. (see function reference for more information).
As input one can use the processed data we have generated using the processing module, but here one can of course use any DF including metabolite values, even though we recommend to normalize the data and remove outliers prior to dma. Moreover, we require information which condition a sample corresponds to.

By defining the numerator and denominator as part of the metadata_info parameter, it is defined which comparisons are performed:
1. one_vs_one (single comparison): numerator=“Condition1”, denominator =“Condition2”
2. all_vs_one (multiple comparison): numerator=NULL, denominator =“Condition”
3. all_vs_all (multiple comparison): numerator=NULL, denominator =NULL (=default)

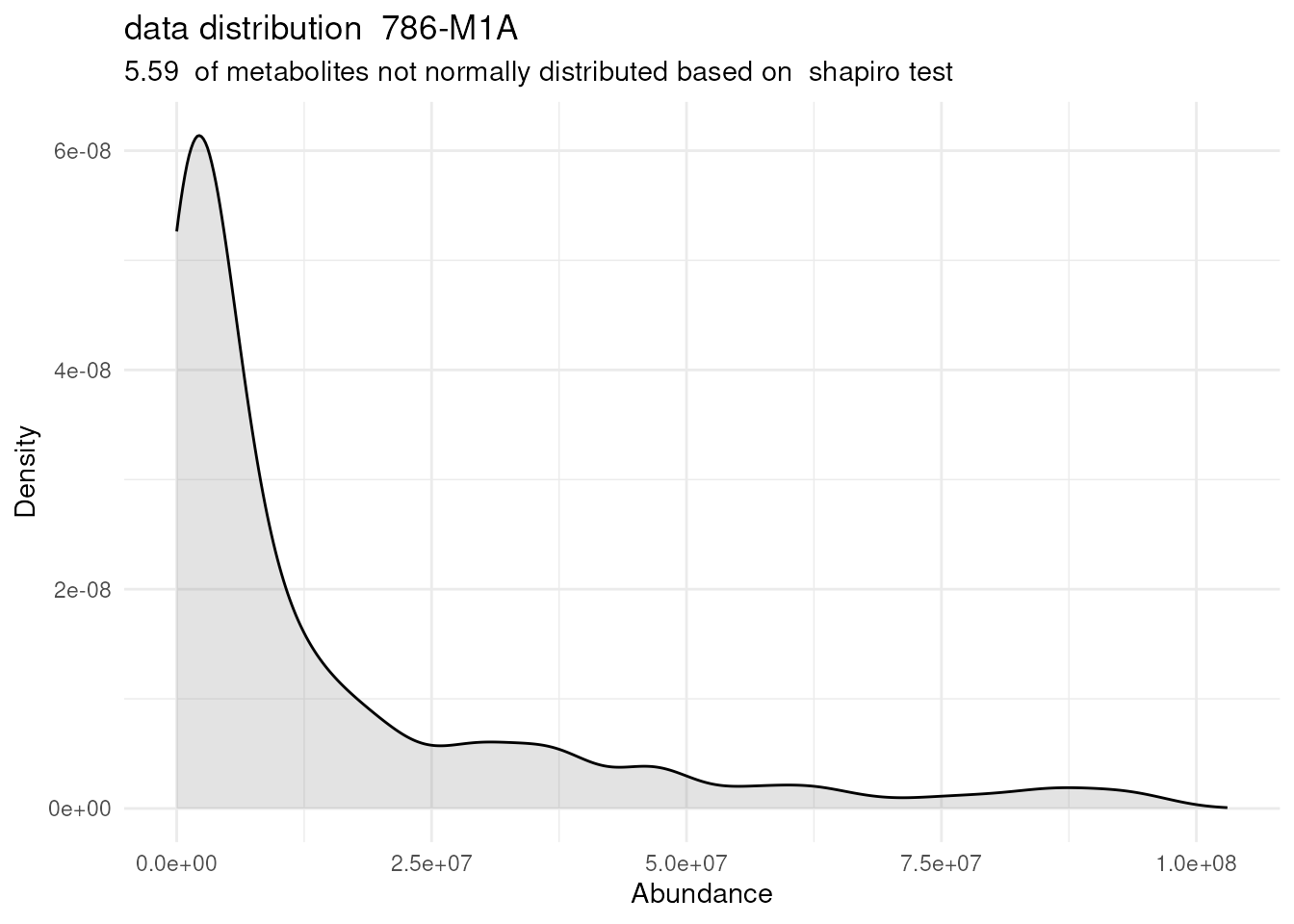

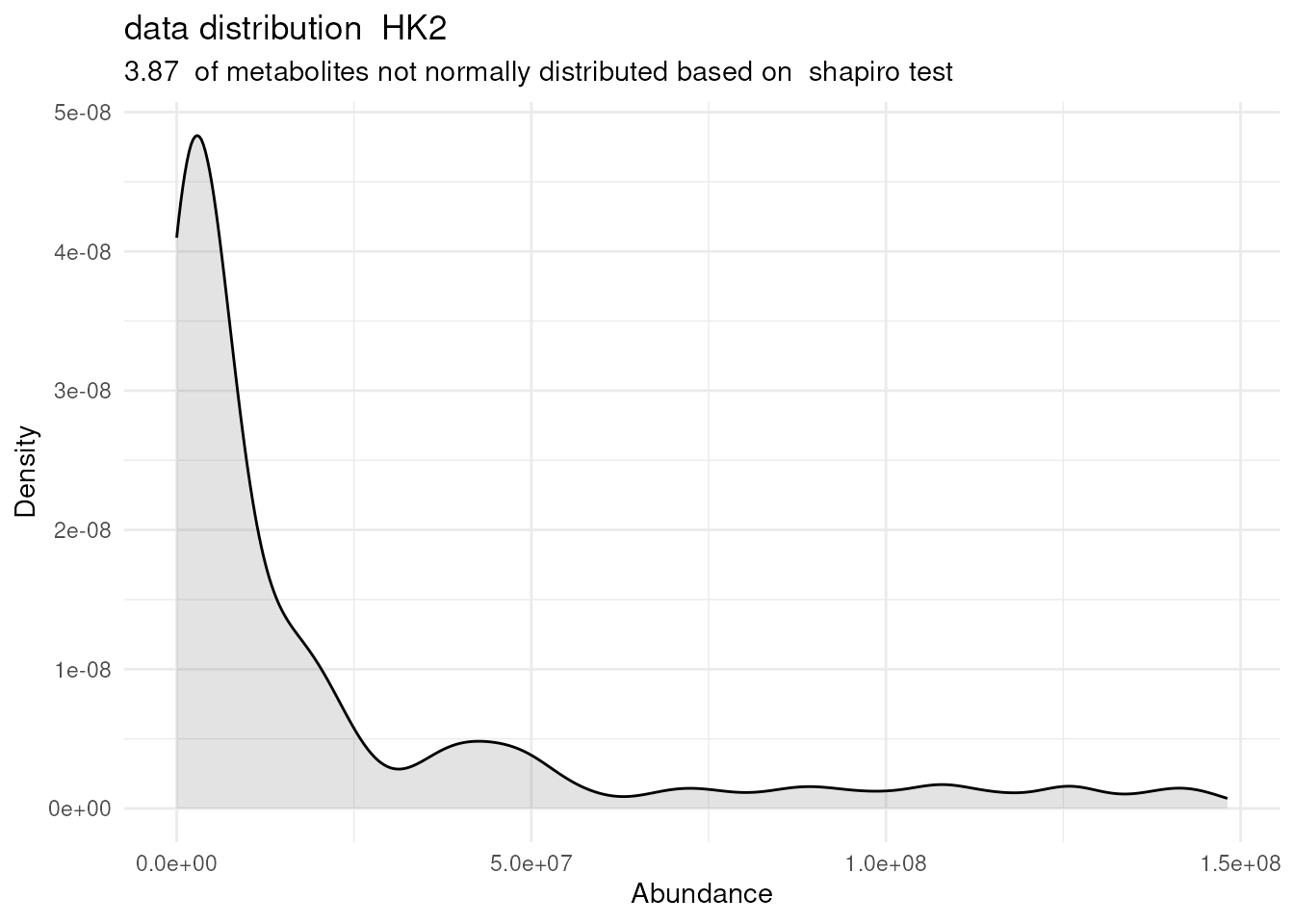

Noteworthy, if you have not performed missing value imputation and hence your data includes NAs or 0 values for some features, this is how we deal with this in the dma() function:
1. If you use the parameter pval="lmFit", limma is performed. Limma does a baesian fit of the data and substracts Mean(Condition1 fit) - Mean(Condition2 fit). As such, unless all values of a feature are NA, Limma can deal with NAs. 2. Standard Log2FC: log2(Mean(Condition1)) - log2(Mean(Condition2)) a. If all values of the replicates of one condition are NA/0 for a feature (=metabolite): Log2FC= Inf/-Inf and the statistics will be NA
b. If some values of the replicates of one condition are NA/0 for a feature (=metabolite): Log2FC= positive or negative value, but the statistics will be NA

It is important to mention that in case of pval="lmFit", we perform log2 transformation of the data as prior to running limma to enable the calculation of the log2FC, hence do not provide log2 transformed data.

Here, the example data we have four different cell lines, healthy (HK2) and cancer (ccRCC: 786-M1A, 786-M2A and 786-O), hence we can perform multiple different comparisons. For simplicity, we will compare 786-M1A versus HK2. The results can be automatically saved and all the results are returned in a list with the different data frames. If parameter plot=TRUE, an overview Volcano plot is generated and saved.

# Perform multiple comparison All_vs_One using annova:
DMA_Res <- dma(data=Intra_Preprocessed[,-c(1:3)], #we need to remove columns that do not include metabolite measurements
metadata_sample=Intra_Preprocessed[,c(1:3)],#only maintain the information about condition and replicates
metadata_info = c(Conditions="Conditions", Numerator="786-M1A" , Denominator = "HK2"),# we compare 786-M1A_vs_HK2
pval ="t.test",
padj="fdr")
#> There are no NA/0 values
#> Warning: Computation failed in `stat_bin()`.
#> Caused by error in `bin_breaks_width()`:
#> ! The number of histogram bins must be less than 1,000,000.
#> ℹ Did you make `binwidth` too small?
#> Warning: Removed 142 rows containing non-finite outside the scale range
#> (`stat_bin()`).
#> Warning: Computation failed in `stat_bin()`.
#> Caused by error in `bin_breaks_width()`:
#> ! The number of histogram bins must be less than 1,000,000.
#> ℹ Did you make `binwidth` too small?
#> Warning: Removed 142 rows containing non-finite outside the scale range
#> (`stat_density()`).
#> Warning: Computation failed in `stat_bin()`.
#> Caused by error in `bin_breaks_width()`:
#> ! The number of histogram bins must be less than 1,000,000.
#> ℹ Did you make `binwidth` too small?
#> Warning: Removed 137 rows containing non-finite outside the scale range
#> (`stat_bin()`).
#> Warning: Computation failed in `stat_bin()`.
#> Caused by error in `bin_breaks_width()`:
#> ! The number of histogram bins must be less than 1,000,000.
#> ℹ Did you make `binwidth` too small?
#> Warning: Removed 137 rows containing non-finite outside the scale range
#> (`stat_density()`).
#> Warning: Using `size` aesthetic for lines was deprecated in ggplot2 3.4.0.
#> ℹ Please use `linewidth` instead.
#> ℹ The deprecated feature was likely used in the EnhancedVolcano package.
#>   Please report the issue to the authors.
#> This warning is displayed once every 8 hours.
#> Call `lifecycle::last_lifecycle_warnings()` to see where this warning was
#> generated.
#> Warning: The `size` argument of `element_line()` is deprecated as of ggplot2 3.4.0.
#> ℹ Please use the `linewidth` argument instead.
#> ℹ The deprecated feature was likely used in the EnhancedVolcano package.
#>   Please report the issue to the authors.
#> This warning is displayed once every 8 hours.
#> Call `lifecycle::last_lifecycle_warnings()` to see where this warning was
#> generated.
#> Warning: Removed 142 rows containing non-finite outside the scale range
#> (`stat_bin()`).
#> Warning: Computation failed in `stat_bin()`.
#> Caused by error in `bin_breaks_width()`:
#> ! The number of histogram bins must be less than 1,000,000.
#> ℹ Did you make `binwidth` too small?
#> Warning: Removed 142 rows containing non-finite outside the scale range
#> (`stat_density()`).
#> Warning: Removed 142 rows containing non-finite outside the scale range
#> (`stat_bin()`).
#> Warning: Computation failed in `stat_bin()`.
#> Caused by error in `bin_breaks_width()`:
#> ! The number of histogram bins must be less than 1,000,000.
#> ℹ Did you make `binwidth` too small?
#> Warning: Removed 142 rows containing non-finite outside the scale range
#> (`stat_density()`).
#> Warning: Removed 137 rows containing non-finite outside the scale range
#> (`stat_bin()`).
#> Warning: Computation failed in `stat_bin()`.
#> Caused by error in `bin_breaks_width()`:
#> ! The number of histogram bins must be less than 1,000,000.
#> ℹ Did you make `binwidth` too small?
#> Warning: Removed 137 rows containing non-finite outside the scale range
#> (`stat_density()`).

#> Warning: Removed 137 rows containing non-finite outside the scale range
#> (`stat_bin()`).
#> Warning: Computation failed in `stat_bin()`.
#> Caused by error in `bin_breaks_width()`:
#> ! The number of histogram bins must be less than 1,000,000.
#> ℹ Did you make `binwidth` too small?
#> Warning: Removed 137 rows containing non-finite outside the scale range
#> (`stat_density()`).


# Inspect the dma results tables:
DMA_786M1A_vs_HK2 <- DMA_Res[["dma"]][["786-M1A _vs_ HK2"]]

Preview of the dma results for the comparison of 786-M1A versus HK2 cells.
Metabolite	Log2FC	786-M1A_1	786-M1A_2	786-M1A_3	HK2_1	HK2_2	HK2_3	p.val	p.adj	t.val
isovalerylcarnitine	0.9170474	29656656	30619594	32262097	19753215	15537391	13716941	0.0070624	0.0234206	-7.4689200974348
lactate	0.3015843	721790170	654376727	761914317	565048879	499136450	670570164	0.0973061	0.1662329	-2.27995828643078
lysine	0.4006104	39846551	37827659	40500396	27919226	25870671	35731826	0.0775608	0.1388337	-3.07082976561226
malate	0.0981352	2244208988	2276823115	2058245048	1940397414	2064435997	2141789027	0.1853322	0.2764539	-1.6049019168411
malonate	0.1701143	7457170	8327513	6230908	5918003	6198577	7450266	0.3518985	0.4700734	-1.06115449290904

In case you have performed a Consumption-Release (core) metabolomics experiment, which usually refers to a cell culture experiment where metabolomics is performed on the cell culture media, you will also need to set the parameter core=TRUE in the dma() function. In a core experiment the normalized metabolite values can be either a negative value, if the metabolite has been consumed from the media, or a positive value, if the metabolite has been released from the cell into the culture media. Since we can not calculate a Log2FC using negative values, we calculate the absolute difference between the mean of Condition 1 versus the mean of Condition 2. The absolute difference is log2 transformed in order to make the values comparable between the different metabolites, resulting in the Log2Dist. The result doesn’t consider whether one product is larger than the other; it only looks at the magnitude of their difference. to reflect the direction of change between the two conditions we multiply with -1 if C1 < C2. By setting the paramteter core = TRUE, instead of calclulating the Log2FC, the Log2 Distance is calculated. For details see extensive vignette Consumption-Release (CoRe) metabolomics data from cell culture media.

Volcano Plots

In general,we have three different Plot_Settings, which will also be used for other plot types such as lollipop graphs.
1. "Standard" is the standard version of the plot, with one dataset being plotted.
2. "Conditions" here two or more datasets will be plotted together.
3. "PEA" stands for Pathway Enrichment Analysis, and is used if the results of an GSE analysis should be plotted as here the figure legends will be adapted.

Using the dma results, we can now use the MetaProViz visualization module and generate further customized Volcano plots viz_volcano():
- To plot the metabolite names you can change the paramter select_label from its default (select_label="") to NULL and the metabolite names will be plotted randomly or you can also pass a vector with Metabolite names that should be labeled.
- By providing additional feature or sample information, you can color code and/or shape the dots on the volcano plot.
- Based on feature information (i.e. pathways), you can also create individual plots, one for each pathway.
For detailed exaples check out 3. Run MetaProViz Visualisation in the vignettes Standard metabolomics data or Consumption-Release (CoRe) metabolomics data from cell culture media

<div class="progress-bar progress-bar-success" style="width: 550%"></div>

3. Enrichment Analysis and Prior knowledge

<div class="progress-bar progress-bar-success" style="width: 550%"></div>

Over Representation Analysis (ORA) is a enrichment method that determines if a set of features (i.e. metabolic pathways) are over-represented in the selection of features (=metabolites) from the data in comparison to all measured features (metabolites) using the Fishers exact test. The selection of metabolites are usually the most altered metabolites in the data, which can be selected by the top and bottom t-values. Before we can perform ORA on the dma results, we have to ensure that the metabolite names match with the metabolite IDs of the prior knowledge (PK).

Match IDs with PK

As part of the MetaProViz package you can access metabolite prior knowledge with the collection of metabolite sets MetSigDB (Metabolite signature database) for pathway enrichment analysis, compound class enrichment analysis, and by using specific PK databases, it can be used to study the connection of metabolites and receptors or transporters. In metabolite PK, the many different PK databases and resources pose issues like metabolite identifiers (e.g. KEGG, HMDB, PubChem, etc.) are not standardized across databases, and the same metabolite can have multiple identifiers in different databases. This is known as the many-to-many mapping problem. If you want to know more on how to translate ids, quantify the mapping of your data to the prior knwoeldge resource, increase the mapping, etc. have a look at our dedicated vignette, Prior Knowledge Access & Integration.

Here we will use the KEGG pathways (Kanehisa and Goto 2000), hence we have to ensure that the metabolite names match with the KEGG IDs or KEGG trivial names.

#--------Add metabolite IDs to our example data:
# 1. Load Feature metainformation of our example data
data(cellular_meta)

MappingInfo <- cellular_meta

# 2. Merge with our differential results (FYI: you can also do this automatically as part of the dma function using the parameter metadata_feature)
ORA_Input <- merge(DMA_786M1A_vs_HK2,
MappingInfo,
by= "Metabolite",
all.x=TRUE)%>%
dplyr::filter(!is.na(KEGGCompound))%>%#remove features without KEGG ID
tibble::column_to_rownames("KEGGCompound")%>%
dplyr::select(-Metabolite)

#--------Load KEGG pathways:
KEGG_Pathways <- metsigdb_kegg()

Run ORA

In general, the input_pathway requirements are column “term”, “Metabolite” and “Description”, and the data requirements are column “t.val” and column “Metabolite”.

#Perform ORA
DM_ORA_res <- standard_ora(data= ORA_Input , #Input data requirements: column `t.val` and column `Metabolite`
metadata_info=c(pvalColumn="p.adj", percentageColumn="t.val", PathwayTerm= "term", PathwayFeature= "Metabolite"),
input_pathway=KEGG_Pathways,#Pathway file requirements: column `term`, `Metabolite` and `Description`. Above we loaded the Kegg_Pathways using Load_KEGG()
pathway_name="KEGG")


# Lets check how the results look like:
DM_ORA_786M1A_vs_HK2 <- DM_ORA_res[["ClusterGosummary"]]

Preview of the ORA results for the comparison of 786-M1A versus HK2 cells.
GeneRatio	BgRatio	RichFactor	FoldEnrichment	zScore	pvalue	p.adjust	qvalue	Metabolites_in_pathway	Count	Metabolites_in_Pathway	percentage_of_Pathway_detected
2/14	18/130	0.1111111	1.0317460	0.0502165	0.6103571	0.9360814	0.9360814	L-Alanine/L-Tryptophan	2	144	1.39
6/14	33/130	0.1818182	1.6883117	1.5841129	0.1058932	0.9360814	0.9360814	Glutathione/Hydroxyproline/L-Alanine/L-Threonine/sn-Glycerol 3-phosphate/Thiamine	6	129	4.65
1/14	14/130	0.0714286	0.6632653	-0.4615861	0.8148272	0.9360814	0.9360814	L-Alanine	1	27	3.70
3/14	19/130	0.1578947	1.4661654	0.7610010	0.3343601	0.9360814	0.9360814	L-Alanine/L-Threonine/L-Tryptophan	3	52	5.77
1/14	11/130	0.0909091	0.8441558	-0.1869577	0.7295219	0.9360814	0.9360814	Hydroxyproline	1	70	1.43

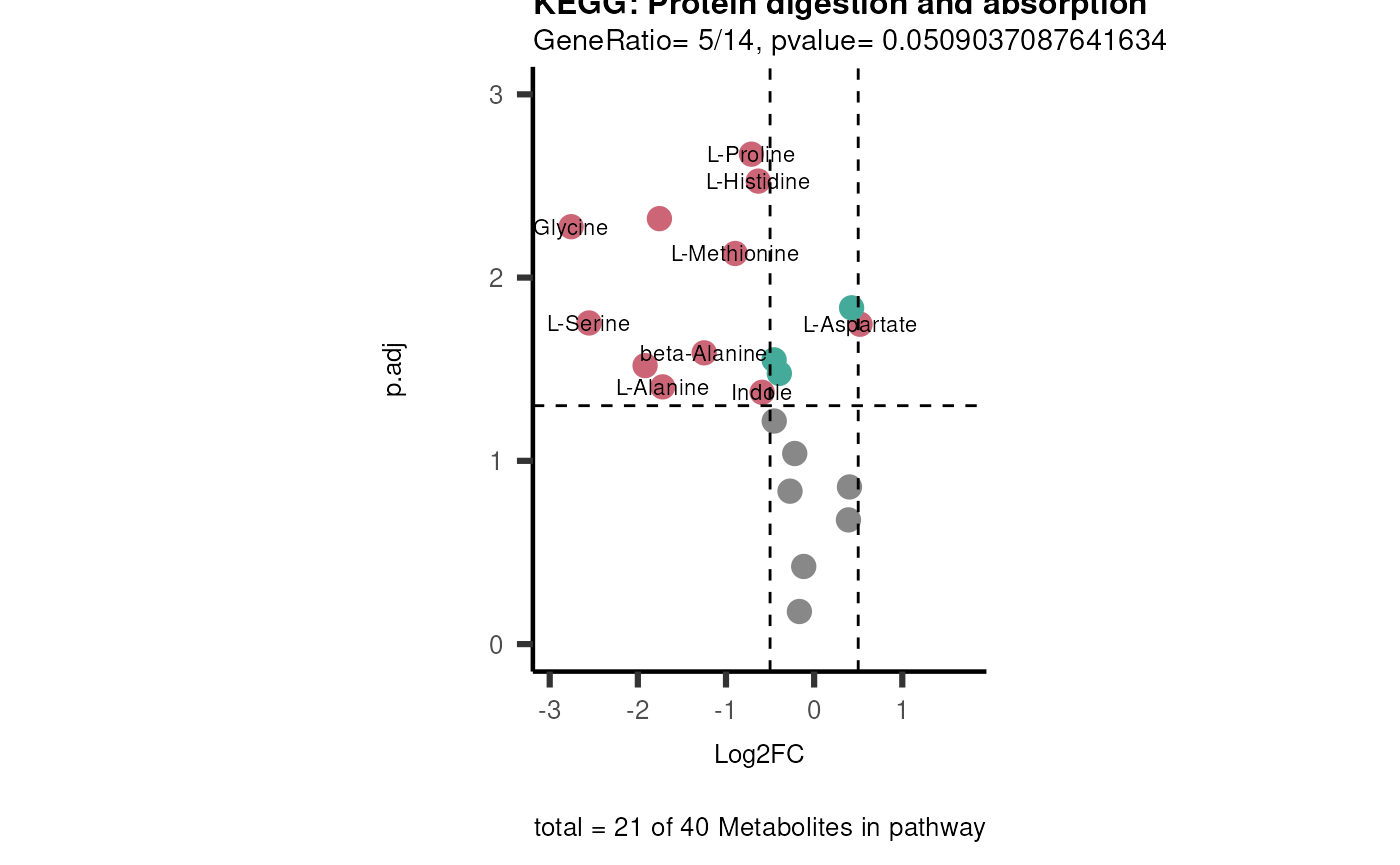

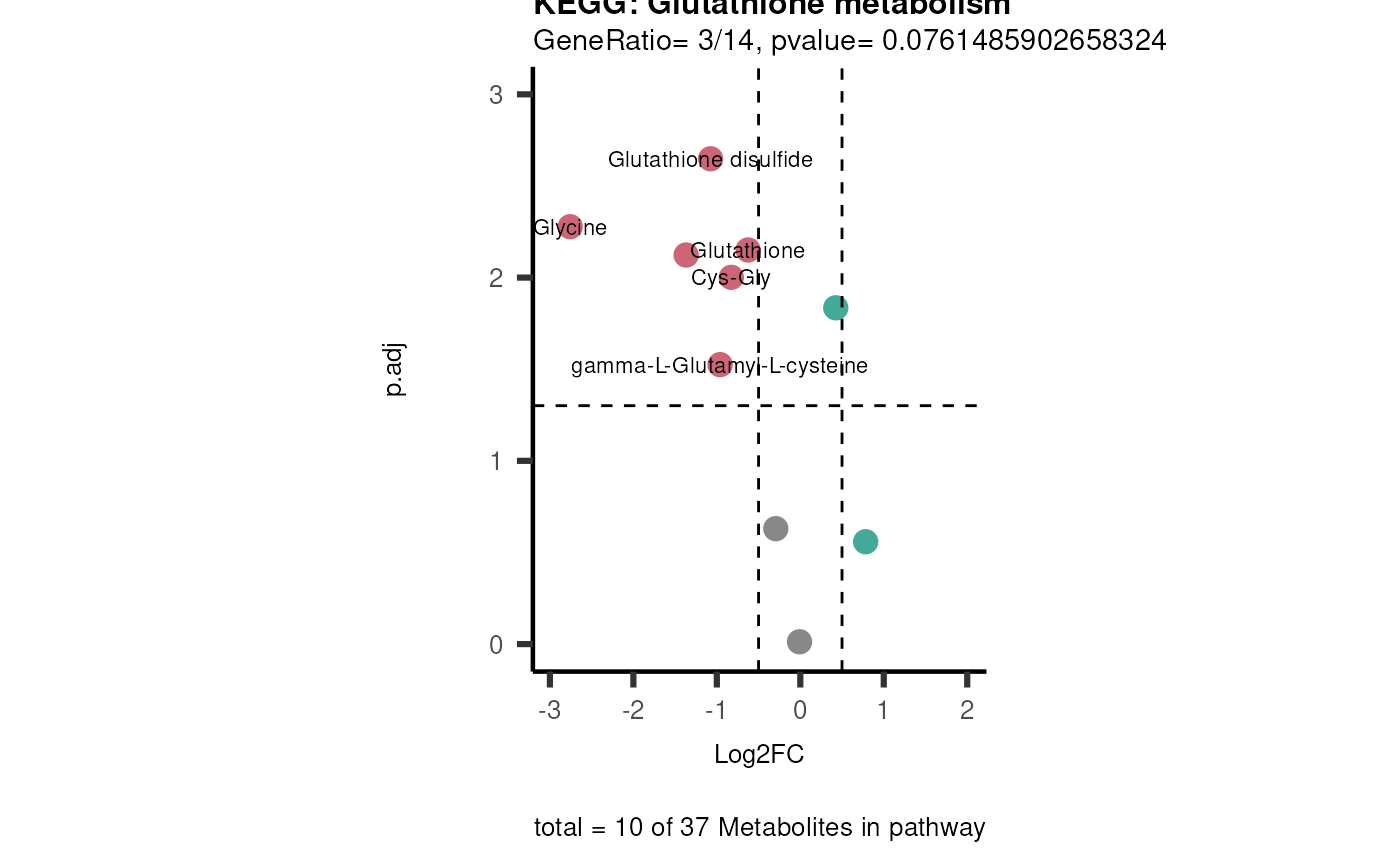

Volcano plot

If you have performed Pathway Enrichment Analysis (PEA) such as ORA or GSEA, we can also plot the results and add the information into the Figure legends.
For this we need to prepare the correct input data including the pathways used to run the pathway analysis, the differential metabolite data used as input for the pathway analysis and the results of the pathway analysis:

#Here we select only a few pathways to make only the most important plots:
InputPEA2 <- DM_ORA_786M1A_vs_HK2 %>%
filter(!is.na(GeneRatio)) %>%
filter(pvalue <= 0.1)%>%
dplyr::rename("term"="ID")

viz_volcano(plot_types="PEA",
                        metadata_info= c(PEA_Pathway="term",# Needs to be the same in both, metadata_feature and data2.
                        PEA_stat="pvalue",#Column data2
                        PEA_score="GeneRatio",#Column data2
                        PEA_Feature="Metabolite"),# Column metadata_feature (needs to be the same as row names in data)
                        metadata_feature= KEGG_Pathways,#Must be the pathways used for pathway analysis
                        data= ORA_Input, #Must be the data you have used as an input for the pathway analysis
                        data2= InputPEA2, #Must be the results of the pathway analysis
                        plot_name= "KEGG",
                        select_label = NULL)

<div class="progress-bar progress-bar-success" style="width: 550%"></div>

4. Metabolite Clustering Analysis

<div class="progress-bar progress-bar-success" style="width: 550%"></div>

Metabolite Clustering Analysis (MCA) is a module, which includes different functions to enable clustering of metabolites into groups either based on logical regulatory rules. This can be particularly useful if one has multiple conditions and aims to find patterns in the data.

MCA-2Cond

This metabolite clustering method is based on the Regulatory Clustering method (RCM) that was developed as part of the Signature Regulatory Clustering (SiRCle) model (Mora et al. (2024)). As part of the SiRCleR package, also variation of the initial RCM method are proposed as clustering based on two comparisons (e.g. KO versus WT in hypoxia and in normoxia).
Here we set two different thresholds, one for the differential metabolite abundance (Log2FC) and one for the significance (e.g. p.adj). This will define if a feature (= metabolite) is assigned into:
1. “UP”, which means a metabolite is significantly up-regulated in the underlying comparison.
2. “DOWN”, which means a metabolite is significantly down-regulated in the underlying comparison.
3. “No Change”, which means a metabolite does not change significantly in the underlying comparison and/or is not defined as up-regulated/down-regulated based on the Log2FC threshold chosen.

Therebye “No Change” is further subdivided into four states:
1. “Not Detected”, which means a metabolite is not detected in the underlying comparison.
2. “Not Significant”, which means a metabolite is not significant in the underlying comparison.
3. “Significant positive”, which means a metabolite is significant in the underlying comparison and the differential metabolite abundance is positive, yet does not meet the threshold set for “UP” (e.g. Log2FC >1 = “UP” and we have a significant Log2FC=0.8).
4. “Significant negative”, which means a metabolite is significant in the underlying comparison and the differential metabolite abundance is negative, yet does not meet the threshold set for “DOWN”.

This definition is done individually for each comparison and will impact in which metabolite cluster a metabolite is sorted into.
Since we have two comparisons, we can choose between different Background settings, which defines which features will be considered for the clusters (e.g. you could include only features (= metabolites) that are detected in both comparisons, removing the rest of the features).The background methods method_background are the following from 1.1. - 1.4. from most restrictive to least restrictive:
1.1. C1&C2: Most stringend background setting and will lead to a small number of metabolites.
1.2. C1: Focus is on the metabolite abundance of Condition 1 (C1).
1.3. C2: Focus is on the metabolite abundance of Condition 2 (C2).
1.4. C1|C2: Least stringent background method, since a metabolite will be included in the input if it has been detected on one of the two conditions.

Lastly, we will get clusters of metabolites that are defined by the metabolite change in the two conditions. For example, if Alanine is “UP” based on the thresholds in both comparisons it will be sorted into the cluster “core_UP”. As there are two 6-state6 transitions between the comparisons, the flows are summarised into smaller amount of metabolite clusters using different Regulation Groupings (RG): 1. RG1_All
2. RG2_Significant taking into account genes that are significant (UP, DOWN, significant positive, significant negative)
3. RG3_SignificantChange only takes into account genes that have significant changes (UP, DOWN).

# Example of all possible flows:
data(mca_twocond_rules)

MCA2Cond_Rules <- mca_twocond_rules

Metabolite Clustering Analysis: 2 Conditions.
Cond1	Cond2	RG1_All	RG2_Significant	RG3_SignificantChange
DOWN	DOWN	Cond1 DOWN + Cond2 DOWN	Core_DOWN	Core_DOWN
DOWN	Not Detected	Cond1 DOWN + Cond2 Not Detected	Cond1_DOWN	Cond1_DOWN
DOWN	Not Significant	Cond1 DOWN + Cond2 Not Significant	Cond1_DOWN	Cond1_DOWN
DOWN	Significant Negative	Cond1 DOWN + Cond2 Significant Negative	Core_DOWN	Cond1_DOWN
DOWN	Significant Positive	Cond1 DOWN + Cond2 Significant Positive	Opposite	Cond1_DOWN
DOWN	UP	Cond1 DOWN + Cond2 UP	Opposite	Opposite
UP	DOWN	Cond1 UP + Cond2 DOWN	Opposite	Opposite
UP	Not Detected	Cond1 UP + Cond2 Not Detected	Cond1_UP	Cond1_UP
UP	Not Significant	Cond1 UP + Cond2 Not Significant	Cond1_UP	Cond1_UP
UP	Significant Negative	Cond1 UP + Cond2 Significant Negative	Opposite	Cond1_UP
UP	Significant Positive	Cond1 UP + Cond2 Significant Positive	Core_UP	Cond1_UP
UP	UP	Cond1 UP + Cond2 UP	Core_UP	Core_UP
Not Detected	DOWN	Cond1 Not Detected + Cond2 DOWN	Cond2_DOWN	Cond2_DOWN
Not Detected	Not Detected	Cond1 Not Detected + Cond2 Not Detected	None	None
Not Detected	Not Significant	Cond1 Not Detected + Cond2 Not Significant	None	None
Not Detected	Significant Negative	Cond1 Not Detected + Cond2 Significant Negative	None	None
Not Detected	Significant Positive	Cond1 Not Detected + Cond2 Significant Positive	None	None
Not Detected	UP	Cond1 Not Detected + Cond2 UP	Cond2_UP	Cond2_UP
Significant Negative	DOWN	Cond1 Significant Negative + Cond2 DOWN	Core_DOWN	Cond2_DOWN
Significant Negative	Not Detected	Cond1 Significant Negative + Cond2 Not Detected	None	None
Significant Negative	Not Significant	Cond1 Significant Negative + Cond2 Not Significant	None	None
Significant Negative	Significant Negative	Cond1 Significant Negative + Cond2 Significant Negative	None	None
Significant Negative	Significant Positive	Cond1 Significant Negative + Cond2 Significant Positive	None	None
Significant Negative	UP	Cond1 Significant Negative + Cond2 UP	Opposite	Cond2_UP
Significant Positive	DOWN	Cond1 Significant Positive + Cond2 DOWN	Opposite	Cond2_DOWN
Significant Positive	Not Detected	Cond1 Significant Positive + Cond2 Not Detected	None	None
Significant Positive	Not Significant	Cond1 Significant Positive + Cond2 Not Significant	None	None
Significant Positive	Significant Negative	Cond1 Significant Positive + Cond2 Significant Negative	None	None
Significant Positive	Significant Positive	Cond1 Significant Positive + Cond2 Significant Positive	None	None
Significant Positive	UP	Cond1 Significant Positive + Cond2 UP	Core_UP	Cond2_UP
Not Significant	DOWN	Cond1 Not Significant + Cond2 DOWN	Cond2_DOWN	Cond2_DOWN
Not Significant	Not Detected	Cond1 Not Significant + Cond2 Not Detected	None	None
Not Significant	Not Significant	Cond1 Not Significant + Cond2 Not Significant	None	None
Not Significant	Significant Negative	Cond1 Not Significant + Cond2 Significant Negative	None	None
Not Significant	Significant Positive	Cond1 Not Significant + Cond2 Significant Positive	None	None
Not Significant	UP	Cond1 Not Significant + Cond2 UP	Cond1_UP	Cond1_UP

For a detailed example of the mca_2cond() function visit the extended vignette Standard metabolomics data.

MCA-CoRe

This metabolite clustering method is based on logical regulatory rules to sort metabolites into metabolite clusters. Here you need intracellular metabolomics and corresponding consumption-release metabolomics.
Here we will define if a feature (= metabolite) is assigned into:
1. “UP”, which means a metabolite is significantly up-regulated in the underlying comparison.
2. “DOWN”, which means a metabolite is significantly down-regulated in the underlying comparison.
3. “No Change”, which means a metabolite does not change significantly in the underlying comparison and/or is not defined as up-regulated/down-regulated based on the Log2FC threshold chosen.

Therebye “No Change” is further subdivided into four states:
1. “Not Detected”, which means a metabolite is not detected in the underlying comparison.
2. “Not Significant”, which means a metabolite is not significant in the underlying comparison.
3. “Significant positive”, which means a metabolite is significant in the underlying comparison and the differential metabolite abundance is positive, yet does not meet the threshold set for “UP” (e.g. Log2FC >1 = “UP” and we have a significant Log2FC=0.8).
4. “Significant negative”, which means a metabolite is significant in the underlying comparison and the differential metabolite abundance is negative, yet does not meet the threshold set for “DOWN”.

Lastly, we also take into account the core direction, meaning if a metabolite was:
1. “Released”, which means is released into the media in both conditions of the underlying comparison.
2. “Consumed”, which means is consumed from the media in both conditions of the underlying comparison.
3. “Released/Consumed”, which means is consumed/released in one condition, whilst the opposite occurs in the second condition of the underlying comparison.
4. “Not Detected”, which means a metabolite is not detected in the underlying comparison.
This definition is done individually for each comparison and will impact in which metabolite cluster a metabolite is sorted into.
Since we have two comparisons (Intracellular and core), we can choose between different Background settings, which defines which features will be considered for the clusters (e.g. you could include only features (= metabolites) that are detected in both comparisons, removing the rest of the features).The background methods method_background are the following from 1.1. - 1.4. from most restrictive to least restrictive:
1.1. Intra&core: Most stringend background setting and will lead to a small number of metabolites.
1.2. core: Focus is on the metabolite abundance of the core.
1.3. Intra: Focus is on the metabolite abundance of intracellular.
1.4. Intra|core: Least stringent background method, since a metabolite will be included in the input if it has been detected on one of the two conditions.

Lastly, we will get clusters of metabolites that are defined by the metabolite change in the two conditions. For example, if Alanine is “UP” based on the thresholds in both comparisons it will be sorted into the cluster “core_UP”. As there are three 6-state6-state4 transitions between the comparisons, the flows are summarised into smaller amount of metabolite clusters using different Regulation Groupings (RG): 1. RG1_All
2. RG2_Significant taking into account genes that are significant (UP, DOWN, significant positive, significant negative)
3. RG3_SignificantChange only takes into account genes that have significant changes (UP, DOWN).

In order to define which group a metabolite is assigned to, we set two different thresholds. For intracellular those are based on the differential metabolite abundance (Log2FC) and the significance (e.g. p.adj). For the core data this is based on the Log2 Distance and the significance (e.g. p.adj). For Log2FC we recommend a threshold of 0.5 or 1, whilst for the Log2 Distance one should check the distance ranges and base the threshold on this.

Regulatory rules:

# Example of all possible flows:
data(mca_core_rules)

MCA_CoRe_Rule <- mca_core_rules

Metabolite Clustering Analysis: core.
Intra	CoRe	Core_Direction	RG1_All	R2_Significant	RG3_Change
DOWN	DOWN	Released	Intra DOWN+ CoRe DOWN_Released	Both_DOWN (Released)	Both_DOWN (Released)
DOWN	Not Detected	Not Detected	Intra DOWN+ CoRe Not Detected	None	None
DOWN	Not Significant	Released	Intra DOWN+ CoRe Not Significant_Released	None	None
DOWN	Significant Negative	Released	Intra DOWN+ CoRe Significant Negative_Released	Both_DOWN (Released)	None
DOWN	Significant Positive	Released	Intra DOWN+ CoRe Significant Positive_Released	Opposite (Released UP)	None
DOWN	UP	Released	Intra DOWN+ CoRe UP_Released	Opposite (Released UP)	Opposite (Released UP)
UP	DOWN	Released	Intra UP+ CoRe DOWN_Released	Opposite (Released DOWN)	Opposite (Released DOWN)
UP	Not Detected	Not Detected	Intra UP+ CoRe Not Detected	None	None
UP	Not Significant	Released	Intra UP+ CoRe Not Significant_Released	None	None
UP	Significant Negative	Released	Intra UP+ CoRe Significant Negative_Released	Opposite (Released UP)	None
UP	Significant Positive	Released	Intra UP+ CoRe Significant Positive_Released	Both_UP (Released)	None
UP	UP	Released	Intra UP+ CoRe UP_Released	Both_UP (Released)	Both_UP (Released)
Not Detected	DOWN	Released	Intra Not Detected+ CoRe DOWN_Released	CoRe_DOWN (Released)	CoRe_DOWN (Released)
Not Detected	Not Detected	Not Detected	Intra Not Detected+ CoRe Not Detected	None	None
Not Detected	Not Significant	Released	Intra Not Detected+ CoRe Not Significant_Released	None	None
Not Detected	Significant Negative	Released	Intra Not Detected+ CoRe Significant Negative_Released	None	None
Not Detected	Significant Positive	Released	Intra Not Detected+ CoRe Significant Positive_Released	None	None
Not Detected	UP	Released	Intra Not Detected+ CoRe UP_Released	CoRe_UP (Released)	CoRe_UP (Released)
Significant Negative	DOWN	Released	Intra Significant Negative+ CoRe DOWN_Released	Both_DOWN (Released)	CoRe_DOWN (Released)
Significant Negative	Not Detected	Not Detected	Intra Significant Negative+ CoRe Not Detected	None	None
Significant Negative	Not Significant	Released	Intra Significant Negative+ CoRe Not Significant_Released	None	None
Significant Negative	Significant Negative	Released	Intra Significant Negative+ CoRe Significant Negative_Released	None	None
Significant Negative	Significant Positive	Released	Intra Significant Negative+ CoRe Significant Positive_Released	None	None
Significant Negative	UP	Released	Intra Significant Negative+ CoRe UP_Released	Opposite (Released UP)	CoRe_UP (Released)
Significant Positive	DOWN	Released	Intra Significant Positive+ CoRe DOWN_Released	Opposite (Released DOWN)	CoRe_DOWN (Released)
Significant Positive	Not Detected	Not Detected	Intra Significant Positive+ CoRe Not Detected	None	None
Significant Positive	Not Significant	Released	Intra Significant Positive+ CoRe Not Significant_Released	None	None
Significant Positive	Significant Negative	Released	Intra Significant Positive+ CoRe Significant Negative_Released	None	None
Significant Positive	Significant Positive	Released	Intra Significant Positive+ CoRe Significant Positive_Released	None	None
Significant Positive	UP	Released	Intra Significant Positive+ CoRe UP_Released	Both_UP (Released)	CoRe_UP (Released)
Not Significant	DOWN	Released	Intra Not Significant+ CoRe DOWN_Released	CoRe_DOWN (Released)	CoRe_DOWN (Released)
Not Significant	Not Detected	Not Detected	Intra Not Significant+ CoRe Not Detected	None	None
Not Significant	Not Significant	Released	Intra Not Significant+ CoRe Not Significant_Released	None	None
Not Significant	Significant Negative	Released	Intra Not Significant+ CoRe Significant Negative_Released	None	None
Not Significant	Significant Positive	Released	Intra Not Significant+ CoRe Significant Positive_Released	None	None
Not Significant	UP	Released	Intra Not Significant+ CoRe UP_Released	CoRe_UP (Released)	CoRe_UP (Released)
DOWN	DOWN	Consumed	Intra DOWN+ CoRe DOWN_Consumed	Both_DOWN (Consumed)	Both_DOWN (Consumed)
DOWN	Not Detected	Not Detected	Intra DOWN+ CoRe Not Detected	None	None
DOWN	Not Significant	Consumed	Intra DOWN+ CoRe Not Significant_Consumed	None	None
DOWN	Significant Negative	Consumed	Intra DOWN+ CoRe Significant Negative_Consumed	Both_DOWN (Consumed)	None
DOWN	Significant Positive	Consumed	Intra DOWN+ CoRe Significant Positive_Consumed	Opposite (Consumed UP)	None
DOWN	UP	Consumed	Intra DOWN+ CoRe UP_Consumed	Opposite (Consumed UP)	Opposite (Consumed UP)
UP	DOWN	Consumed	Intra UP+ CoRe DOWN_Consumed	Opposite (Consumed DOWN)	Opposite (Consumed DOWN)
UP	Not Detected	Not Detected	Intra UP+ CoRe Not Detected	None	None
UP	Not Significant	Consumed	Intra UP+ CoRe Not Significant_Consumed	None	None
UP	Significant Negative	Consumed	Intra UP+ CoRe Significant Negative_Consumed	Opposite (Consumed UP)	None
UP	Significant Positive	Consumed	Intra UP+ CoRe Significant Positive_Consumed	Both_UP (Consumed)	None
UP	UP	Consumed	Intra UP+ CoRe UP_Consumed	Both_UP (Consumed)	Both_UP (Consumed)
Not Detected	DOWN	Consumed	Intra Not Detected+ CoRe DOWN_Consumed	CoRe_DOWN (Consumed)	CoRe_DOWN (Consumed)
Not Detected	Not Detected	Not Detected	Intra Not Detected+ CoRe Not Detected	None	None
Not Detected	Not Significant	Consumed	Intra Not Detected+ CoRe Not Significant_Consumed	None	None
Not Detected	Significant Negative	Consumed	Intra Not Detected+ CoRe Significant Negative_Consumed	None	None
Not Detected	Significant Positive	Consumed	Intra Not Detected+ CoRe Significant Positive_Consumed	None	None
Not Detected	UP	Consumed	Intra Not Detected+ CoRe UP_Consumed	CoRe_UP (Consumed)	CoRe_UP (Consumed)
Significant Negative	DOWN	Consumed	Intra Significant Negative+ CoRe DOWN_Consumed	Both_DOWN (Consumed)	CoRe_DOWN (Consumed)
Significant Negative	Not Detected	Not Detected	Intra Significant Negative+ CoRe Not Detected	None	None
Significant Negative	Not Significant	Consumed	Intra Significant Negative+ CoRe Not Significant_Consumed	None	None
Significant Negative	Significant Negative	Consumed	Intra Significant Negative+ CoRe Significant Negative_Consumed	None	None
Significant Negative	Significant Positive	Consumed	Intra Significant Negative+ CoRe Significant Positive_Consumed	None	None
Significant Negative	UP	Consumed	Intra Significant Negative+ CoRe UP_Consumed	Opposite (Consumed UP)	CoRe_UP (Consumed)
Significant Positive	DOWN	Consumed	Intra Significant Positive+ CoRe DOWN_Consumed	Opposite (Consumed DOWN)	CoRe_DOWN (Consumed)
Significant Positive	Not Detected	Not Detected	Intra Significant Positive+ CoRe Not Detected	None	None
Significant Positive	Not Significant	Consumed	Intra Significant Positive+ CoRe Not Significant_Consumed	None	None
Significant Positive	Significant Negative	Consumed	Intra Significant Positive+ CoRe Significant Negative_Consumed	None	None
Significant Positive	Significant Positive	Consumed	Intra Significant Positive+ CoRe Significant Positive_Consumed	None	None
Significant Positive	UP	Consumed	Intra Significant Positive+ CoRe UP_Consumed	Both_UP (Consumed)	CoRe_UP (Consumed)
Not Significant	DOWN	Consumed	Intra Not Significant+ CoRe DOWN_Consumed	CoRe_DOWN (Consumed)	CoRe_DOWN (Consumed)
Not Significant	Not Detected	Not Detected	Intra Not Significant+ CoRe Not Detected	None	None
Not Significant	Not Significant	Consumed	Intra Not Significant+ CoRe Not Significant_Consumed	None	None
Not Significant	Significant Negative	Consumed	Intra Not Significant+ CoRe Significant Negative_Consumed	None	None
Not Significant	Significant Positive	Consumed	Intra Not Significant+ CoRe Significant Positive_Consumed	None	None
Not Significant	UP	Consumed	Intra Not Significant+ CoRe UP_Consumed	CoRe_UP (Consumed)	CoRe_UP (Consumed)
DOWN	DOWN	Released/Consumed	Intra DOWN + CoRe DOWN_Released/Consumed	Both_DOWN (Released/Consumed)	Both_DOWN (Released/Consumed)
DOWN	Not Detected	Not Detected	Intra DOWN + CoRe Not Detected	None	None
DOWN	Not Significant	Released/Consumed	Intra DOWN + CoRe Not Significant_Released/Consumed	None	None
DOWN	Significant Negative	Released/Consumed	Intra DOWN + CoRe Significant Negative_Released/Consumed	Both_DOWN (Released/Consumed)	None
DOWN	Significant Positive	Released/Consumed	Intra DOWN + CoRe Significant Positive_Released/Consumed	Opposite (Released/Consumed UP)	None
DOWN	UP	Released/Consumed	Intra DOWN + CoRe UP_Released/Consumed	Opposite (Released/Consumed UP)	Opposite (Released/Consumed UP)
UP	DOWN	Released/Consumed	Intra UP + CoRe DOWN_Released/Consumed	Opposite (Released/Consumed DOWN)	Opposite (Released/Consumed DOWN)
UP	Not Detected	Not Detected	Intra UP + CoRe Not Detected	None	None
UP	Not Significant	Released/Consumed	Intra UP + CoRe Not Significant_Released/Consumed	None	None
UP	Significant Negative	Released/Consumed	Intra UP + CoRe Significant Negative_Released/Consumed	Opposite (Released/Consumed UP)	None
UP	Significant Positive	Released/Consumed	Intra UP + CoRe Significant Positive_Released/Consumed	Both_UP (Released/Consumed)	None
UP	UP	Released/Consumed	Intra UP + CoRe UP_Released/Consumed	Both_UP (Released/Consumed)	Both_UP (Released/Consumed)
Not Detected	DOWN	Released/Consumed	Intra Not Detected + CoRe DOWN_Released/Consumed	CoRe_DOWN (Released/Consumed)	CoRe_DOWN (Released/Consumed)
Not Detected	Not Detected	Not Detected	Intra Not Detected + CoRe Not Detected	None	None
Not Detected	Not Significant	Released/Consumed	Intra Not Detected + CoRe Not Significant_Released/Consumed	None	None
Not Detected	Significant Negative	Released/Consumed	Intra Not Detected + CoRe Significant Negative_Released/Consumed	None	None
Not Detected	Significant Positive	Released/Consumed	Intra Not Detected + CoRe Significant Positive_Released/Consumed	None	None
Not Detected	UP	Released/Consumed	Intra Not Detected + CoRe UP_Released/Consumed	CoRe_UP (Released/Consumed)	CoRe_UP (Released/Consumed)
Significant Negative	DOWN	Released/Consumed	Intra Significant Negative + CoRe DOWN_Released/Consumed	Both_DOWN (Released/Consumed)	CoRe_DOWN (Released/Consumed)
Significant Negative	Not Detected	Not Detected	Intra Significant Negative + CoRe Not Detected	None	None
Significant Negative	Not Significant	Released/Consumed	Intra Significant Negative + CoRe Not Significant_Released/Consumed	None	None
Significant Negative	Significant Negative	Released/Consumed	Intra Significant Negative + CoRe Significant Negative_Released/Consumed	None	None
Significant Negative	Significant Positive	Released/Consumed	Intra Significant Negative + CoRe Significant Positive_Released/Consumed	None	None
Significant Negative	UP	Released/Consumed	Intra Significant Negative + CoRe UP_Released/Consumed	Opposite (Released/Consumed UP)	CoRe_UP (Released/Consumed)
Significant Positive	DOWN	Released/Consumed	Intra Significant Positive + CoRe DOWN_Released/Consumed	Opposite (Released/Consumed DOWN)	CoRe_DOWN (Released/Consumed)
Significant Positive	Not Detected	Not Detected	Intra Significant Positive + CoRe Not Detected	None	None
Significant Positive	Not Significant	Released/Consumed	Intra Significant Positive + CoRe Not Significant_Released/Consumed	None	None
Significant Positive	Significant Negative	Released/Consumed	Intra Significant Positive + CoRe Significant Negative_Released/Consumed	None	None
Significant Positive	Significant Positive	Released/Consumed	Intra Significant Positive + CoRe Significant Positive_Released/Consumed	None	None
Significant Positive	UP	Released/Consumed	Intra Significant Positive + CoRe UP_Released/Consumed	Both_UP (Released/Consumed)	CoRe_UP (Released/Consumed)
Not Significant	DOWN	Released/Consumed	Intra Not Significant + CoRe DOWN_Released/Consumed	CoRe_DOWN (Released/Consumed)	CoRe_DOWN (Released/Consumed)
Not Significant	Not Detected	Not Detected	Intra Not Significant + CoRe Not Detected	None	None
Not Significant	Not Significant	Released/Consumed	Intra Not Significant + CoRe Not Significant_Released/Consumed	None	None
Not Significant	Significant Negative	Released/Consumed	Intra Not Significant + CoRe Significant Negative_Released/Consumed	None	None
Not Significant	Significant Positive	Released/Consumed	Intra Not Significant + CoRe Significant Positive_Released/Consumed	None	None
Not Significant	UP	Released/Consumed	Intra Not Significant + CoRe UP_Released/Consumed	CoRe_UP (Released/Consumed)	CoRe_UP (Released/Consumed)

For a detailed example of the mca_core() function visit the extended vignette Consumption-Release (CoRe) metabolomics data from cell culture media.

ORA on each metabolite cluster

As explained in detail above, Over Representation Analysis (ORA) is a pathway enrichment analysis (PEA) method. As ORA is based on the Fishers exact test it is perfect to test if a set of features (=metabolic pathways) are over-represented in the selection of features (= clusters of metabolites) from the data in comparison to all measured features (all metabolites). In detail, cluster_ora() will perform ORA on each of the metabolite clusters we got as a result of performing mca_2cond or mca_core using all metabolites as the background. For a detailed example of the cluster_ora() function visit the extended vignette Consumption-Release (CoRe) metabolomics data from cell culture media or Standard metabolomics data.

Viz

The big advantages of the MetaProViz visualization module is its flexible and easy usage, which we will showcase below and that the figures are saved in a publication ready style and format. For instance, the x- and y-axis size will always be adjusted for the amount of samples or features (=metabolites) plotted, or in the case of Volcano plot and PCA plot the axis size is fixed and not affected by figure legends or title. In this way, there is no need for many adjustments and the figures can just be dropped into the presentation or paper and are all in the same style.

All the VizPlotName() functions are constructed in the same way. Indeed, with the parameter Plot_metadata_info the user can pass a named vector with information about the metadata column that should be used to customize the plot by colour, shape or creating individual plots, which will all be showcased for the different plot types. Via the parameter Plot_SettingsFile the user can pass the metadata DF, which can be dependent on the plot type for the samples and/or the features (=metabolites). In case of both the parameter is named Plot_metadata_sample and Plot_metadata_feature.

In each of those Plot_Settings, the user can label color and/or shape based on additional information (e.g. Pathway information, Cluster information or other other demographics like gender). Moreover, we also enable to plot individual plots where applicable based on those MetaData (e.g. one plot for each metabolic pathway).

We support the plot types:
- PCA plot - Superplots (Bar, Box and Violin plots) - Heatmaps - Volcano Plots

For a detailed example of the visualisation functions visit the extended vignette Consumption-Release (CoRe) metabolomics data from cell culture media or Standard metabolomics data.

<div class="progress-bar progress-bar-success" style="width: 100%"></div>

Session information

#> R version 4.5.2 (2025-10-31)
#> Platform: x86_64-pc-linux-gnu
#> Running under: Ubuntu 24.04.3 LTS
#>
#> Matrix products: default
#> BLAS:   /usr/lib/x86_64-linux-gnu/openblas-pthread/libblas.so.3
#> LAPACK: /usr/lib/x86_64-linux-gnu/openblas-pthread/libopenblasp-r0.3.26.so;  LAPACK version 3.12.0
#>
#> locale:
#>  [1] LC_CTYPE=en_US.UTF-8       LC_NUMERIC=C               LC_TIME=en_US.UTF-8        LC_COLLATE=en_US.UTF-8
#>  [5] LC_MONETARY=en_US.UTF-8    LC_MESSAGES=en_US.UTF-8    LC_PAPER=en_US.UTF-8       LC_NAME=C
#>  [9] LC_ADDRESS=C               LC_TELEPHONE=C             LC_MEASUREMENT=en_US.UTF-8 LC_IDENTIFICATION=C
#>
#> time zone: Etc/UTC
#> tzcode source: system (glibc)
#>
#> attached base packages:
#> [1] stats     graphics  grDevices utils     datasets  methods   base
#>
#> other attached packages:
#> [1] tibble_3.3.0       ggfortify_0.4.19   ggplot2_4.0.1      rlang_1.1.6        dplyr_1.1.4        magrittr_2.0.4
#> [7] MetaProViz_3.99.26 BiocStyle_2.38.0
#>
#> loaded via a namespace (and not attached):
#>   [1] RColorBrewer_1.1-3          rstudioapi_0.17.1           jsonlite_2.0.0              ggbeeswarm_0.7.2
#>   [5] farver_2.1.2                rmarkdown_2.30              fs_1.6.6                    ragg_1.5.0
#>   [9] vctrs_0.6.5                 memoise_2.0.1               rstatix_0.7.3               htmltools_0.5.8.1
#>  [13] S4Arrays_1.10.0             progress_1.2.3              curl_7.0.0                  ComplexUpset_1.3.3
#>  [17] decoupleR_2.16.0            broom_1.0.10                cellranger_1.1.0            SparseArray_1.10.2
#>  [21] Formula_1.2-5               sass_0.4.10                 parallelly_1.45.1           bslib_0.9.0
#>  [25] htmlwidgets_1.6.4           desc_1.4.3                  plyr_1.8.9                  httr2_1.2.1
#>  [29] lubridate_1.9.4             cachem_1.1.0                igraph_2.2.1                lifecycle_1.0.4
#>  [33] pkgconfig_2.0.3             Matrix_1.7-4                R6_2.6.1                    fastmap_1.2.0
#>  [37] MatrixGenerics_1.22.0       digest_0.6.39               colorspace_2.1-2            patchwork_1.3.2
#>  [41] S4Vectors_0.48.0            textshaping_1.0.4           GenomicRanges_1.62.0        RSQLite_2.4.4
#>  [45] ggpubr_0.6.2                labeling_0.4.3              timechange_0.3.0            httr_1.4.7
#>  [49] abind_1.4-8                 compiler_4.5.2              bit64_4.6.0-1               withr_3.0.2
#>  [53] S7_0.2.1                    backports_1.5.0             BiocParallel_1.44.0         carData_3.0-5
#>  [57] DBI_1.2.3                   logger_0.4.1                OmnipathR_3.19.2            R.utils_2.13.0
#>  [61] ggsignif_0.6.4              cosmosR_1.18.0              MASS_7.3-65                 rappdirs_0.3.3
#>  [65] DelayedArray_0.36.0         sessioninfo_1.2.3           scatterplot3d_0.3-44        gtools_3.9.5
#>  [69] tools_4.5.2                 vipor_0.4.7                 beeswarm_0.4.0              qcc_2.7
#>  [73] zip_2.3.3                   R.oo_1.27.1                 glue_1.8.0                  grid_4.5.2
#>  [77] checkmate_2.3.3             reshape2_1.4.5              generics_0.1.4              gtable_0.3.6
#>  [81] tzdb_0.5.0                  R.methodsS3_1.8.2           tidyr_1.3.1                 hms_1.1.4
#>  [85] xml2_1.5.0                  car_3.1-3                   XVector_0.50.0              BiocGenerics_0.56.0
#>  [89] ggrepel_0.9.6               pillar_1.11.1               stringr_1.6.0               vroom_1.6.6
#>  [93] limma_3.66.0                later_1.4.4                 splines_4.5.2               lattice_0.22-7
#>  [97] bit_4.6.0                   tidyselect_1.2.1            knitr_1.50                  gridExtra_2.3
#> [101] bookdown_0.45               IRanges_2.44.0              Seqinfo_1.0.0               SummarizedExperiment_1.40.0
#> [105] svglite_2.2.2               stats4_4.5.2                xfun_0.54                   Biobase_2.70.0
#> [109] statmod_1.5.1               factoextra_1.0.7            matrixStats_1.5.0           pheatmap_1.0.13
#> [113] stringi_1.8.7               yaml_2.3.10                 kableExtra_1.4.0            evaluate_1.0.5
#> [117] codetools_0.2-20            tcltk_4.5.2                 qvalue_2.42.0               hash_2.2.6.3
#> [121] BiocManager_1.30.27         Polychrome_1.5.4            cli_3.6.5                   systemfonts_1.3.1
#> [125] jquerylib_0.1.4             EnhancedVolcano_1.13.2      Rcpp_1.1.0                  readxl_1.4.5
#> [129] XML_3.99-0.20               parallel_4.5.2              pkgdown_2.2.0               readr_2.1.6
#> [133] blob_1.2.4                  prettyunits_1.2.0           viridisLite_0.4.2           scales_1.4.0
#> [137] writexl_1.5.4               inflection_1.3.7            purrr_1.2.0                 crayon_1.5.3
#> [141] rvest_1.0.5

Bibliography

Bijlsma, Sabina, Ivana Bobeldijk, Elwin R Verheij, Raymond Ramaker, Sunil Kochhar, Ian A Macdonald, Ben van Ommen, and Age K Smilde. 2006. “Large-Scale Human Metabolomics Studies: A Strategy for Data (Pre-) Processing and Validation.” Analytical Chemistry 78 (2): 567–74. https://doi.org/10.1021/ac051495j.

Hotelling, Harold. 1931. “The Generalization of Student’s Ratio.” The Annals of Mathematical Statistics 2 (3): 360–78. https://doi.org/10.1214/aoms/1177732979.

Kanehisa, M, and S Goto. 2000. “KEGG: Kyoto Encyclopedia of Genes and Genomes.” Nucleic Acids Research 28 (1): 27–30. https://doi.org/10.1093/nar/28.1.27.

Mora, Ariane, Christina Schmidt, Brad Balderson, Christian Frezza, and Mikael Bodén. 2024. “SiRCle (Signature Regulatory Clustering) Model Integration Reveals Mechanisms of Phenotype Regulation in Renal Cancer.” Genome Medicine 16 (1): 144. https://doi.org/10.1186/s13073-024-01415-3.

Sciacovelli, Marco, Aurelien Dugourd, Lorea Valcarcel Jimenez, Ming Yang, Efterpi Nikitopoulou, Ana S H Costa, Laura Tronci, et al. 2022. “Dynamic Partitioning of Branched-Chain Amino Acids-Derived Nitrogen Supports Renal Cancer Progression.” Nature Communications 13 (1): 7830. https://doi.org/10.1038/s41467-022-35036-4.

Wei, Runmin, Jingye Wang, Mingming Su, Erik Jia, Shaoqiu Chen, Tianlu Chen, and Yan Ni. 2018. “Missing Value Imputation Approach for Mass Spectrometry-Based Metabolomics Data.” Scientific Reports 8 (1): 663. https://doi.org/10.1038/s41598-017-19120-0.

Wulff, Jacob E., and Matthew W. Mitchell. 2018. “A Comparison of Various Normalization Methods for LC/MS Metabolomics Data.” Advances in Bioscience and Biotechnology 09 (08): 339–51. https://doi.org/10.4236/abb.2018.98022.
