Standard Metabolomics

A standard metabolomics experiment refers to intracellular extracts (e.g. cell or bacteria culture), to tissue samples (e.g. from animals or patients), to plasma samples (e.g. blood) and many other types of experimental setups.

In this tutorial we showcase how to use MetaProViz:

to process raw peak data and identify outliers.
to perform differential metabolite analysis (dma) to generate Log2FC and statistics and perform pathway analysis using Over Representation Analysis (ORA) on the results.
to do metabolite clustering analysis (MCA) to find clusters of metabolites with similar behaviors and perform pathway analysis using ORA on each cluster.
to use specific visualizations to aid biological interpretation of the results.

First if you have not done yet, install the required dependencies and load the libraries:

# 1. Install MetaProViz from Bioconductor devel:
# if (!requireNamespace("BiocManager", quietly = TRUE)) install.packages("BiocManager")
# BiocManager::install(version = "devel")
# BiocManager::install("MetaProViz")
# 2. Install the latest development version from GitHub using devtools
# remotes::install_github("saezlab/MetaProViz") # Install Rtools if you haven’t done this yet, using the appropriate version (e.g.windows or macOS).

library(MetaProViz)


# dependencies that need to be loaded:
library(magrittr)
library(dplyr)
library(rlang)
library(ggfortify)
library(tibble)

Loading the example data

Here we choose an example dataset, which is publicly available on metabolomics workbench project PR001418 including metabolic profiles of human renal epithelial cells HK2 and cell renal cell carcinoma (ccRCC) cell lines cultured in Plasmax cell culture media (Sciacovelli et al. 2022). Here we use the integrated raw peak data as example data using the trivial metabolite name in combination with the KEGG ID as the metabolite identifiers.

As part of the MetaProViz package you can load the example data into your global environment using data():
1. Intracellular experiment (Intra)
The raw data are available via metabolomics workbench study ST002224 where intracellular metabolomics of HK2 and ccRCC cell lines 786-O, 786-M1A and 786-M2A were performed.
We can access the built-in dataset intracell_raw, which includes columns with Sample information and columns with the measured metabolite integrated peaks.

data(intracell_raw)

Intra <- intracell_raw%>%
column_to_rownames("Code")

Preview of the DF `Intra` including columns with sample information and metabolite ids with their measured values.
	Conditions	Analytical_Replicates	Biological_Replicates	valine-d8	ADP-ribose	citrulline
MS55_01	HK2	1	1	1910140239	2417484	514024322
MS55_02	HK2	2	1	2030901280	2159520	507001076
MS55_03	HK2	3	1	2001950756	2427805	551503662
MS55_04	HK2	4	1	1971520079	1988317	483751307
MS55_05	786-O	1	1	2150817213	1732016	272896668

2. Additional information mapping the trivial metabolite names to KEGG IDs and selected pathways (MappingInfo)

data(cellular_meta)

MappingInfo <- cellular_meta%>%
column_to_rownames("Metabolite")

Preview of the DF `Pathways` including the trivial metabolite identifiers used in the experiment as well as KEGG IDs and pathway information.
	HMDB	KEGG.ID	KEGGCompound	Pathway
N-acetylaspartate	HMDB0000812	C01042	N-Acetyl-L-aspartate	Alanine, aspartate and glutamate metabolism
argininosuccinate	HMDB0000052	C03406	N-(L-Arginino)succinate	Alanine, aspartate and glutamate metabolism
N-acetylaspartylglutamate	HMDB0001067	C12270	N-Acetylaspartylglutamate	Alanine, aspartate and glutamate metabolism
tyrosine	HMDB0000158	C00082	L-Tyrosine	Amino acid metabolism
asparagine	HMDB0000168	C00152	L-Asparagine	Amino acid metabolism

3. KEGG pathways that are loaded from the KEGG API via OmnipathR and can be used to perform pathway analysis (Kanehisa and Goto 2000). (KEGG_Pathways)

# This queries the KEGG API (via OmnipathR) to load the pathways:
KEGG_Pathways <- metsigdb_kegg()

Preview of the DF `KEGG_Pathways`.
Description	MetaboliteID	term	Metabolite	pubchem	compound_names
map00010	C00022	Glycolysis / Gluconeogenesis	Pyruvate	3324	Pyruvate….
map00010	C00024	Glycolysis / Gluconeogenesis	Acetyl-CoA	3326	Acetyl-C….
map00010	C00031	Glycolysis / Gluconeogenesis	D-Glucose	3333	D-Glucos….
map00030	C00022	Pentose phosphate pathway	Pyruvate	3324	Pyruvate….
map00030	C00031	Pentose phosphate pathway	D-Glucose	3333	D-Glucos….
map00030	C00085	Pentose phosphate pathway	D-Fructose 6-phosphate	3385	D-Fructo….

Run MetaProViz Analysis

Currently, MetaProViz contains four different modules, which include different methods and can be used independently from each other or in combination (see introduction for more details). Here we will go through each of those modules and apply them to the example data.

Pre-processing

MetaProViz includes a pre-processing module with the function processing() that has multiple parameters to perform customize data processing.
featurefilt applies the 80%-filtering rule on the metabolite features either on the whole dataset (=“Standard”) (Bijlsma et al. 2006) or per condition (=“Modified”) (Wei et al. 2018). This means that metabolites are removed where more than 20% of the samples (all or per condition) have no detection. With the parameter cutoff_featurefilt we enable the adaptation of the stringency of the filtering based on the experimental context. For instance, patient tumour samples can contain many unknown subgroups due to gender, age, stage etc., which leads to a metabolite being detected in only 50% (or even less) of the tumour samples, hence in this context it could be considered to change the cutoff_featurefilt from the default (=0.8). If featurefilt = NULL, no feature filtering is performed. In the context of featurefilt it is also noteworthy that the function pool_estimation() can be used to estimate the quality of the metabolite detection and will return a list of metabolites that are variable across the different pool measurements (pool = mixture of all experimental samples measured several times during the LC-MS run) . Variable metabolite in the pool sample should be removed from the data.
The parameter tic refers to total Ion Count (tic) normalisation, which is often used with LC-MS derived metabolomics data. If tic = TRUE, each feature (=metabolite) in a sample is divided by the sum of all intensity value (= total number of ions) for the sample and finally multiplied by a constant ( = the mean of all samples total number of ions). Noteworthy, tic normalisation should not be used with small number of features (= metabolites), since tic assumes that on “average” the ion count of each sample is equal if there were no instrument batch effects (Wulff and Mitchell 2018).
The parameter mvi refers to Missing Value Imputation (mvi) and if mvi = TRUE half minimum (HM) missing value imputation is performed per feature (= per metabolite). Here it is important to mention that HM has been shown to perform well for missing values that are missing not at random (MNAR) (Wei et al. 2018).
Lastly, the function processing() performs outlier detection and adds a column “Outliers” into the DF, which can be used to remove outliers. The parameter hotellins_confidence can be used to choose the confidence interval that should be used for the Hotelling’s T2 outlier test (Hotelling 1931).

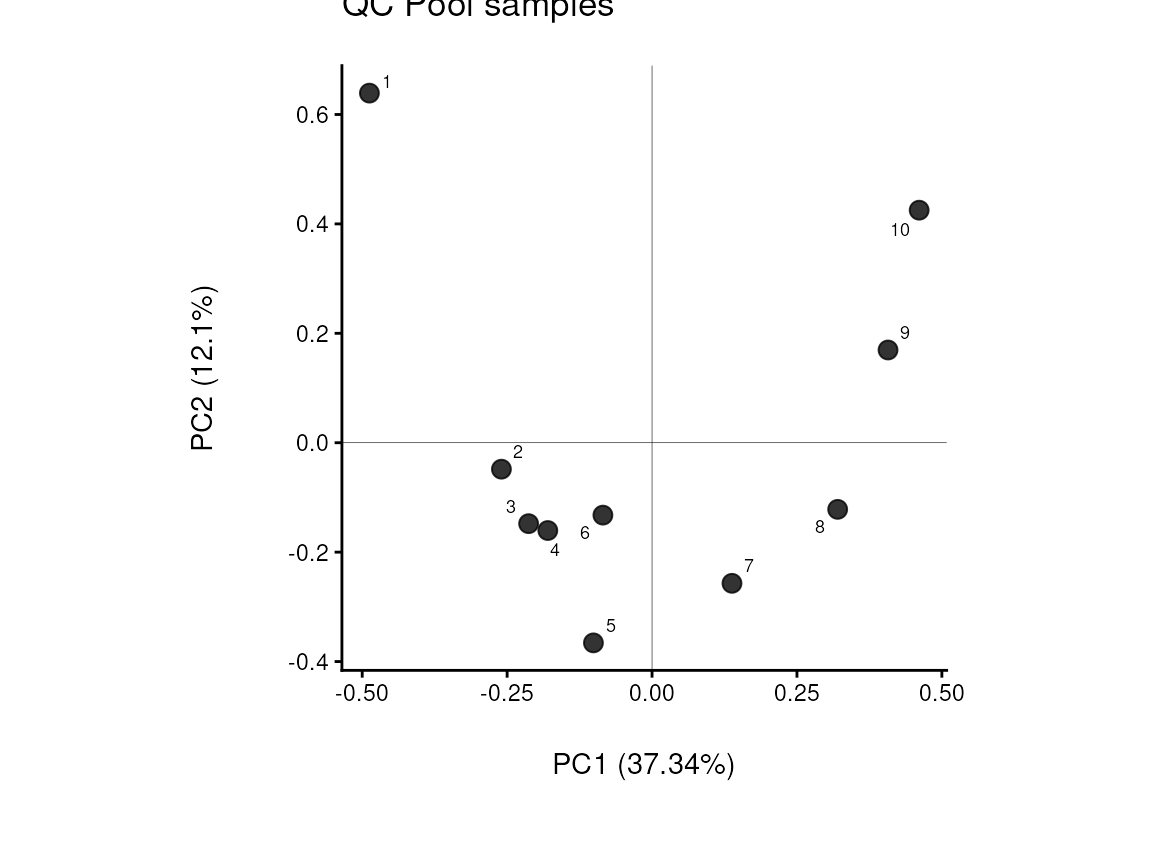

Since our example data contains pool samples, we will do pool_estimation() before applying the processing() function. This is important, since one should remove the features (=metabolites) that are too variable prior to performing any data transformations such as tic as part of the processing() function.

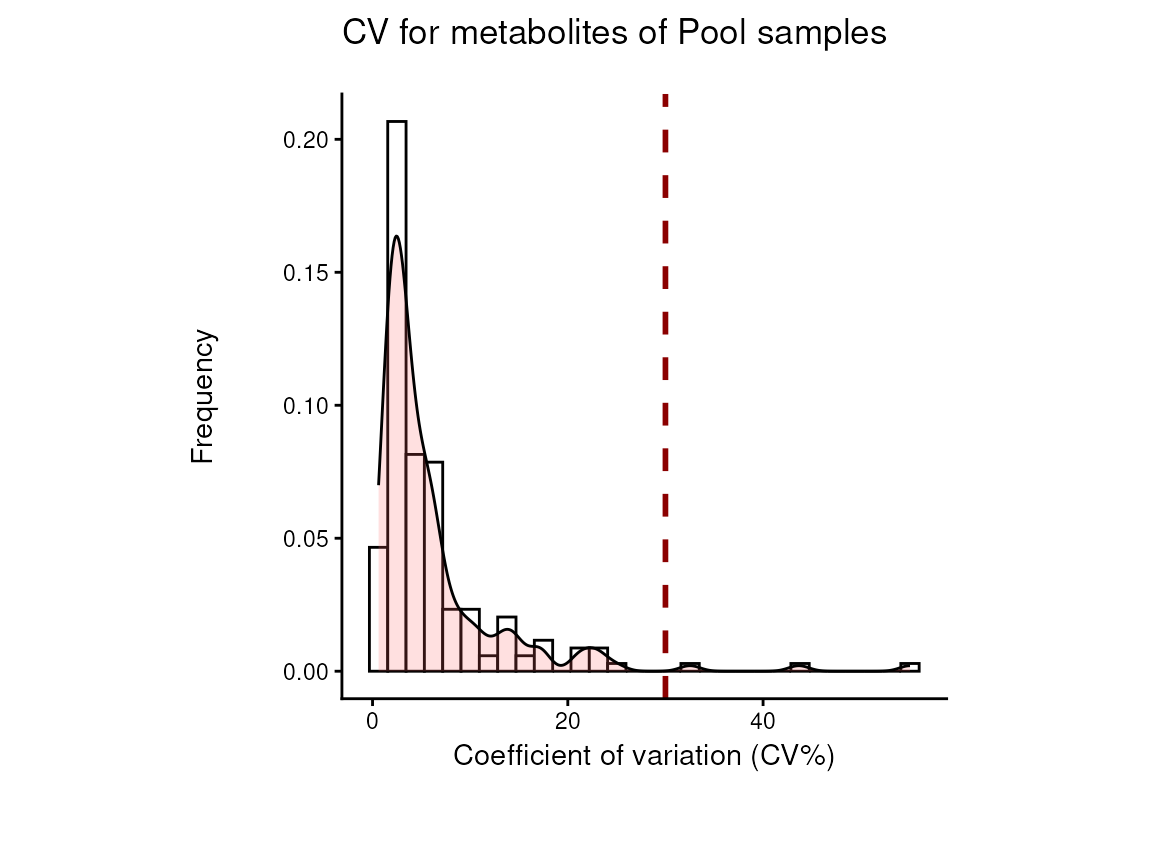

It is worth mentioning that the Coefficient of variation (CV) is calculated by dividing the standard deviation (SD) by the mean. Hence CV depends on the SD, which in turn works for normally distributed data.

#### Select Pool samples:
# Get the Pool data
PoolData <- intracell_raw %>%
subset(Conditions=="Pool", select = -c(1:3)) # we remove the columns "Conditions", "Analytical_Replicates" and "Biological_Replicates"

# Check the metabolite variability
Pool_Estimation_result<- pool_estimation(data = PoolData,
cutoff_cv = 30)

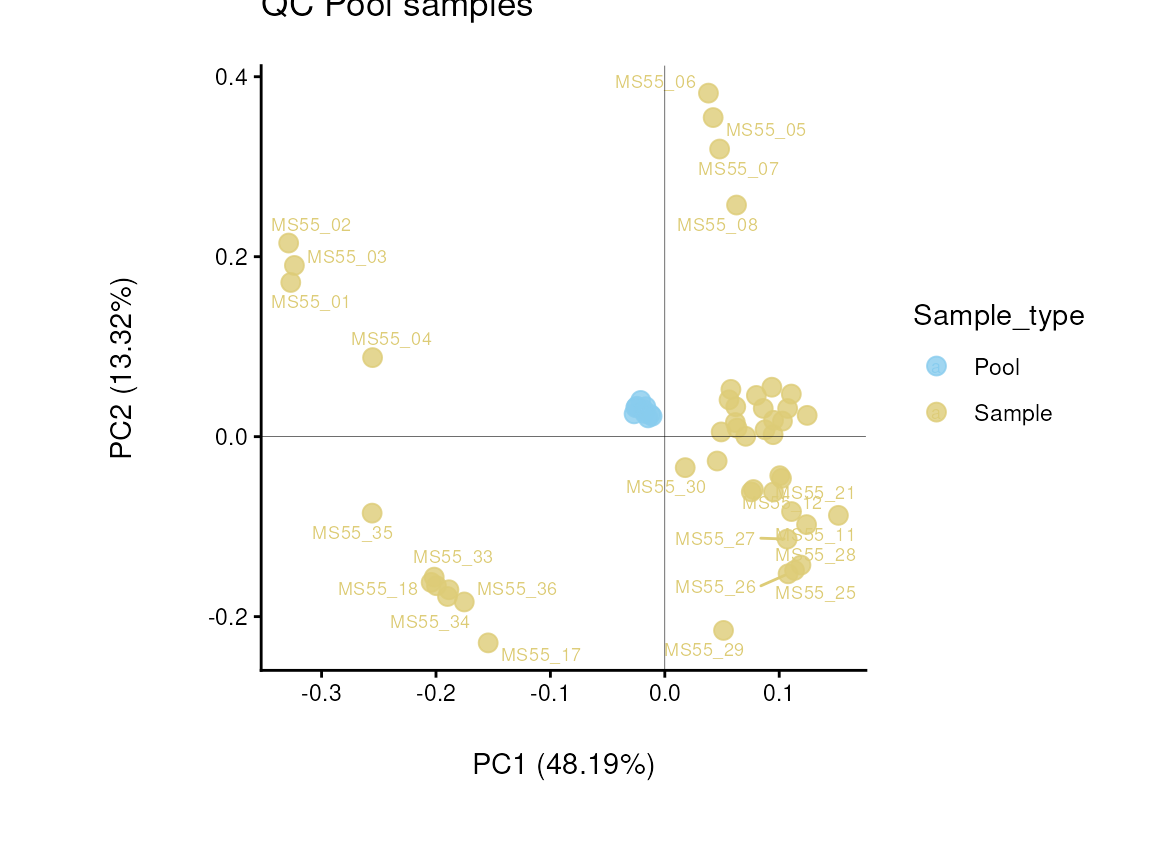

#> `stat_bin()` using `bins = 30`. Pick better value `binwidth`.
#> Bin width defaults to 1/30 of the range of the data. Pick better value with
#> `binwidth`.

#--------------------------------------------------------------------

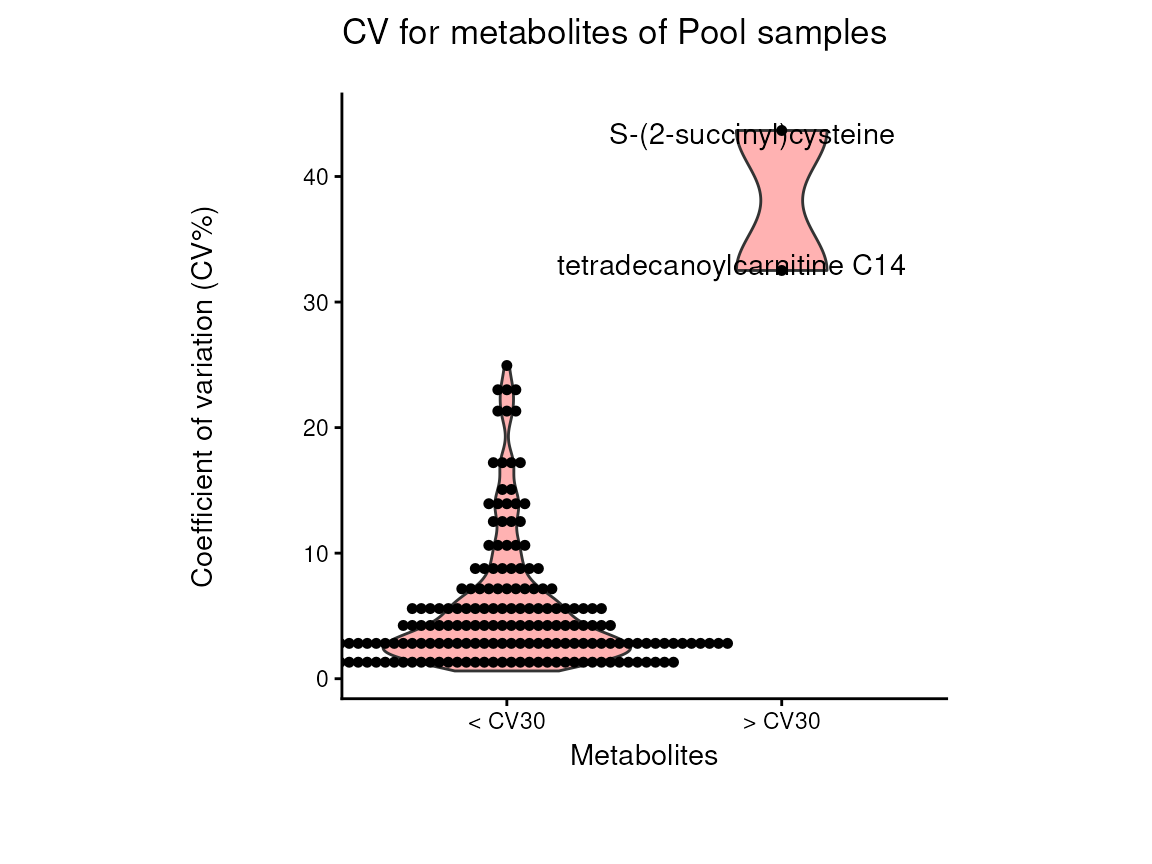

#### Alternatively a full dataset can be added. Here, the Conditions and PoolSamples name have to be specified in metadata_info
Pool_Estimation_result<- pool_estimation(data = Intra[,-c(1:3)],
metadata_sample = Intra[,1:3],
metadata_info = c(PoolSamples = "Pool", Conditions="Conditions"),
cutoff_cv = 30)
#> `stat_bin()` using `bins = 30`. Pick better value `binwidth`.
#> Bin width defaults to 1/30 of the range of the data. Pick better value with
#> `binwidth`.


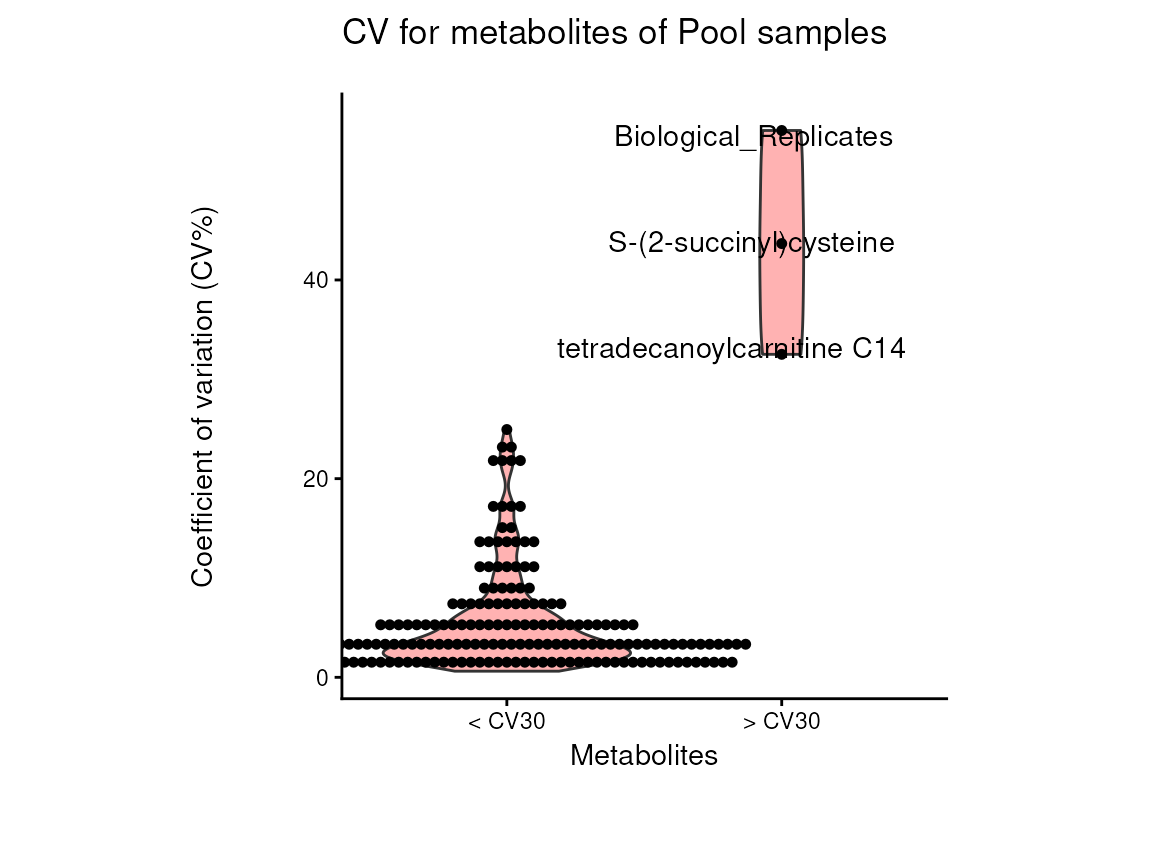

Pool_Estimation_result_DF_CV <-Pool_Estimation_result[["DF"]][["CV"]]

Preview of the Pool_Estimation result.
Metabolite	CV	HighVar
valine-d8	2.425263	FALSE
hippuric acid-d5	1.579717	FALSE
2/3-phosphoglycerate	2.933440	FALSE
2-aminoadipic acid	5.461470	FALSE
2-hydroxyglutarate	1.366187	FALSE

The results from the pool_estimation() is a table that has the CVs. If there is a high variability, one should consider to remove those features from the data. For the example data nothing needs to be removed. If you have used internal standard in your experiment you should specifically check their CV as this would indicate technical issues (here valine-d8 and hippuric acid-d5).

Now we will apply the processing() function to example data and have a look at the output produced. You will notice that all the chosen parameters and results are documented in messages. All the results data tables, the Quality Control (QC) plots and outlier detection plots are returned and can be easily viewed.

PreprocessingResults <- processing(data=Intra[-c(49:58) ,-c(1:3)], #remove pool samples and columns with sample information
metadata_sample=Intra[-c(49:58) , c(1:3)], #remove pool samples and columns with metabolite measurements
metadata_info = c(Conditions = "Conditions",
                                                                    Biological_Replicates = "Biological_Replicates"),
                                                                    featurefilt = "Modified",
                                                                    cutoff_featurefilt = 0.8,
                                                                    tic = TRUE,
                                                                    mvi = TRUE,
                                                                    hotellins_confidence = 0.99,# We perform outlier testing using 0.99 confidence interval
                                                                    core = FALSE,
                                                                    save_plot = "svg",
                                                                    save_table= "csv",
                                                                    print_plot = TRUE,
                                                                    path = NULL)
#> feature_filtering: Here we apply the modified 80%-filtering rule that takes the class information (Column `Conditions`) into account, which additionally reduces the effect of missing values (REF: Yang et. al., (2015), doi: 10.3389/fmolb.2015.00004). Filtering value selected: 0.8
#> 3 metabolites where removed: AICAR, FAICAR, SAICAR
#> Missing Value Imputation: Missing value imputation is performed, as a complementary approach to address the missing value problem, where the missing values are imputing using the `half minimum value`. REF: Wei et. al., (2018), Reports, 8, 663, doi:https://doi.org/10.1038/s41598-017-19120-0
#> total Ion Count (tic) normalization: total Ion Count (tic) normalization is used to reduce the variation from non-biological sources, while maintaining the biological variation. REF: Wulff et. al., (2018), Advances in Bioscience and Biotechnology, 9, 339-351, doi:https://doi.org/10.4236/abb.2018.98022

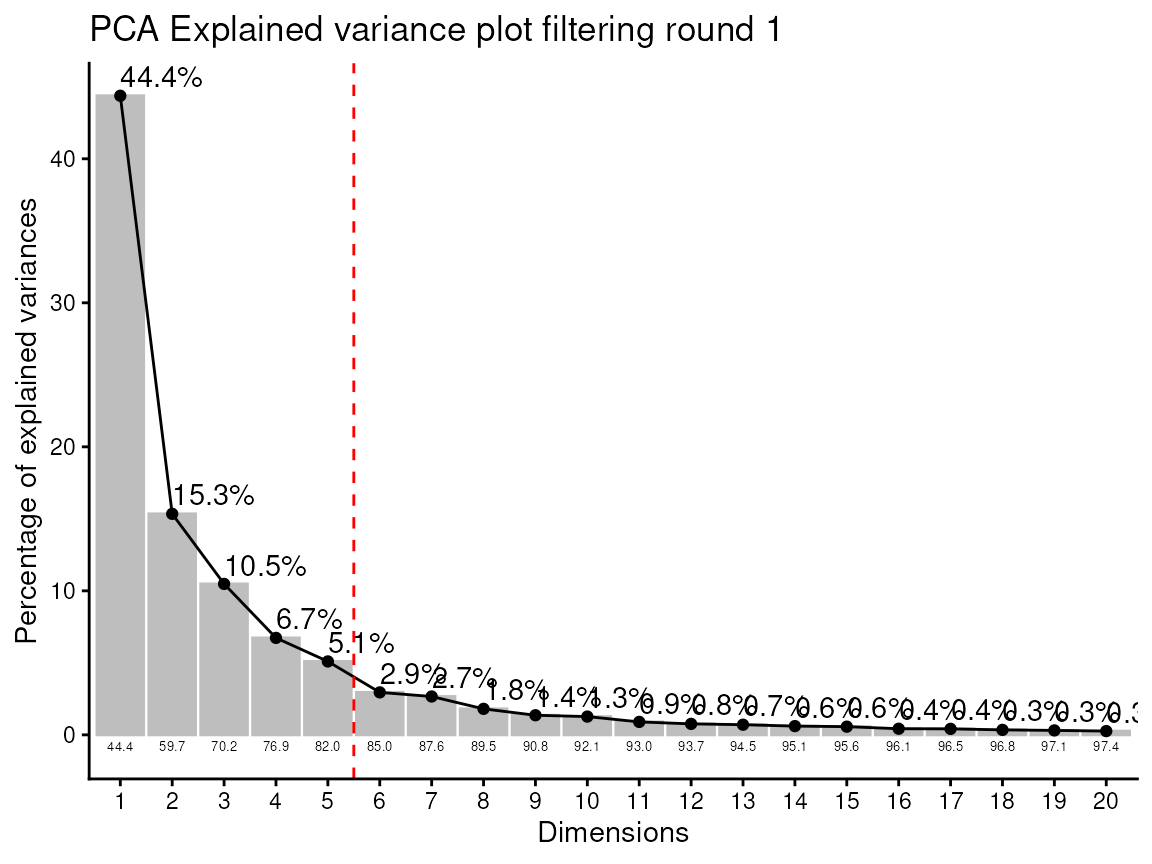

#> Outlier detection: Identification of outlier samples is performed using Hotellin's T2 test to define sample outliers in a mathematical way (Confidence = 0.99 ~ p.val < 0.01) (REF: Hotelling, H. (1931), Annals of Mathematical Statistics. 2 (3), 360-378, doi:https://doi.org/10.1214/aoms/1177732979). hotellins_confidence value selected: 0.99

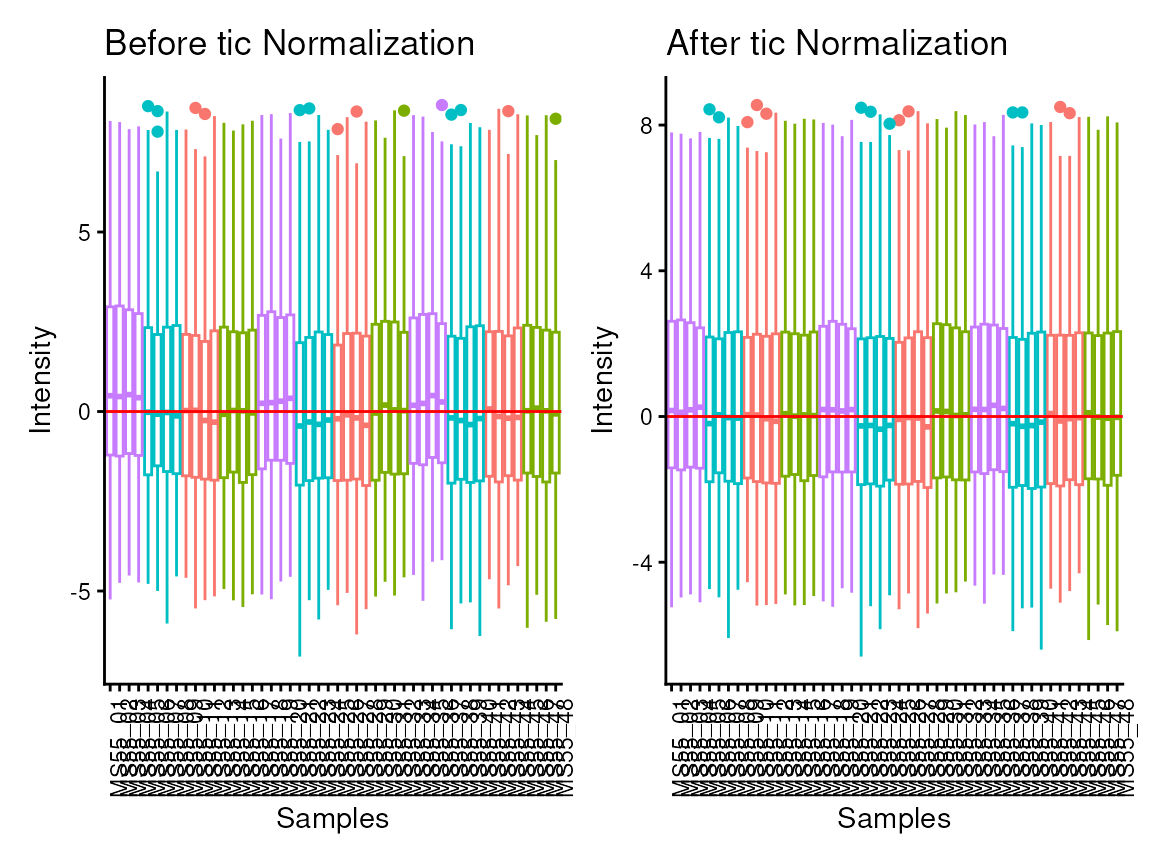

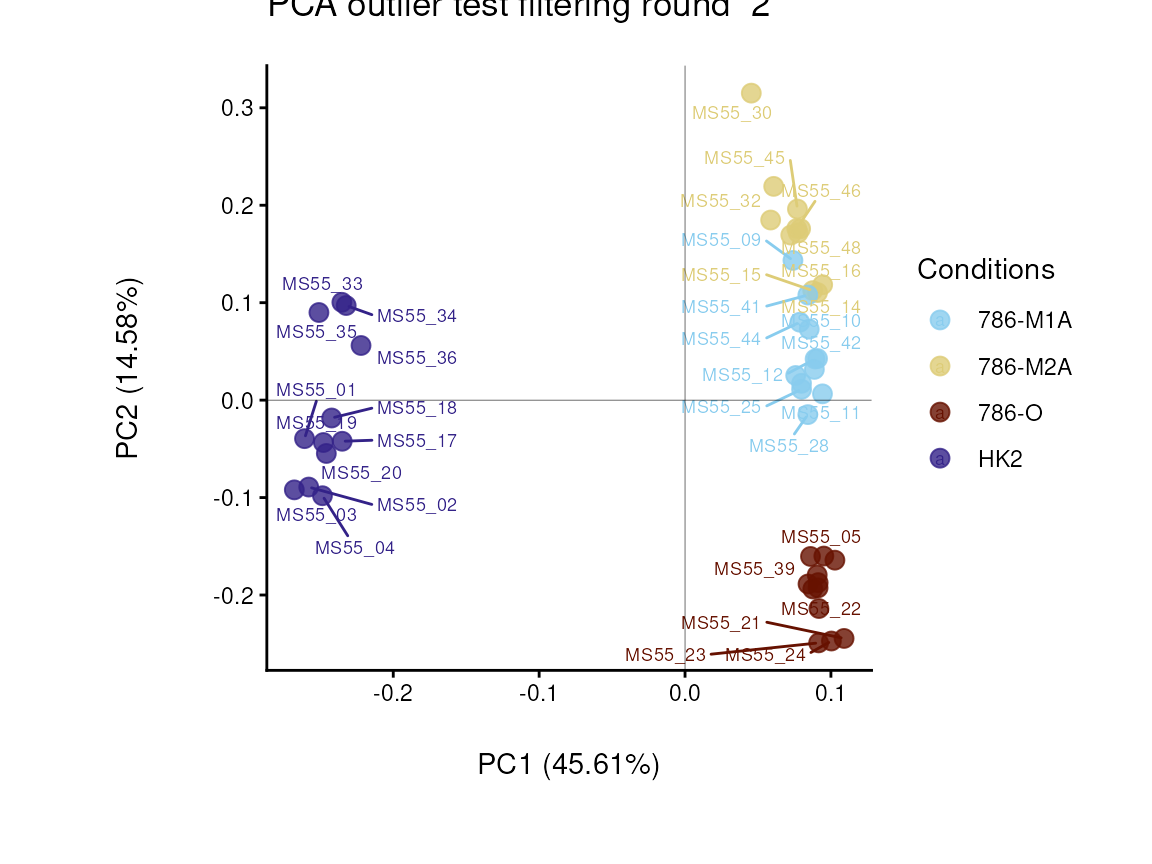

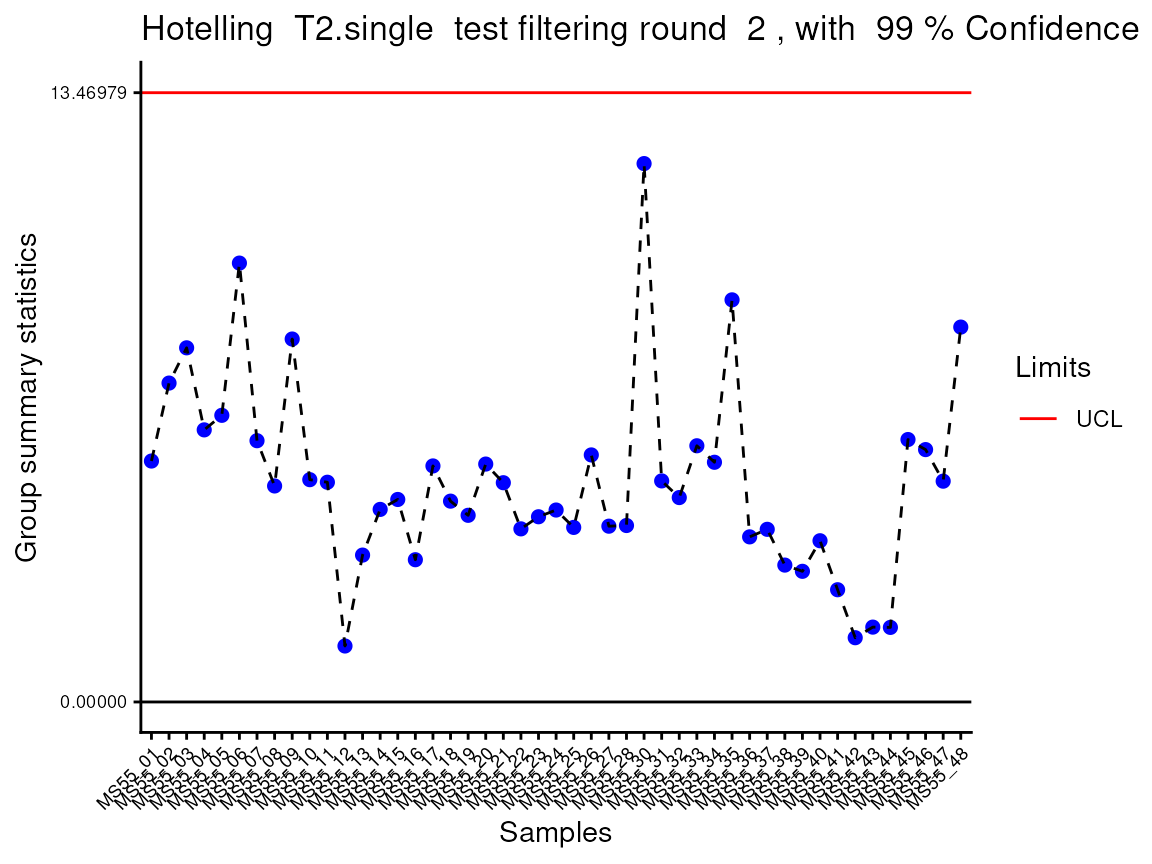

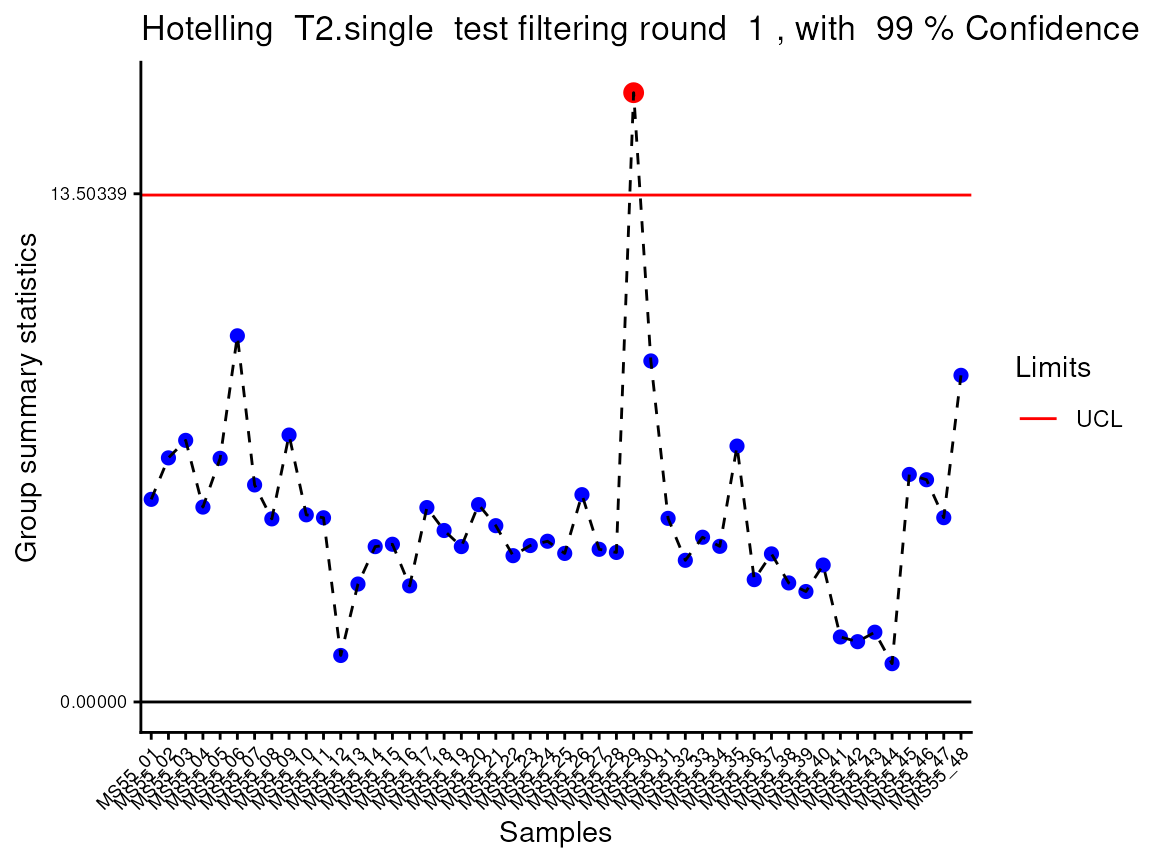

#> There are possible outlier samples in the data
#> Filtering round  1  Outlier Samples:  MS55_29


# This is the results table:
Intra_Preprocessed <- PreprocessingResults[["DF"]][["Preprocessing_output"]]

Preview of the pre-processing results, which has an additional column `Outlier` including the results of Hotelling’s T2.
	Conditions	Analytical_Replicates	Biological_Replicates	Outliers	valine-d8	hippuric acid-d5	2/3-phosphoglycerate	2-aminoadipic acid	2-hydroxyglutarate
MS55_29	786-M2A	1	2	Outlier_filtering_round_1	2387588900	4569088590	40184147	6064712	447702444
MS55_30	786-M2A	2	2	no	2129509827	3909434732	40901362	5928248	438592007
MS55_31	786-M2A	3	2	no	2008257641	3820133317	45656317	6122422	423960574
MS55_32	786-M2A	4	2	no	2023353119	3808913048	46166031	6633984	434158266

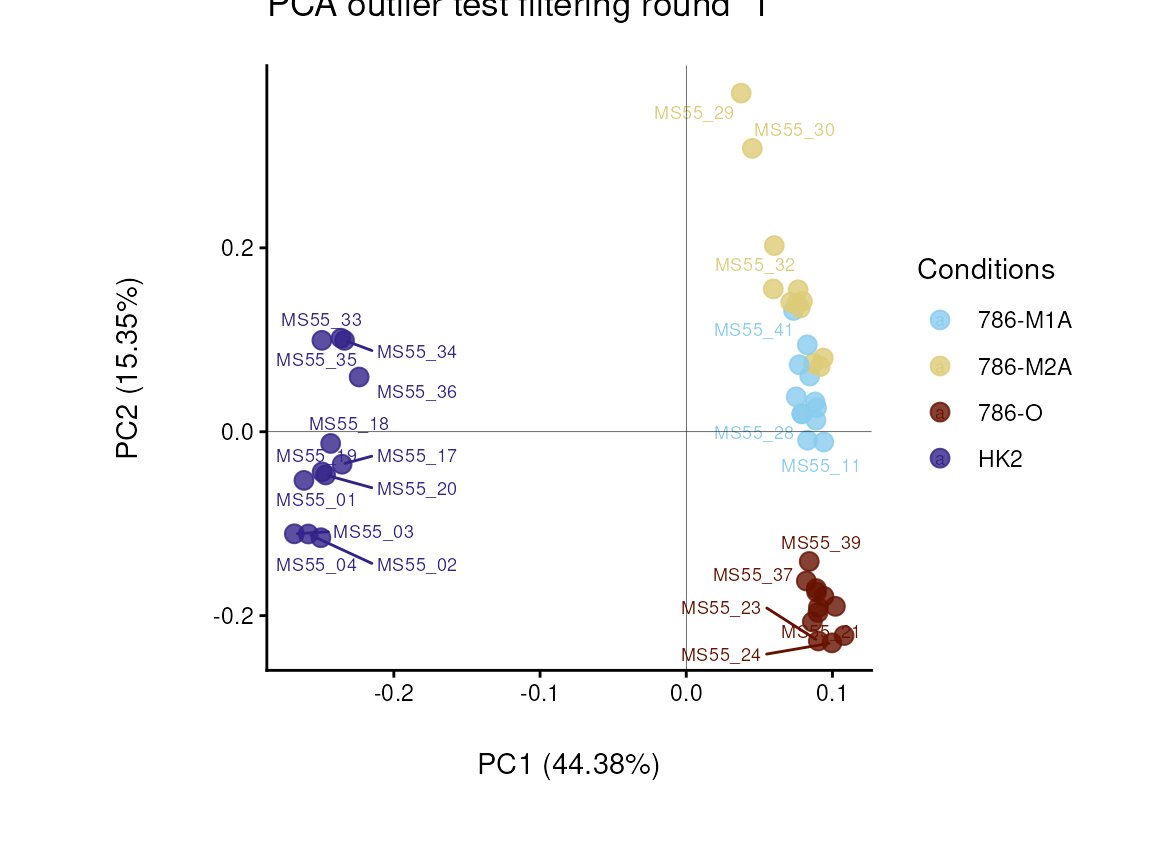

In the output table you can now see the column “Outliers” and for the Condition 786-M2A, we can see that based on Hotelling’s T2 test, one sample was detected as an outlier in the first round of filtering.

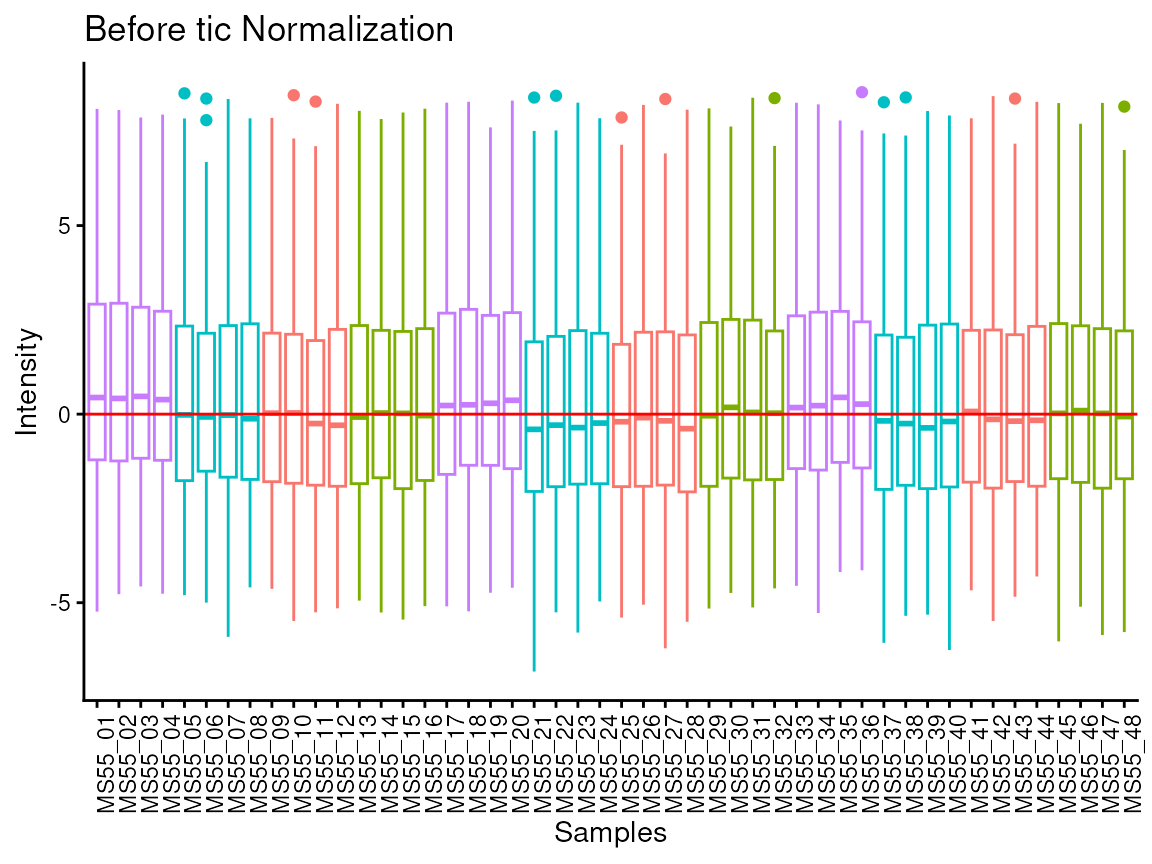

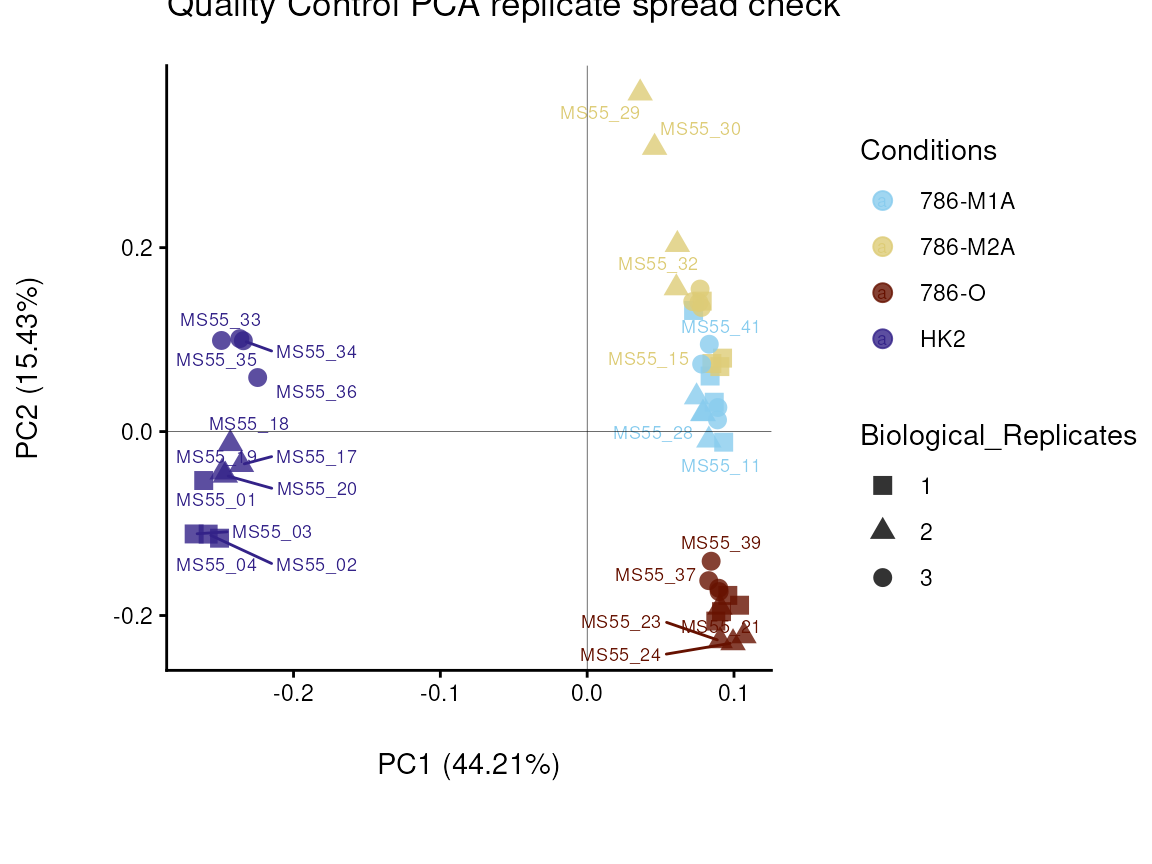

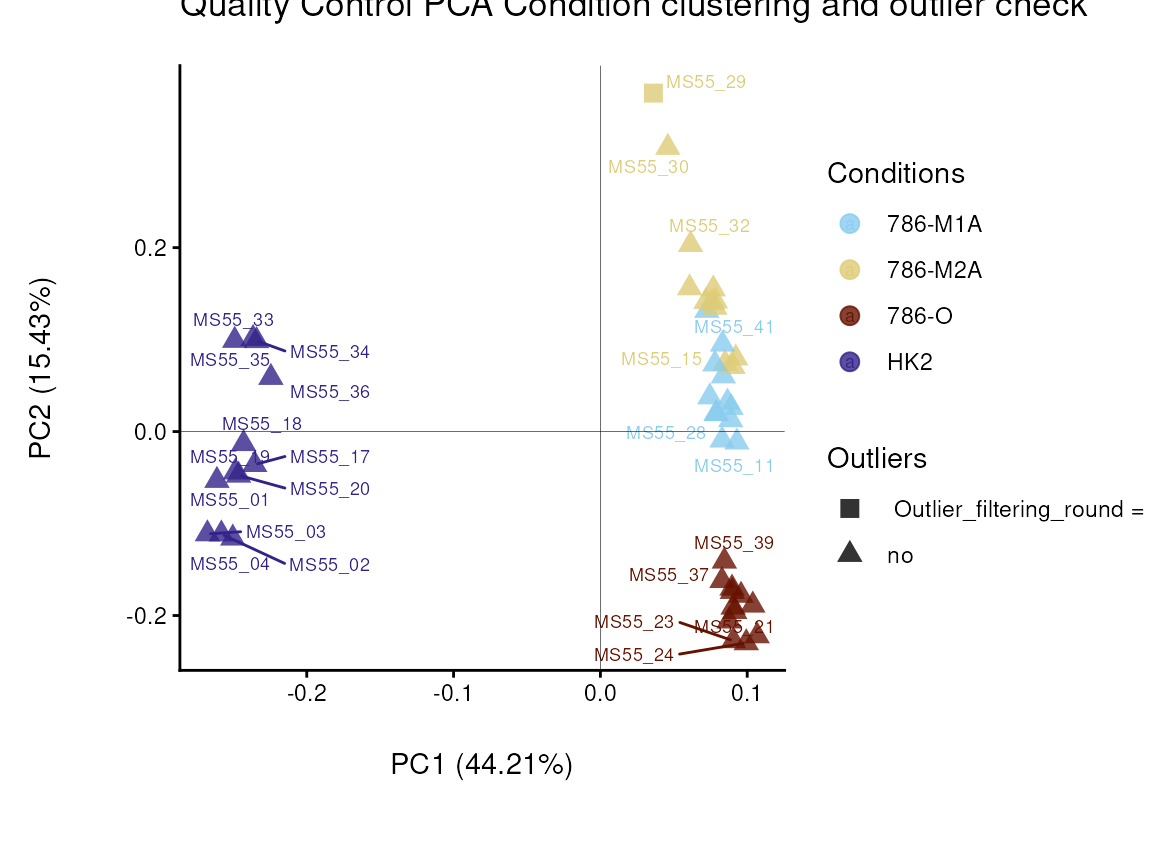

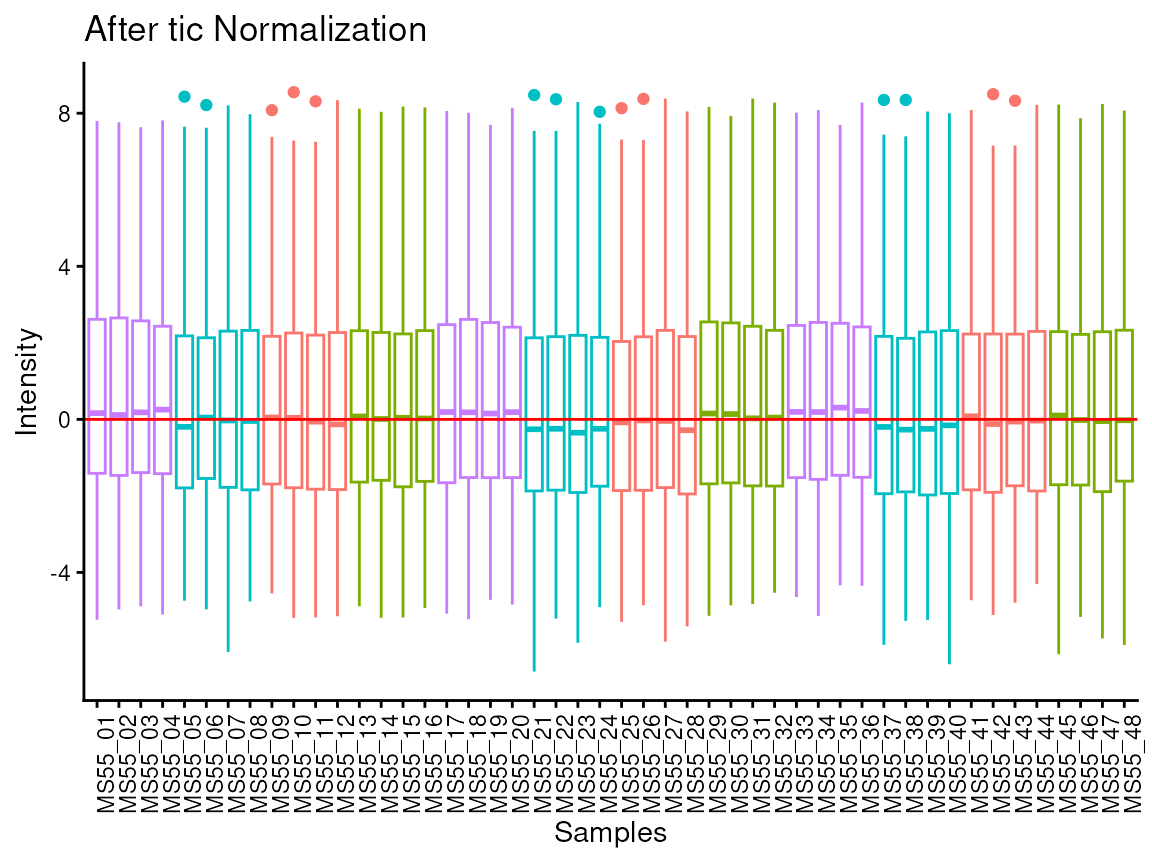

As part of the processing() function several plots are generated and saved. Additionally, the ggplots are returned into the list to enable further modification using the ggplot syntax. These plots include plots showing the outliers for each filtering round and other QC plots.

As part of the MetaProViz visualization module one can easily further customize the PCA plot and adapt color and shape for the information of interest. You can see more below for the viz_pca() function.
Before we proceed, we will remove the outlier:

Intra_Preprocessed <- Intra_Preprocessed%>%
filter(Outliers=="no")#remove MS55_29

As you may have noticed, in this example dataset we have several biological replicates that were injected (=measured) several times, which can be termed as analytical replicates. The MetaProViz pre-processing module includes the function replicate_sum(), which will do this task and save the results:

Intra_Preprocessed <- replicate_sum(data=Intra_Preprocessed[,-c(1:4)],
metadata_sample=Intra_Preprocessed[,c(1:4)],
metadata_info = c(Conditions="Conditions", Biological_Replicates="Biological_Replicates", Analytical_Replicates="Analytical_Replicates"))

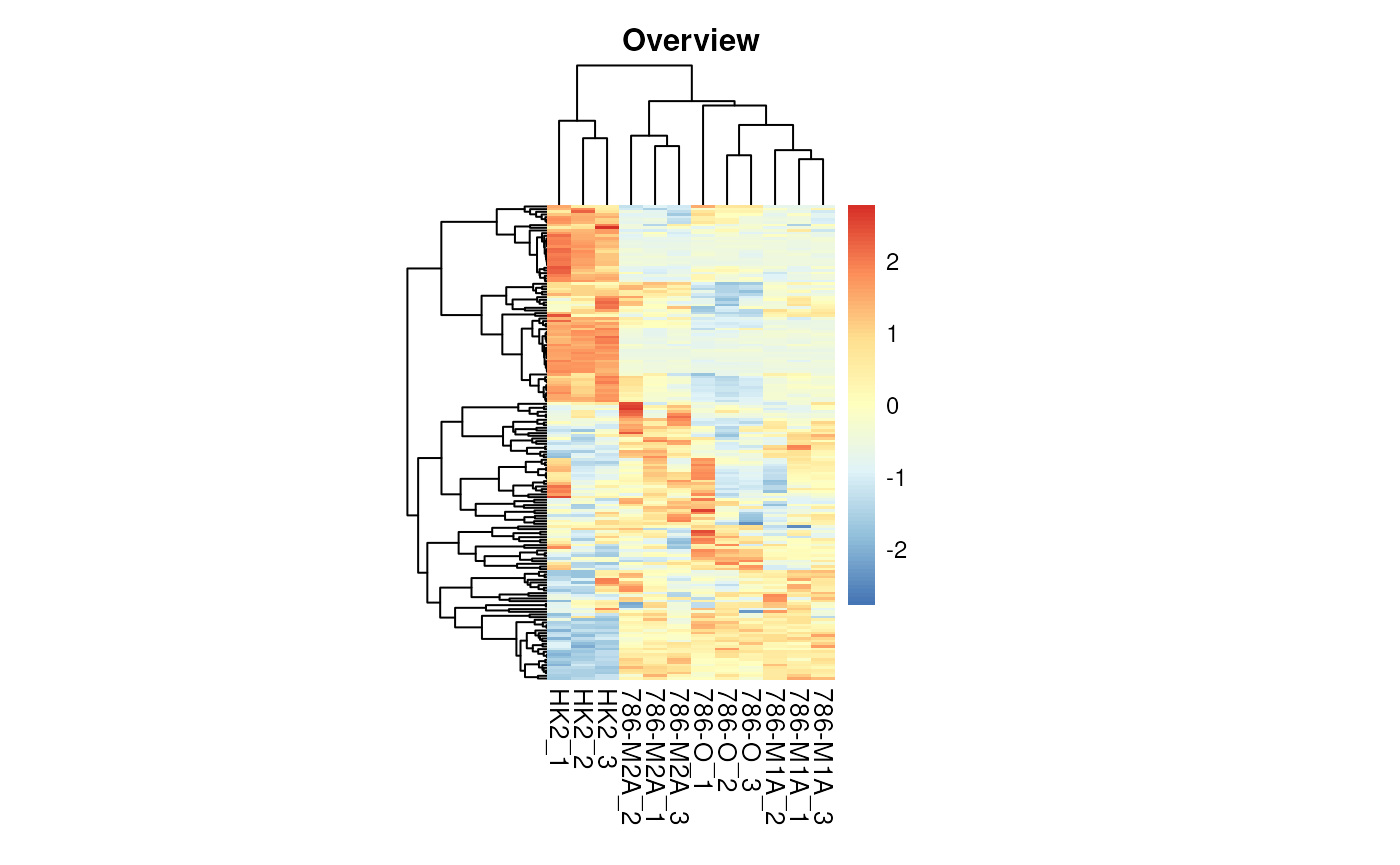

Using the pre-processed data, we can now use the MetaProViz visualization module and generate some overview Heatmaps viz_heatmap() or PCA plots viz_pca(). You can see some examples below.

DMA

Differential Metabolite Analysis (dma) is used to compare two conditions (e.g. Tumour versus Healthy) by calculating the Log2FC, p-value, adjusted p-value and t-value. With the different parameters pval and padj one can choose the statistical tests such as t.test, wilcoxon test, limma, ANOVA, Kruskal-Wallis, etc. (see function reference for more information).
As input one can use the pre-processed data we have generated using the pre-processing module, but here one can of course use any DF including metabolite values, even though we recommend to normalize the data and remove outliers prior to dma. Moreover, we require the metadata_sample including the sample metadata with information which condition a sample corresponds to. Additionally, we enable the user to provide a metadata_feature containing the metadata for the features (metabolites), such as KEGG ID, pathway, retention time, etc.

By defining the numerator and denominator as part of the metadata_info parameter, it is defined which comparisons are performed:
1. one_vs_one (single comparison): numerator=“Condition1”, denominator =“Condition2”
2. all_vs_one (multiple comparison): numerator=NULL, denominator =“Condition”
3. all_vs_all (multiple comparison): numerator=NULL, denominator =NULL (=default)

Noteworthy, if you have not performed missing value imputation and hence your data includes NAs or 0 values for some features, this is how we deal with this in the dma() function:
1. If you use the parameter pval="lmFit", limma is performed. Limma does a Bayesian fit of the data and subtracts Mean(Condition1 fit) - Mean(Condition2 fit). As such, unless all values of a feature are NA, Limma can deal with NAs. 2. Standard Log2FC: log2(Mean(Condition1)) - log2(Mean(Condition2)) a. If all values of the replicates of one condition are NA/0 for a feature (=metabolite): Log2FC= Inf/-Inf and the statistics will be NA
b. If some values of the replicates of one condition are NA/0 for a feature (=metabolite): Log2FC= positive or negative value, but the statistics will be NA

It is important to mention that in case of pval="lmFit", we perform log2 transformation of the data as prior to running limma to enable the calculation of the log2FC, hence do not provide log2 transformed data.

Here, the example data we have four different cell lines, healthy (HK2) and cancer (ccRCC: 786-M1A, 786-M2A and 786-O), hence we can perform multiple different comparisons. The results can be automatically saved and all the results are returned in a list with the different data frames. With print_plot = TRUE and save_plot = "svg" (the defaults), an overview volcano plot is printed and saved.

# Perform multiple comparison All_vs_One using ANOVA:
DMA_Annova <- dma(data=Intra_Preprocessed[,-c(1:3)], #we need to remove columns that do not include metabolite measurements
metadata_sample=Intra_Preprocessed[,c(1:3)],#only maintain the information about condition and replicates
metadata_info = c(Conditions="Conditions", Numerator=NULL , Denominator = "HK2"),# we compare all_vs_HK2
metadata_feature = MappingInfo,# Adds metadata for the metabolites such as KEGG_ID, Pathway, retention time,...
pval ="aov",
padj="fdr")
#> There are no NA/0 values
#> For 83.24% of metabolites the group variances are equal.

#> `stat_bin()` using `bins = 30`. Pick better value `binwidth`.

#> `stat_bin()` using `bins = 30`. Pick better value `binwidth`.


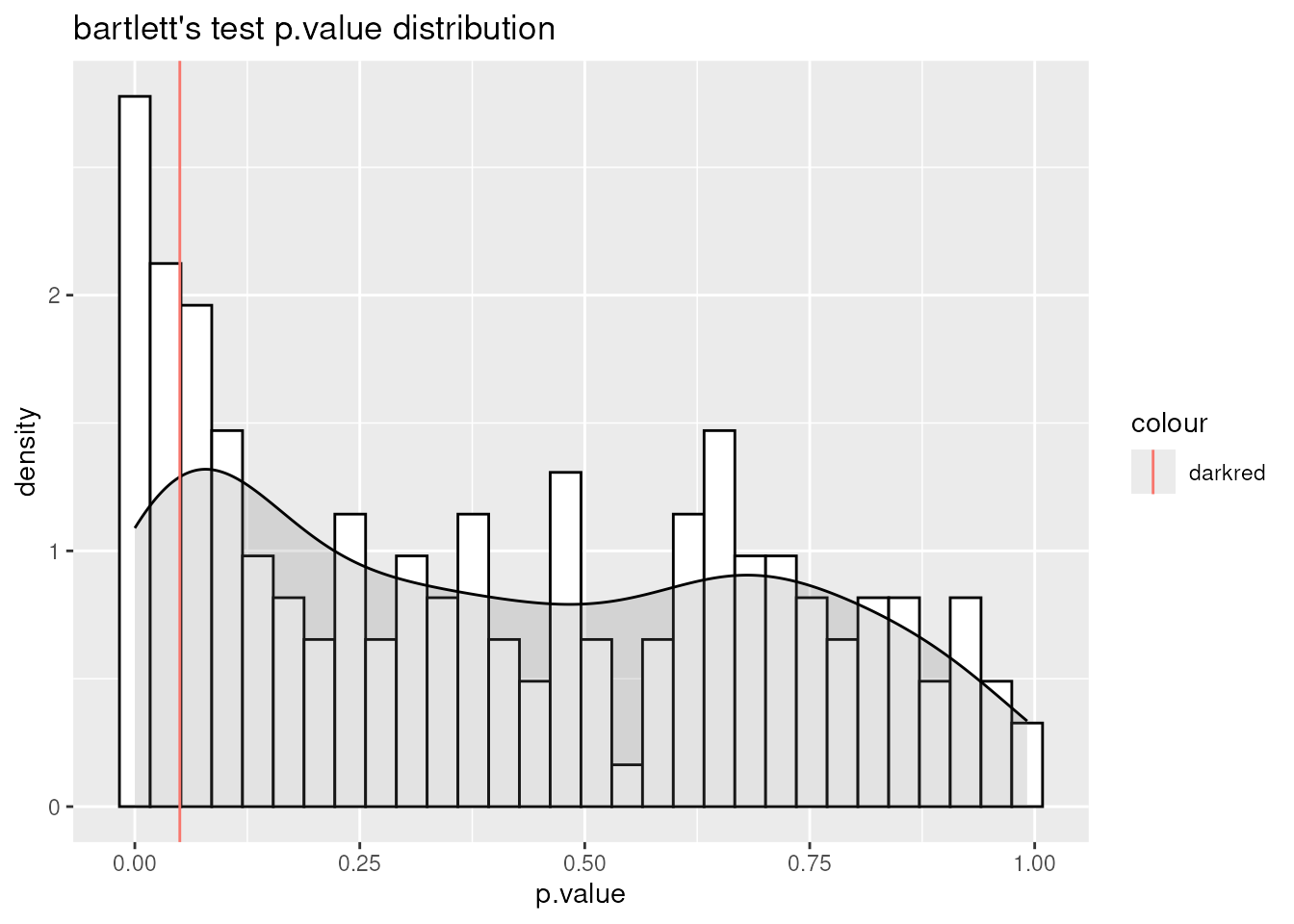

# Inspect the dma results tables:

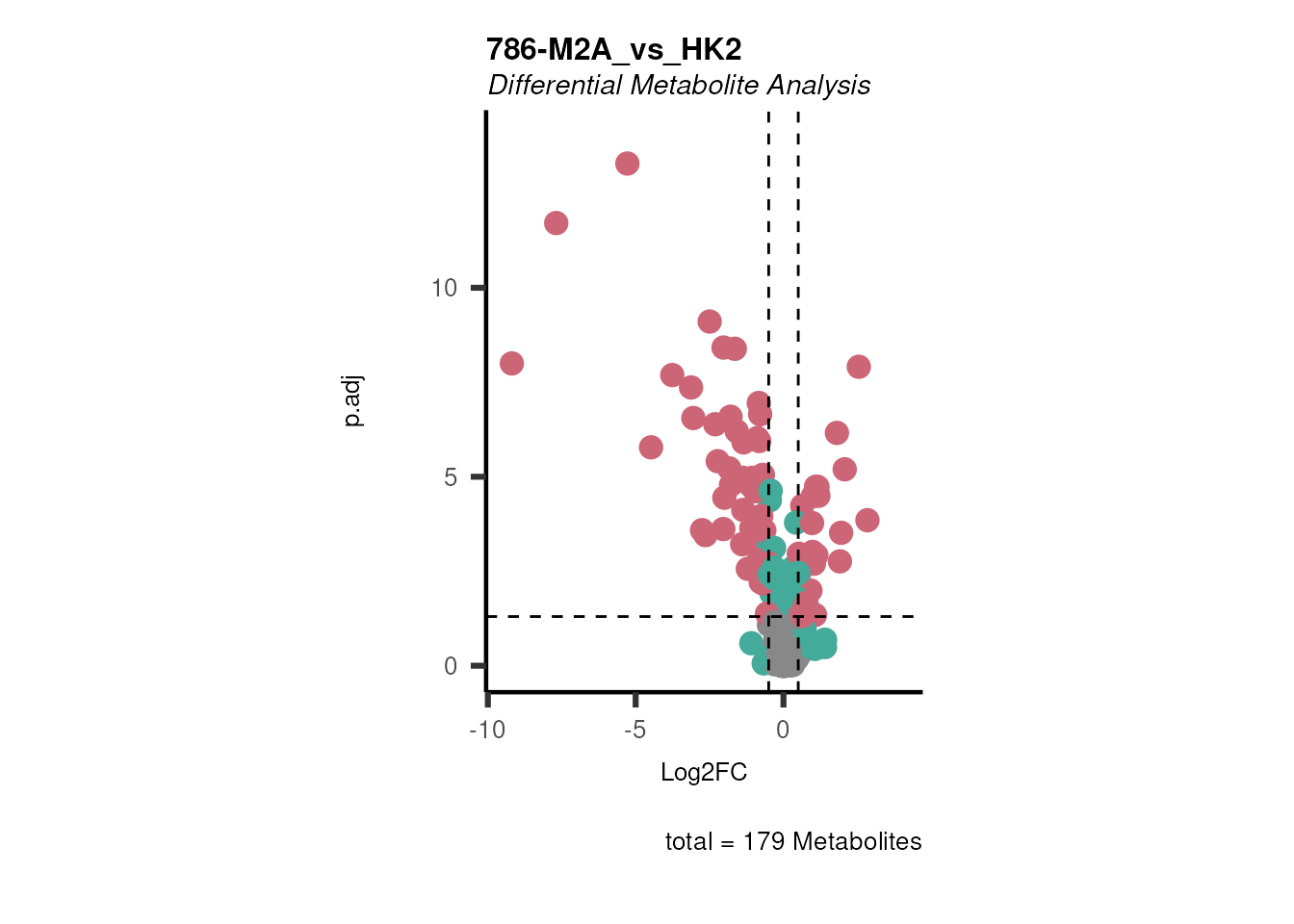

DMA_786M1A_vs_HK2 <- DMA_Annova[["dma"]][["786-M1A_vs_HK2"]]
shapiro <- DMA_Annova[["ShapiroTest"]][["DF"]][["Shapiro_result"]]

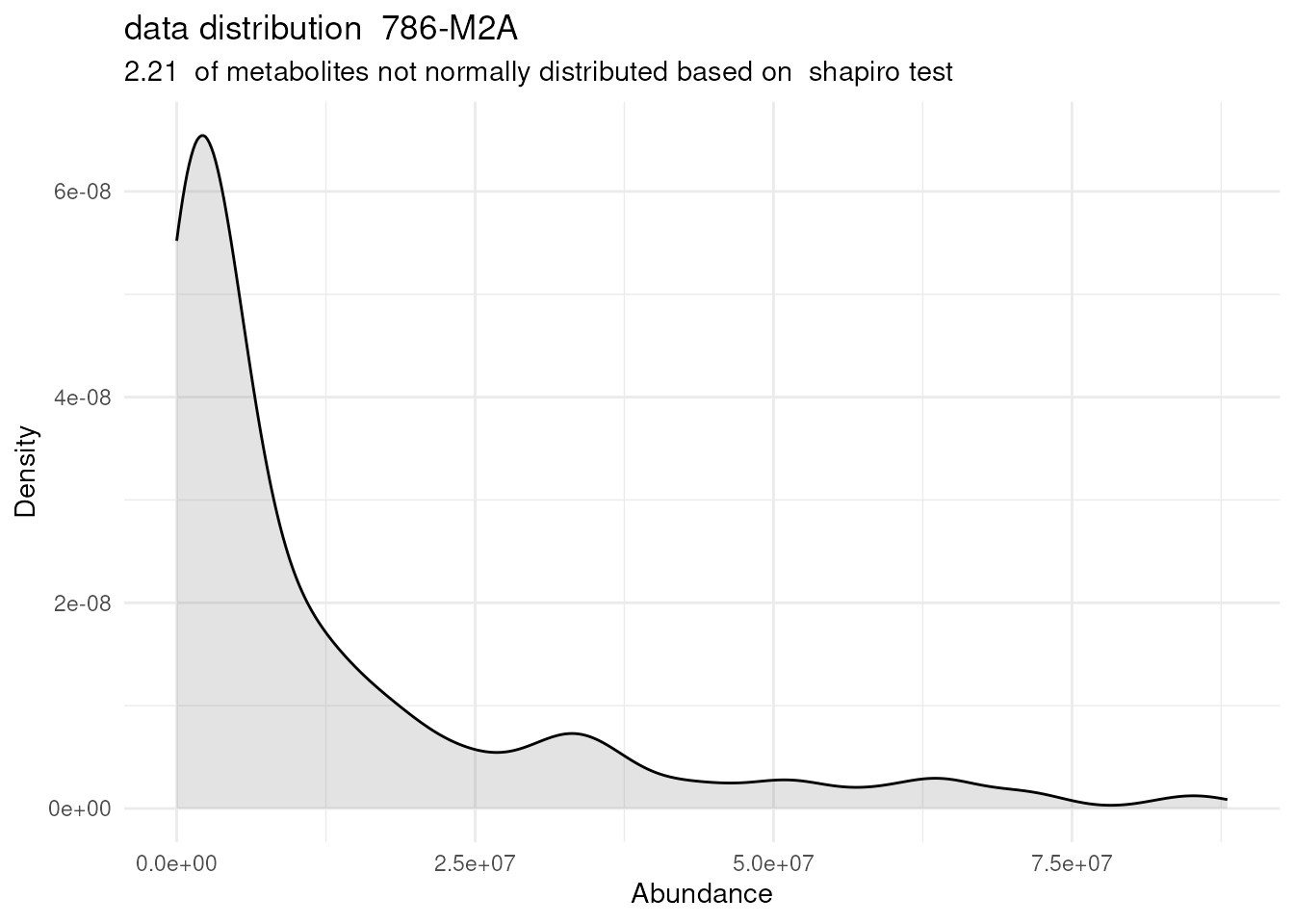

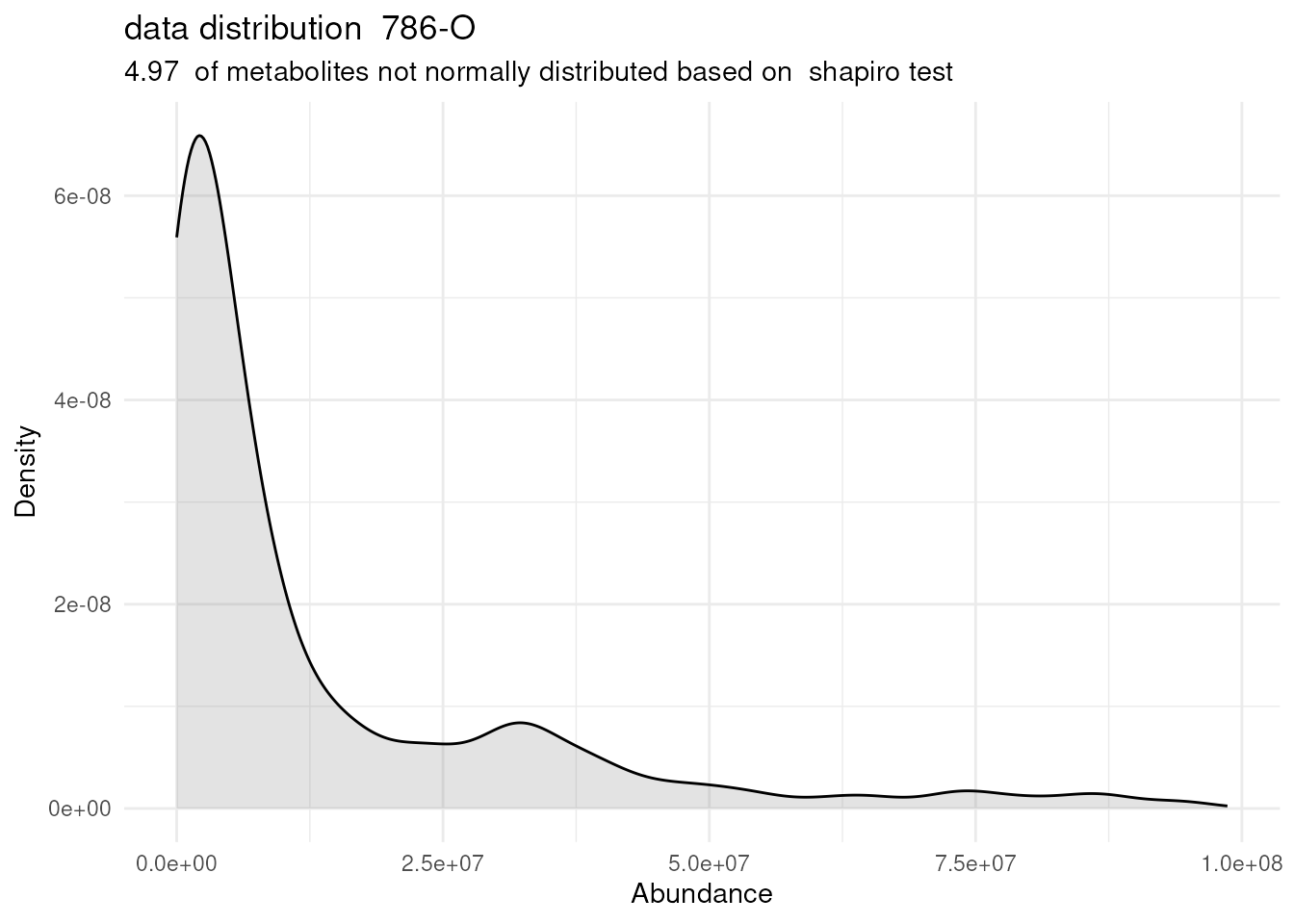

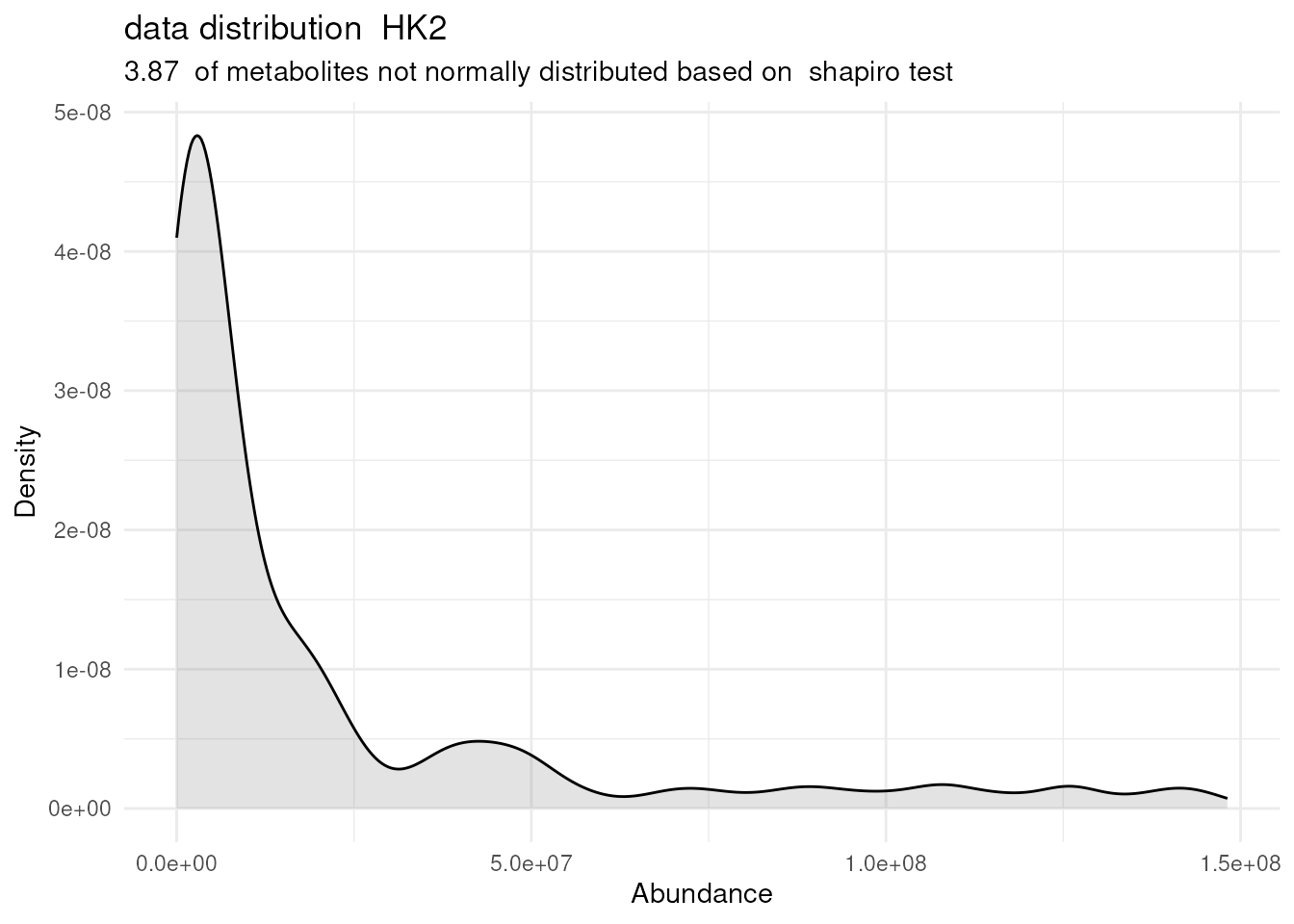

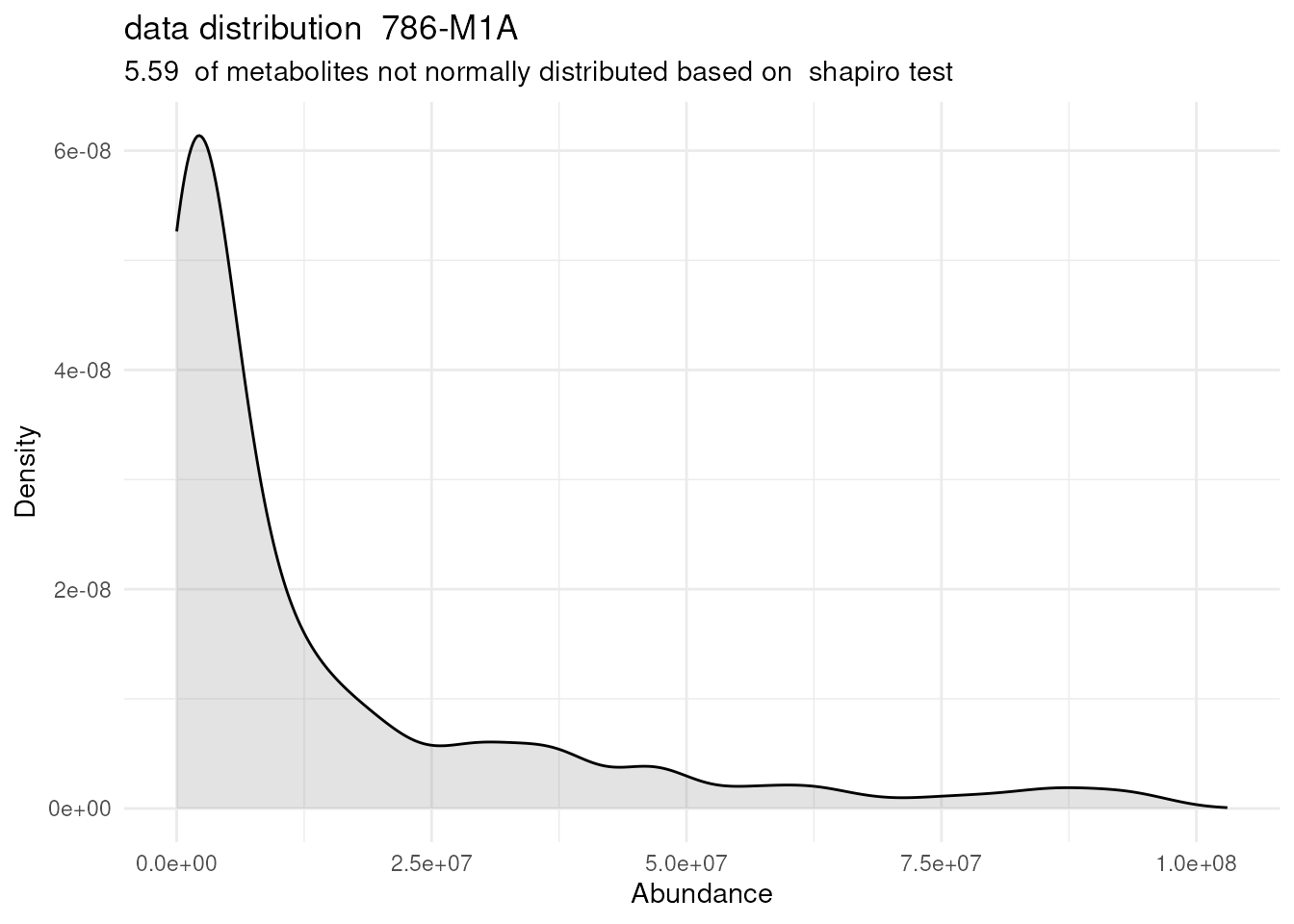

Preview of the Shapiro results for the different conditions.
Code	Metabolites with normal distribution [%]	Metabolites with not-normal distribution [%]	shapiro p.val(valine-d8)	shapiro p.val(hippuric acid-d5)	shapiro p.val(2/3-phosphoglycerate)
786-M1A	94.41	5.59	0.8523002	0.5818282	0.4219607
786-M2A	97.79	2.21	0.4748815	0.6406826	0.8924641
786-O	95.03	4.97	0.7789735	0.7821734	0.2773603
HK2	96.13	3.87	0.1736777	0.0790043	0.9247262

Preview of the dma results for the comparison of 786-M1A versus HK2 cells.
Metabolite	Log2FC	p.adj	t.val	786-M1A_1	786-M1A_2	786-M1A_3	HK2_1	HK2_2	HK2_3	HMDB	KEGG.ID	KEGGCompound	Pathway
5-aminolevulinic acid	-0.1777271	0.4915165	525130.26	3774613	3938304	4303746	4028435	4373207	5190412	HMDB0001149	C00430	5-Aminolevulinate	Not assigned
5-methylthioadenosine (MTA)	-0.5027548	0.0763874	7369026.23	13467707	19486388	20071094	24864886	22428867	27838513	HMDB0001173	C00170	5’-Methylthioadenosine	Cysteine and methionine metabolism
acetyl-CoA	-0.0089685	0.9999312	16711.52	2924310	2186801	2928606	2894329	2296944	2898579	HMDB0001206	C00024	Acetyl-CoA	Citrate cycle (TCA cycle)
acetylcarnitine	0.0653289	0.9951478	-194906873.29	4022430586	3567130318	5617724322	5947039758	3143517363	3532007486	HMDB0000201	C02571	O-Acetylcarnitine	Fatty acyl carnitines
aconitate	0.9032263	0.0109616	-46075390.99	87829577	93936706	115296044	66710215	42899324	49226614	HMDB0000072	C00417	cis-Aconitate	Citrate cycle (TCA cycle)

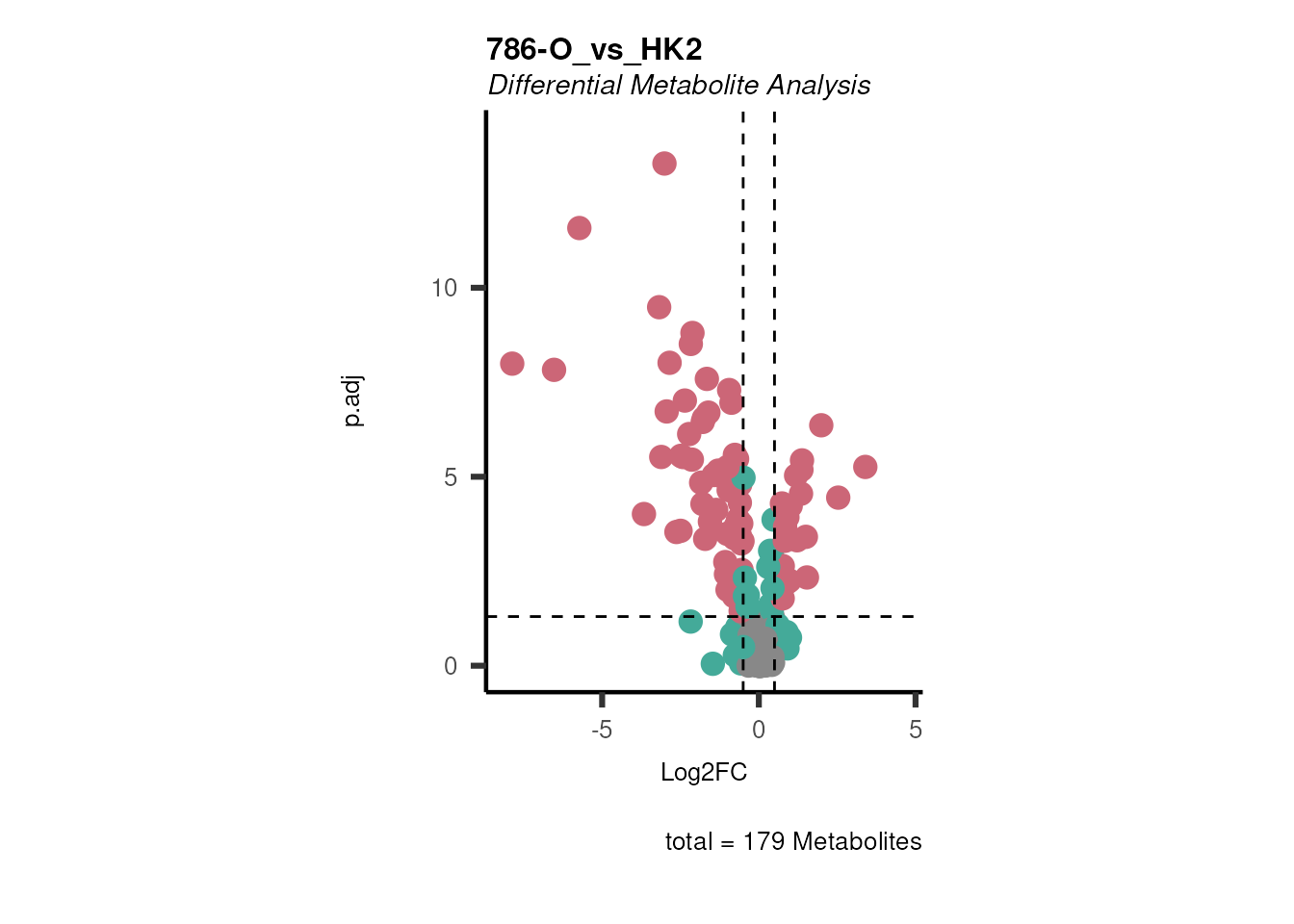

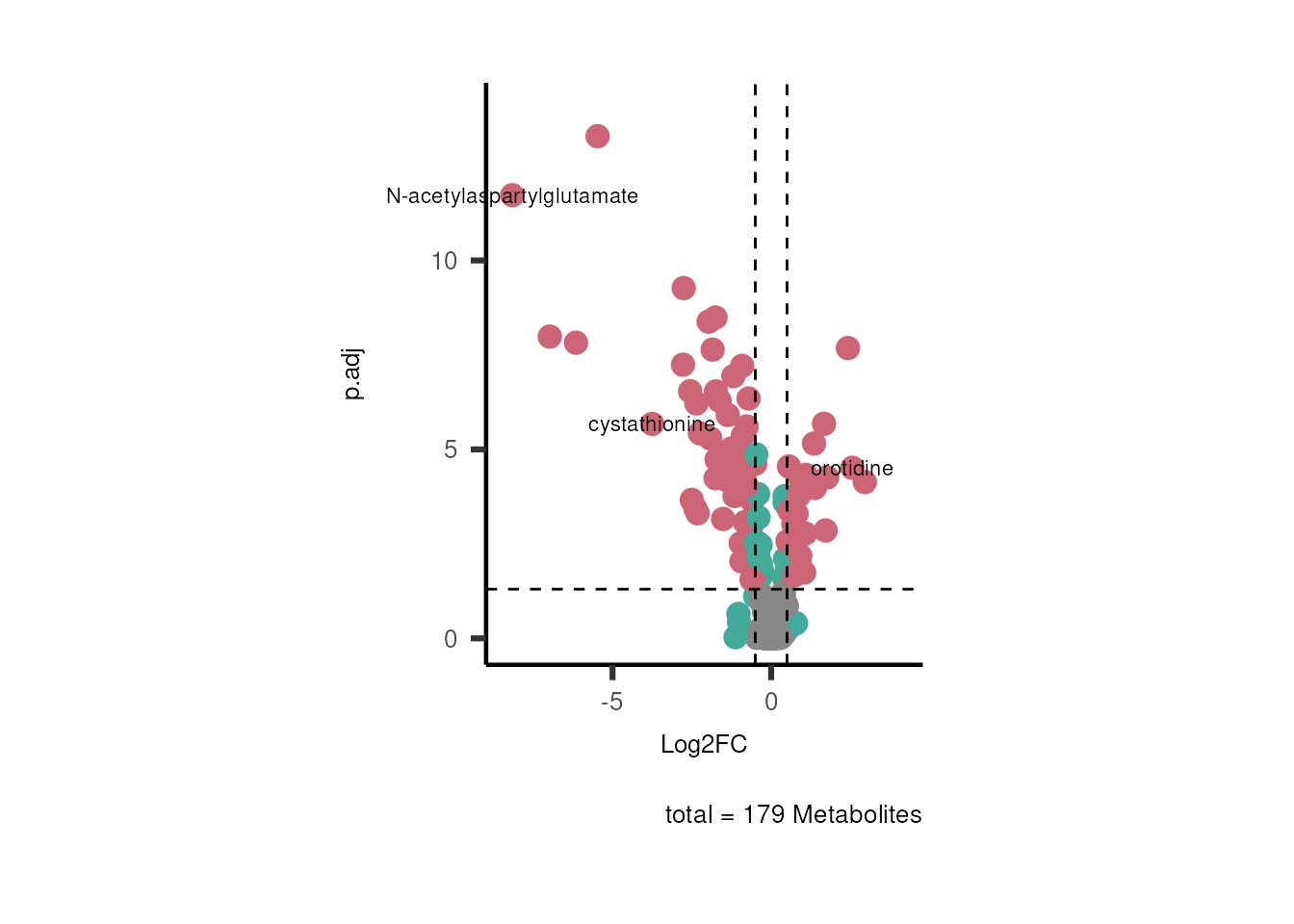

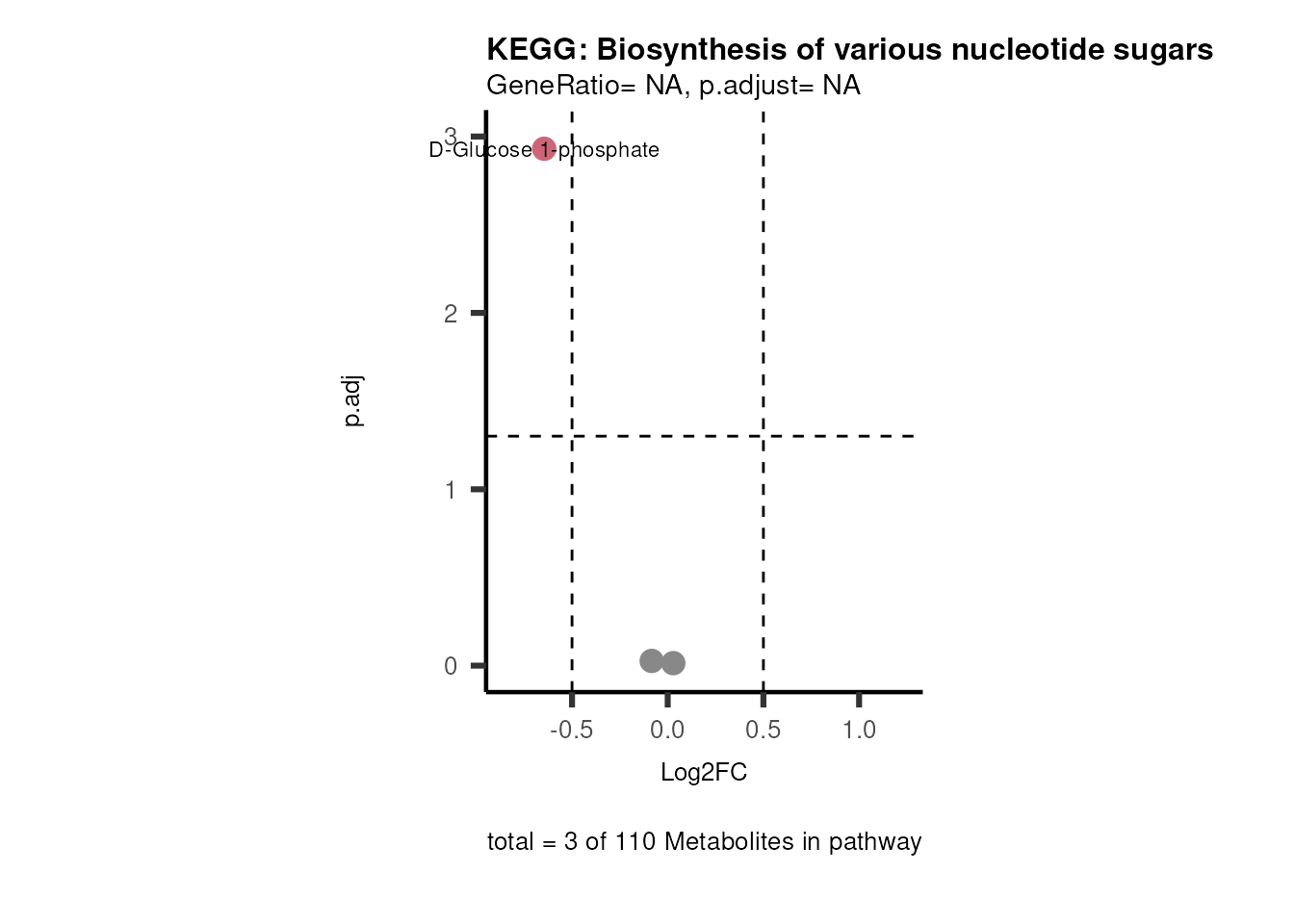

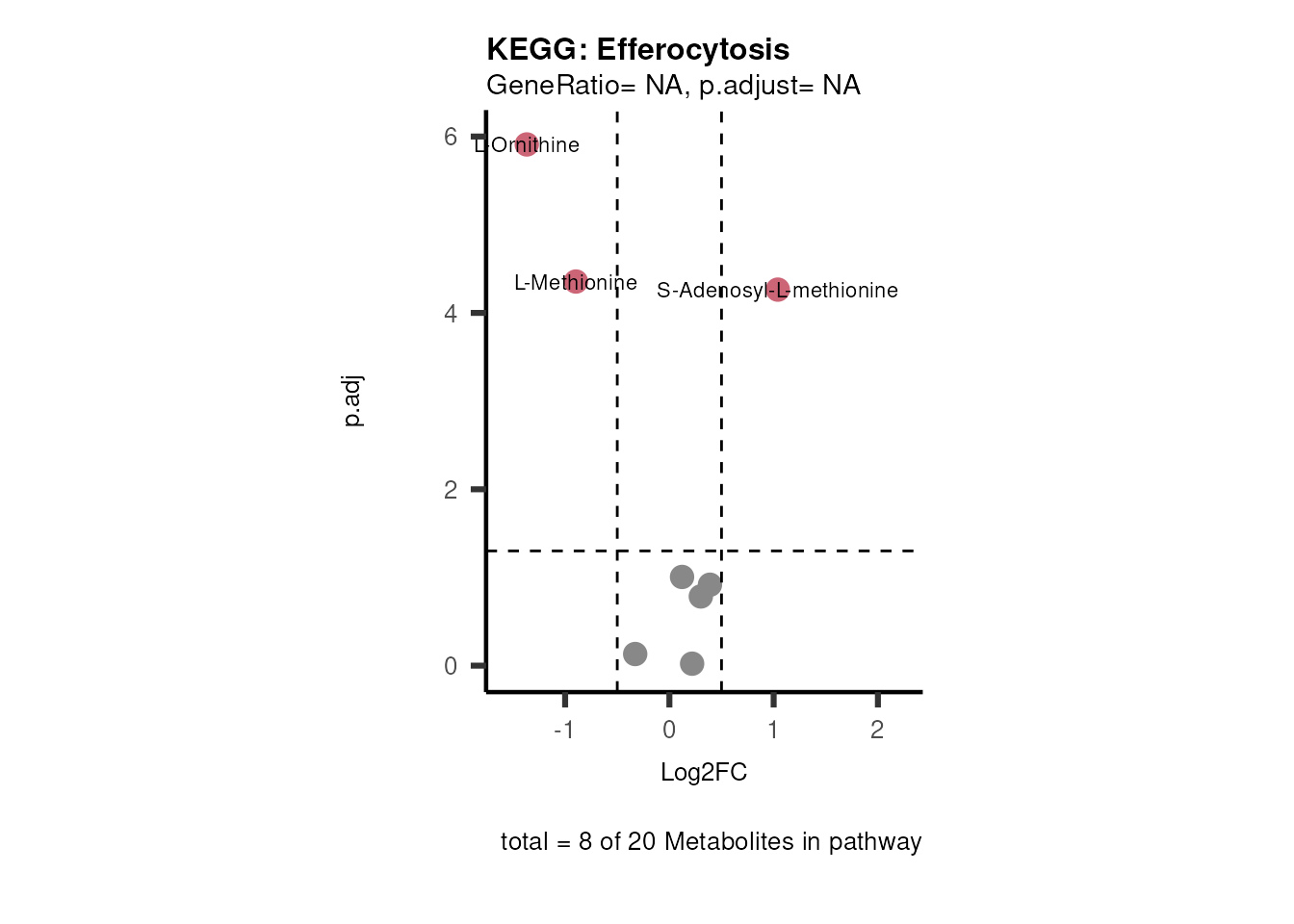

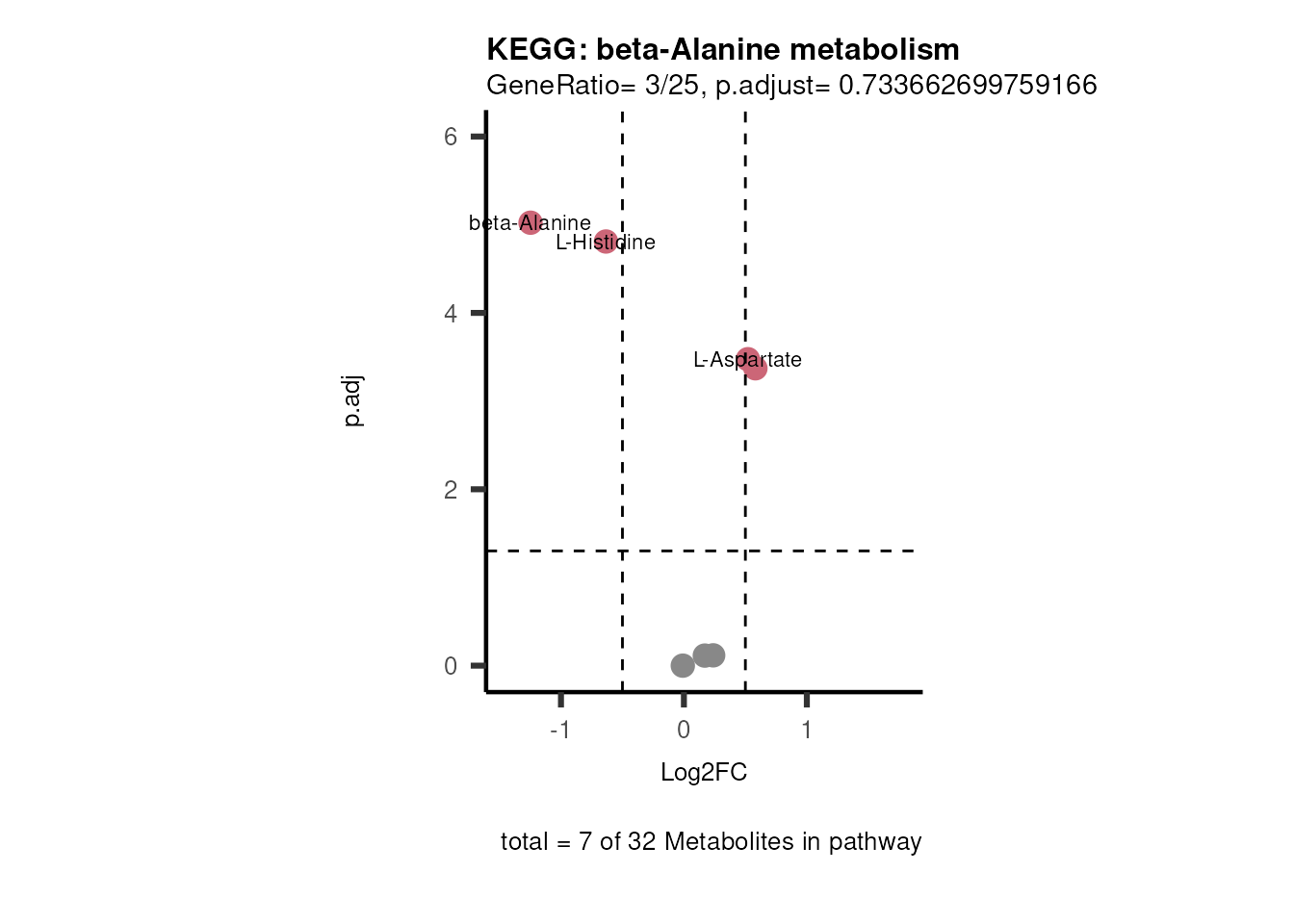

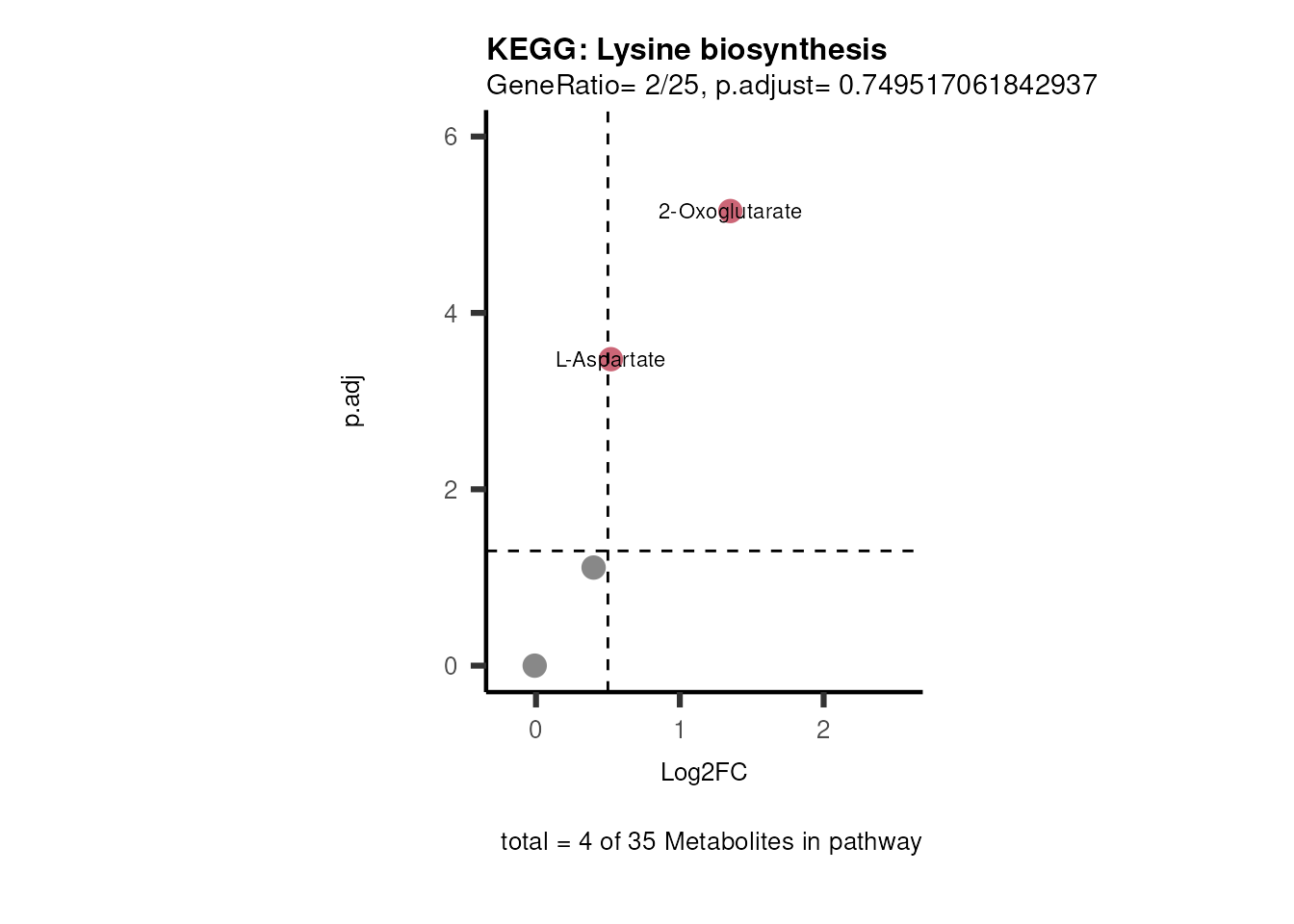

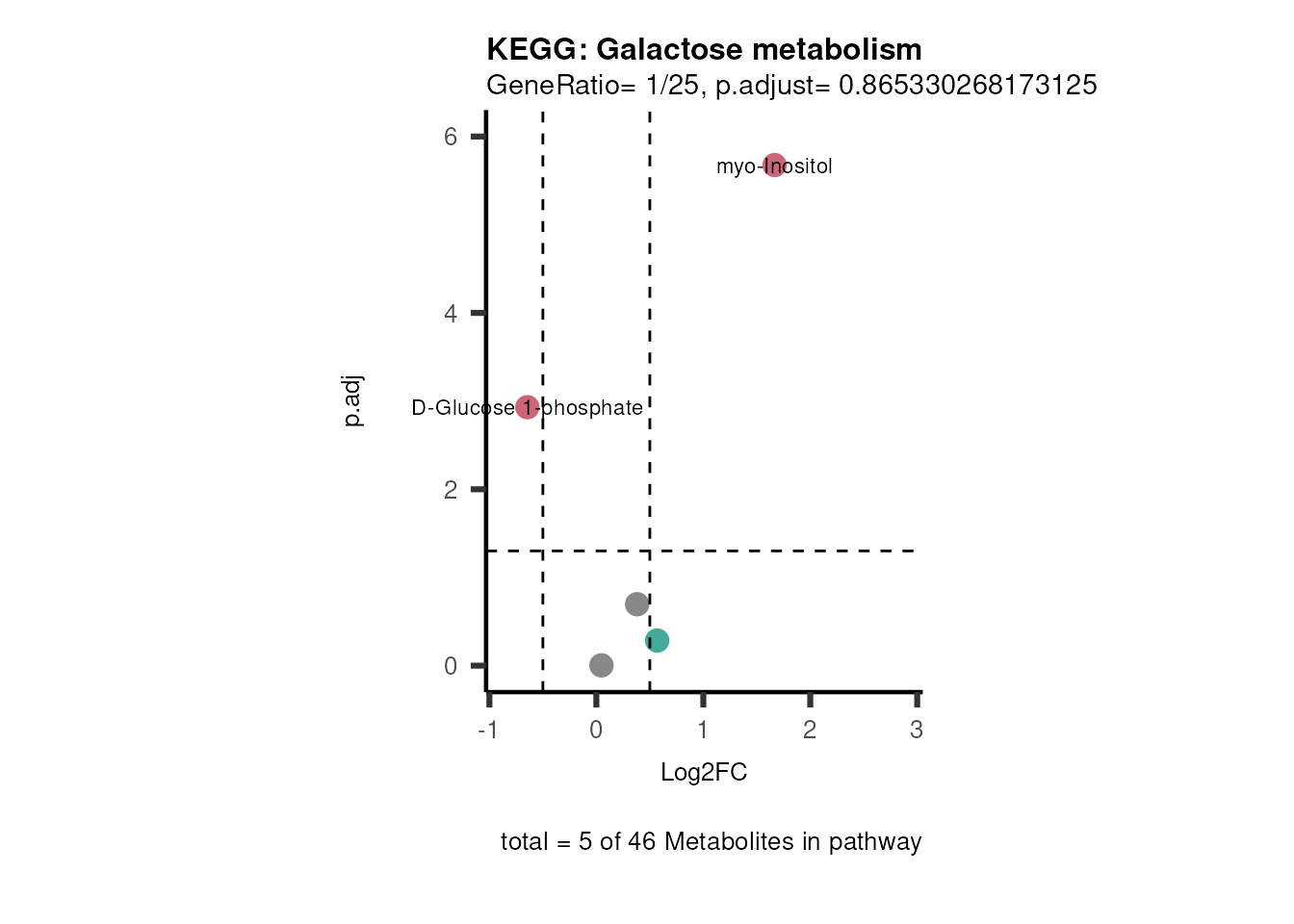

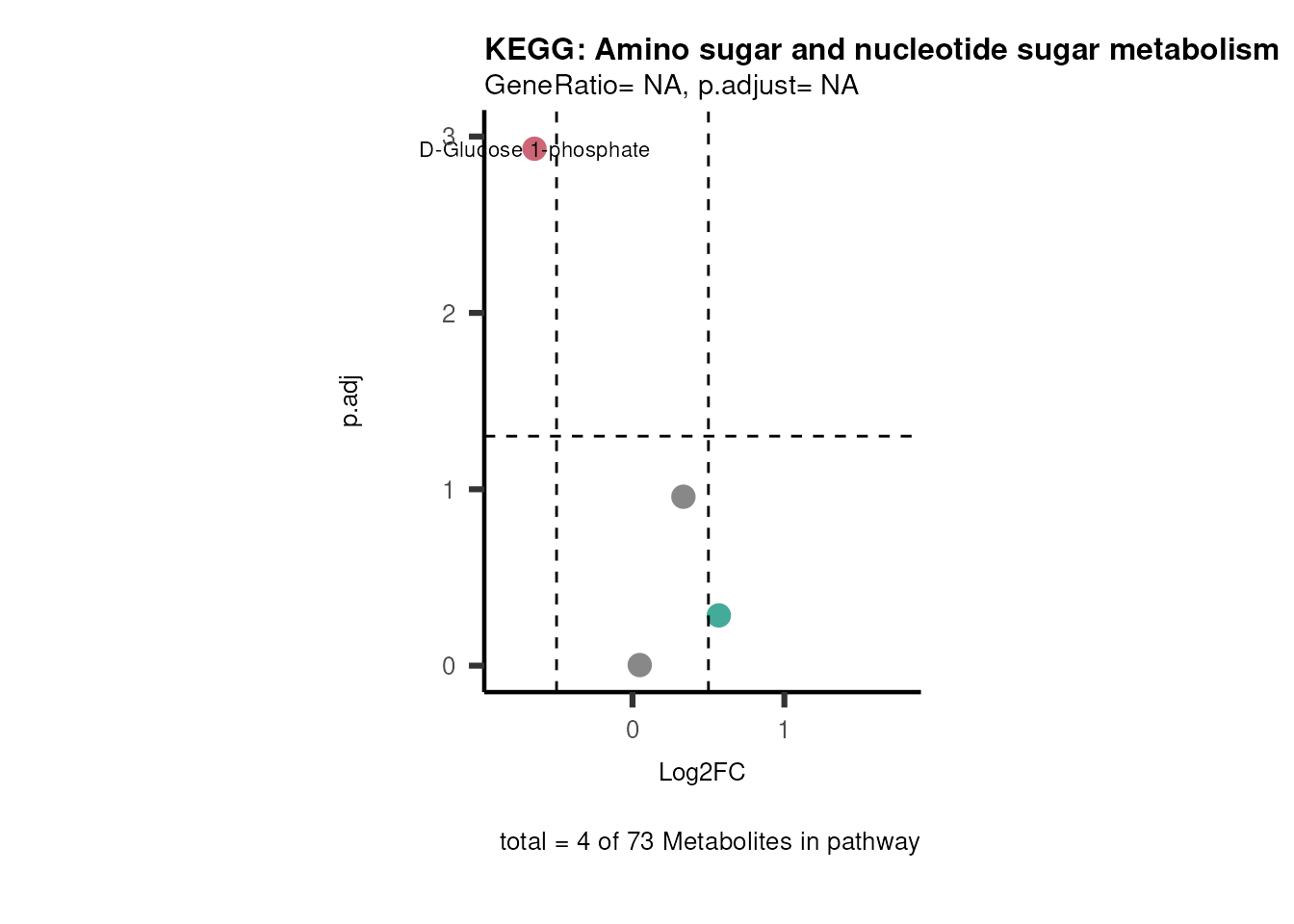

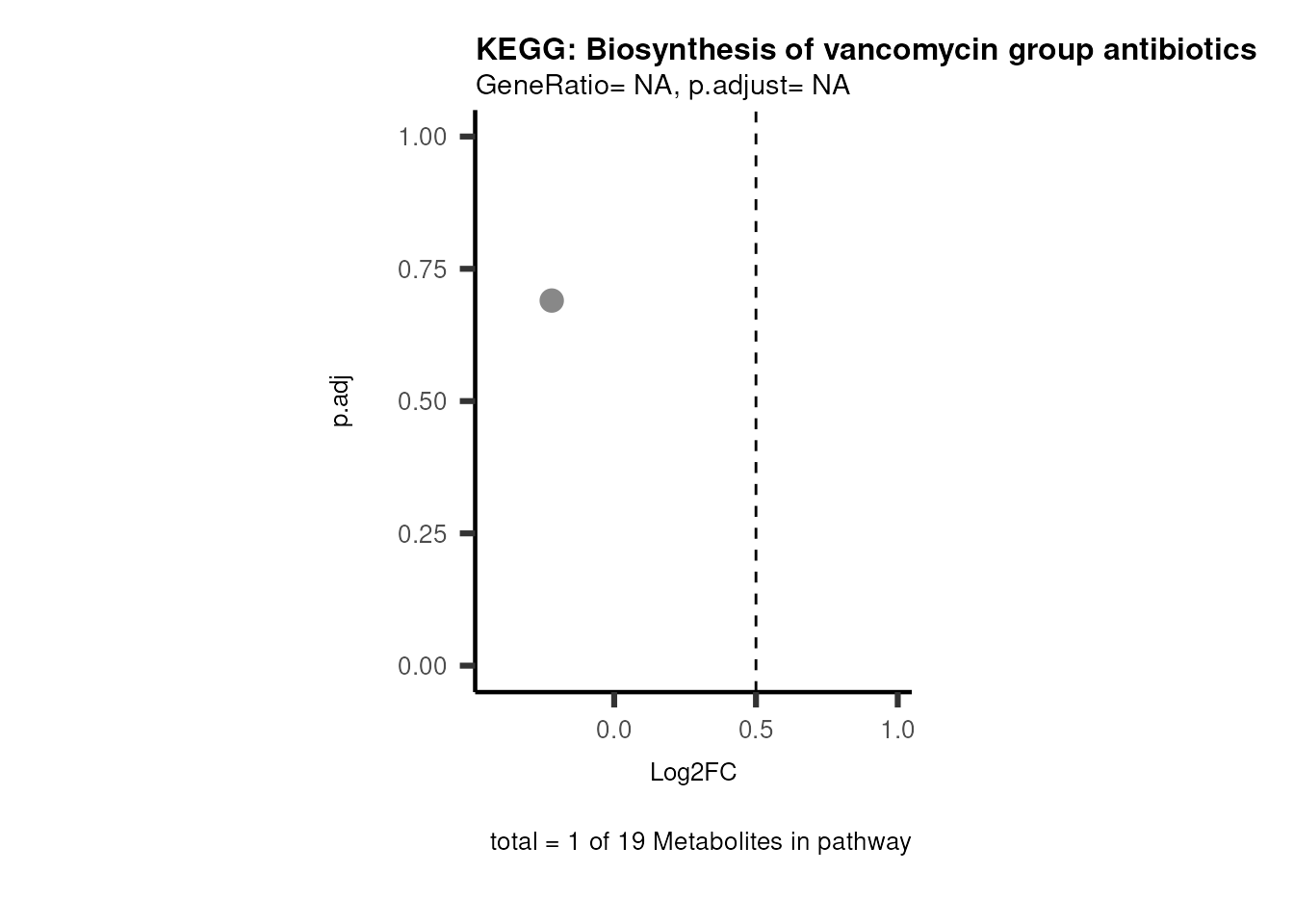

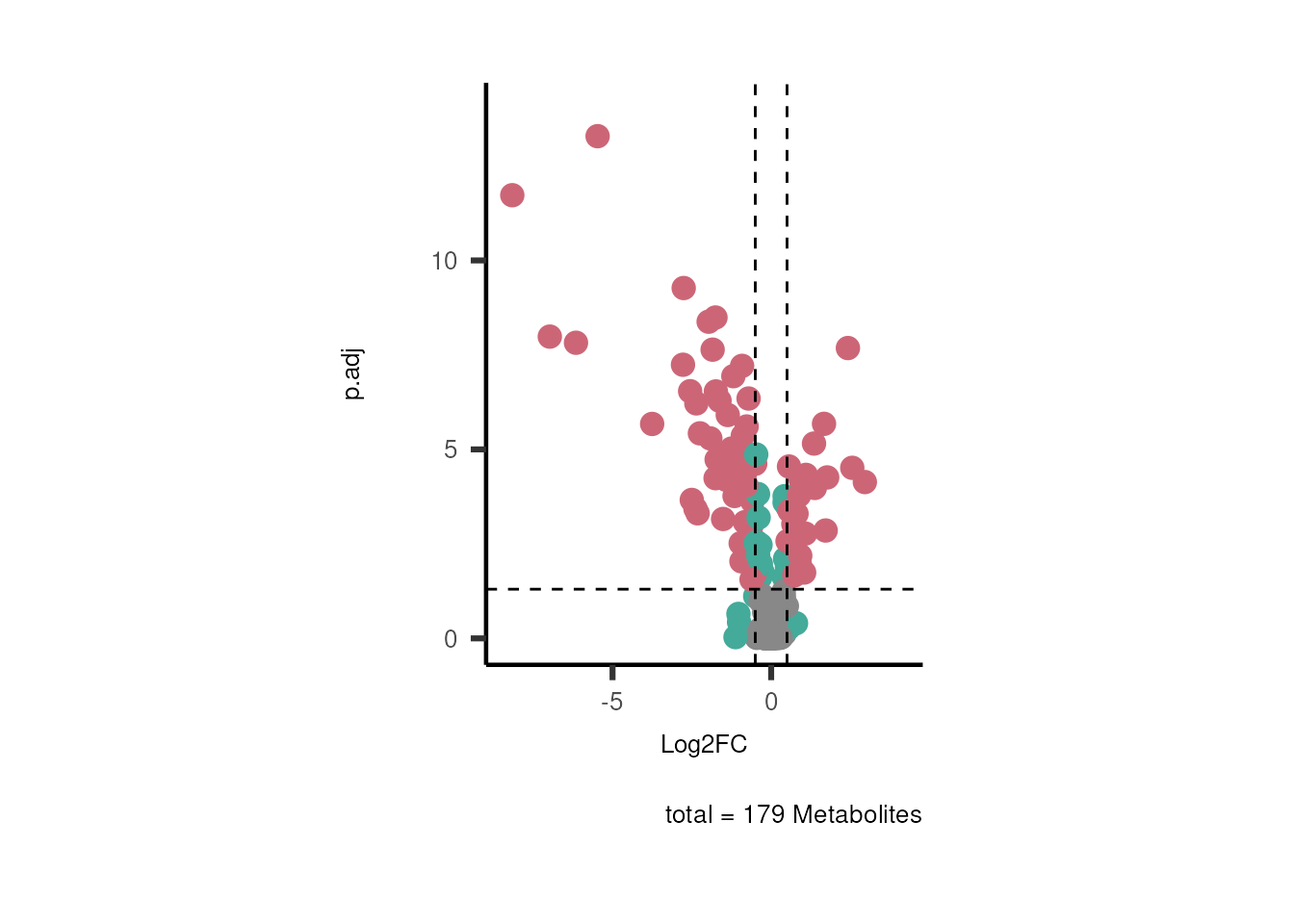

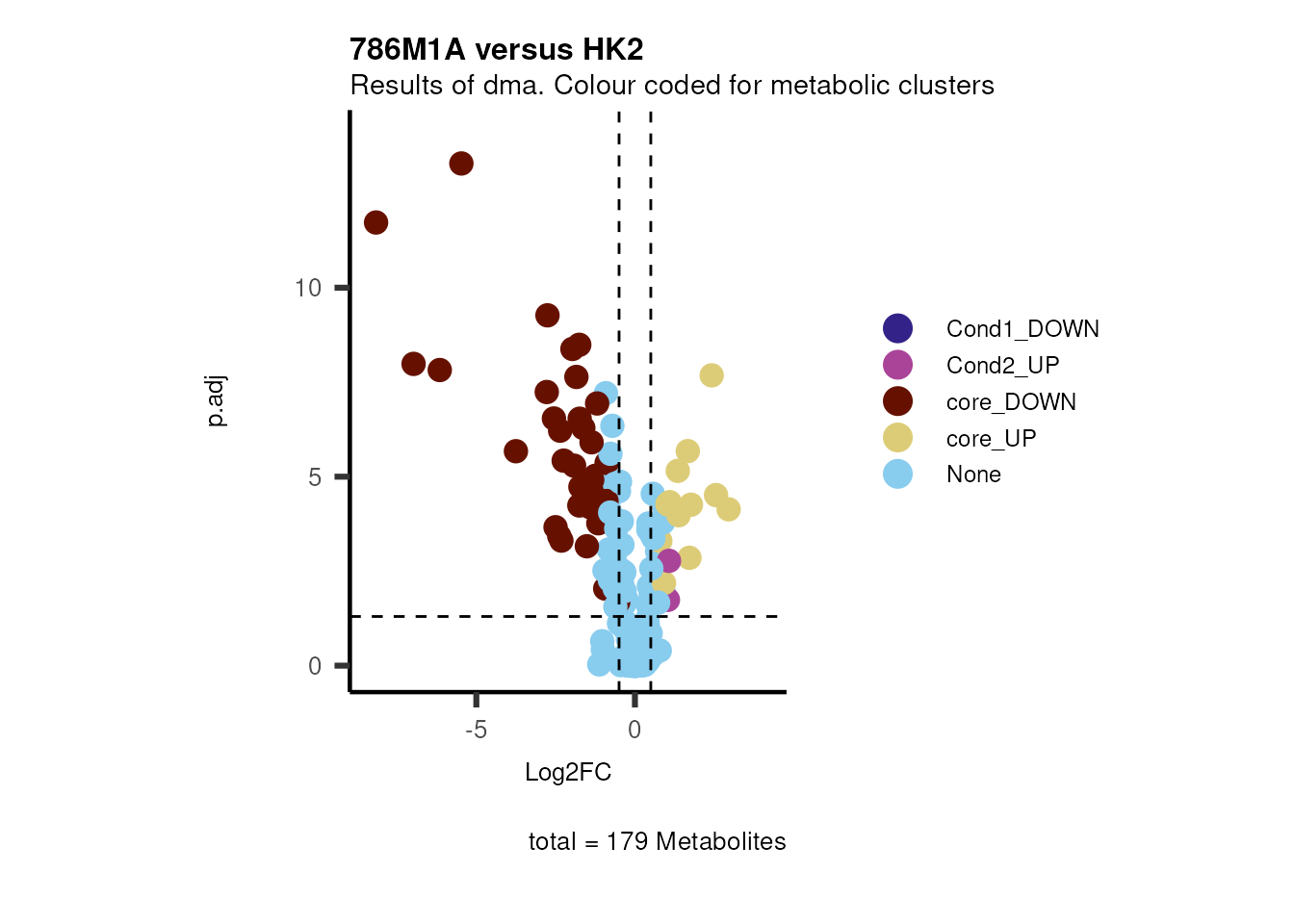

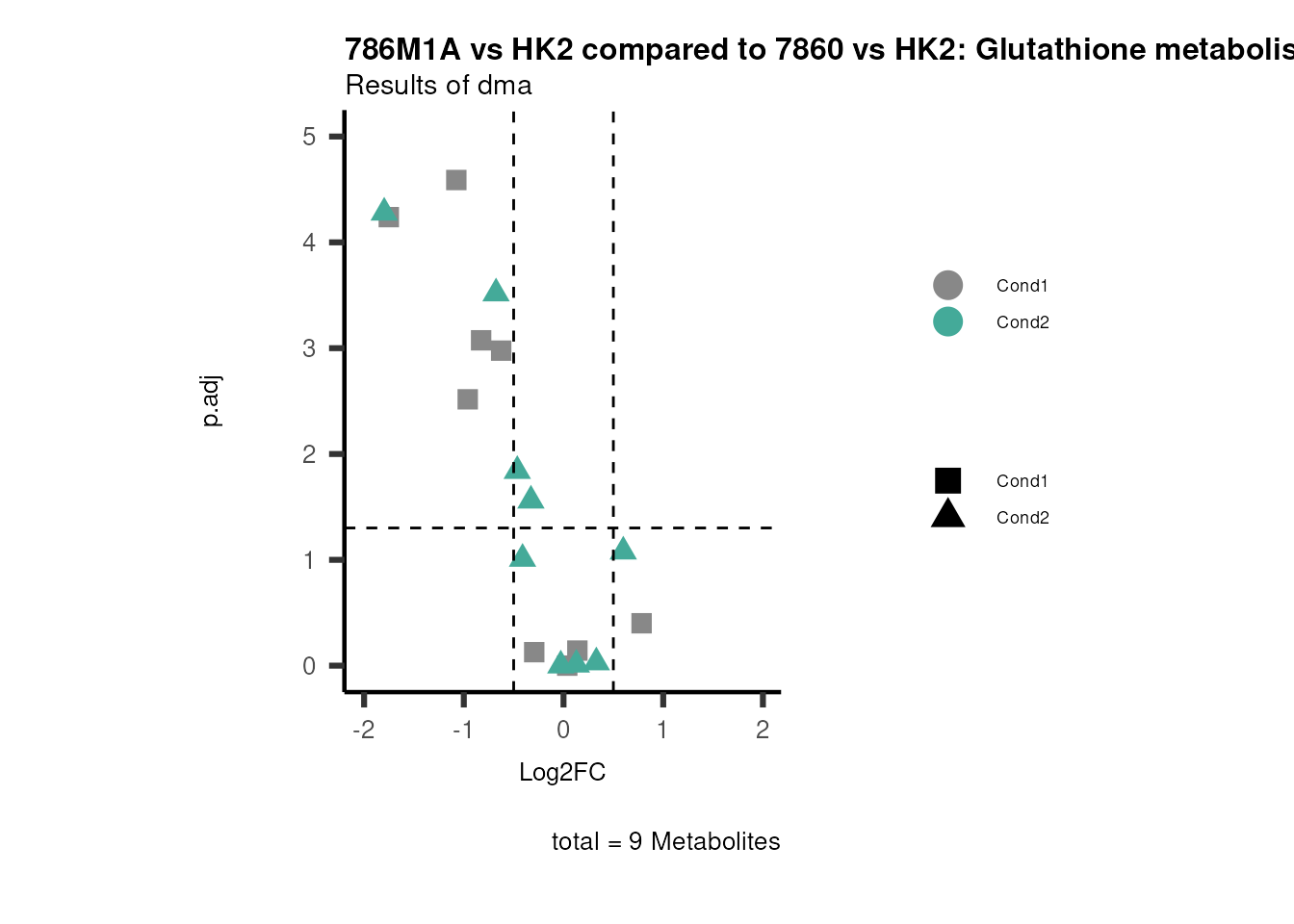

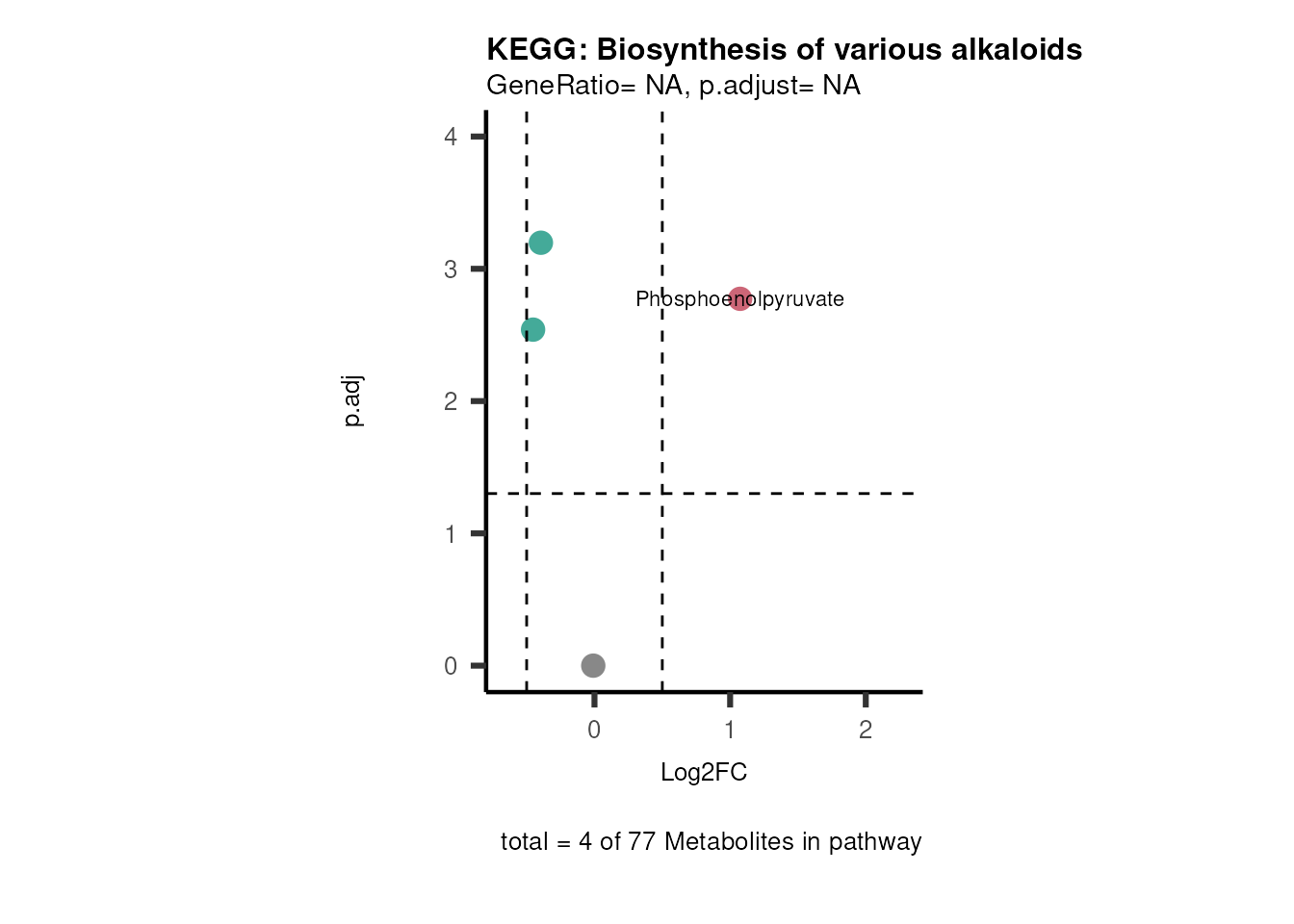

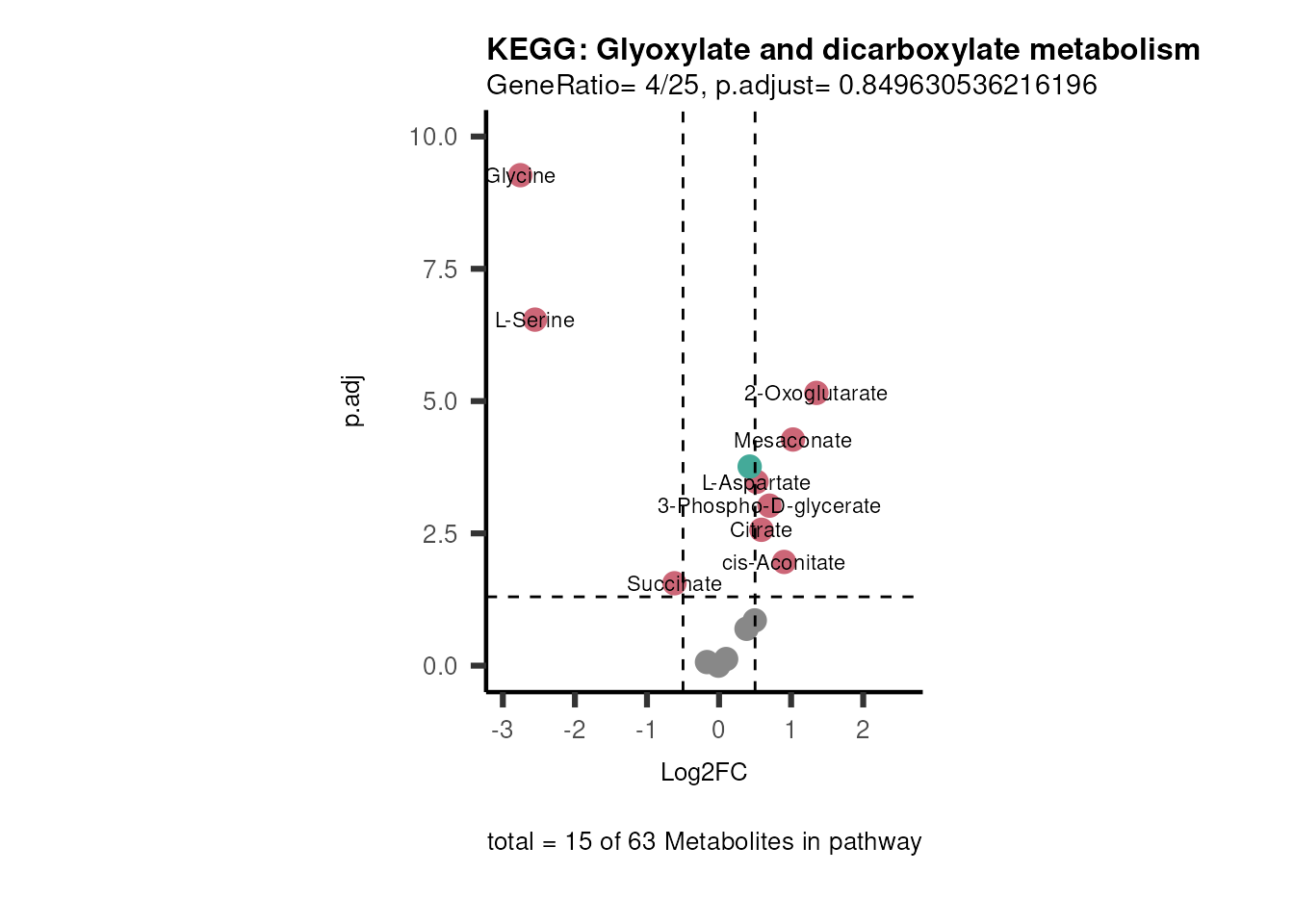

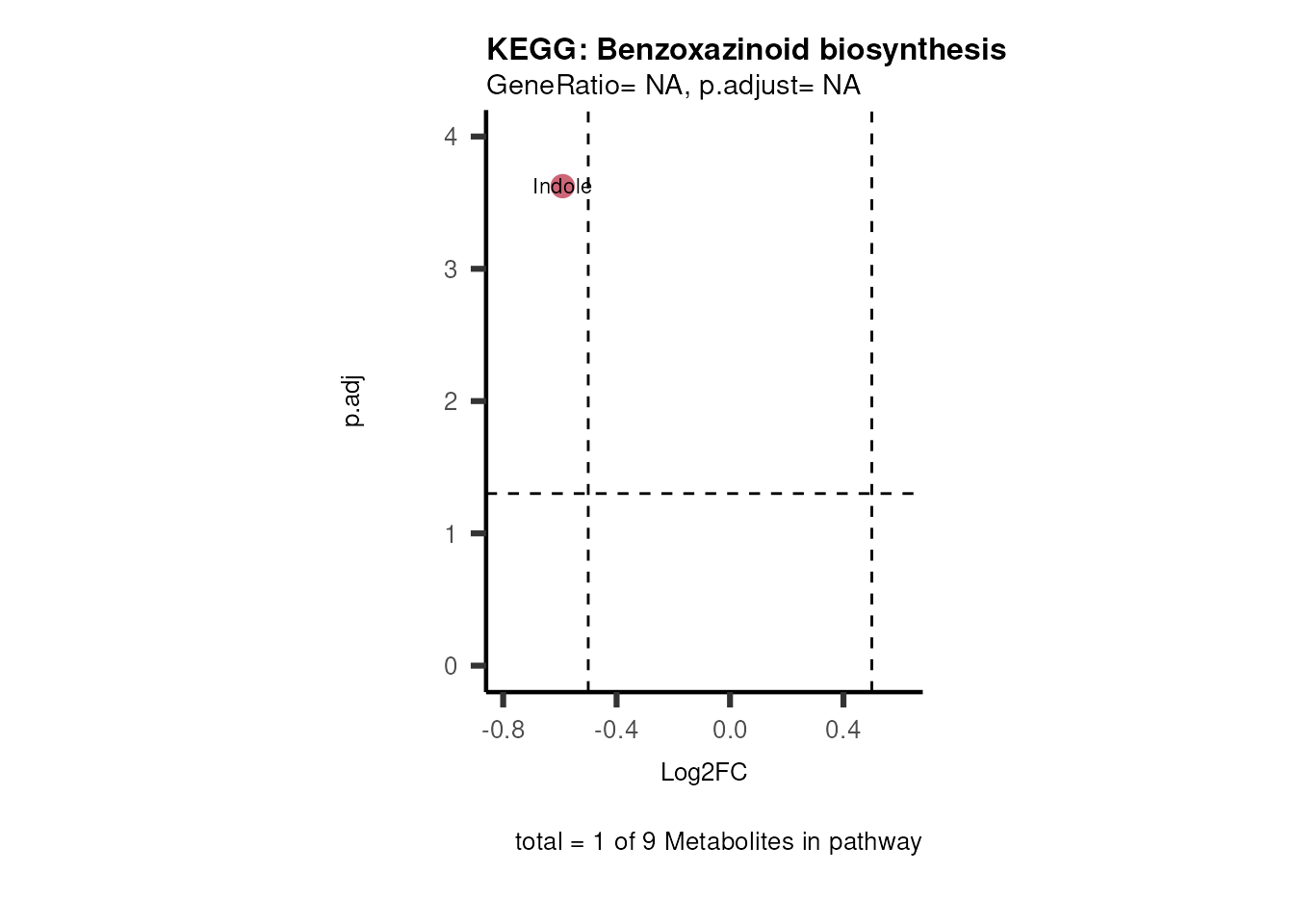

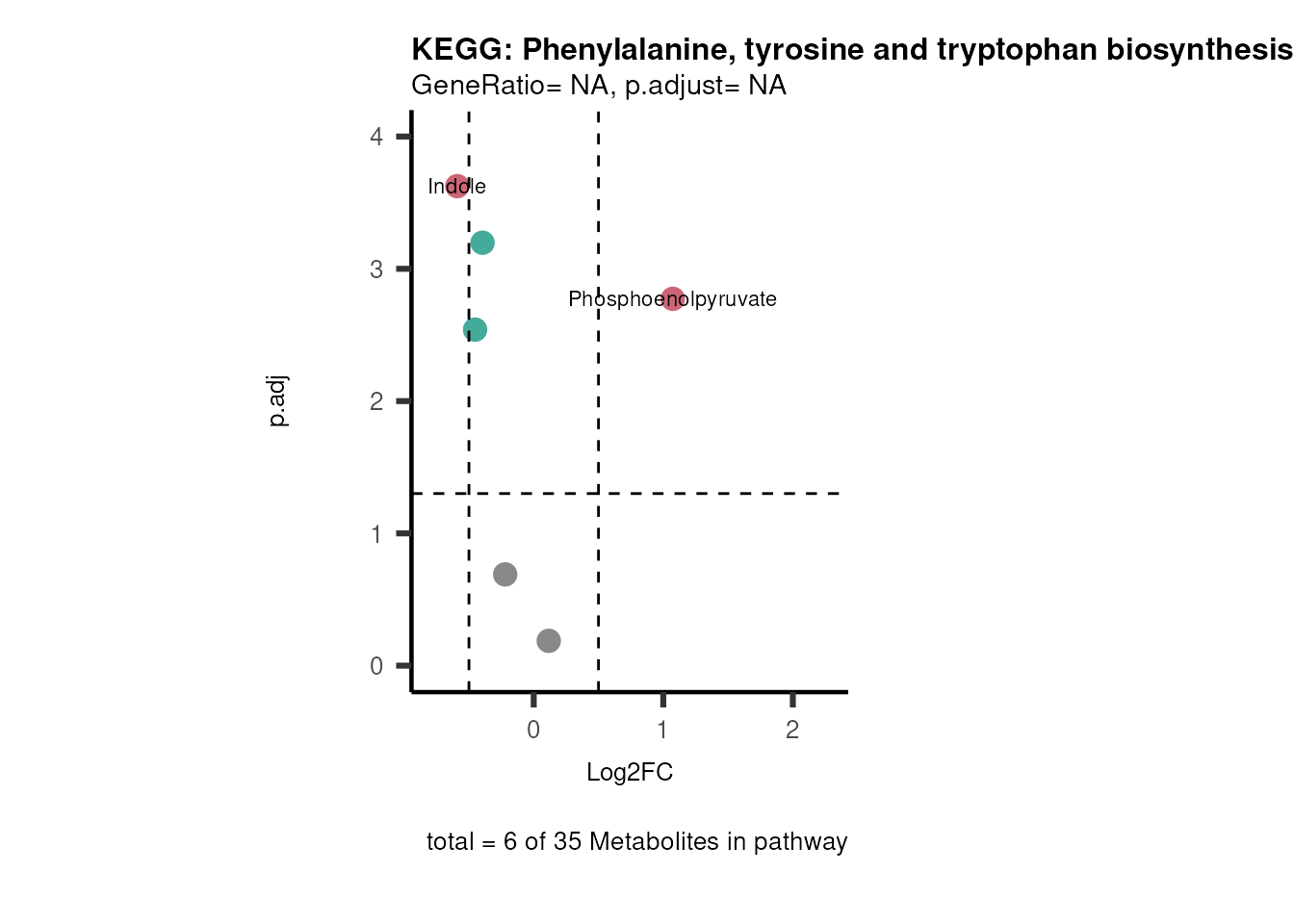

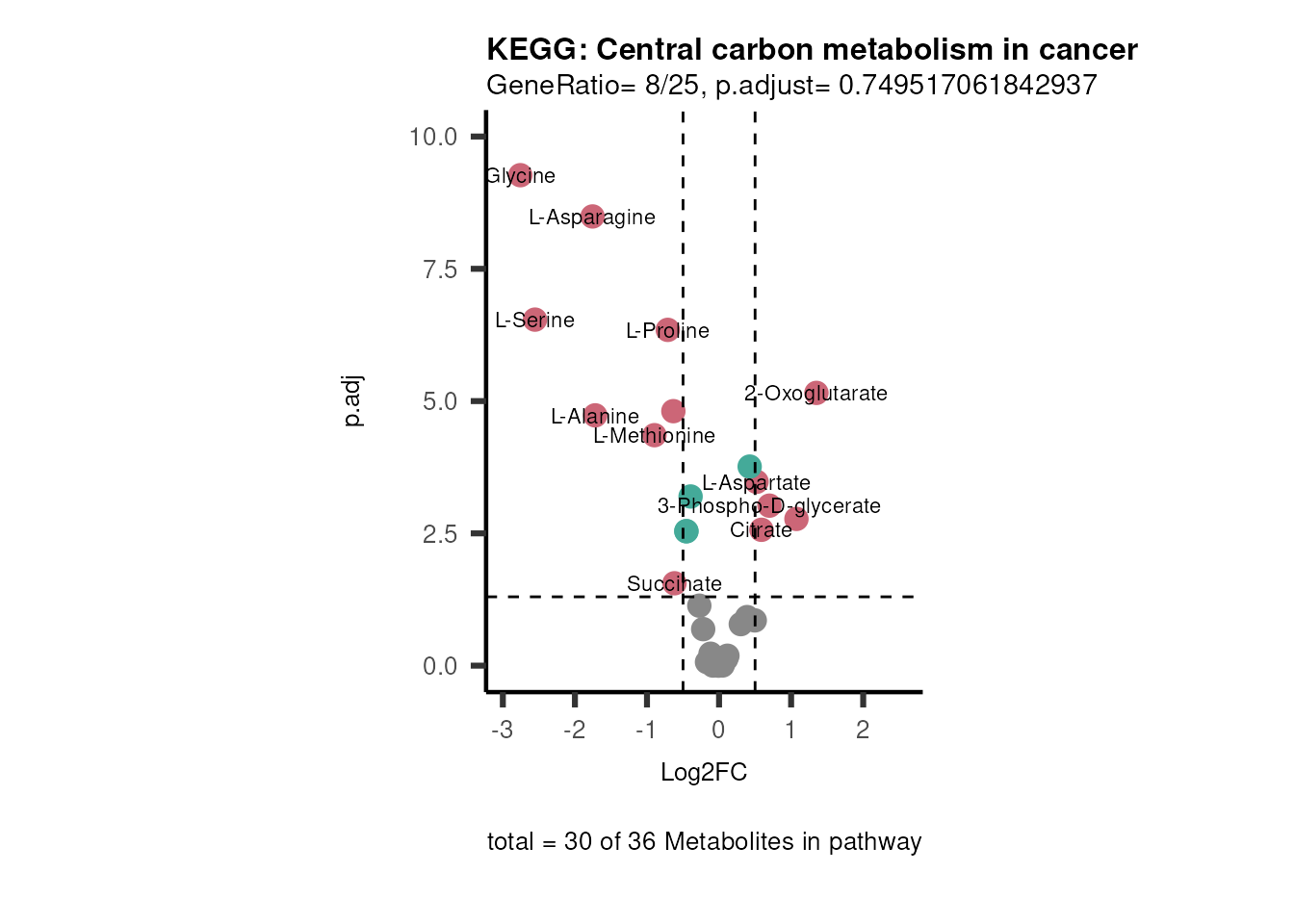

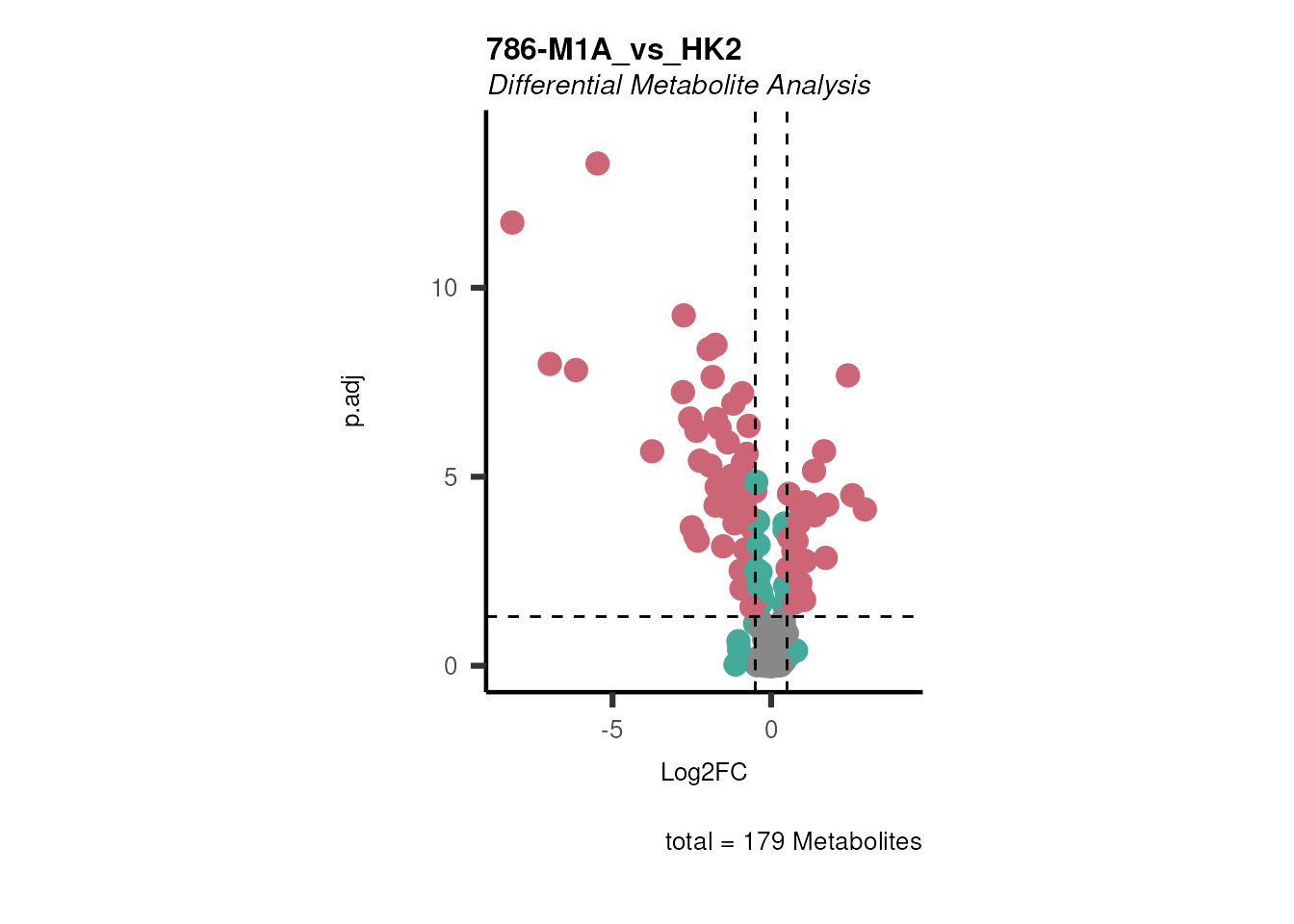

Using the dma results, we can now use the MetaProViz visualization module and generate further customized Volcano plots viz_volcano(). You can see some examples below.

ORA using the dma results

Over Representation Analysis (ORA) is a pathway enrichment analysis (PEA) method that determines if a set of features (=metabolic pathways) are over-represented in the selection of features (=metabolites) from the data in comparison to all measured features (metabolites) using the Fishers exact test. The selection of metabolites are usually the most altered metabolites in the data, which can be selected by the top and bottom t-values.
Of course, there are many other PEA methods such as the well known GSEA. Here we do not aim to provide an extensive tool for different methods to perform pathway enrichment analysis and only focus on ORA since we can apply this to perform standard pathway enrichment as well as pathway enrichment on clusters of metabolites (see MCA below). If you are interested in using different pathway enrichment methods please check out specialized tools such as decoupleR (Badia-I-Mompel et al. 2022).

Here we will use the KEGG pathways (Kanehisa and Goto 2000). Before we can perform ORA on the dma results, we have to ensure that the metabolite names match with the KEGG IDs or KEGG trivial names. In general, the input_pathway requirements are column “term”, “Metabolite” and “Description”, and the data requirements are column “t.val” and column “Metabolite”.

# Since we have performed multiple comparisons (all_vs_HK2), we will run ORA for each of this comparison
DM_ORA_res<- list()

comparisons <- names(DMA_Annova[["dma"]])
for(comparison in comparisons){
    #Ensure that the Metabolite names match with KEGG IDs or KEGG trivial names.
    dma <- DMA_Annova[["dma"]][[comparison]]
    dma <- dma[complete.cases(dma),-1]%>%#we remove metabolites that do not have a KEGG ID/KEGG pathway
    dplyr::rename("Metabolite"="KEGGCompound")#We use the KEGG trivial names to match with the KEGG pathways

    #Perform ORA
    DM_ORA_res[[comparison]] <- standard_ora(data= dma%>%remove_rownames()%>%tibble::column_to_rownames("Metabolite"), #Input data requirements: column `t.val` and column `Metabolite`
    metadata_info=c(pvalColumn="p.adj", percentageColumn="t.val", PathwayTerm= "term", PathwayFeature= "Metabolite"),
    input_pathway=KEGG_Pathways,#Pathway file requirements: column `term`, `Metabolite` and `Description`. Above we loaded the KEGG_Pathways using metsigdb_kegg()
    pathway_name="KEGG",
    min_gssize=3,
    max_gssize=1000,
    cutoff_stat=0.01,
    cutoff_percentage=10)


}

# Lets check how the results look like:

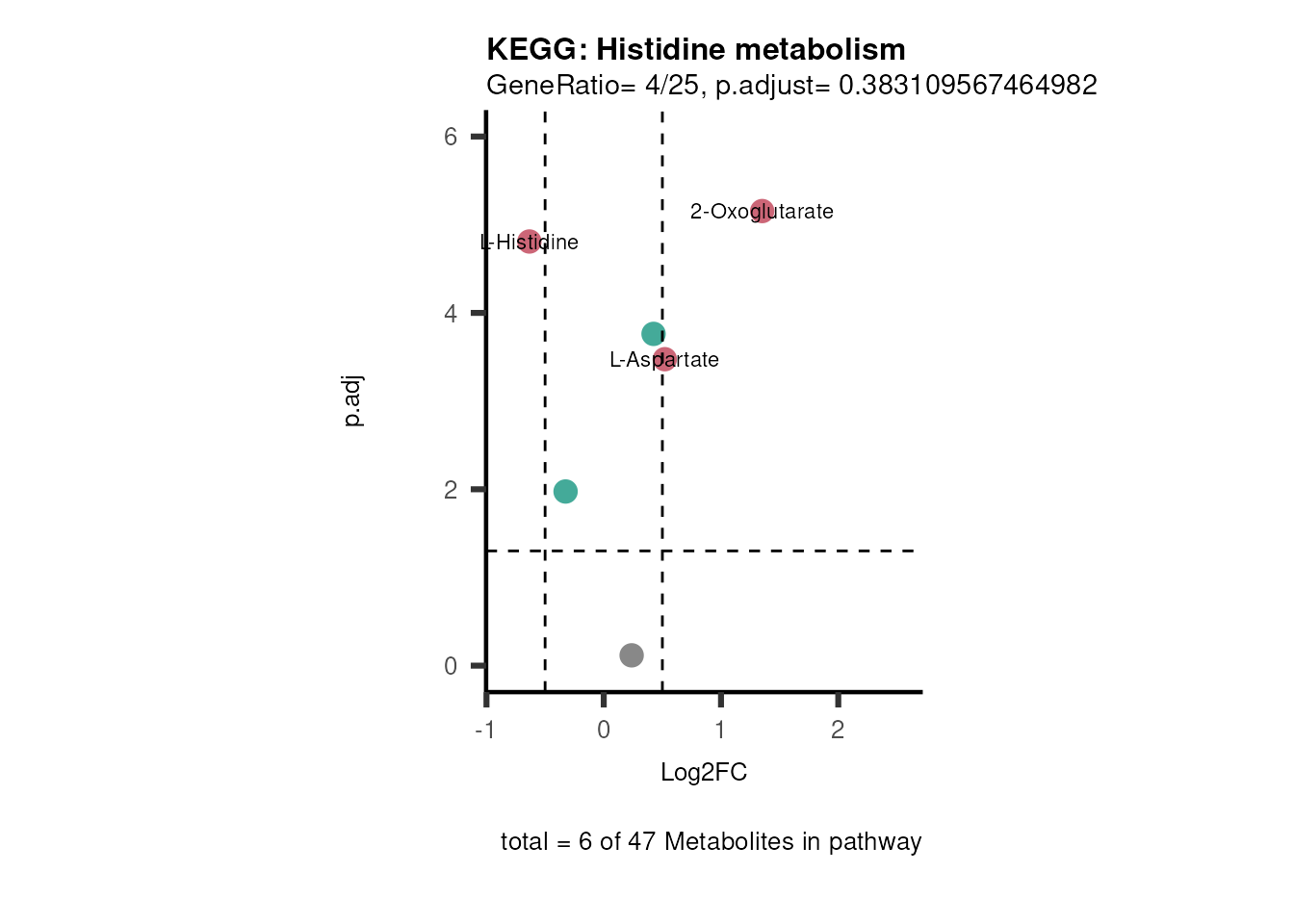

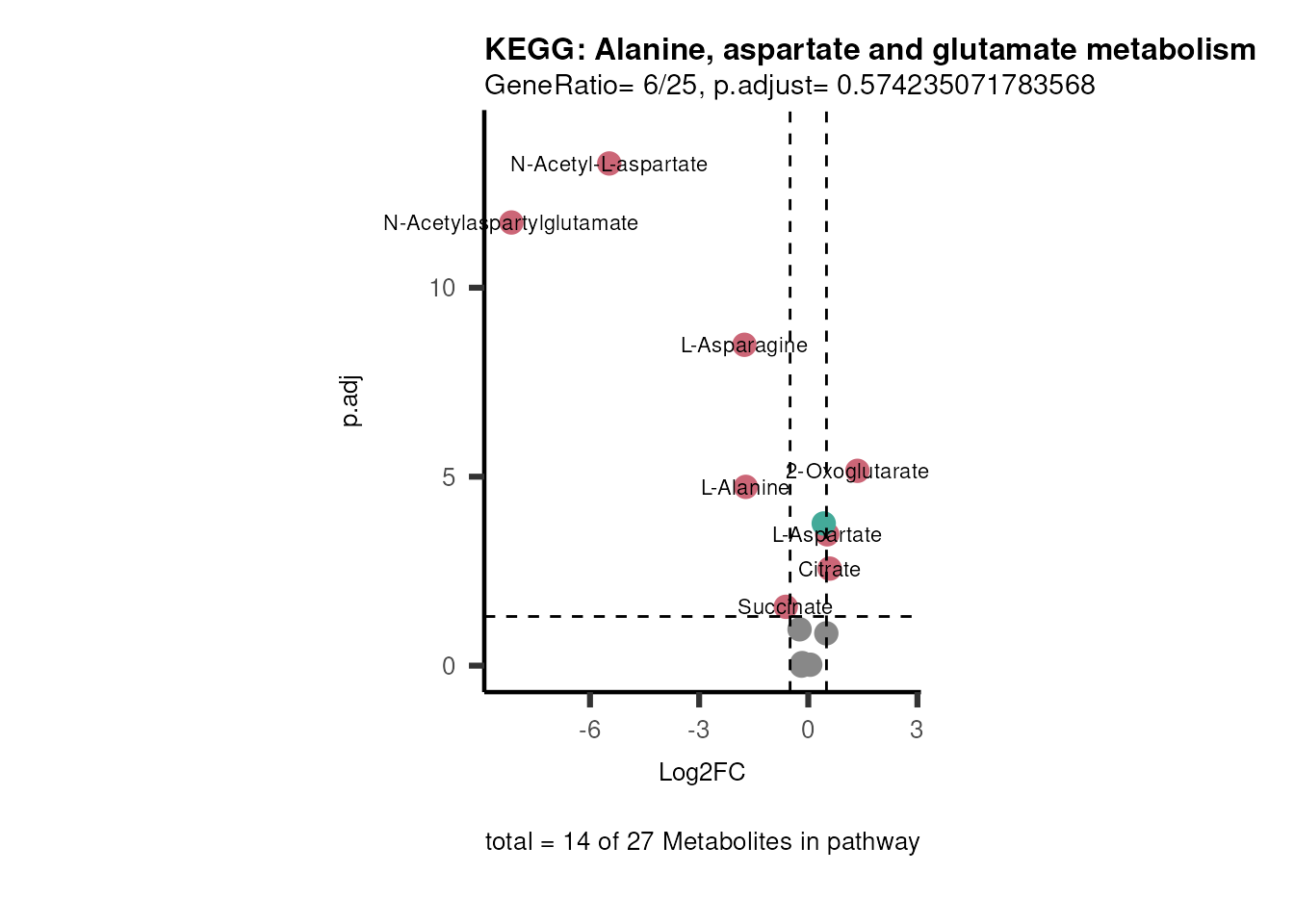

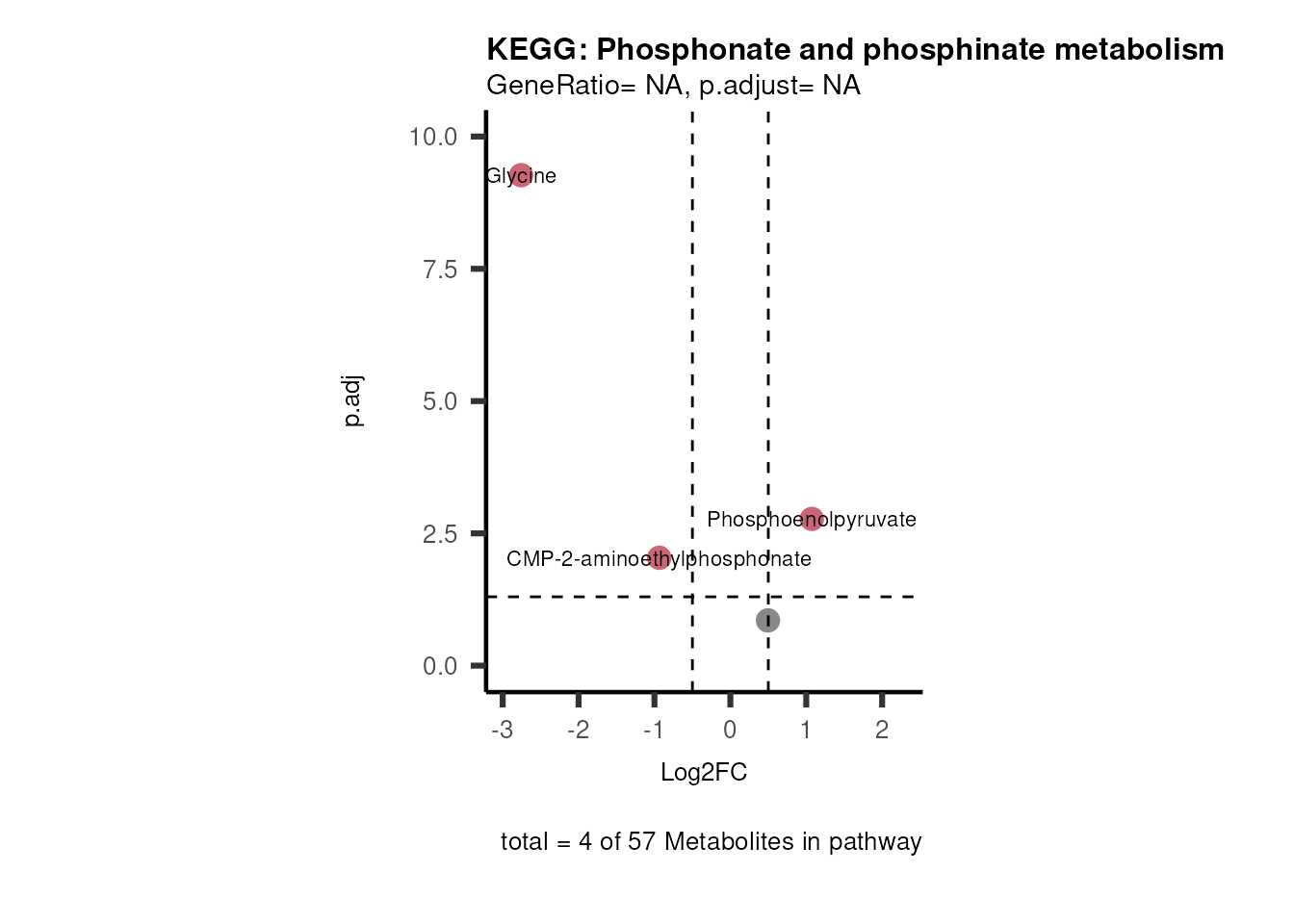

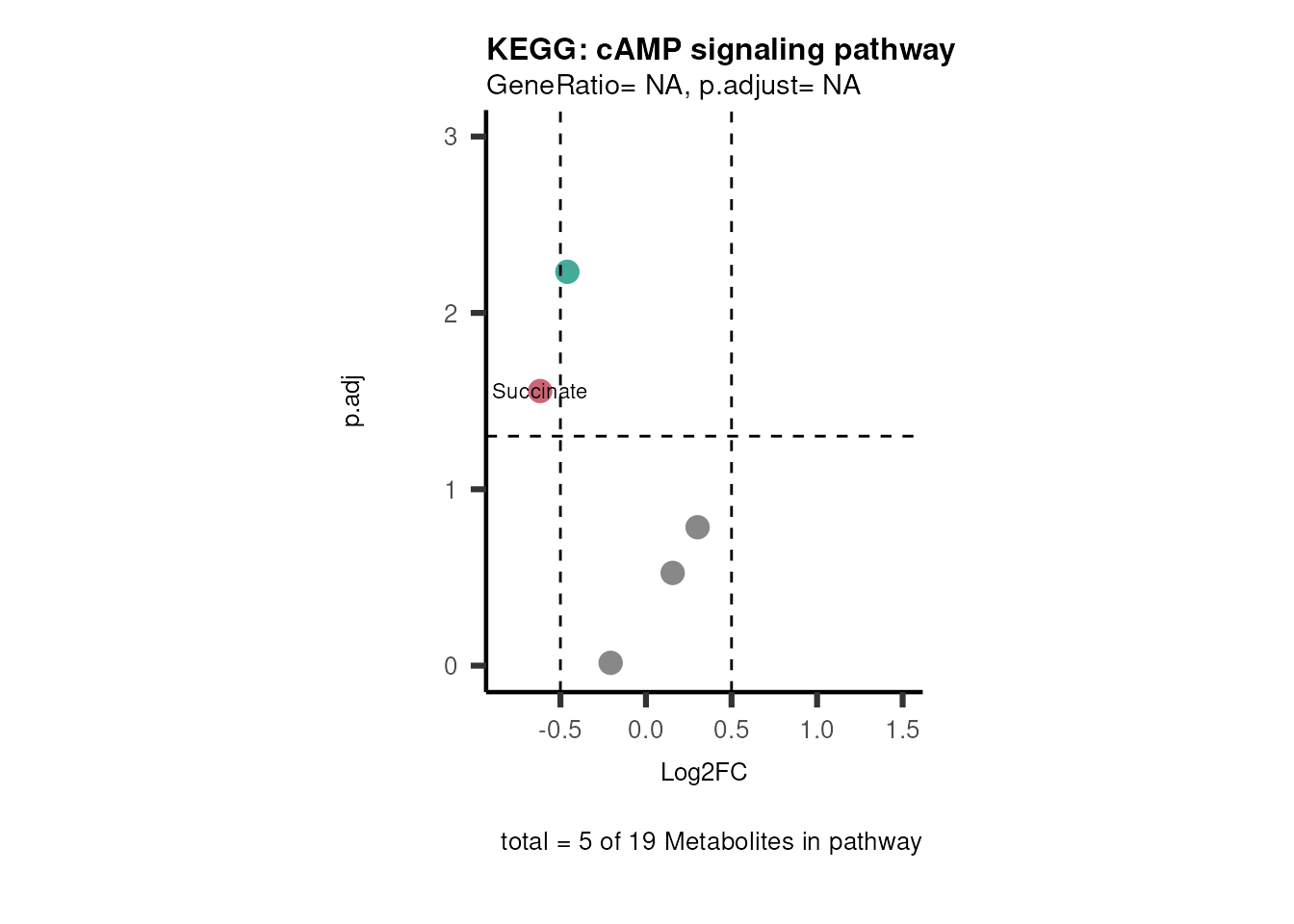

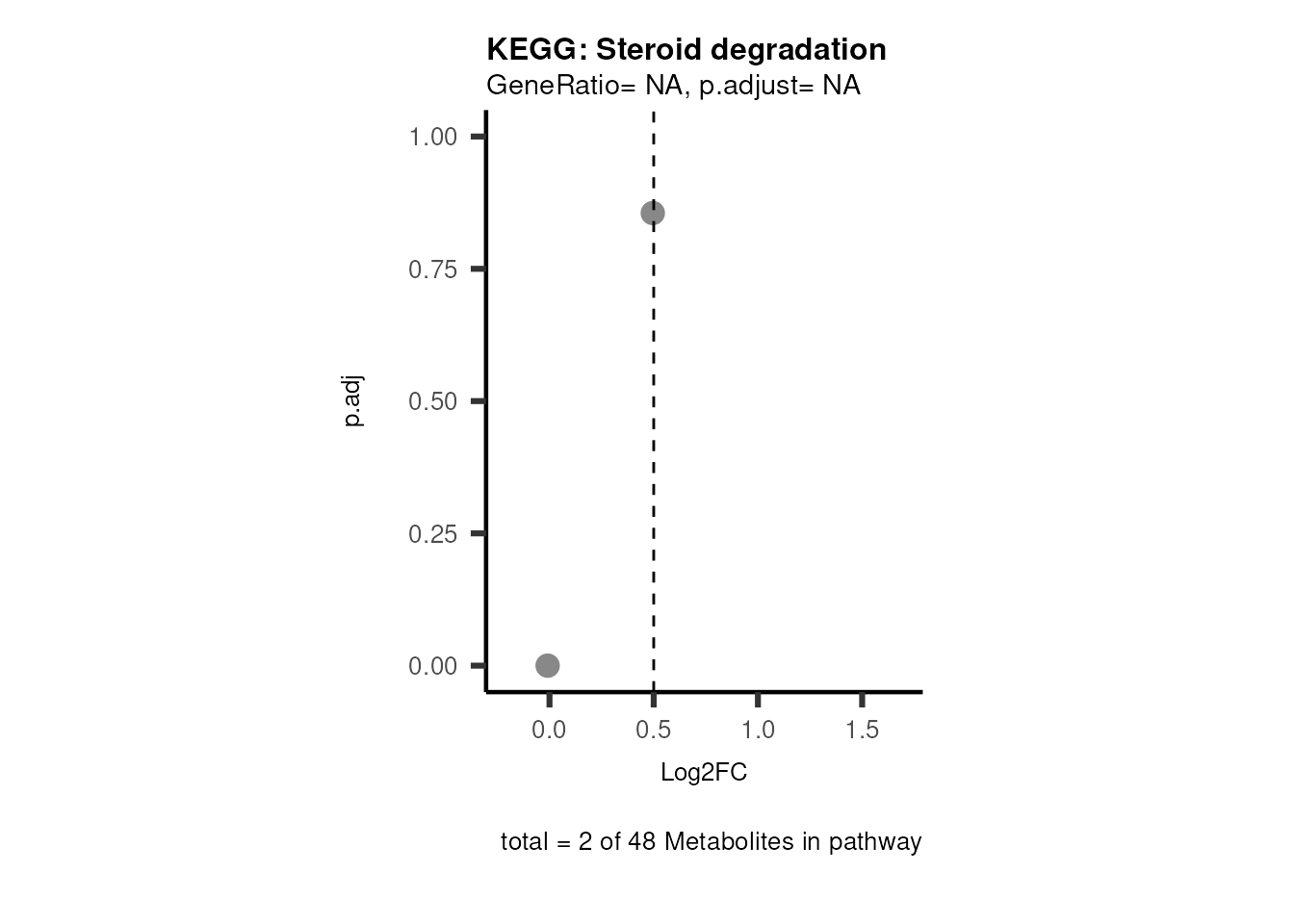

DM_ORA_786M1A_vs_HK2 <- DM_ORA_res[["786-M1A_vs_HK2"]][["ClusterGosummary"]]

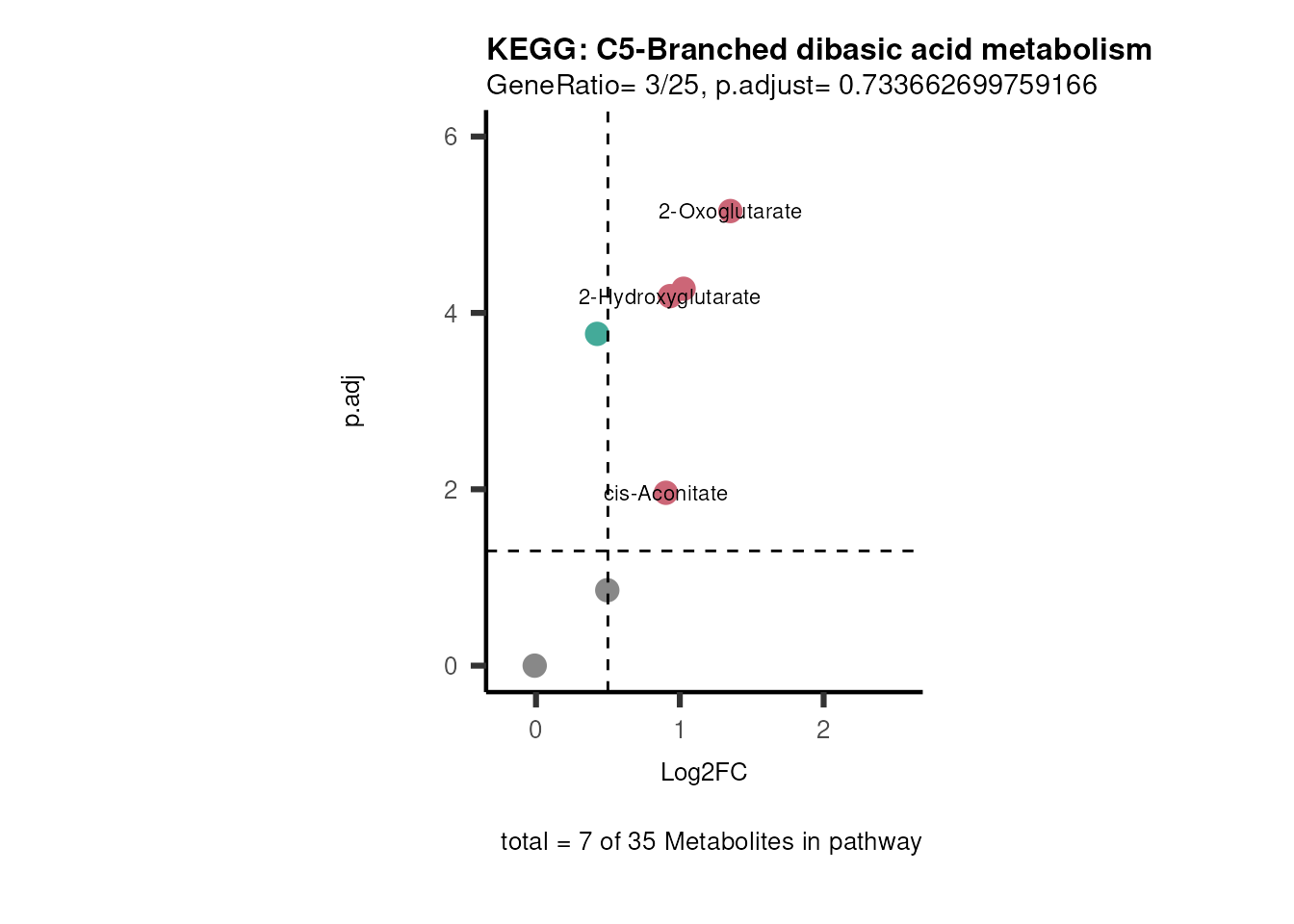

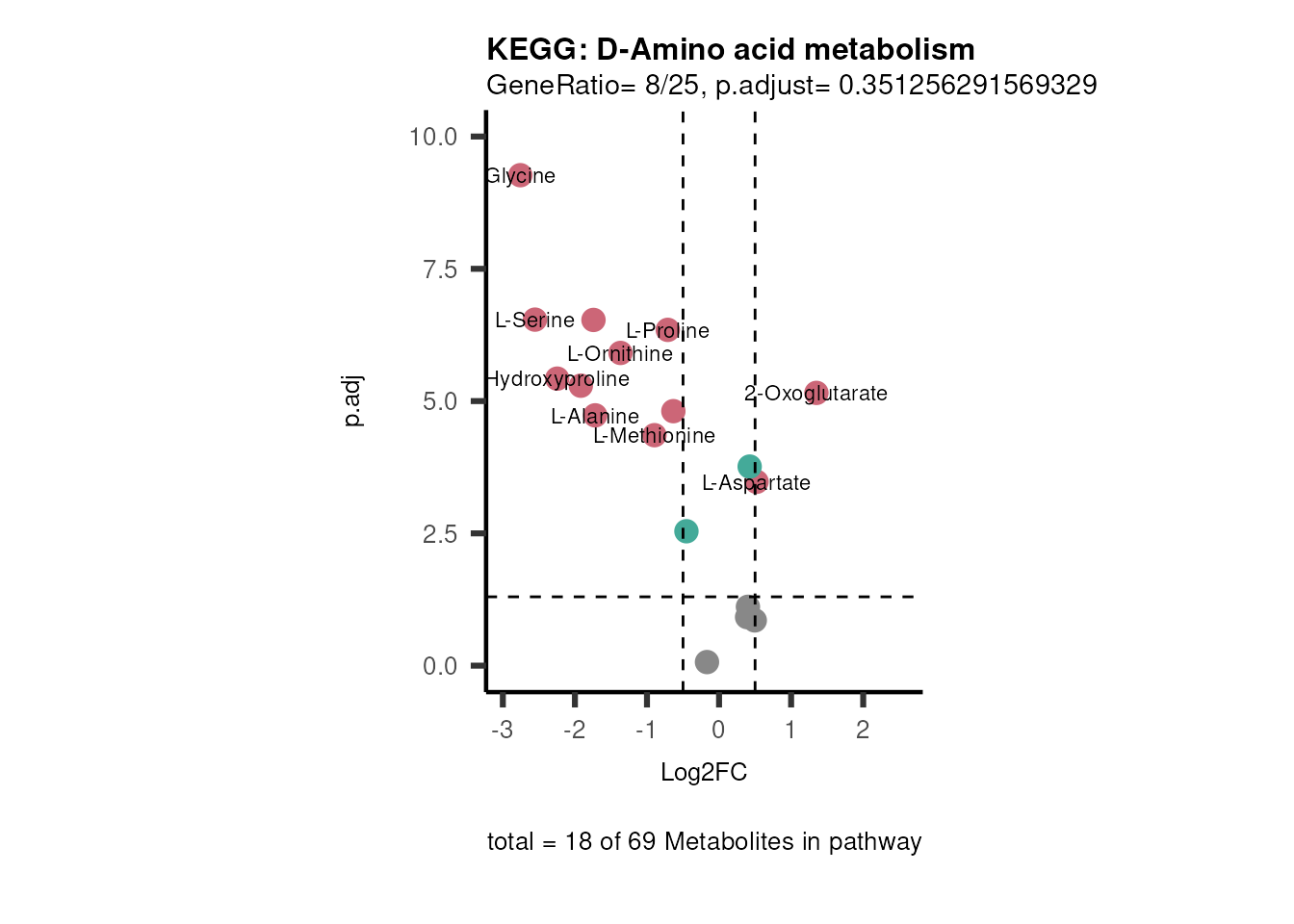

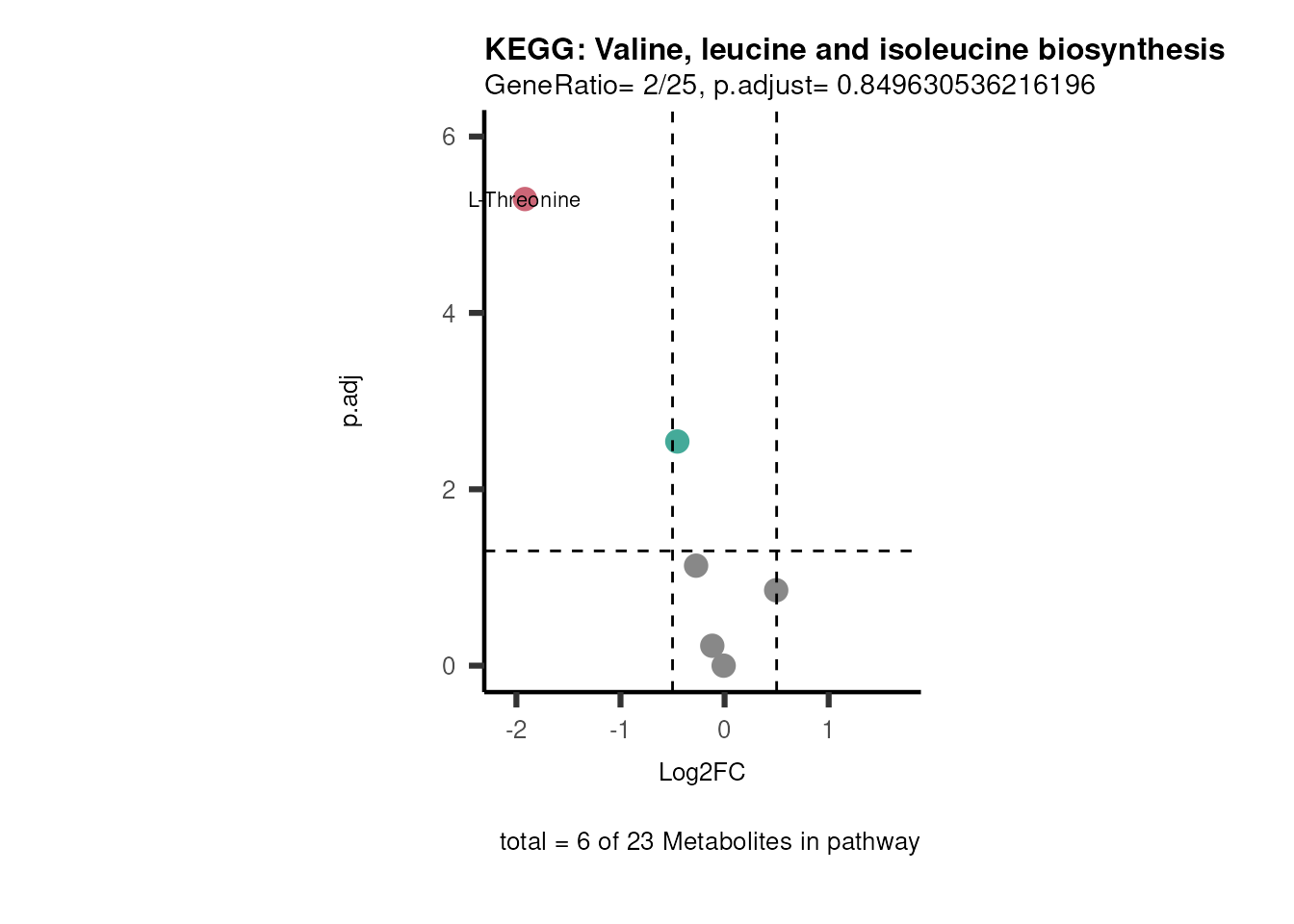

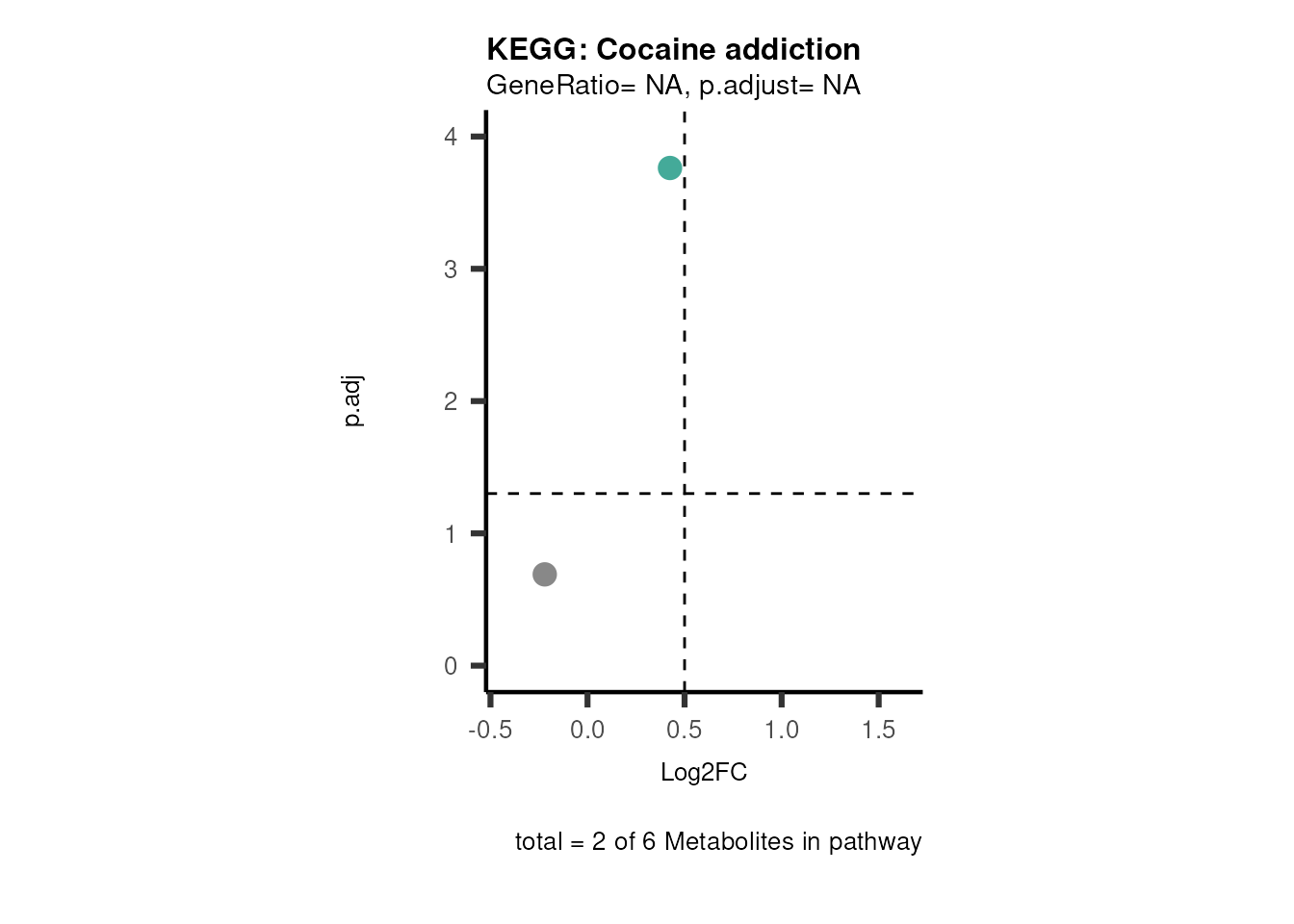

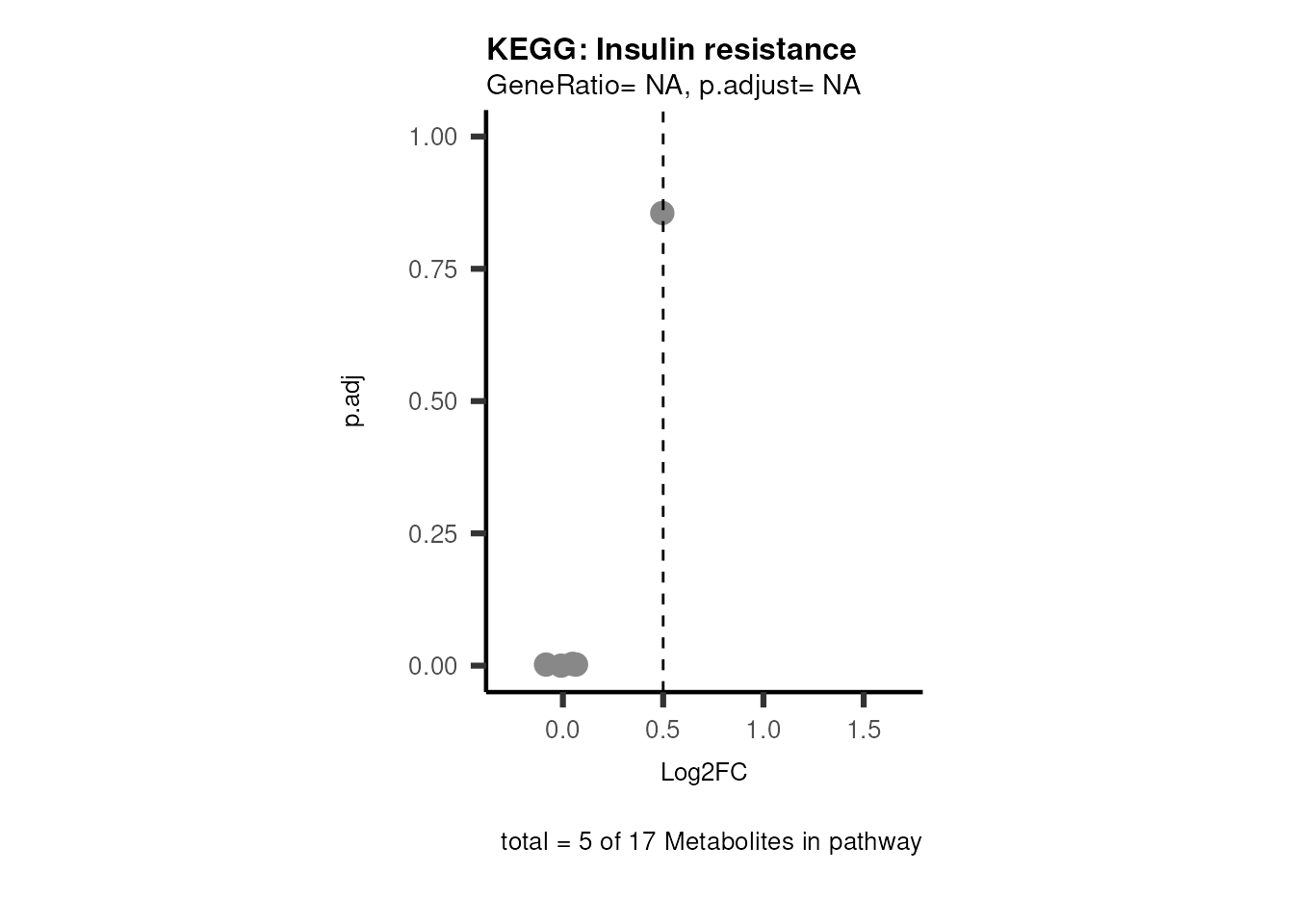

Preview of the ORA results for the comparison of 786-M1A versus HK2 cells.
GeneRatio	BgRatio	RichFactor	FoldEnrichment	zScore	pvalue	p.adjust	qvalue	Metabolites_in_pathway	Count	Metabolites_in_Pathway	percentage_of_Pathway_detected
12/25	32/129	0.3750000	1.935000	2.978922	0.0043514	0.3552030	0.3448169	Betaine/Glutathione/Hydroxyproline/L-Alanine/L-Aspartate/L-Glutamate/L-Histidine/L-Leucine/L-Proline/L-Threonine/myo-Inositol/Taurine	12	130	9.23
8/25	18/129	0.4444444	2.293333	2.888974	0.0078934	0.3552030	0.3448169	2-Oxoglutarate/Hydroxyproline/L-Alanine/L-Aspartate/L-Glutamate/L-Histidine/L-Proline/L-Threonine	8	71	11.27
6/25	14/129	0.4285714	2.211429	2.344613	0.0295646	0.5806872	0.5637080	2-Oxoglutarate/Citrate/L-Alanine/L-Aspartate/L-Glutamate/N-Acetyl-L-aspartate	6	27	22.22
7/25	19/129	0.3684211	1.901053	2.077251	0.0441107	0.5806872	0.5637080	L-Alanine/L-Aspartate/L-Glutamate/L-Histidine/L-Leucine/L-Proline/L-Threonine	7	52	13.46
5/25	11/129	0.4545455	2.345455	2.278677	0.0373357	0.5806872	0.5637080	Creatine/Hydroxyproline/L-Glutamate/L-Proline/Phosphocreatine	5	70	7.14

MCA

Metabolite Clustering Analysis (MCA) is a module, which includes different functions to enable clustering of metabolites into groups either based on logical regulatory rules. This can be particularly useful if one has multiple conditions and aims to find patterns in the data.

MCA-2Cond

This metabolite clustering method is based on the Regulatory Clustering method (RCM) that was developed as part of the Signature Regulatory Clustering (SiRCle) model (Mora et al. (2024)). As part of the SiRCleR package, also variation of the initial RCM method are proposed as clustering based on two comparisons (e.g. KO versus WT in hypoxia and in normoxia).

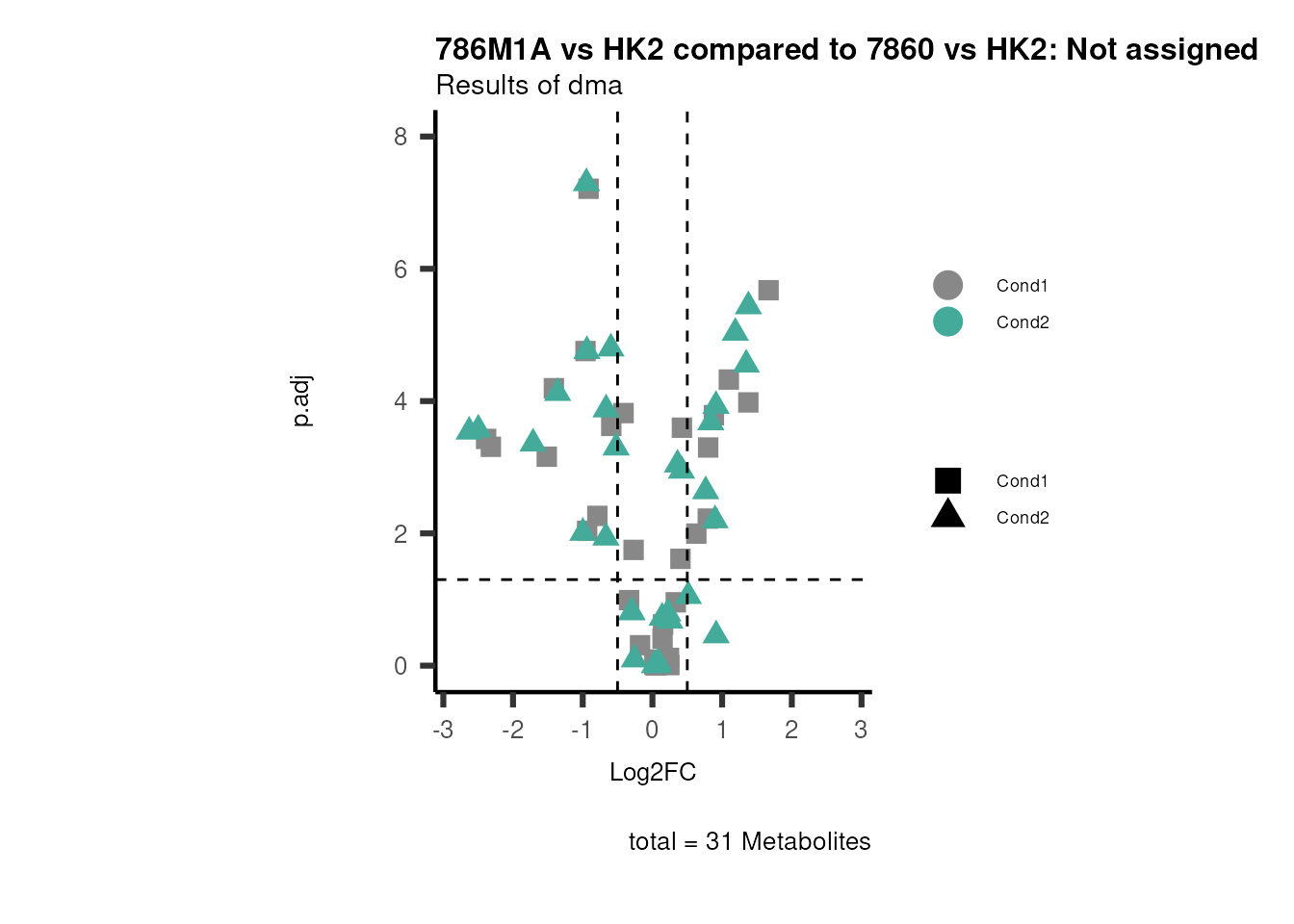

Here we set two different thresholds, one for the differential metabolite abundance (Log2FC) and one for the significance (e.g. p.adj). This will define if a feature (= metabolite) is assigned into:
1. “UP”, which means a metabolite is significantly up-regulated in the underlying comparison.
2. “DOWN”, which means a metabolite is significantly down-regulated in the underlying comparison.
3. “No Change”, which means a metabolite does not change significantly in the underlying comparison and/or is not defined as up-regulated/down-regulated based on the Log2FC threshold chosen.

Thereby “No Change” is further subdivided into four states:
1. “Not Detected”, which means a metabolite is not detected in the underlying comparison.
2. “Not Significant”, which means a metabolite is not significant in the underlying comparison.
3. “Significant positive”, which means a metabolite is significant in the underlying comparison and the differential metabolite abundance is positive, yet does not meet the threshold set for “UP” (e.g. Log2FC >1 = “UP” and we have a significant Log2FC=0.8).
4. “Significant negative”, which means a metabolite is significant in the underlying comparison and the differential metabolite abundance is negative, yet does not meet the threshold set for “DOWN”.

This definition is done individually for each comparison and will impact in which metabolite cluster a metabolite is sorted into.
Since we have two comparisons, we can choose between different Background settings, which defines which features will be considered for the clusters (e.g. you could include only features (= metabolites) that are detected in both comparisons, removing the rest of the features).The background methods method_background are the following from 1.1. - 1.4. from most restrictive to least restrictive:
1.1. C1&C2: Most stringent background setting and will lead to a small number of metabolites.
1.2. C1: Focus is on the metabolite abundance of Condition 1 (C1).
1.3. C2: Focus is on the metabolite abundance of Condition 2 (C2).
1.4. C1|C2: Least stringent background method, since a metabolite will be included in the input if it has been detected on one of the two conditions.

Lastly, we will get clusters of metabolites that are defined by the metabolite change in the two conditions. For example, if Alanine is “UP” based on the thresholds in both comparisons it will be sorted into the cluster “core_UP”. As there are two 6-state6 transitions between the comparisons, the flows are summarised into smaller amount of metabolite clusters using different Regulation Groupings (RG): 1. RG1_All
2. RG2_Significant taking into account genes that are significant (UP, DOWN, significant positive, significant negative)
3. RG3_SignificantChange only takes into account genes that have significant changes (UP, DOWN).

# Example of all possible flows:
data(mca_twocond_rules)

MCA2Cond_Rules <- mca_twocond_rules

Metabolite Clustering Analysis: 2 Conditions.
Cond1	Cond2	RG1_All	RG2_Significant	RG3_SignificantChange
DOWN	DOWN	Cond1 DOWN + Cond2 DOWN	Core_DOWN	Core_DOWN
DOWN	Not Detected	Cond1 DOWN + Cond2 Not Detected	Cond1_DOWN	Cond1_DOWN
DOWN	Not Significant	Cond1 DOWN + Cond2 Not Significant	Cond1_DOWN	Cond1_DOWN
DOWN	Significant Negative	Cond1 DOWN + Cond2 Significant Negative	Core_DOWN	Cond1_DOWN
DOWN	Significant Positive	Cond1 DOWN + Cond2 Significant Positive	Opposite	Cond1_DOWN
DOWN	UP	Cond1 DOWN + Cond2 UP	Opposite	Opposite
UP	DOWN	Cond1 UP + Cond2 DOWN	Opposite	Opposite
UP	Not Detected	Cond1 UP + Cond2 Not Detected	Cond1_UP	Cond1_UP
UP	Not Significant	Cond1 UP + Cond2 Not Significant	Cond1_UP	Cond1_UP
UP	Significant Negative	Cond1 UP + Cond2 Significant Negative	Opposite	Cond1_UP
UP	Significant Positive	Cond1 UP + Cond2 Significant Positive	Core_UP	Cond1_UP
UP	UP	Cond1 UP + Cond2 UP	Core_UP	Core_UP
Not Detected	DOWN	Cond1 Not Detected + Cond2 DOWN	Cond2_DOWN	Cond2_DOWN
Not Detected	Not Detected	Cond1 Not Detected + Cond2 Not Detected	None	None
Not Detected	Not Significant	Cond1 Not Detected + Cond2 Not Significant	None	None
Not Detected	Significant Negative	Cond1 Not Detected + Cond2 Significant Negative	None	None
Not Detected	Significant Positive	Cond1 Not Detected + Cond2 Significant Positive	None	None
Not Detected	UP	Cond1 Not Detected + Cond2 UP	Cond2_UP	Cond2_UP
Significant Negative	DOWN	Cond1 Significant Negative + Cond2 DOWN	Core_DOWN	Cond2_DOWN
Significant Negative	Not Detected	Cond1 Significant Negative + Cond2 Not Detected	None	None
Significant Negative	Not Significant	Cond1 Significant Negative + Cond2 Not Significant	None	None
Significant Negative	Significant Negative	Cond1 Significant Negative + Cond2 Significant Negative	None	None
Significant Negative	Significant Positive	Cond1 Significant Negative + Cond2 Significant Positive	None	None
Significant Negative	UP	Cond1 Significant Negative + Cond2 UP	Opposite	Cond2_UP
Significant Positive	DOWN	Cond1 Significant Positive + Cond2 DOWN	Opposite	Cond2_DOWN
Significant Positive	Not Detected	Cond1 Significant Positive + Cond2 Not Detected	None	None
Significant Positive	Not Significant	Cond1 Significant Positive + Cond2 Not Significant	None	None
Significant Positive	Significant Negative	Cond1 Significant Positive + Cond2 Significant Negative	None	None
Significant Positive	Significant Positive	Cond1 Significant Positive + Cond2 Significant Positive	None	None
Significant Positive	UP	Cond1 Significant Positive + Cond2 UP	Core_UP	Cond2_UP
Not Significant	DOWN	Cond1 Not Significant + Cond2 DOWN	Cond2_DOWN	Cond2_DOWN
Not Significant	Not Detected	Cond1 Not Significant + Cond2 Not Detected	None	None
Not Significant	Not Significant	Cond1 Not Significant + Cond2 Not Significant	None	None
Not Significant	Significant Negative	Cond1 Not Significant + Cond2 Significant Negative	None	None
Not Significant	Significant Positive	Cond1 Not Significant + Cond2 Significant Positive	None	None
Not Significant	UP	Cond1 Not Significant + Cond2 UP	Cond1_UP	Cond1_UP

Now let’s use the data and do clustering:

MCAres <-  mca_2cond(data_c1=DMA_Annova[["dma"]][["786-O_vs_HK2"]],
data_c2=DMA_Annova[["dma"]][["786-M1A_vs_HK2"]],
metadata_info_c1=c(ValueCol="Log2FC",StatCol="p.adj", cutoff_stat= 0.05, ValueCutoff=1),
metadata_info_c2=c(ValueCol="Log2FC",StatCol="p.adj", cutoff_stat= 0.05, ValueCutoff=1),
feature = "Metabolite",
save_table = "csv",
method_background="C1&C2",
path=NULL)



# Check how our data looks like:
Clustersummary <- MCAres[["MCA_2Cond_summary"]]

summary of MCA: 2 Conditions.
Regulation Grouping	SiRCle cluster Name	Number of Features
RG2_Significant	Cond1_DOWN	3
RG2_Significant	Cond2_UP	2
RG2_Significant	None	128
RG2_Significant	core_DOWN	33
RG2_Significant	core_UP	13
RG3_SignificantChange	Cond1_DOWN	7
RG3_SignificantChange	Cond1_UP	2
RG3_SignificantChange	Cond2_DOWN	3
RG3_SignificantChange	Cond2_UP	4
RG3_SignificantChange	None	128
RG3_SignificantChange	core_DOWN	26
RG3_SignificantChange	core_UP	9

MetalinksDB interactions of a metabolite cluster

Metabolites of the same cluster change in the same way in both comparisons. To find out which proteins these metabolites interact with, we can use MetalinksDB (Farr et al. 2024), a resource of metabolite-protein interactions, and plot them with viz_pk_network(). Here, we load the interactions of metabolites that are present in the kidney and remove duplicated metabolite-protein pairs that originate from different resources:

MetaLinksDB <- metsigdb_metalinks(
    tissue_location = c("Kidney", "All Tissues"),
    save_table = NULL
)

MetaLinksDB_Select <- MetaLinksDB %>%
    tidyr::unite("UniquePair", c("hmdb", "gene_symbol"), sep = "_", remove = FALSE) %>%
    distinct(UniquePair, .keep_all = TRUE)

Now we plot the metabolites of the cluster core_UP, which are increased in both 786-O and 786-M1A compared to HK2 cells. Via metadata_info we tell the function which columns hold the metabolite IDs and names in our data and the IDs and proteins in MetalinksDB, colour the edges by the interaction type, use the line type for the mode of regulation and draw the edges in the direction provided by metsigdb_metalinks():

MetaLinks_Features <- MCAres[["MCA_2Cond_Results"]] %>%
    filter(RG2_Significant == "core_UP") %>%
    filter(!is.na(Cond1_DF_HMDB)) %>%
    distinct(Metabolite, Cond1_DF_HMDB)

MetaLinks_Network <- viz_pk_network(
    feature_metadata = MetaLinks_Features,
    input_pk = MetaLinksDB_Select,
    metadata_info = c(
        InputID = "Cond1_DF_HMDB",
        InputLabel = "Metabolite",
        PriorID = "hmdb",
        PriorTerm = "gene_symbol",
        EdgeColor = "interaction",
        EdgeLinetype = "mode_of_regulation",
        EdgeDirection = "direction"
    ),
    save_plot = NULL,
    print_plot = TRUE,
    label_mode = "all",
    seed = 123
)

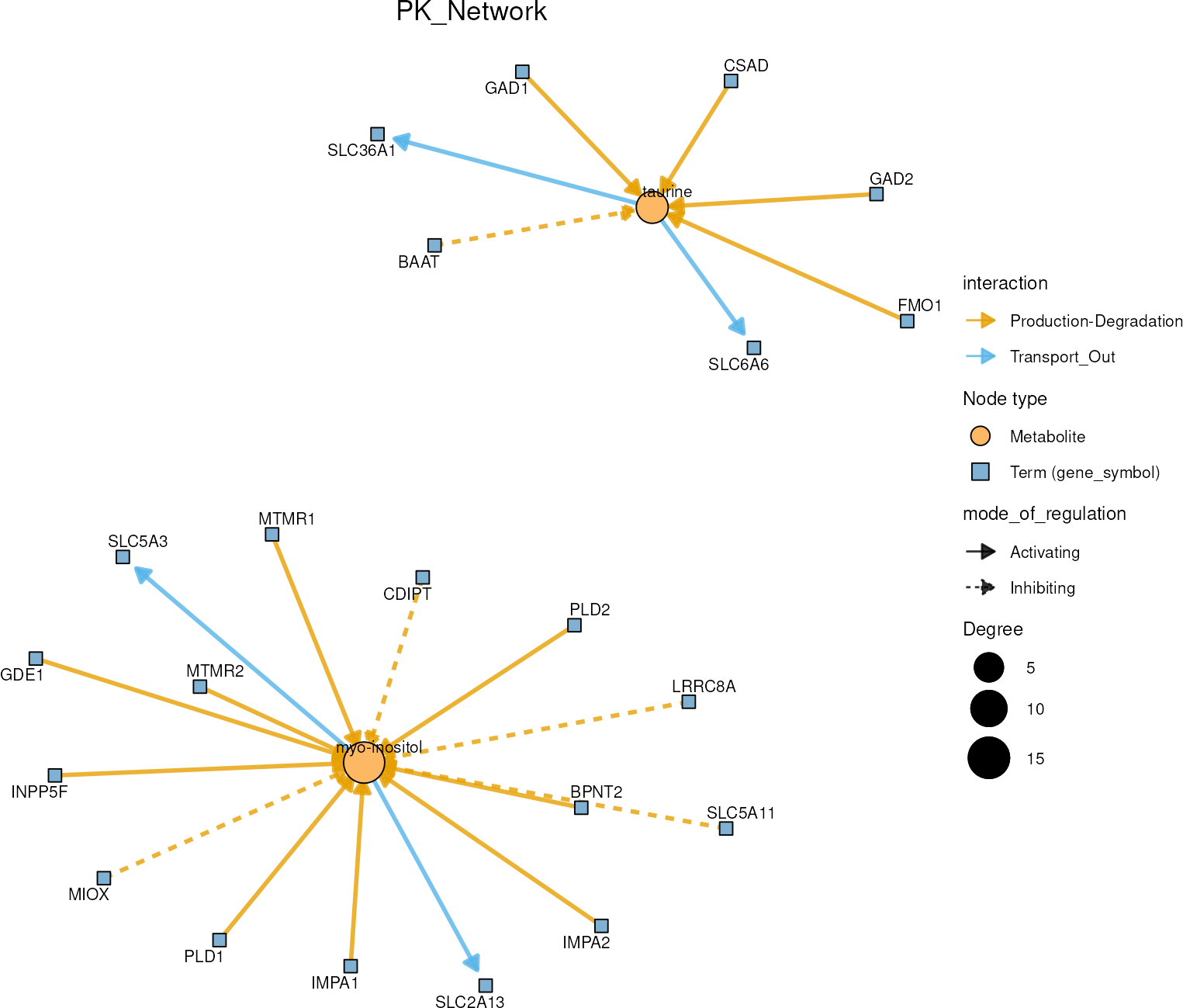

Of the metabolites in this cluster, only myo-inositol and taurine have interactions in MetalinksDB: mainly with enzymes that produce or degrade them, e.g. the inositol monophosphatases IMPA1 and IMPA2 for myo-inositol, and with transporters such as SLC5A3 for myo-inositol and SLC6A6 for taurine.
This is only one example of how prior knowledge networks help to investigate specific results. In the Prior Knowledge Networks vignette we show many more, e.g. which transporters the changed metabolites share, which metabolites drive the enriched pathways and in which cancers the metabolites have been reported before.

ORA on each metabolite cluster

As explained in detail above, Over Representation Analysis (ORA) is a pathway enrichment analysis (PEA) method. As ORA is based on the Fishers exact test it is perfect to test if a set of features (=metabolic pathways) are over-represented in the selection of features (= clusters of metabolites) from the data in comparison to all measured features (all metabolites). In detail, cluster_ora() will perform ORA on each of the metabolite clusters using all metabolites as the background.

Pathway input for cluster_ora().
	HMDB	KEGG.ID	KEGGCompound	Pathway
N-acetylaspartate	HMDB0000812	C01042	N-Acetyl-L-aspartate	Alanine, aspartate and glutamate metabolism
argininosuccinate	HMDB0000052	C03406	N-(L-Arginino)succinate	Alanine, aspartate and glutamate metabolism
N-acetylaspartylglutamate	HMDB0001067	C12270	N-Acetylaspartylglutamate	Alanine, aspartate and glutamate metabolism
tyrosine	HMDB0000158	C00082	L-Tyrosine	Amino acid metabolism
asparagine	HMDB0000168	C00152	L-Asparagine	Amino acid metabolism
glutamate	HMDB0000148	C00025	L-Glutamate	Amino acid metabolism

Run MetaProViz Visualisation

The big advantages of the MetaProViz visualization module is its flexible and easy usage, which we will showcase below and that the figures are saved in a publication ready style and format. For instance, the x- and y-axis size will always be adjusted for the amount of samples or features (=metabolites) plotted, or in the case of Volcano plot and PCA plot the axis size is fixed and not affected by figure legends or title. In this way, there is no need for many adjustments and the figures can just be dropped into the presentation or paper and are all in the same style.

All the viz_*() functions are constructed in the same way. Indeed, with the parameter metadata_info the user can pass a named vector with information about the metadata column that should be used to customize the plot by colour, shape or creating individual plots, which will all be showcased for the different plot types. Via the parameters metadata_sample and metadata_feature the user can pass the metadata DF for the samples and/or the features (=metabolites), depending on the plot type.

In each of those plots, the user can label color and/or shape based on additional information (e.g. Pathway information, Cluster information or other other demographics like gender). Moreover, we also enable to plot individual plots where applicable based on those MetaData (e.g. one plot for each metabolic pathway).
For this we need a metadata table including information about our samples that could be relevant to e.g. color code:

MetaData_Sample <- Intra_Preprocessed[,c(1:2)]%>%
mutate(Celltype = case_when(Conditions=="HK2" ~ 'Healthy',
Conditions=="786-O" ~ 'Primary Tumour',
TRUE ~ 'Metastatic Tumour'))%>%
mutate(Status = case_when(Conditions=="HK2" ~ 'Healthy',
TRUE ~ 'Cancer'))

Metadata table including additional information about our Samples.
	Conditions	Biological_Replicates	Celltype	Status
786-M1A_1	786-M1A	1	Metastatic Tumour	Cancer
786-M1A_2	786-M1A	2	Metastatic Tumour	Cancer
786-M1A_3	786-M1A	3	Metastatic Tumour	Cancer
786-M2A_1	786-M2A	1	Metastatic Tumour	Cancer
786-M2A_2	786-M2A	2	Metastatic Tumour	Cancer
786-M2A_3	786-M2A	3	Metastatic Tumour	Cancer
786-O_1	786-O	1	Primary Tumour	Cancer
786-O_2	786-O	2	Primary Tumour	Cancer
786-O_3	786-O	3	Primary Tumour	Cancer
HK2_1	HK2	1	Healthy	Healthy
HK2_2	HK2	2	Healthy	Healthy
HK2_3	HK2	3	Healthy	Healthy

Moreover, we can use MetaData for our features (=Metabolites), which we loaded with the MappingInfo and we can also add the information on which cluster a metabolite was assigned to in the mca_2cond() analysis above:

MetaData_Metab <-merge(MappingInfo%>%tibble::rownames_to_column("Metabolite"), MCAres[["MCA_2Cond_Results"]][,c(1, 14,15)], by="Metabolite", all.y=TRUE)%>%
tibble::column_to_rownames("Metabolite")

Metadata table including additional information about the Metabolites.
	HMDB	KEGG.ID	KEGGCompound	Pathway	RG2_Significant	RG3_SignificantChange
2-ketoglutarate	HMDB0000208	C00026	2-Oxoglutarate	Citrate cycle (TCA cycle)	core_UP	core_UP
2/3-phosphoglycerate	HMDB0060180	C00197	3-Phospho-D-glycerate	Glycolysis / Gluconeogenesis	None	None
4-hydroxyphenyllactate	HMDB0000755	C03672	3-(4-Hydroxyphenyl)lactate	Not assigned	None	None
ATP	HMDB0000538	C00002	ATP	Purine metabolism	None	None
beta-alanine	HMDB0000056	C00099	beta-Alanine	Pyrimidine metabolism	core_DOWN	core_DOWN
beta-citrylglutamic acid	HMDB0013220	NA	NA	Not assigned	None	None

Noteworthy, here we can also use the KEGG pathways we used for the pathway analysis.

PCA plots

Principal component analysis (PCA) is a dimensionality reduction method that reduces all the measured features (=metabolites) of one sample into a few features in the different principal components, whereby each principal component can explain a certain percentage of the variance between the different samples. Hence, this enables interpretation of sample clustering based on the measured features (=metabolites).
As mentioned above, PCA plots can be quite useful for quality control, but of course it offers us many more opportunities, which will be showcased here.

As input, we need a DF that contains the samples as rownames and the features (=metabolites) as column names:

Input_PCA <- Intra_Preprocessed[,-c(1:5)]#remove columns that include Metadata such as cell type,...

Input data for `viz_pca()`, with samples as rownames and metabolites as column names.
	2/3-phosphoglycerate	2-aminoadipic acid	2-hydroxyglutarate	2-ketoglutarate	4-guanidinobutanoate	4-hydroxyphenyllactate	5-aminolevulinic acid
786-M1A_1	56869710	7515755	424350094	959154968	1919685	2200691	3774613
786-M1A_2	48343621	7794629	432815728	979152171	1885079	2038710	3938304
786-M1A_3	45802902	7241957	417484370	1003428045	2000096	2205282	4303746
786-M2A_1	45783712	6136730	438371418	844281227	2623110	2253523	4109374
786-M2A_2	44241237	6228218	432236949	885890420	1980782	2334933	4097771
786-M2A_3	42973150	6389024	463135059	884908893	1478488	2226276	4767468
786-O_1	36932026	8968347	389934195	887922452	2390741	2000374	3273419
786-O_2	30493039	9089987	463318717	1057350518	2329025	2113869	3645631
786-O_3	29305326	9025706	407917219	1012290078	1695489	2193180	4122241
HK2_1	30931592	5801816	188417805	326367919	4418820	3963104	4028435
HK2_2	32564867	7322390	228825446	366703618	4133883	3971958	4373207
HK2_3	29507162	7159140	251061831	459945537	4366242	4226693	5190412

Now lets check out the standard plot:

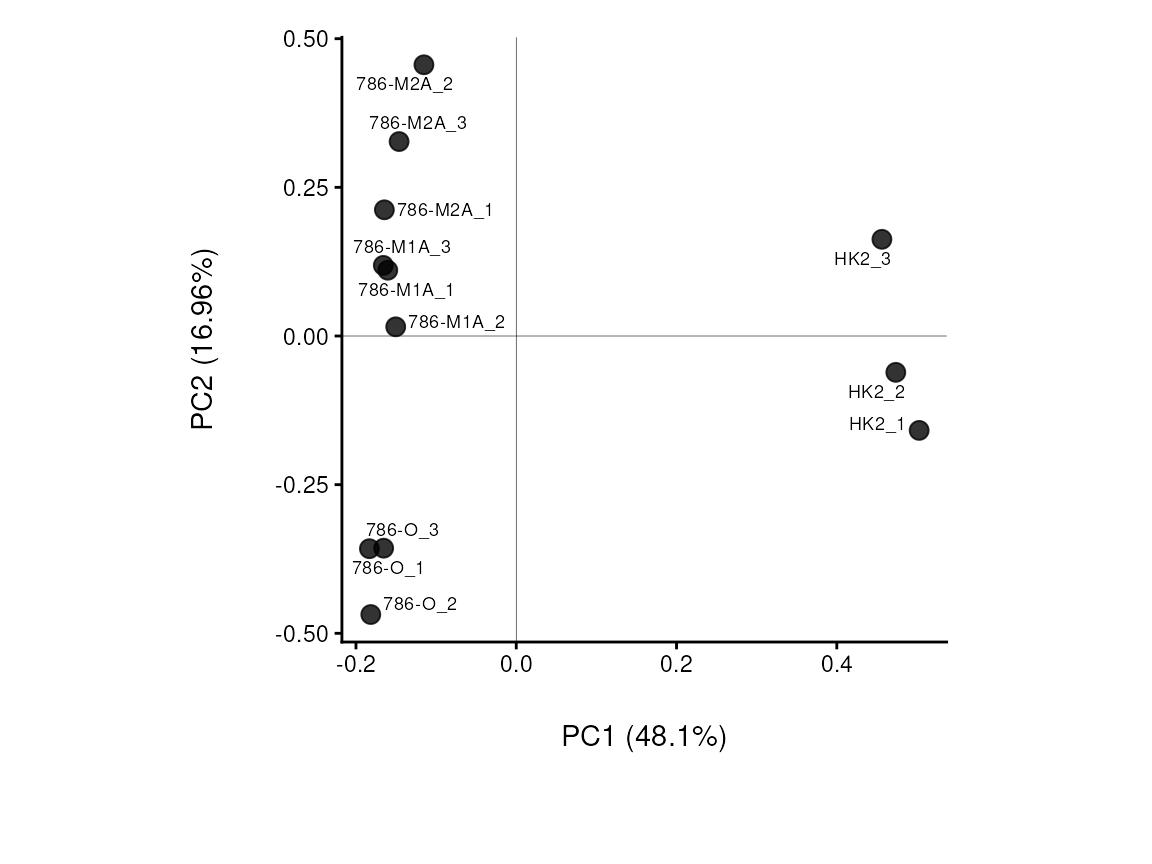

viz_pca(data=Input_PCA,
)

Standard Settings.

Next, we can interactively choose shape and color using the additional information of interest from our Metadata. Especially for complex data, such as patient data, it can be valuable to use different demographics (e.g. age, gender, medication,…) for this. First lets check if we have any batch effect by colour coding for the biological replicates, which would be the case if the replicates cluster together.

viz_pca(metadata_info= c(color="Biological_Replicates"),
metadata_sample = MetaData_Sample ,
data=Input_PCA,
plot_name = "Batch Effect")

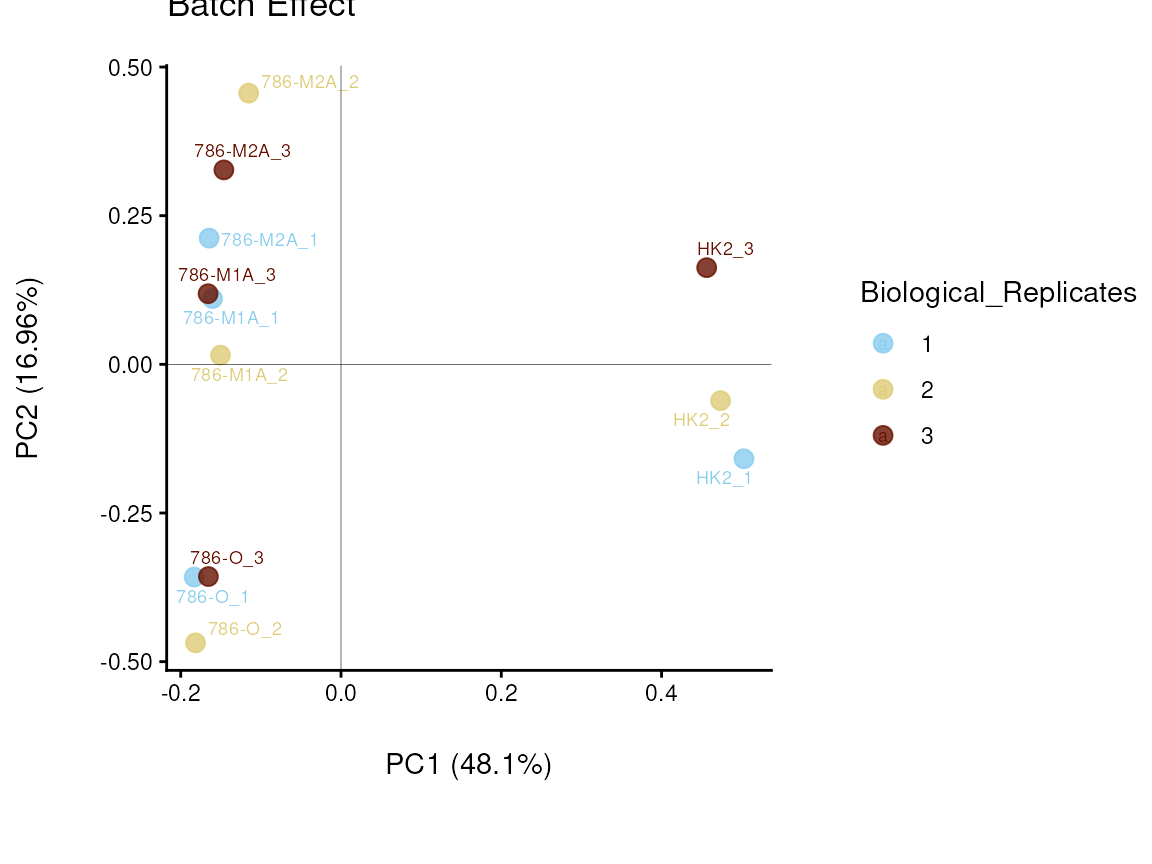

Do we have a batch effect?

Next, we can colour code for condition and use the biological replicates in the shape parameter:

viz_pca(metadata_info= c(color="Conditions", shape="Biological_Replicates"),
metadata_sample= MetaData_Sample,
data=Input_PCA,
plot_name = "Sample Conditions")

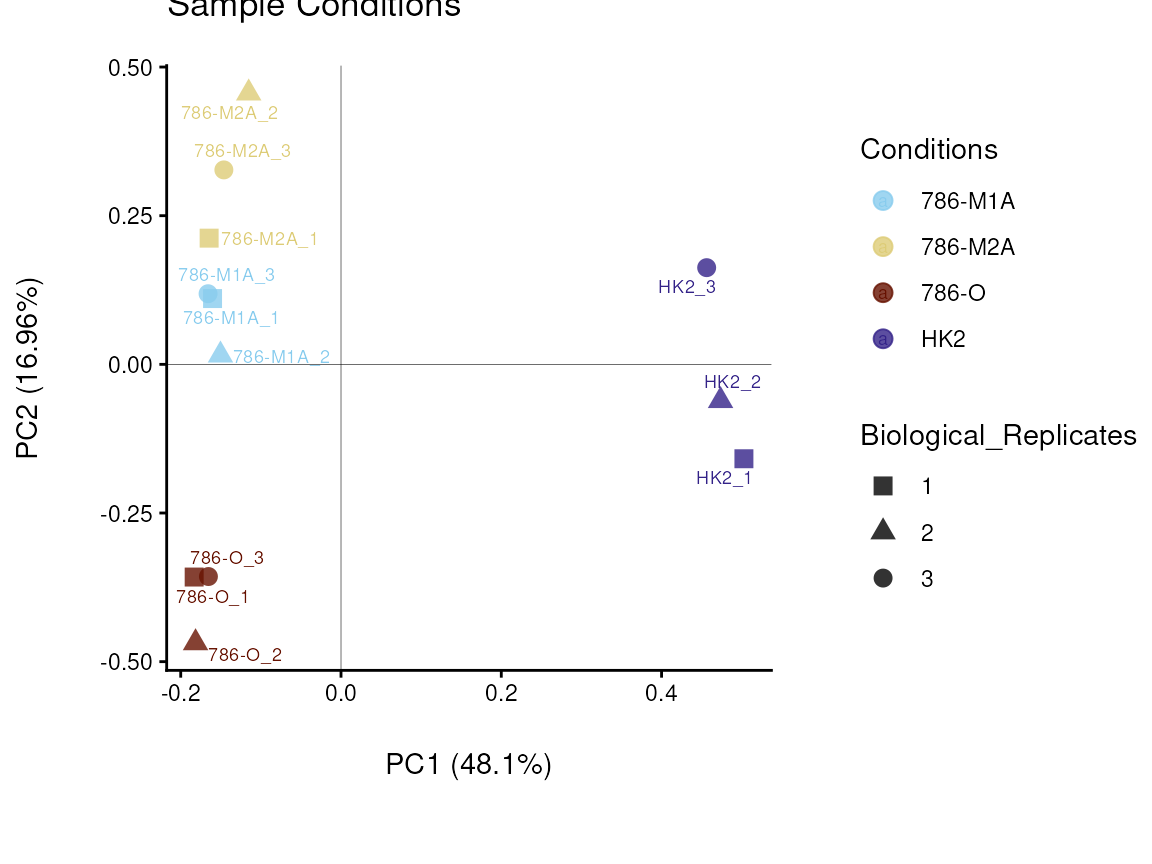

Do the samples cluster for the conditions?

The different cell lines we have are either control or cancerous, so we can display this too. Here it becomes apparent that the cell status is responsible for 64% of the variance (x-axis).

viz_pca(metadata_info= c(color="Status"),
metadata_sample= MetaData_Sample,
data=Input_PCA,
plot_name = "Sample Status")

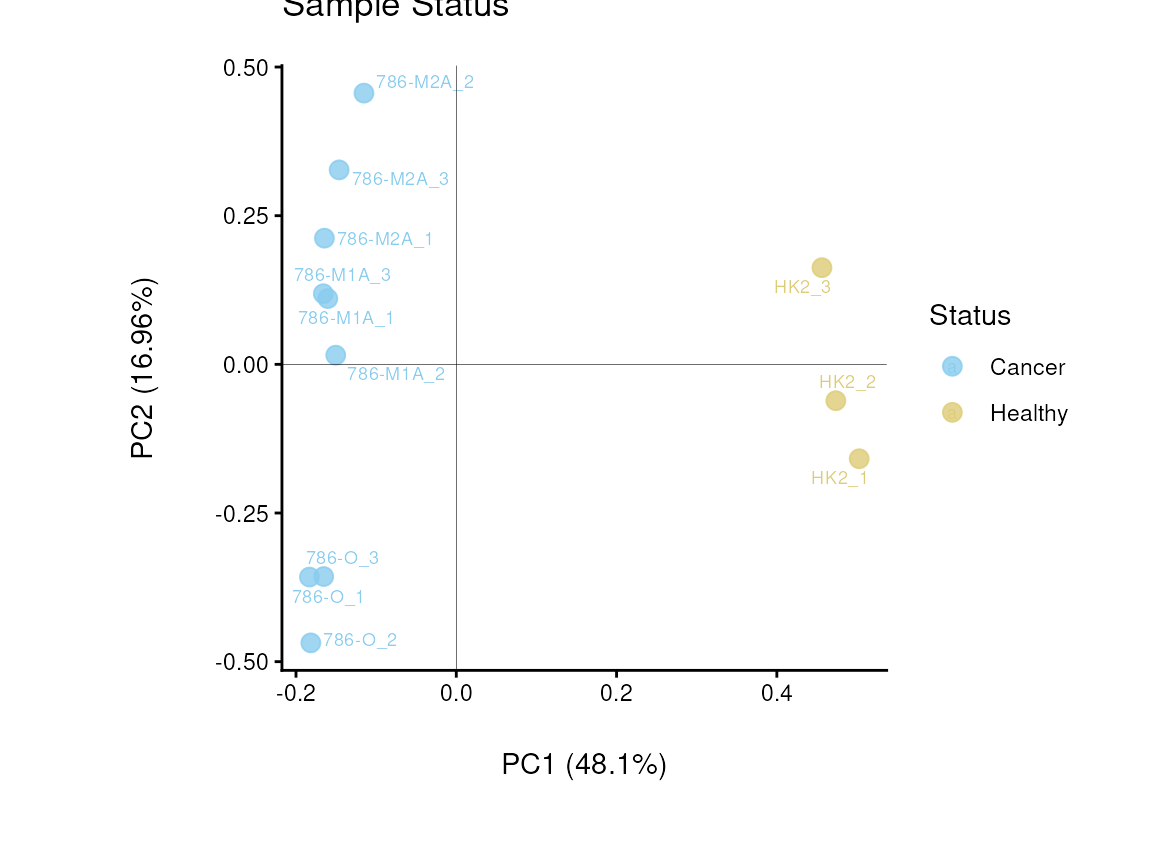

Do the samples cluster for the Cell status?

We can separate the cancerous cell lines further into metastatic or primary. This shows us that this is separated on the y-axis and accounts for 30% of the variance.

viz_pca(metadata_info= c(color="Celltype", shape="Status"),
metadata_sample= MetaData_Sample,
data=Input_PCA,
plot_name = "Cell type")

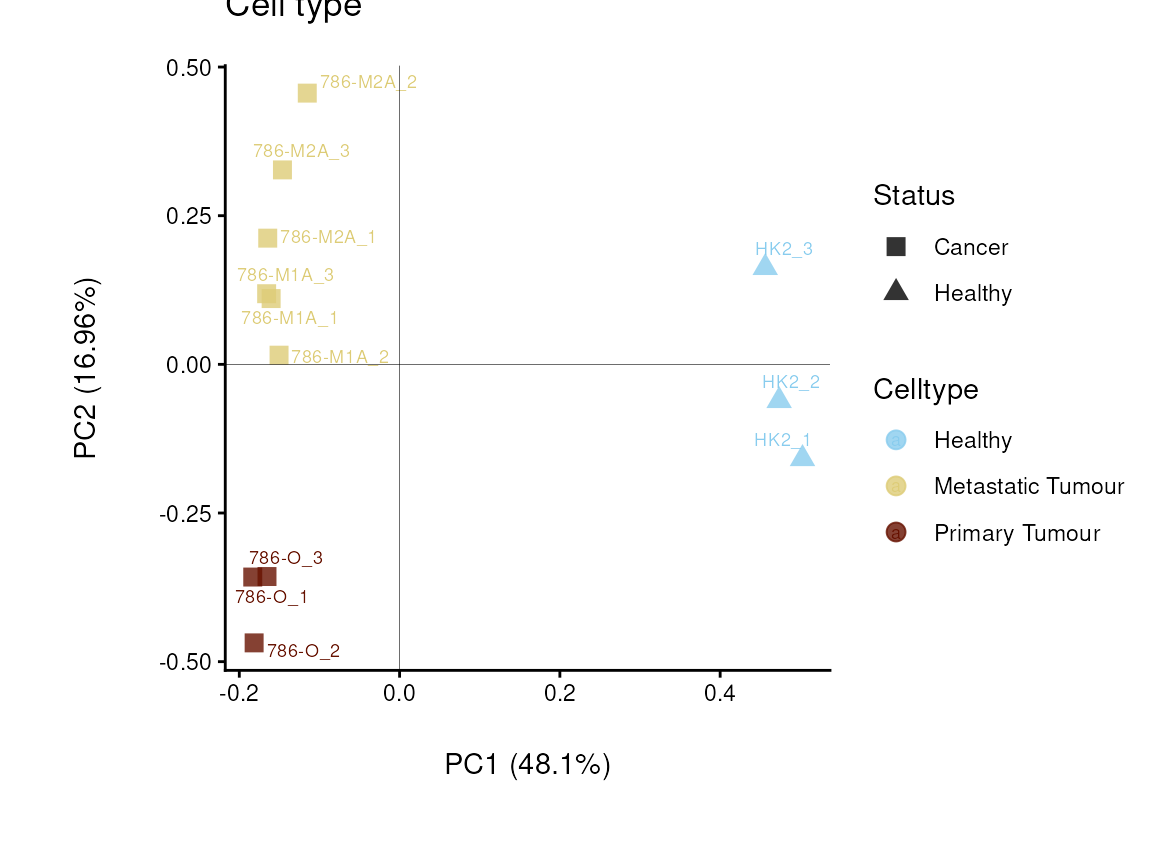

Do the samples cluster for the Cell type?

Lastly, its worth mentioning that one can also change many style parameters to customize the plot.

Heatmaps

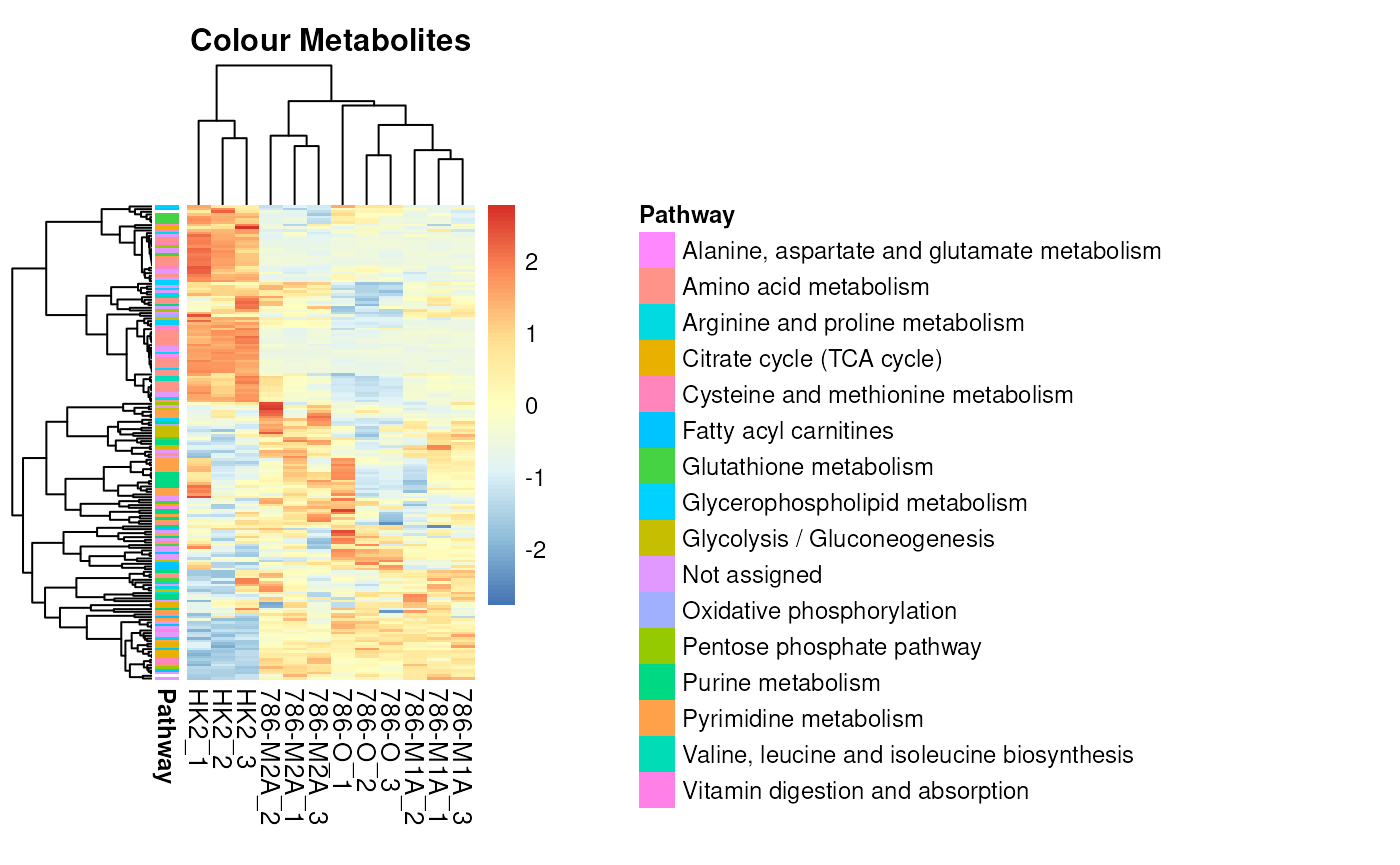

Clustered heatmaps can be useful to understand the patterns in the data, which will be showcased on different examples.
As input, we need a DF that contains the samples as rownames and the features (=metabolites) as column names:

Input_Heatmap <-  Intra_Preprocessed[,-c(1:4)]#remove columns that include Metadata such as cell type,...

Input for `viz_heatmap()`, with samples as rownames and metabolites as column names.
	hippuric acid-d5	2/3-phosphoglycerate	2-aminoadipic acid	2-hydroxyglutarate	2-ketoglutarate	4-guanidinobutanoate	4-hydroxyphenyllactate
786-M1A_1	4624712907	56869710	7515755	424350094	959154968	1919685	2200691
786-M1A_2	4340353963	48343621	7794629	432815728	979152171	1885079	2038710
786-M1A_3	4214210391	45802902	7241957	417484370	1003428045	2000096	2205282
786-M2A_1	4796131050	45783712	6136730	438371418	844281227	2623110	2253523
786-M2A_2	3846160365	44241237	6228218	432236949	885890420	1980782	2334933
786-M2A_3	4164512249	42973150	6389024	463135059	884908893	1478488	2226276
786-O_1	3896527350	36932026	8968347	389934195	887922452	2390741	2000374
786-O_2	4496764782	30493039	9089987	463318717	1057350518	2329025	2113869
786-O_3	4137100133	29305326	9025706	407917219	1012290078	1695489	2193180
HK2_1	3171399130	30931592	5801816	188417805	326367919	4418820	3963104
HK2_2	3180479423	32564867	7322390	228825446	366703618	4133883	3971958
HK2_3	3365930405	29507162	7159140	251061831	459945537	4366242	4226693

Now we can generate an overview heatmap. Since we plot all metabolites the metabolite names are not plotted since this would get too crowded (You can enforce this by changing the parameter enforce_featurenames = TRUE).

viz_heatmap(data = Input_Heatmap,
plot_name = "Overview")

Overview heatmap.

Here we can add as many sample metadata information as needed at the same time:

viz_heatmap(data = Input_Heatmap,
metadata_sample = MetaData_Sample,
metadata_info = c(color_Sample = list("Conditions","Biological_Replicates", "Celltype", "Status")),
plot_name = "Colour Samples")

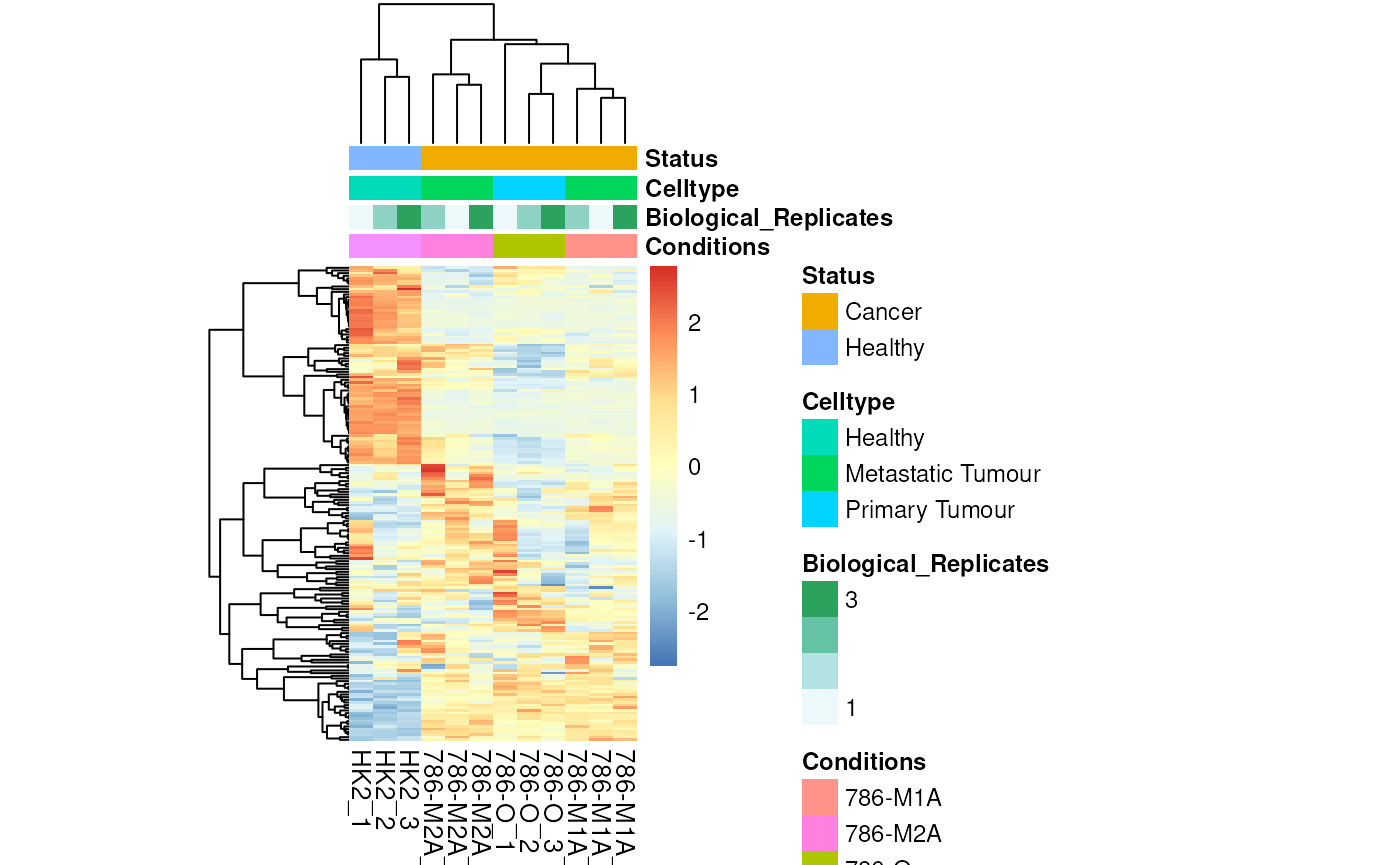

Colour for sample metadata.

Moreover, we can also add metabolite metadata information:

# row annotation: Color for Metabolites
viz_heatmap(data = Input_Heatmap,
metadata_sample = MetaData_Sample,
metadata_info = c(color_Metab = list("Pathway")),
metadata_feature =  MappingInfo,
plot_name = "Colour Metabolites")

Colour for metabolite metadata.

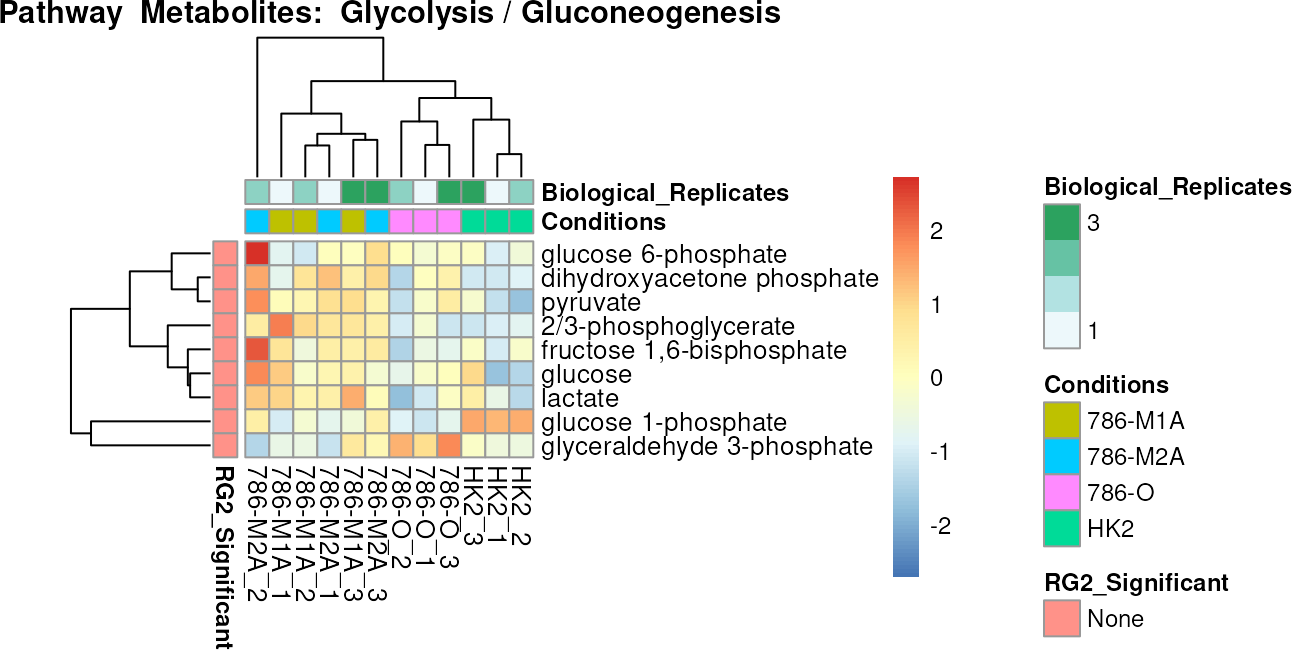

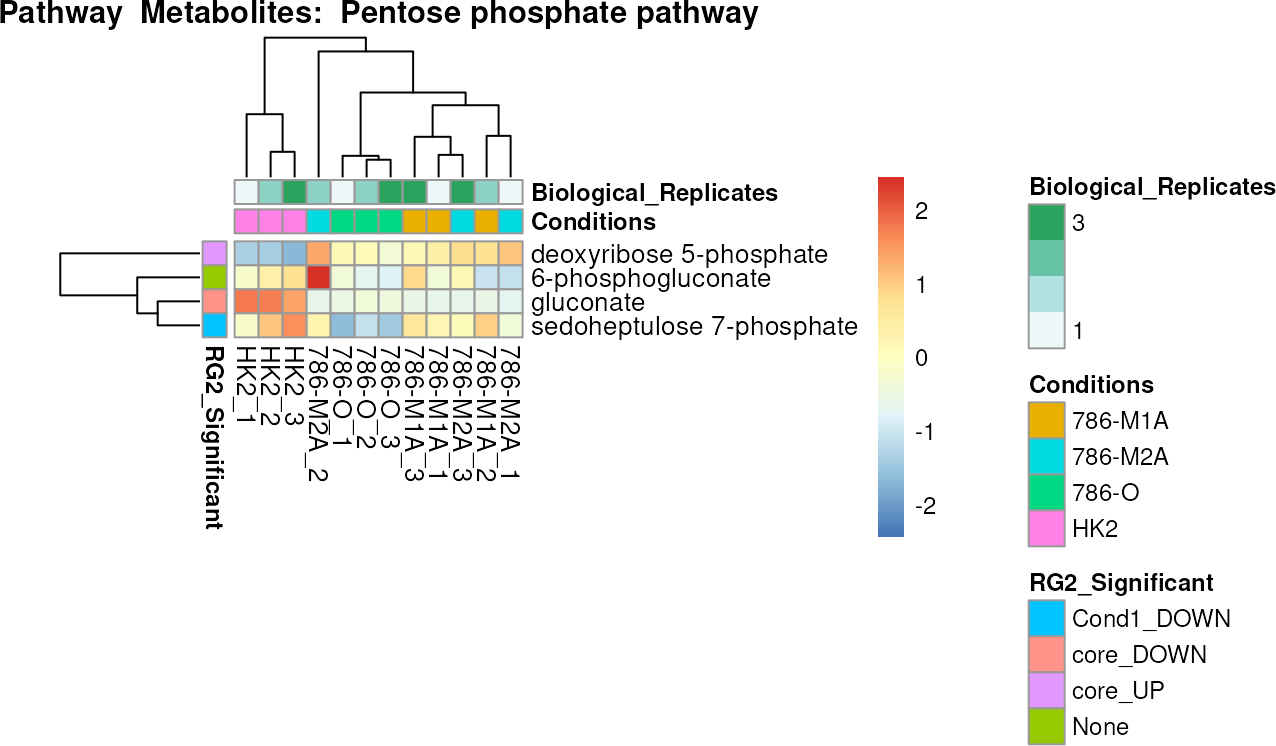

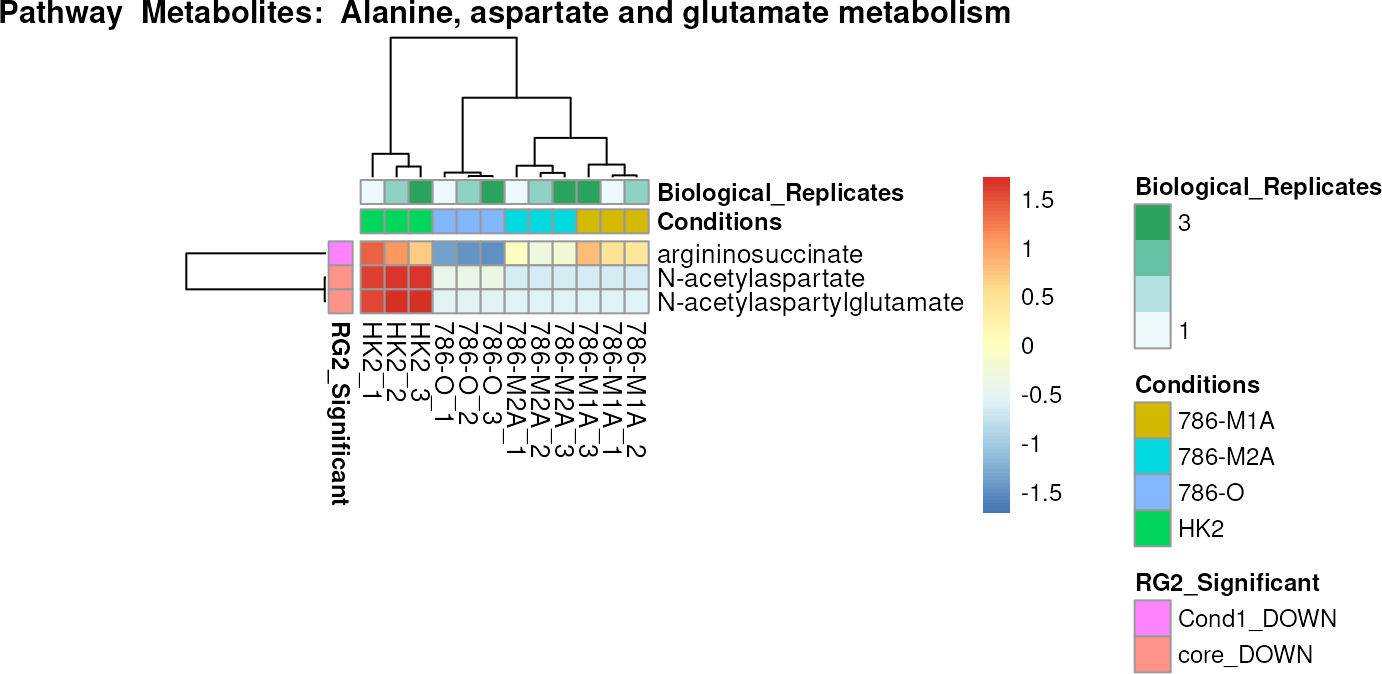

Lastly, by generating individual plots for e.g. each pathway or the metabolite clusters by adding individual (individual_Sample or individual_Metab) to metadata_info. At the same time we can still maintain the metadata information for both, the samples and the metabolites. Together this can help us to draw biological conclusions about the different pathways: Indeed, we can observe for the D-Amino acid metabolism many metabolites fall into the MCA-Cluster core_DOWN, meaning in comparison to HK2 cells we have a negative Log2FC for 786-O and 786-M1A.

viz_heatmap(data = Input_Heatmap,
metadata_sample = MetaData_Sample,
metadata_info = c(individual_Metab = "Pathway",
                                        color_Sample = list("Conditions","Biological_Replicates"),
                                        color_Metab = list("RG2_Significant")),
                                        metadata_feature =  MetaData_Metab,
                                        plot_name = "Pathway")

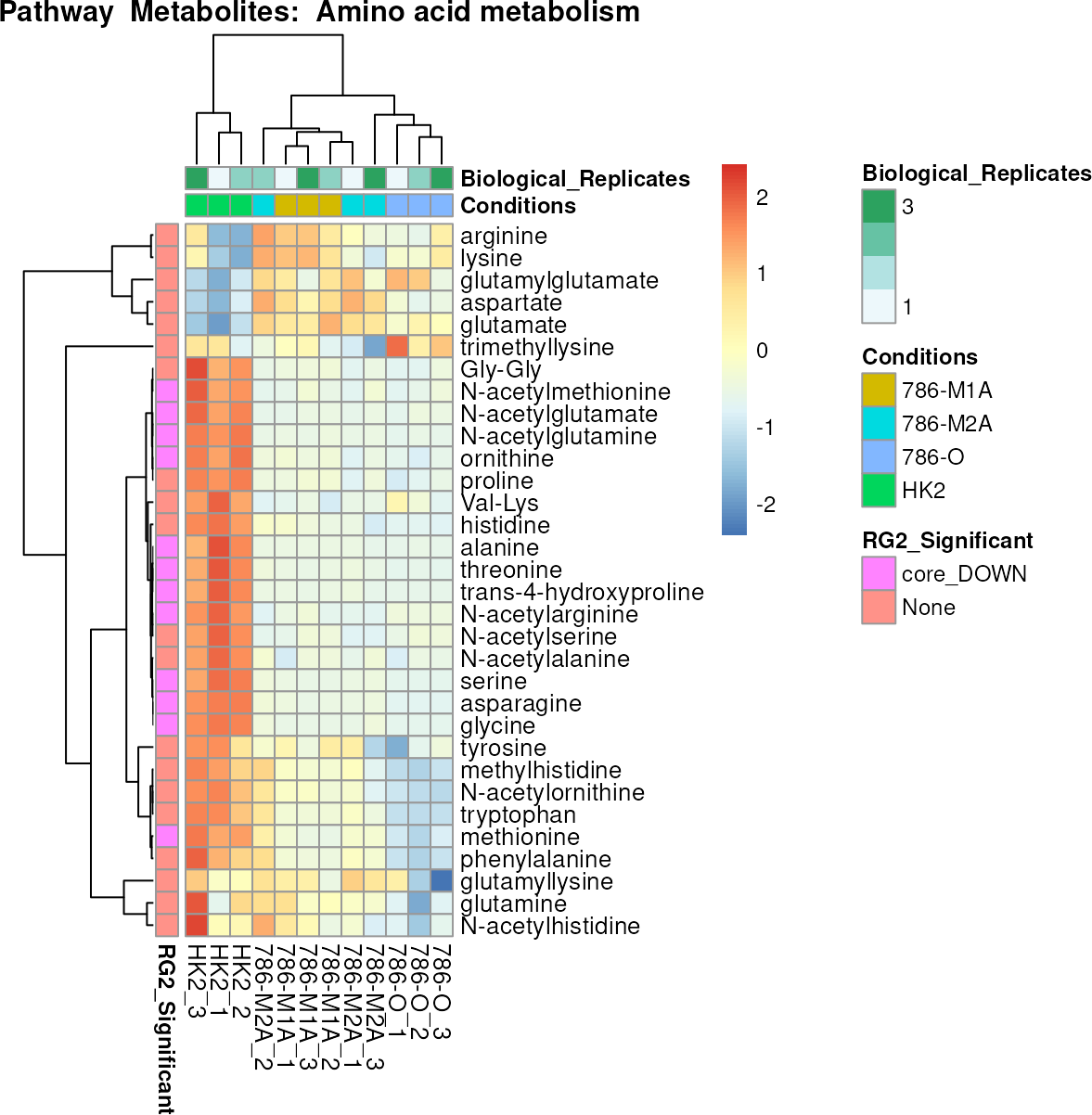

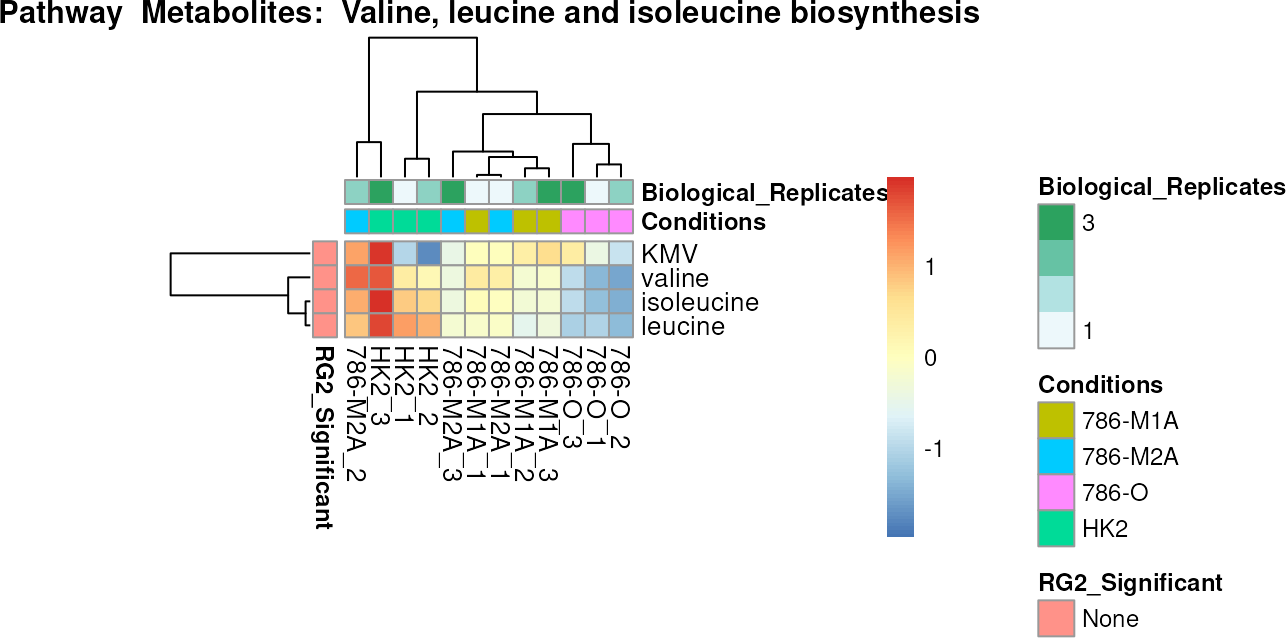

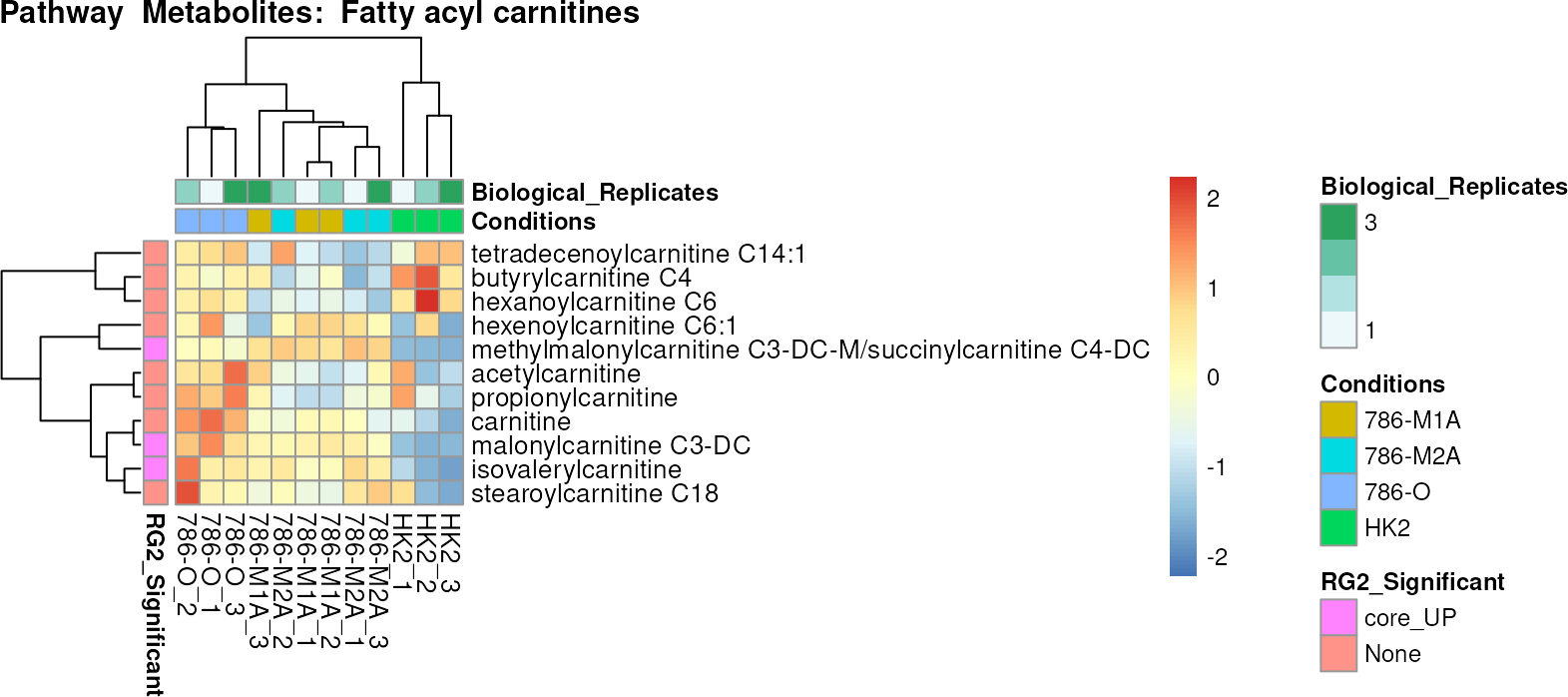

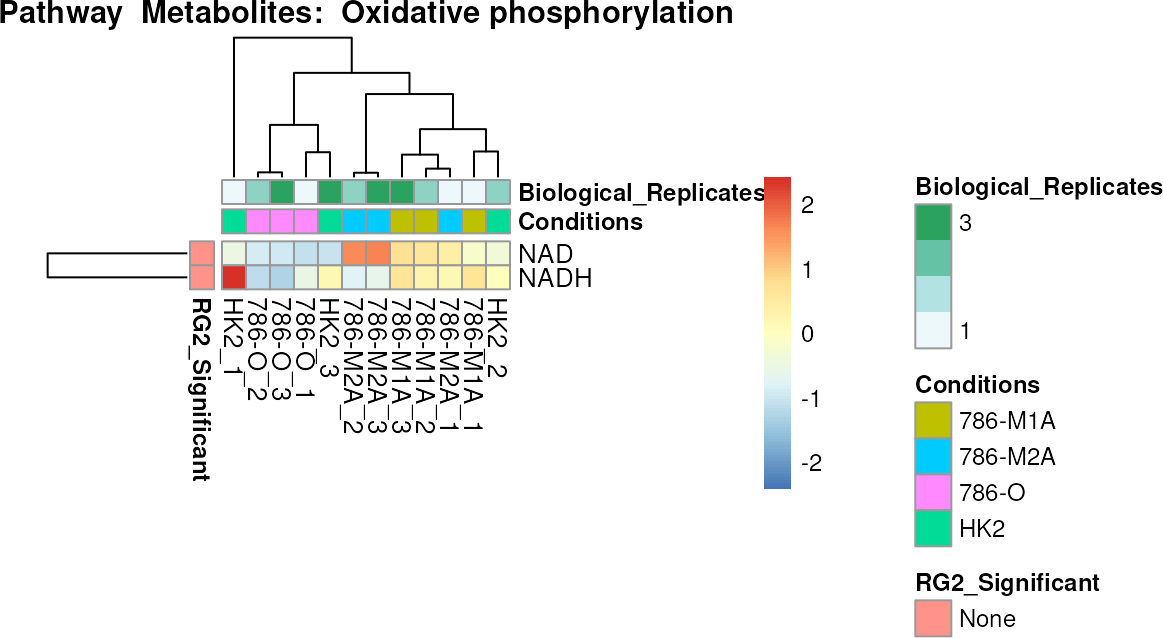

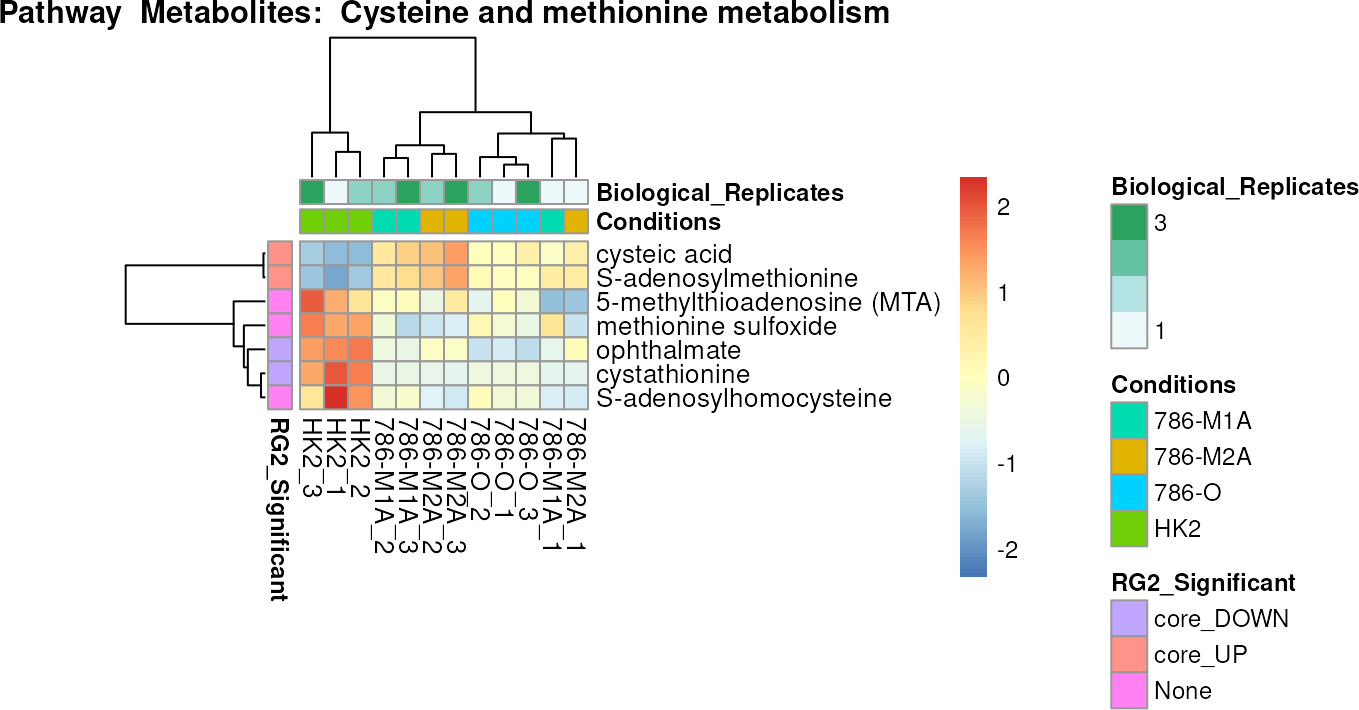

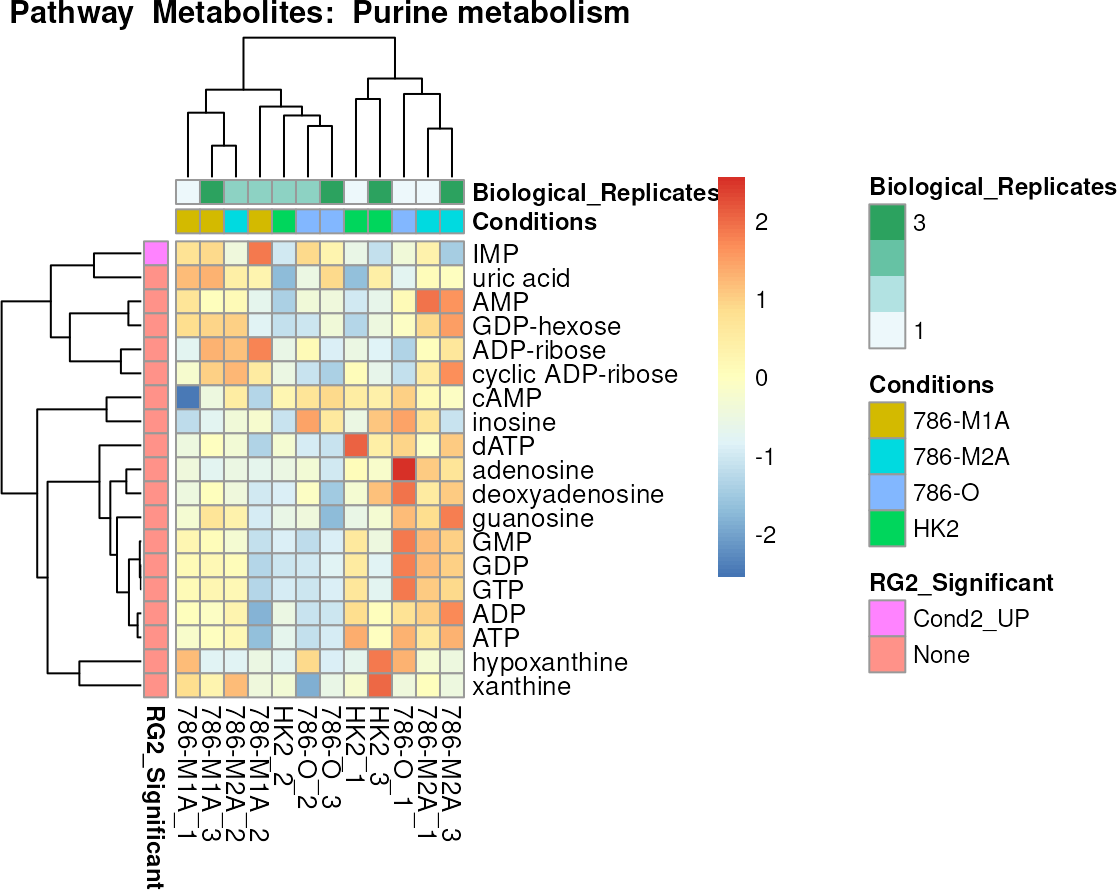

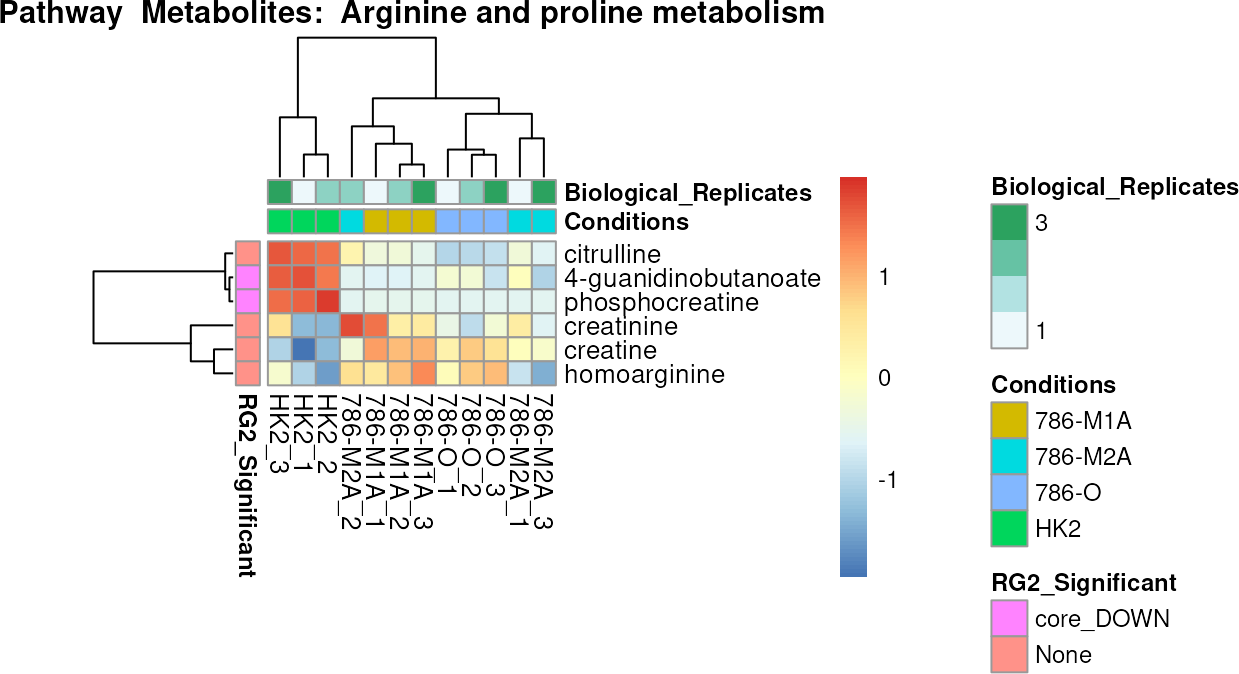

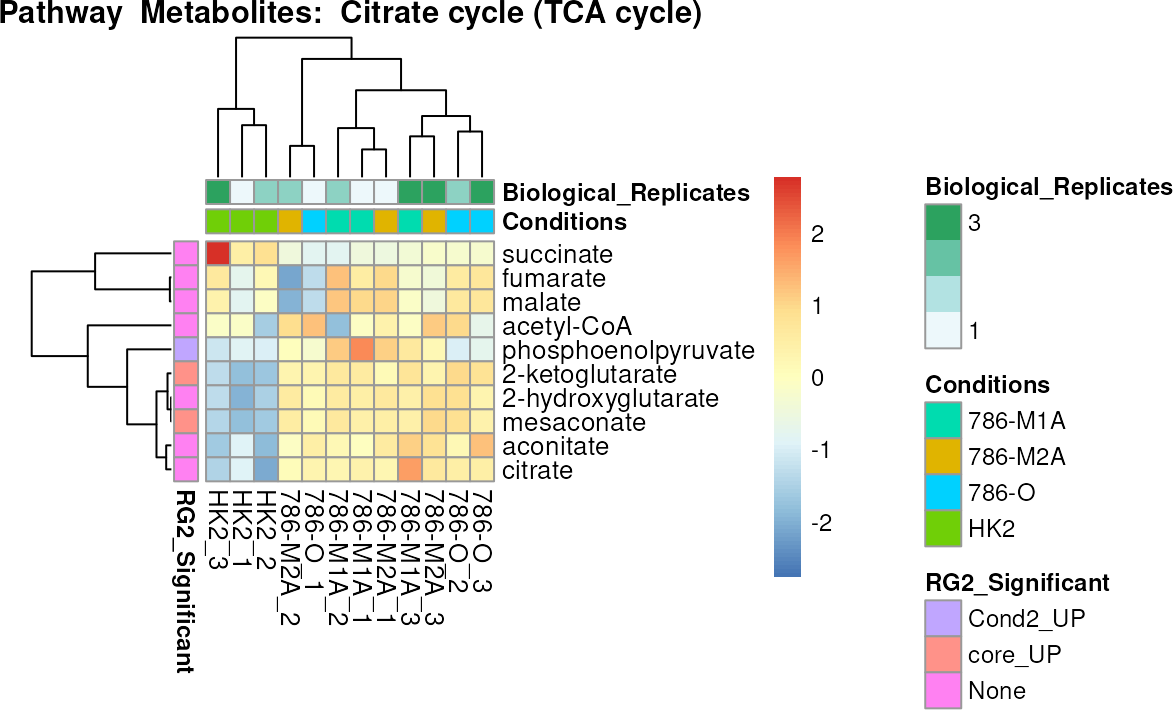

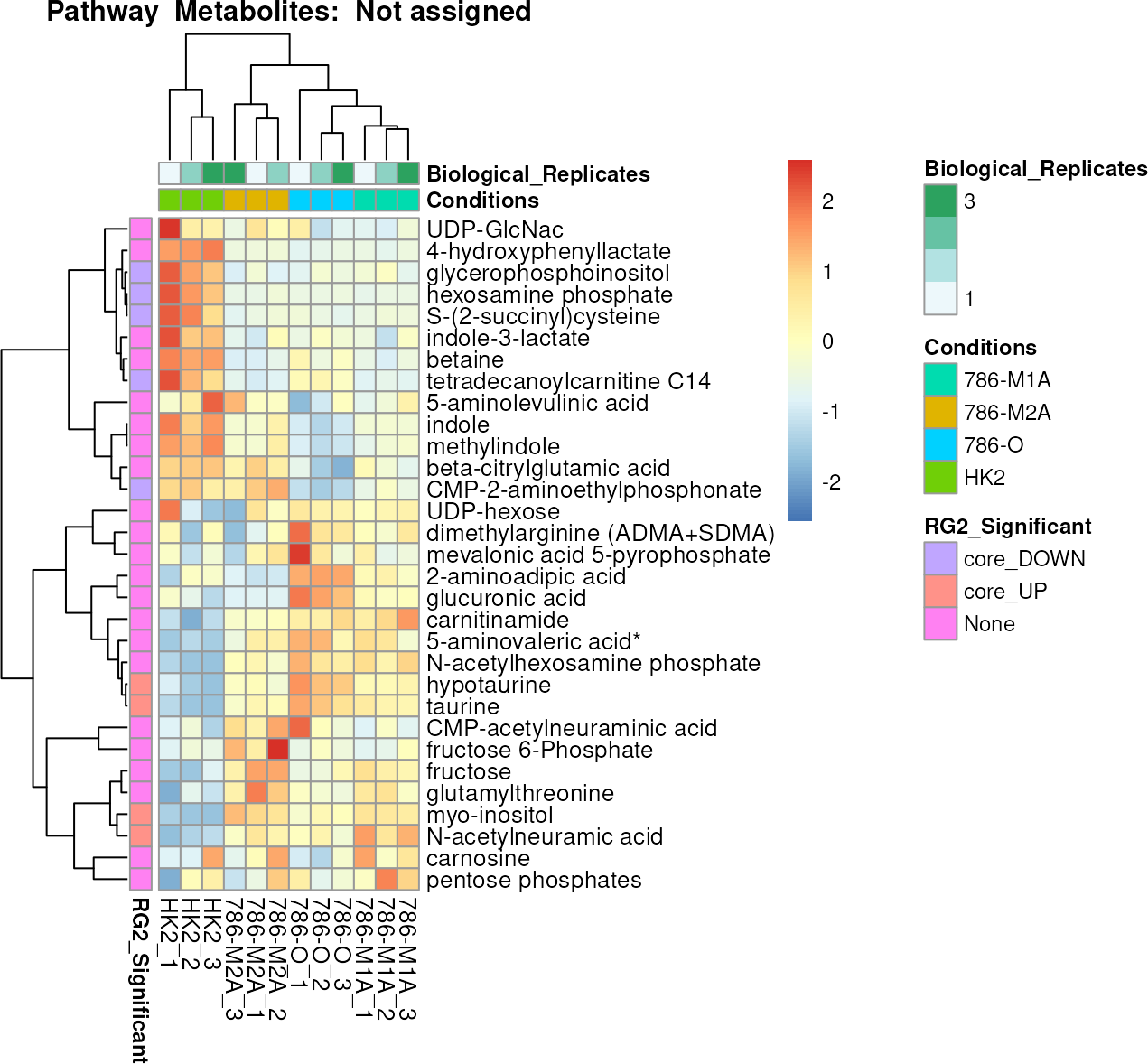

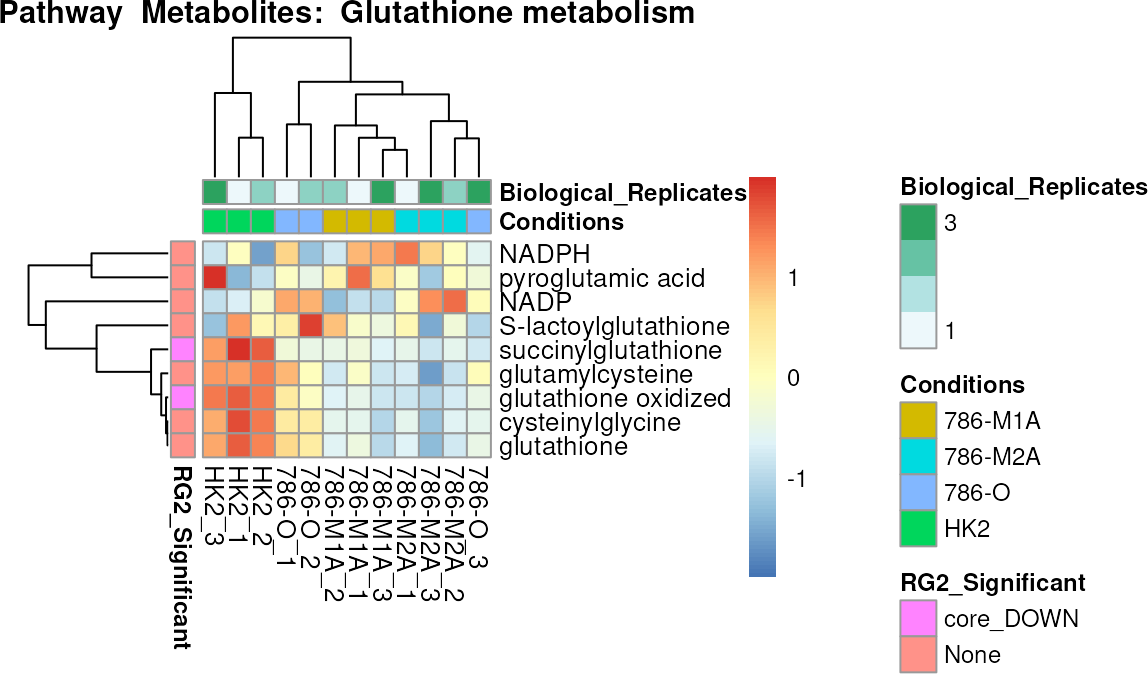

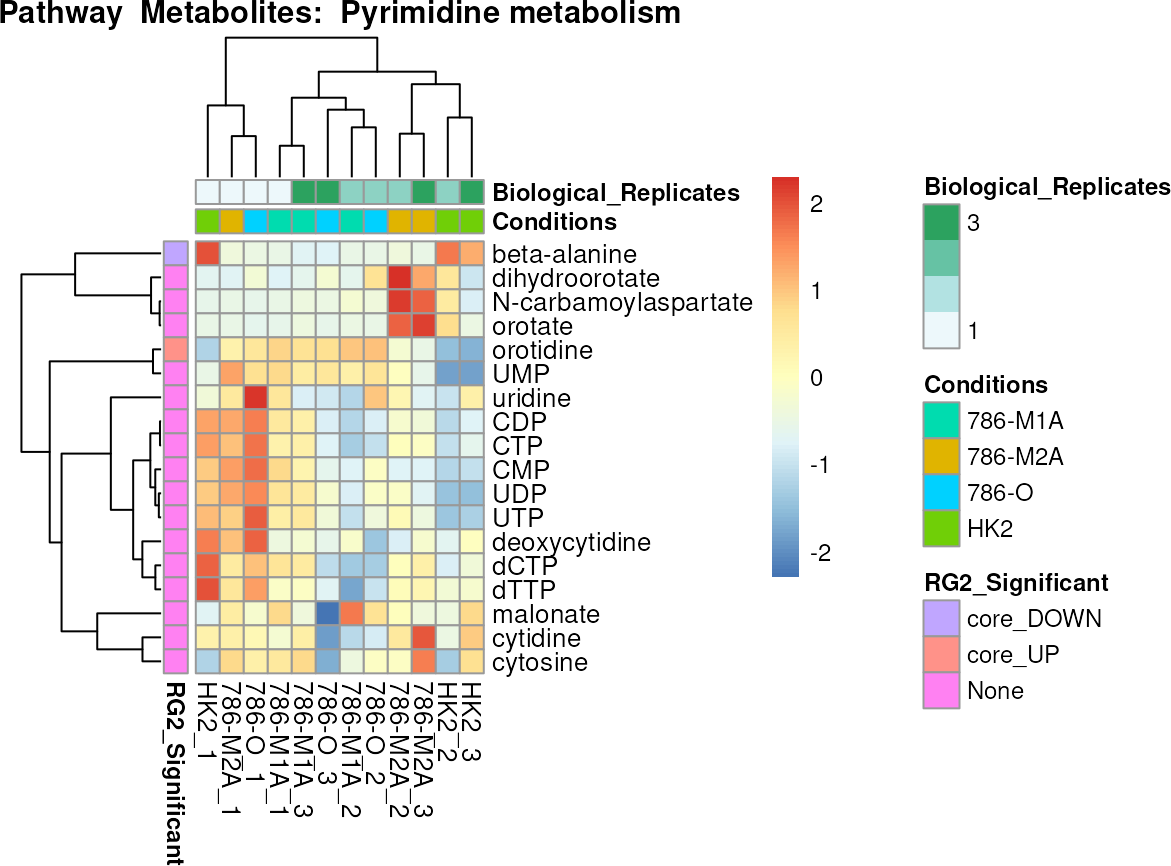

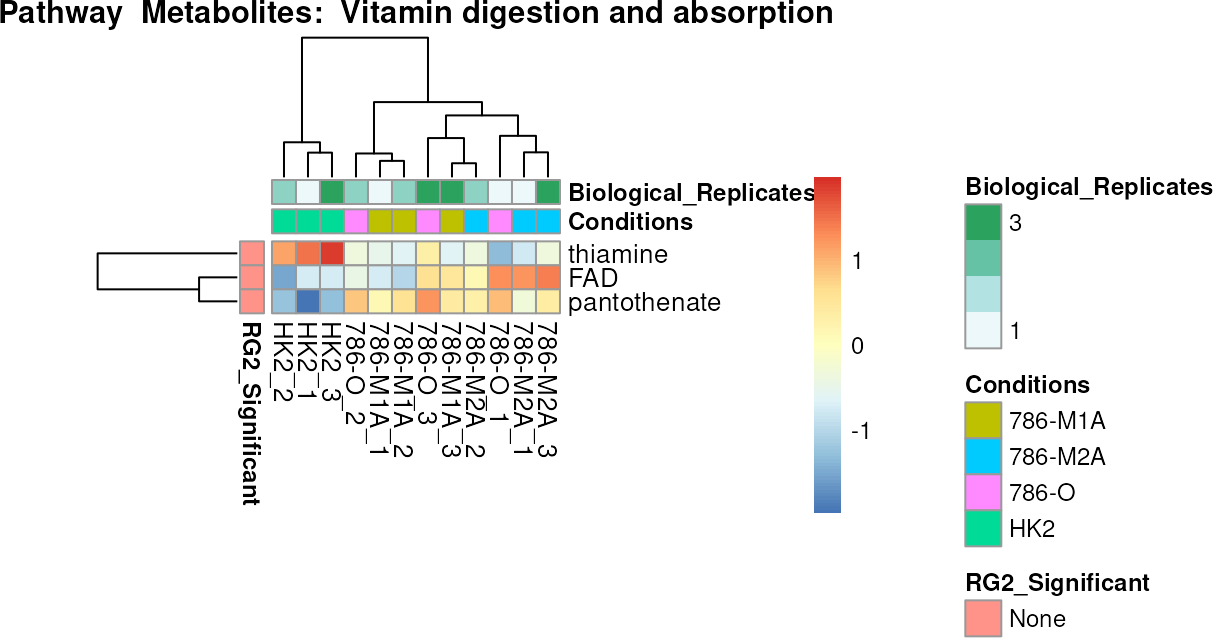

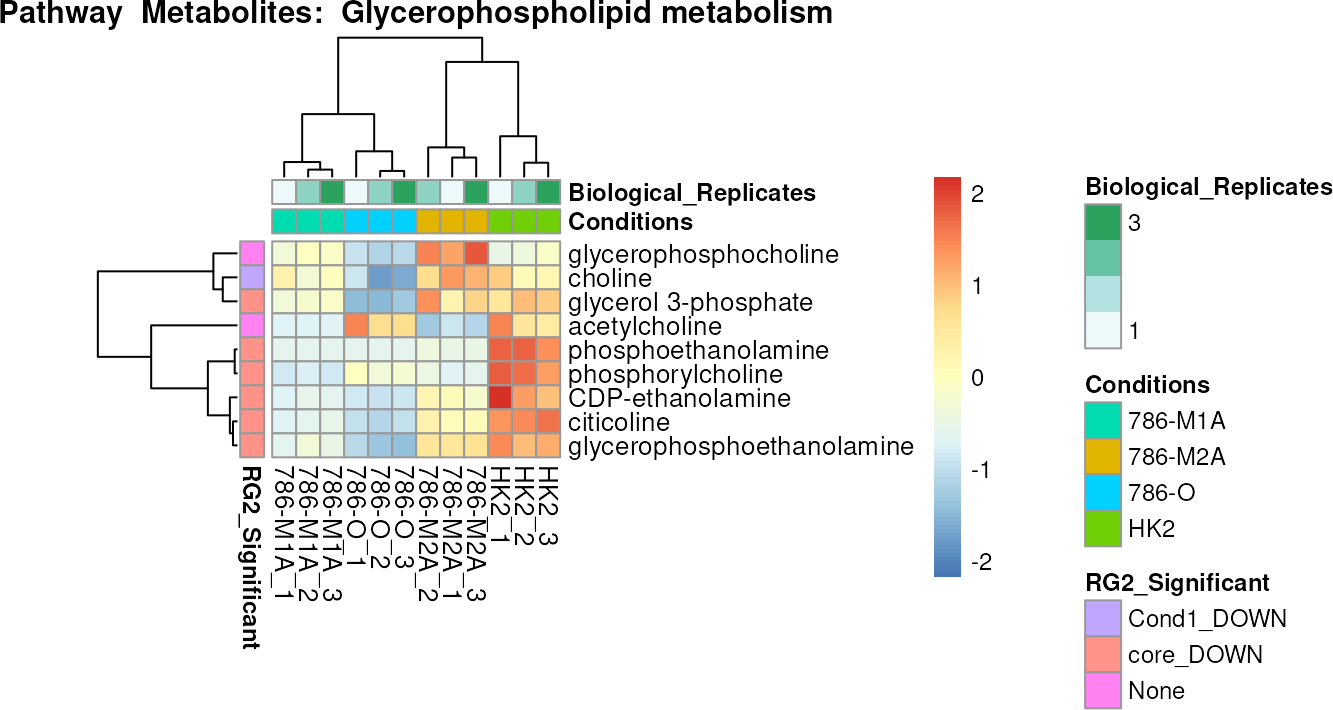

Superplots

Sometimes one might be interested to create individual plots for each metabolite to understand the differences between specific conditions. For this common plot types are bargraphs, boxplots or violin plots. As input, we need a DF that contains the samples as rownames and the features (=metabolites) as column names:

Input_Superplot <-  Intra_Preprocessed[,-c(1:4)]#remove columns that include Metadata such as cell type,...

Input for `viz_superplot()`, with samples as rownames and metabolites as column names.
	hippuric acid-d5	2/3-phosphoglycerate	2-aminoadipic acid	2-hydroxyglutarate	2-ketoglutarate	4-guanidinobutanoate	4-hydroxyphenyllactate
786-M1A_1	4624712907	56869710	7515755	424350094	959154968	1919685	2200691
786-M1A_2	4340353963	48343621	7794629	432815728	979152171	1885079	2038710
786-M1A_3	4214210391	45802902	7241957	417484370	1003428045	2000096	2205282
786-M2A_1	4796131050	45783712	6136730	438371418	844281227	2623110	2253523
786-M2A_2	3846160365	44241237	6228218	432236949	885890420	1980782	2334933
786-M2A_3	4164512249	42973150	6389024	463135059	884908893	1478488	2226276
786-O_1	3896527350	36932026	8968347	389934195	887922452	2390741	2000374
786-O_2	4496764782	30493039	9089987	463318717	1057350518	2329025	2113869
786-O_3	4137100133	29305326	9025706	407917219	1012290078	1695489	2193180
HK2_1	3171399130	30931592	5801816	188417805	326367919	4418820	3963104
HK2_2	3180479423	32564867	7322390	228825446	366703618	4133883	3971958
HK2_3	3365930405	29507162	7159140	251061831	459945537	4366242	4226693

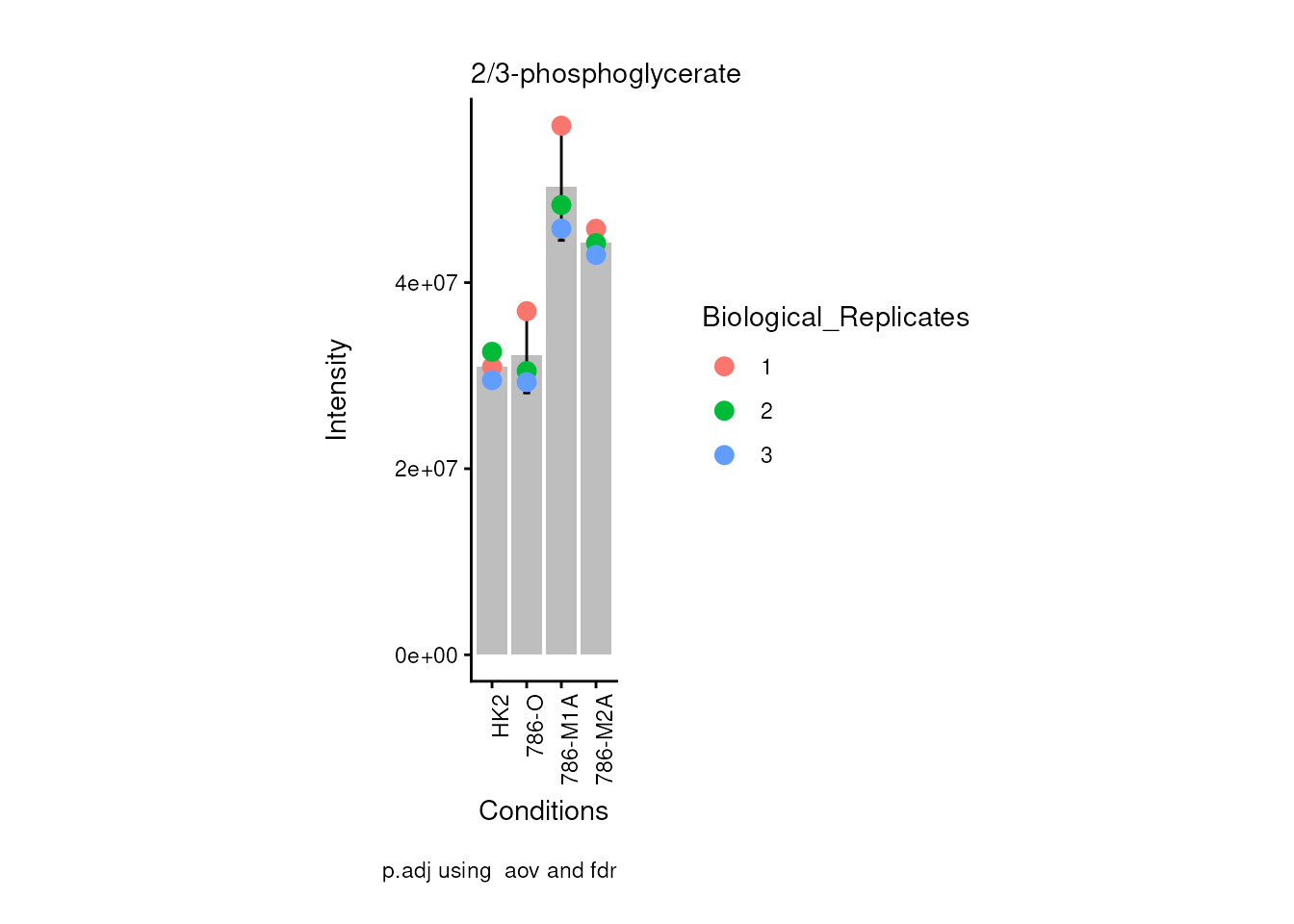

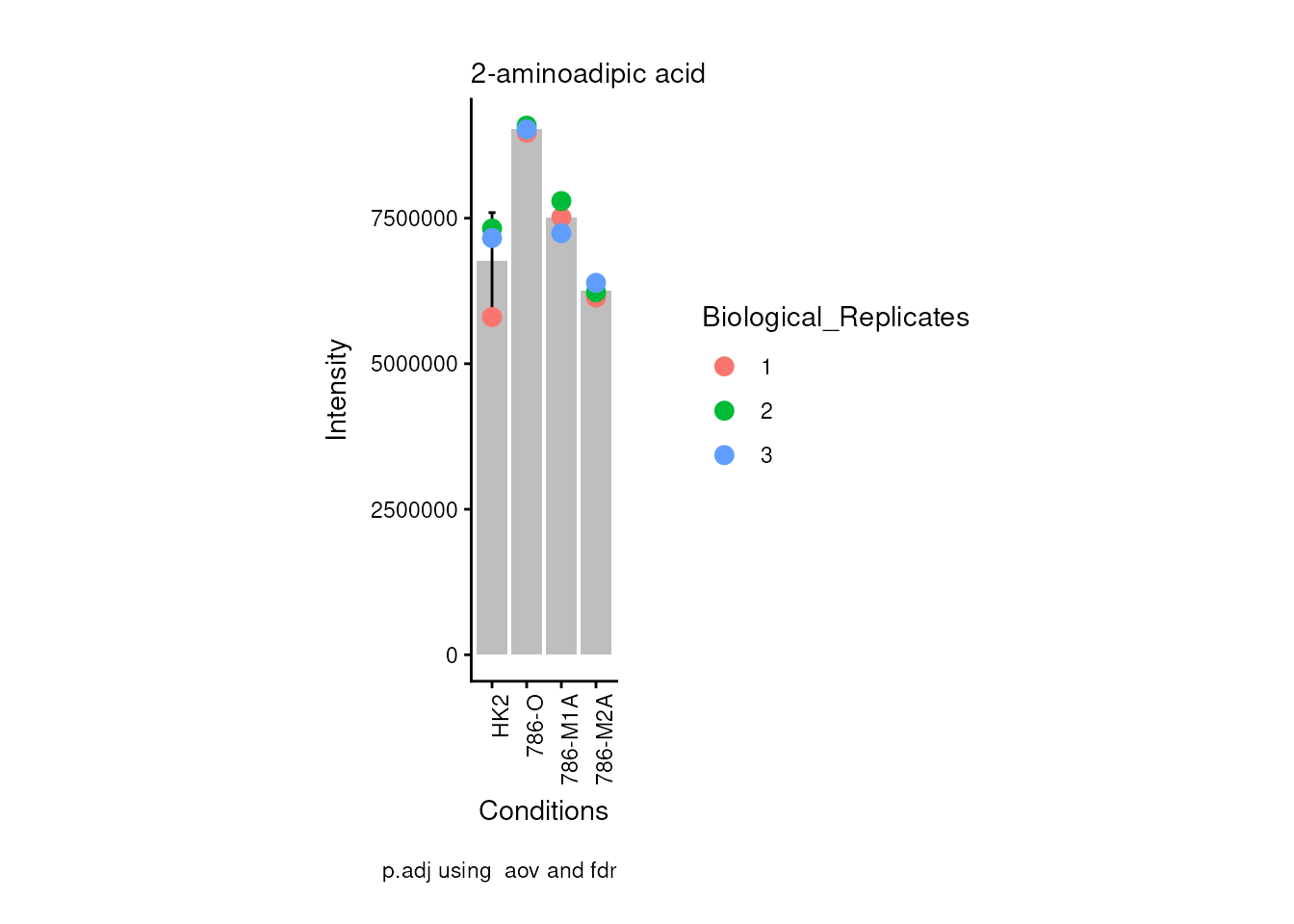

We also need the Metadata as we will need to know which conditions to plot for together. If you have further information such as replicates or patient ID, we can use this for the colour of the plotted samples per condition as in the superplots style as described in by Lord et al (Lord et al. 2020).

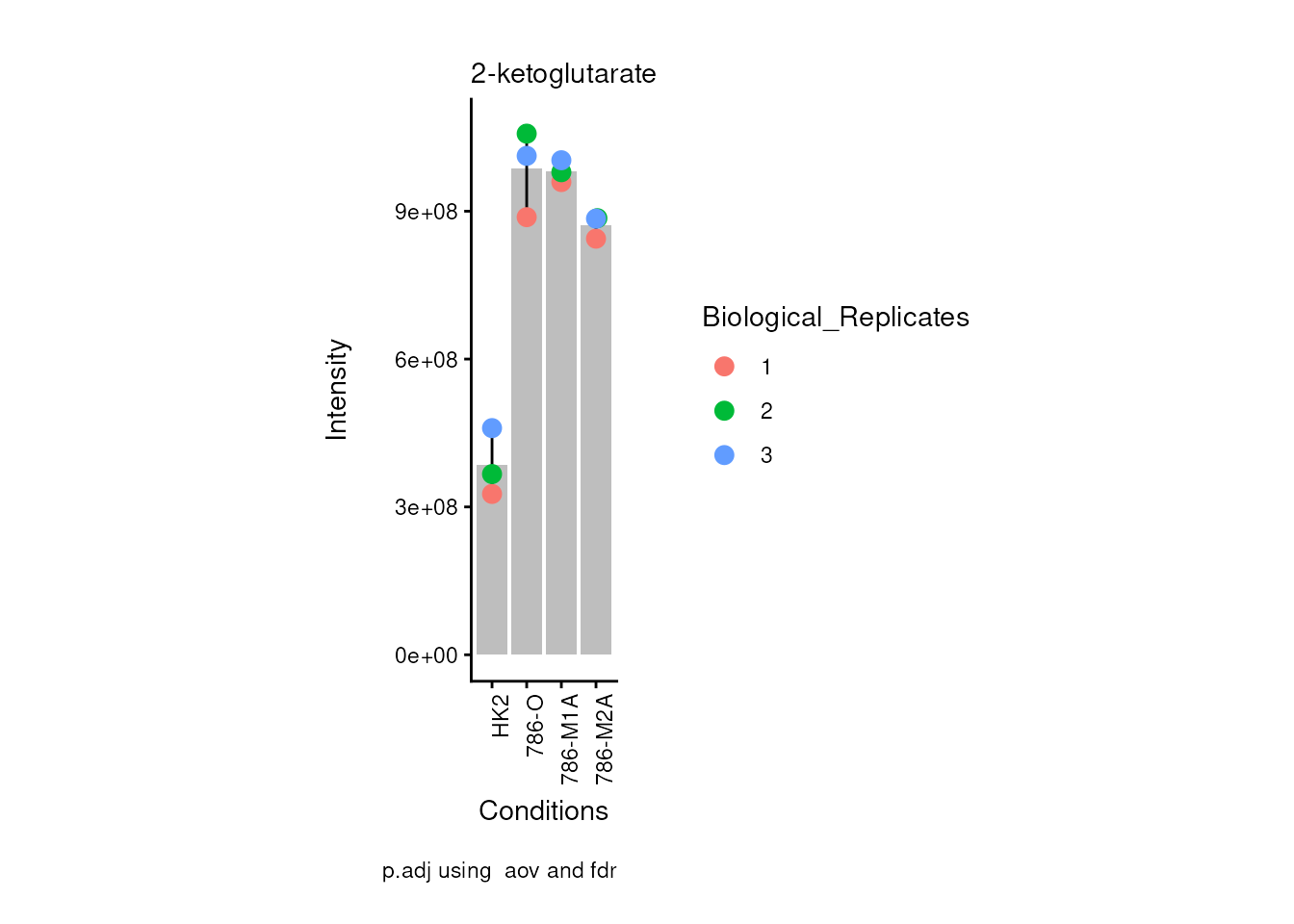

viz_superplot(data =Input_Superplot[,c(1:6)],#We just plot six metabolites
metadata_sample =MetaData_Sample,
metadata_info = c(Conditions="Conditions", Superplot = "Biological_Replicates"),
plot_type = "Bar", #Bar, Box, Violin
plot_conditions = c("HK2", "786-O", "786-M1A", "786-M2A"),#sets the order in which the samples should be plotted
stat_comparison = list(c(1,2),c(1,4)))#Stat comparisons to be included on the plot
#> Ignoring unknown labels:
#> • fill : "Biological_Replicates"
#> Ignoring unknown labels:
#> • fill : "Biological_Replicates"

#> Ignoring unknown labels:
#> • fill : "Biological_Replicates"
#> Ignoring unknown labels:
#> • fill : "Biological_Replicates"

#> Ignoring unknown labels:
#> • fill : "Biological_Replicates"
#> Ignoring unknown labels:
#> • fill : "Biological_Replicates"

#> Ignoring unknown labels:
#> • fill : "Biological_Replicates"
#> Ignoring unknown labels:
#> • fill : "Biological_Replicates"

#> Ignoring unknown labels:
#> • fill : "Biological_Replicates"
#> Ignoring unknown labels:
#> • fill : "Biological_Replicates"

#> Ignoring unknown labels:
#> • fill : "Biological_Replicates"
#> Ignoring unknown labels:
#> • fill : "Biological_Replicates"

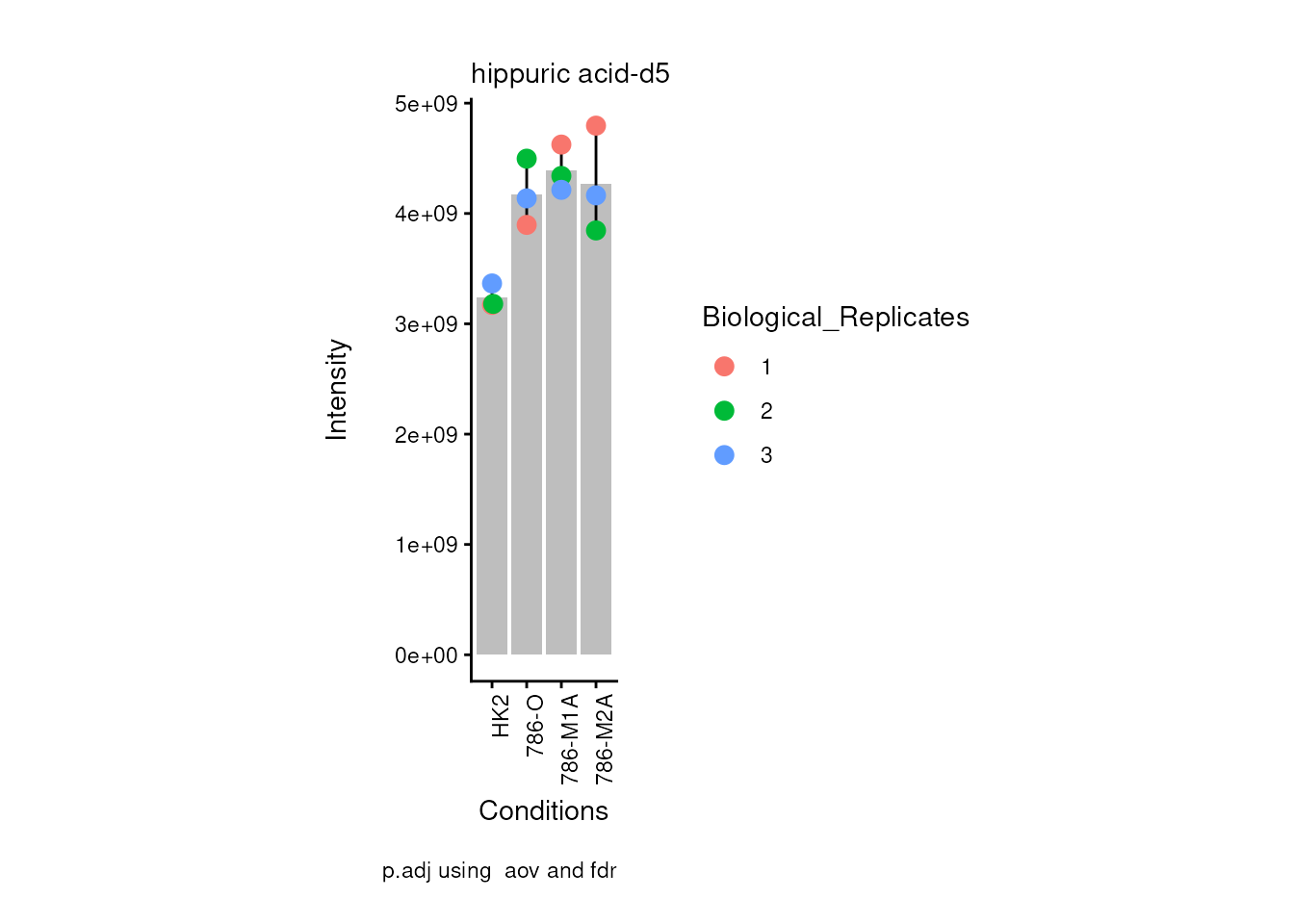

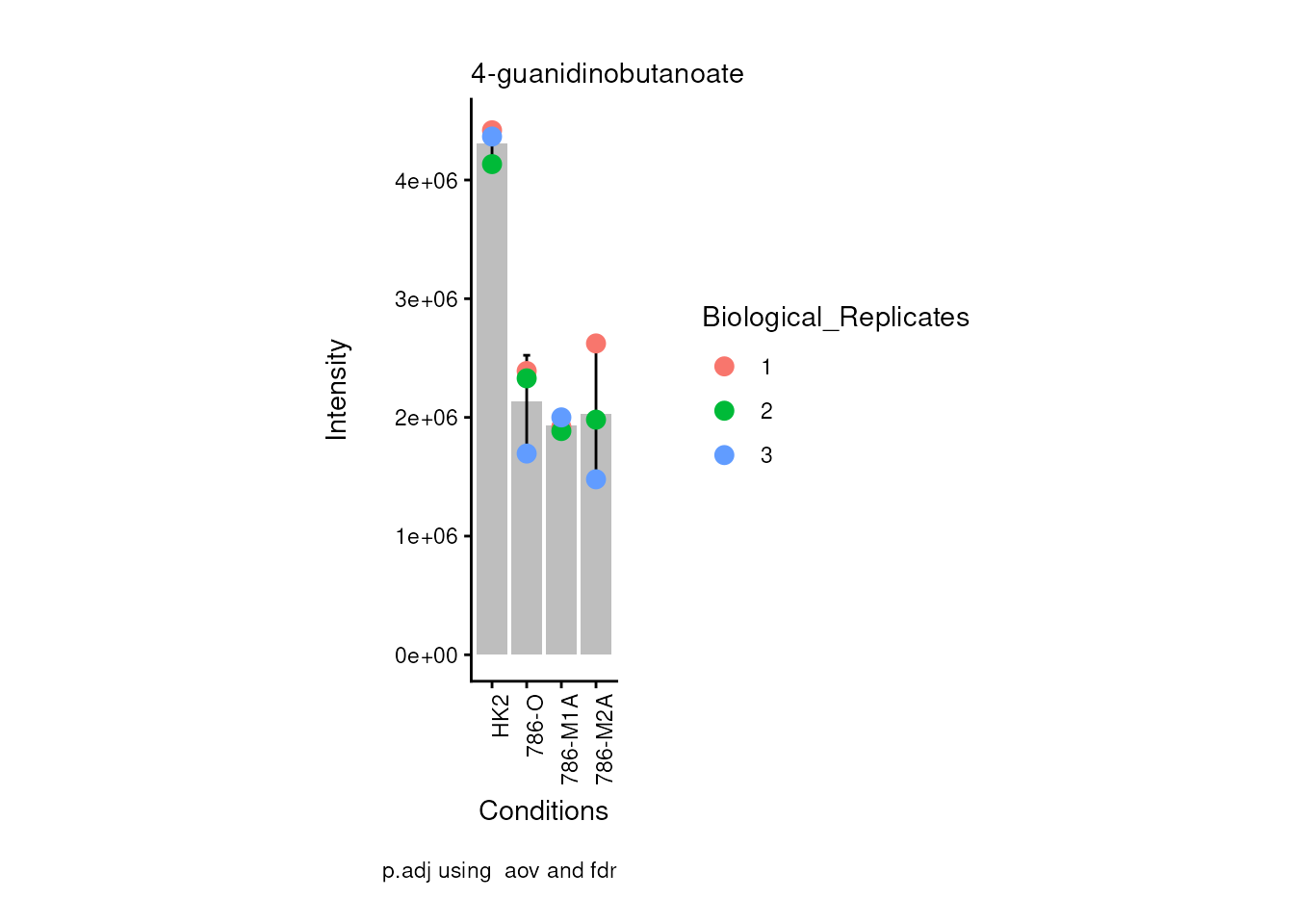

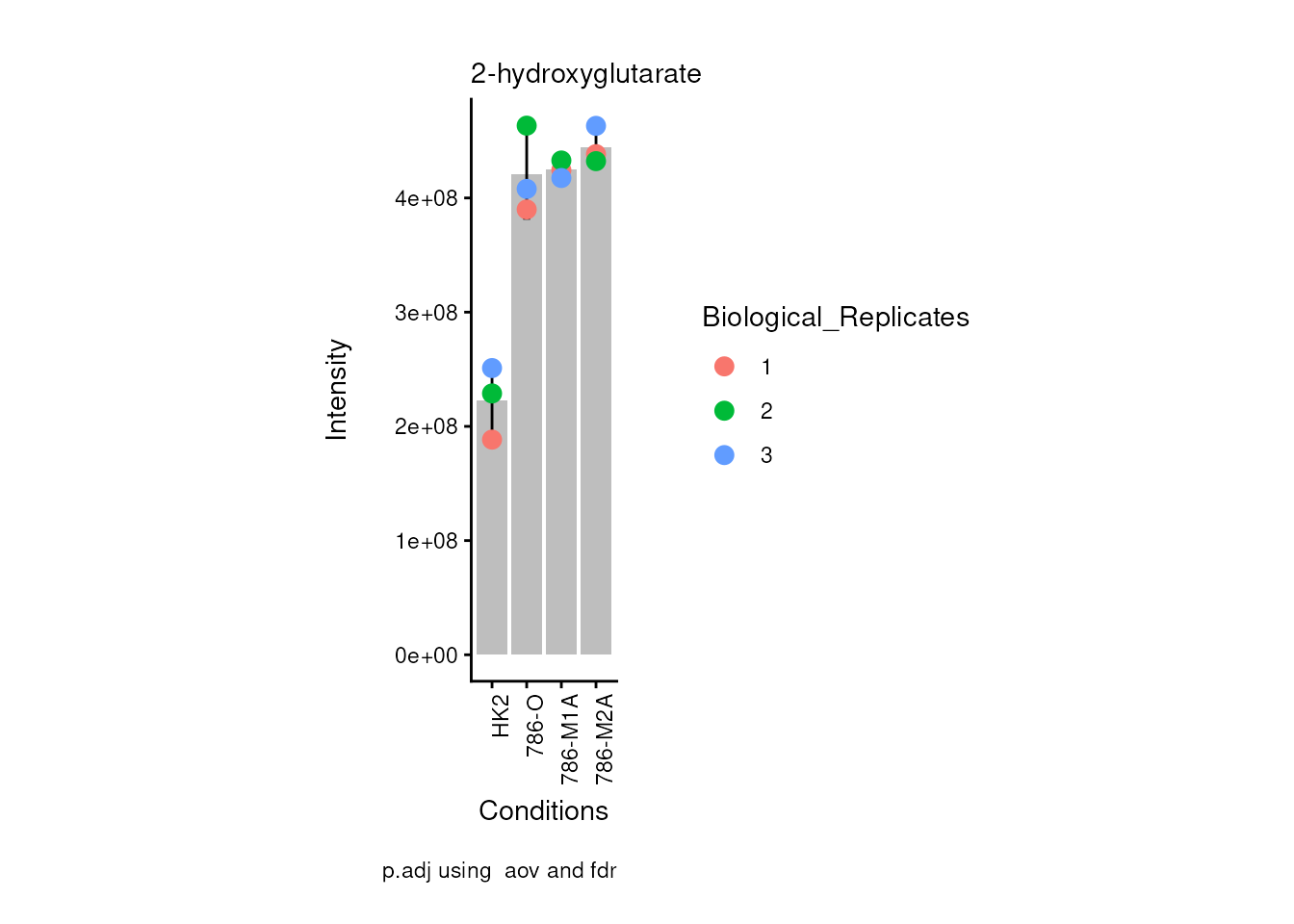

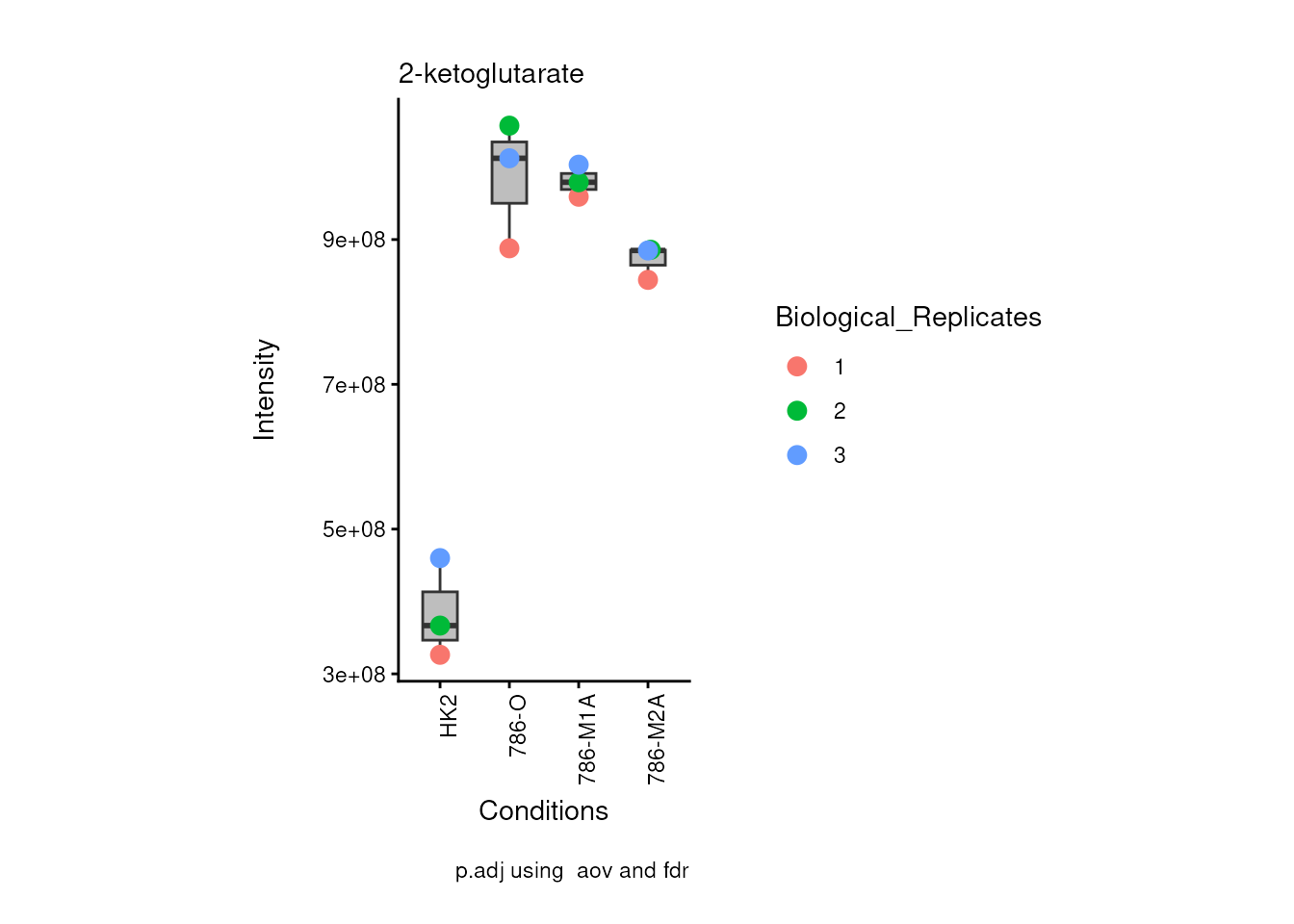

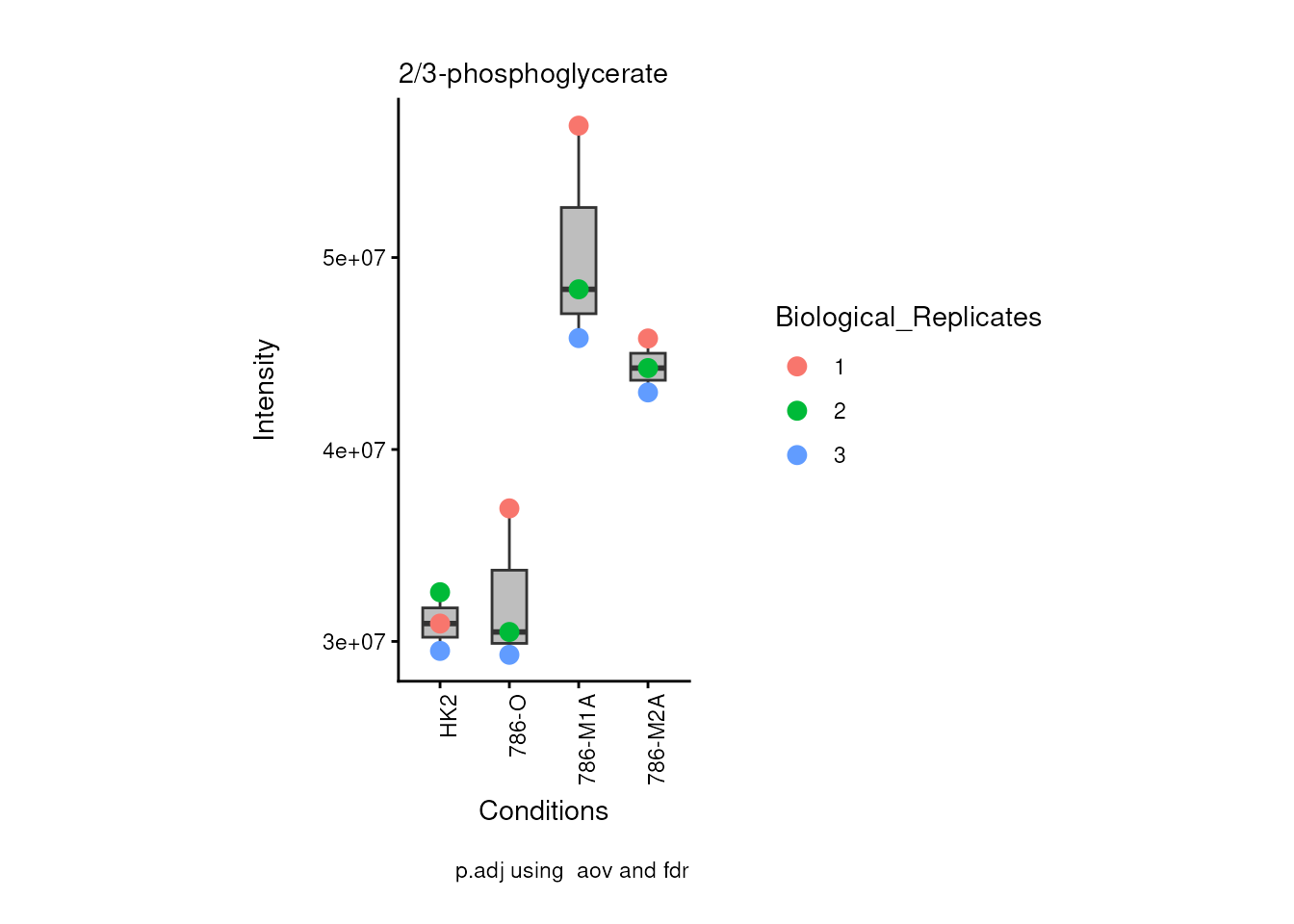

Now, if we for instance prefer boxplots over bargraphs we can simply change the parameter plot_type:

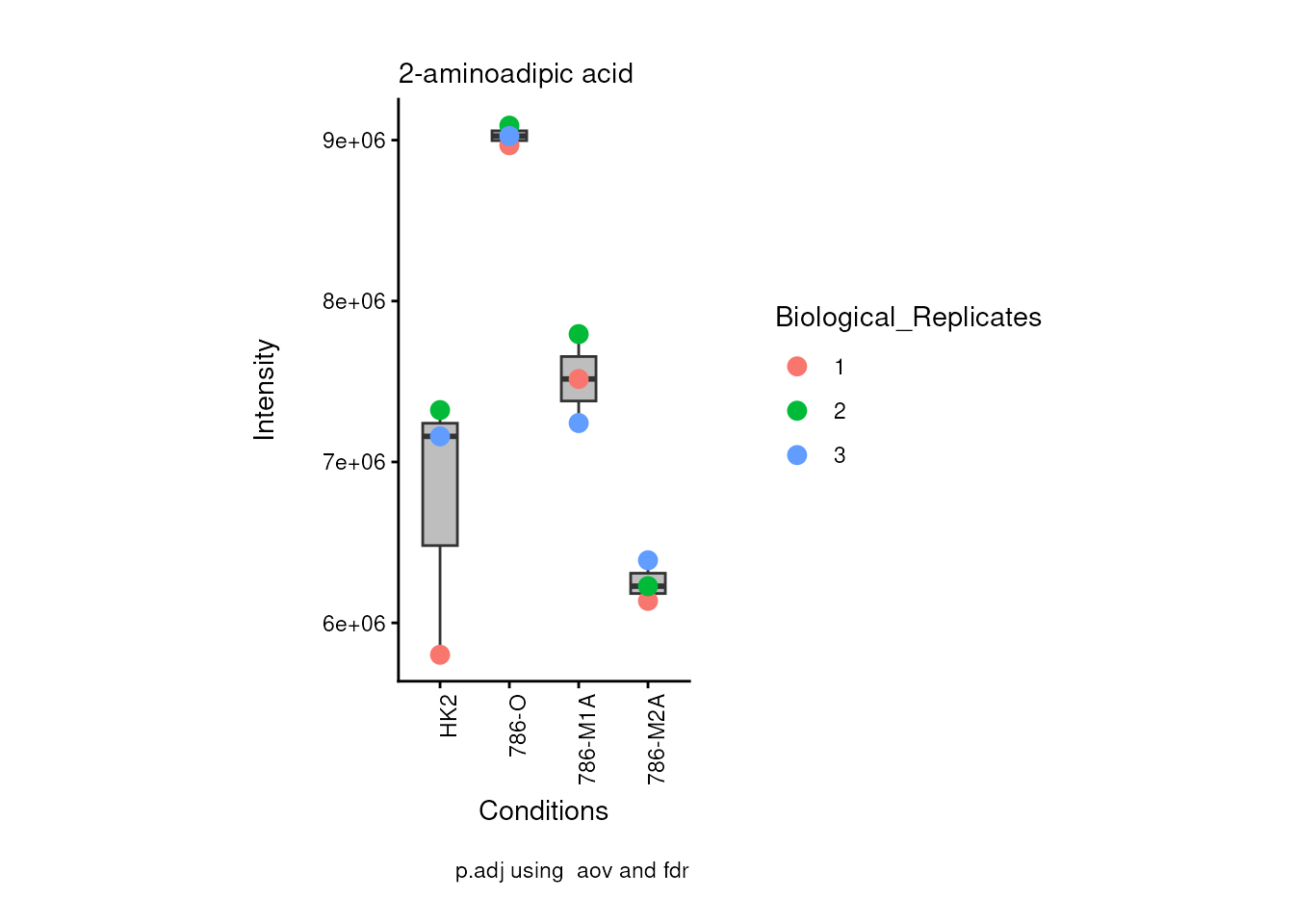

viz_superplot(data =Input_Superplot[,c(1:6)],#We just plot six metabolites
metadata_sample =MetaData_Sample,
metadata_info = c(Conditions="Conditions", Superplot = "Biological_Replicates"),
plot_type = "Box", #Bar, Box, Violin
plot_conditions = c("HK2", "786-O", "786-M1A", "786-M2A"),#sets the order in which the samples should be plotted
stat_comparison = list(c(1,2),c(1,4)))#Stat comparisons to be included on the plot
#> Ignoring unknown labels:
#> • fill : "Biological_Replicates"
#> Ignoring unknown labels:
#> • fill : "Biological_Replicates"

#> Ignoring unknown labels:
#> • fill : "Biological_Replicates"
#> Ignoring unknown labels:
#> • fill : "Biological_Replicates"

#> Ignoring unknown labels:
#> • fill : "Biological_Replicates"
#> Ignoring unknown labels:
#> • fill : "Biological_Replicates"

#> Ignoring unknown labels:
#> • fill : "Biological_Replicates"
#> Ignoring unknown labels:
#> • fill : "Biological_Replicates"

#> Ignoring unknown labels:
#> • fill : "Biological_Replicates"
#> Ignoring unknown labels:
#> • fill : "Biological_Replicates"

#> Ignoring unknown labels:
#> • fill : "Biological_Replicates"
#> Ignoring unknown labels:
#> • fill : "Biological_Replicates"

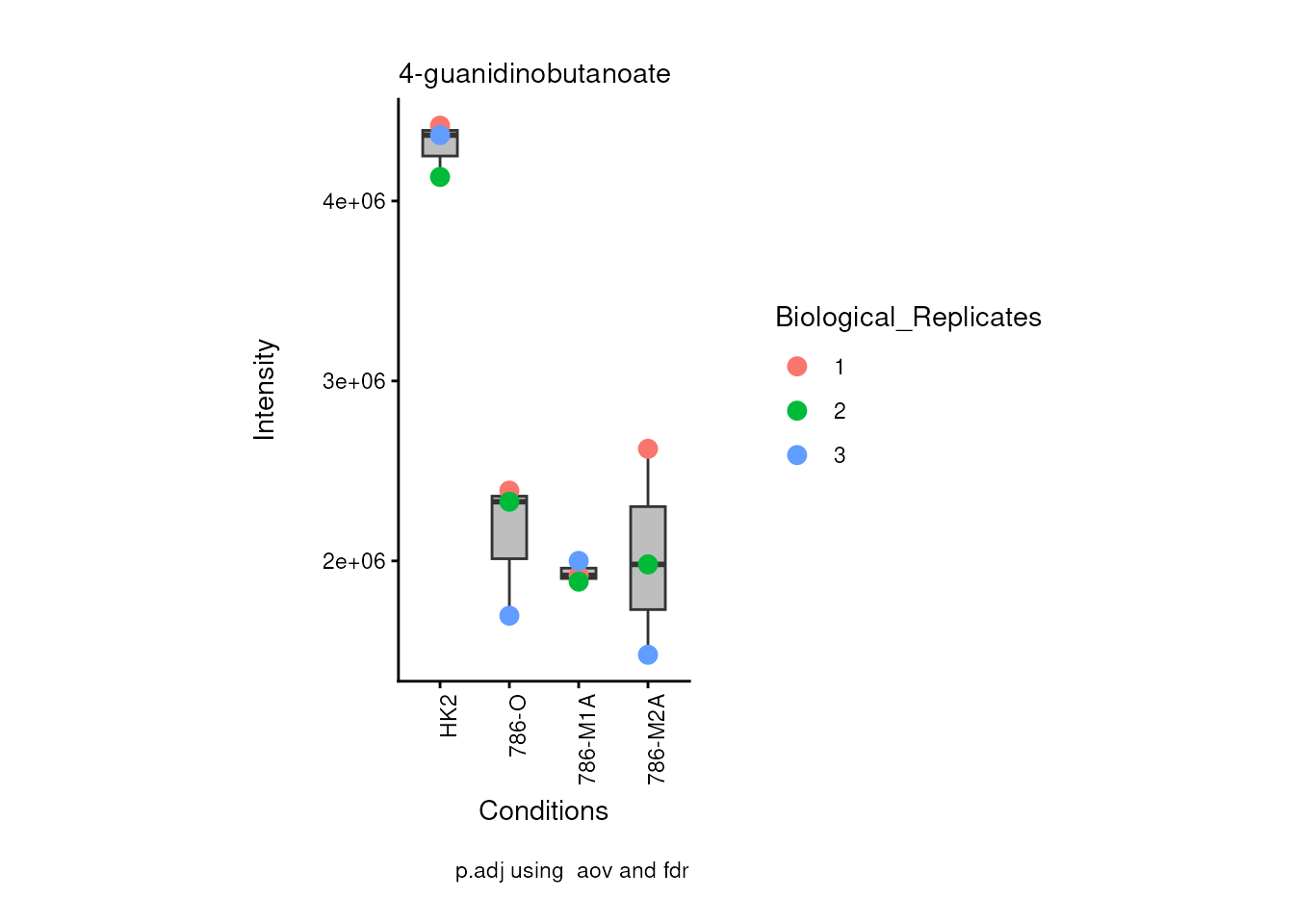

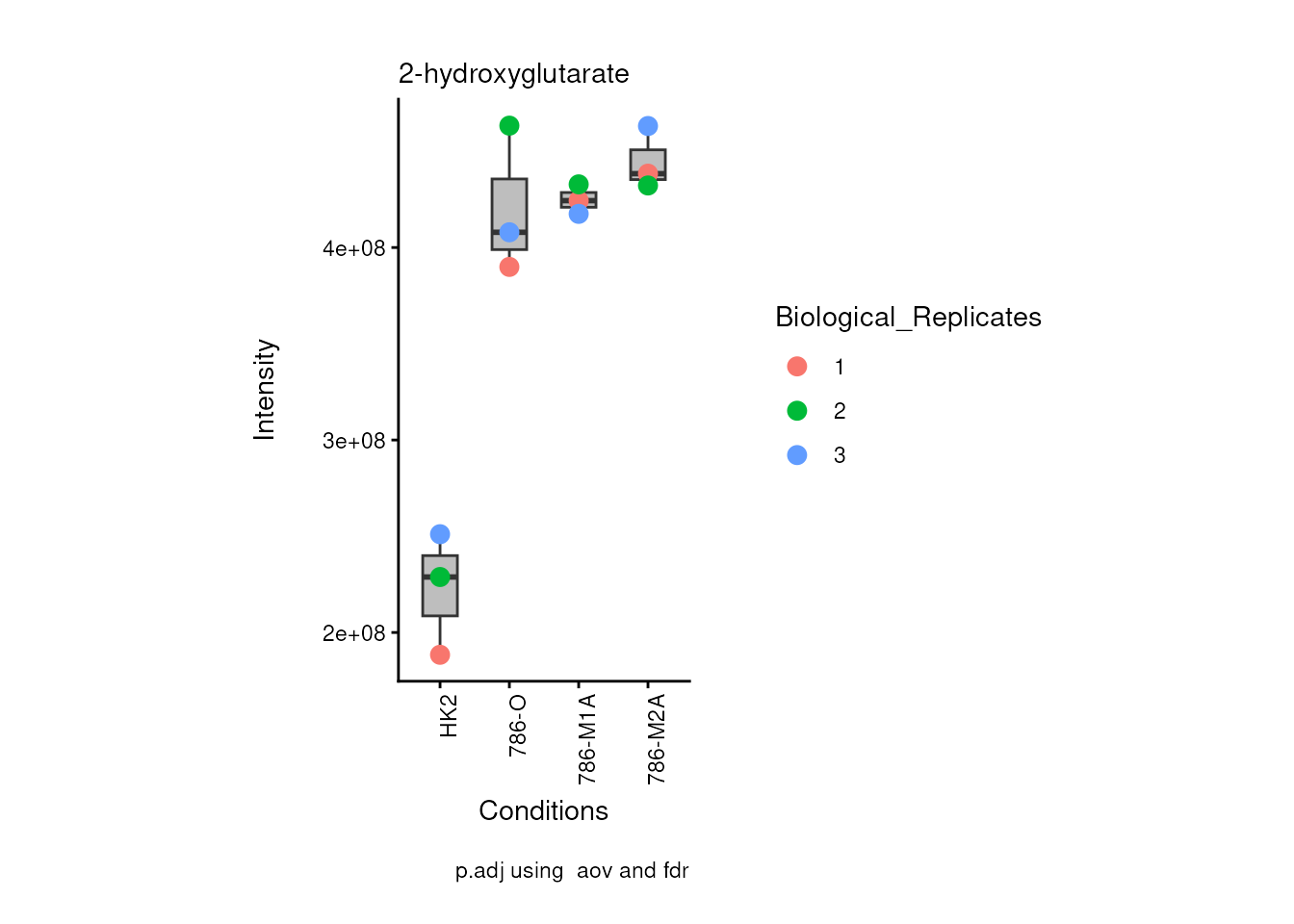

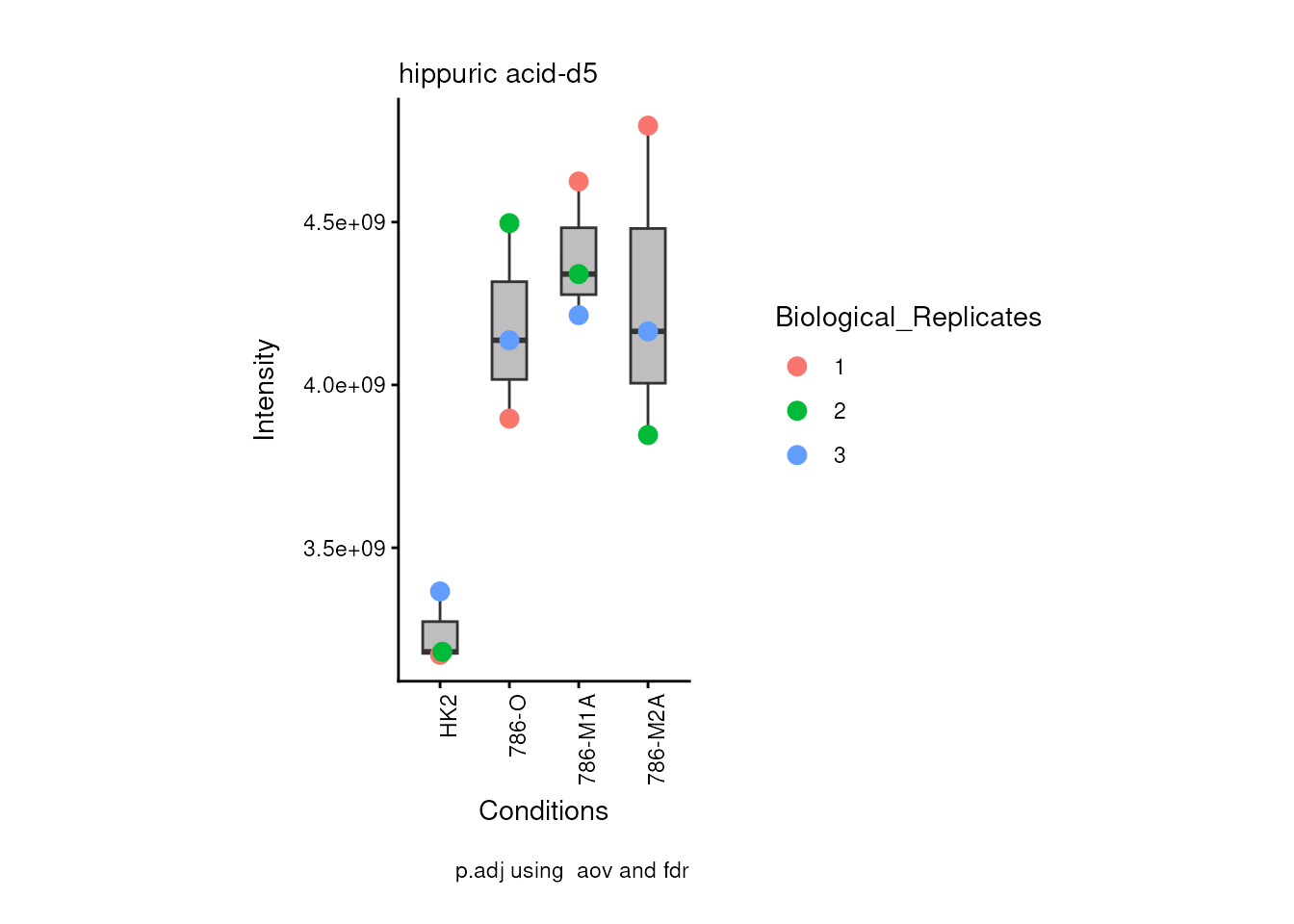

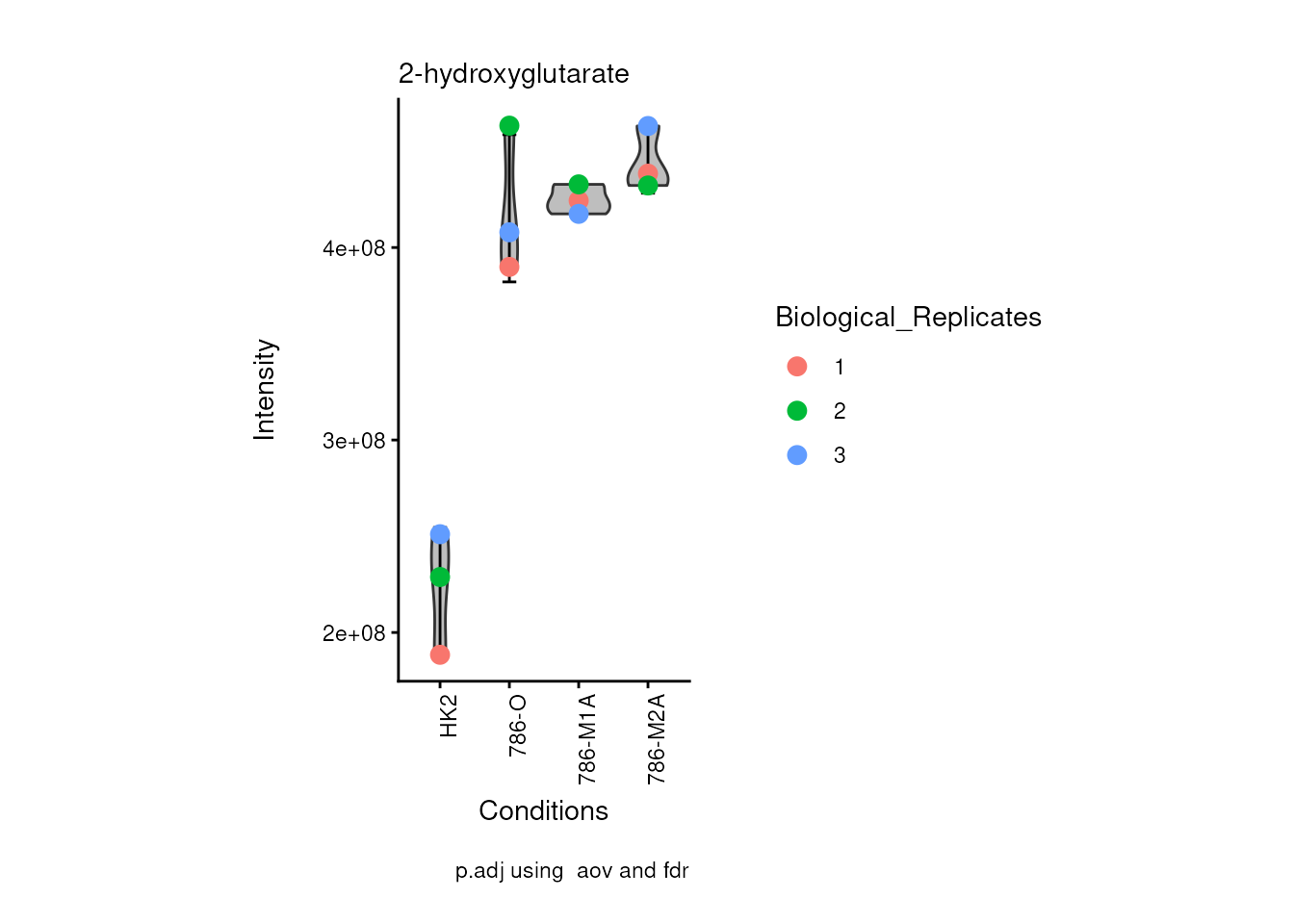

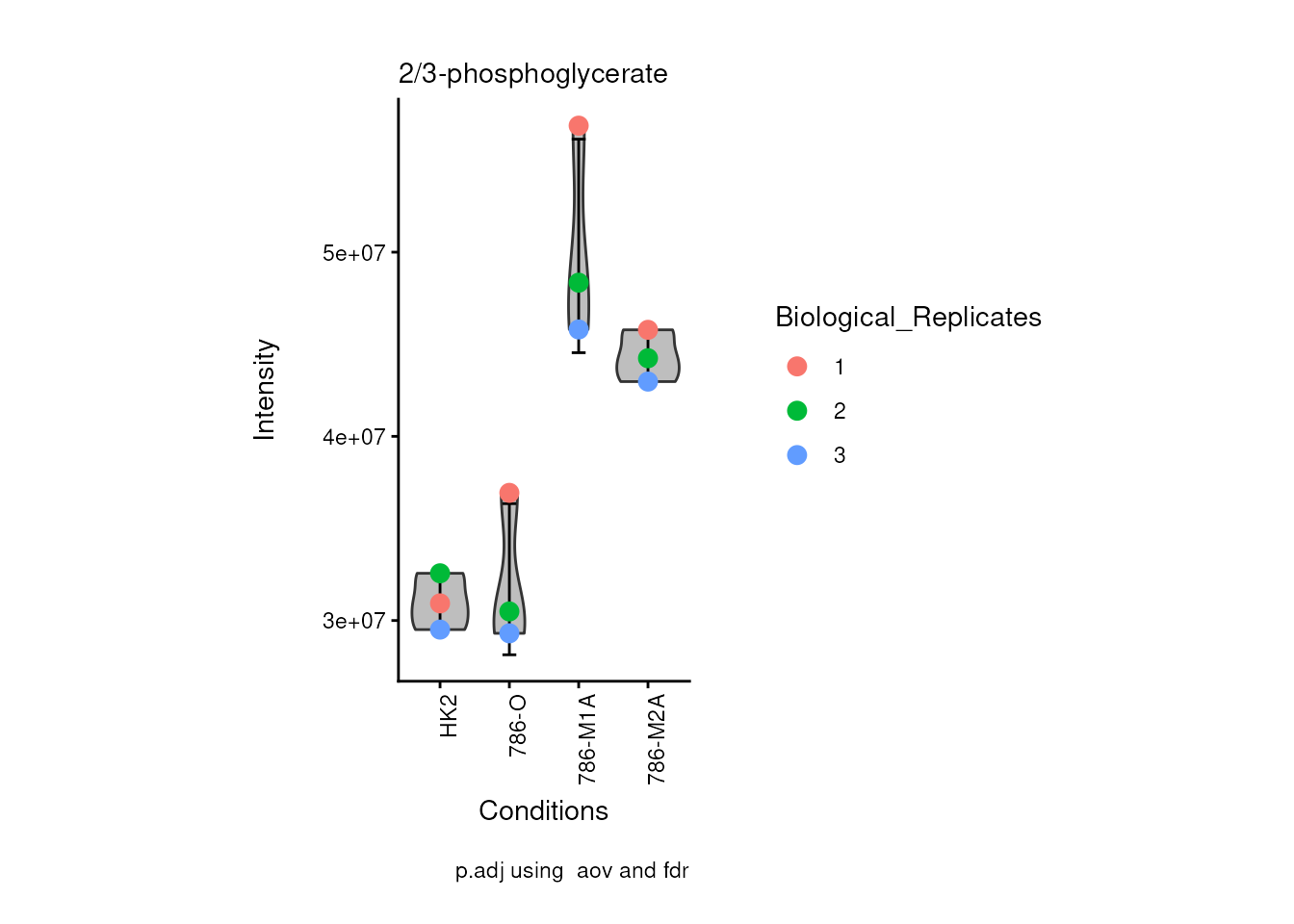

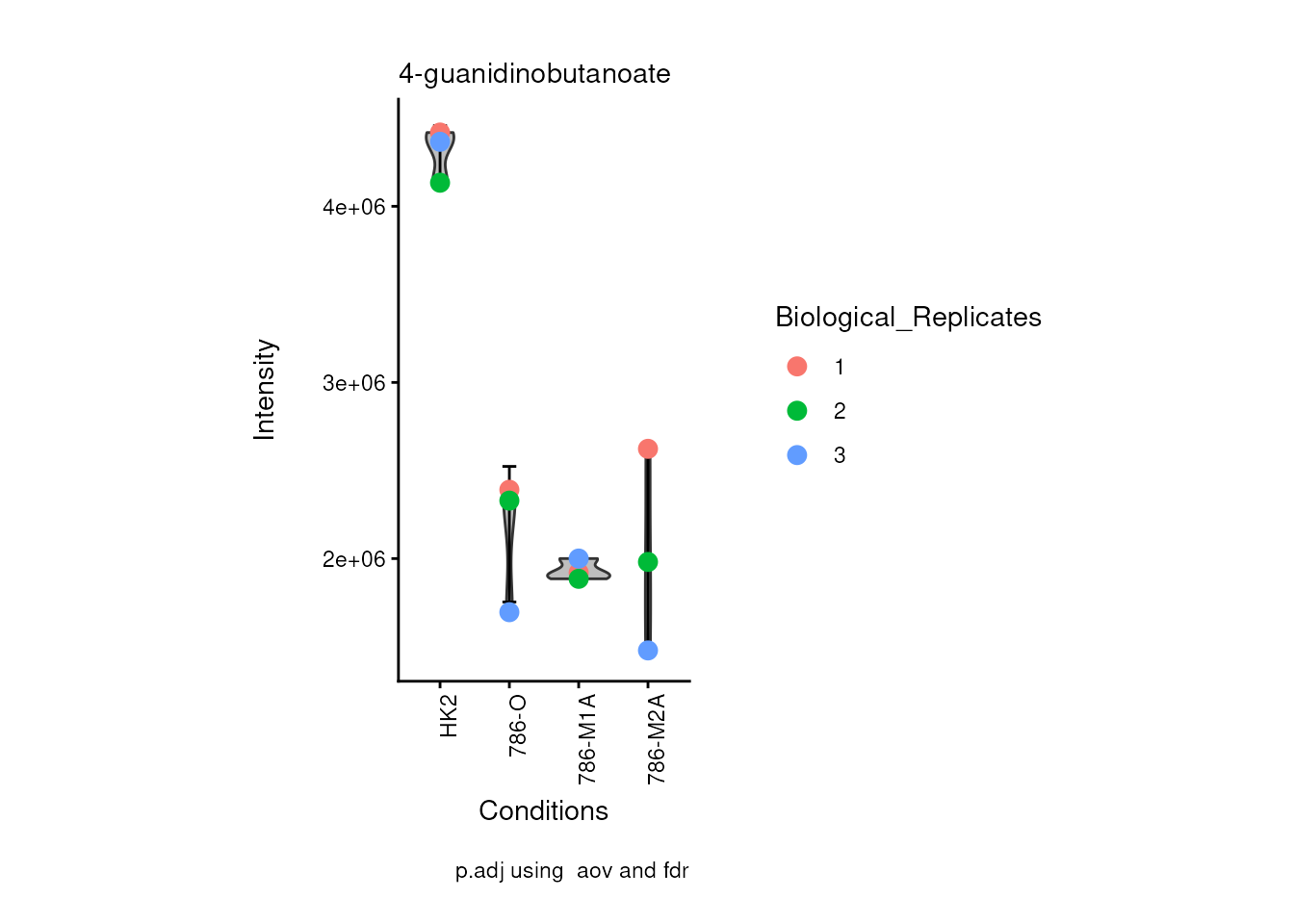

We can also change it to violin plots:

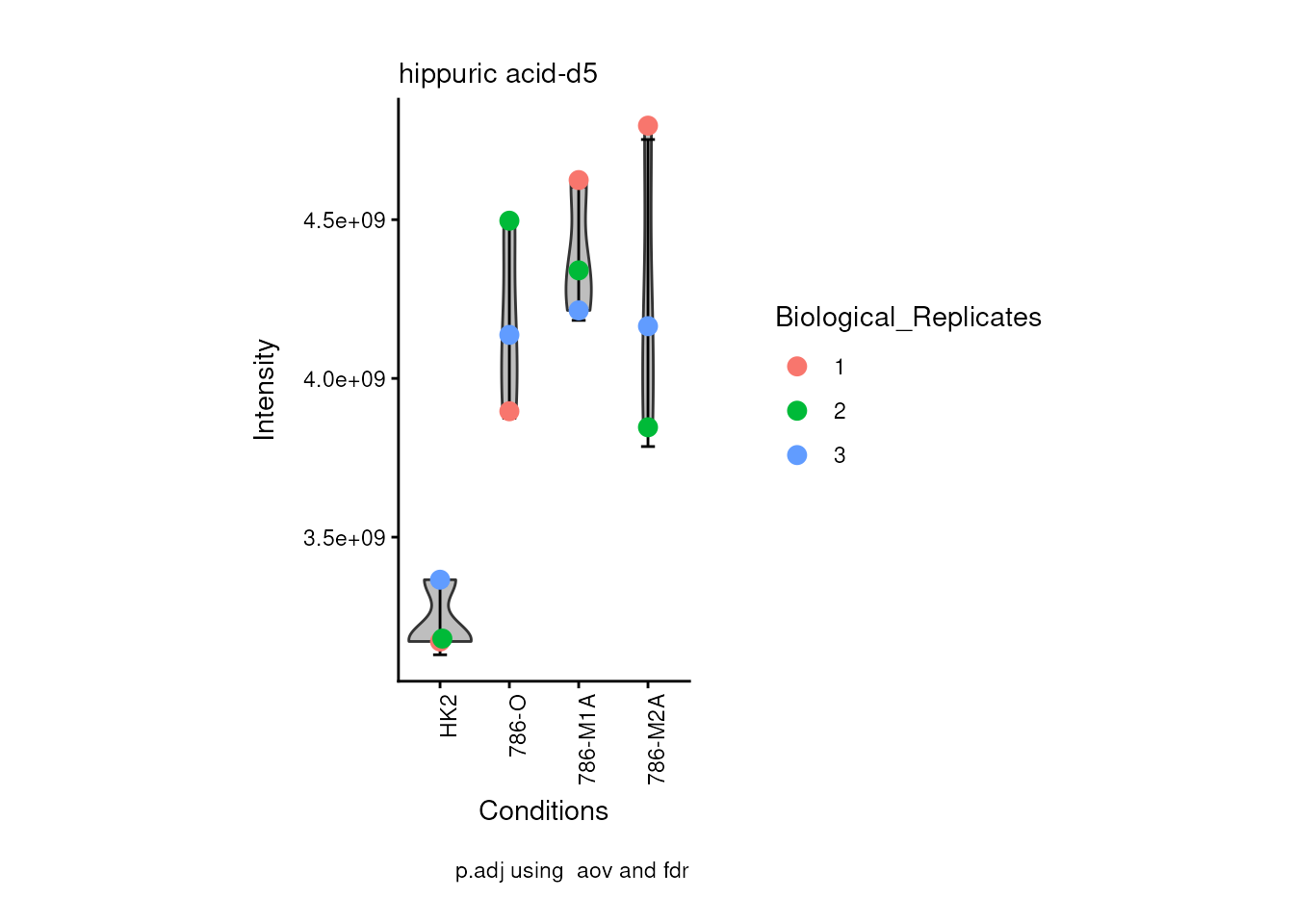

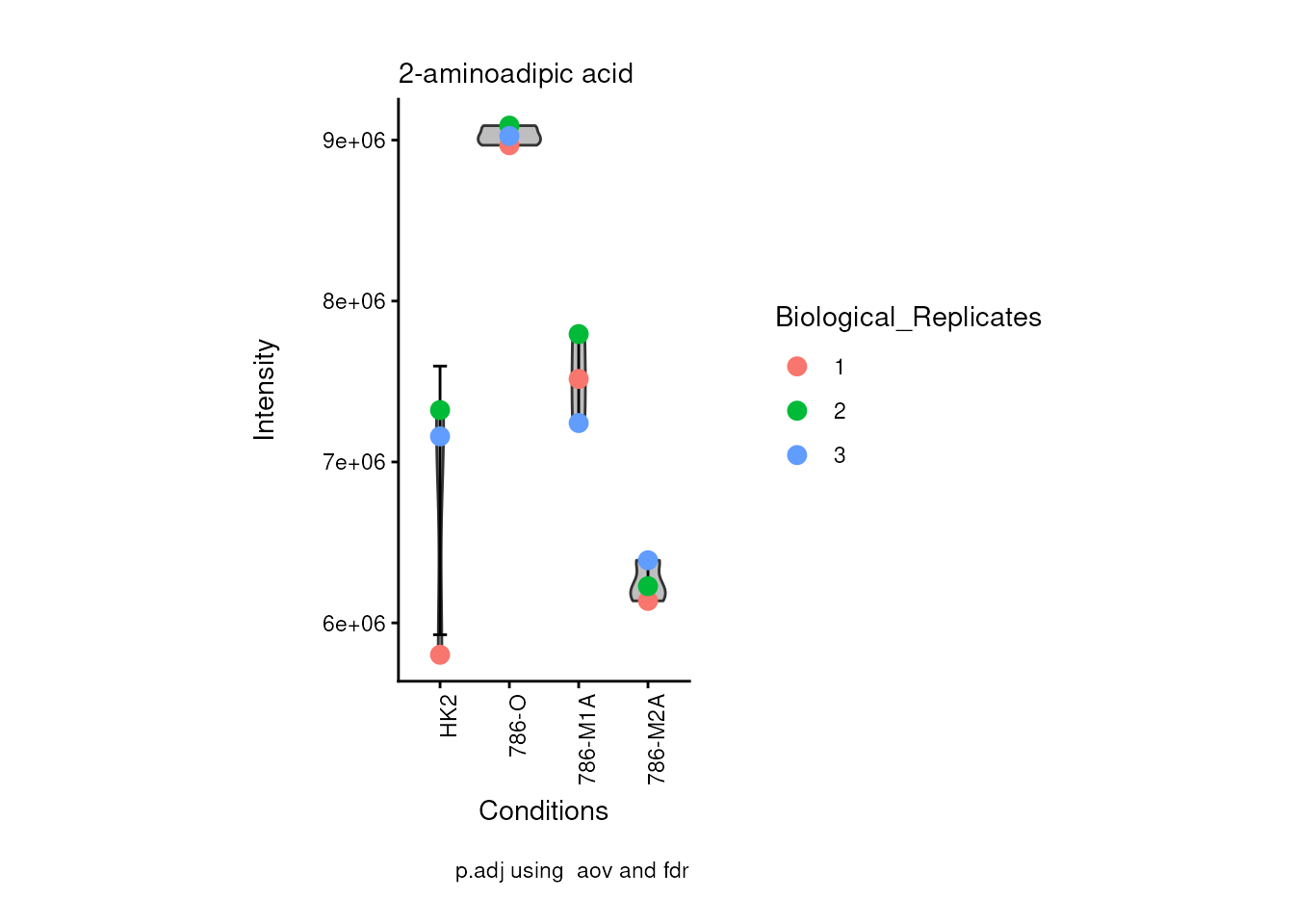

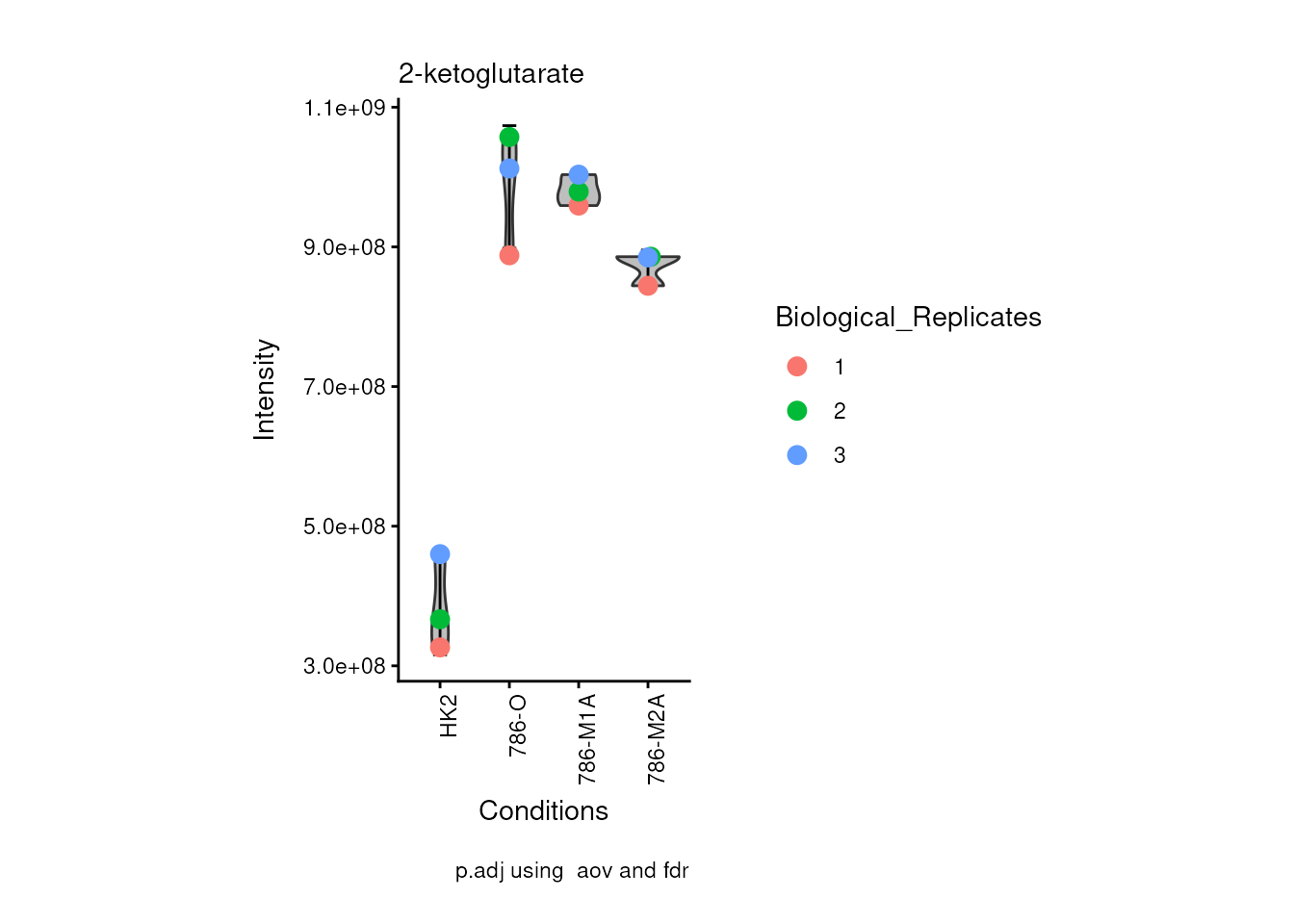

viz_superplot(data =Input_Superplot[,c(1:6)],#We just plot six metabolites
metadata_sample =MetaData_Sample,
metadata_info = c(Conditions="Conditions", Superplot = "Biological_Replicates"),
plot_type = "Violin", #Bar, Box, Violin
plot_conditions = c("HK2", "786-O", "786-M1A", "786-M2A"),#sets the order in which the samples should be plotted
stat_comparison = list(c(1,2),c(1,4)))#Stat comparisons to be included on the plot
#> Ignoring unknown labels:
#> • fill : "Biological_Replicates"
#> Ignoring unknown labels:
#> • fill : "Biological_Replicates"

#> Ignoring unknown labels:
#> • fill : "Biological_Replicates"
#> Ignoring unknown labels:
#> • fill : "Biological_Replicates"

#> Ignoring unknown labels:
#> • fill : "Biological_Replicates"
#> Ignoring unknown labels:
#> • fill : "Biological_Replicates"

#> Ignoring unknown labels:
#> • fill : "Biological_Replicates"
#> Ignoring unknown labels:
#> • fill : "Biological_Replicates"

#> Ignoring unknown labels:
#> • fill : "Biological_Replicates"
#> Ignoring unknown labels:
#> • fill : "Biological_Replicates"

#> Ignoring unknown labels:
#> • fill : "Biological_Replicates"
#> Ignoring unknown labels:
#> • fill : "Biological_Replicates"

Volcano plot

In general, viz_volcano() has three different plot types, which are set with the parameter plot_types:
1. "Standard" is the standard version of the plot, with one dataset being plotted.

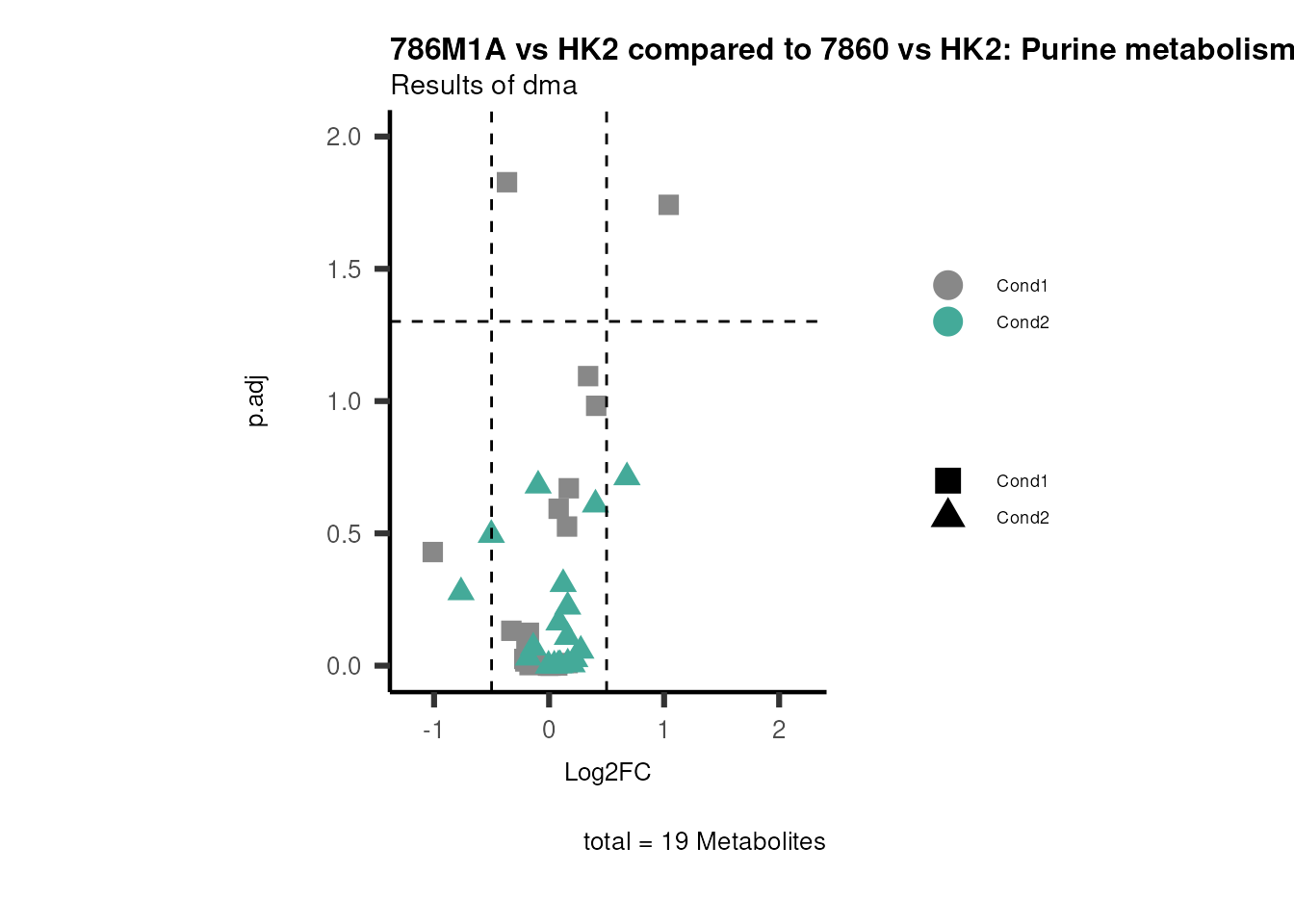

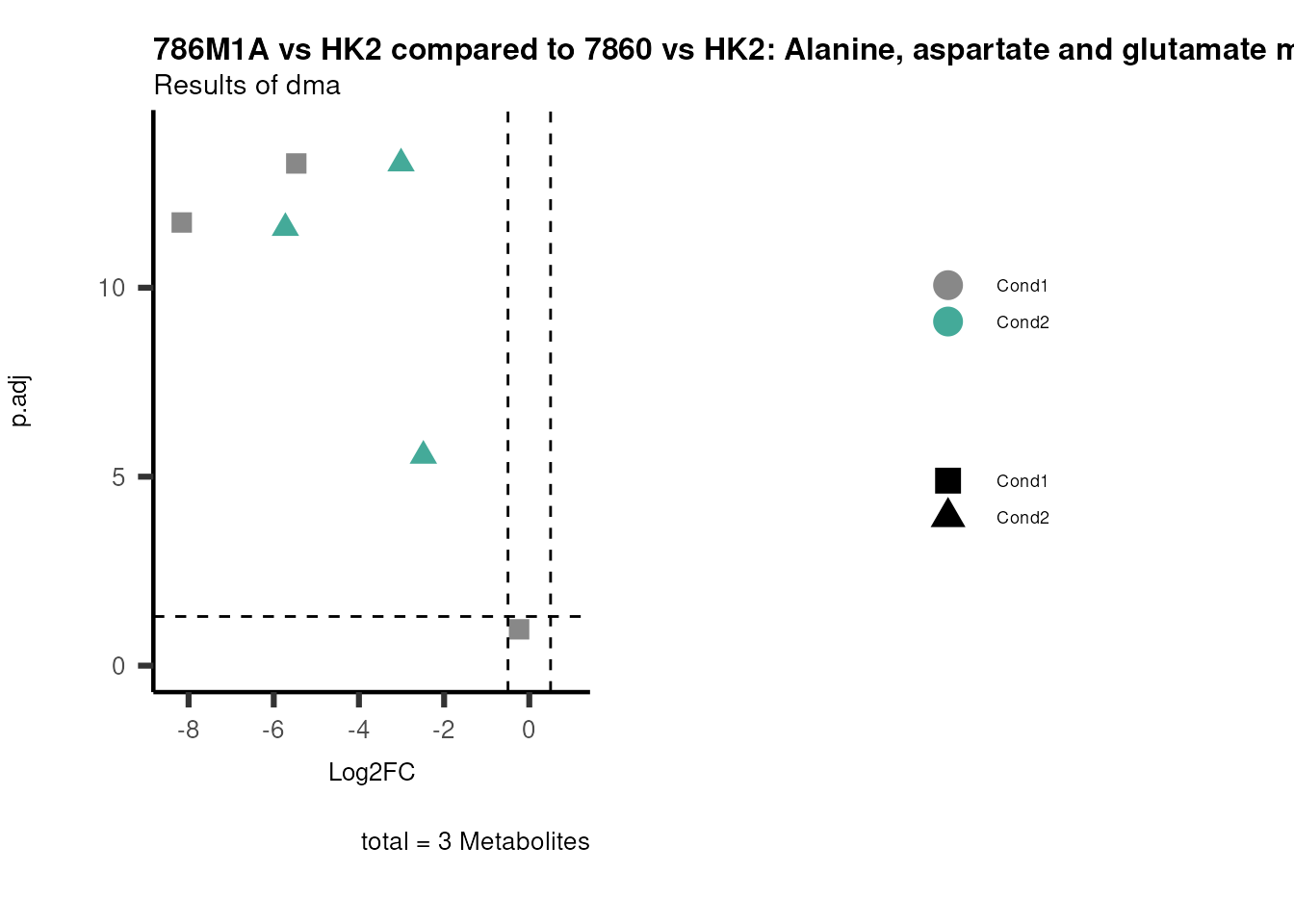

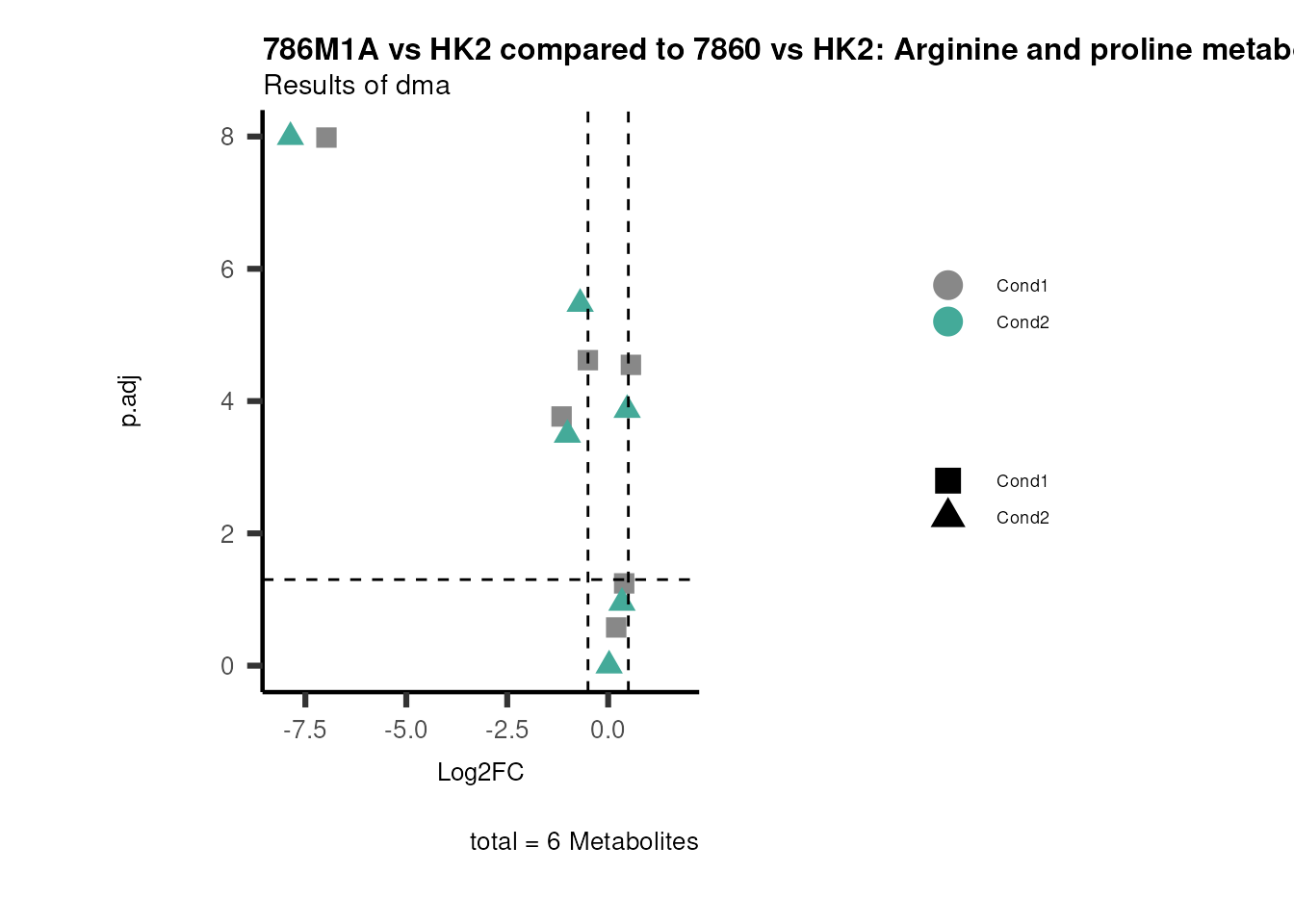

2. "Compare" here two datasets (data and data2) will be plotted together.

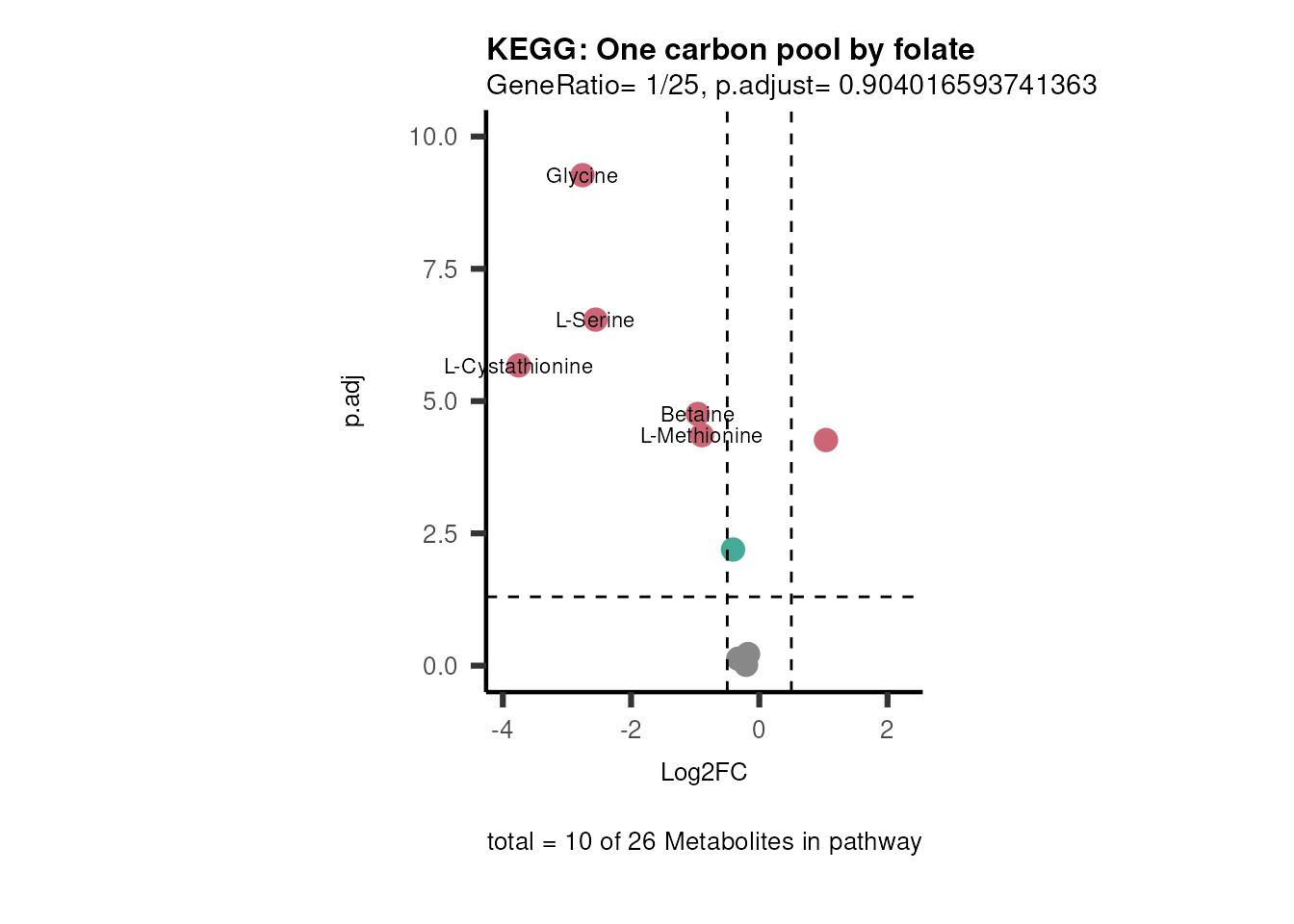

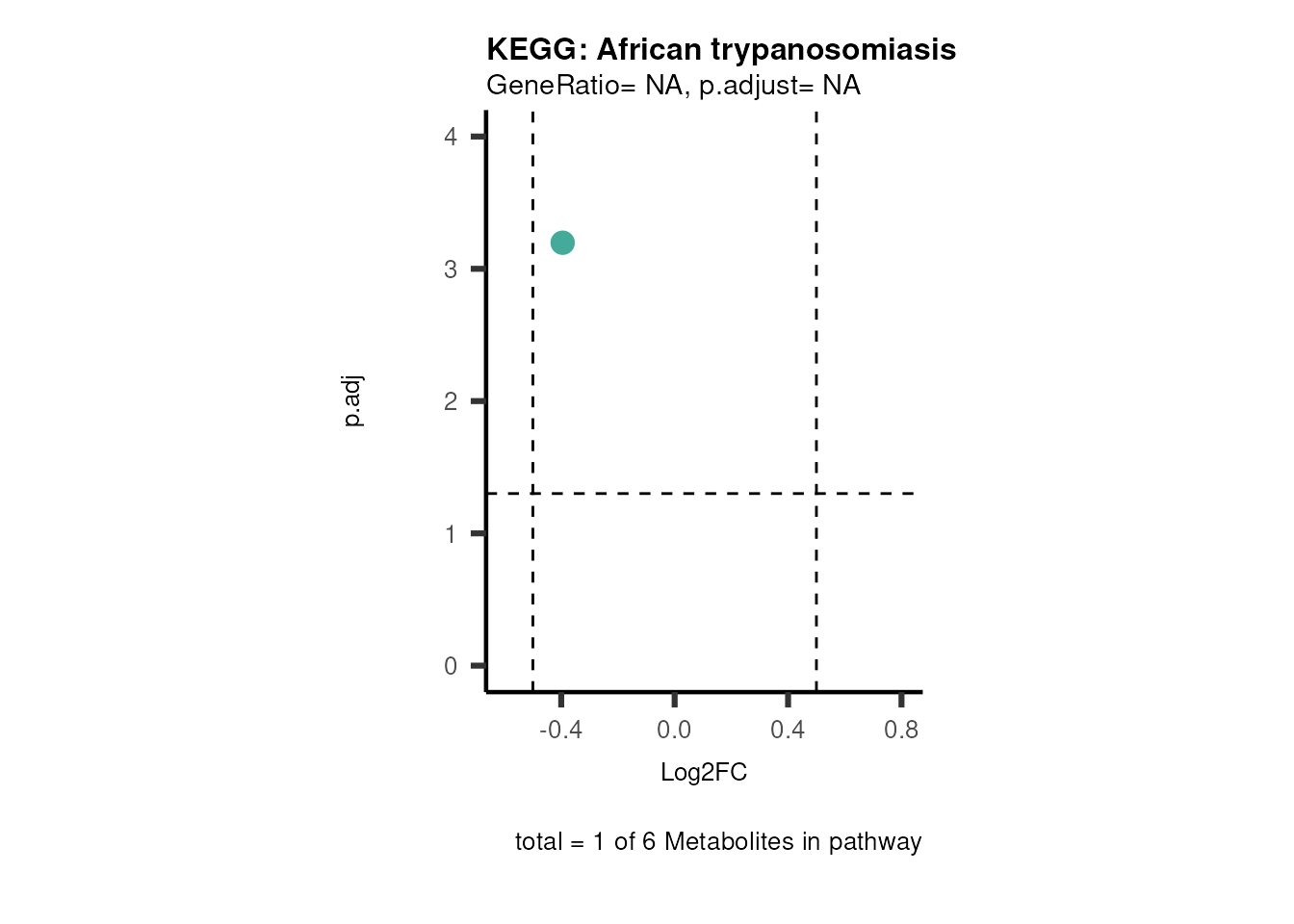

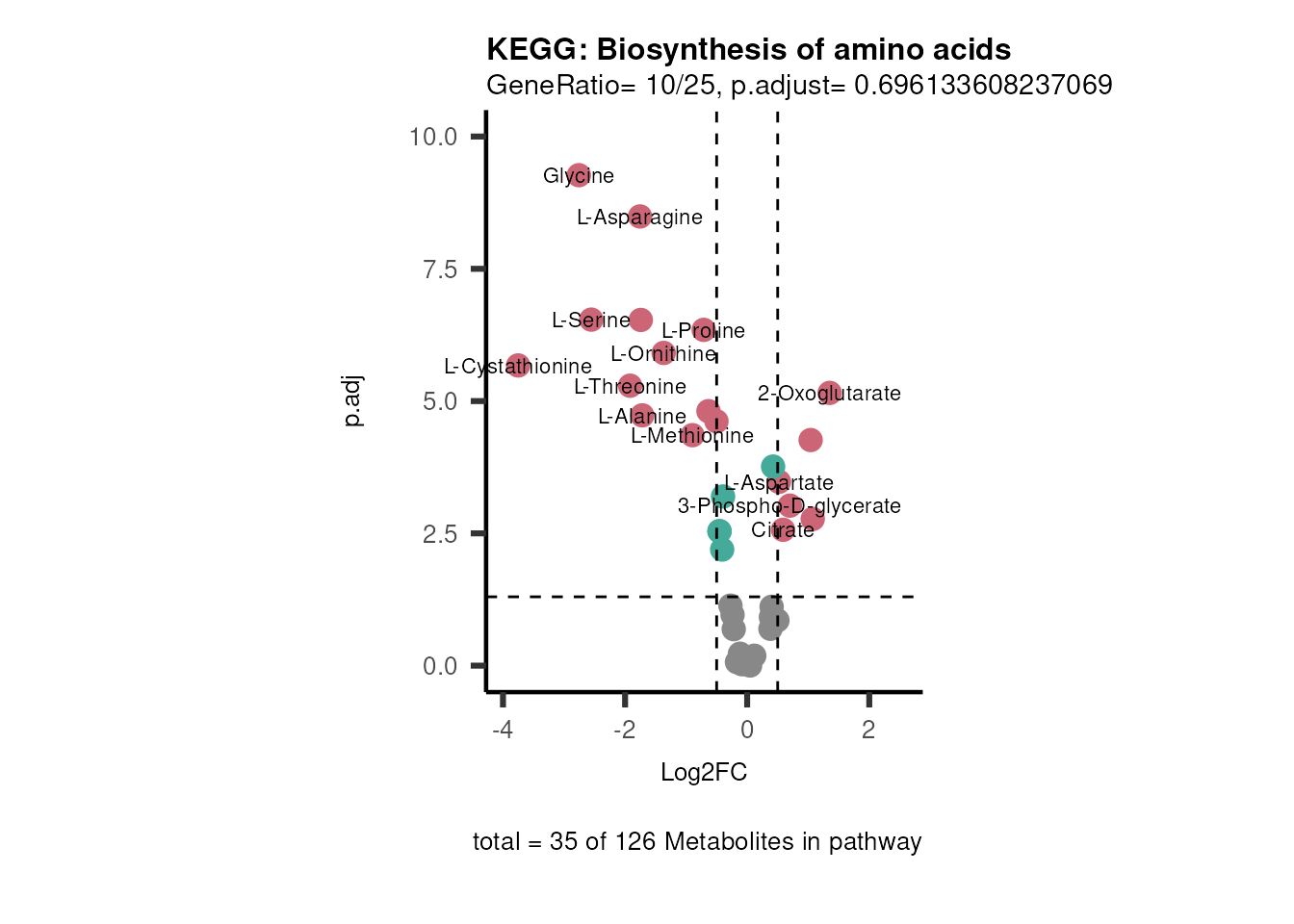

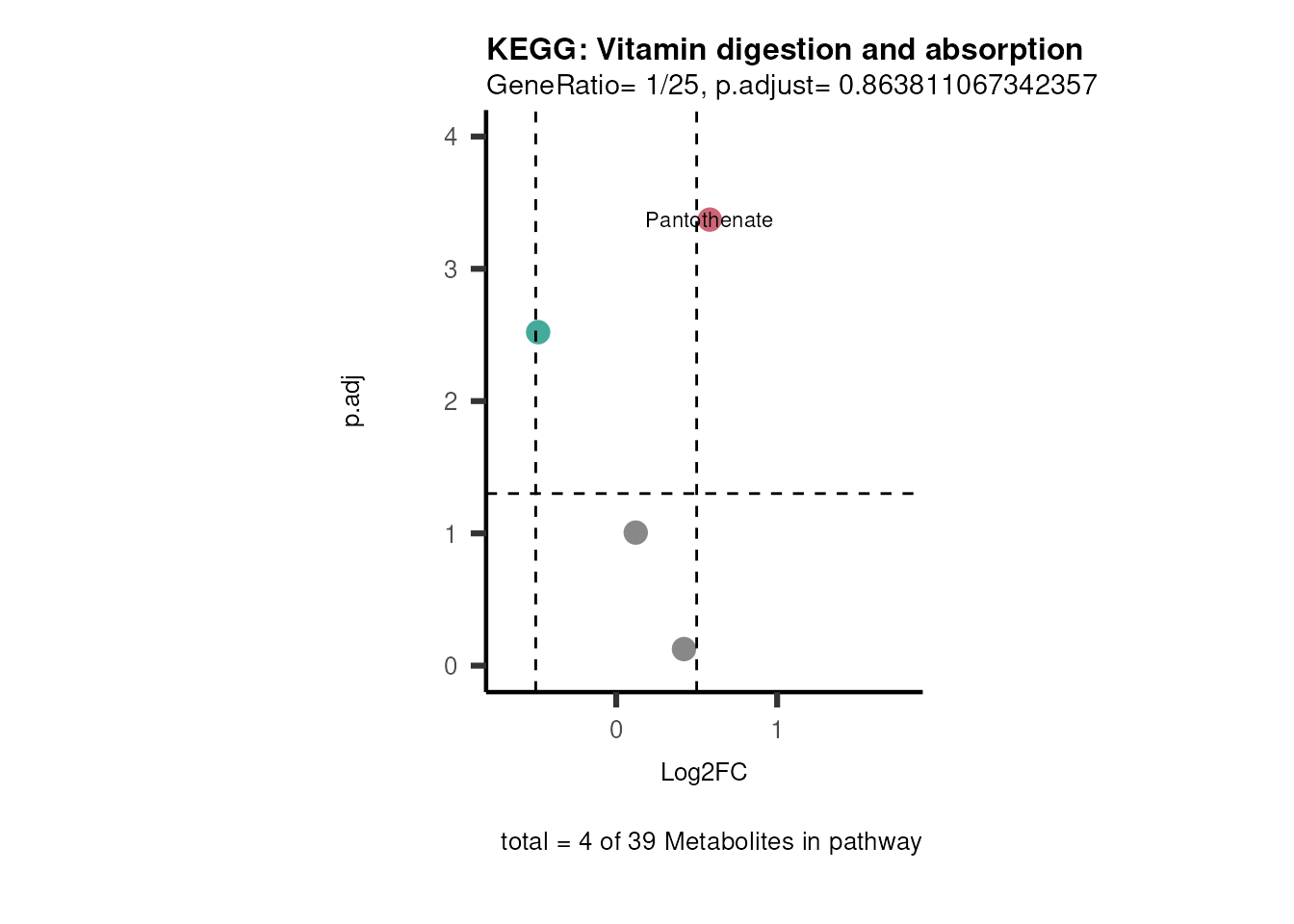

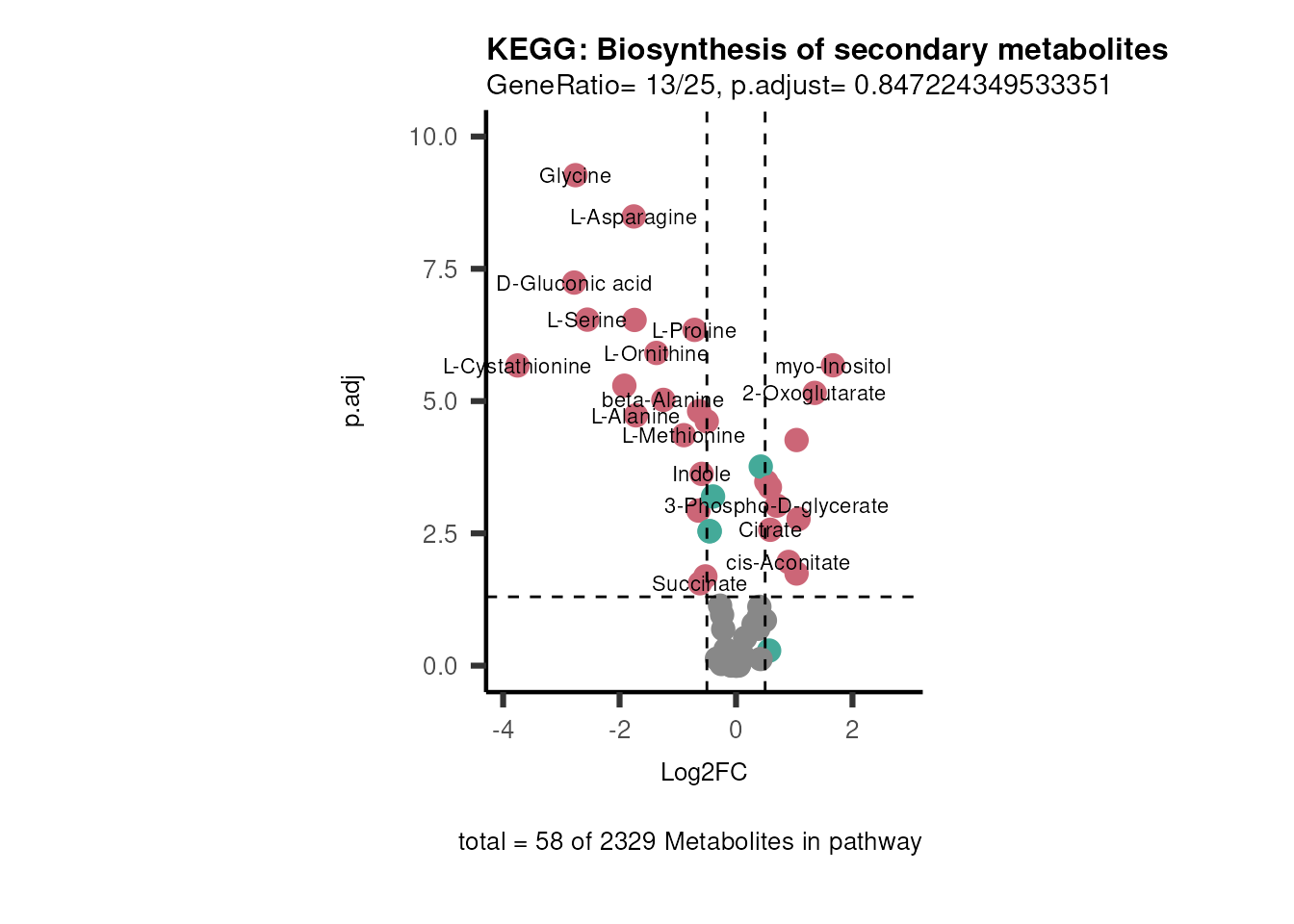

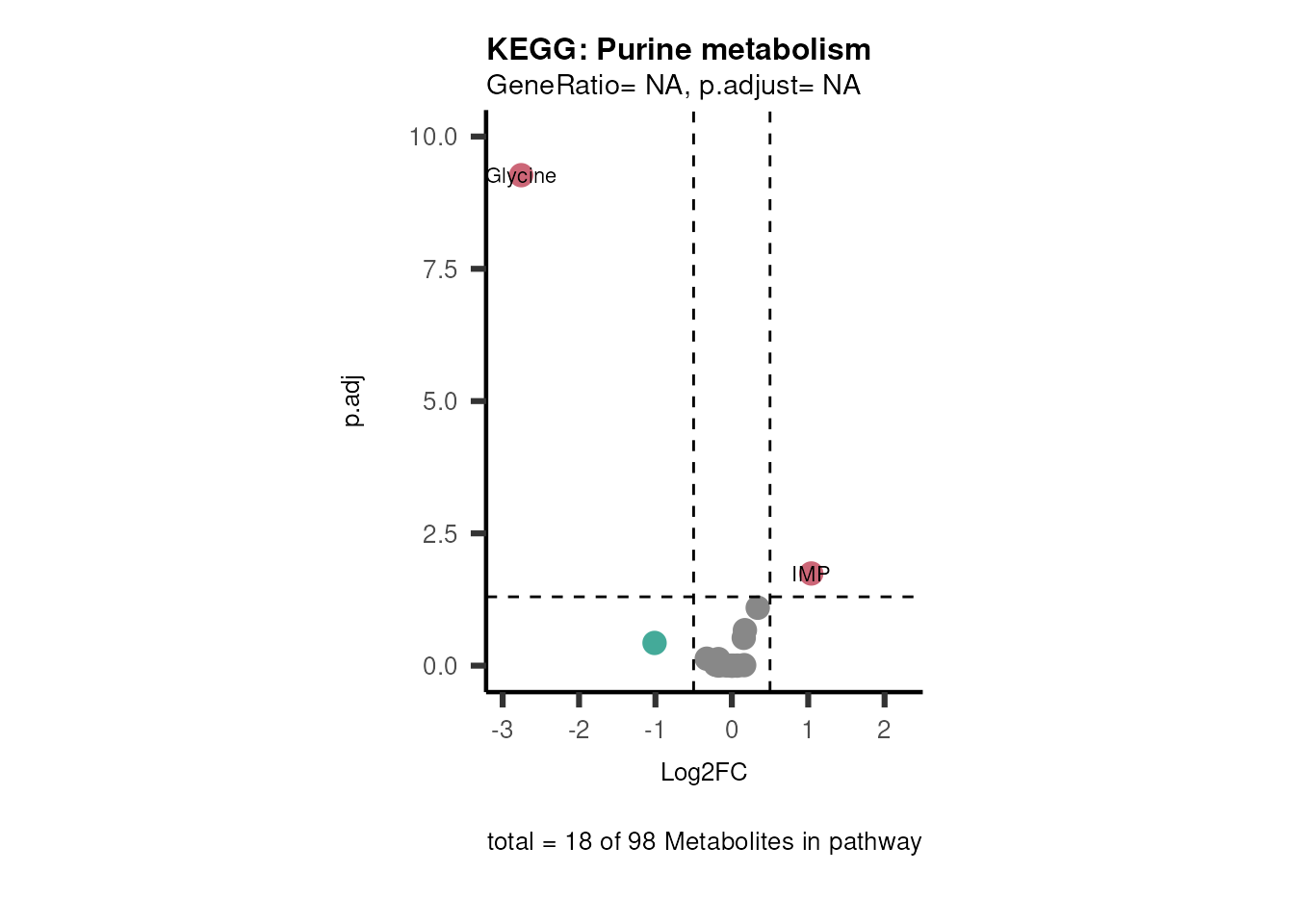

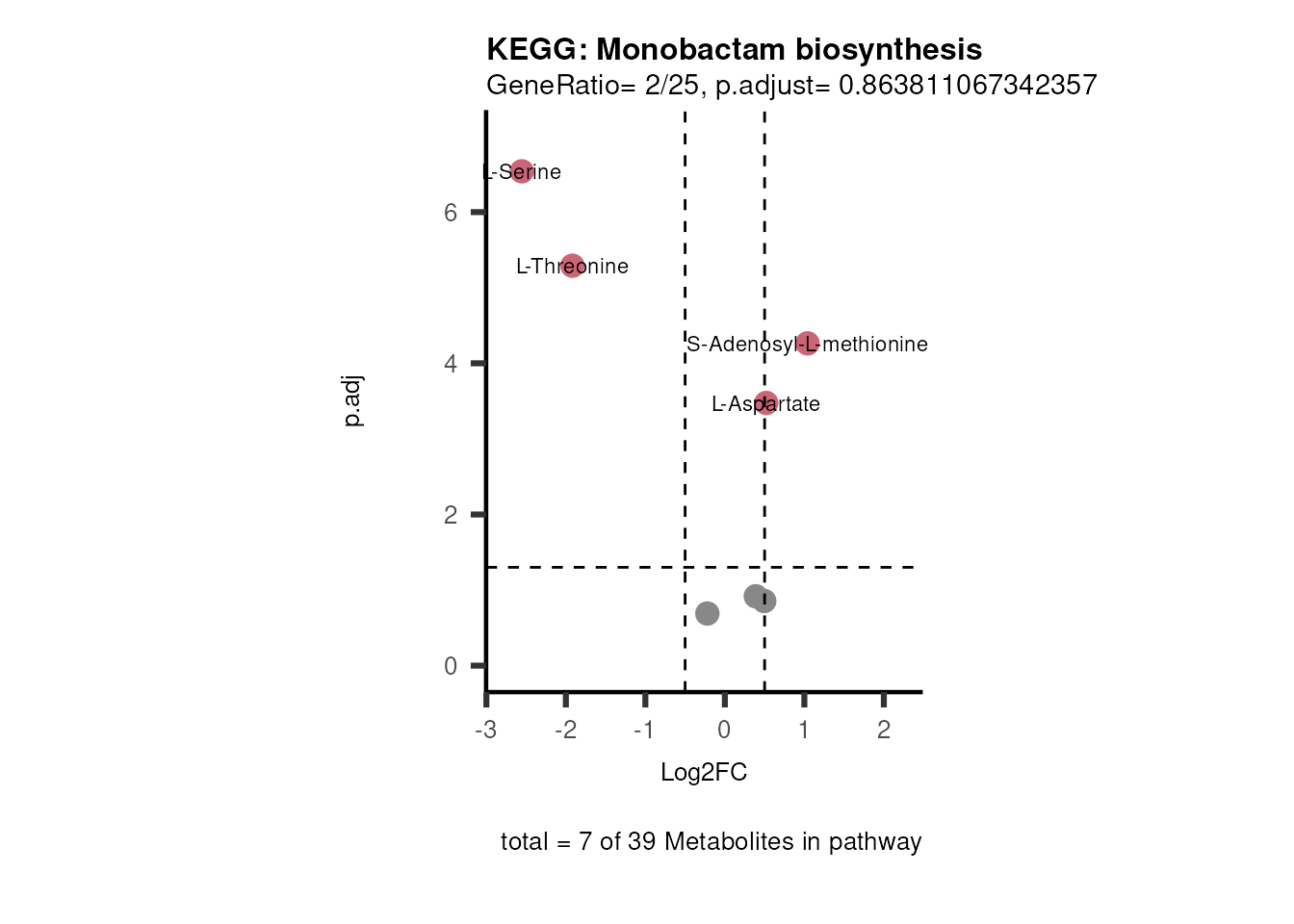

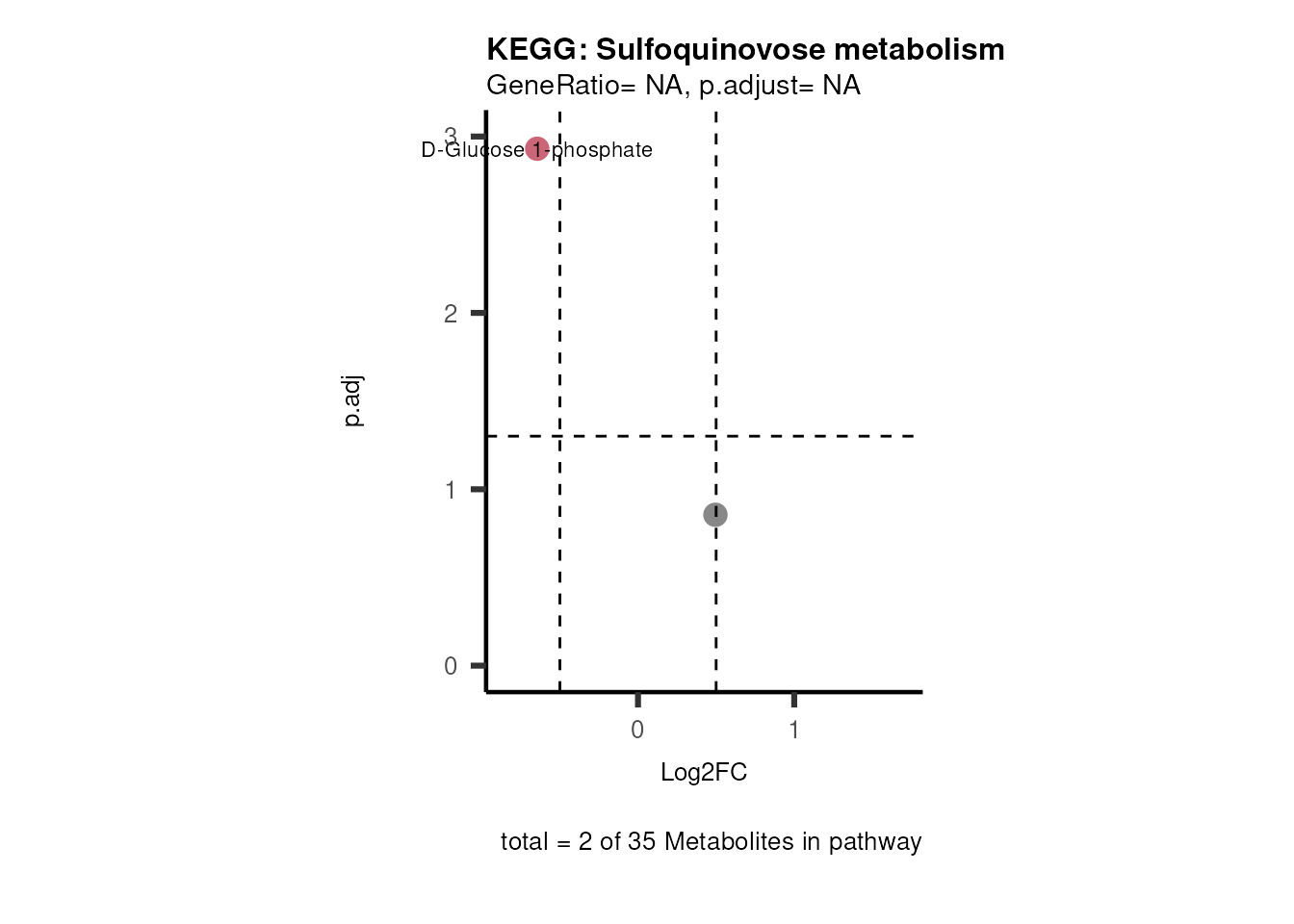

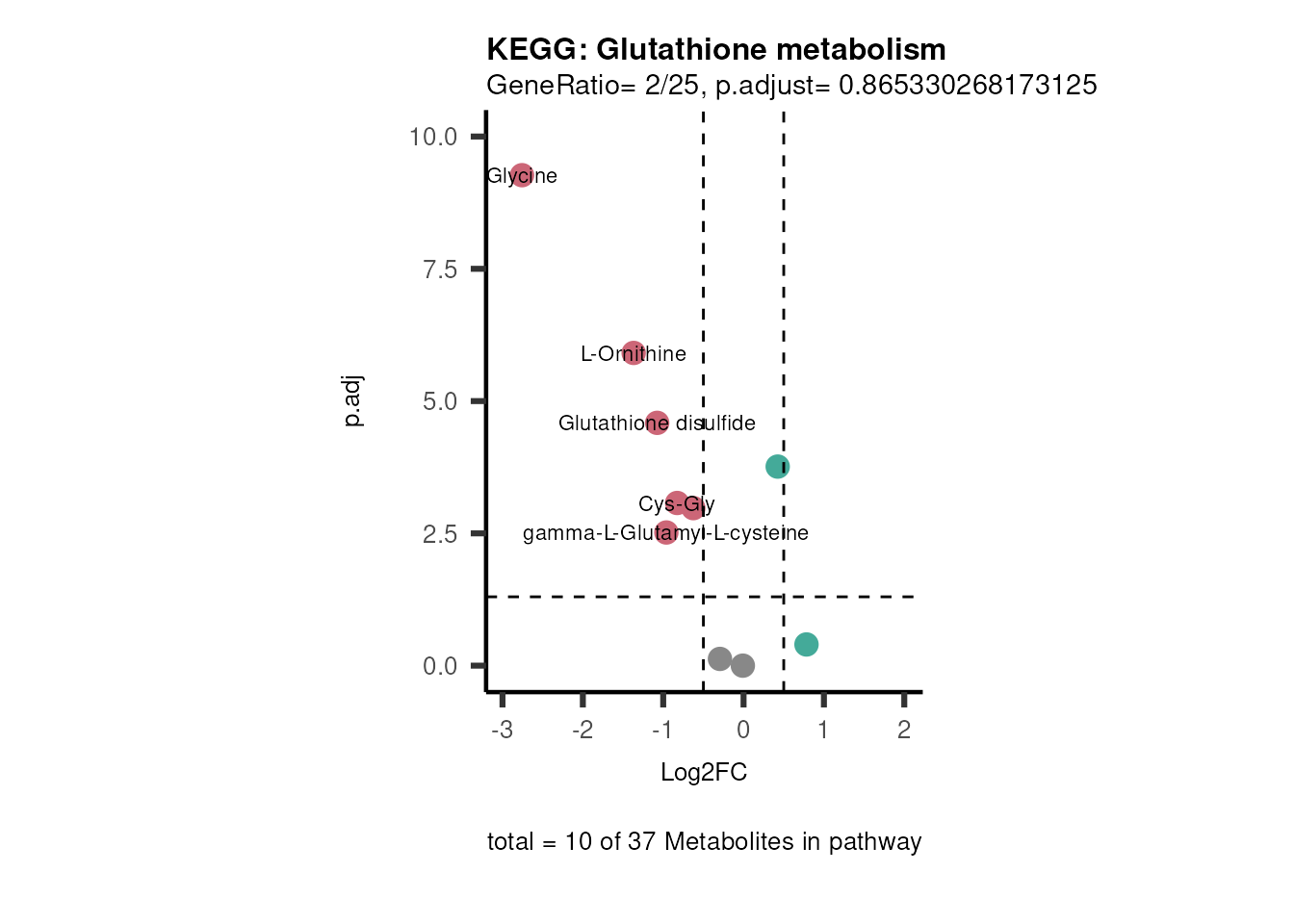

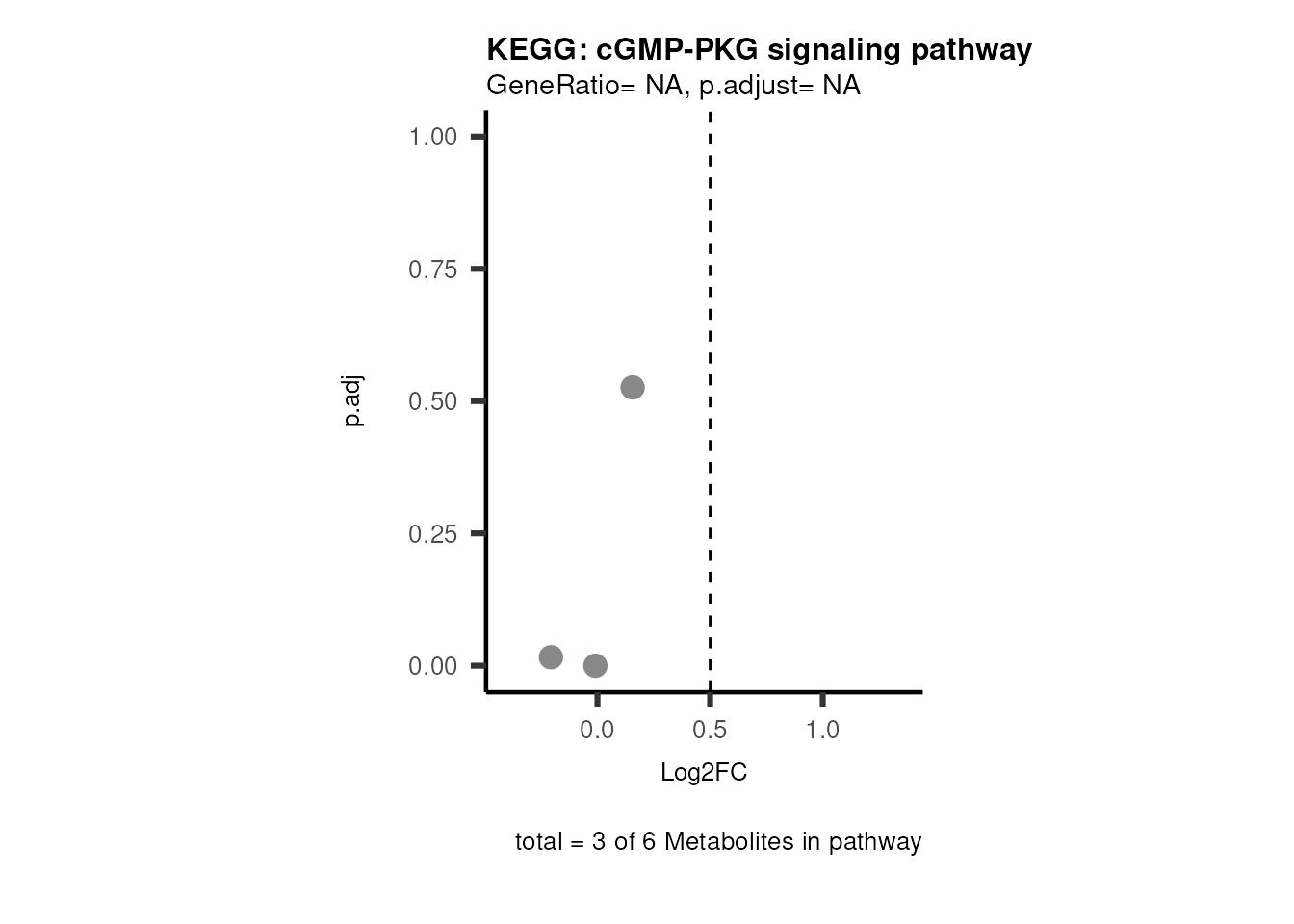

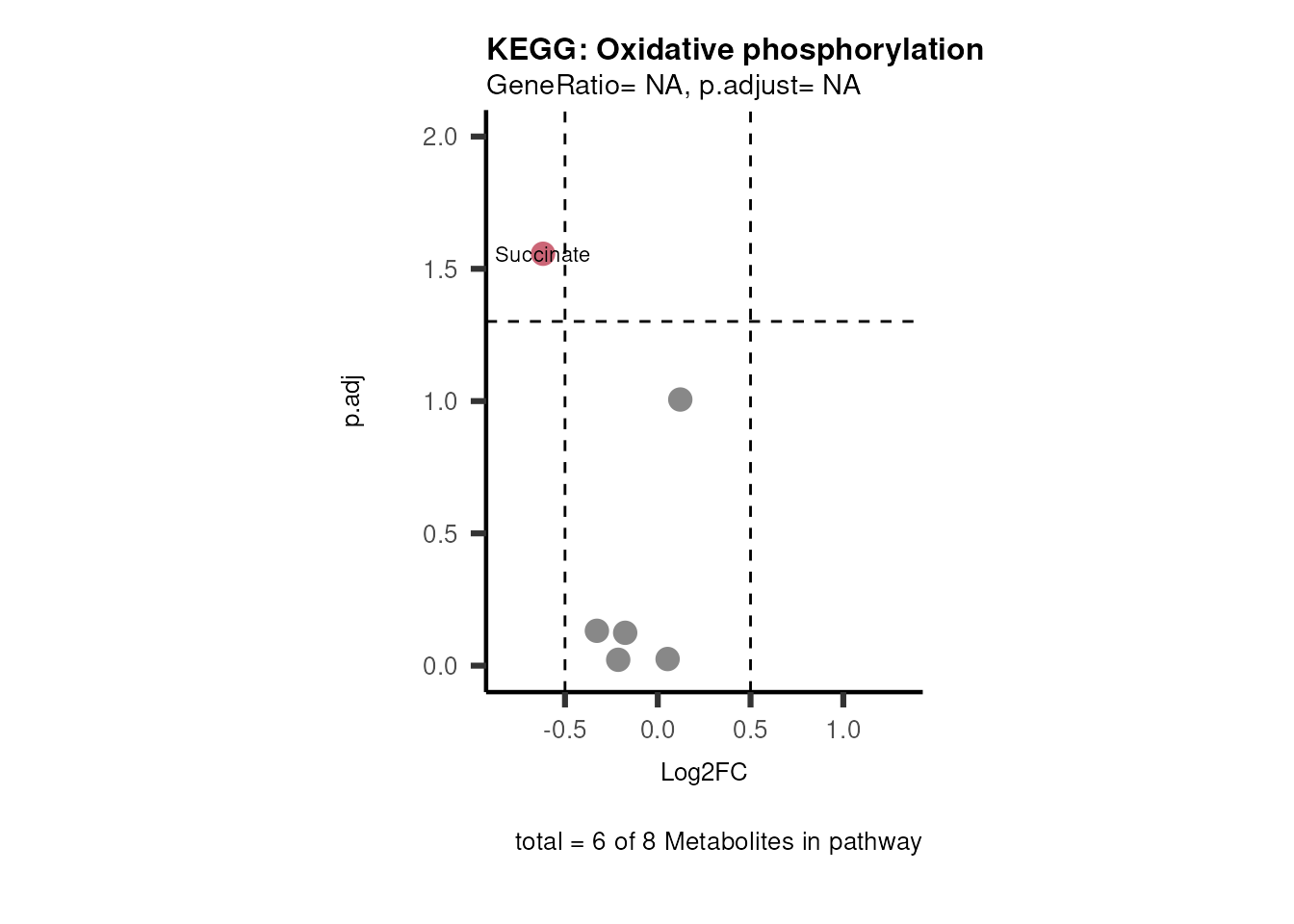

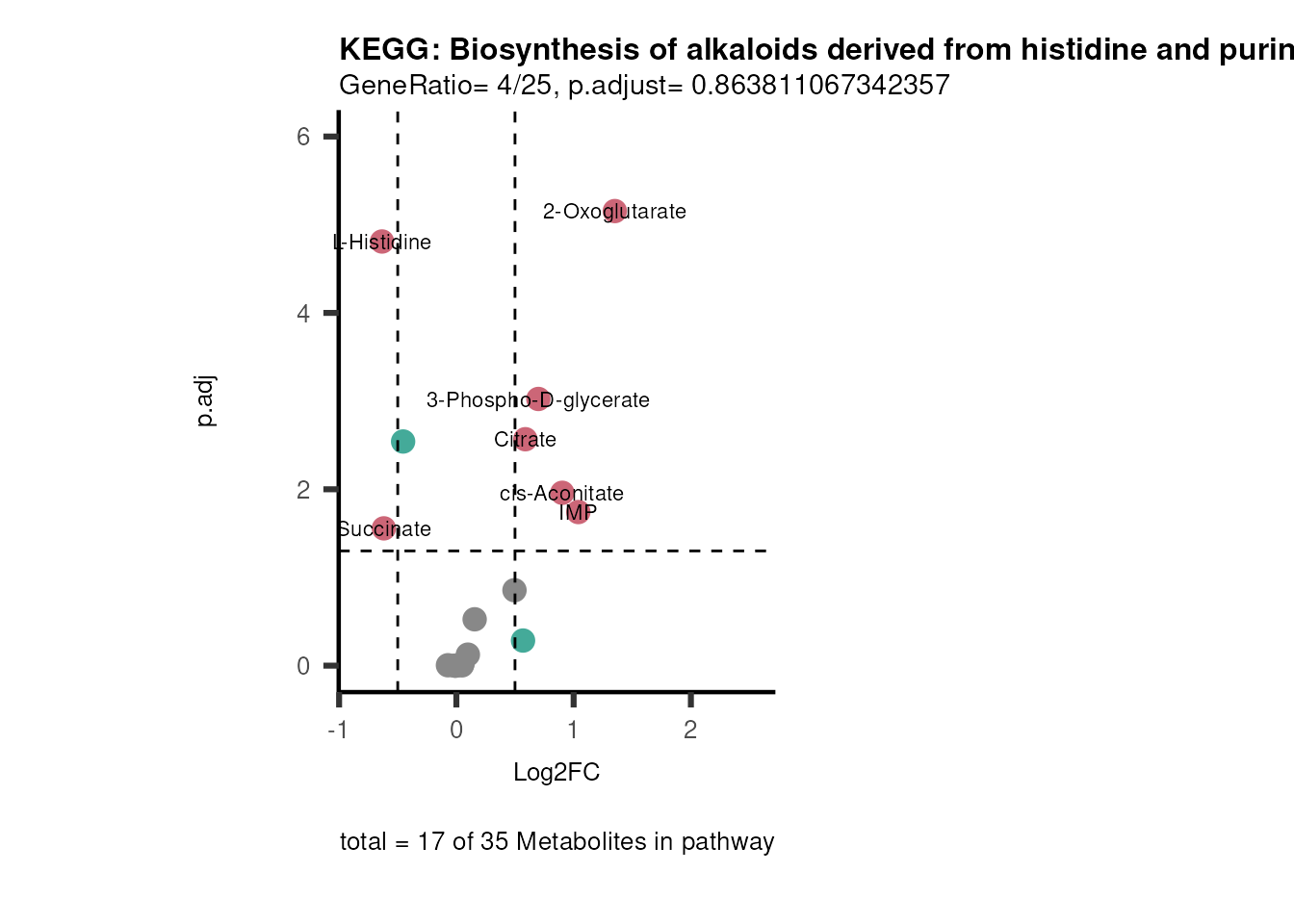

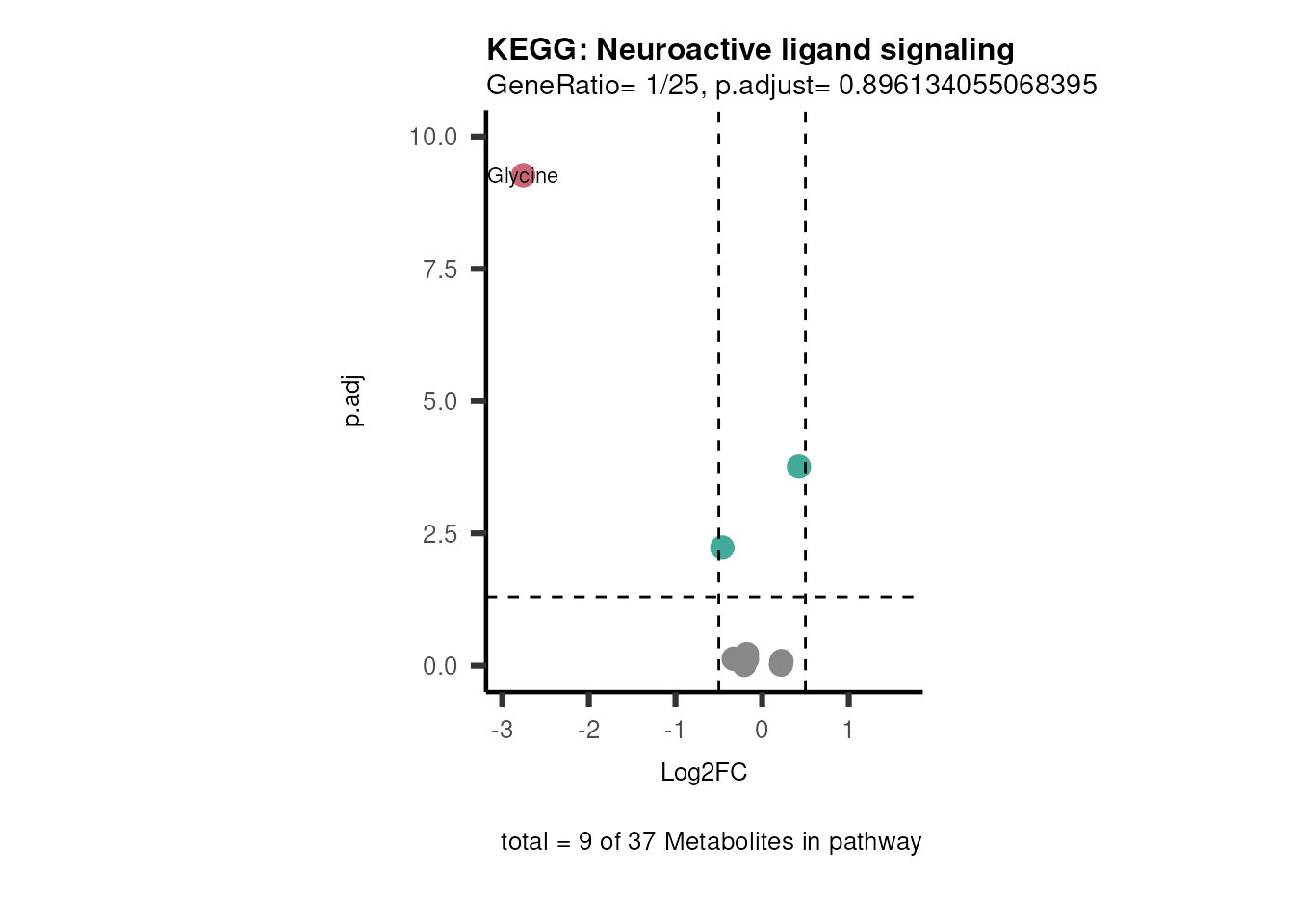

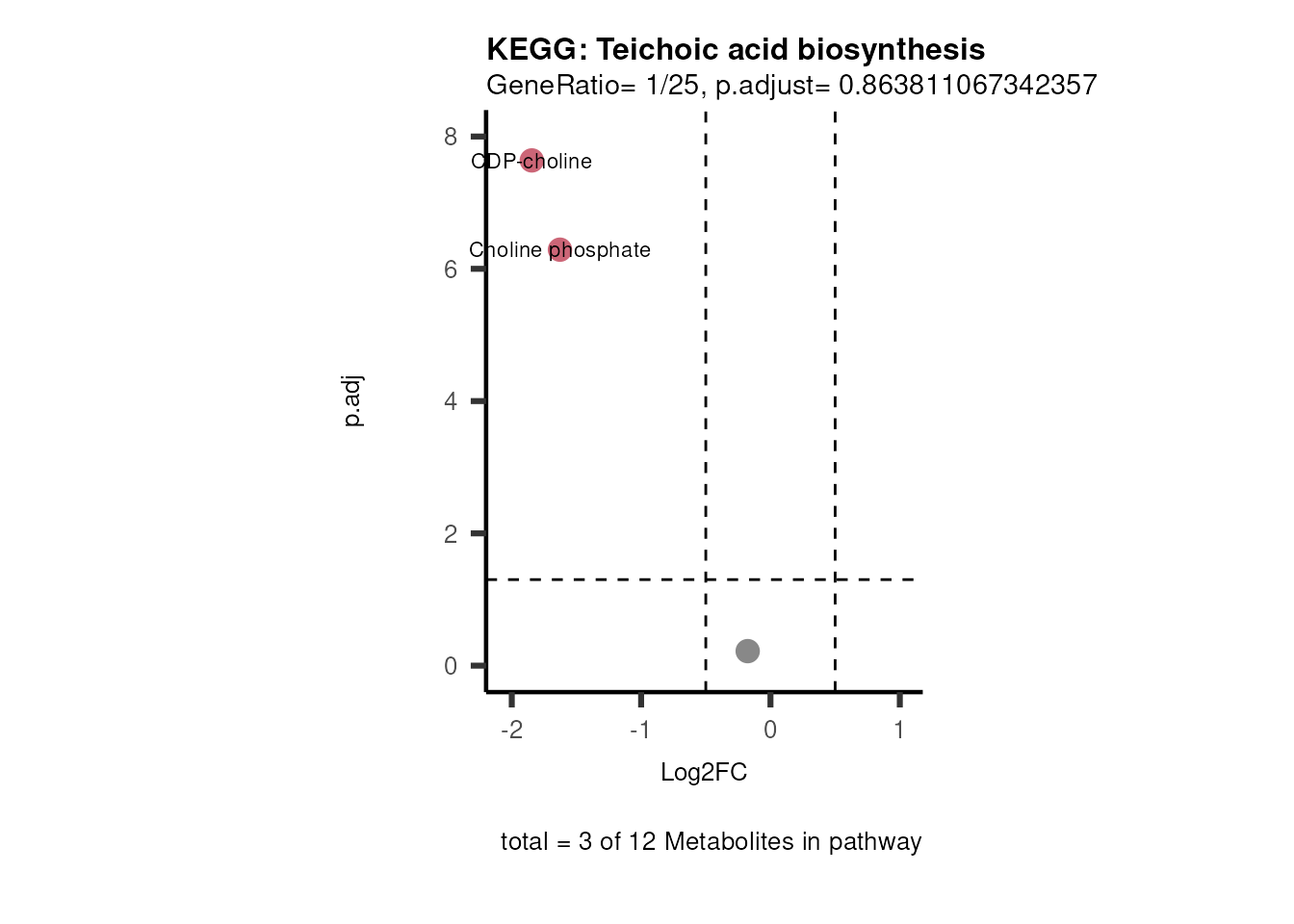

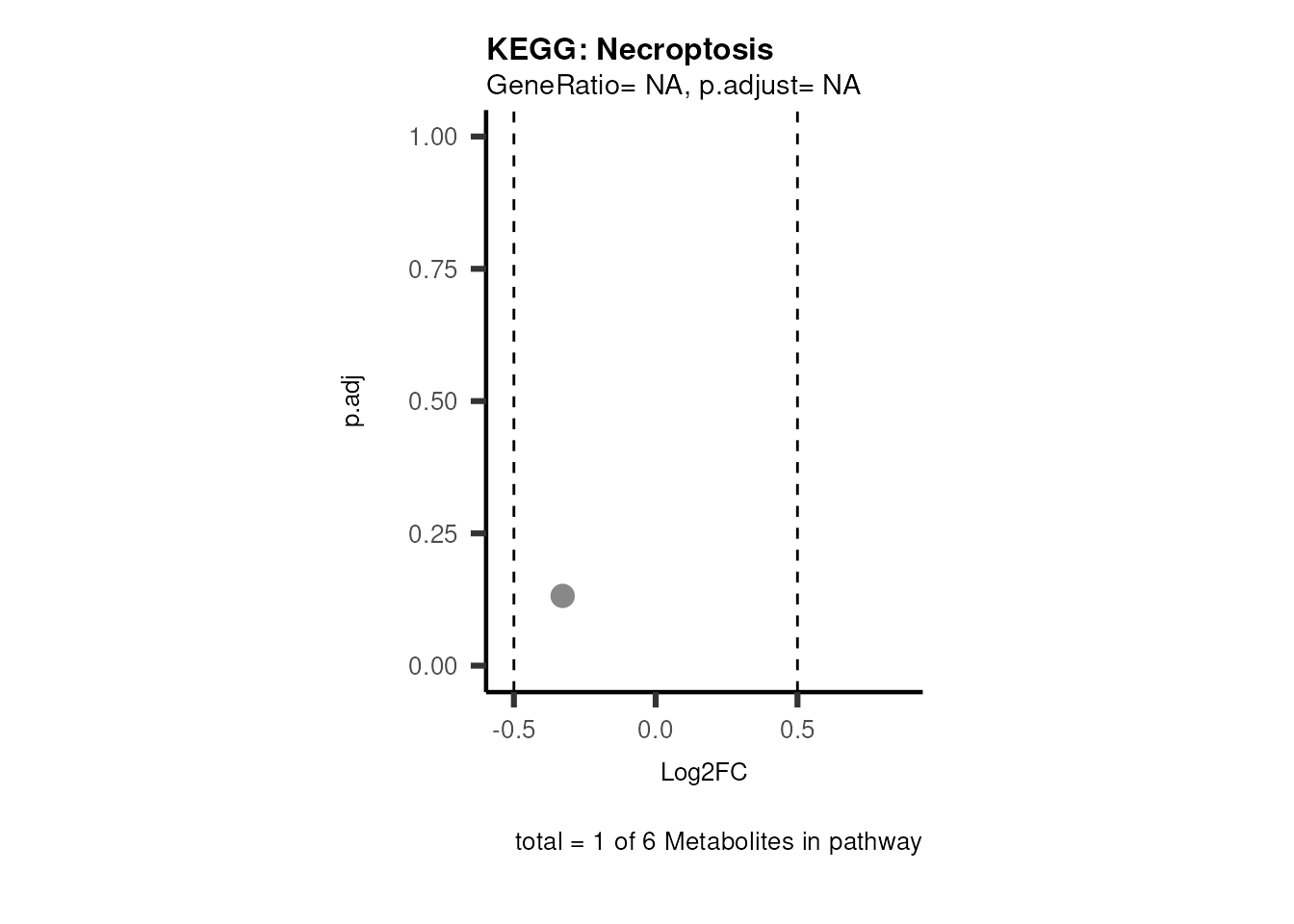

3. "PEA" stands for Pathway Enrichment Analysis, and is used if the results of an GSE analysis should be plotted as here the figure legends will be adapted.

Here we will look at all the different options we have to display our results from the different analysis (dma, PEA), which will help us to interpret our results as this can be sometimes difficult to do from the many data tables.
Just a quick reminder, how the input data look like:
1. Results of Differential Metabolite Analysis (dma): Log2FC and stats:

Input data for `viz_volcano()` are for example differential analysis results from `dma()`.
Metabolite	Log2FC	p.adj	t.val	786-M1A_1	786-M1A_2	786-M1A_3	HK2_1	HK2_2	HK2_3	HMDB	KEGG.ID	KEGGCompound	Pathway
2-aminoadipic acid	0.1529816	0.2378483	-756331.9	7515755	7794629	7241957	5801816	7322390	7159140	HMDB0302754	NA	NA	Not assigned
2-hydroxyglutarate	0.9315226	0.0000645	-202115036.9	424350094	432815728	417484370	188417805	228825446	251061831	HMDB0059655	C02630	2-Hydroxyglutarate	Citrate cycle (TCA cycle)
2-ketoglutarate	1.3512535	0.0000070	-596239369.8	959154968	979152171	1003428045	326367919	366703618	459945537	HMDB0000208	C00026	2-Oxoglutarate	Citrate cycle (TCA cycle)
2/3-phosphoglycerate	0.6993448	0.0009461	-19337537.4	56869710	48343621	45802902	30931592	32564867	29507162	HMDB0060180	C00197	3-Phospho-D-glycerate	Glycolysis / Gluconeogenesis
4-guanidinobutanoate	-1.1541552	0.0001710	2371361.7	1919685	1885079	2000096	4418820	4133883	4366242	HMDB0003464	C01035	4-Guanidinobutanoate	Arginine and proline metabolism
4-hydroxyphenyllactate	-0.9161702	0.0000001	1905691.0	2200691	2038710	2205282	3963104	3971958	4226693	HMDB0000755	C03672	3-(4-Hydroxyphenyl)lactate	Not assigned
5-aminolevulinic acid	-0.1777271	0.4915165	525130.3	3774613	3938304	4303746	4028435	4373207	5190412	HMDB0001149	C00430	5-Aminolevulinate	Not assigned

2. Results from Pathway Enrichment Analysis (PEA): Score (e.g. NES score) and stats

Input data for `viz_volcano()` are for example pathway enrichment results from `standard_ora()`.
GeneRatio	BgRatio	RichFactor	FoldEnrichment	zScore	p.adjust	qvalue	Metabolites_in_pathway	Count	Metabolites_in_Pathway	percentage_of_Pathway_detected
12/25	32/129	0.3750000	1.935000	2.978922	0.3552030	0.3448169	Betaine/Glutathione/Hydroxyproline/L-Alanine/L-Aspartate/L-Glutamate/L-Histidine/L-Leucine/L-Proline/L-Threonine/myo-Inositol/Taurine	12	130	9.23
8/25	18/129	0.4444444	2.293333	2.888974	0.3552030	0.3448169	2-Oxoglutarate/Hydroxyproline/L-Alanine/L-Aspartate/L-Glutamate/L-Histidine/L-Proline/L-Threonine	8	71	11.27
6/25	14/129	0.4285714	2.211429	2.344613	0.5806872	0.5637080	2-Oxoglutarate/Citrate/L-Alanine/L-Aspartate/L-Glutamate/N-Acetyl-L-aspartate	6	27	22.22
7/25	19/129	0.3684211	1.901053	2.077251	0.5806872	0.5637080	L-Alanine/L-Aspartate/L-Glutamate/L-Histidine/L-Leucine/L-Proline/L-Threonine	7	52	13.46

Standard

Here we will first look into the results from the differential analysis (see section dma above) for the comparison of 786-M1A_vs_HK2:

# Run with default parameters --> we only need to provide the data
viz_volcano(data=DMA_786M1A_vs_HK2%>%tibble::column_to_rownames("Metabolite"))

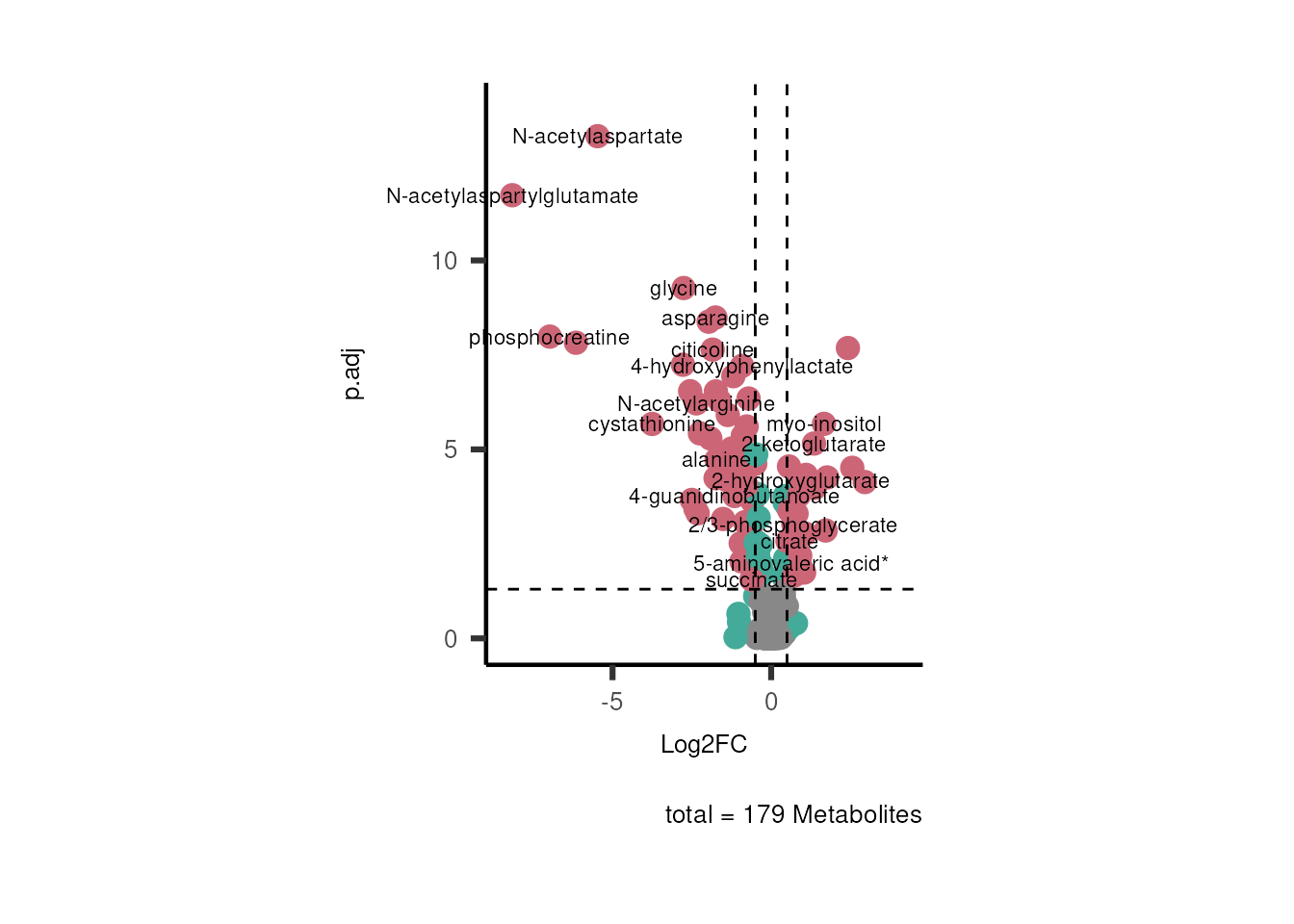

Standard figure displaying dma results.

If you seek to plot the metabolite names you can change the parameter select_label from its default (select_label="") to NULL and the metabolite names will be plotted randomly.

# Run with default parameters --> we only need to provide the data
viz_volcano(data=DMA_786M1A_vs_HK2%>%tibble::column_to_rownames("Metabolite"),
select_label = NULL)

Standard figure displaying dma results.

With the parameter select_label you can also pass a vector with Metabolite names that should be labeled:

# Run with default parameters --> we only need to provide the data
viz_volcano(data=DMA_786M1A_vs_HK2%>%tibble::column_to_rownames("Metabolite"),
select_label = c("N-acetylaspartylglutamate", "cystathionine", "orotidine"))

Standard figure displaying dma results.

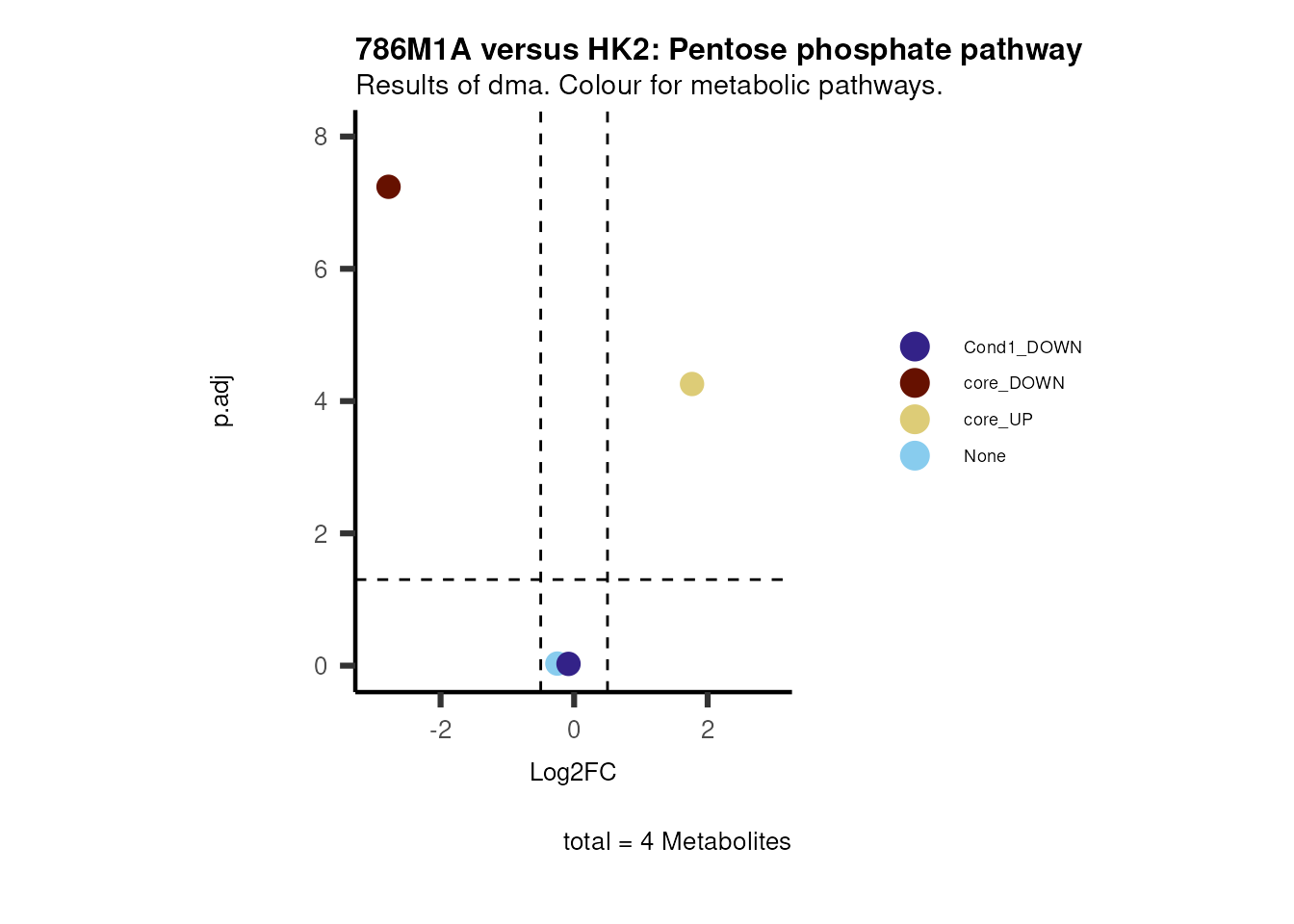

Next we may be interested to understand which metabolite clusters based on our MCA the metabolites of the plot correspond to. In order to do this we can provide a metadata_feature table with this additional information and use this information to color code and/or to shape the dots on the volcano plot. In order to choose the right column we need to provide a named vector metadata_info with this information.


# Now we need to add our metadata_feature and metadata_info:
viz_volcano(plot_types="Standard",
                        metadata_info= c(color="RG2_Significant"),
                        metadata_feature= MetaData_Metab,
                        data=DMA_786M1A_vs_HK2%>%tibble::column_to_rownames("Metabolite"),
                        plot_name= "786M1A versus HK2",
                        subtitle= "Results of dma. Colour coded for metabolic clusters" )

Standard figure displaying dma results colour coded/shaped for metabolic clusters from MCA results.


# If we want to use the shape instead of the colour for the cluster info, we can just change our metadata_info
viz_volcano(plot_types="Standard",
                        metadata_info= c(shape="RG2_Significant"),
                        metadata_feature= MetaData_Metab,
                        data=DMA_786M1A_vs_HK2%>%tibble::column_to_rownames("Metabolite"),
                        plot_name= "786M1A versus HK2",
                        subtitle= "Results of dma. Shape for metabolic clusters, color for significance." )

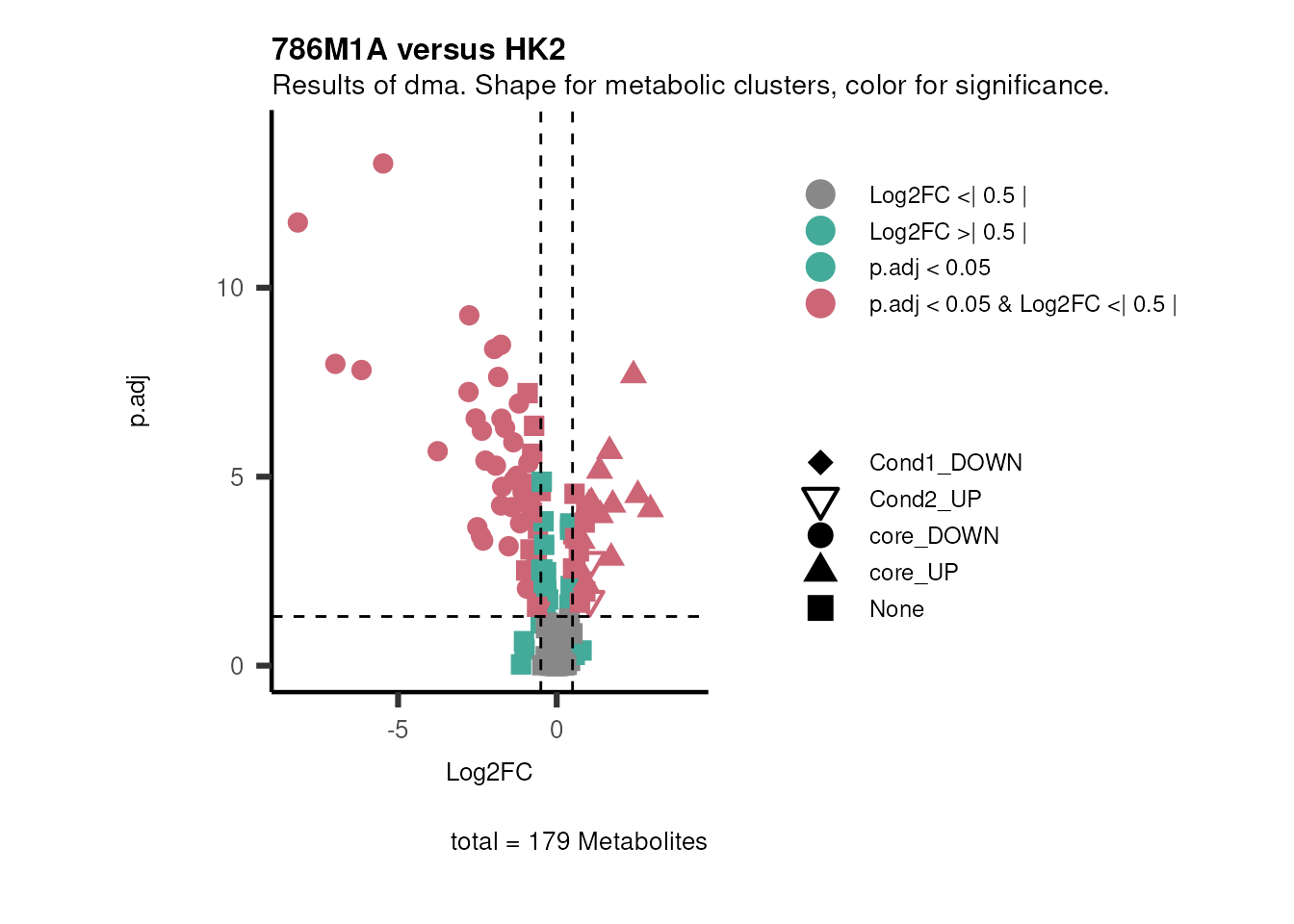

Standard figure displaying dma results colour coded/shaped for metabolic clusters from MCA results.


# Of course, we can also adapt both, color and shape for the same parameter:
viz_volcano(plot_types="Standard",
                        metadata_info= c(shape="RG2_Significant", color="RG2_Significant"),
                        metadata_feature= MetaData_Metab,
                        data=DMA_786M1A_vs_HK2%>%tibble::column_to_rownames("Metabolite"),
                        plot_name= "786M1A versus HK2",
                        subtitle= "Results of dma. Shape and color for metabolic clusters." )

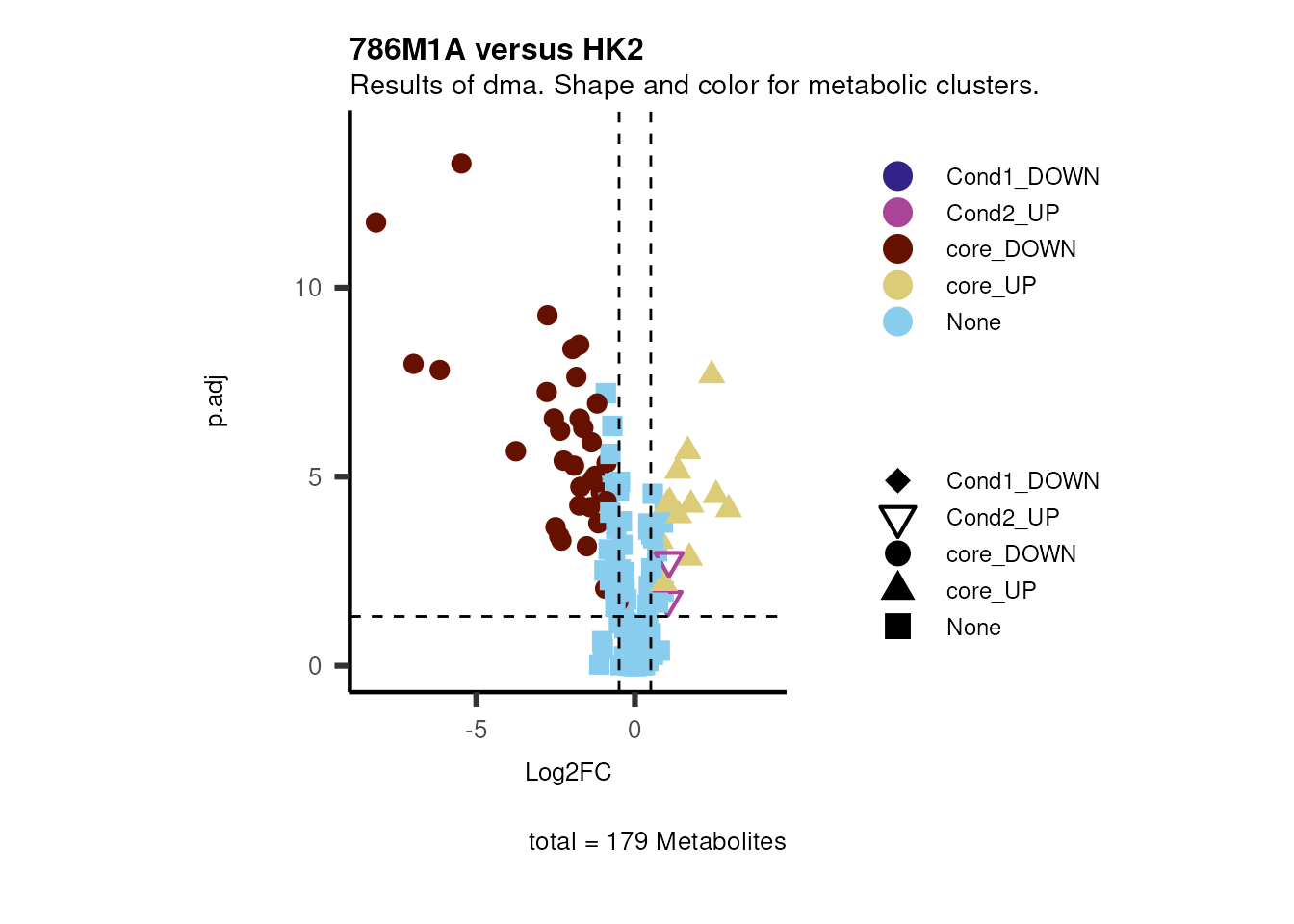

Standard figure displaying dma results colour coded/shaped for metabolic clusters from MCA results.

Given that we also know, which metabolic pathway the metabolites correspond to, we can add this information into the plot. This is also a good example to showcase the flexibility of the visualisation function: Either you use the parameter metadata_feature = MetaData_Metab as above, but as we have the column “Pathway” also in our data you can also pass metadata_feature = DMA_786M1A_vs_HK2 or simply use the default metadata_feature = NULL, in which case the metadata_info information (here color) will be used from data.

# Now we can use color for the pathways and shape for the metabolite clusters:
viz_volcano(plot_types="Standard",
                        metadata_info= c(color="Pathway"),
                        metadata_feature= MappingInfo,
                        data=DMA_786M1A_vs_HK2%>%tibble::column_to_rownames("Metabolite"),
                        plot_name= "786M1A versus HK2 Results of dma. Colour for metabolic pathways.",
                        subtitle= "Results of dma. Colour for metabolic pathways." )

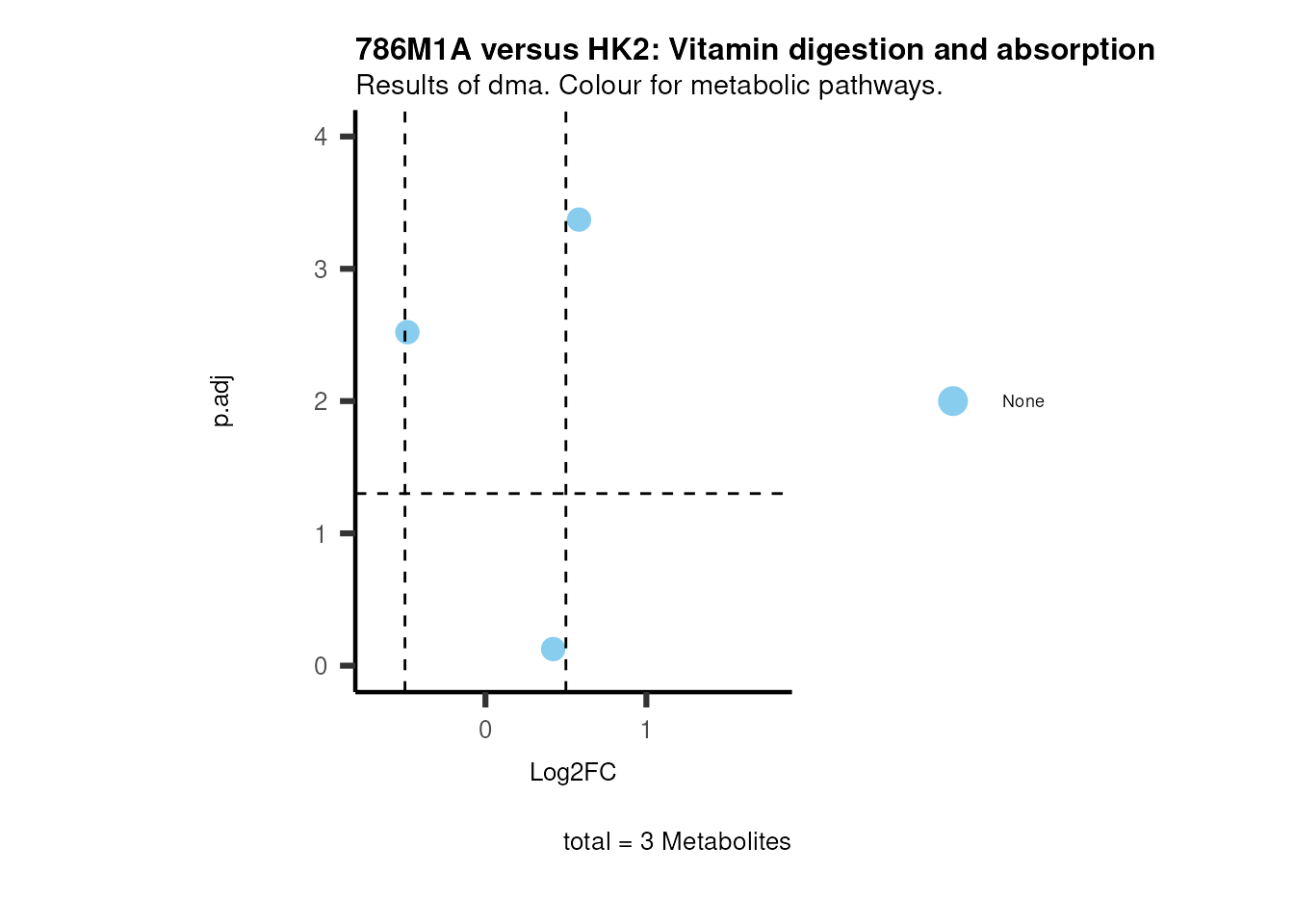

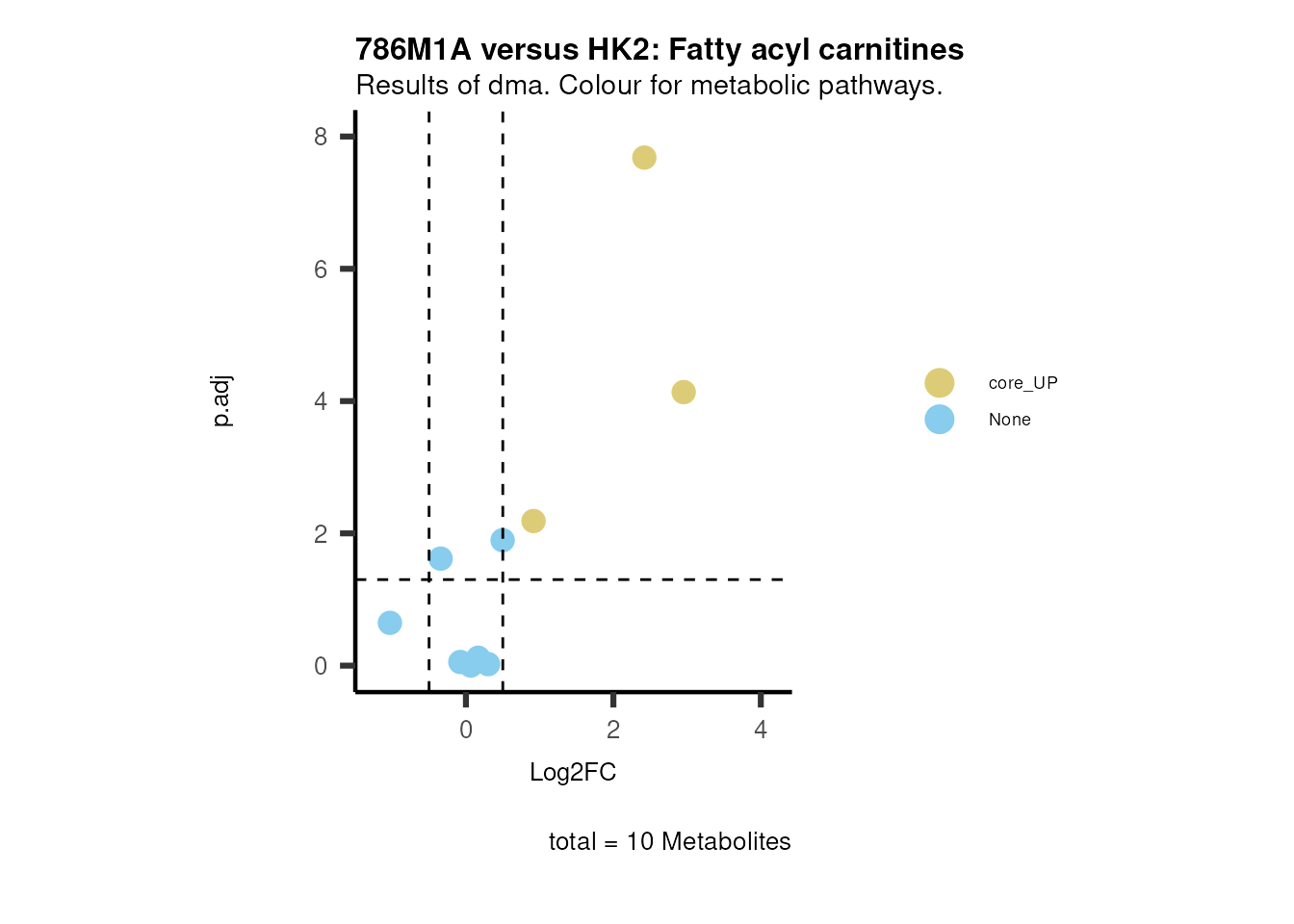

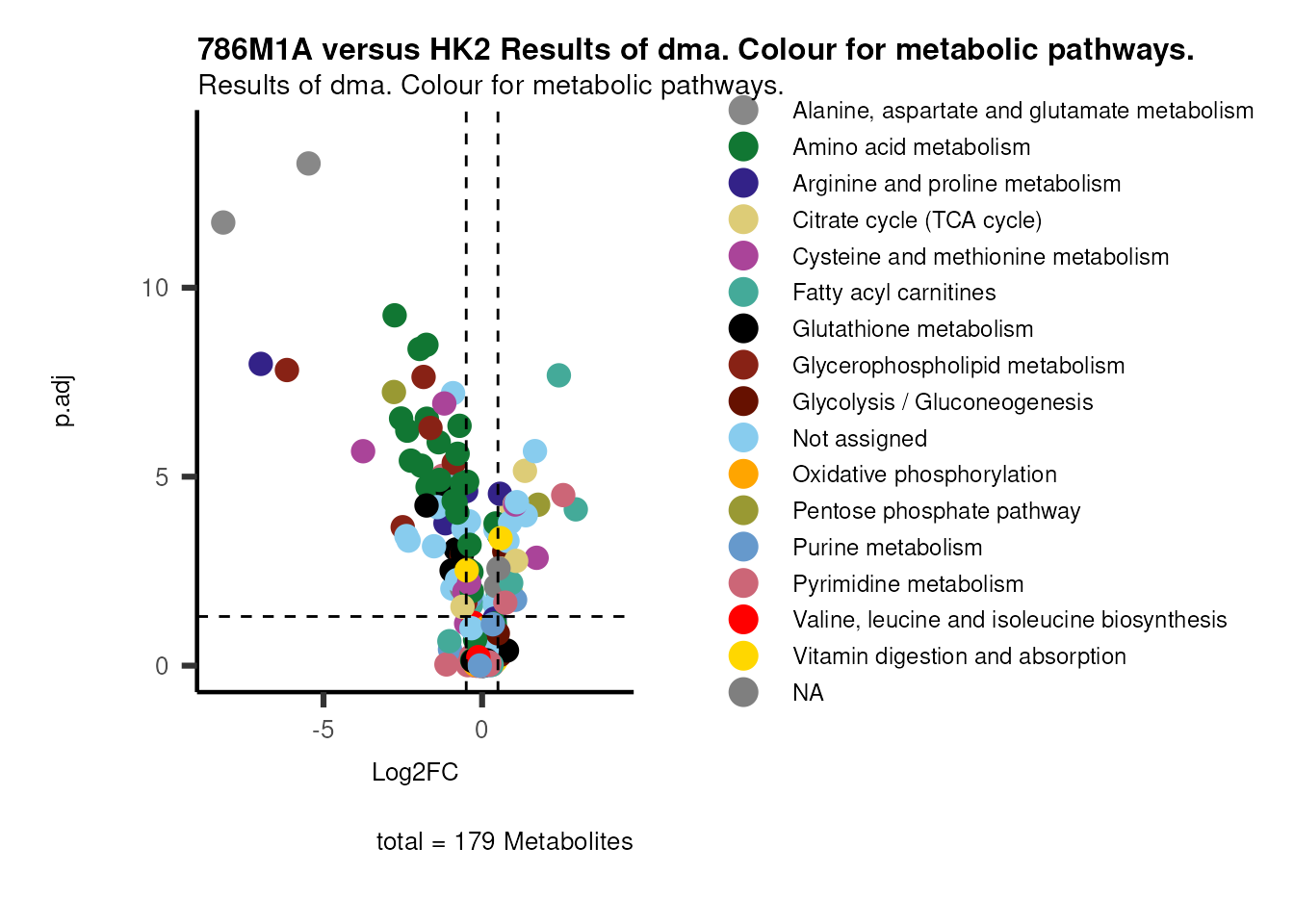

Standard figure displaying dma results colour coded for metabolic pathways and shaped for metabolic clusters from MCA results.

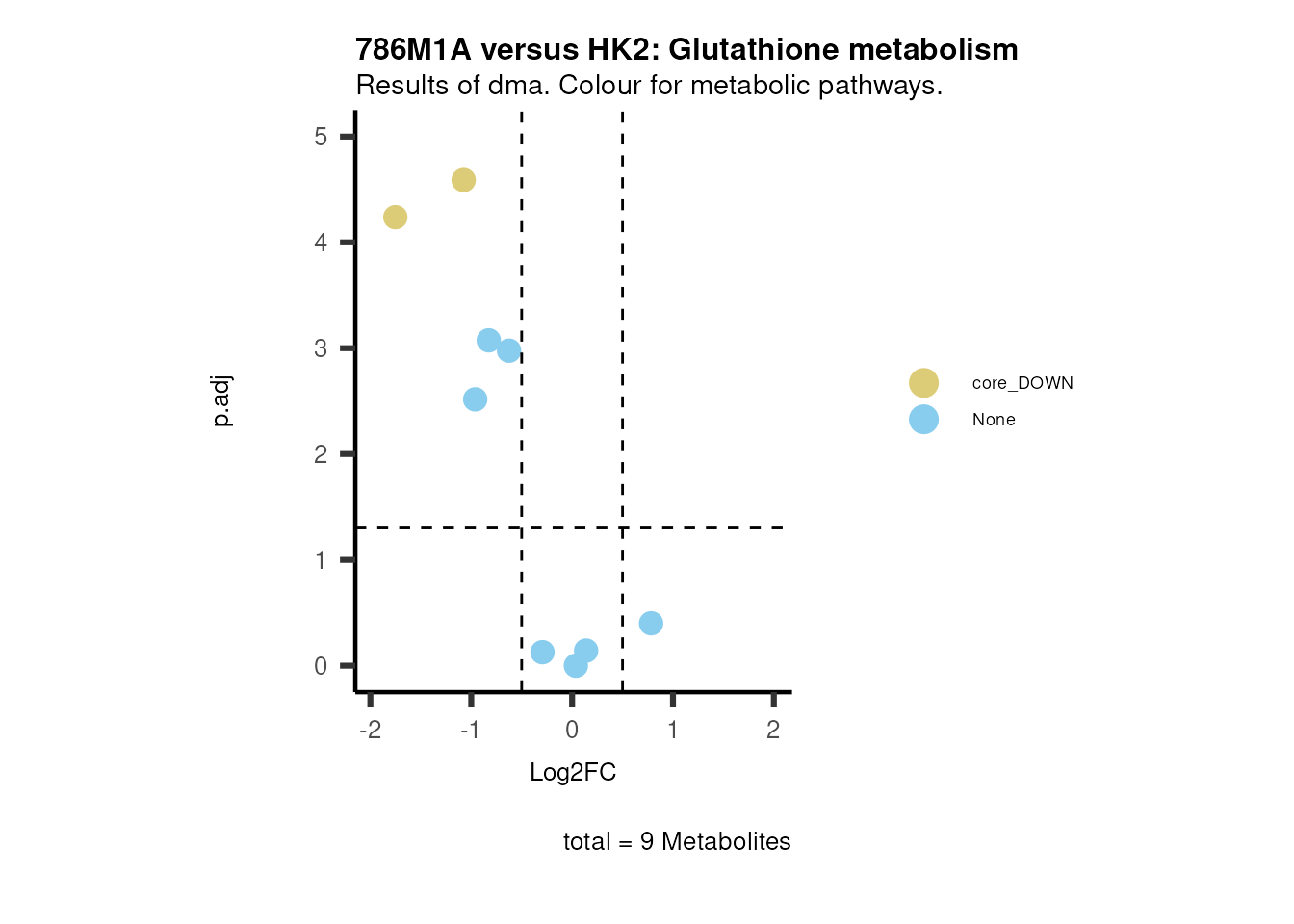

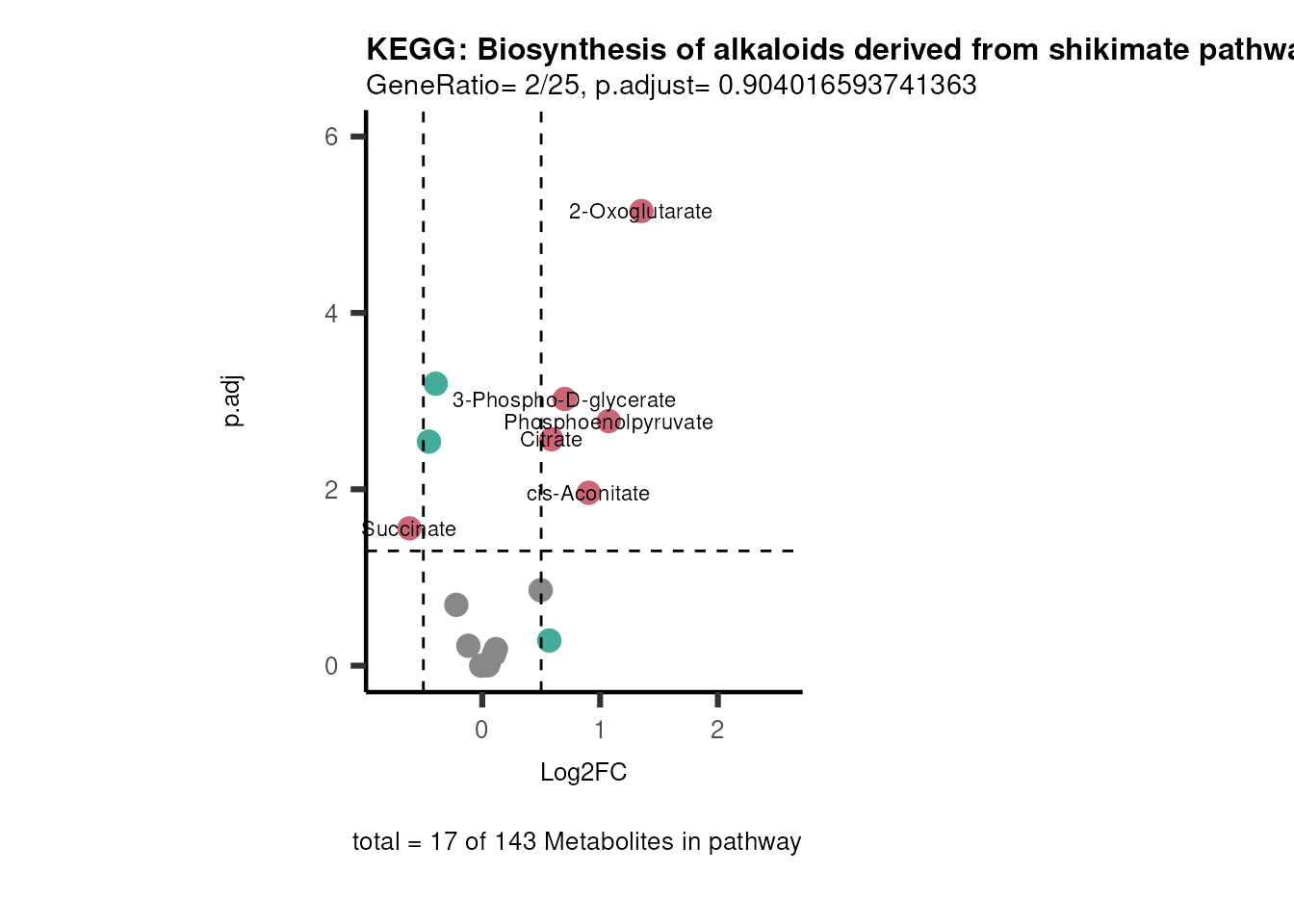

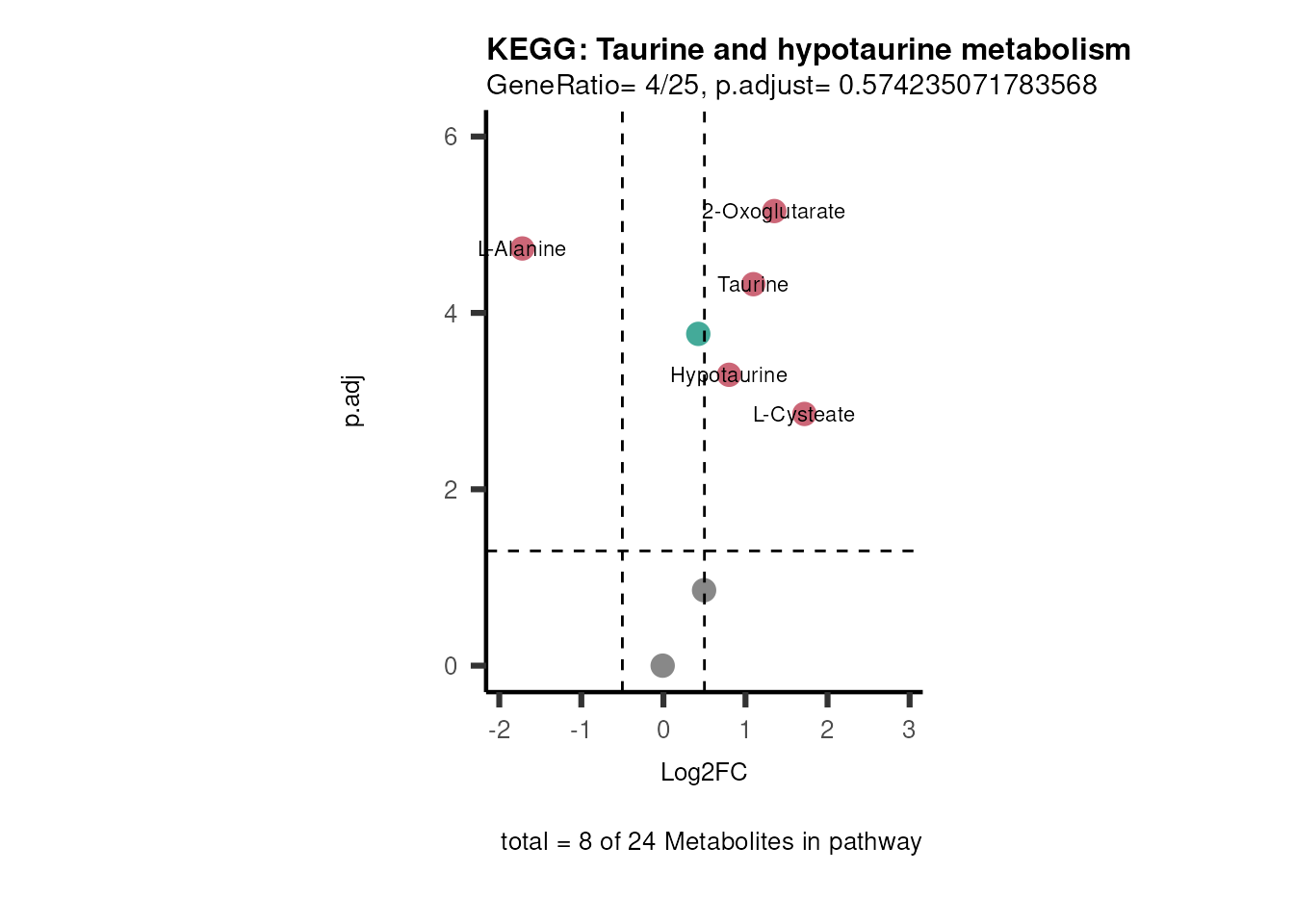

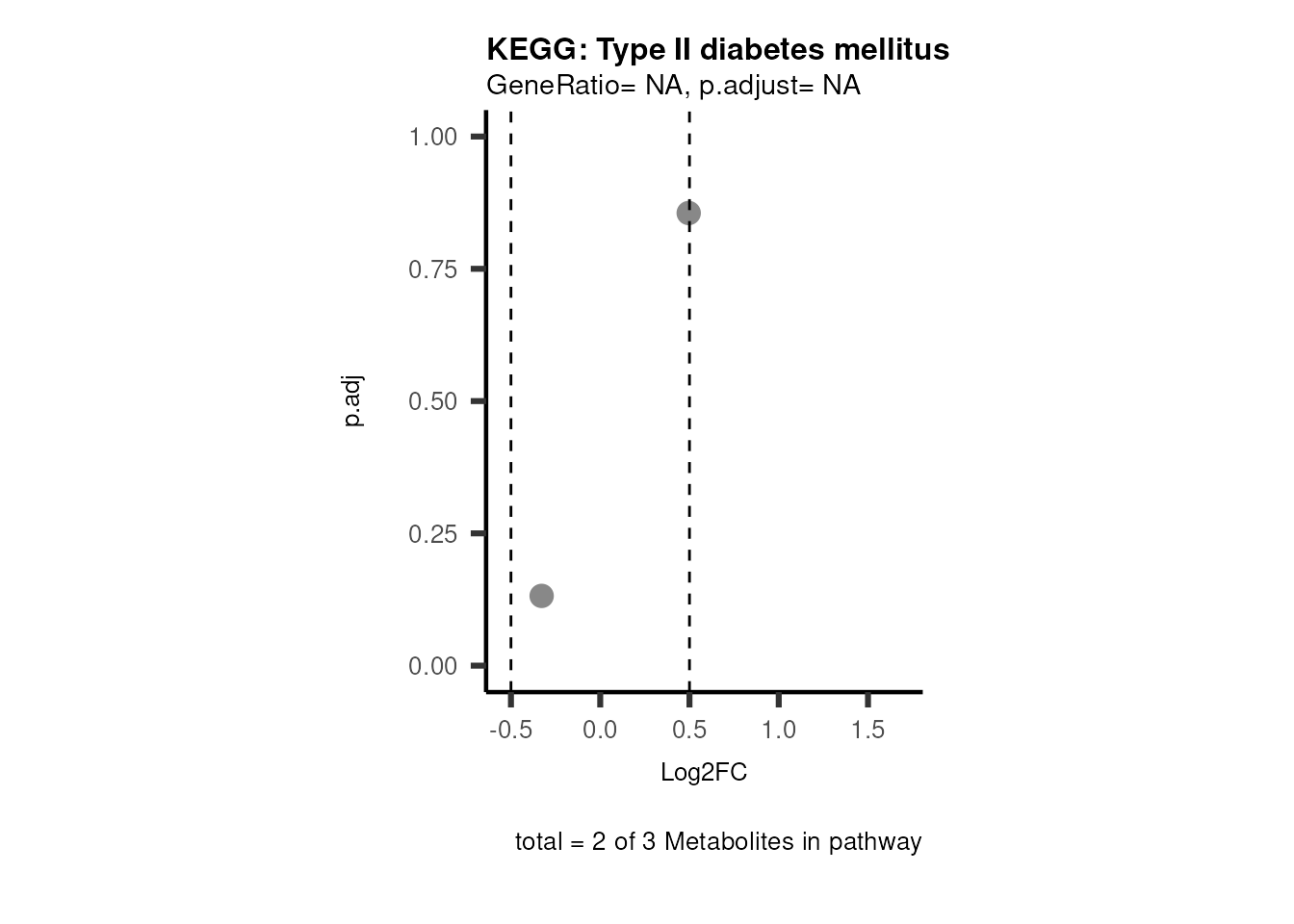

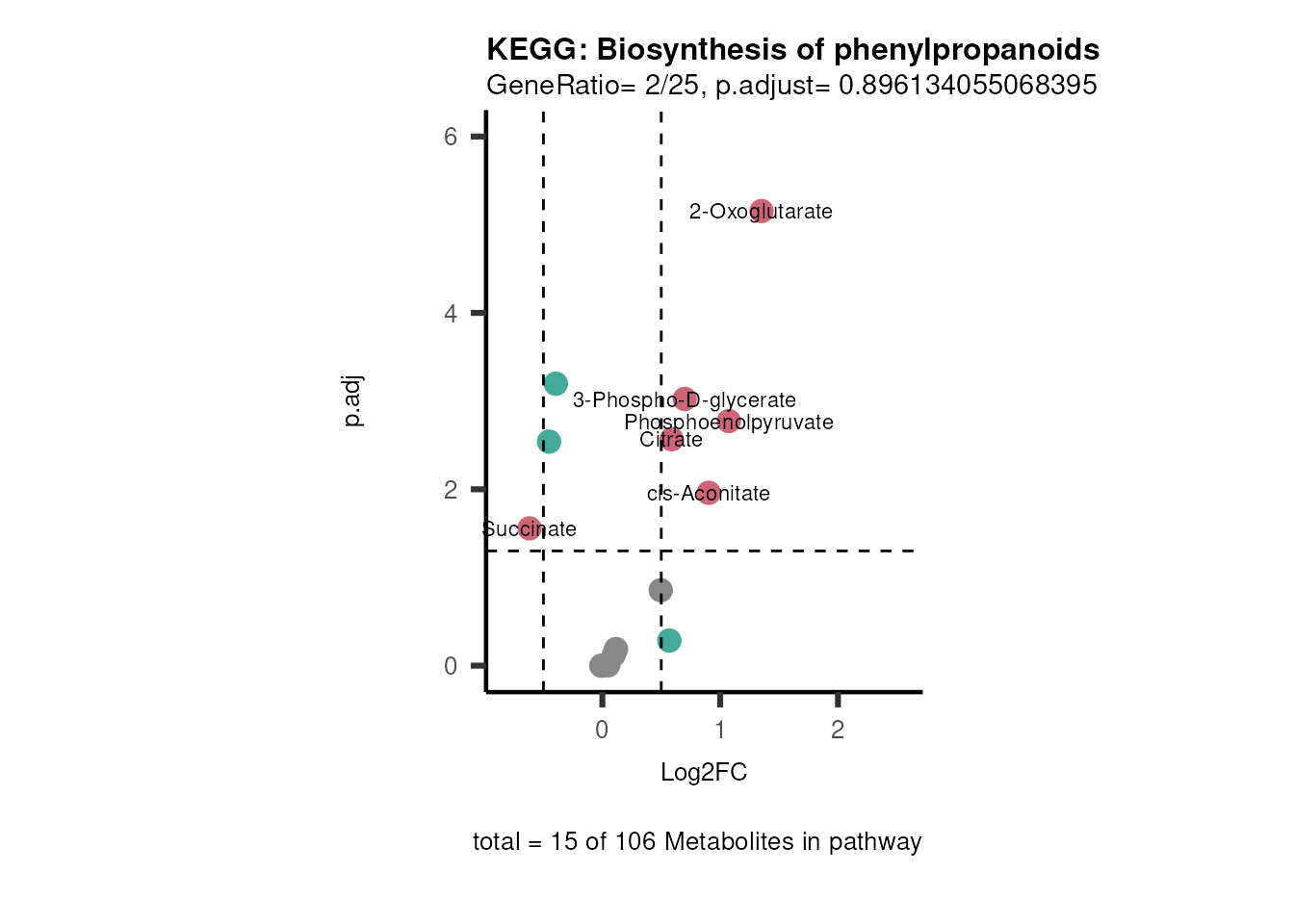

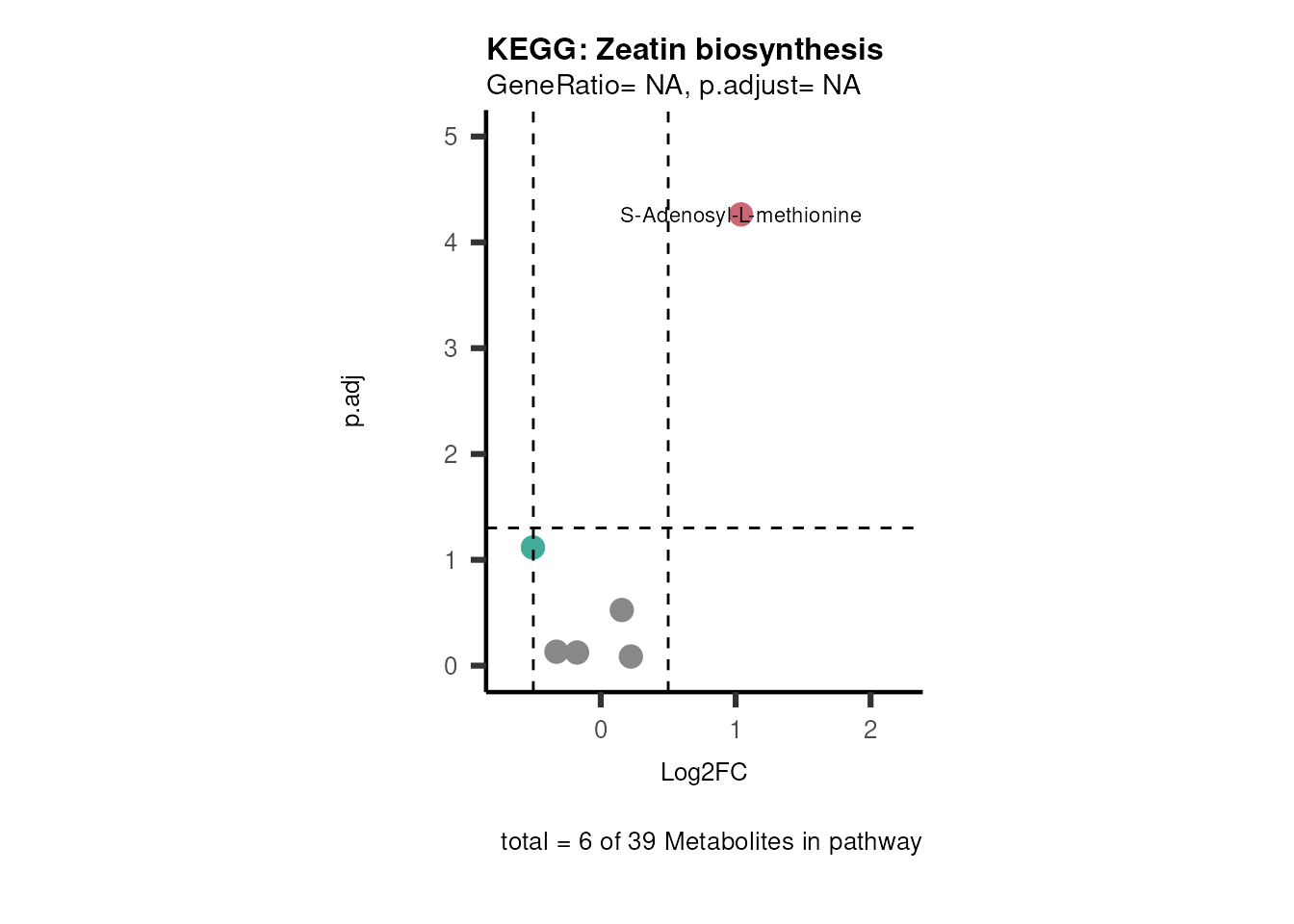

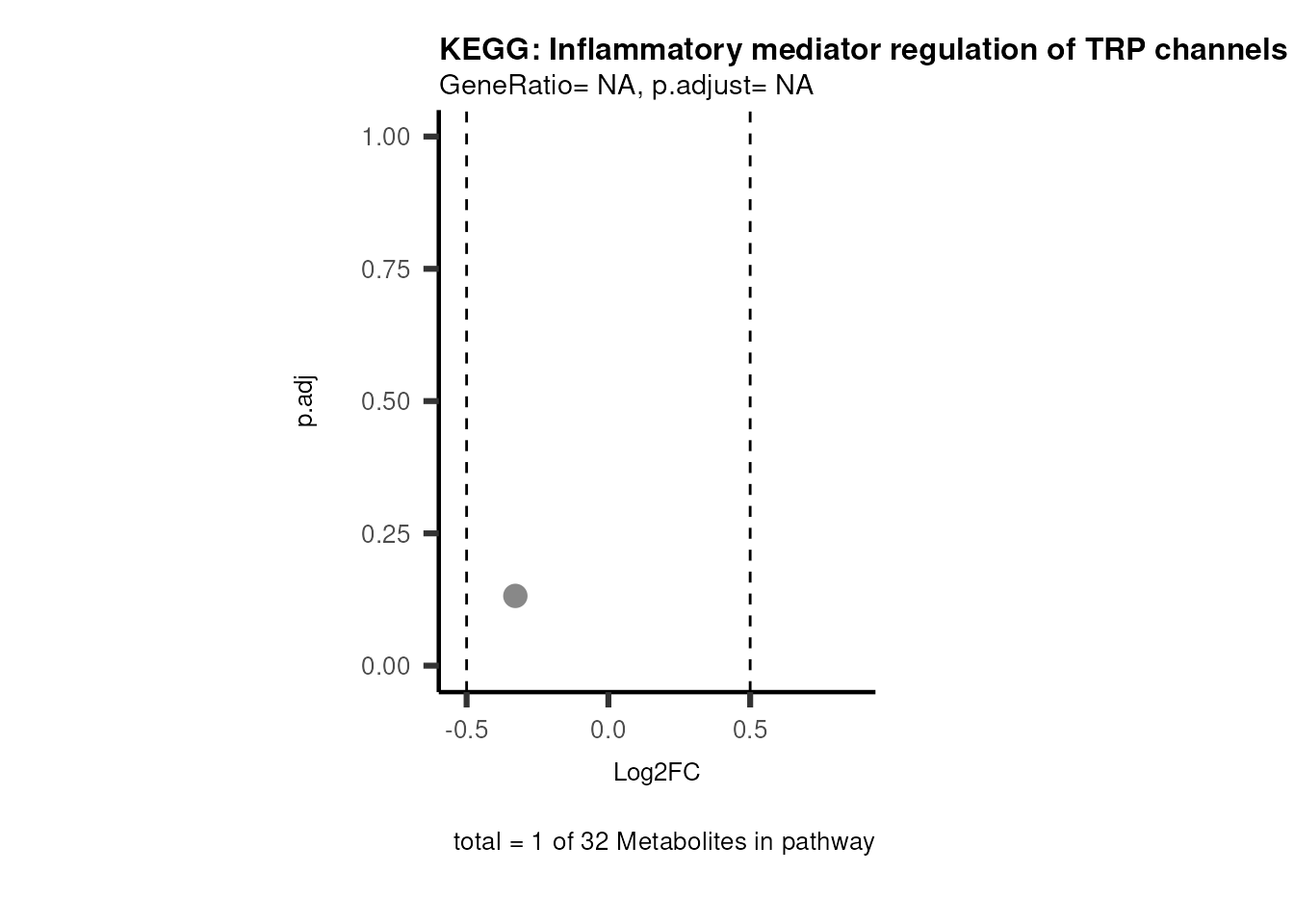

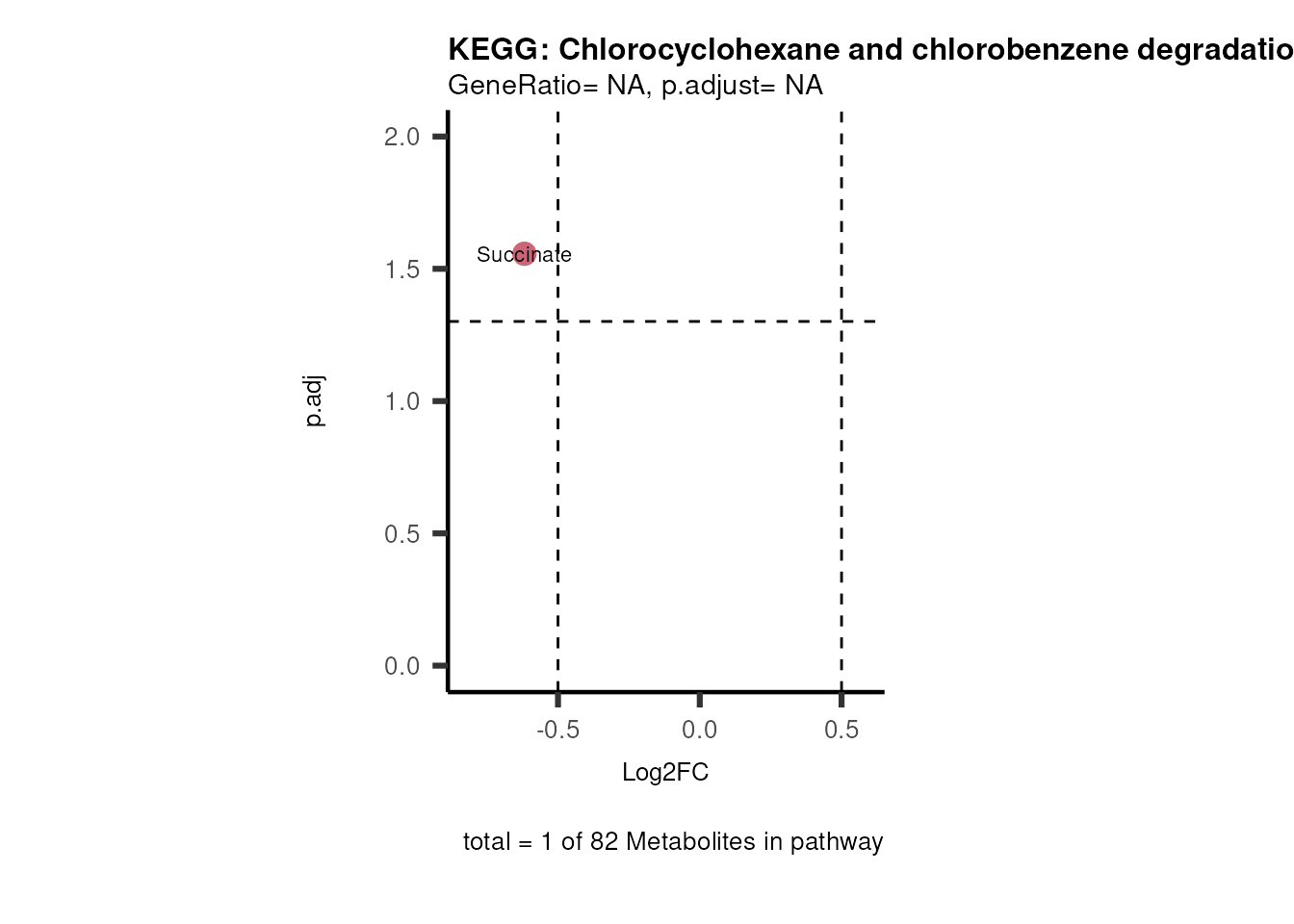

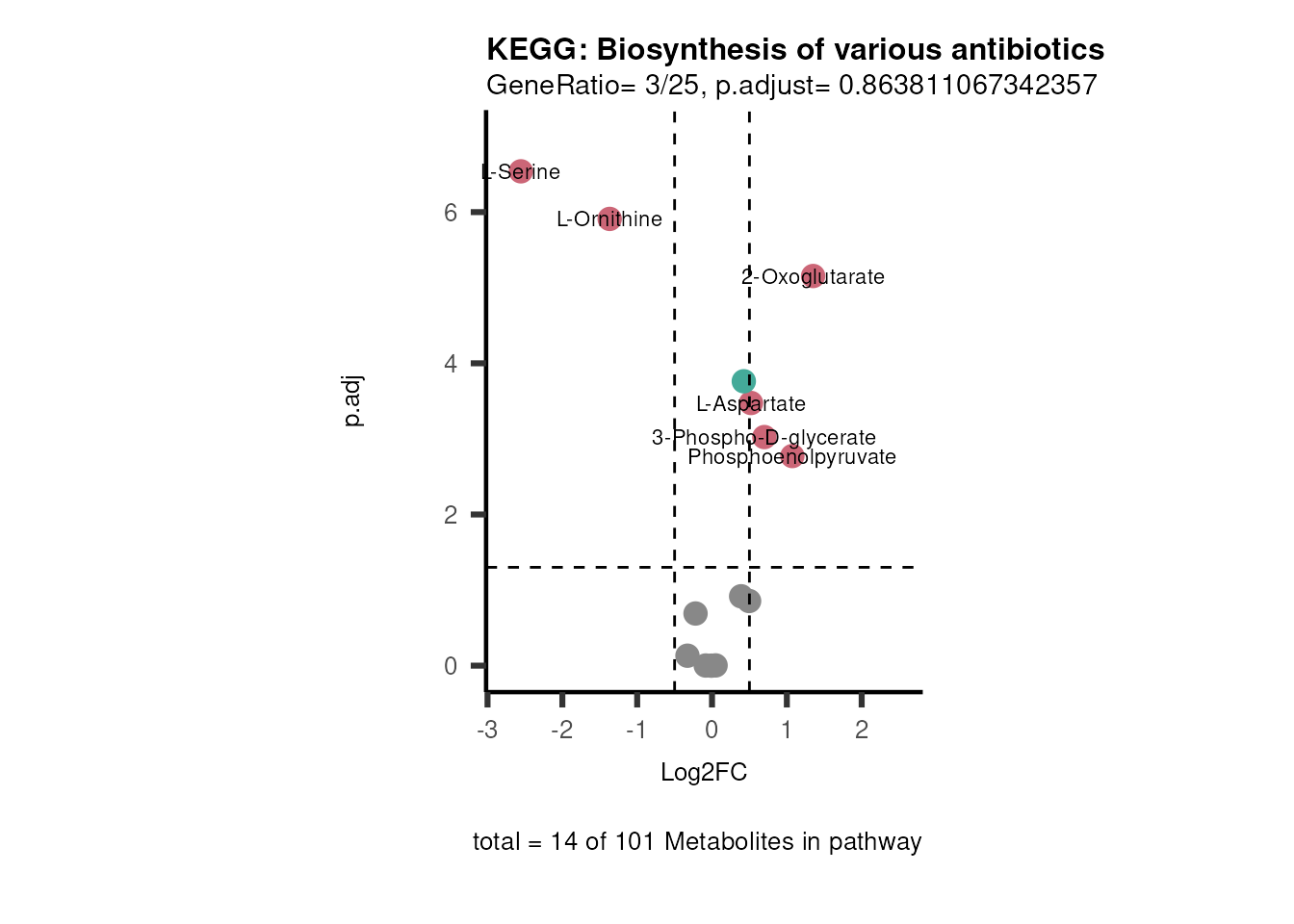

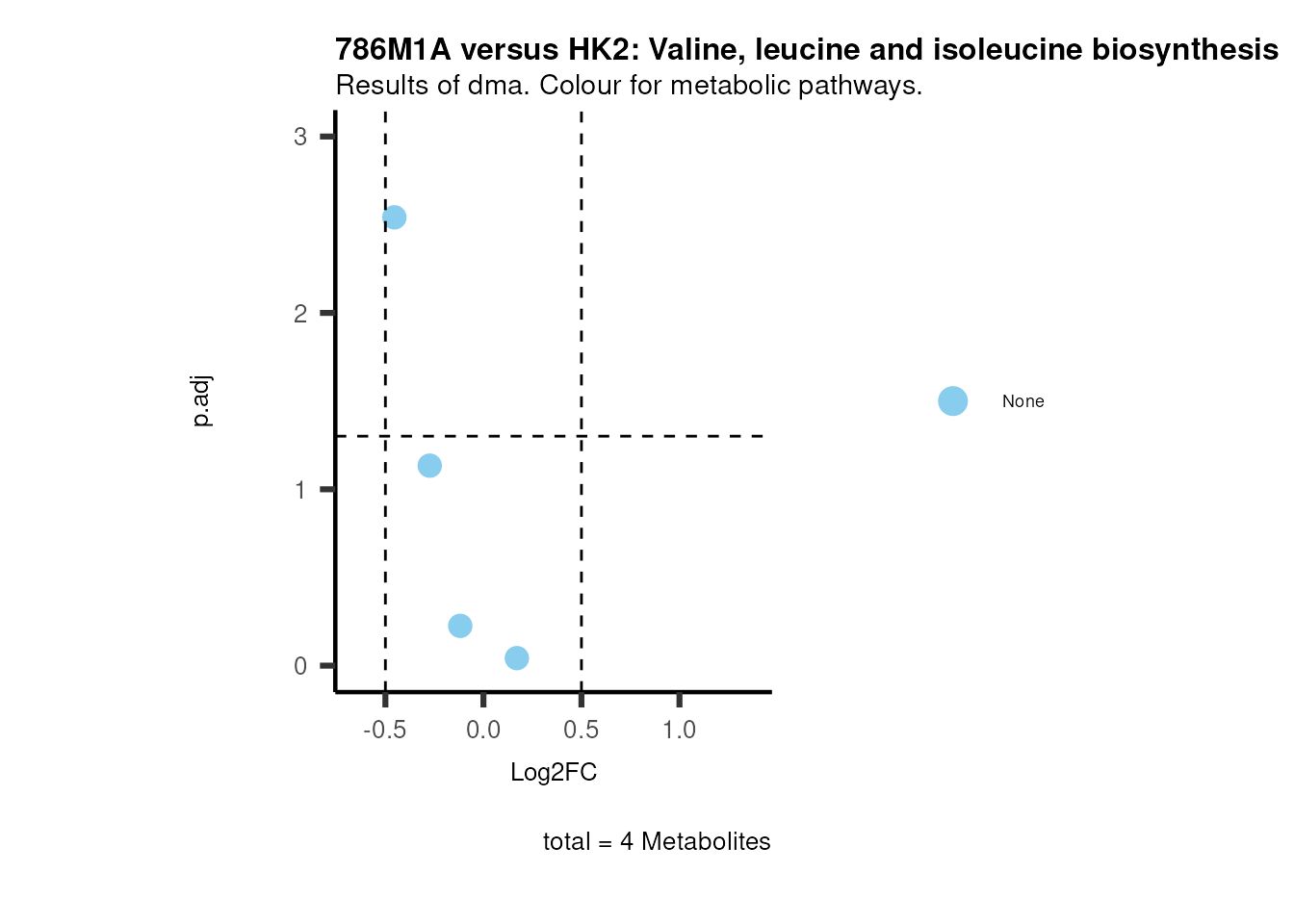

We immediately see that there are many pathways displayed on the plot, which can make it difficult to interpret. Hence, we will change our plot settings in order to get individual plots for each of the pathways:

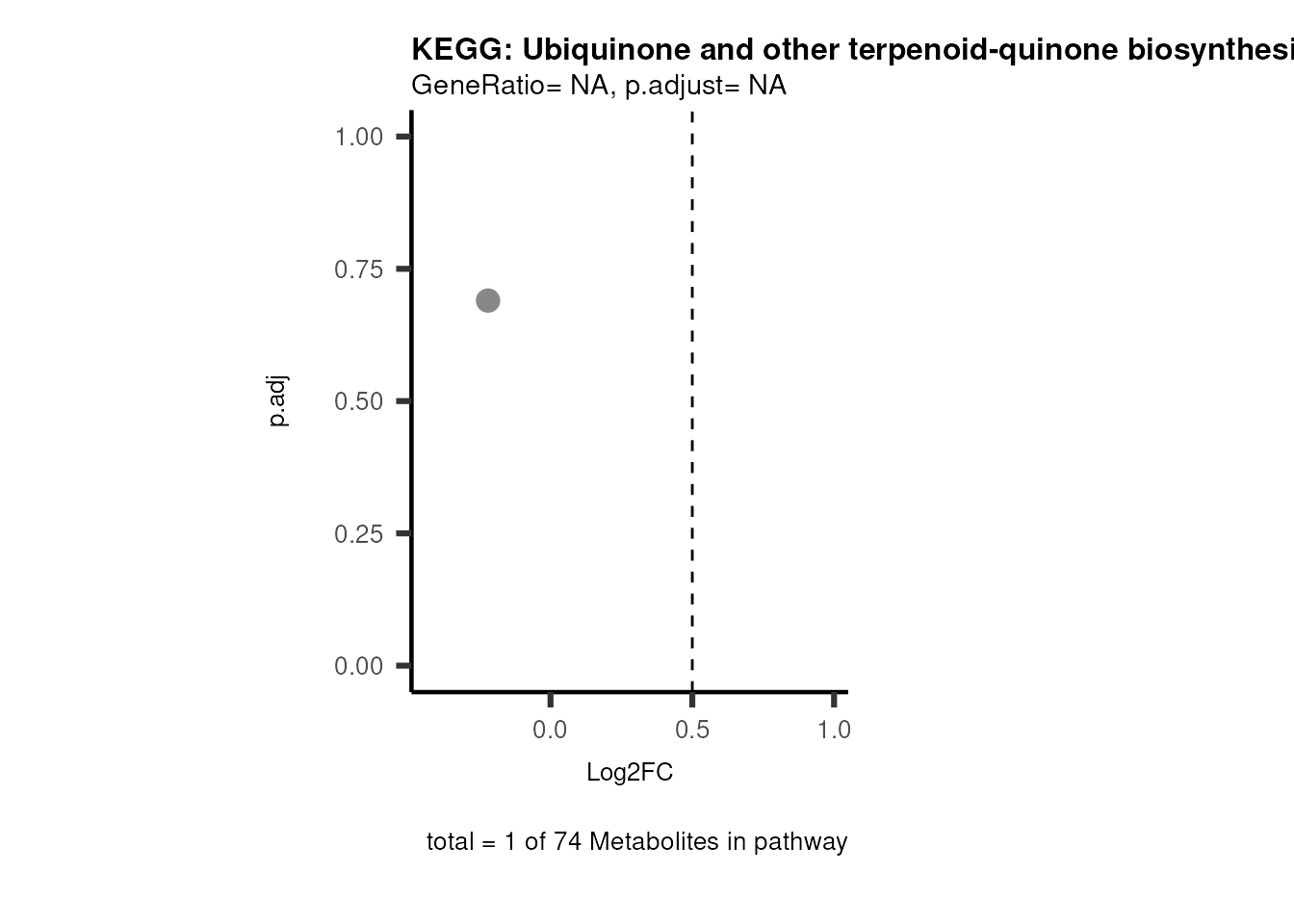

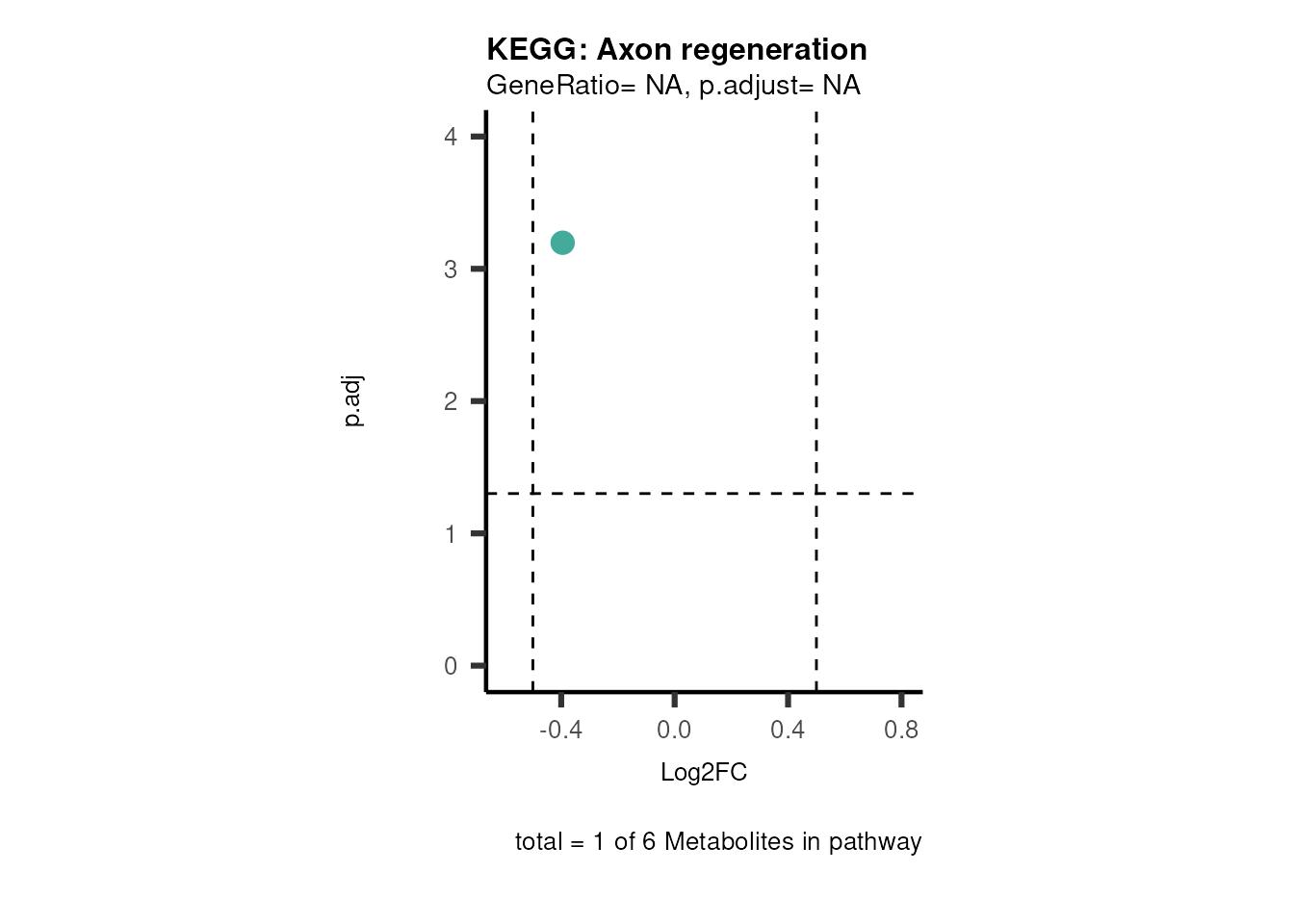

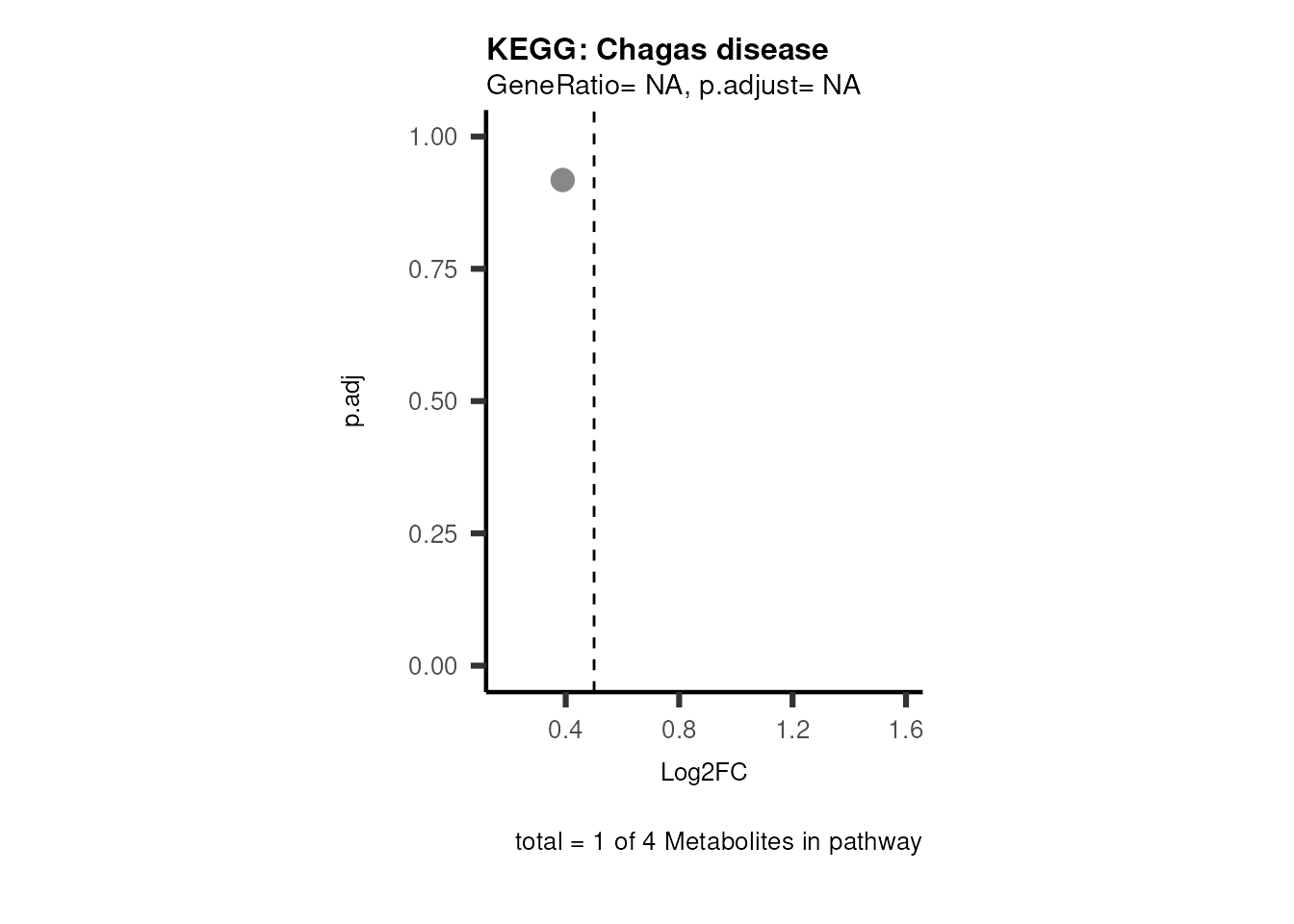

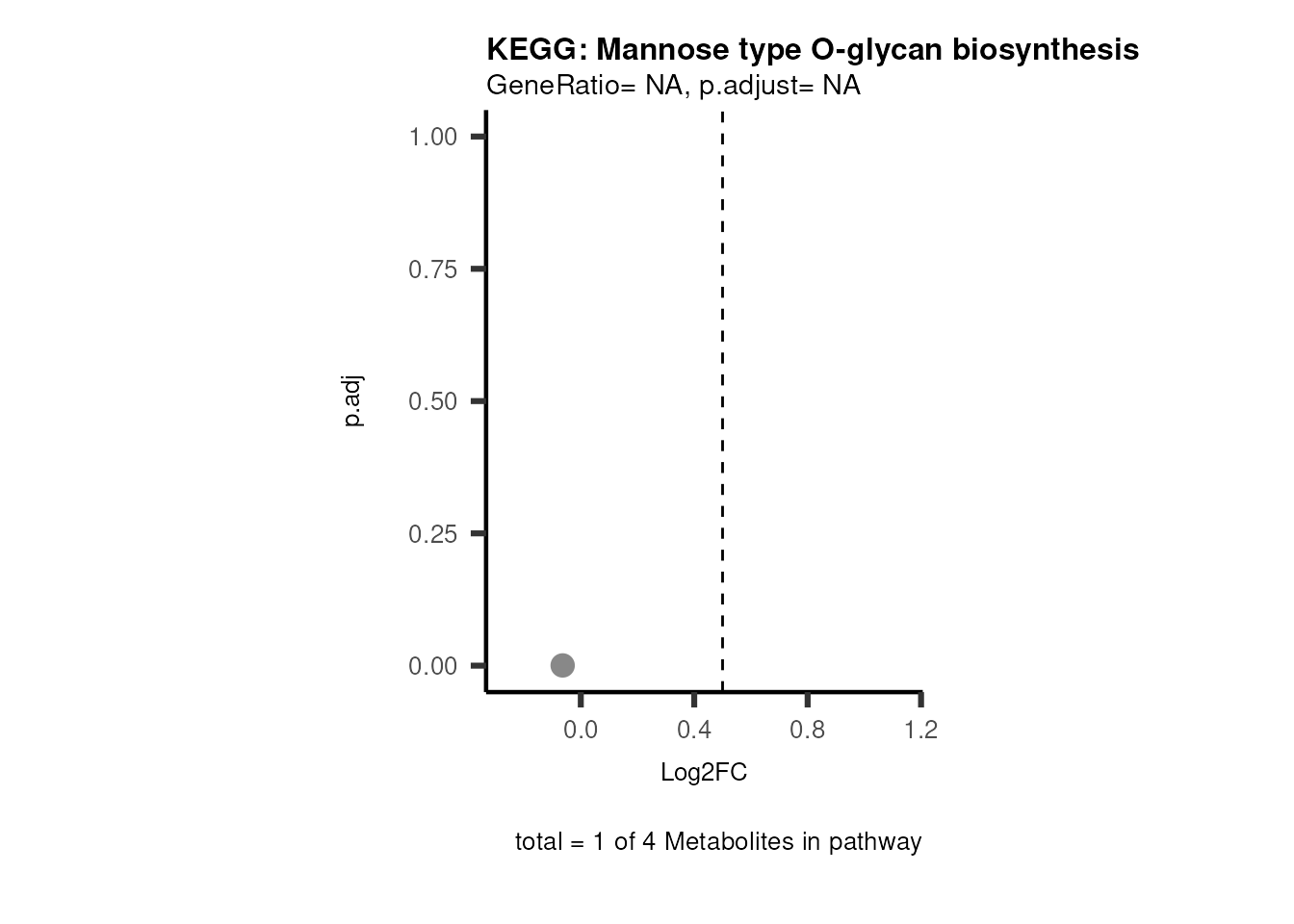

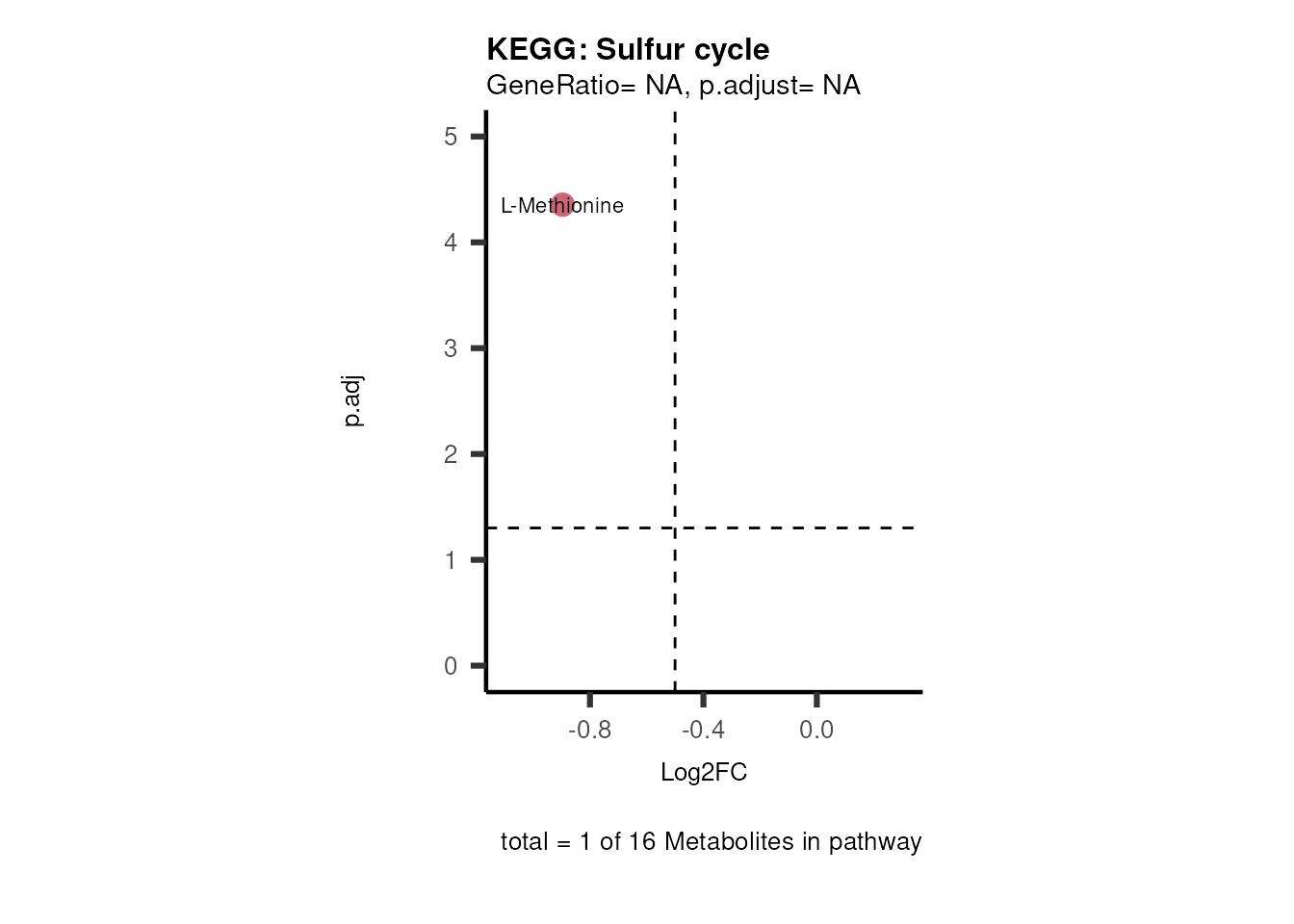

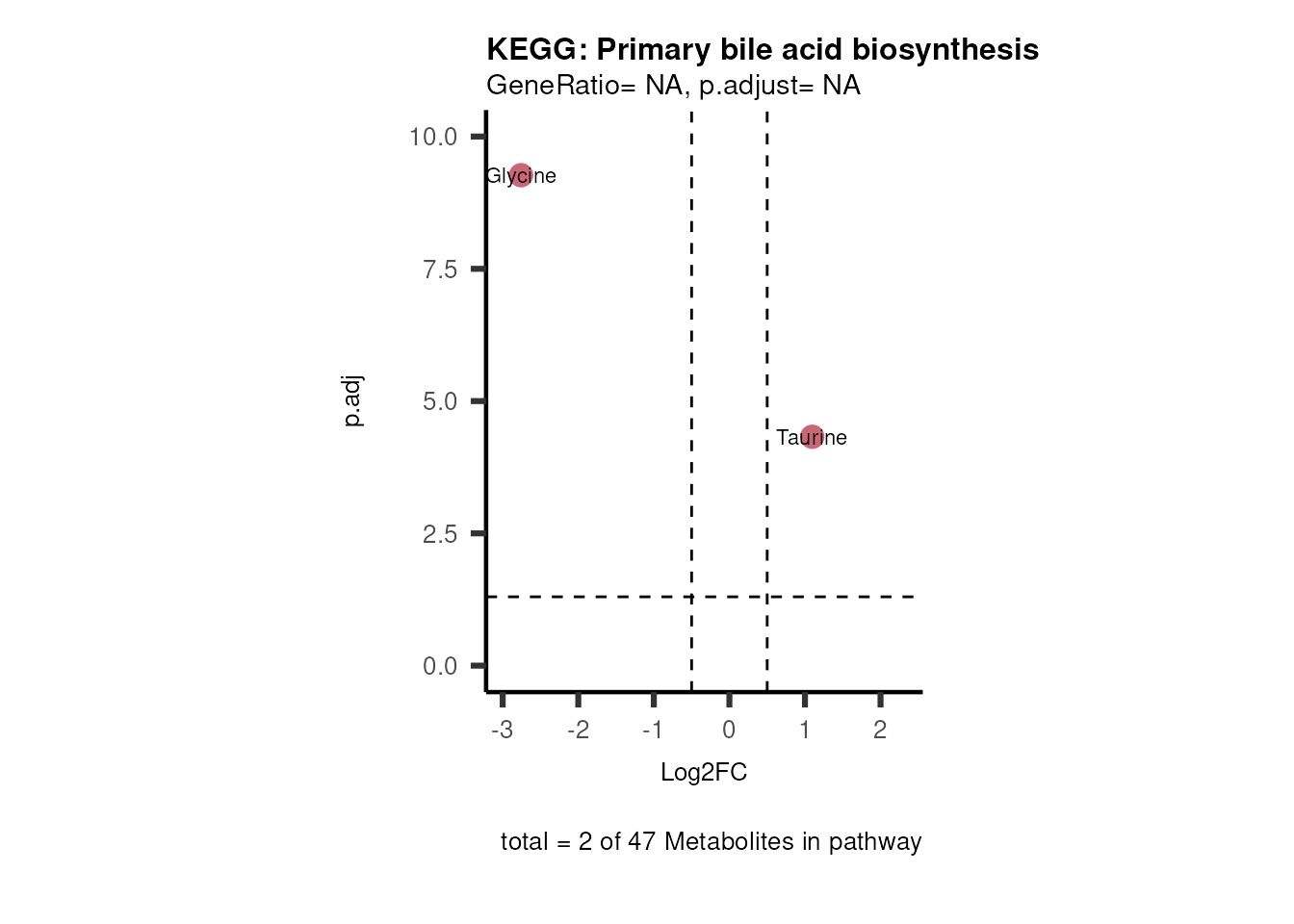

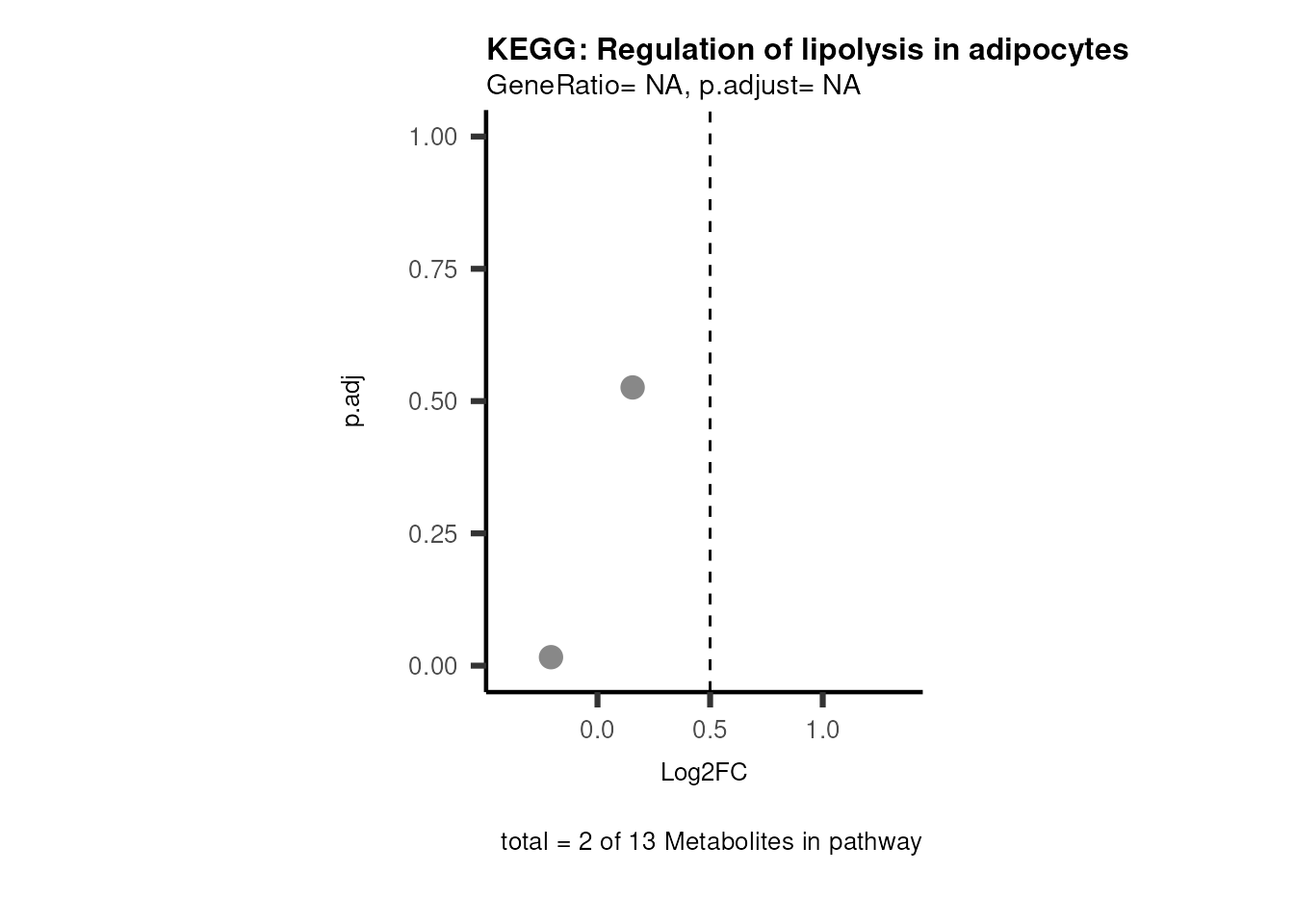

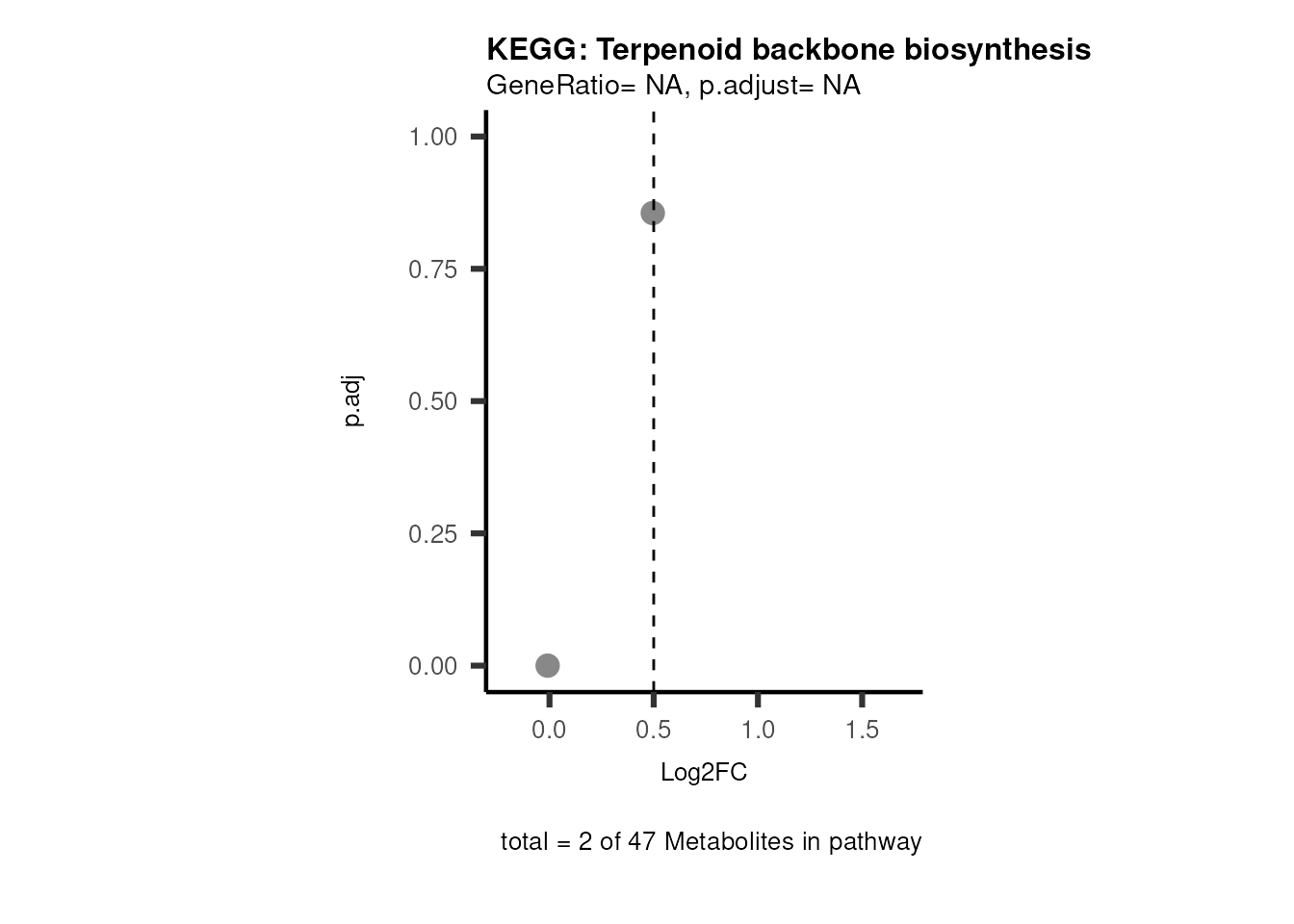

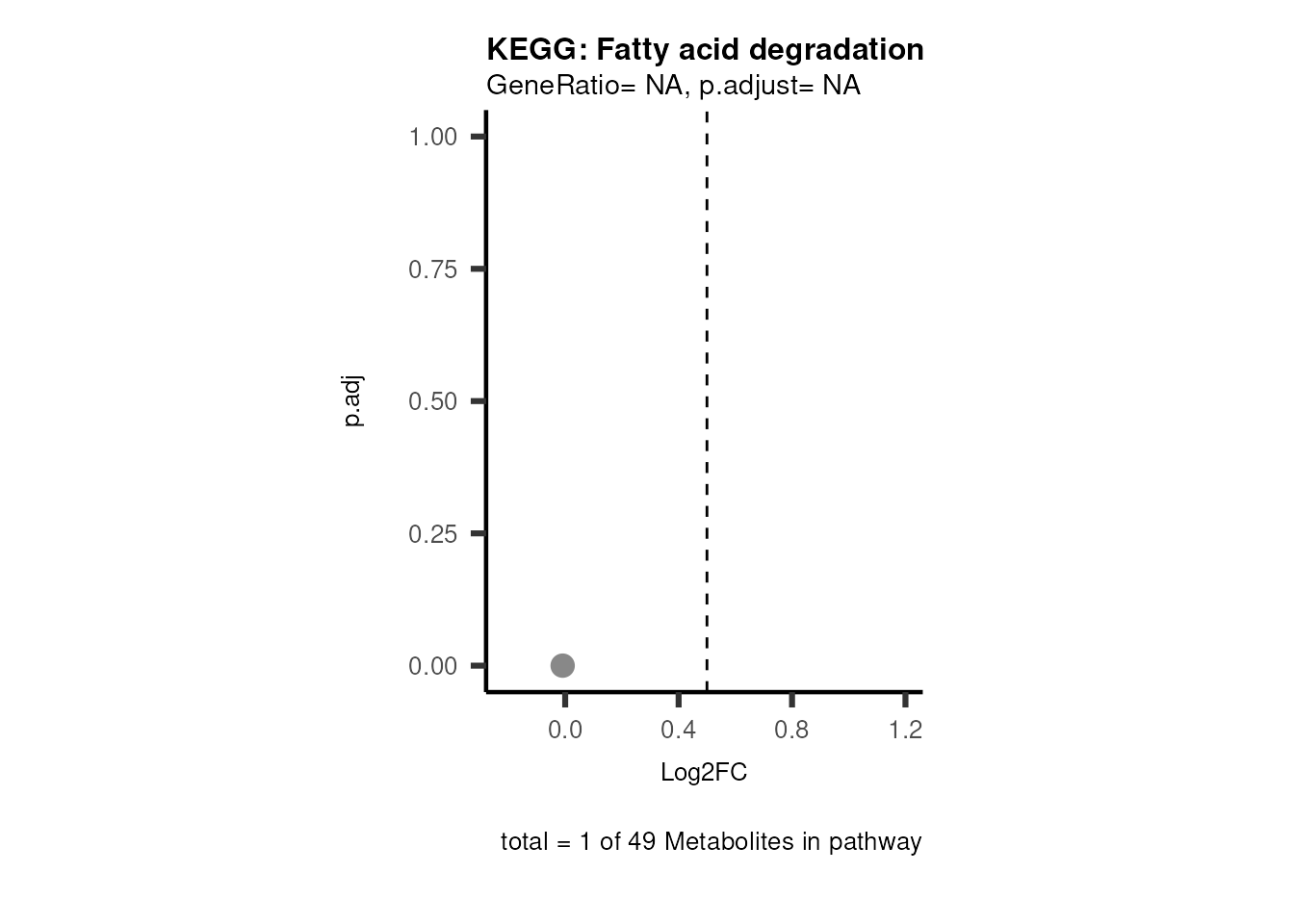

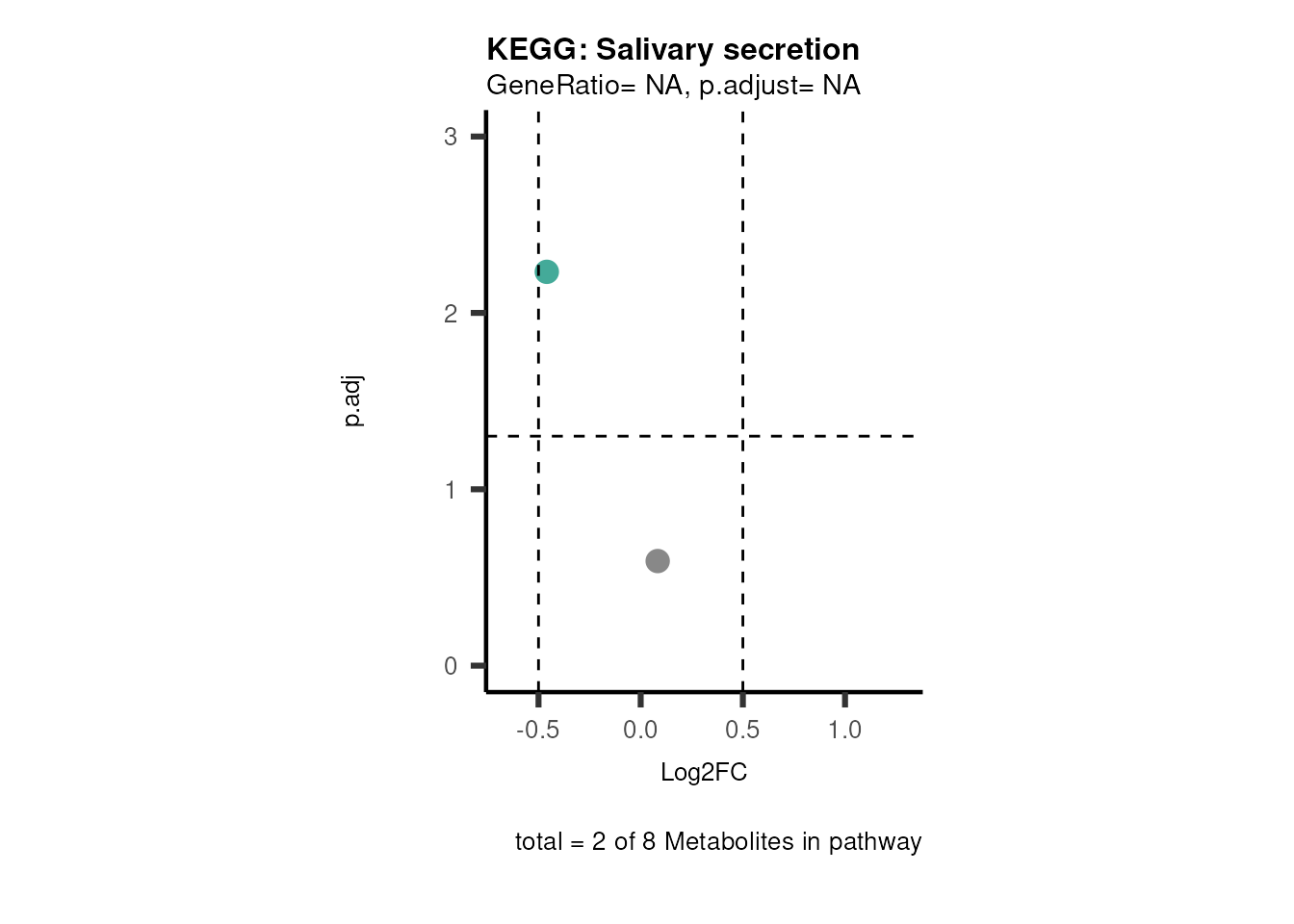

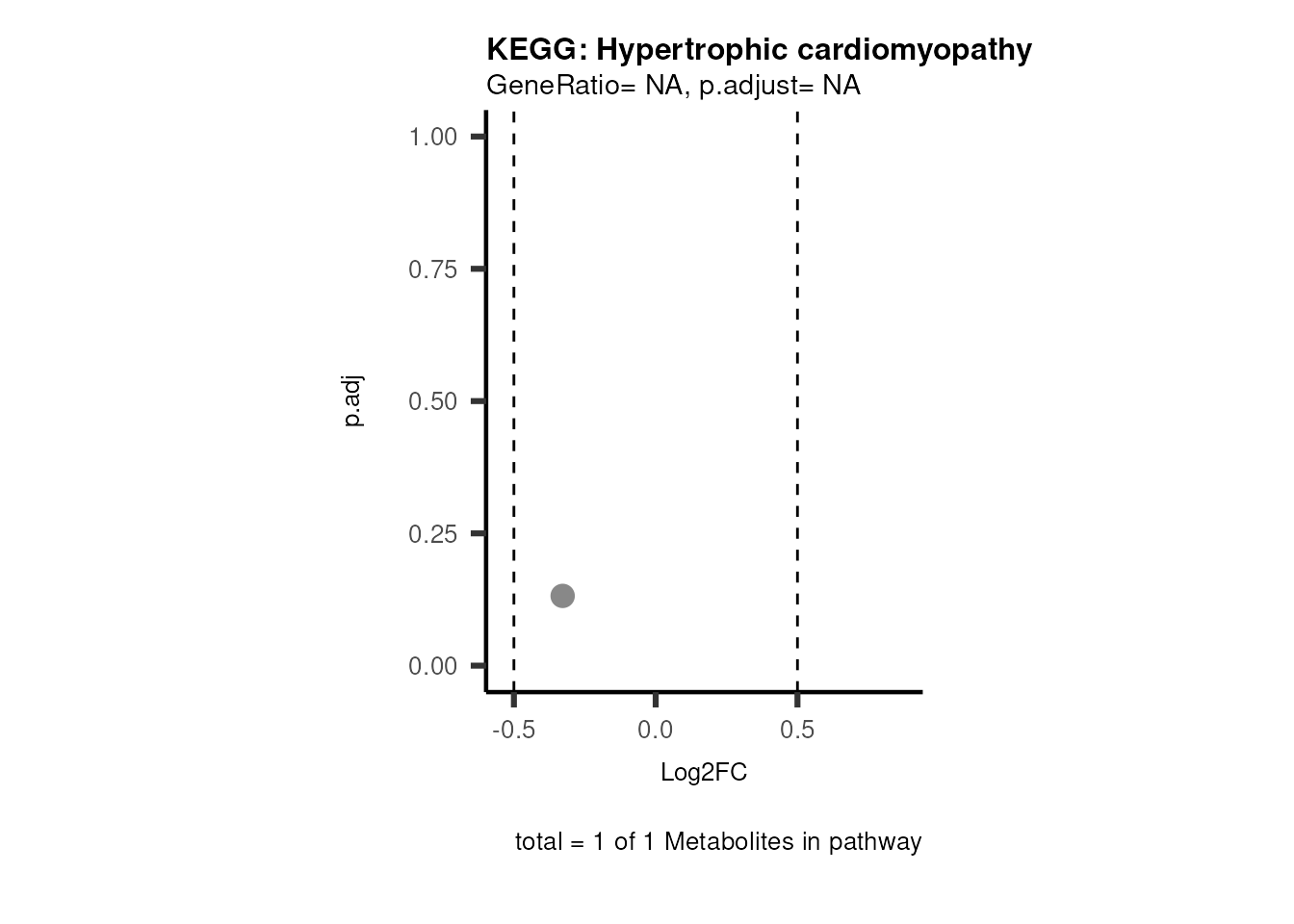

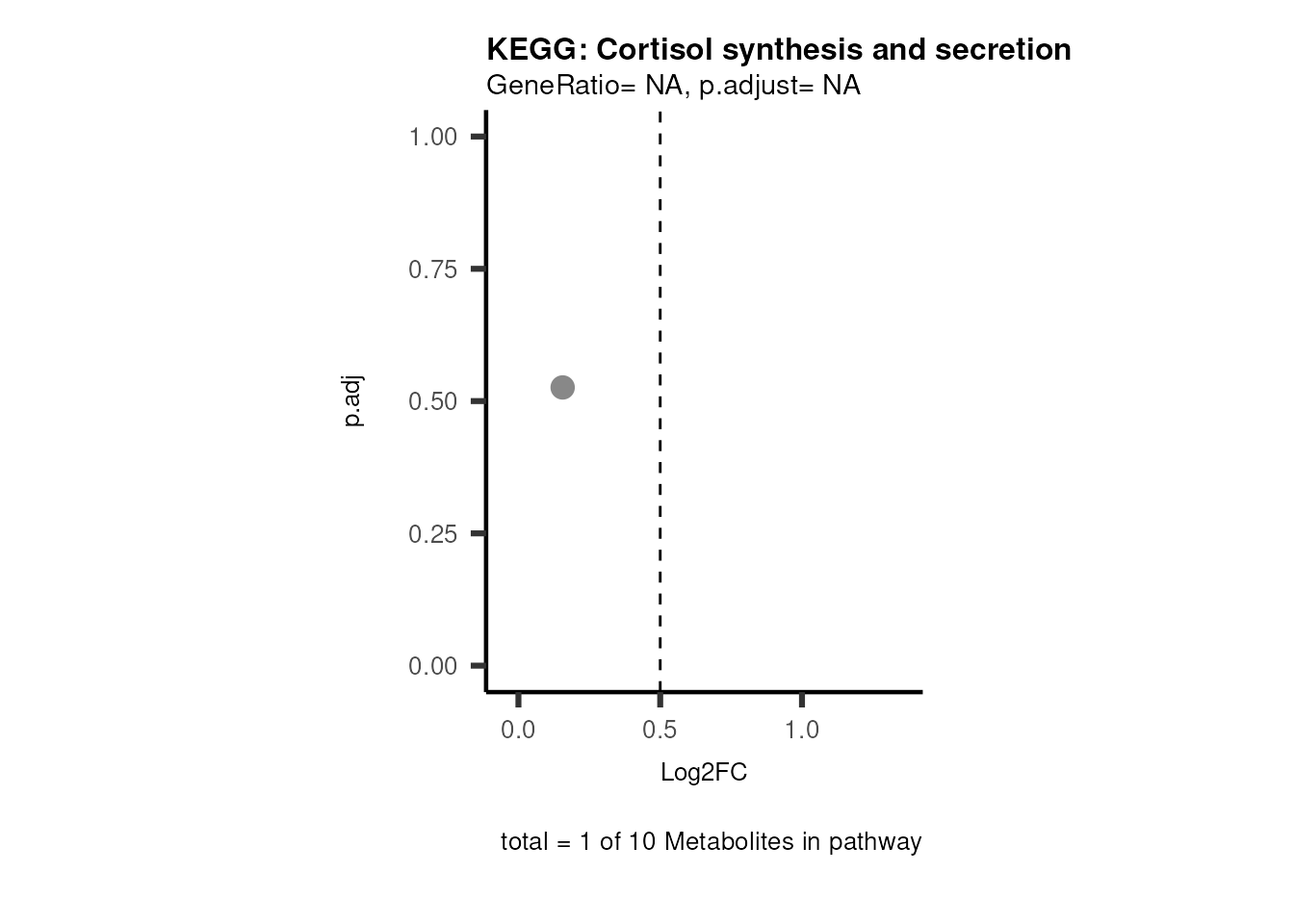

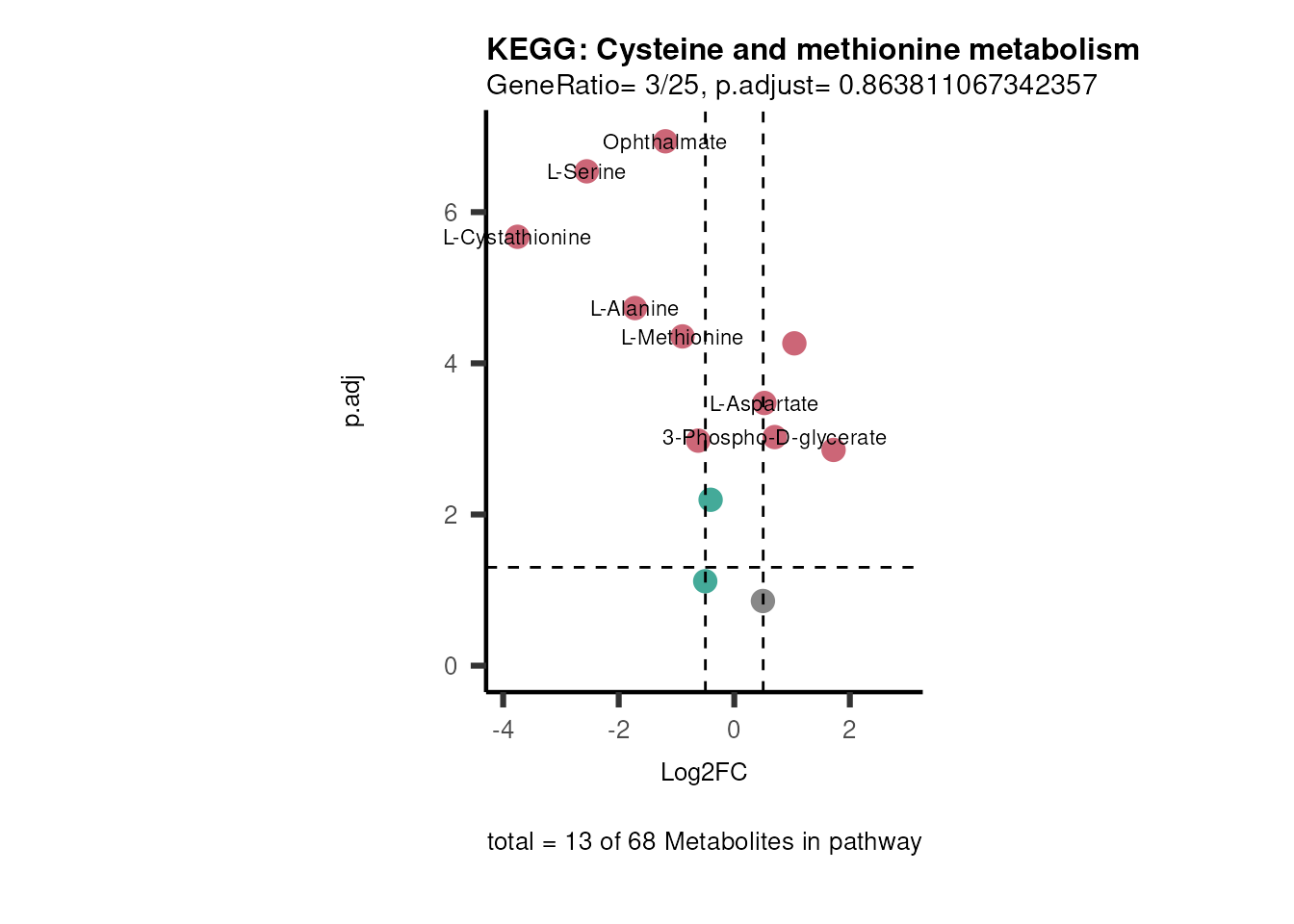

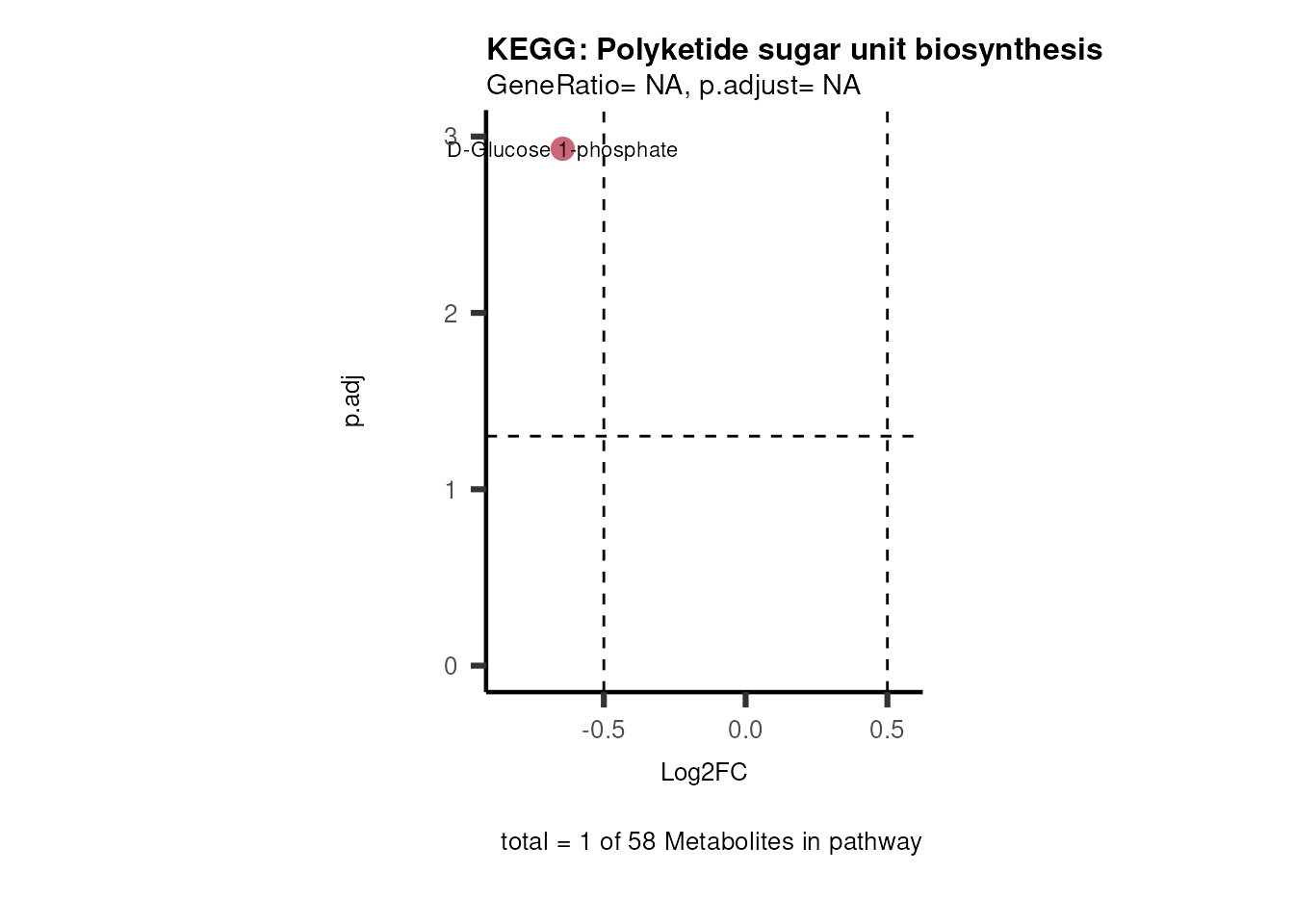

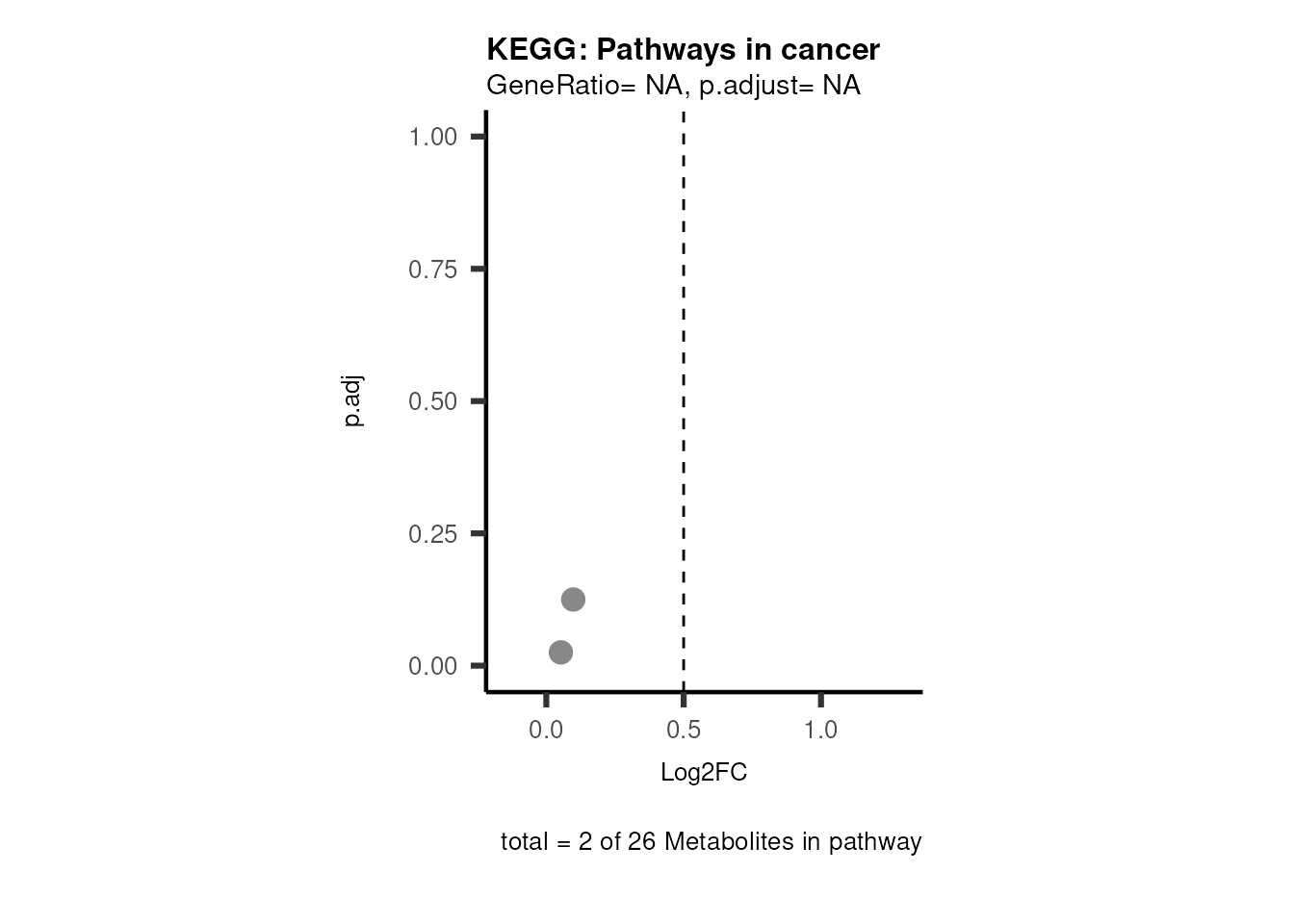

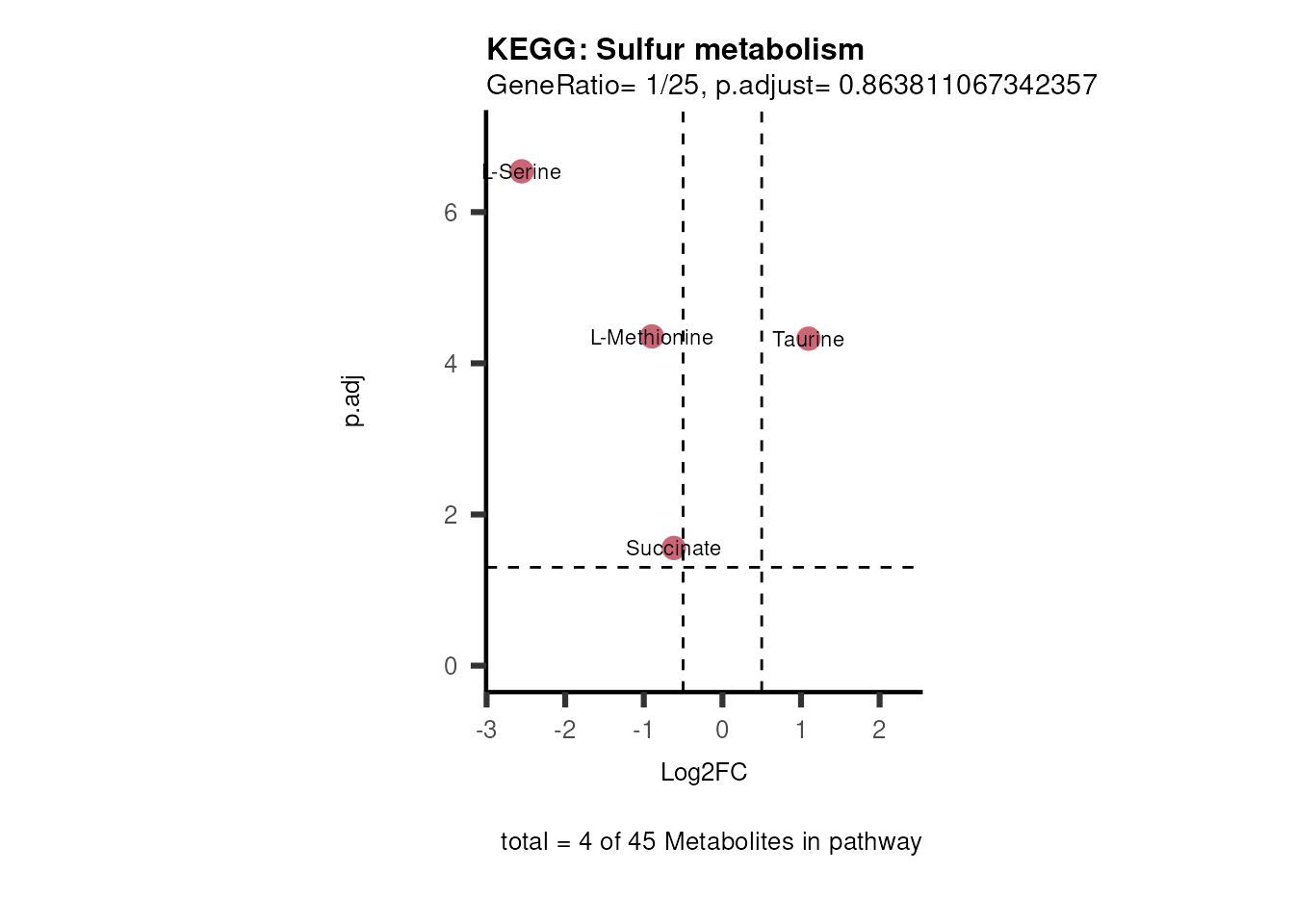

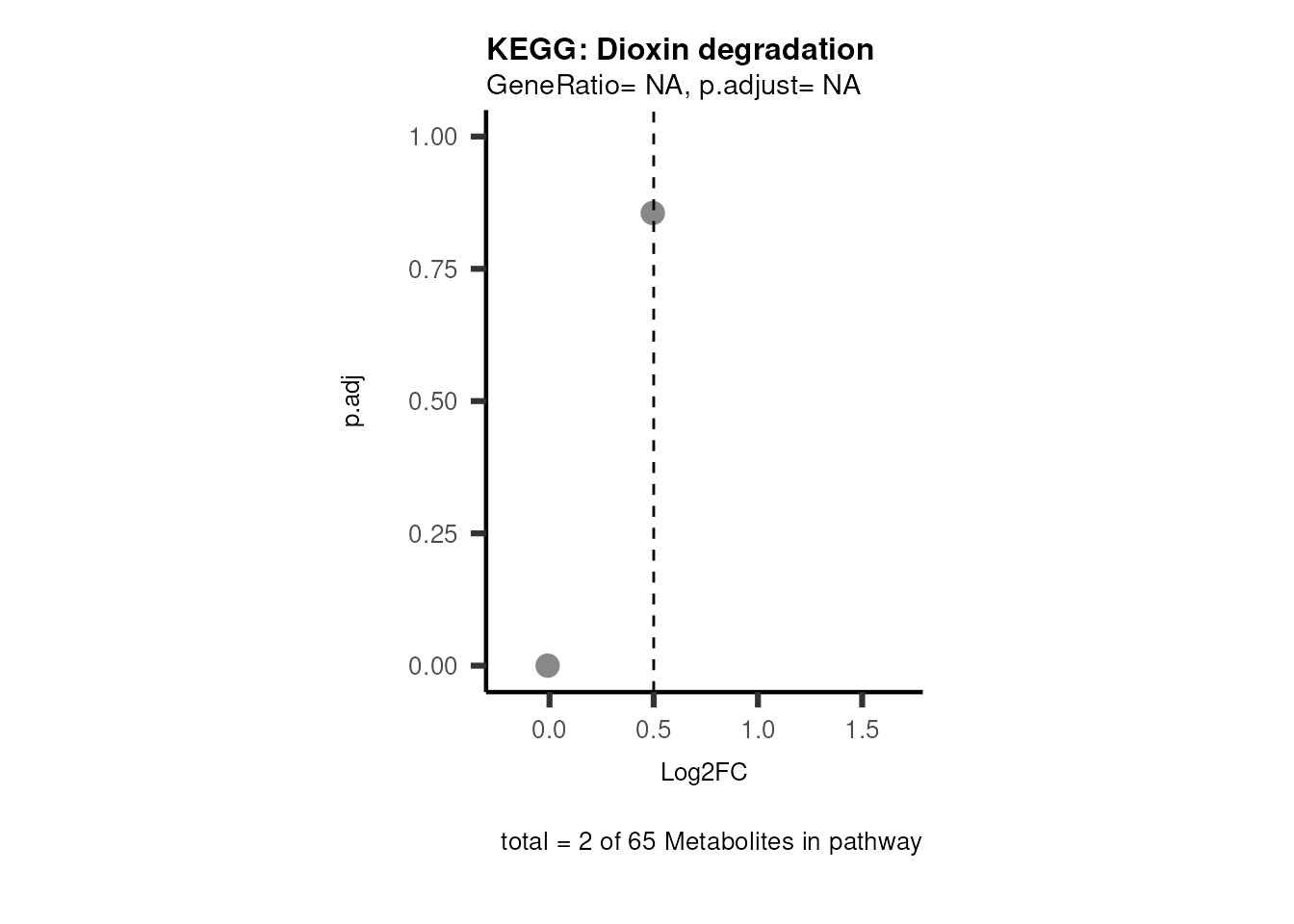

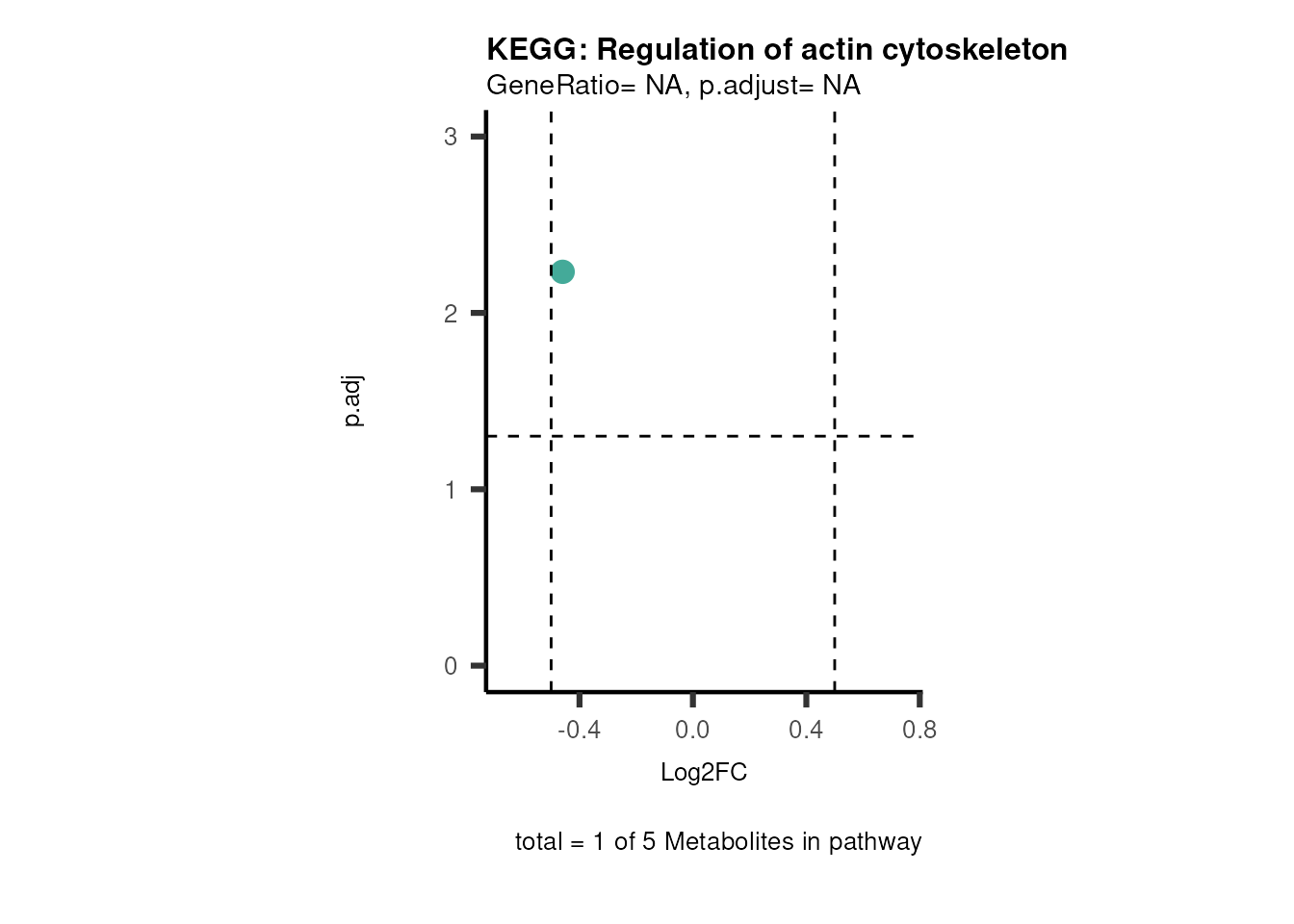

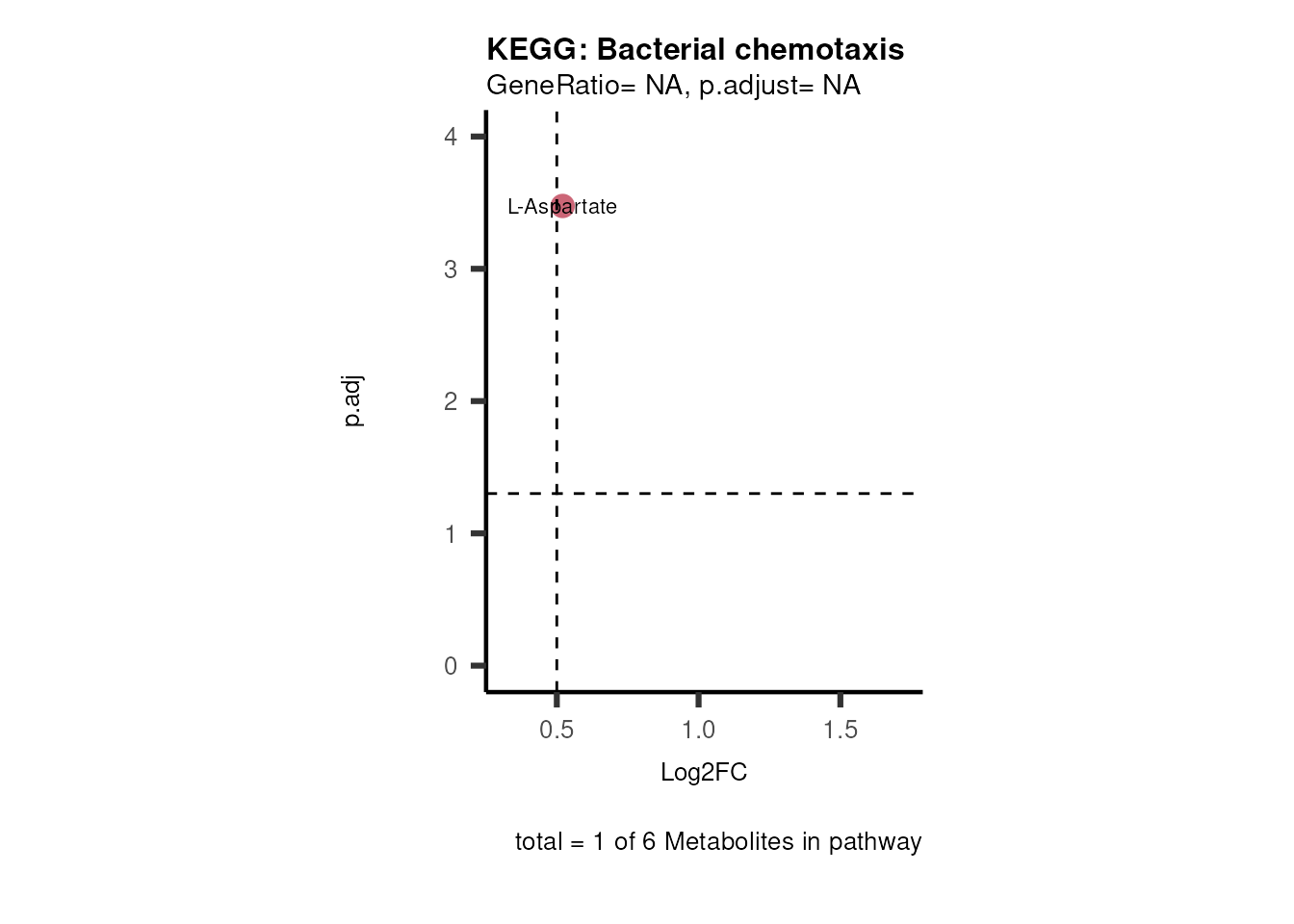

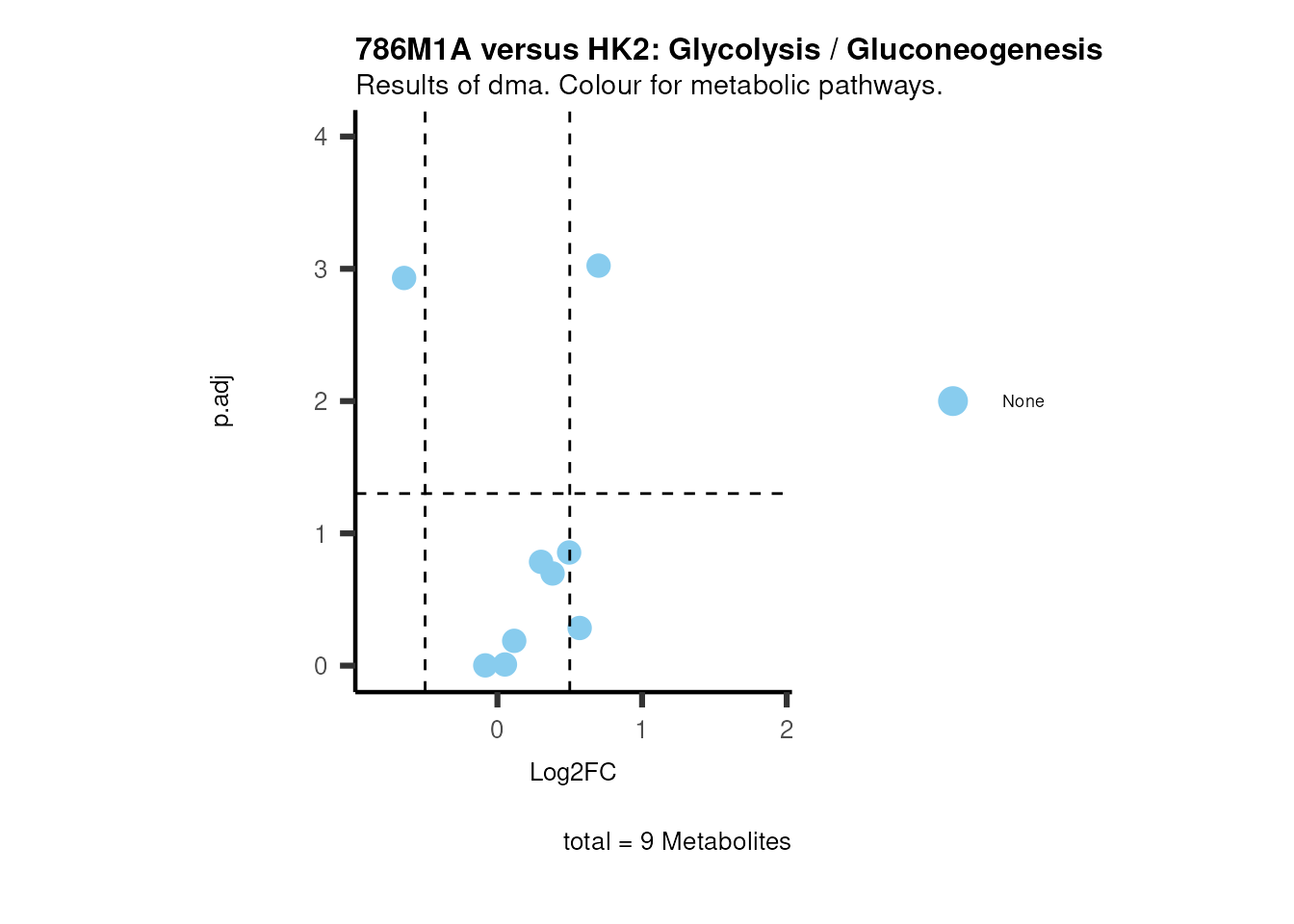

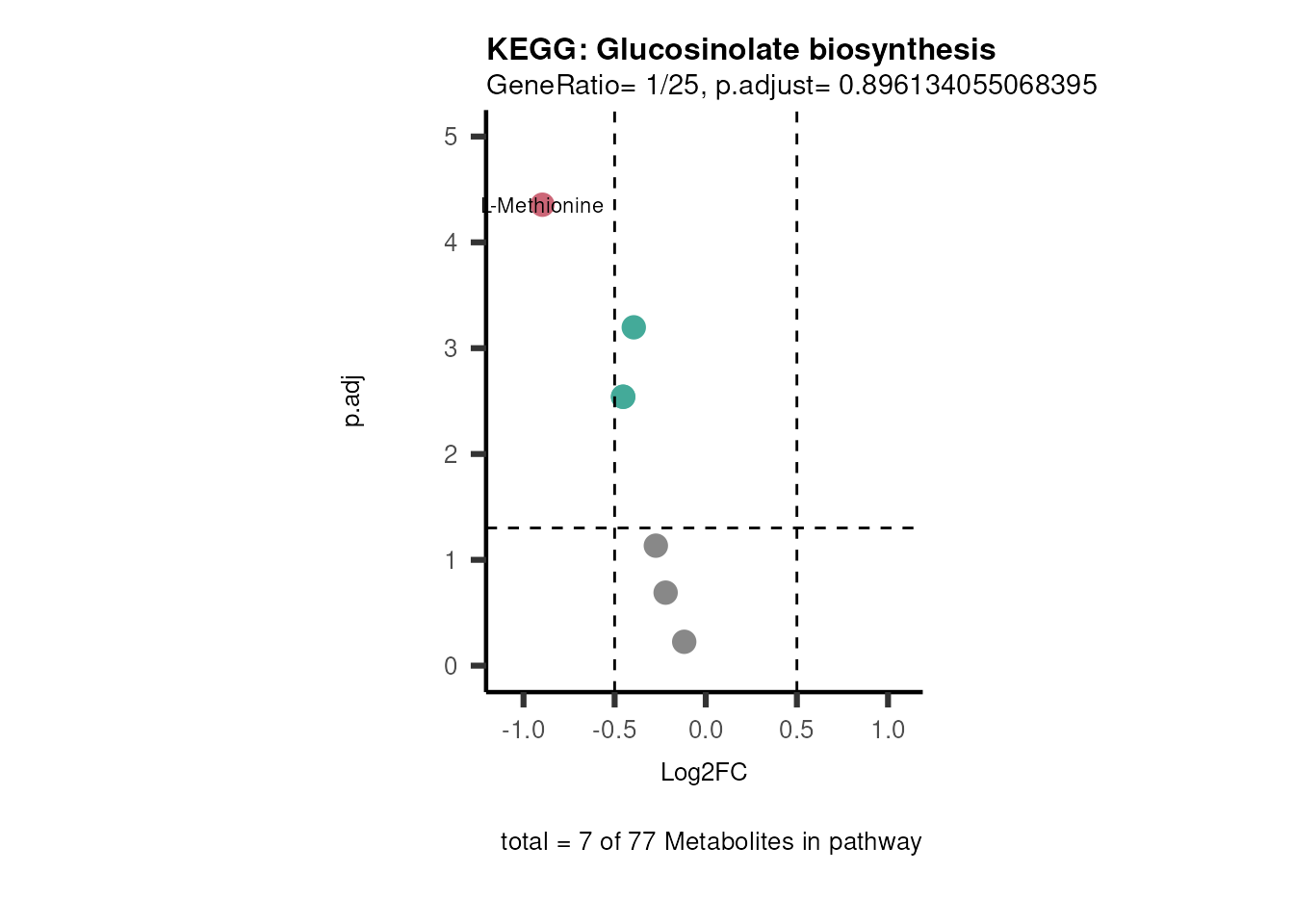

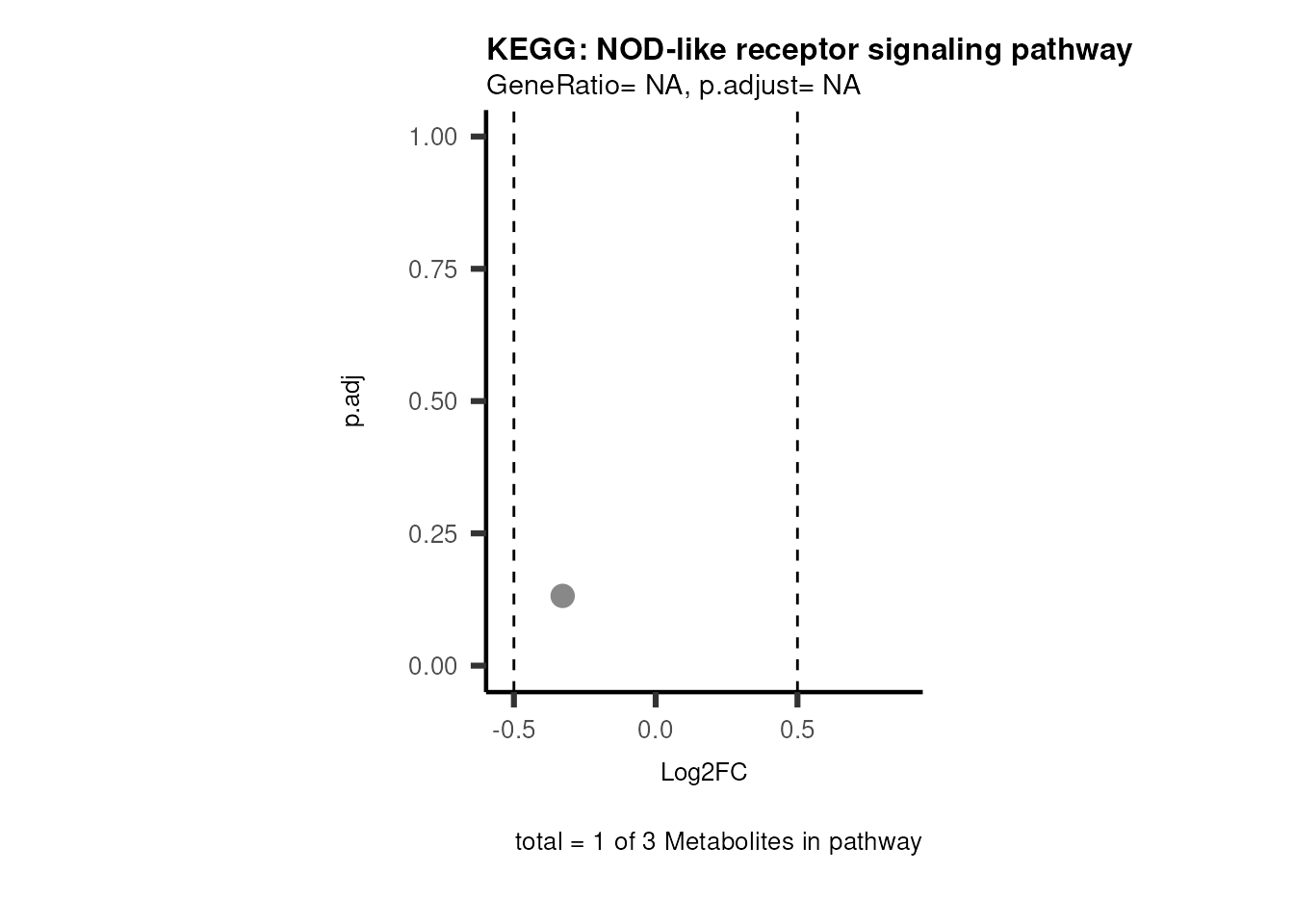

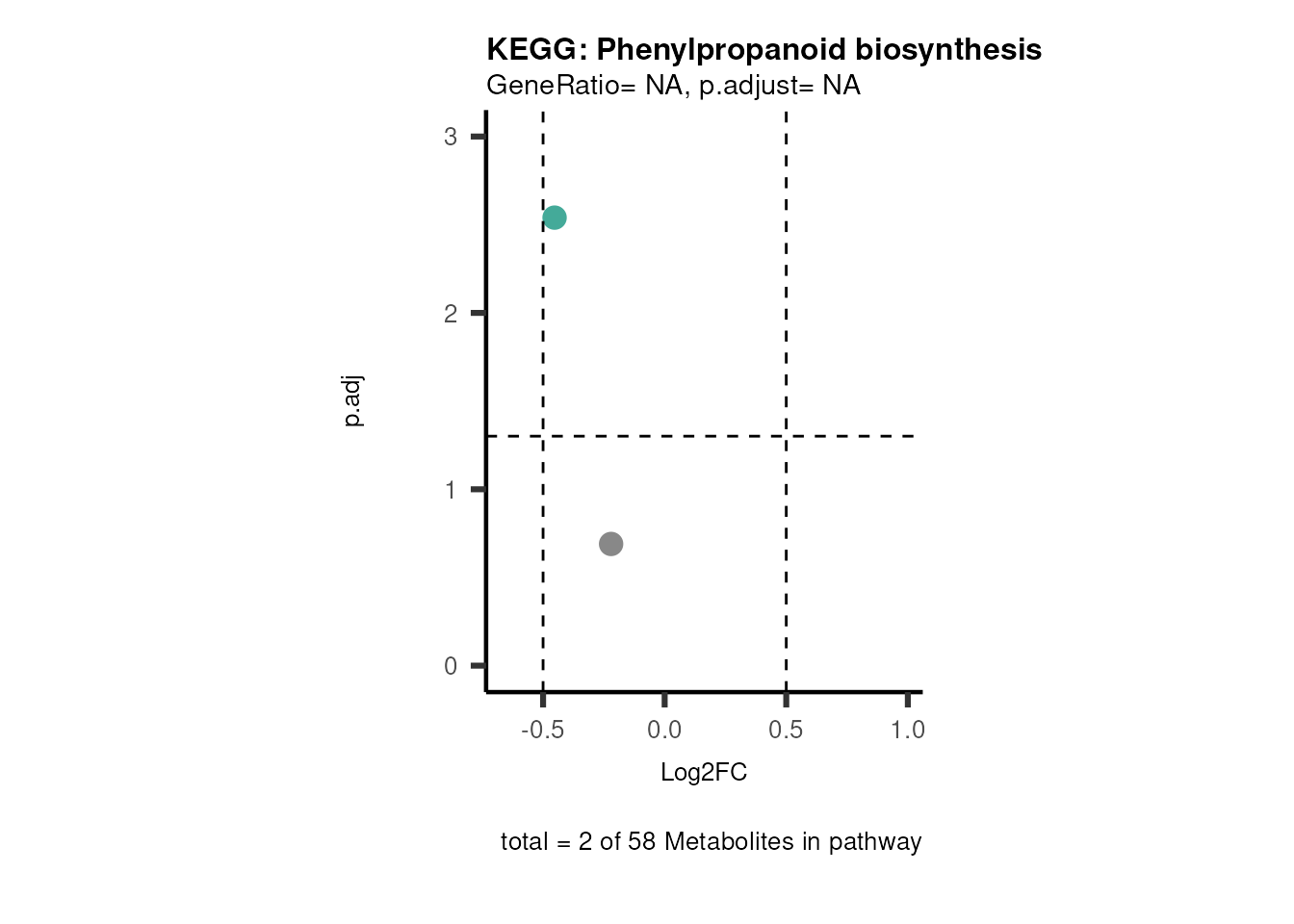

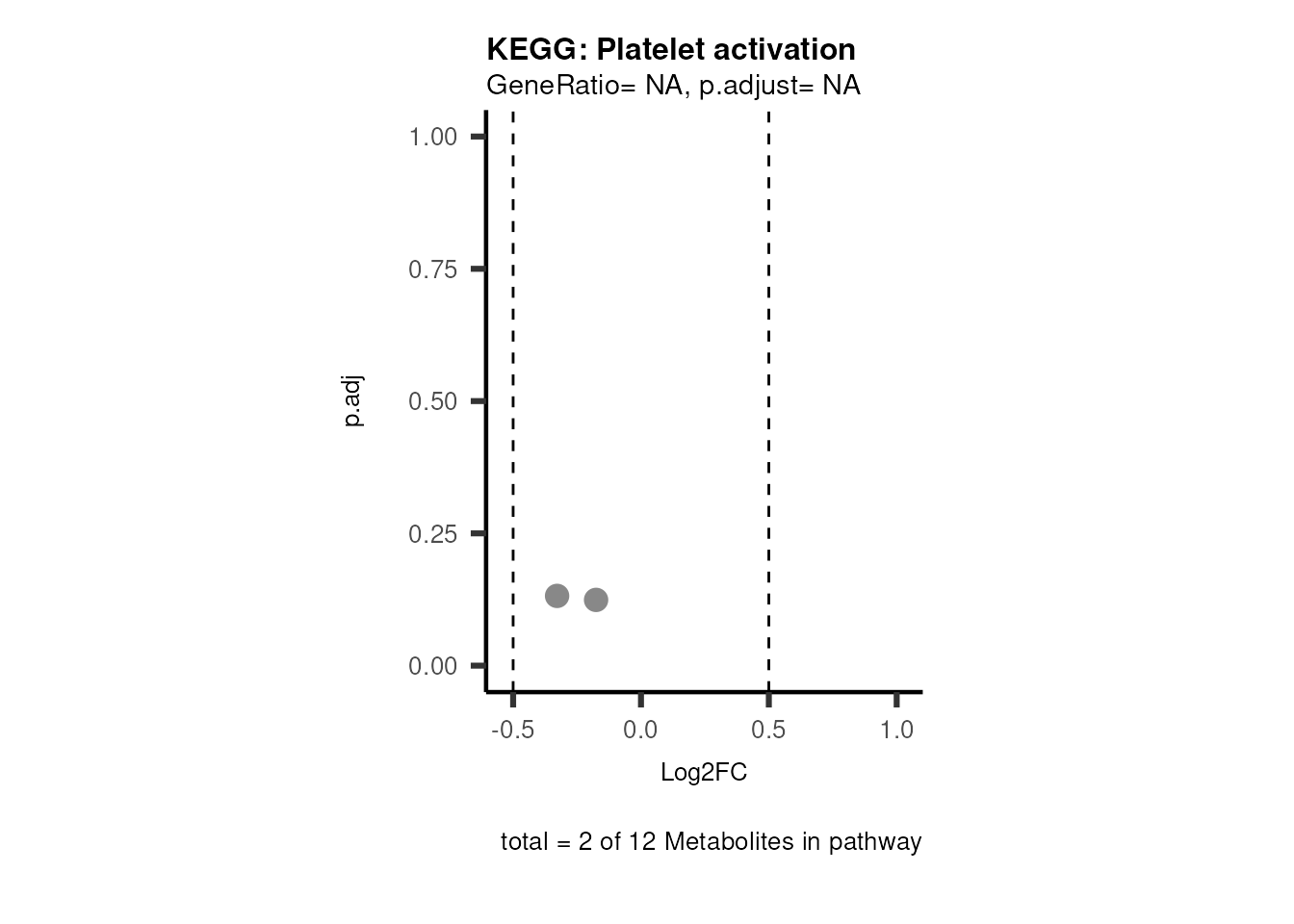

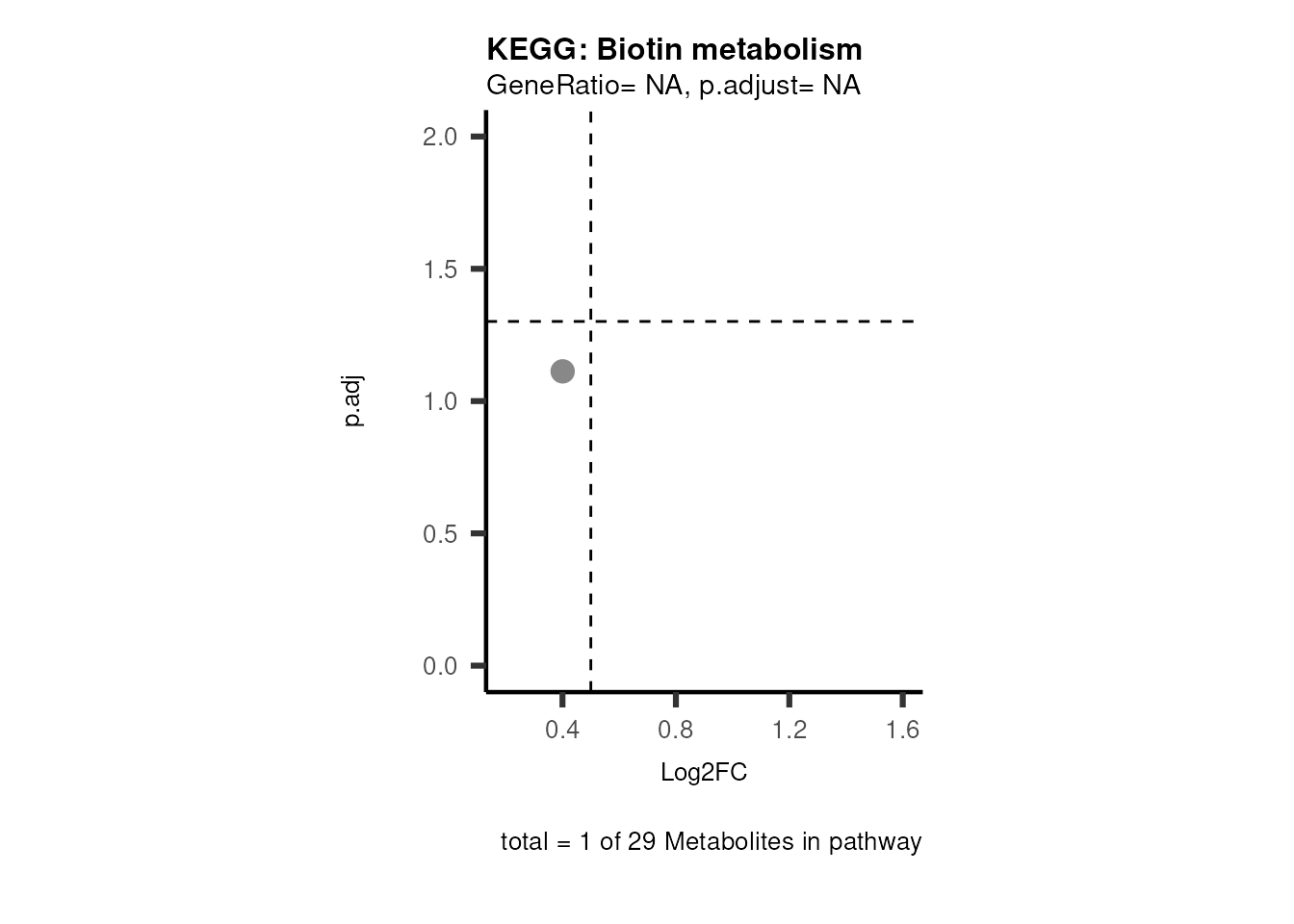

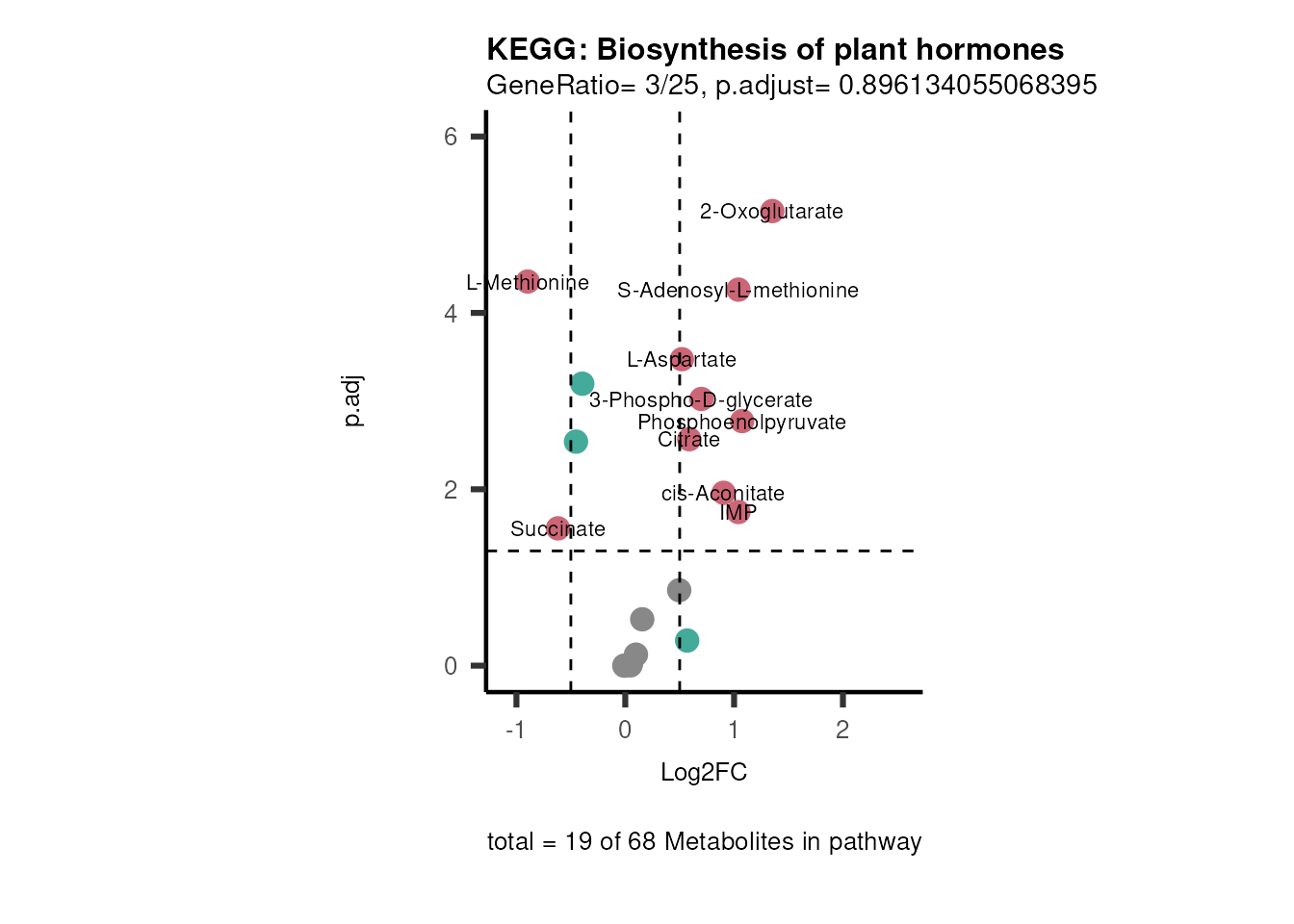

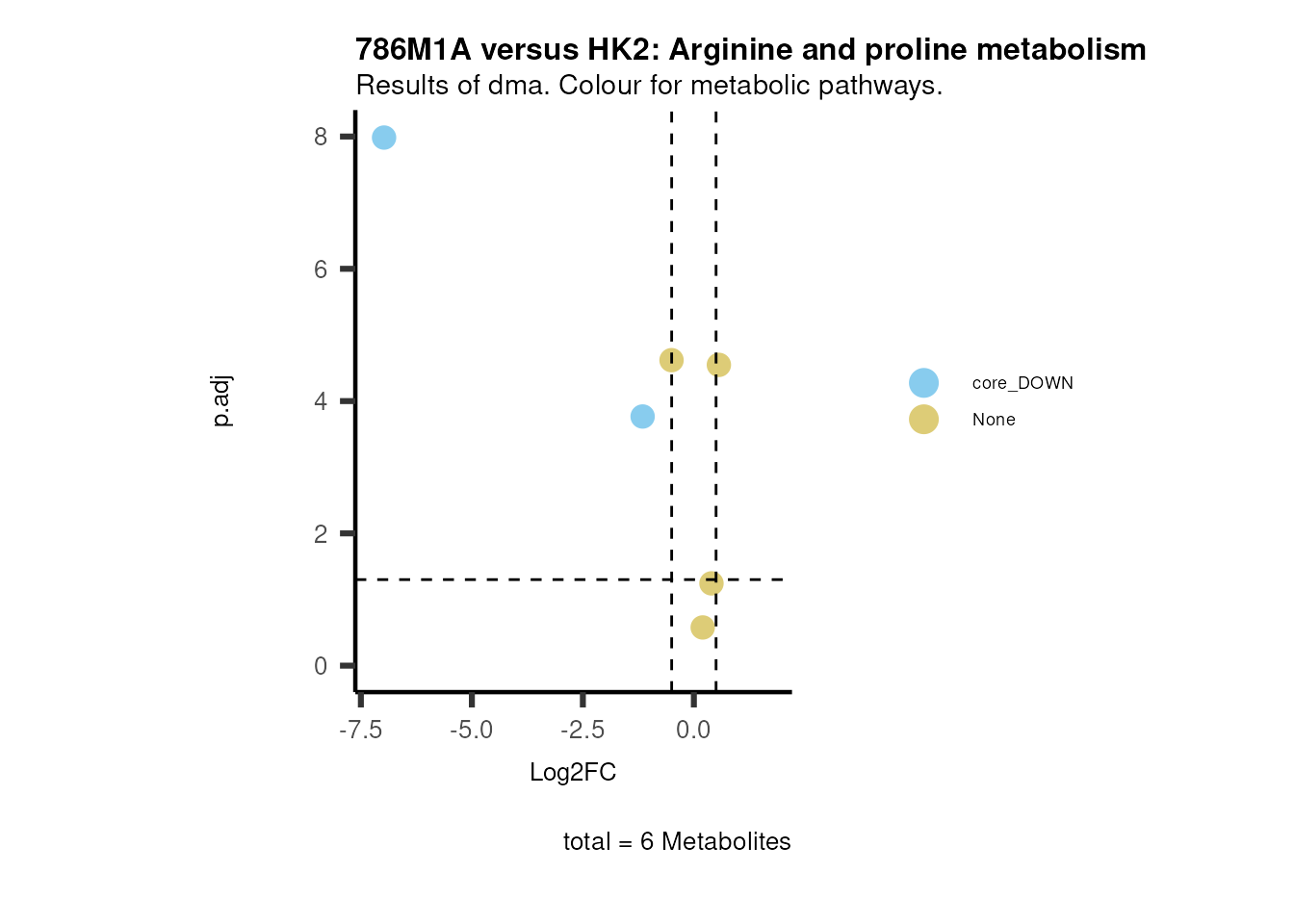

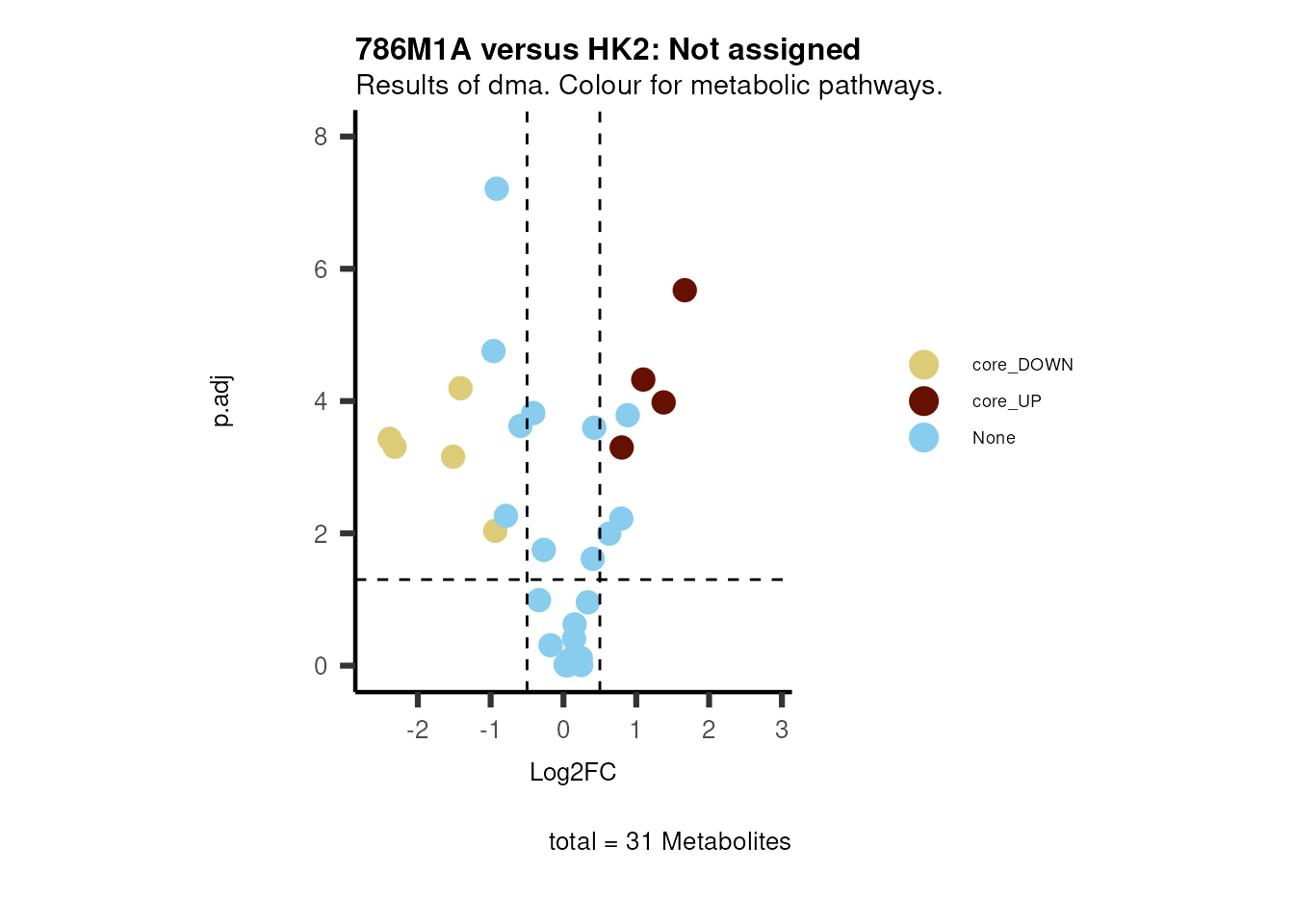

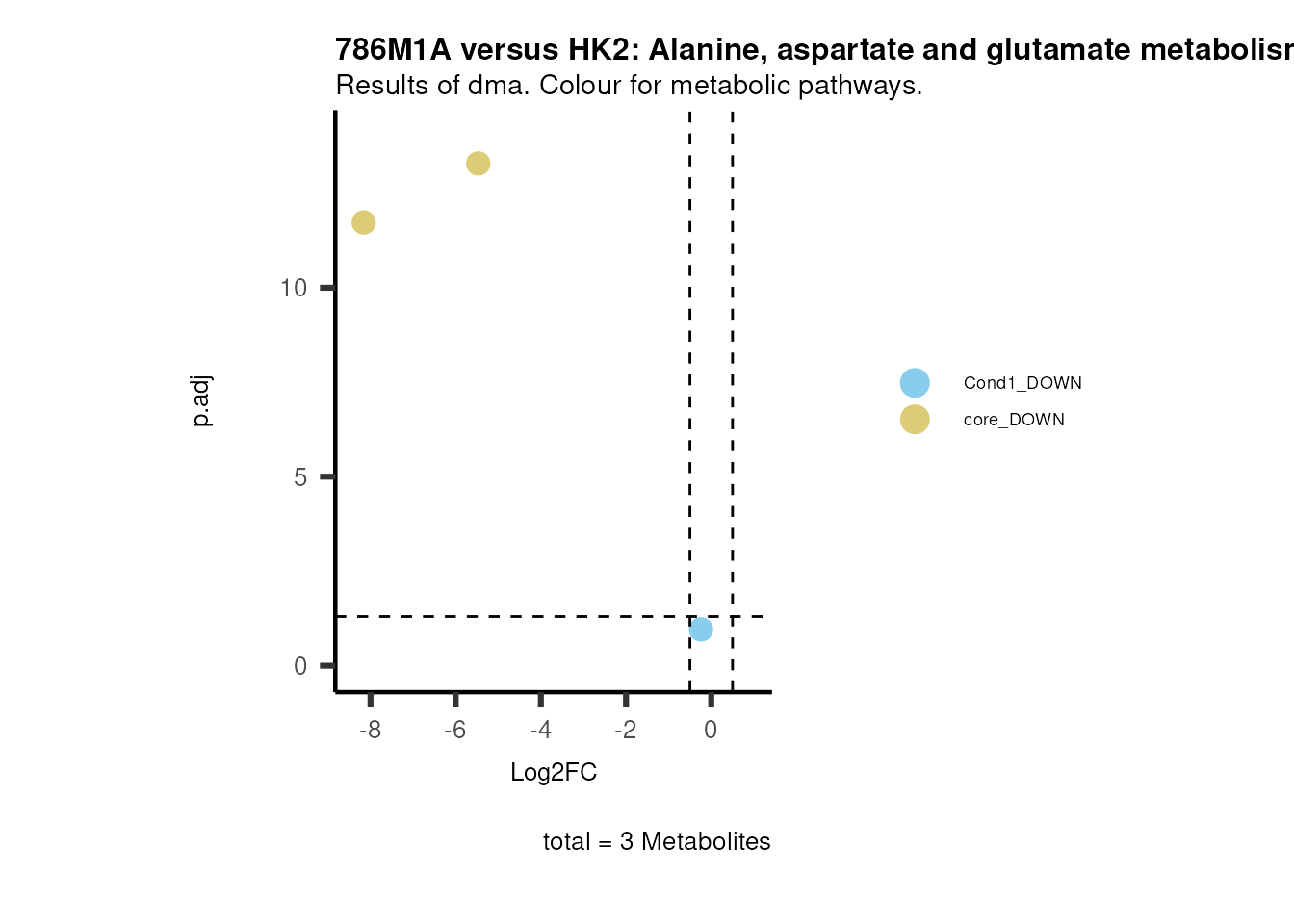

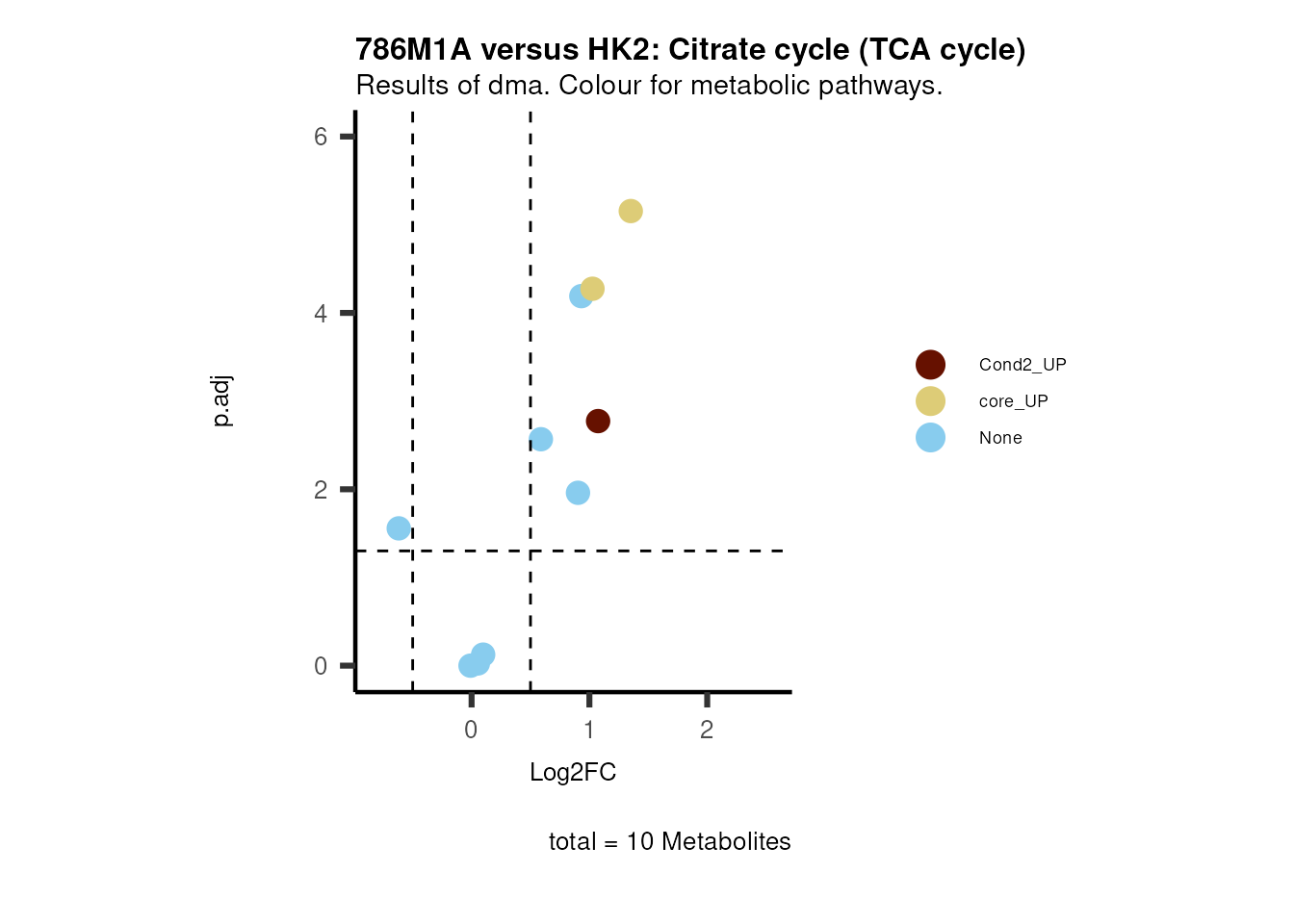

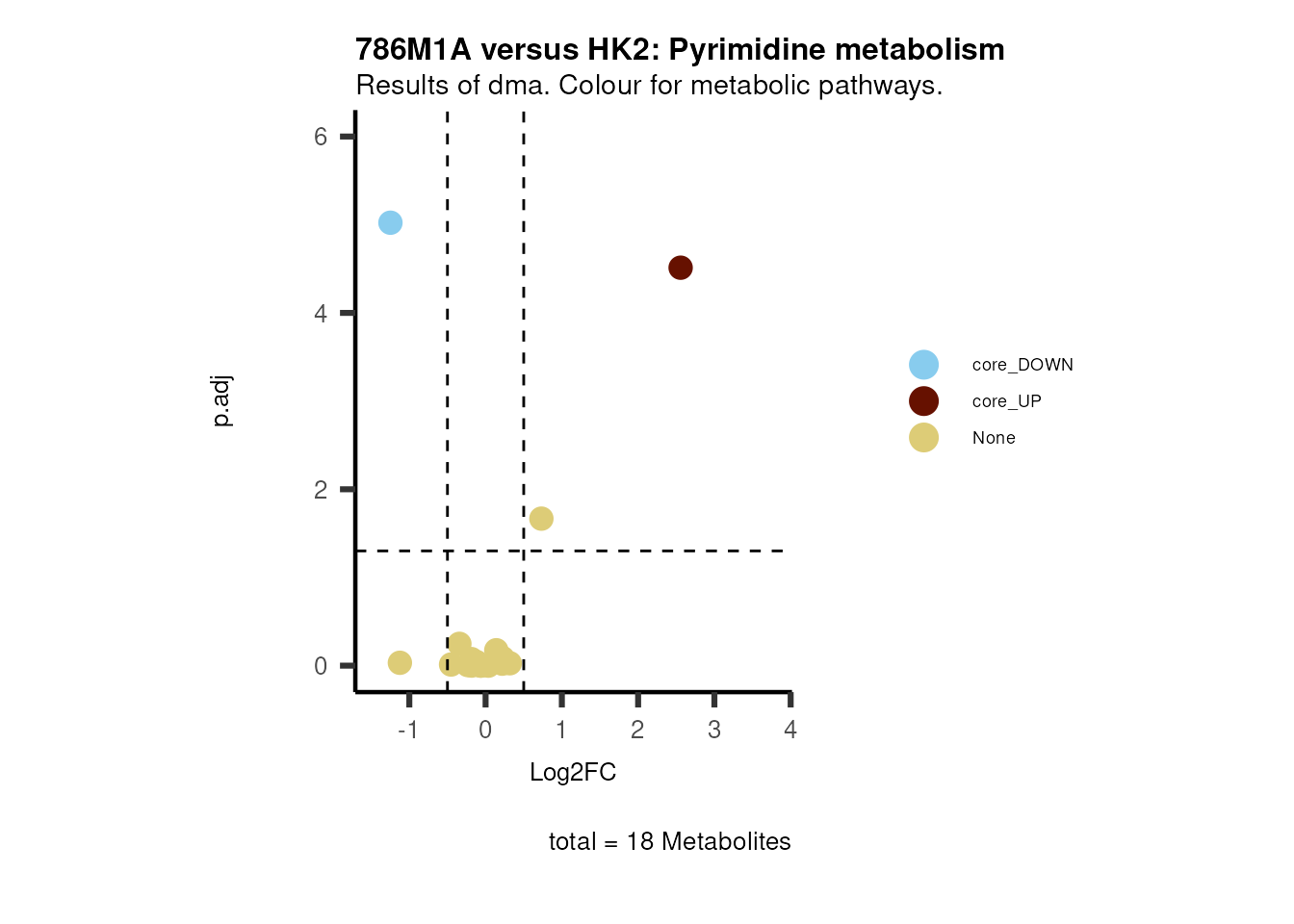

# Now we can generate a plot for each pathway and color for the metabolite clusters:

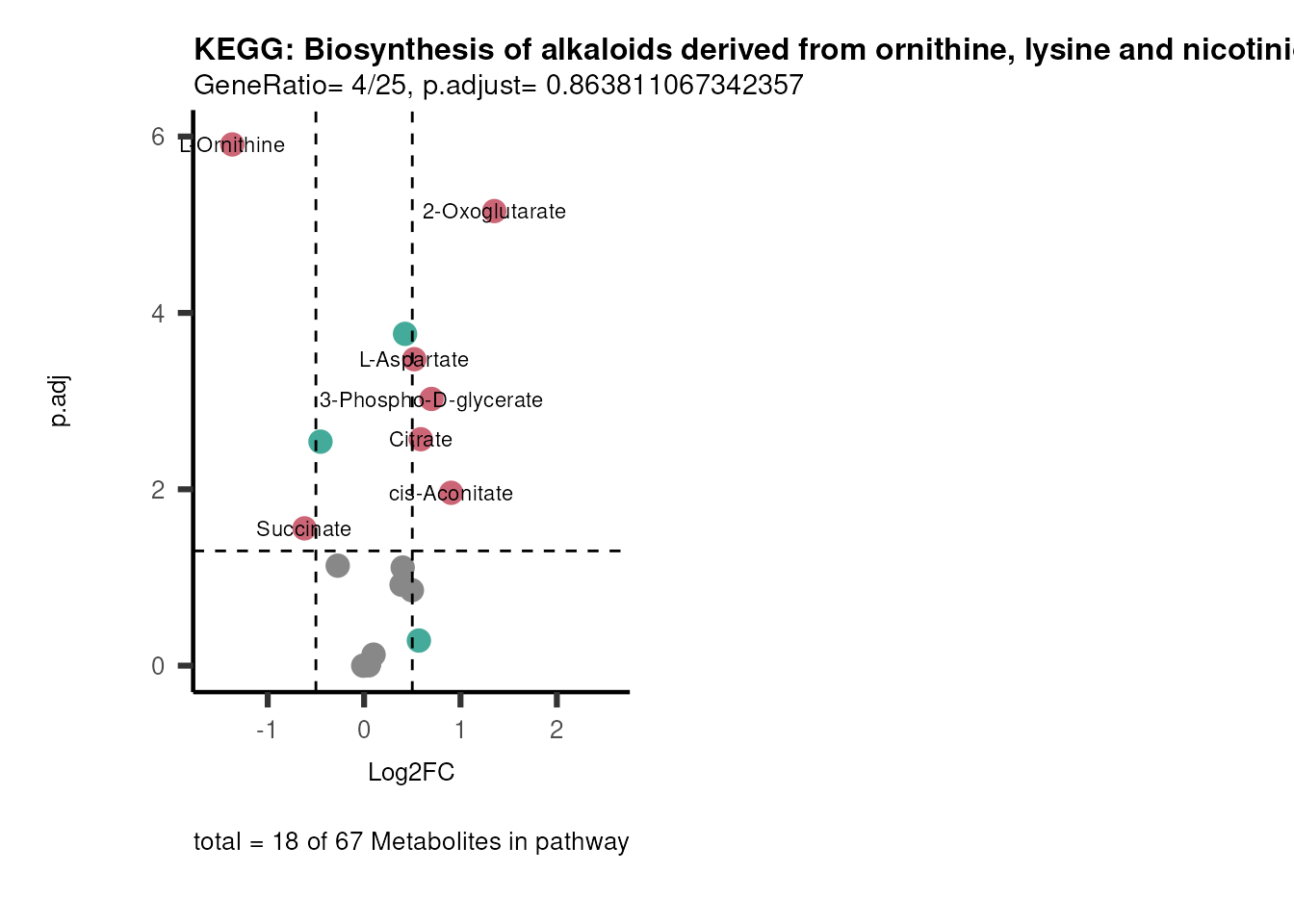

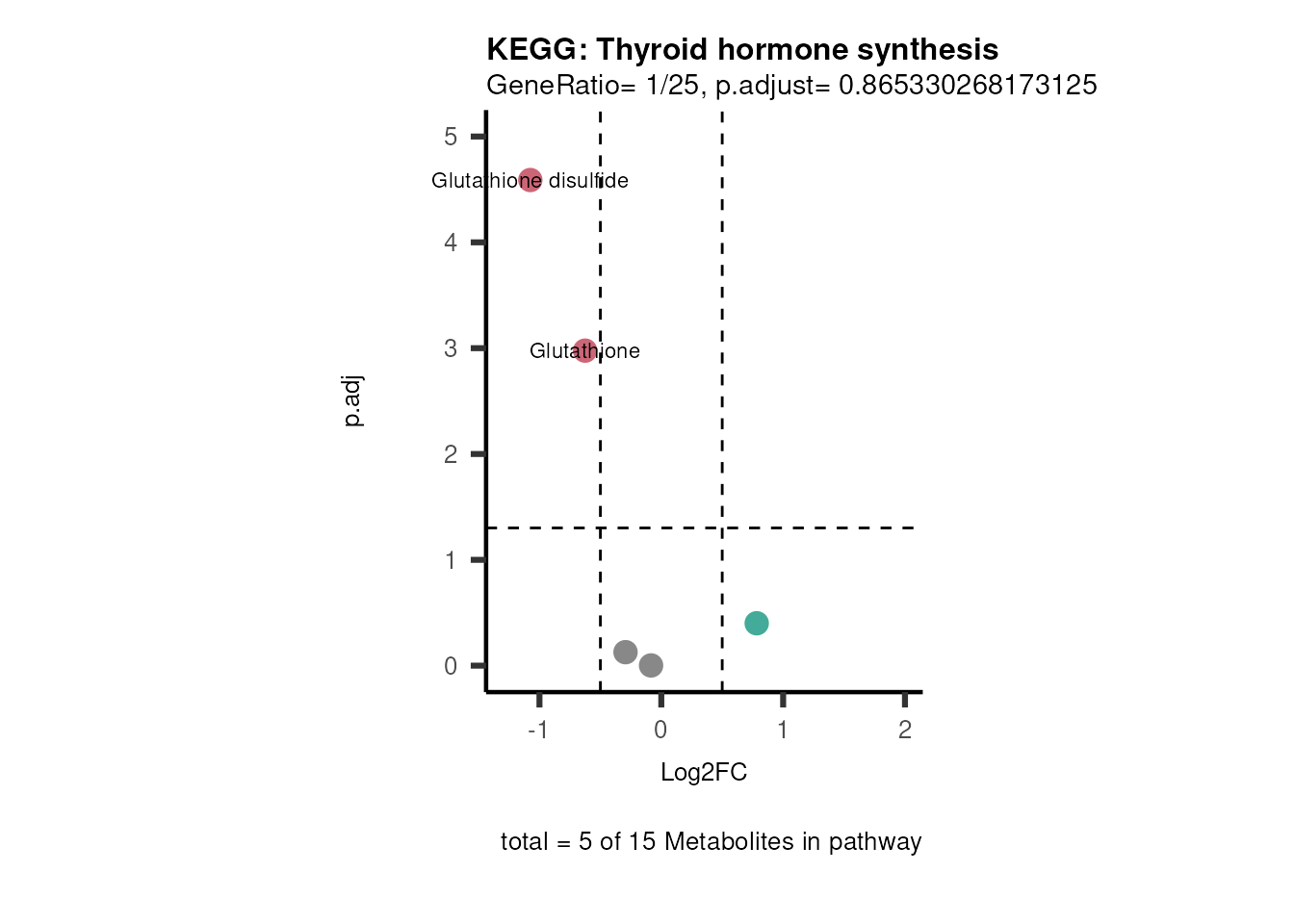

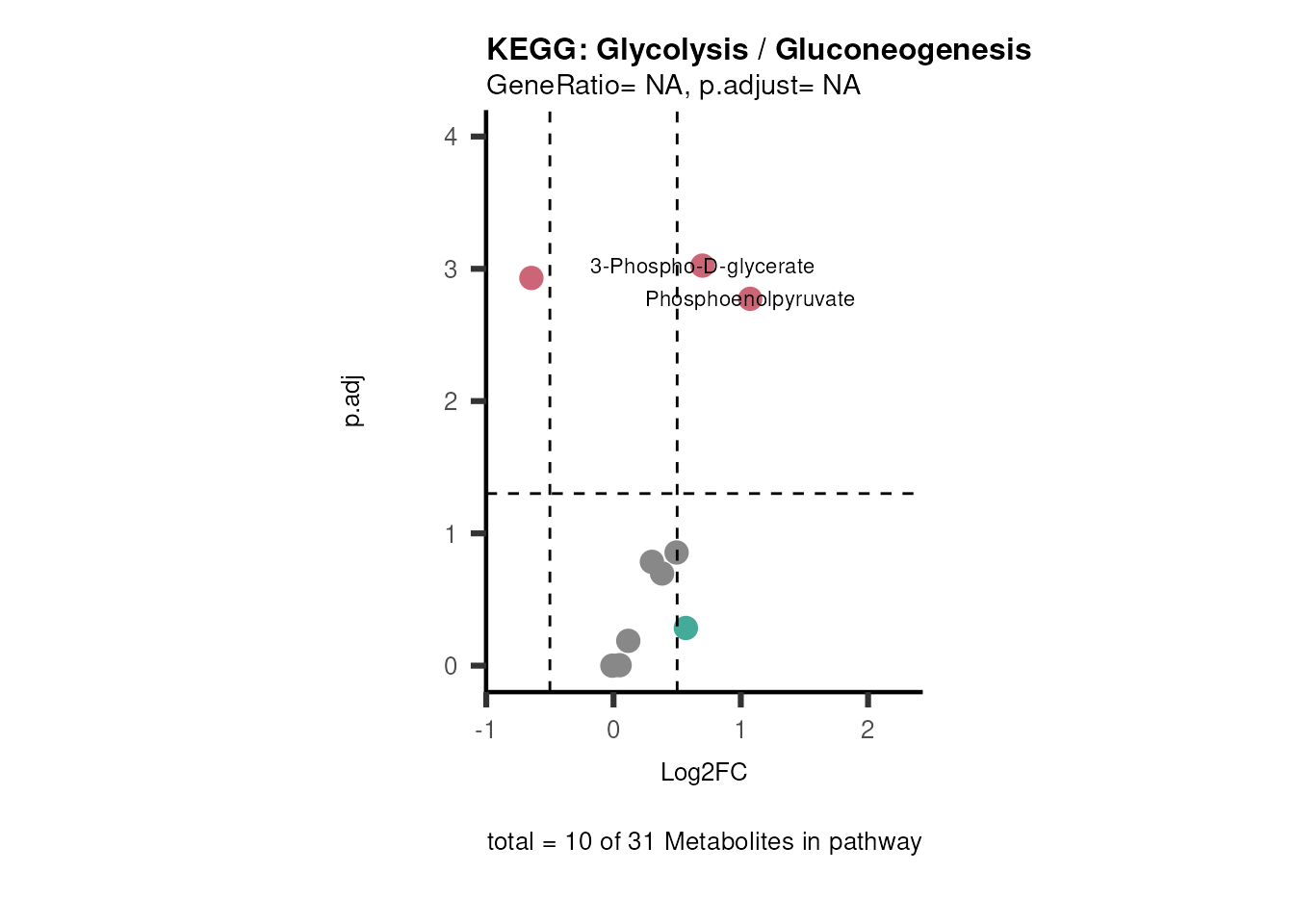

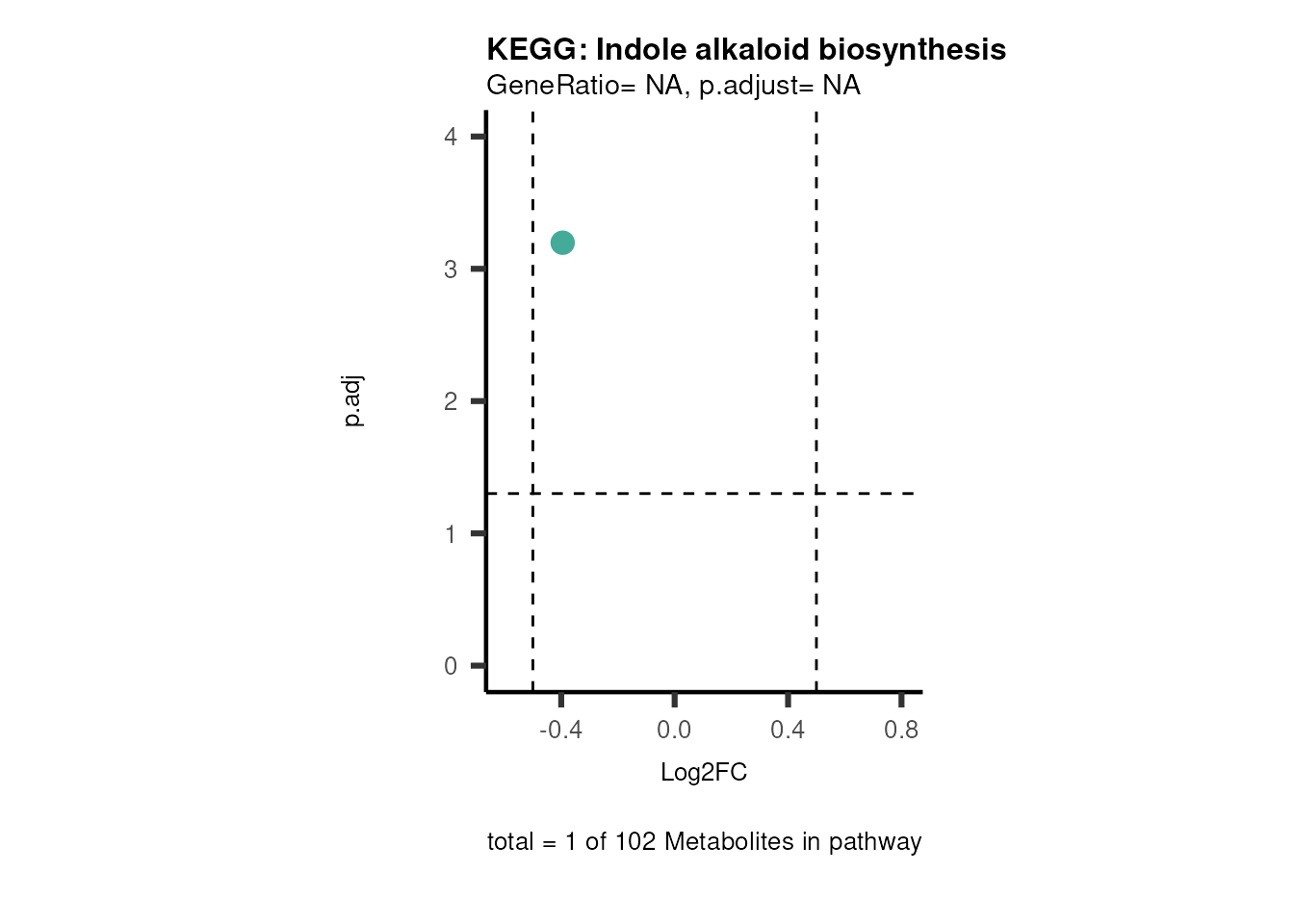

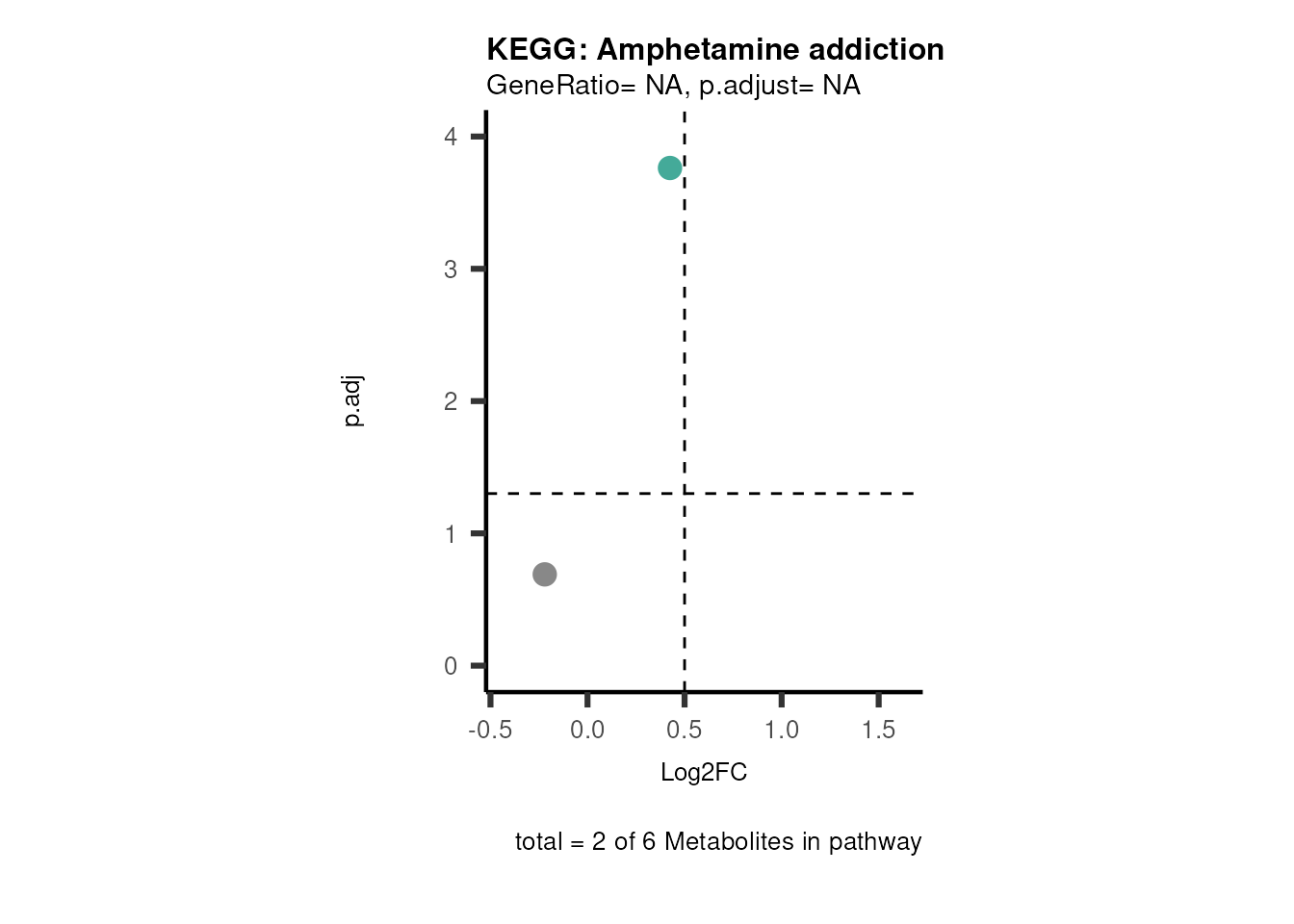

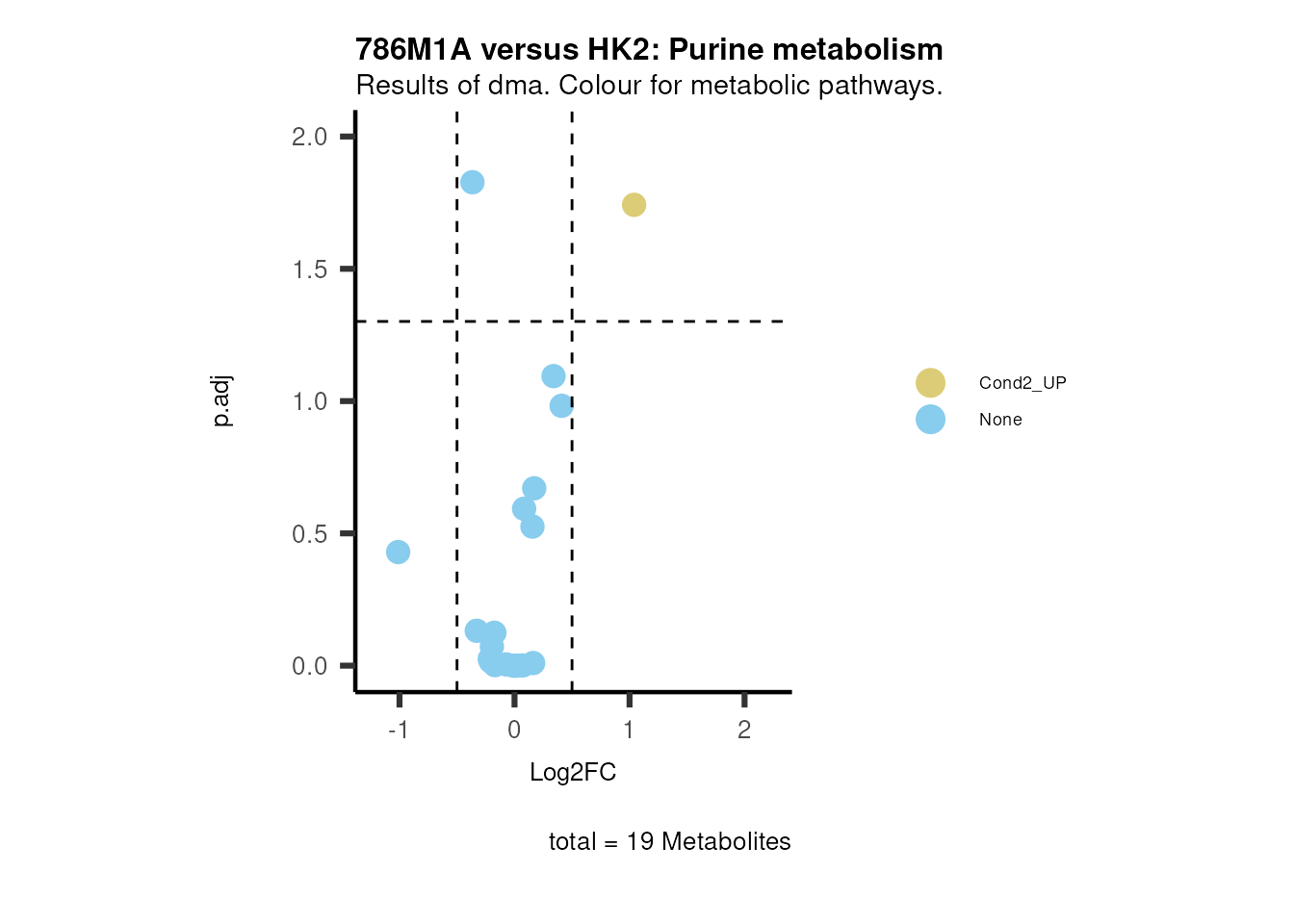

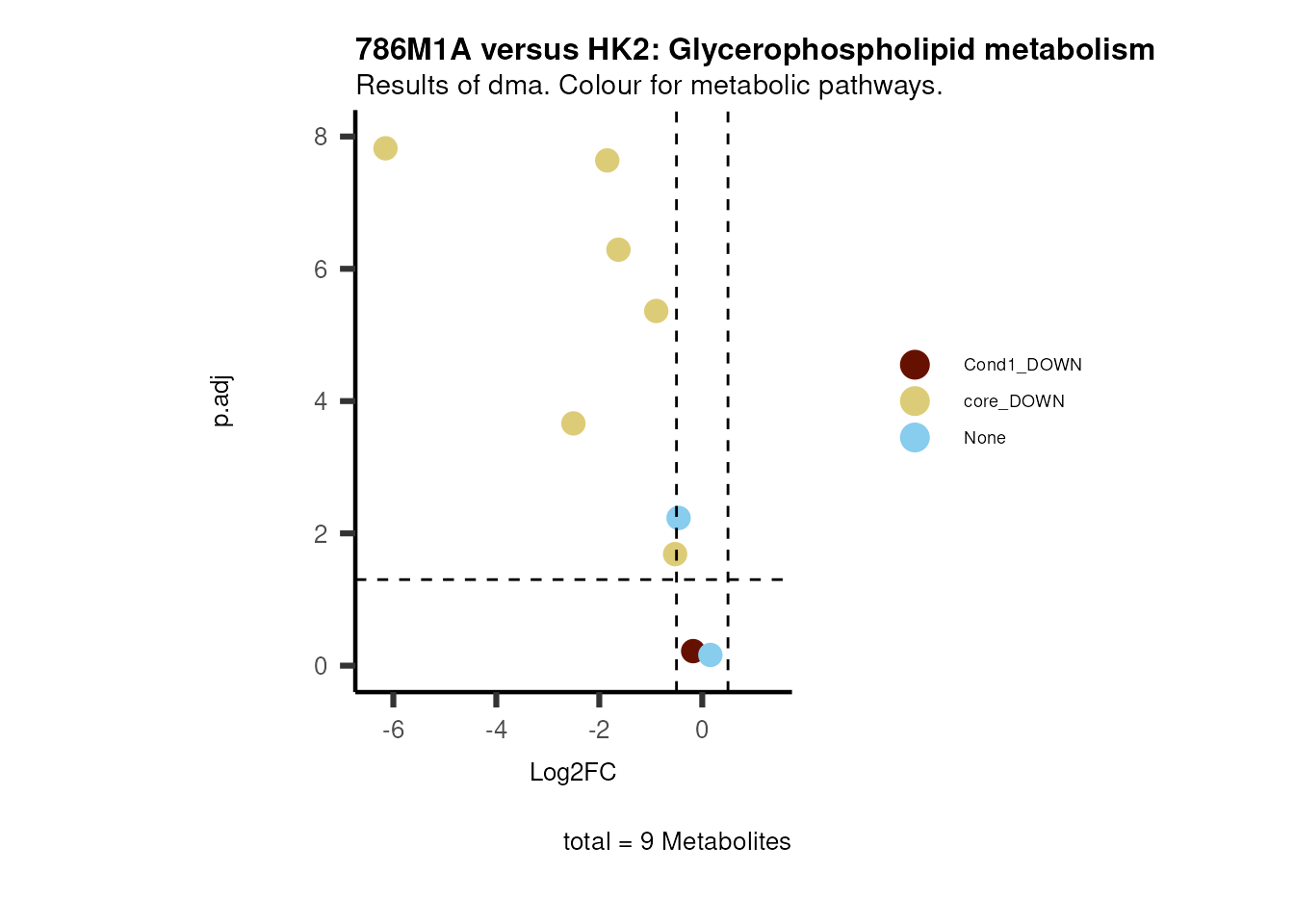

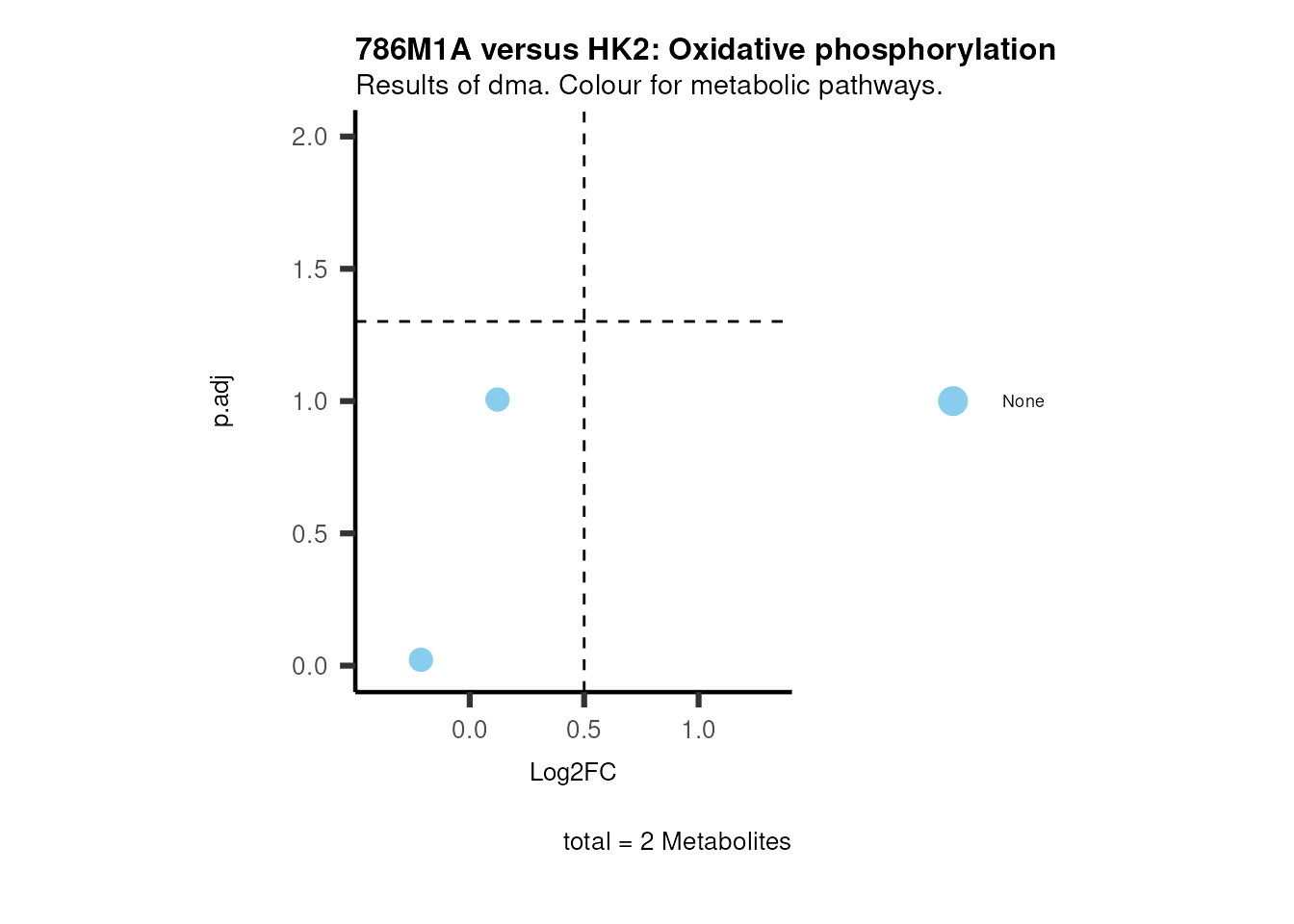

viz_volcano(plot_types="Standard",
                        metadata_info= c(color="RG2_Significant", individual="Pathway"),

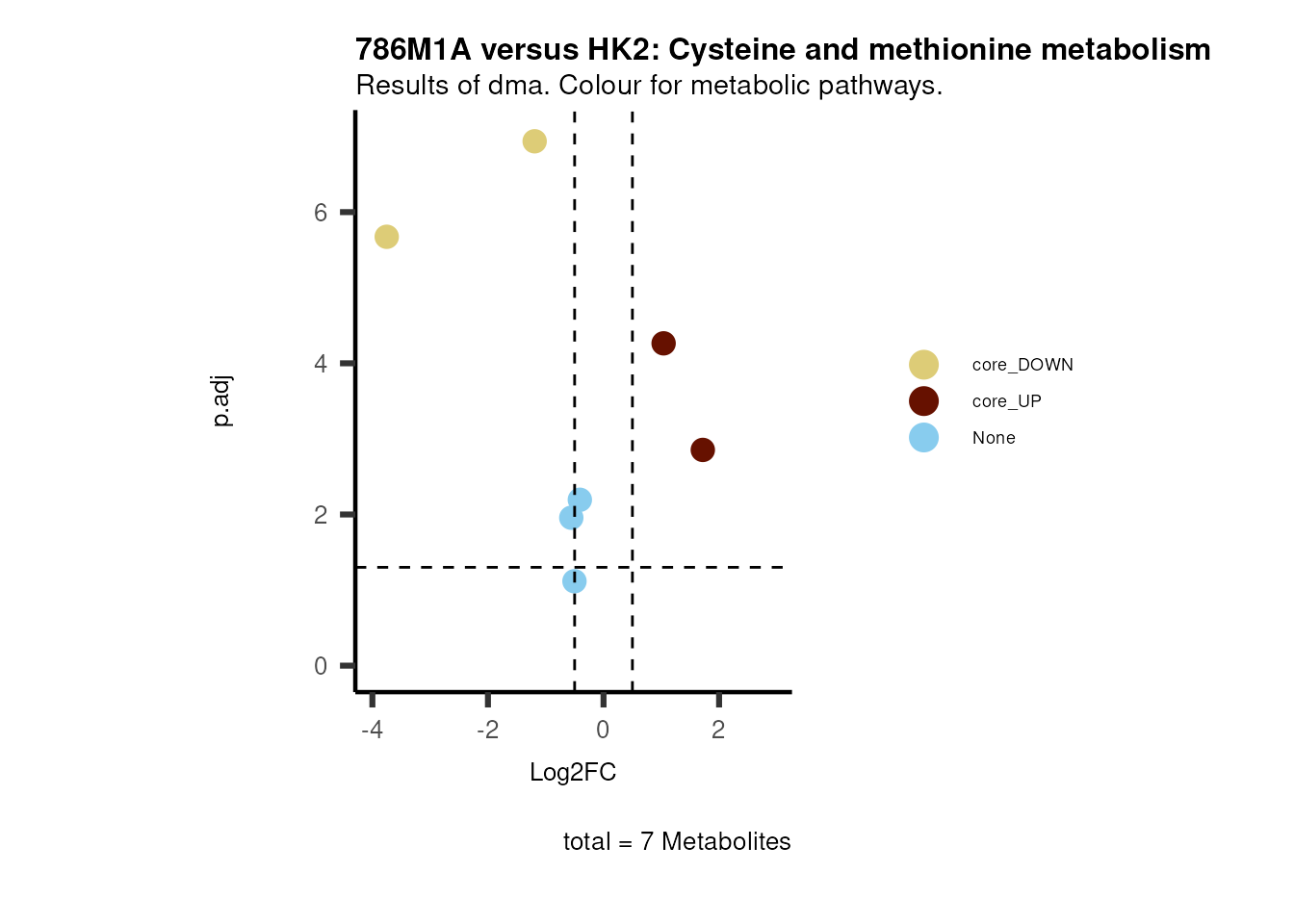

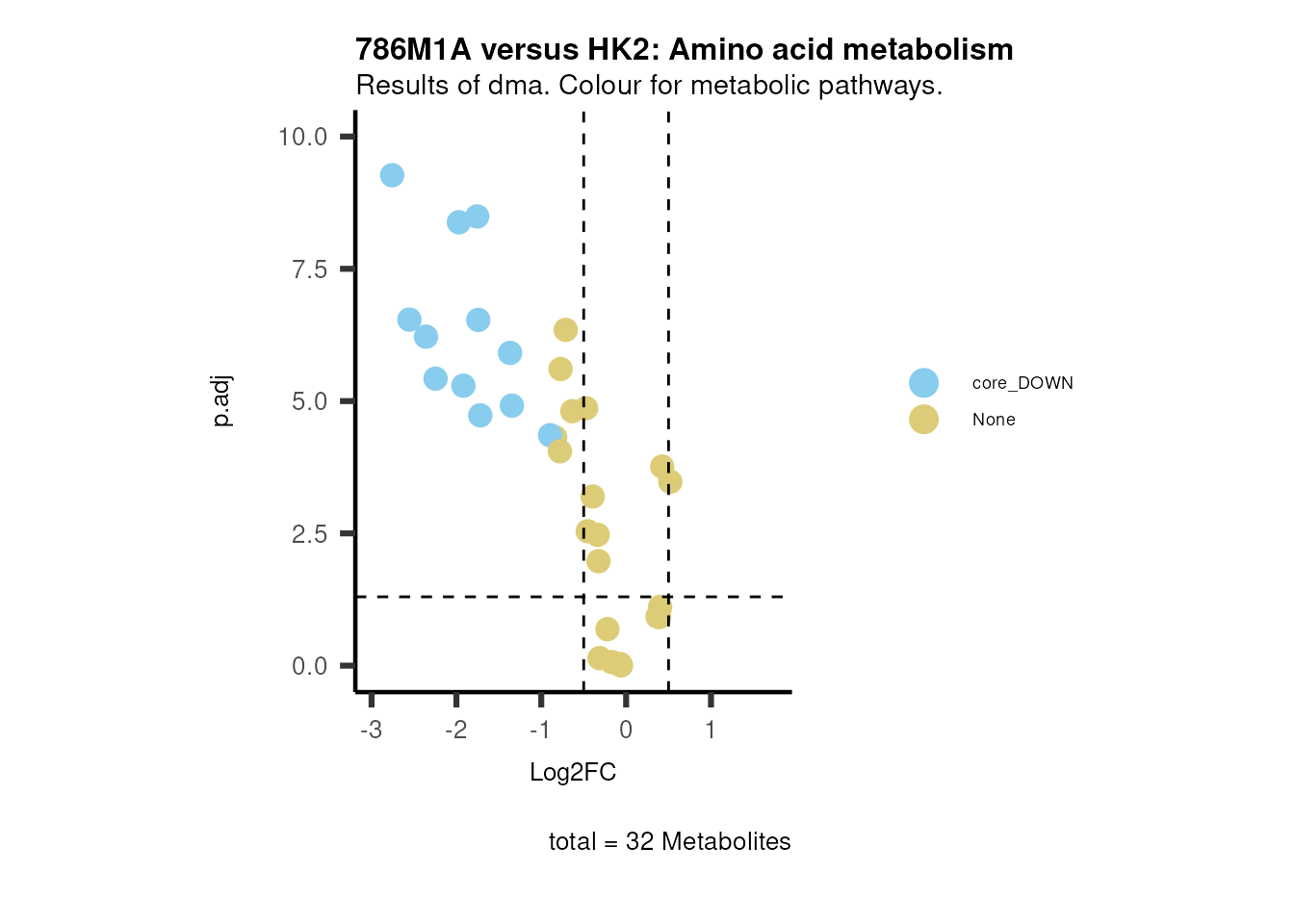

                        metadata_feature= MetaData_Metab,
                        data=DMA_786M1A_vs_HK2%>%tibble::column_to_rownames("Metabolite"),
                        plot_name= "786M1A versus HK2",
                        subtitle= "Results of dma. Colour for metabolic pathways." )

Comparison

viz_volcano(plot_types="Compare",
                        data=DMA_786M1A_vs_HK2%>%tibble::column_to_rownames("Metabolite"),
                        data2= DMA_Annova[["dma"]][["786-O_vs_HK2"]]%>%tibble::column_to_rownames("Metabolite"),
                        name_comparison= c(data="786M1A_vs_HK", data2= "786-O_vs_HK2"),
                        plot_name= "786M1A vs HK2 compared to 7860 vs HK2",
                        subtitle= "Results of dma" )

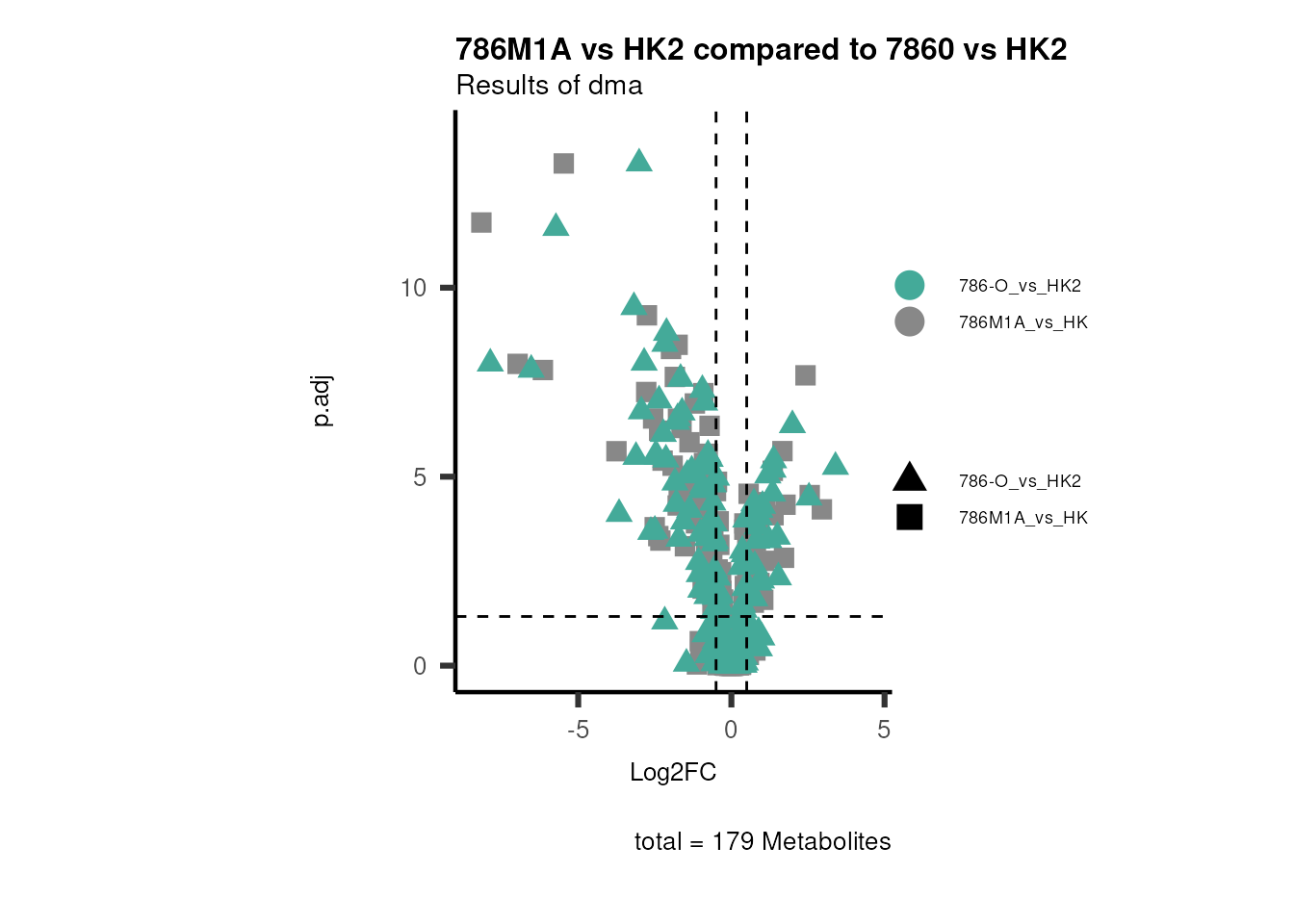

Comparison.

Now we do individual plots again:

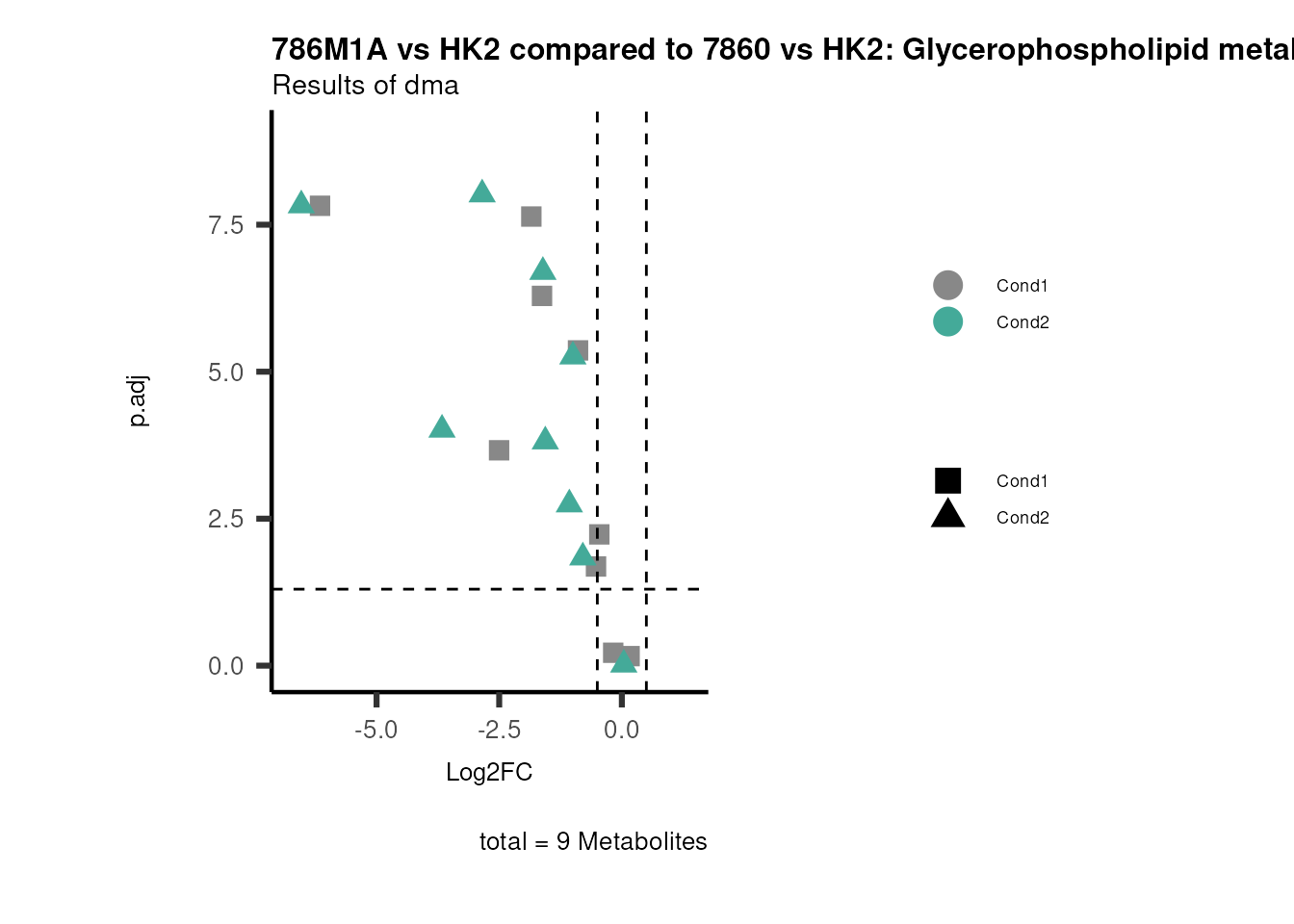

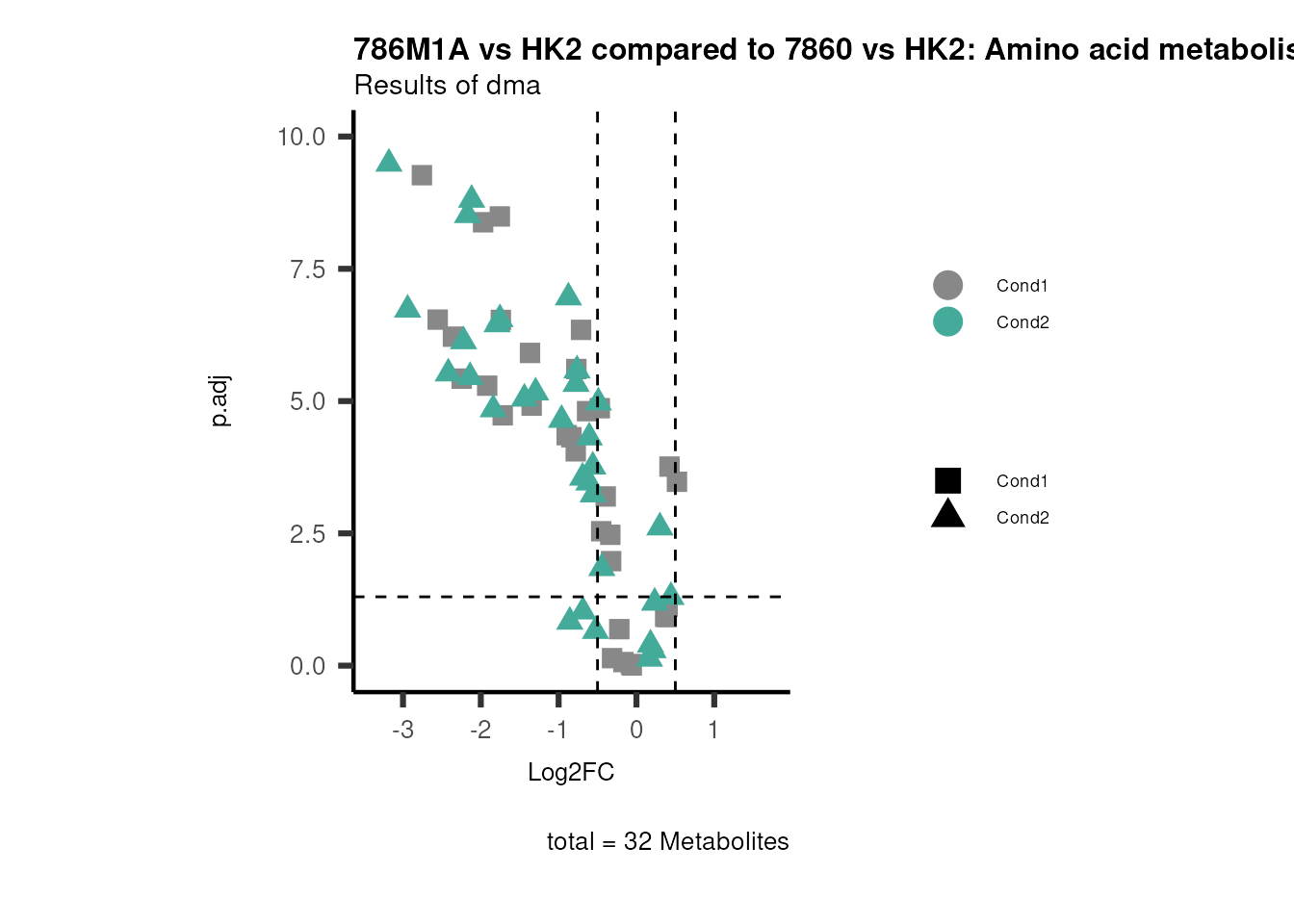

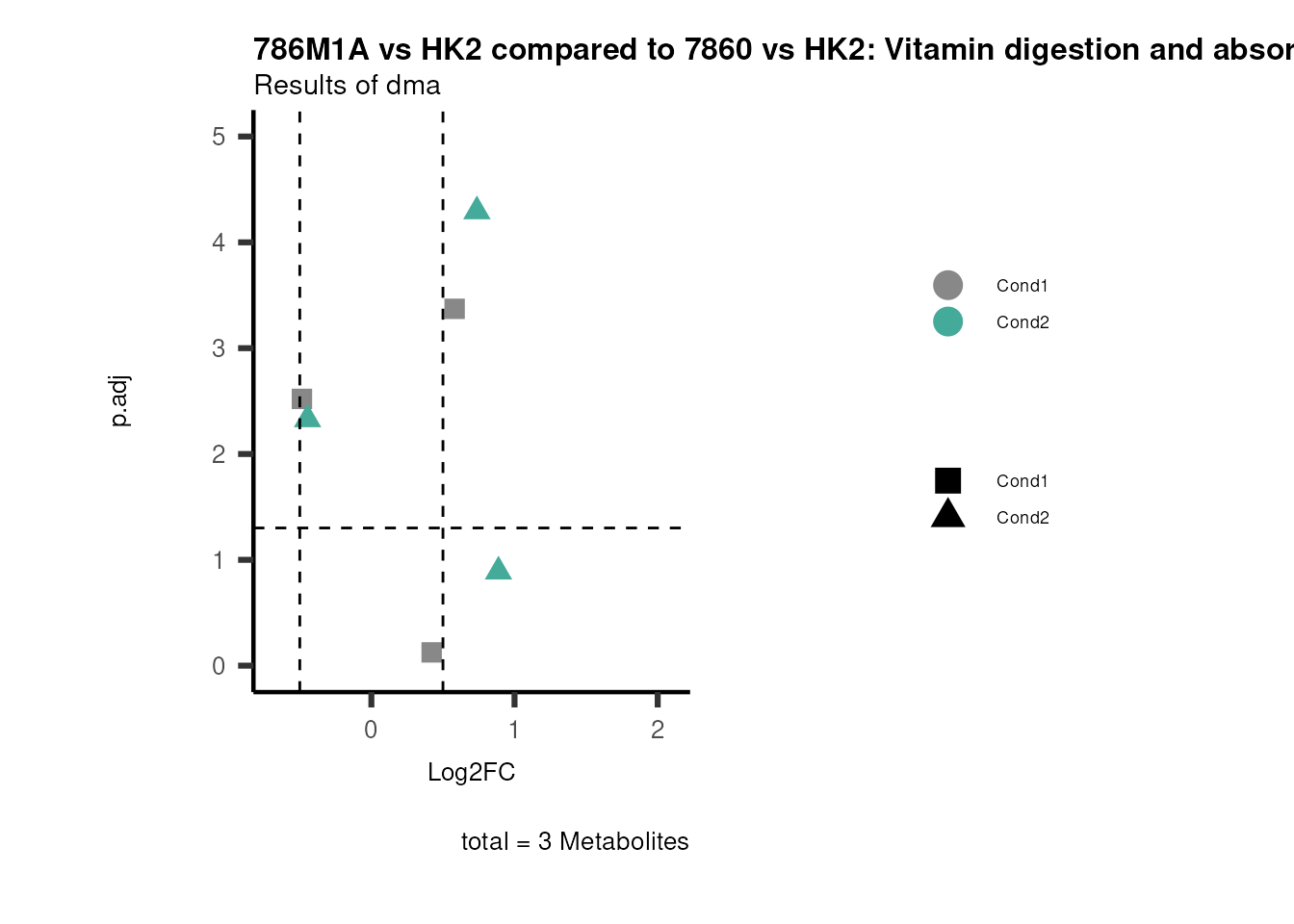

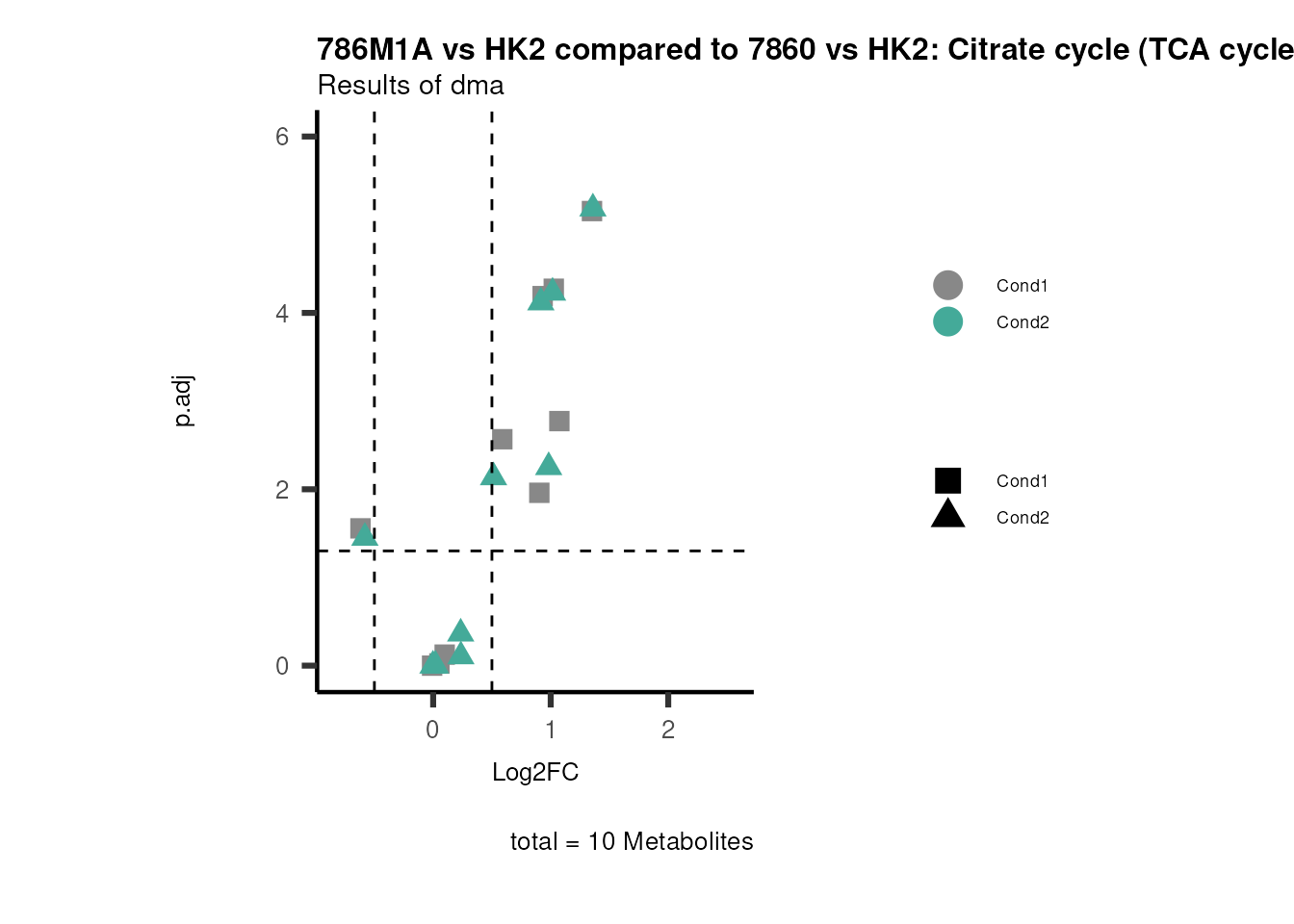

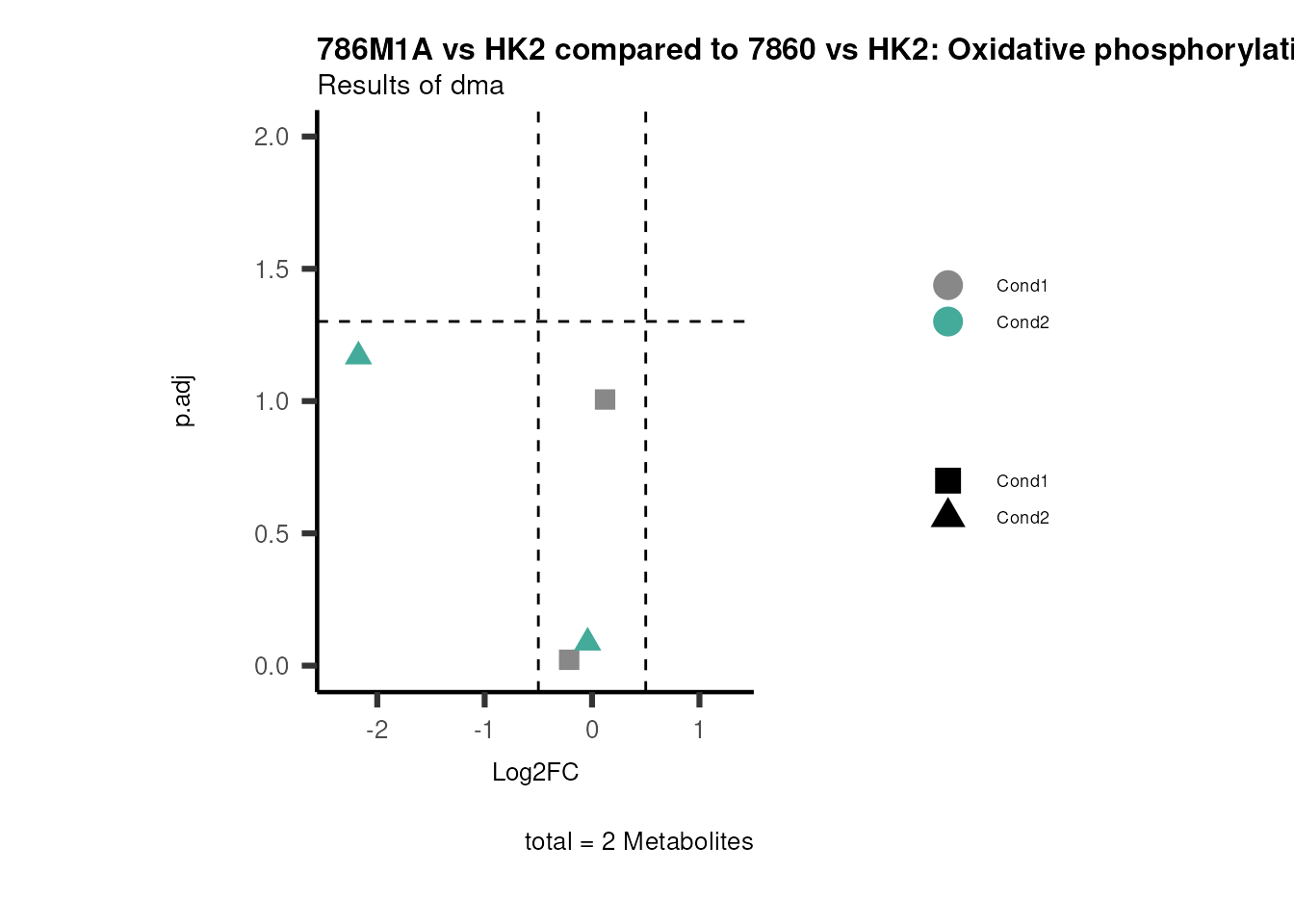

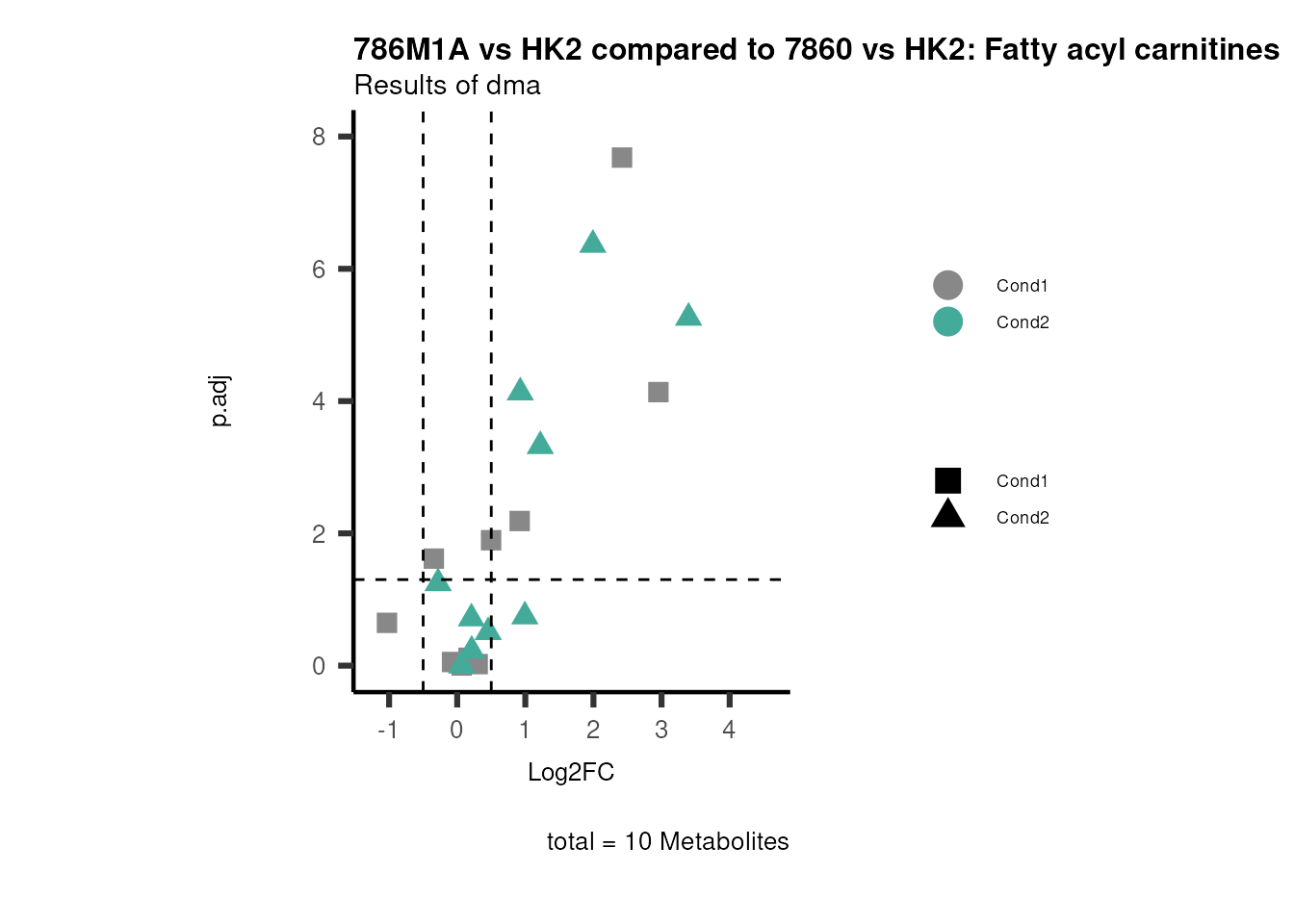

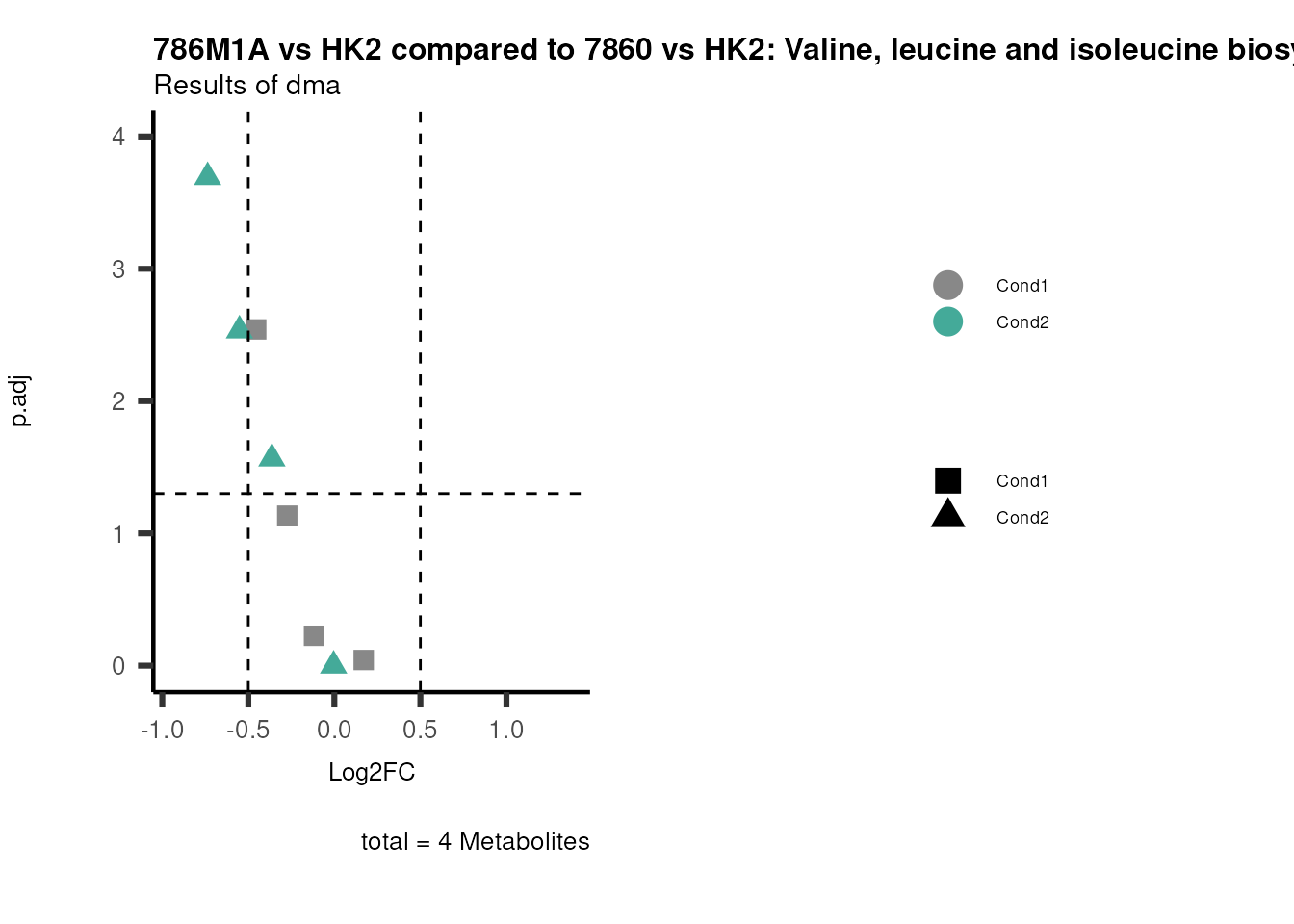

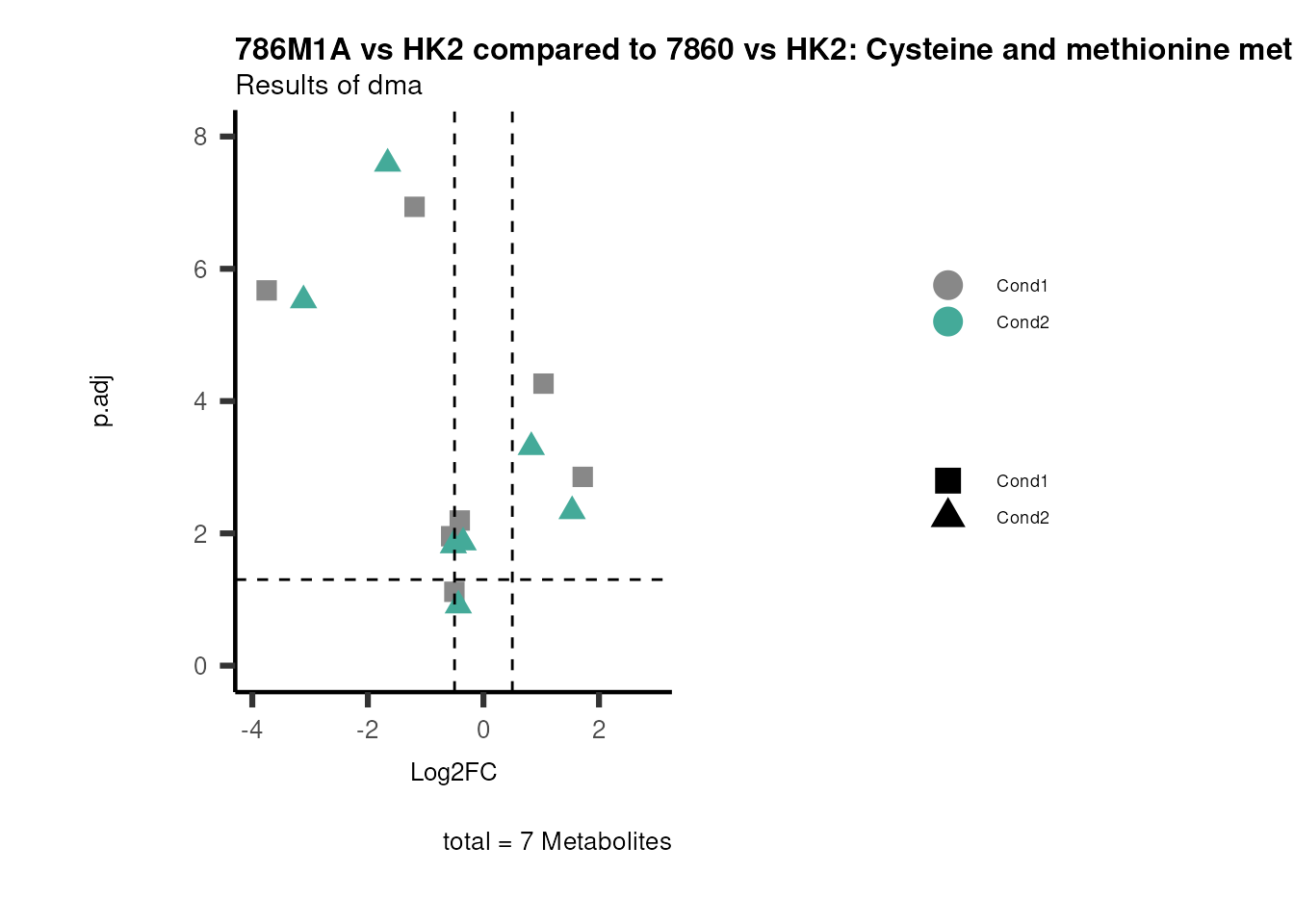

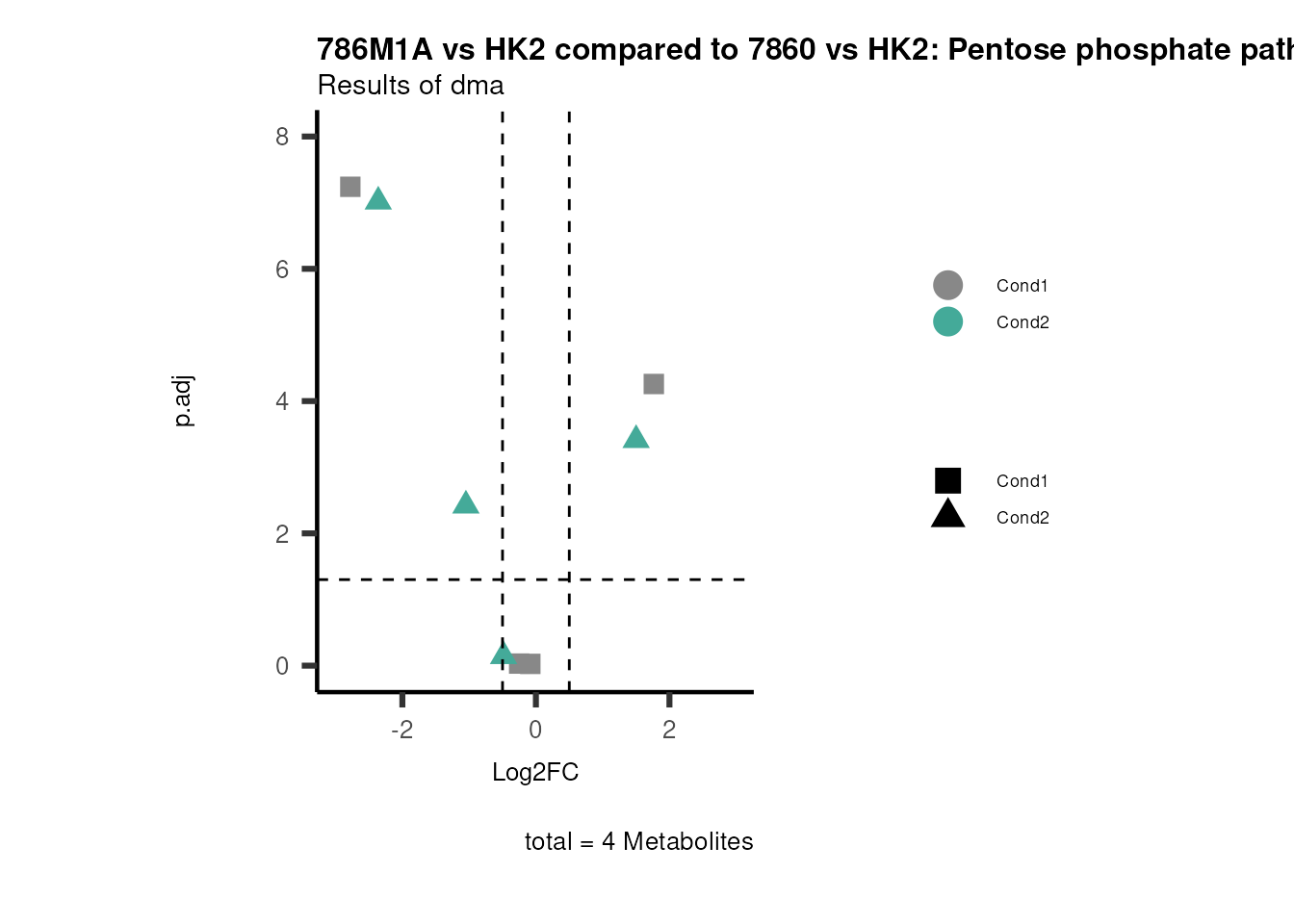

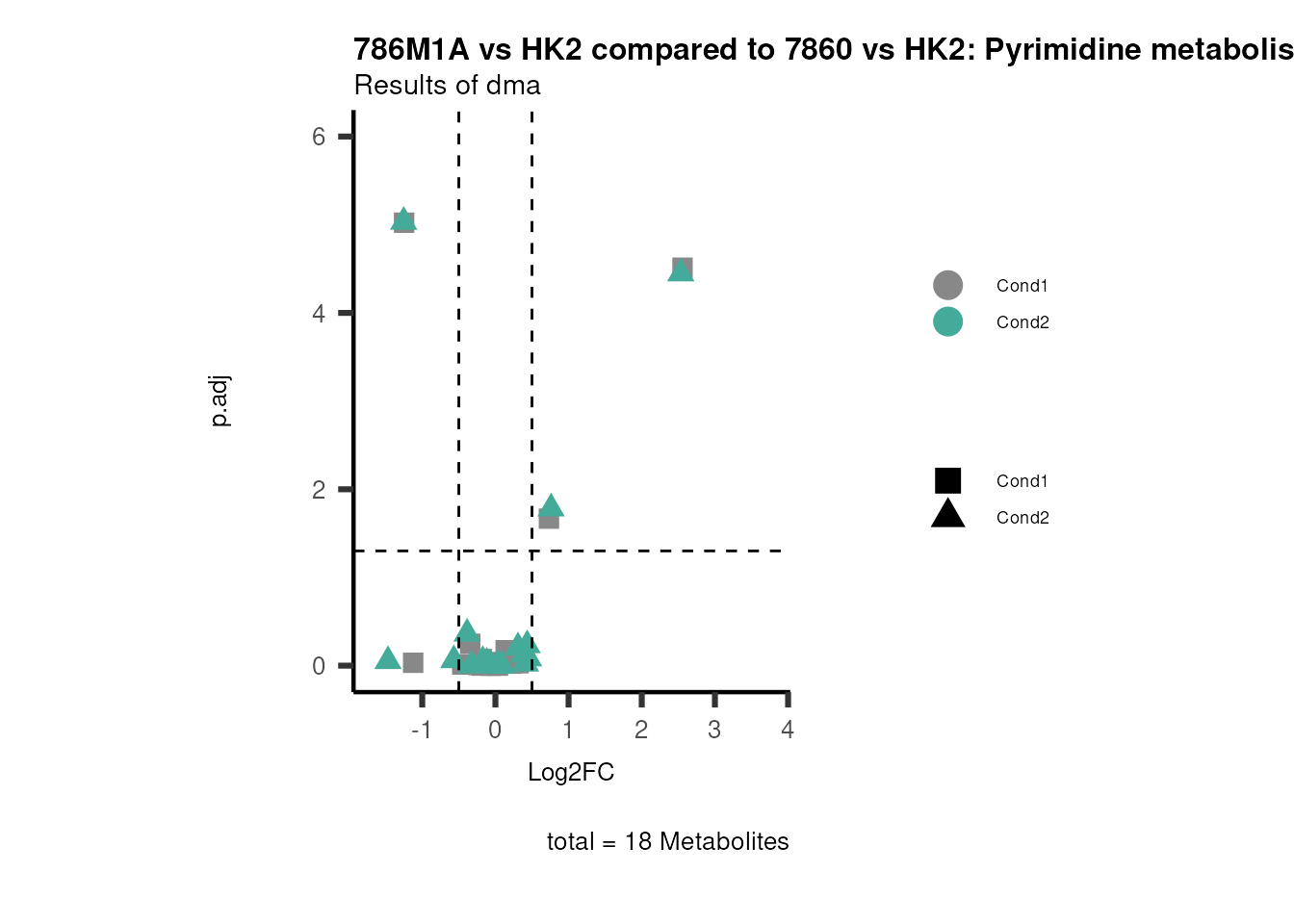

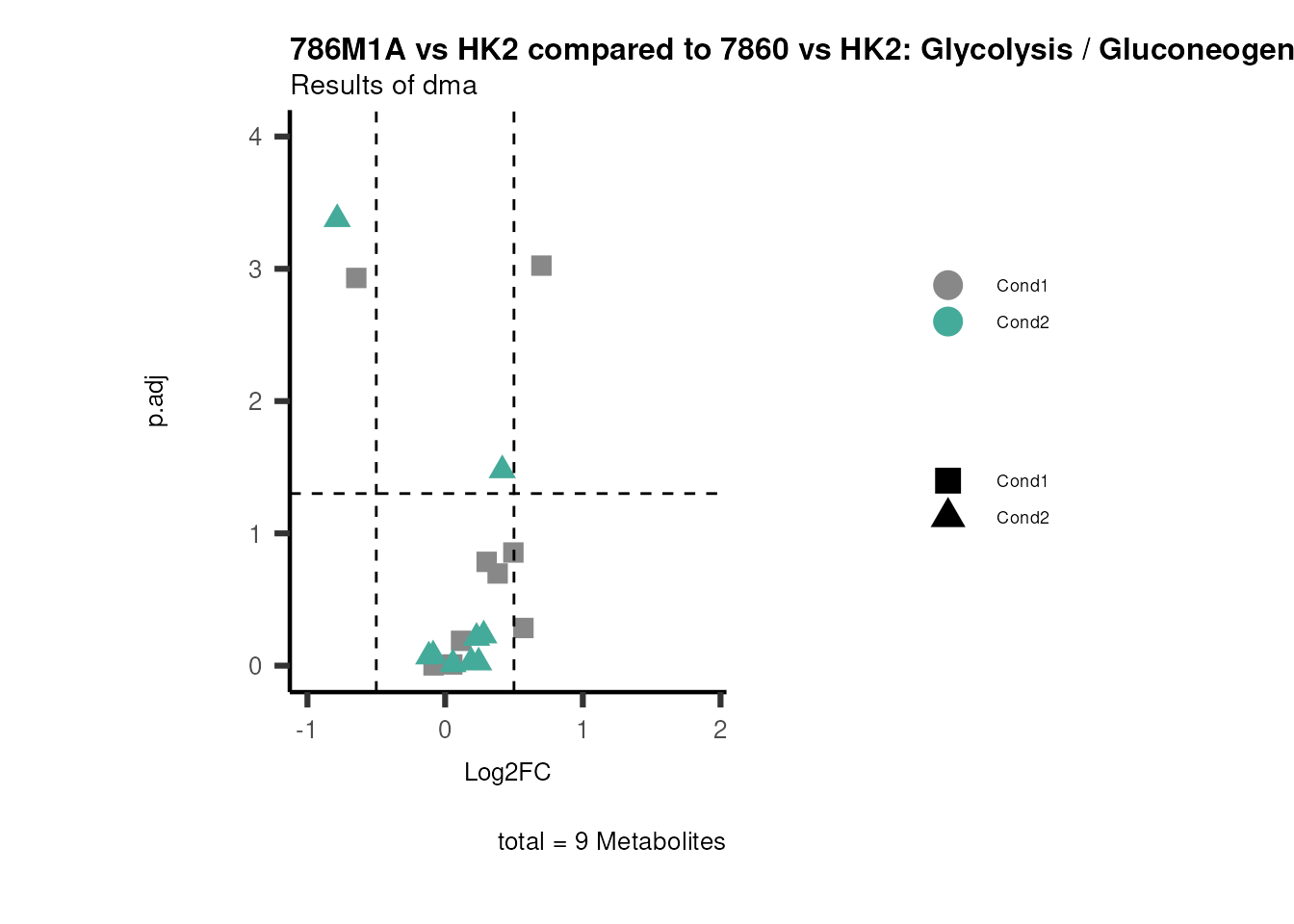

viz_volcano(plot_types="Compare",
                        metadata_info= c(individual="Pathway"),
                        metadata_feature= MappingInfo,
                        data=DMA_786M1A_vs_HK2%>%tibble::column_to_rownames("Metabolite"),
                        data2= DMA_Annova[["dma"]][["786-O_vs_HK2"]]%>%tibble::column_to_rownames("Metabolite"),
                        plot_name= "786M1A vs HK2 compared to 7860 vs HK2",
                        subtitle= "Results of dma" )

#> Skipping viz_volcano compare plot for 'NA' because no rows are available after filtering.

PathwayEnrichmentAnalysis

If you have performed Pathway Enrichment Analysis (PEA) such as ORA or GSEA, we can also plot the results and add the information into the Figure legends.
For this we need to prepare the correct input data including the pathways used to run the pathway analysis, the differential metabolite data used as input for the pathway analysis and the results of the pathway analysis. As one plot is made for each pathway, we only use the 10 pathways with the lowest adjusted p-value:

# Prepare the Input:
# 1. data=Pathway analysis input: Must have features as column names. Those feature names need to match features in the pathway analysis file metadata_feature.
InputPEA <- DMA_786M1A_vs_HK2 %>%
filter(!is.na(KEGGCompound)) %>%
tibble::column_to_rownames("KEGGCompound")

# 2. data2=Pathway analysis output: Must have same column names as metadata_feature for Pathway name
InputPEA2 <- DM_ORA_786M1A_vs_HK2 %>%
dplyr::rename("term"="ID") %>%
dplyr::slice_min(p.adjust, n = 10, with_ties = FALSE) # top 10 pathways

# 3. metadata_feature= Pathways used for pathway analysis: Must have same column names as metadata_feature for Pathway name and feature names need to match features in the data. PEA_Feature passes this column name!

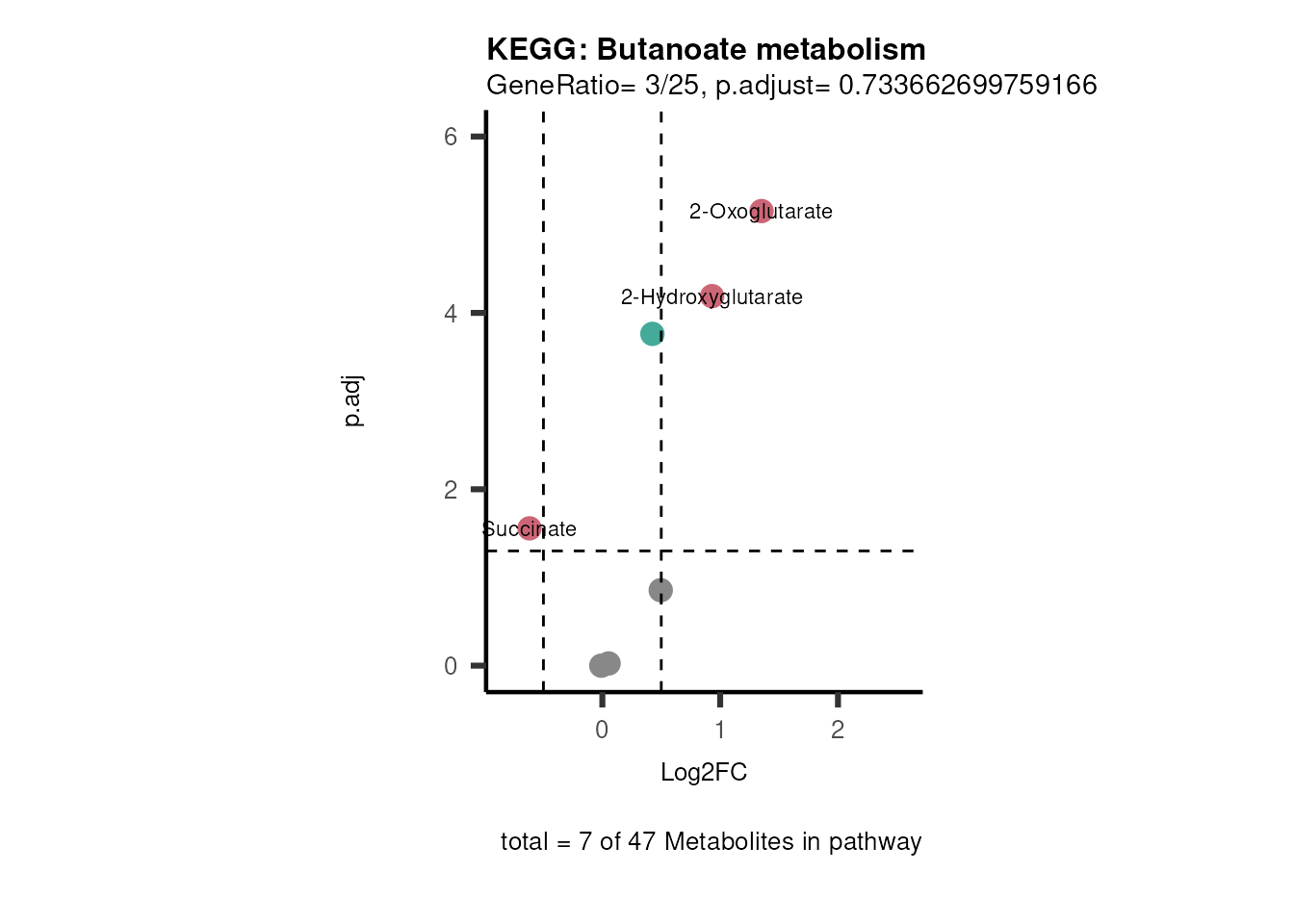

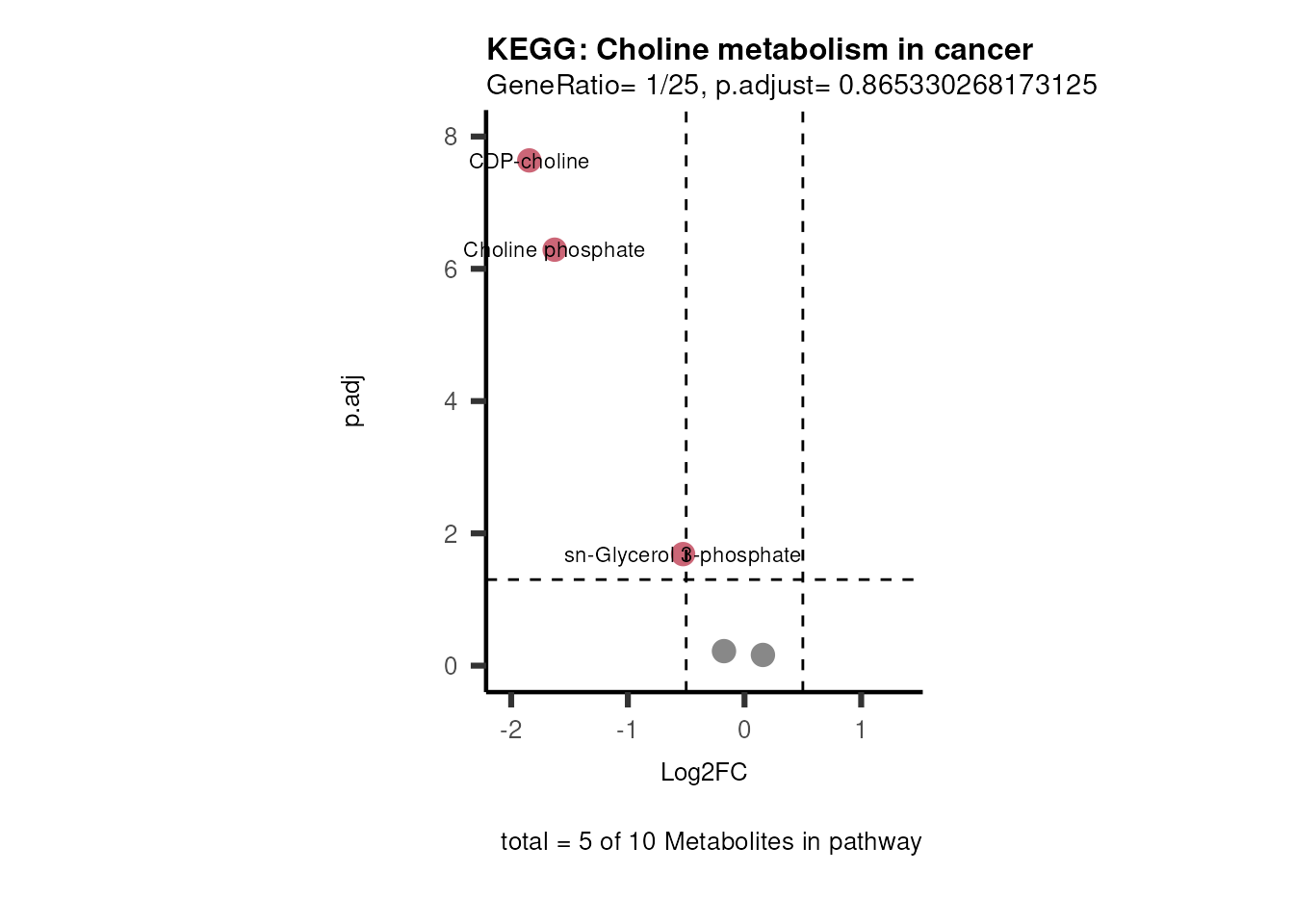

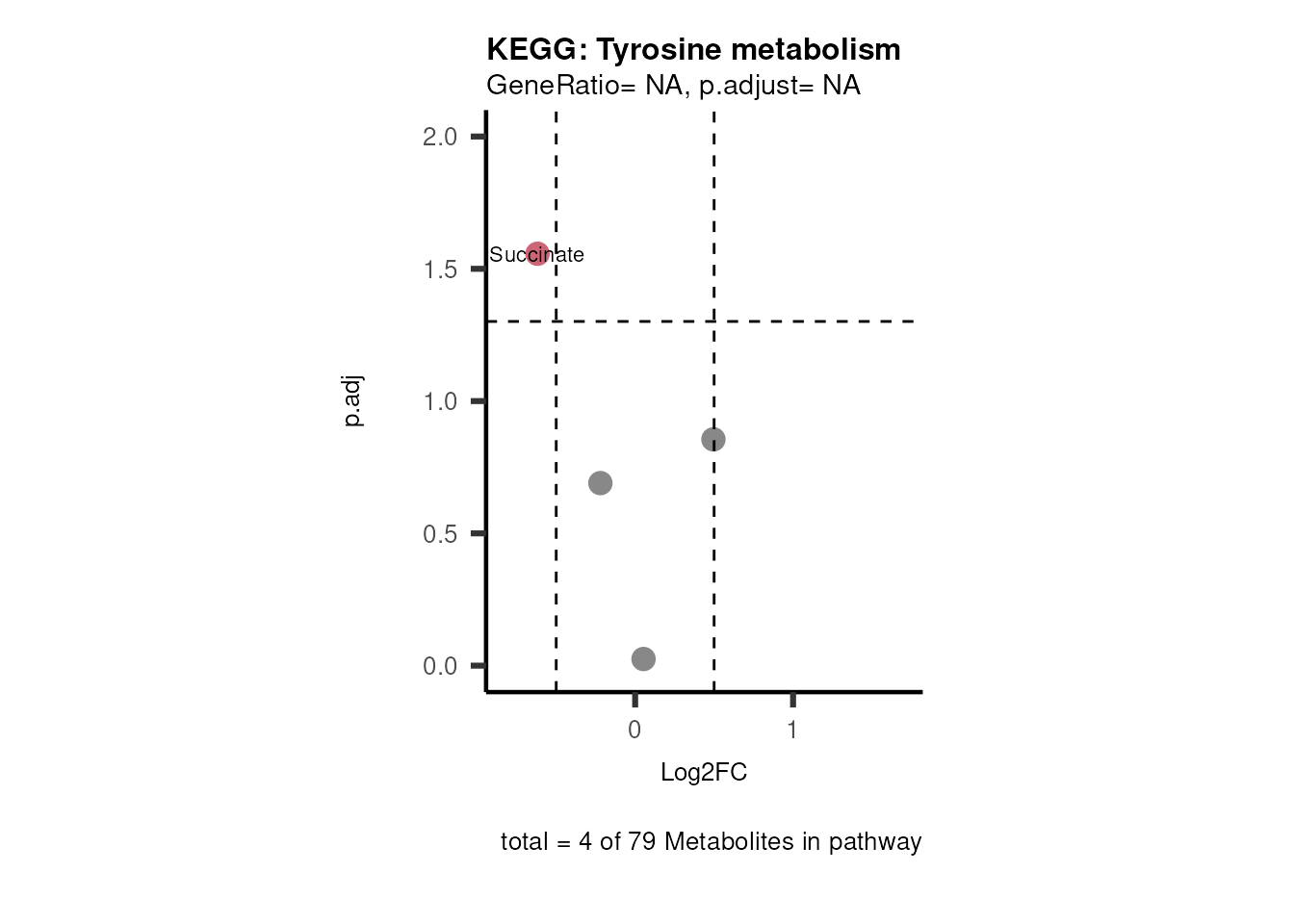

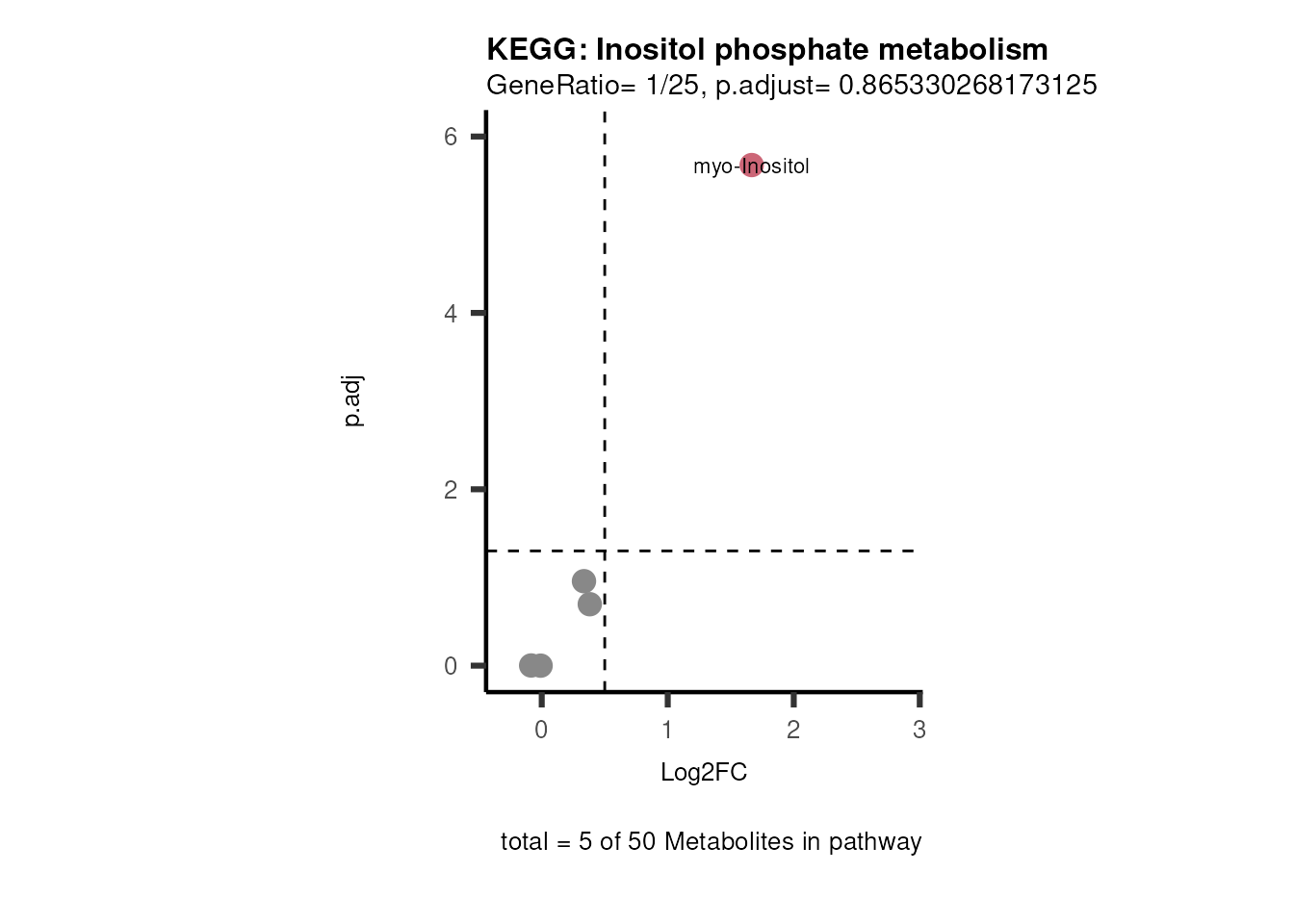

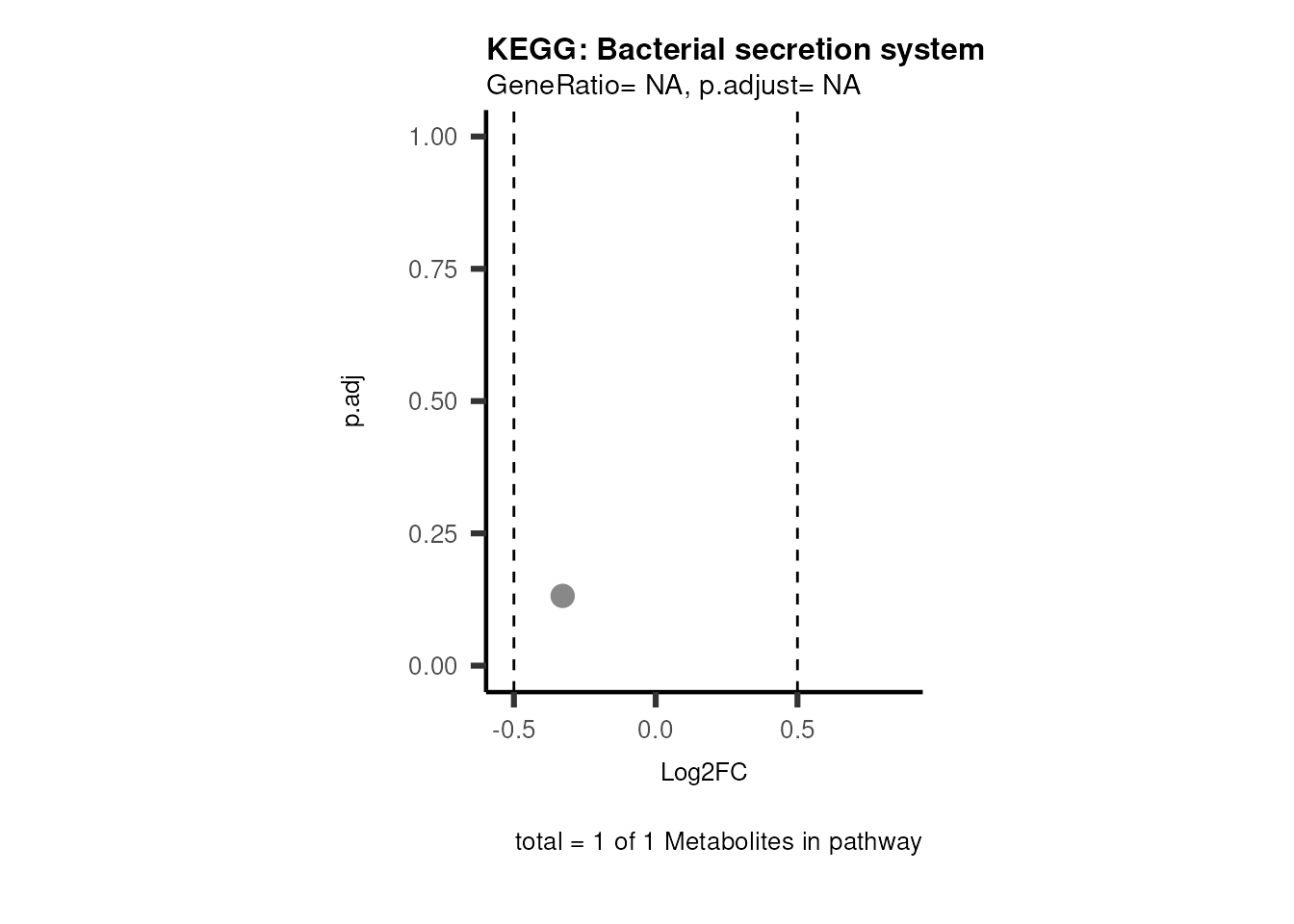

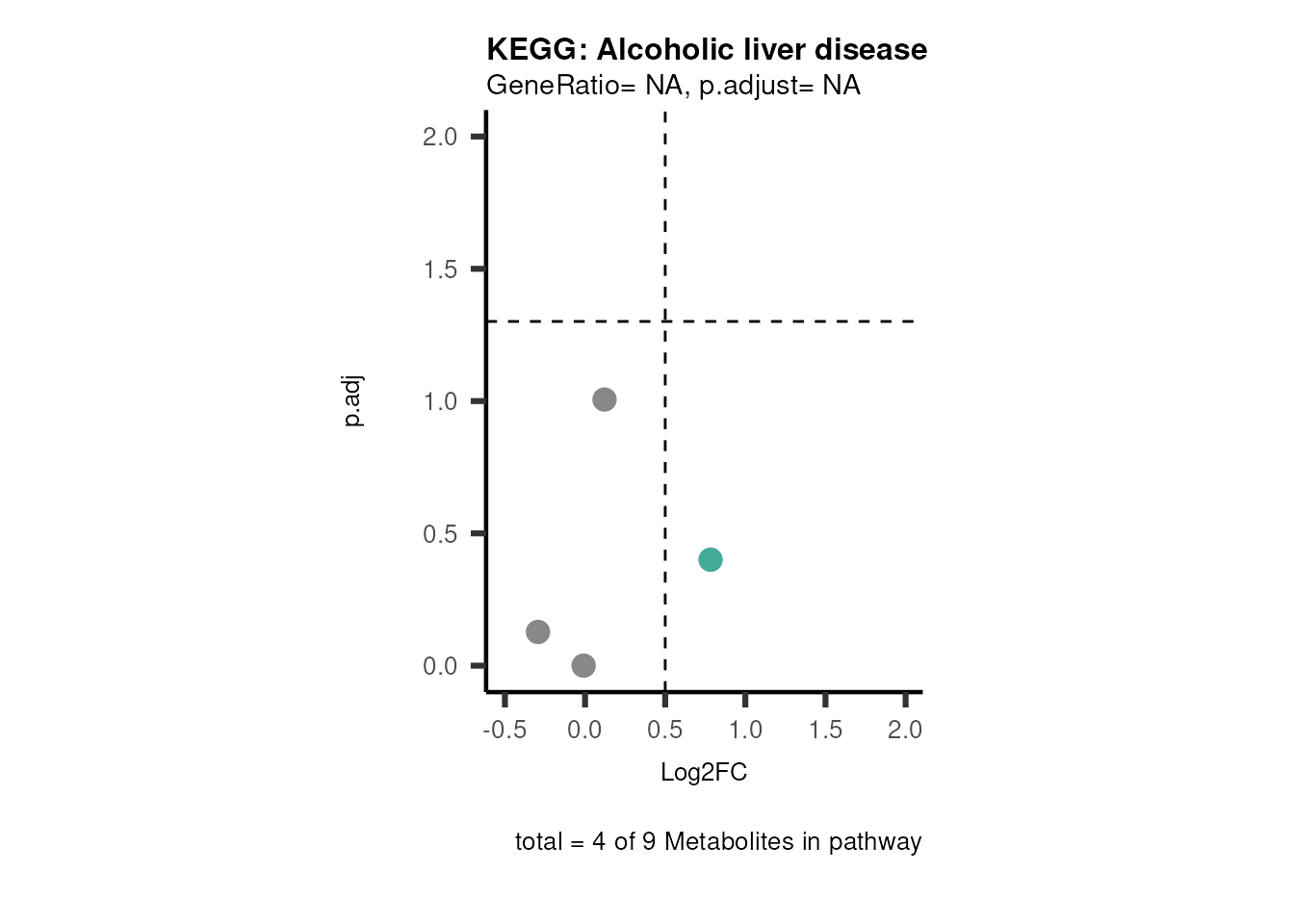

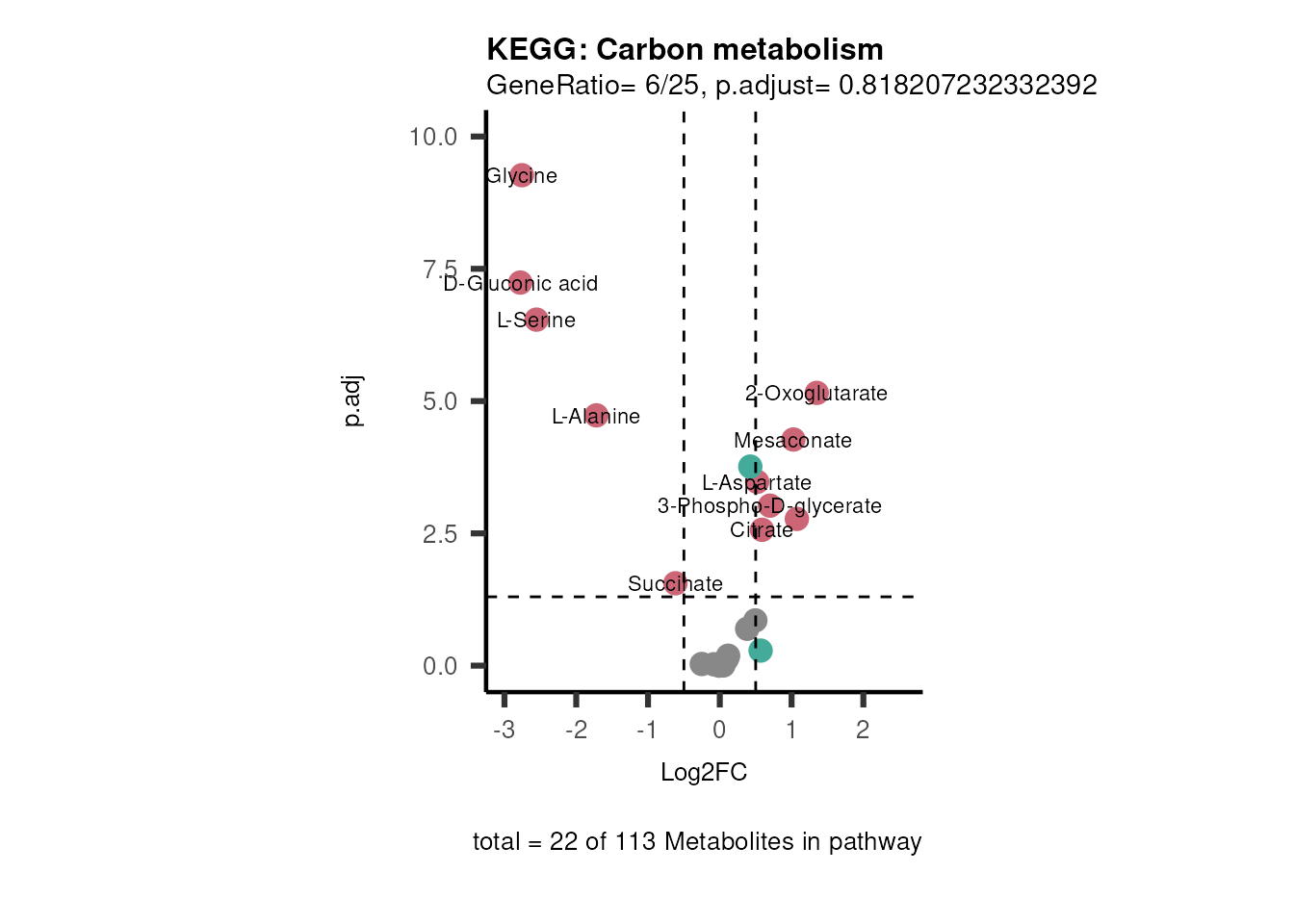

Now we can produce the plots:

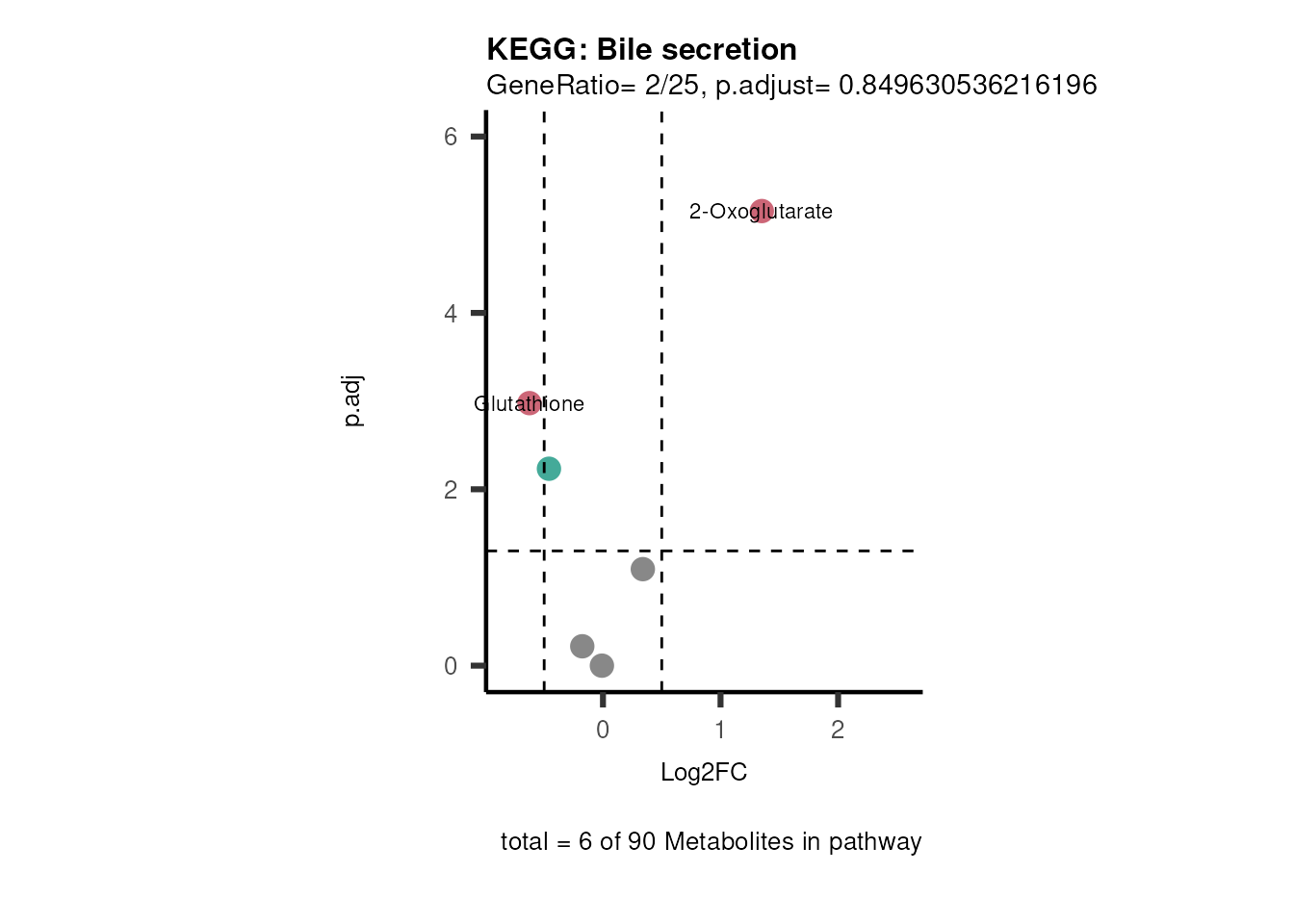

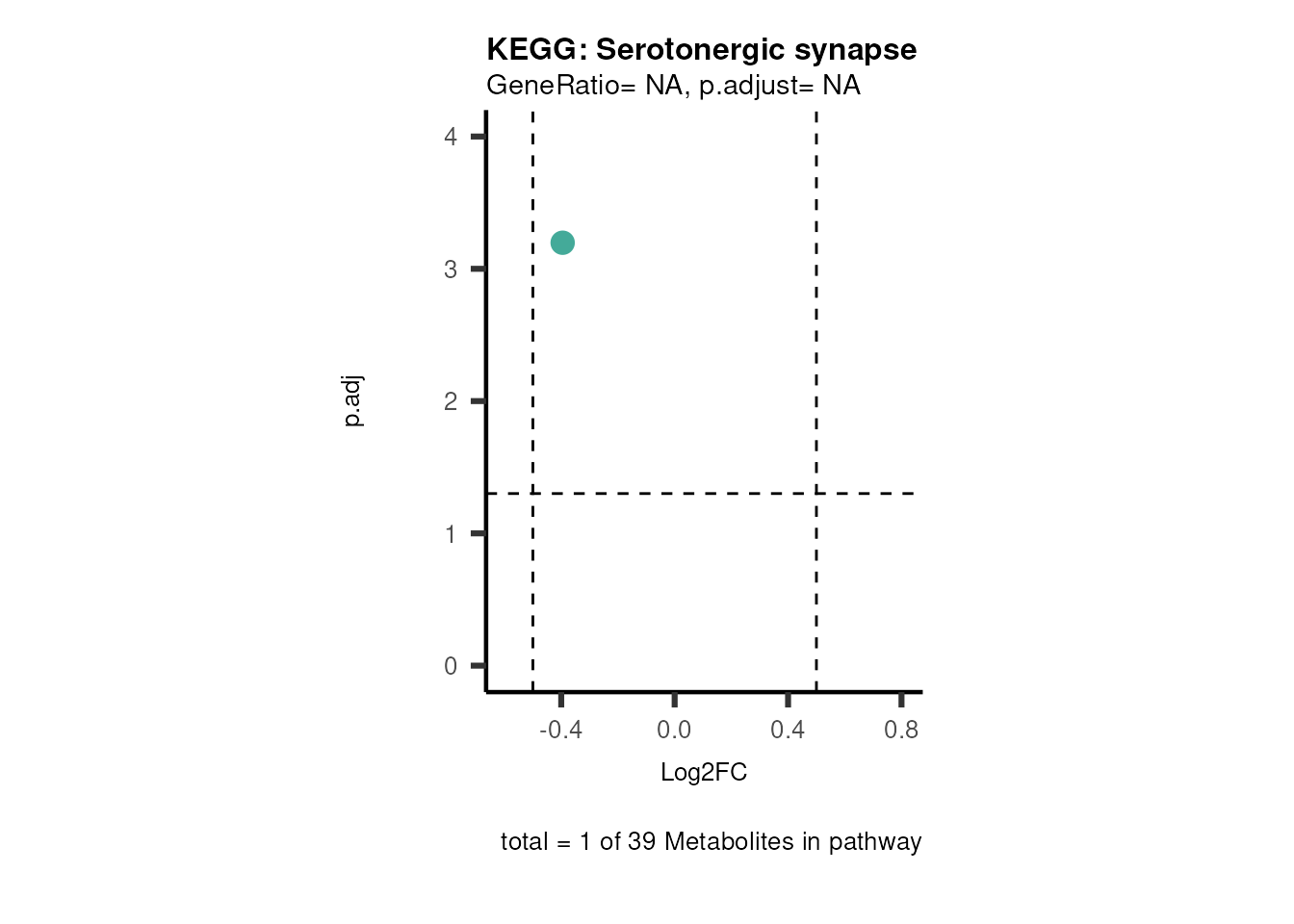

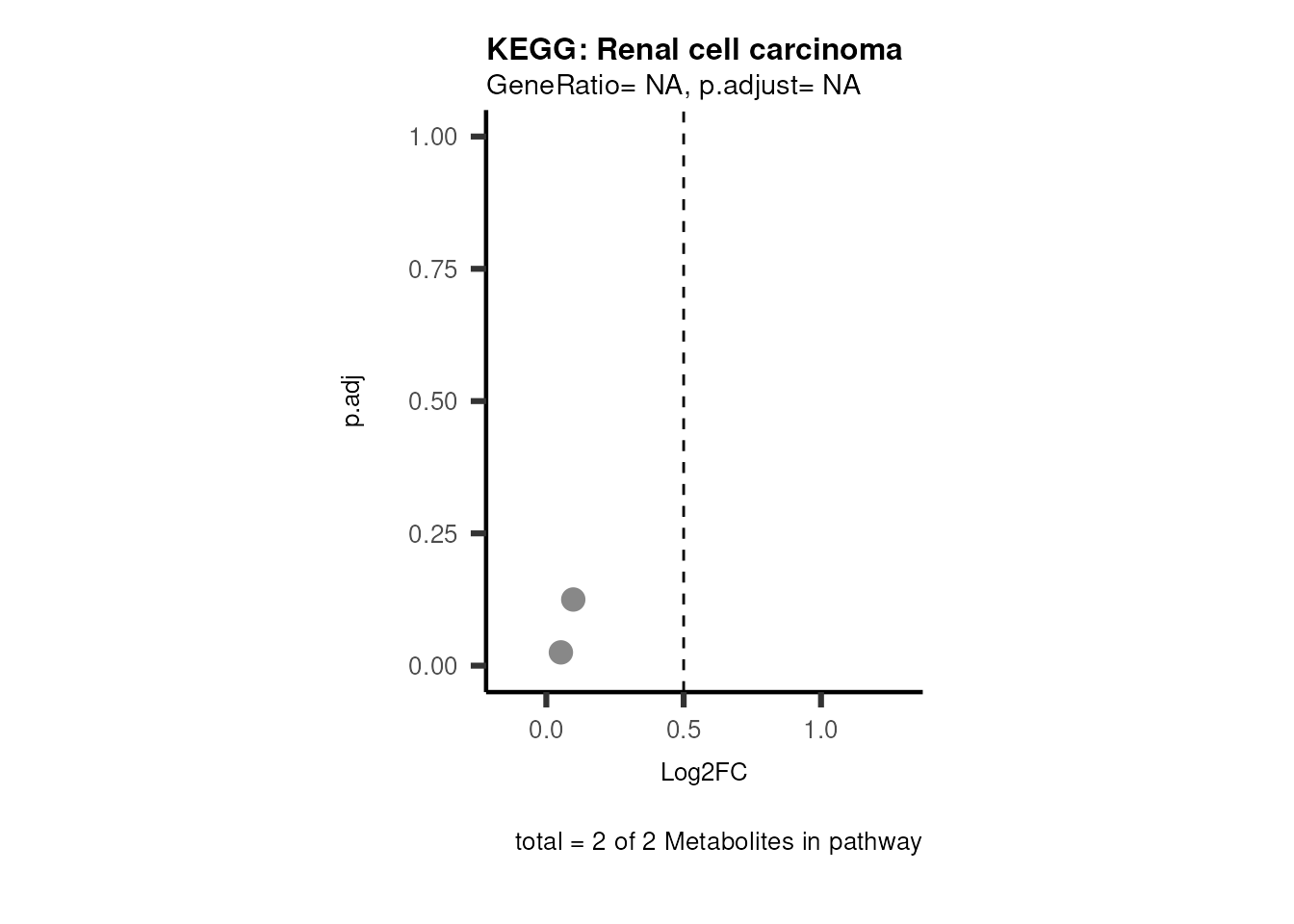

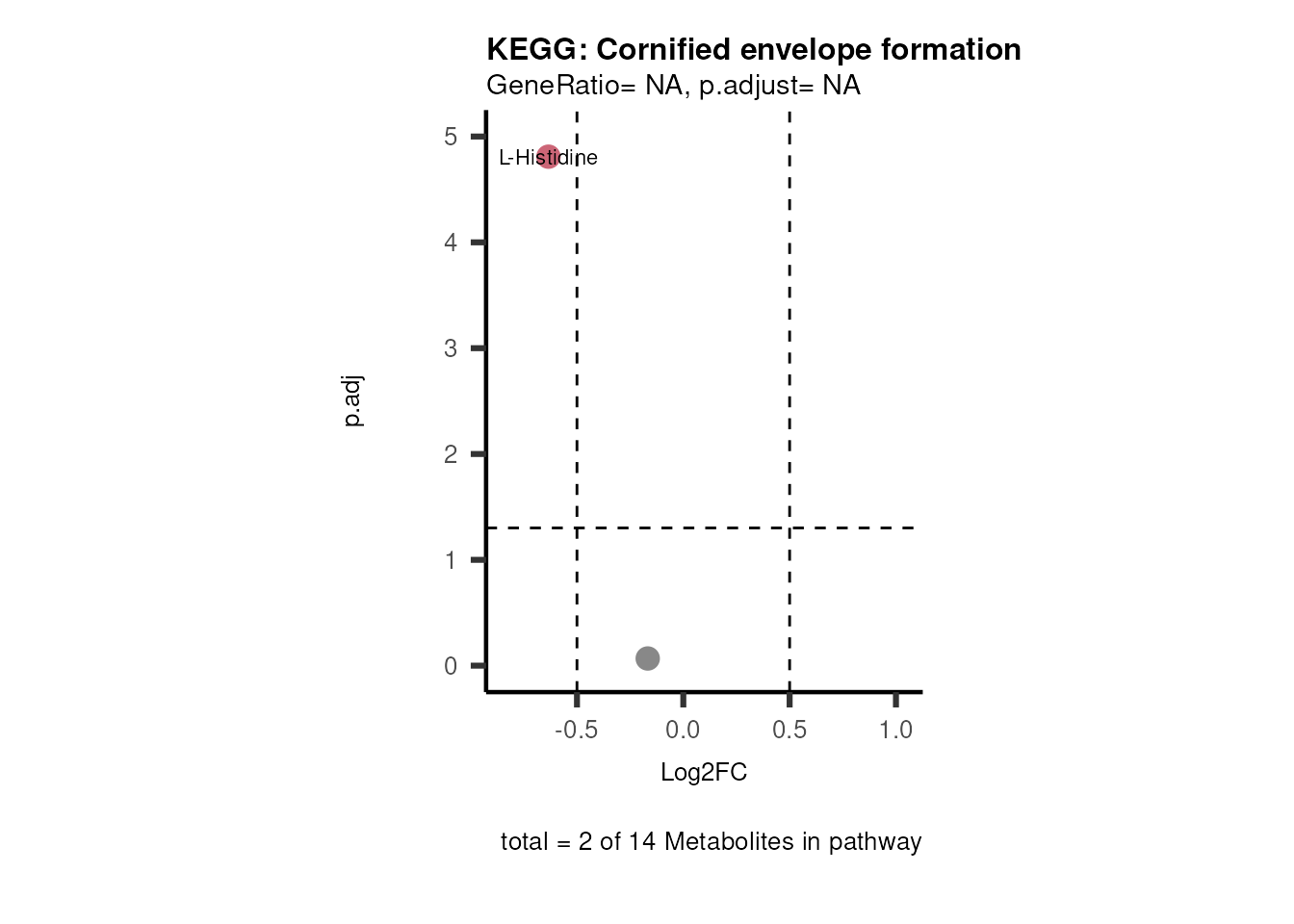

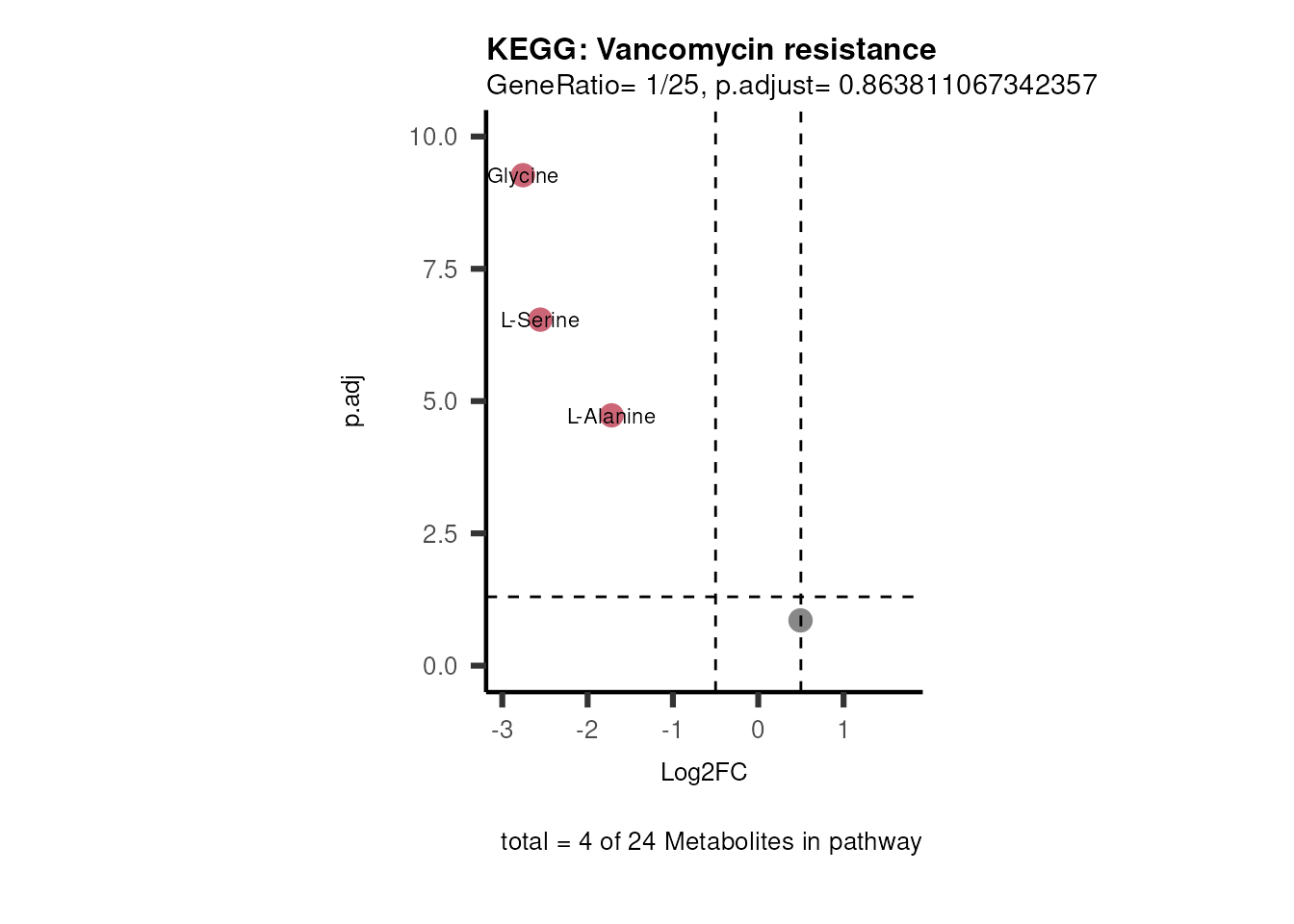

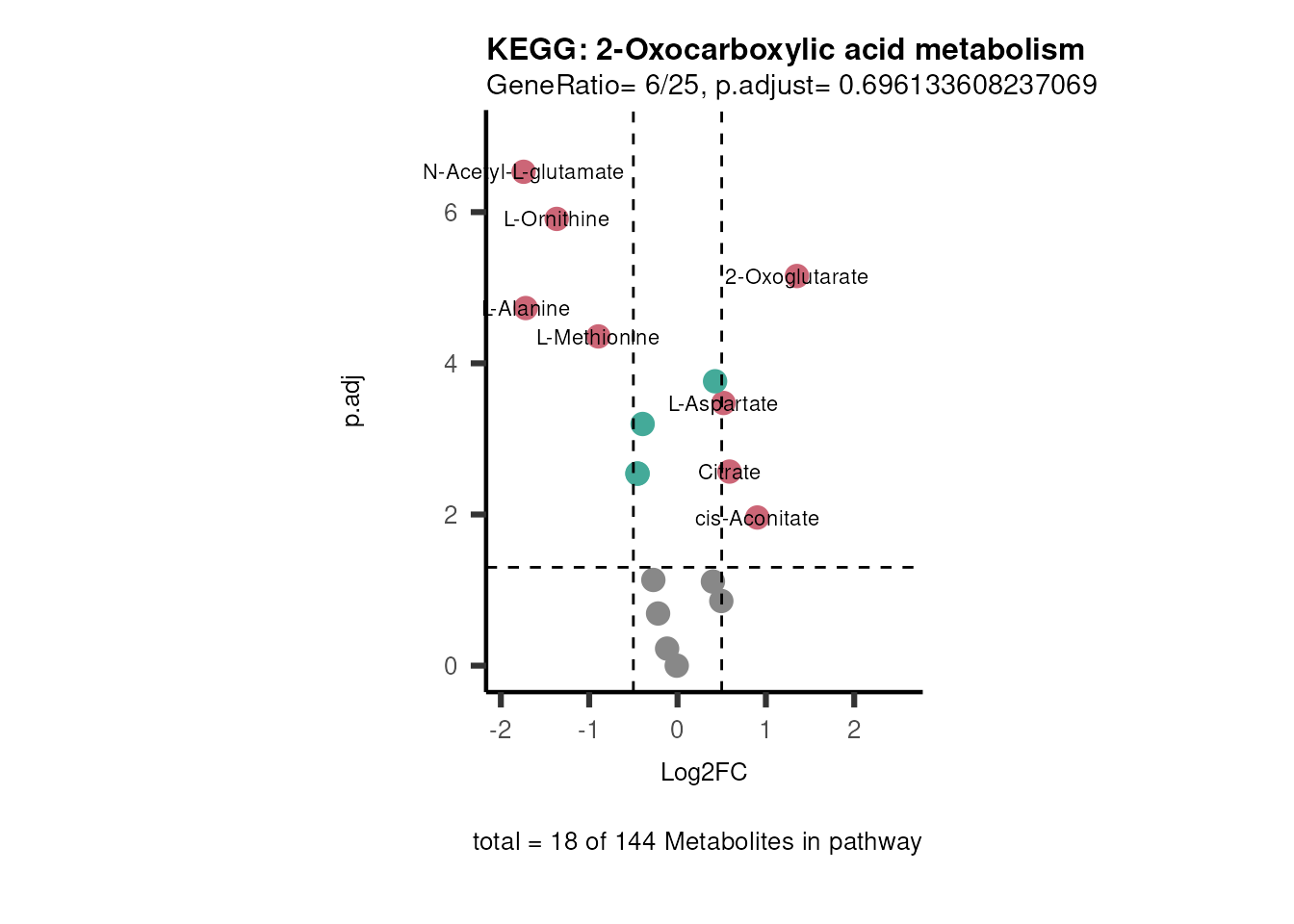

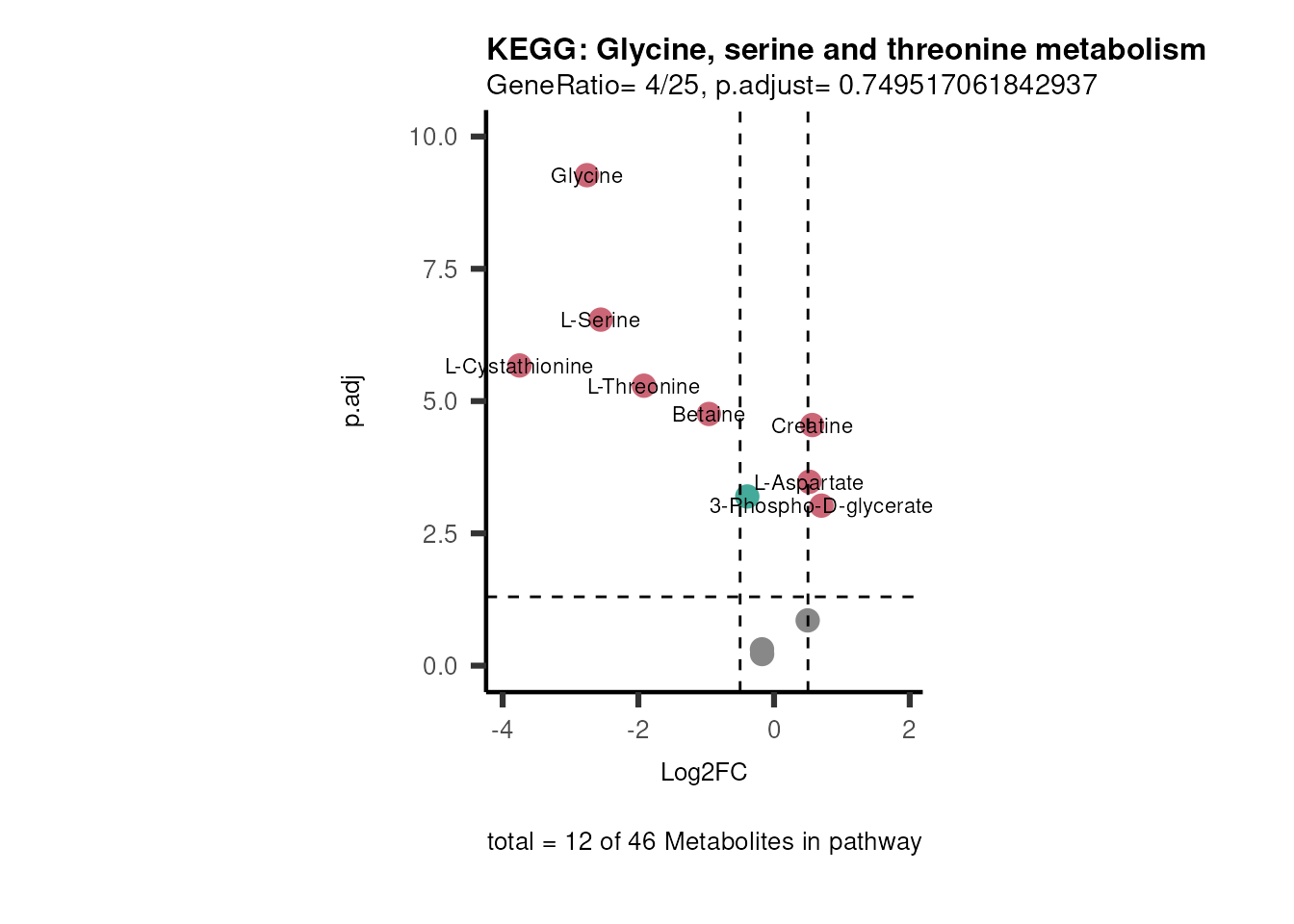

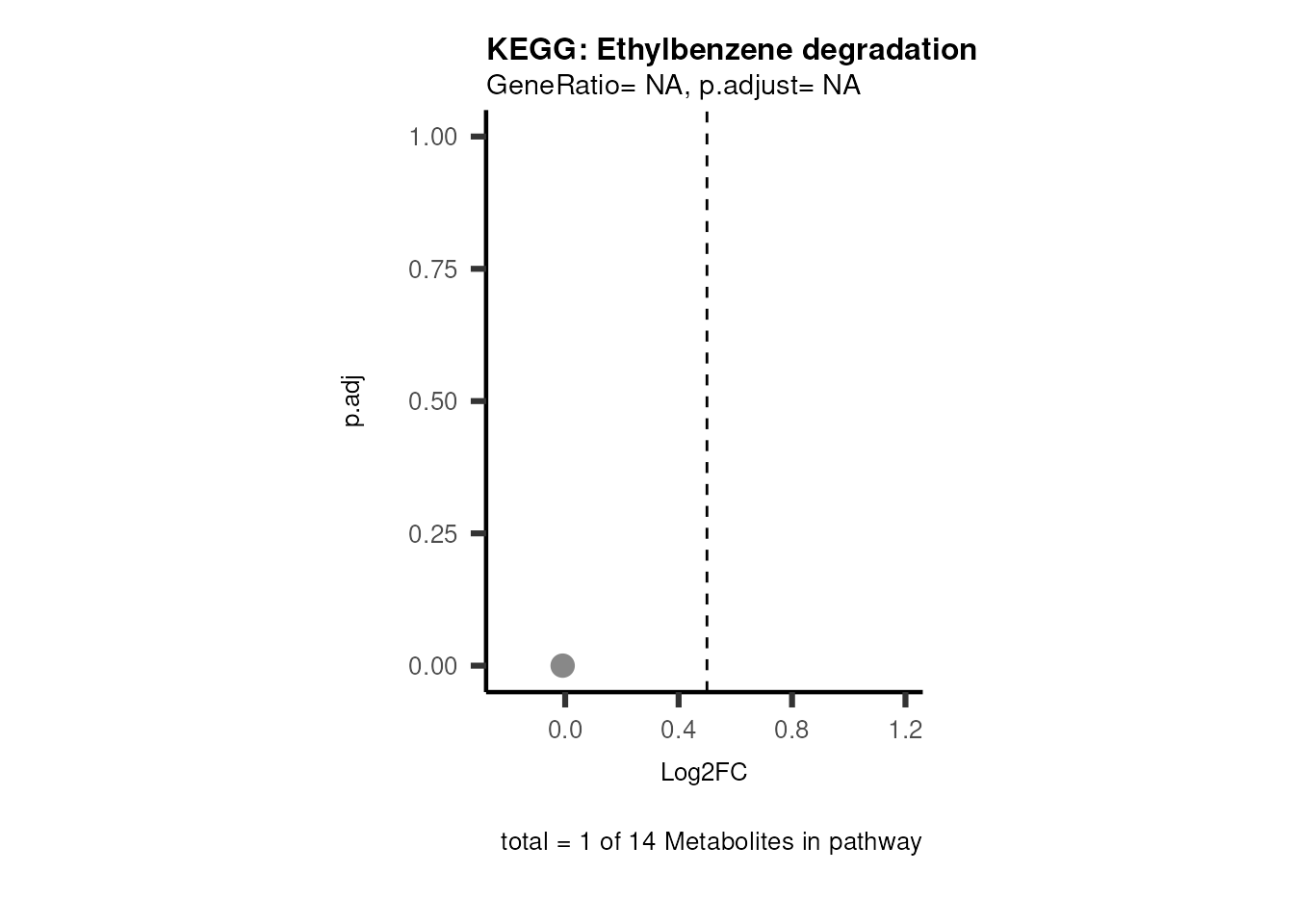

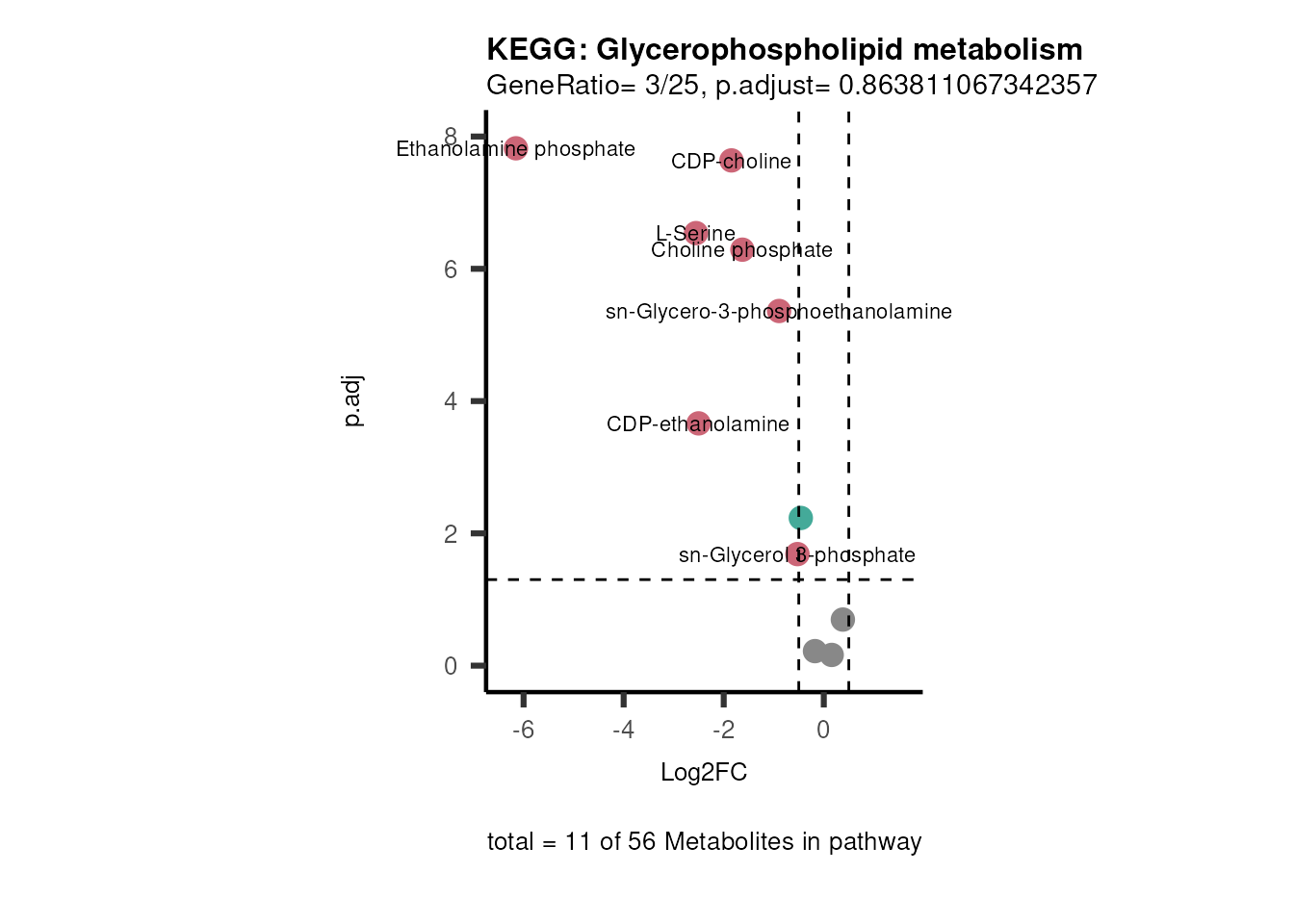

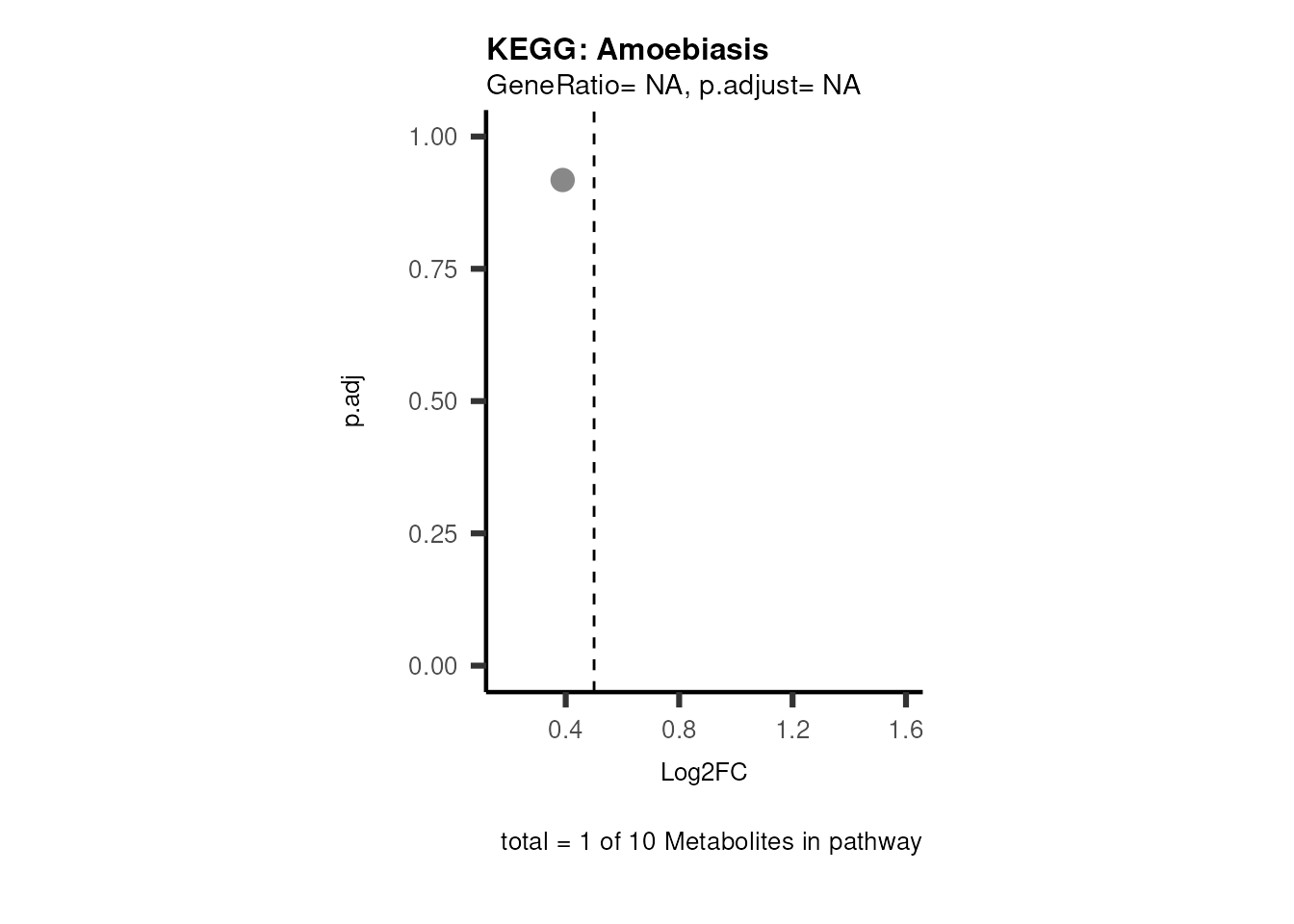

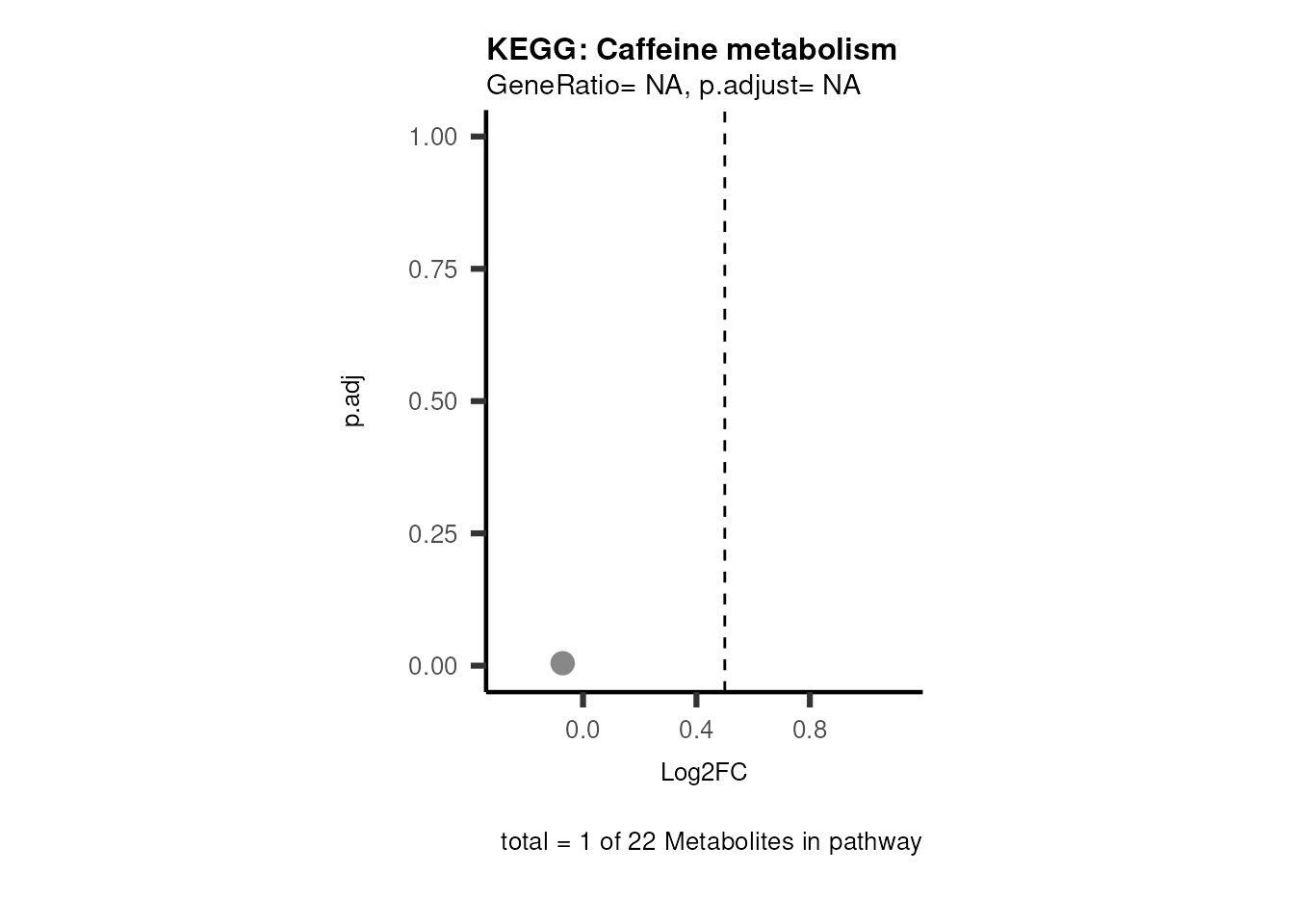

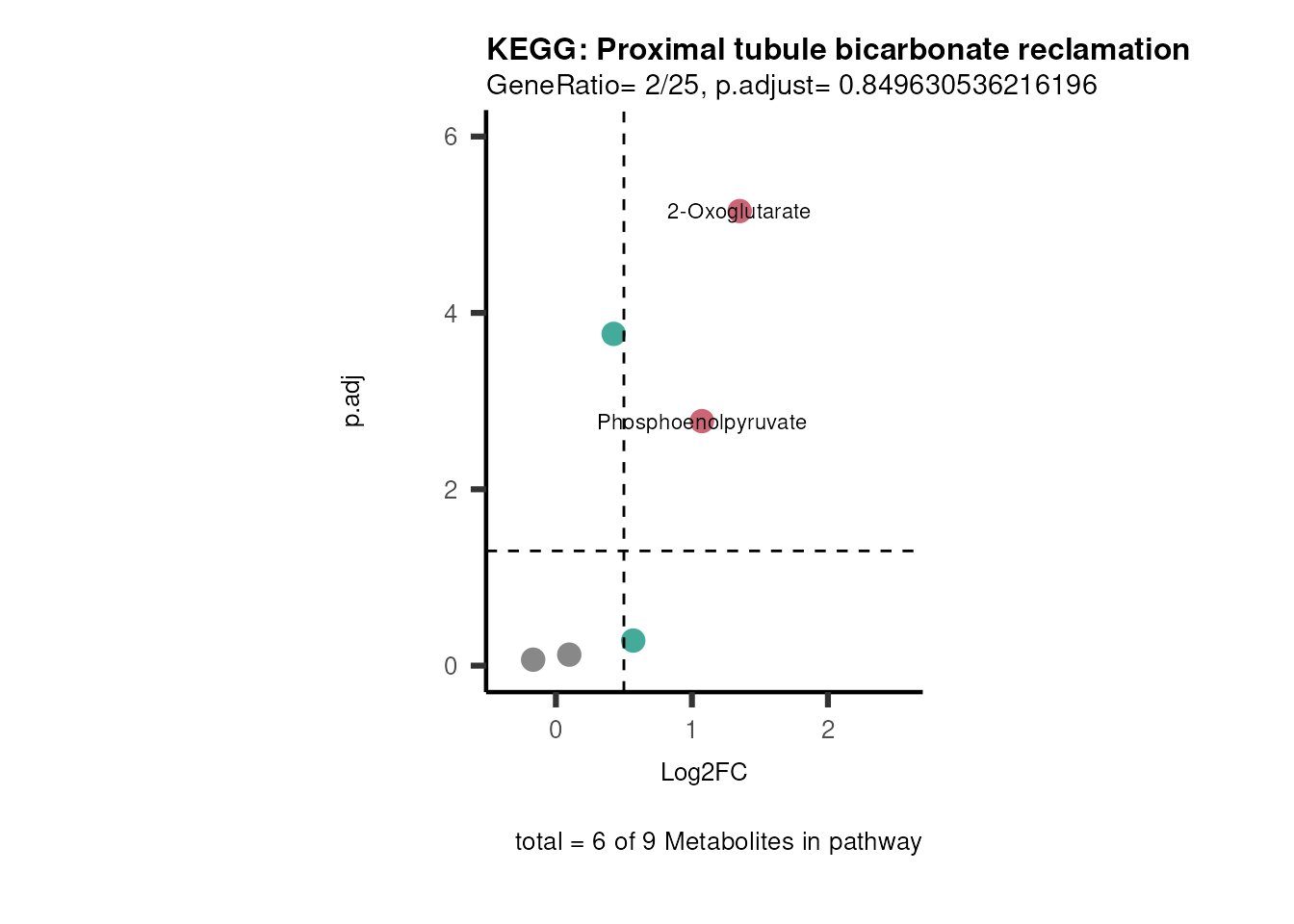

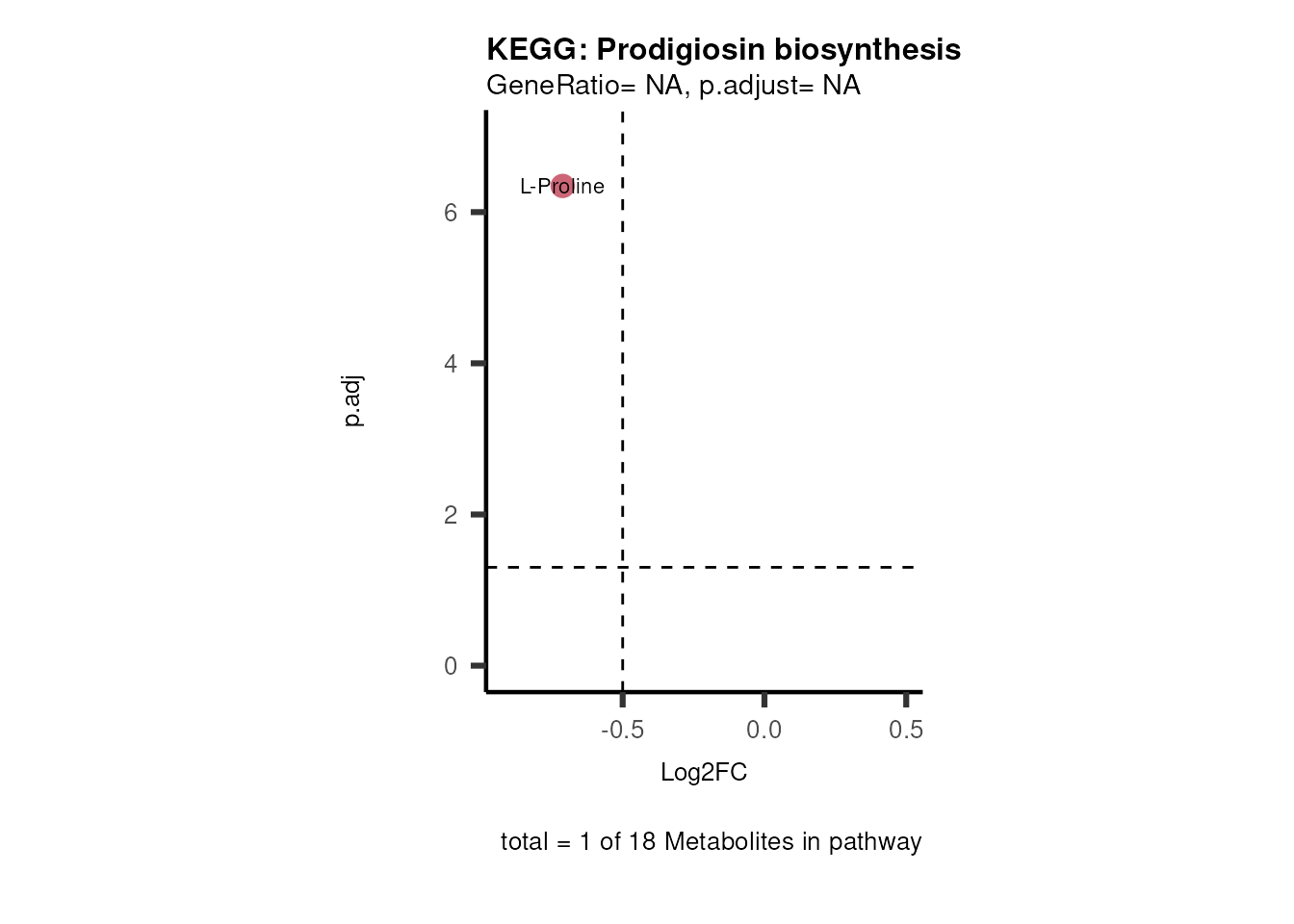

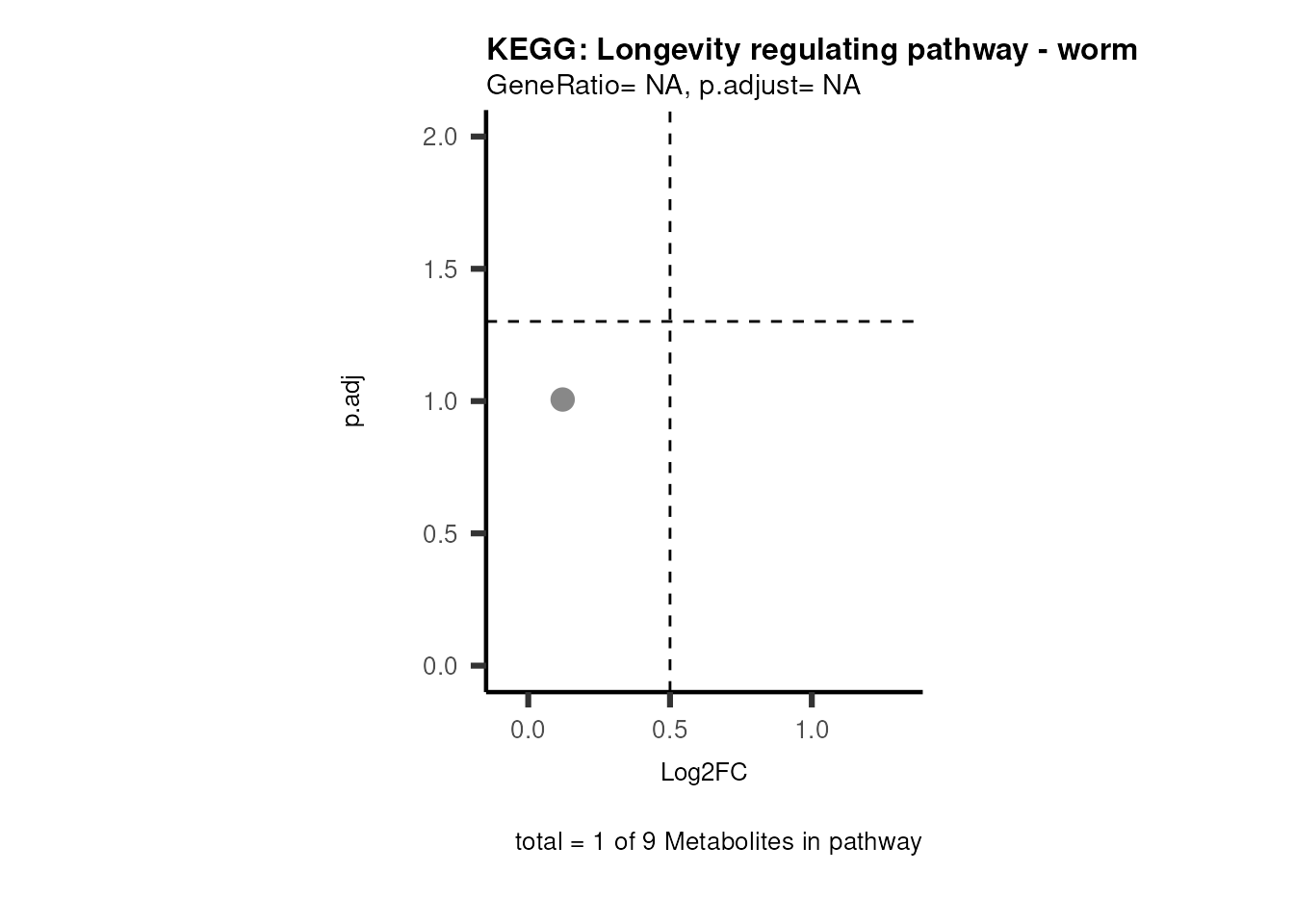

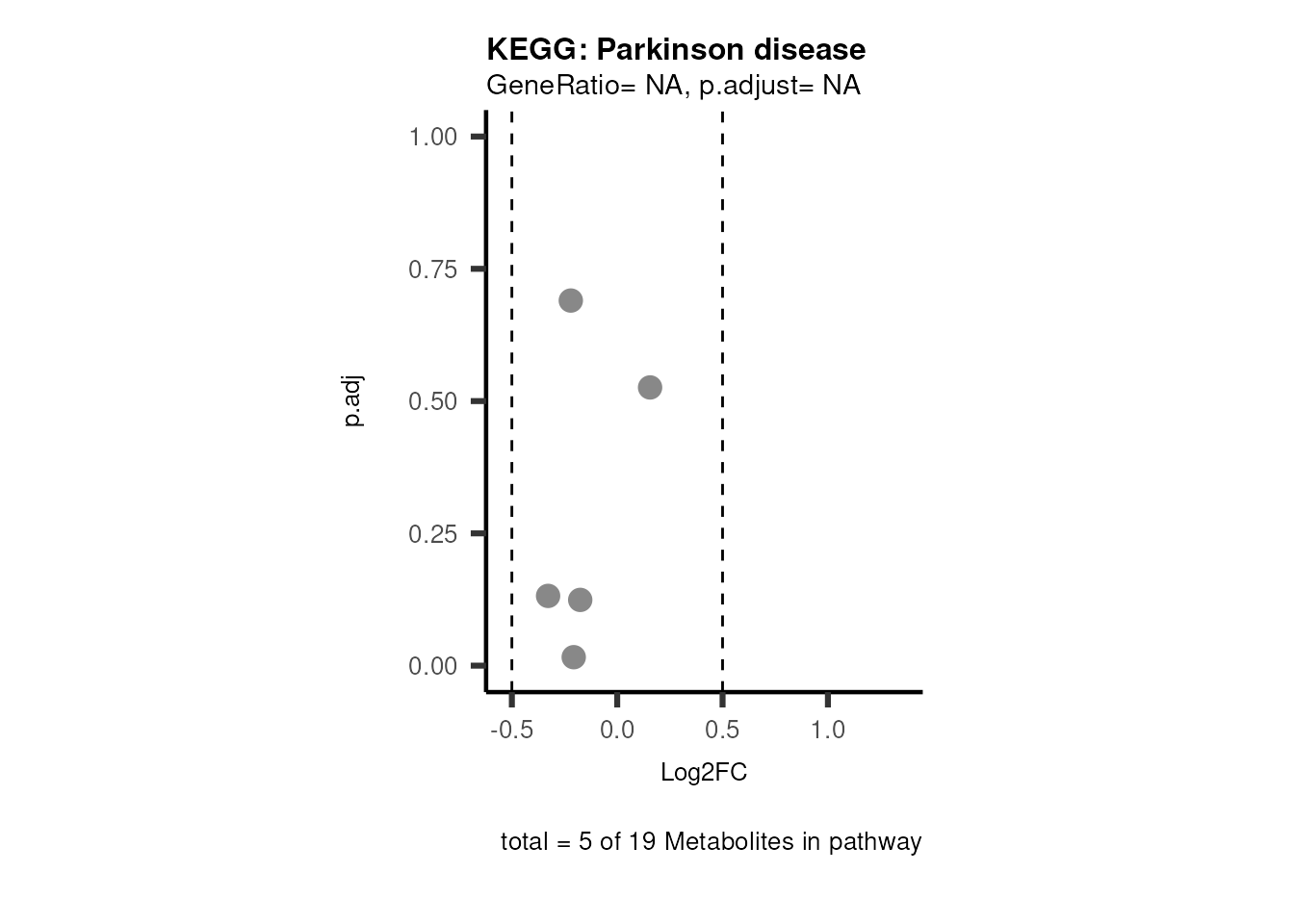

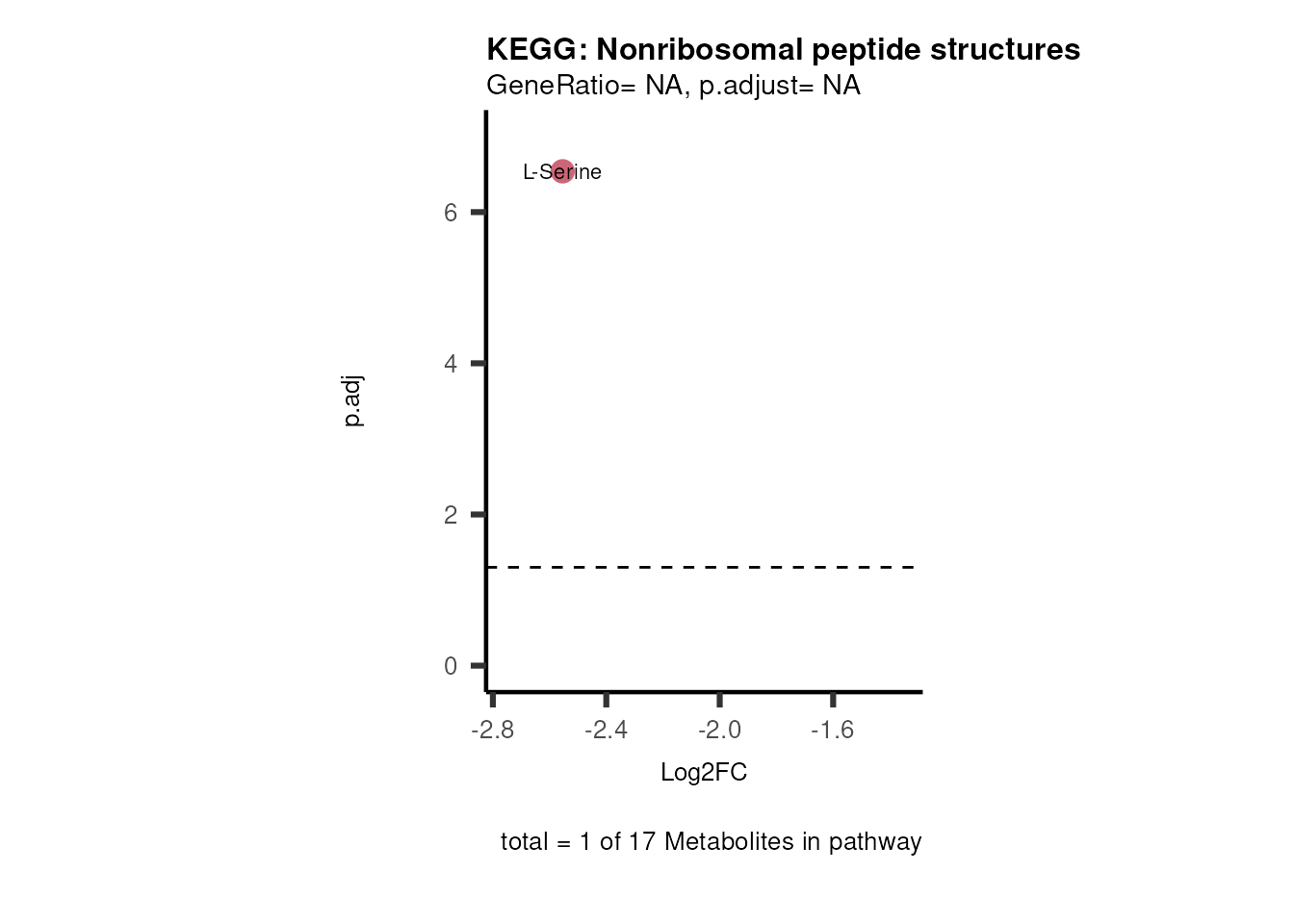

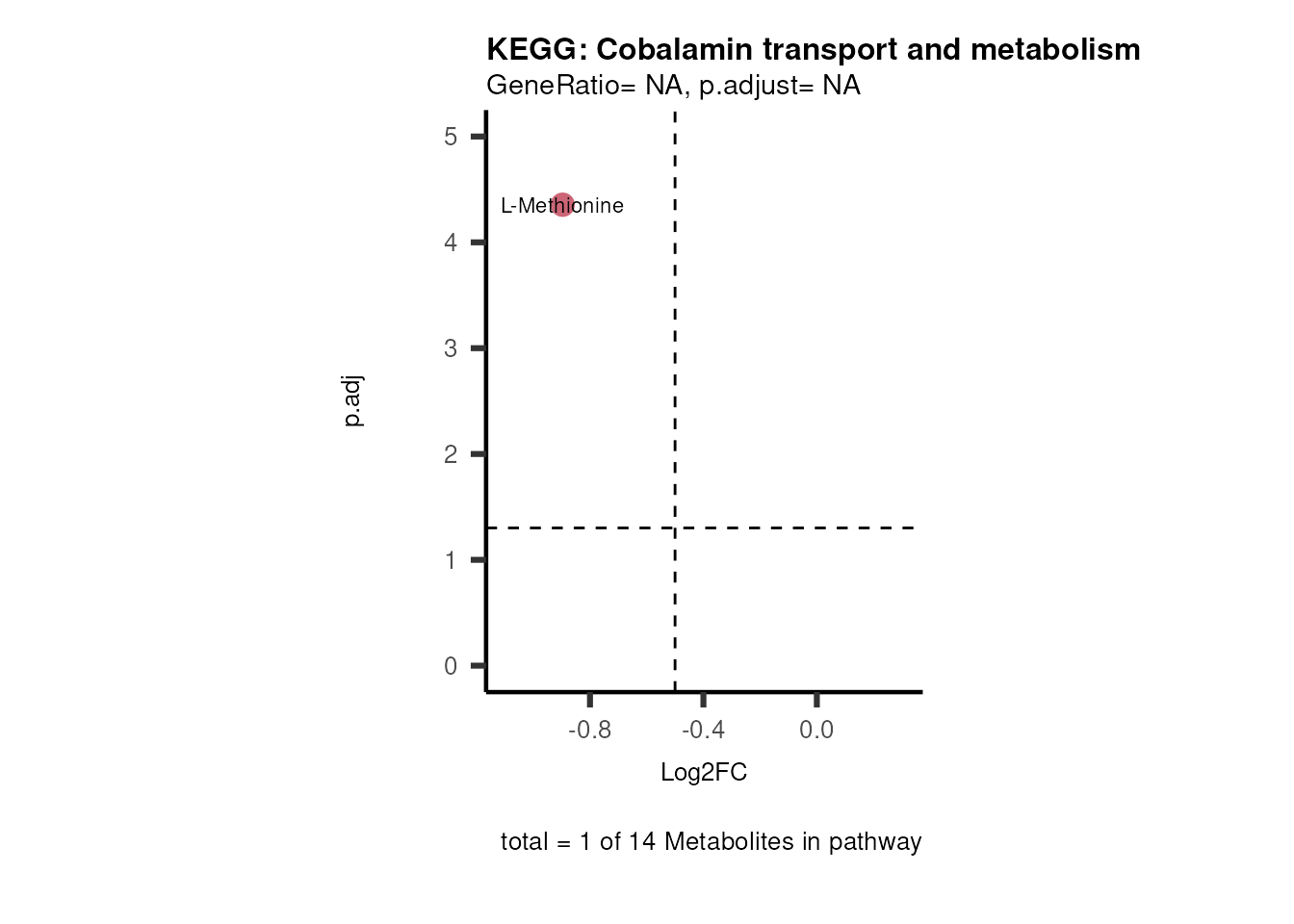

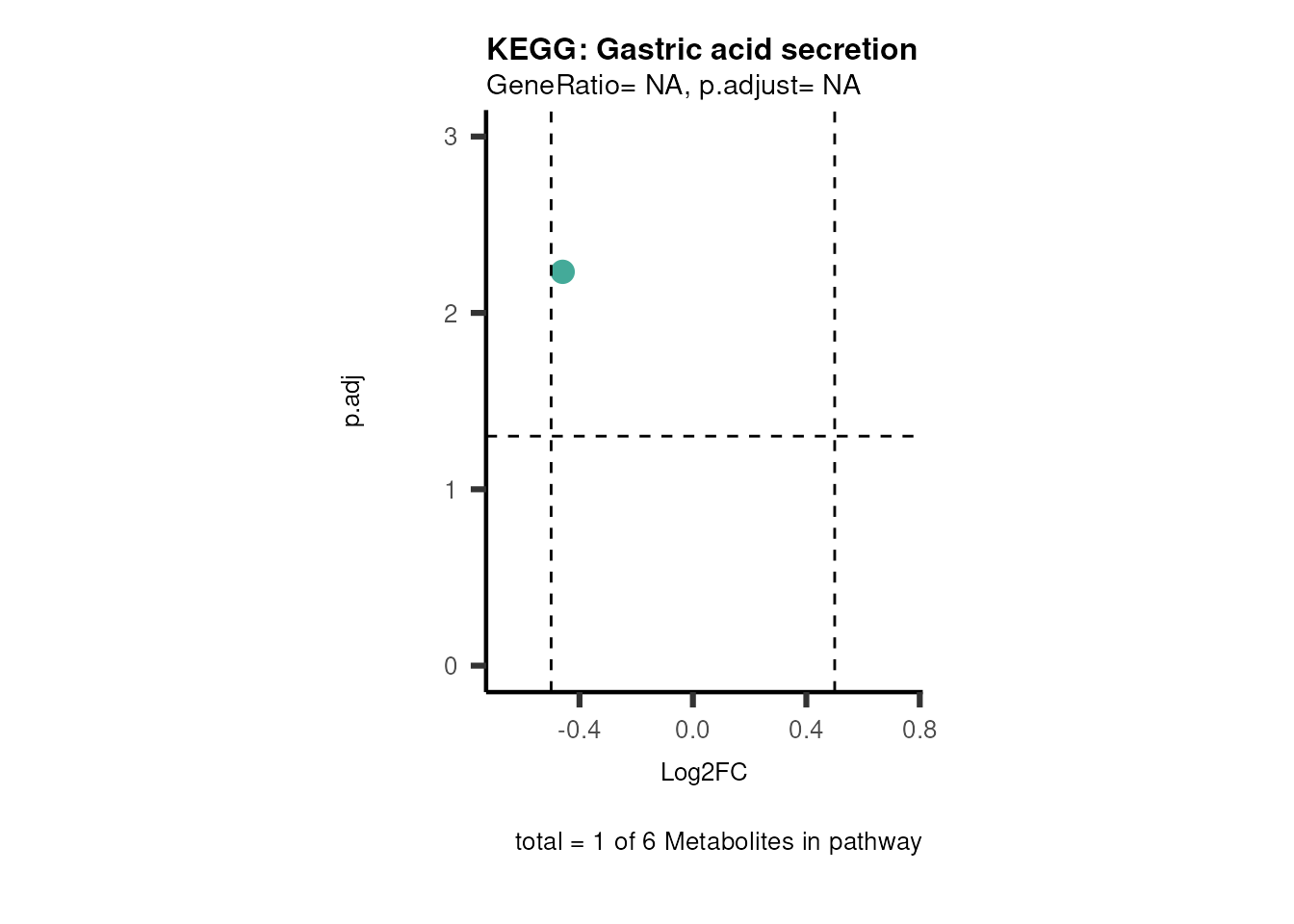

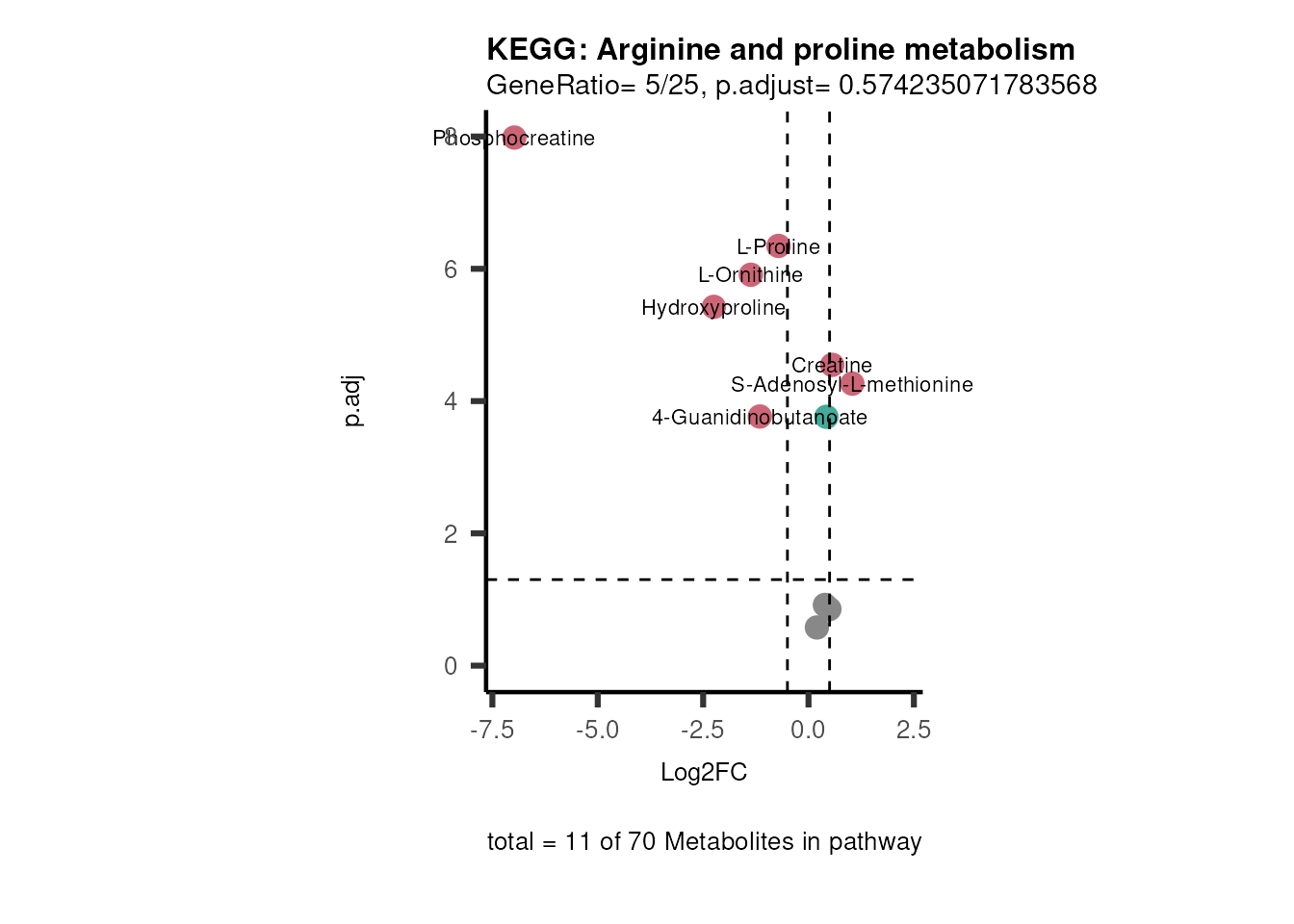

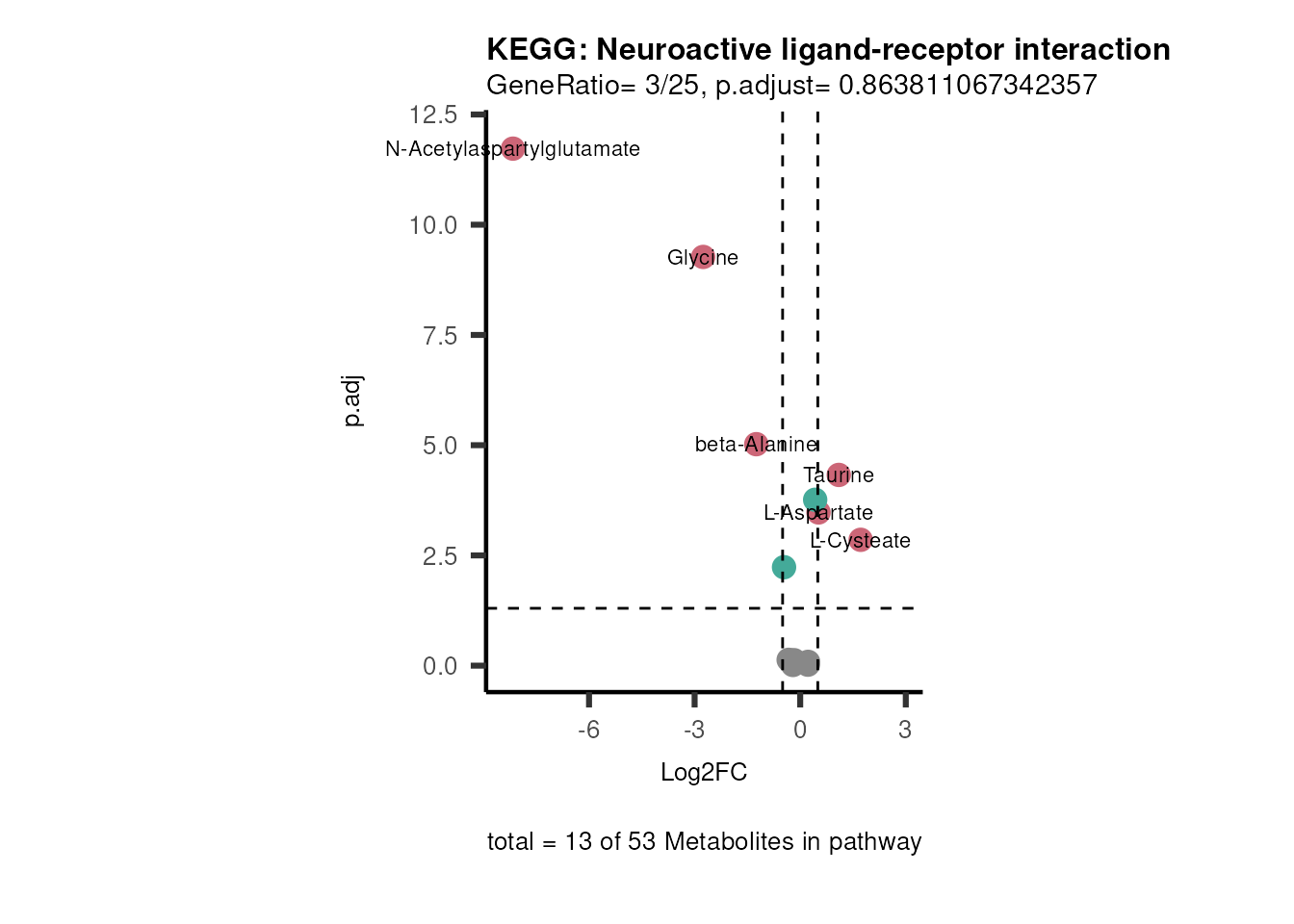

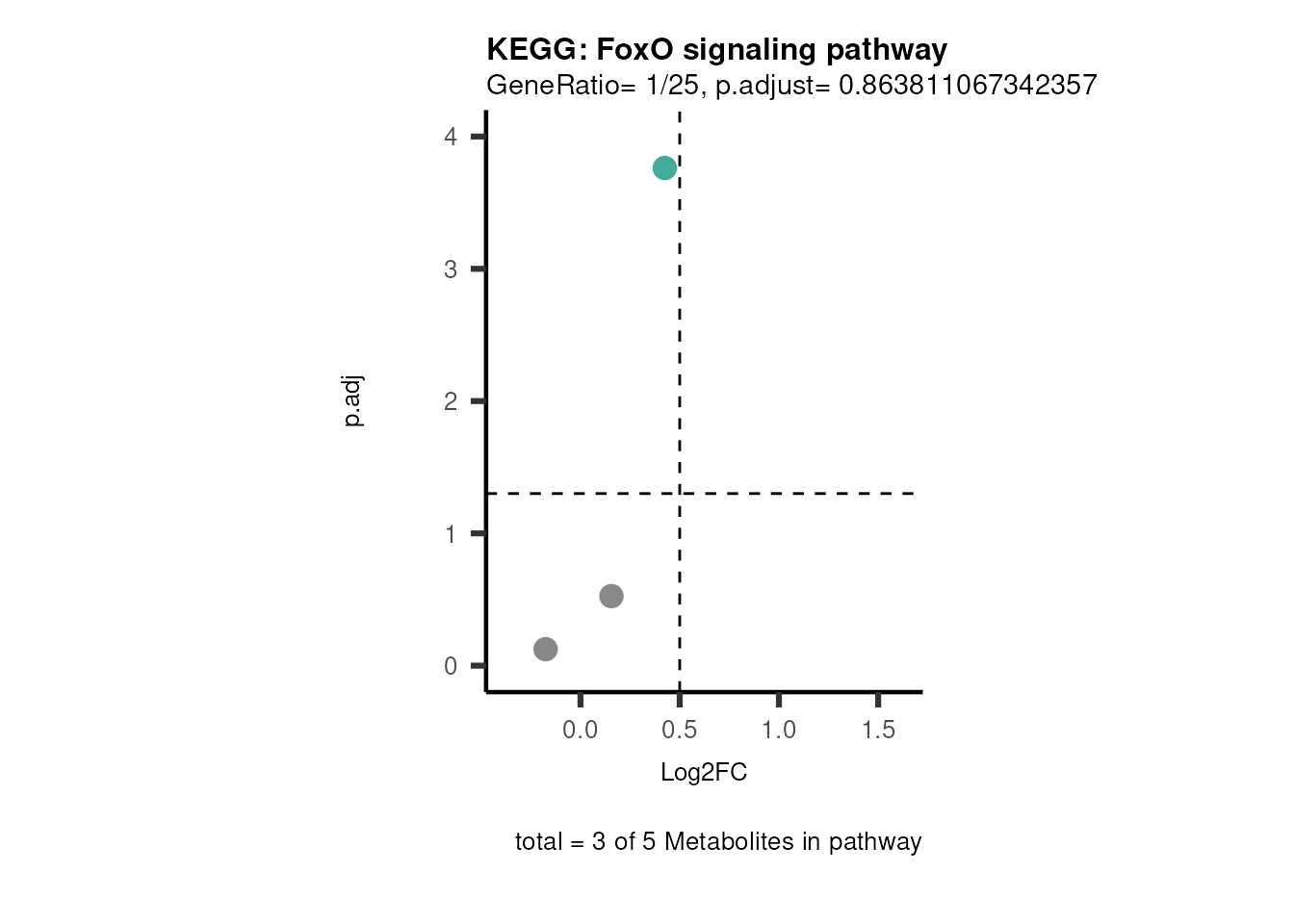

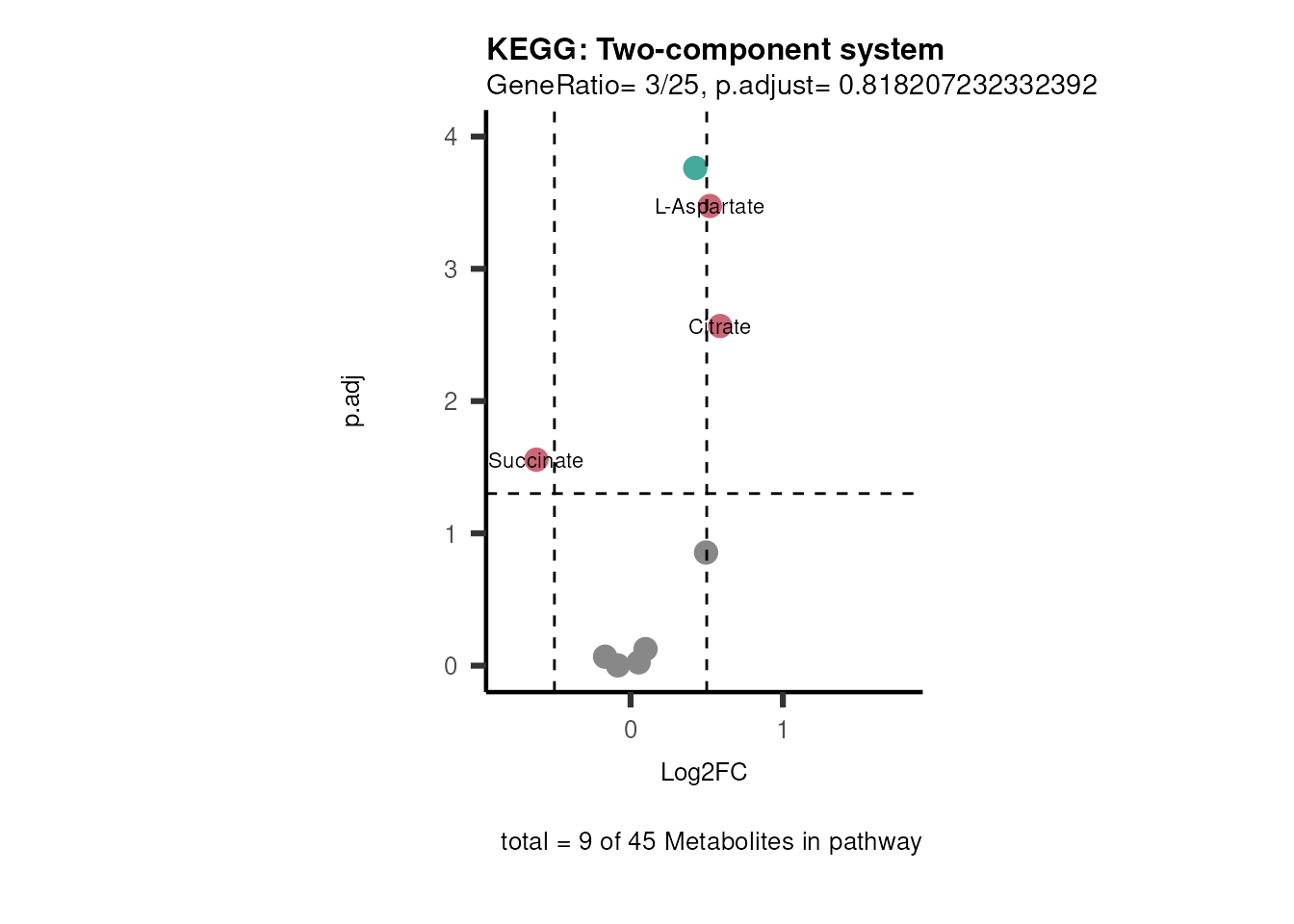

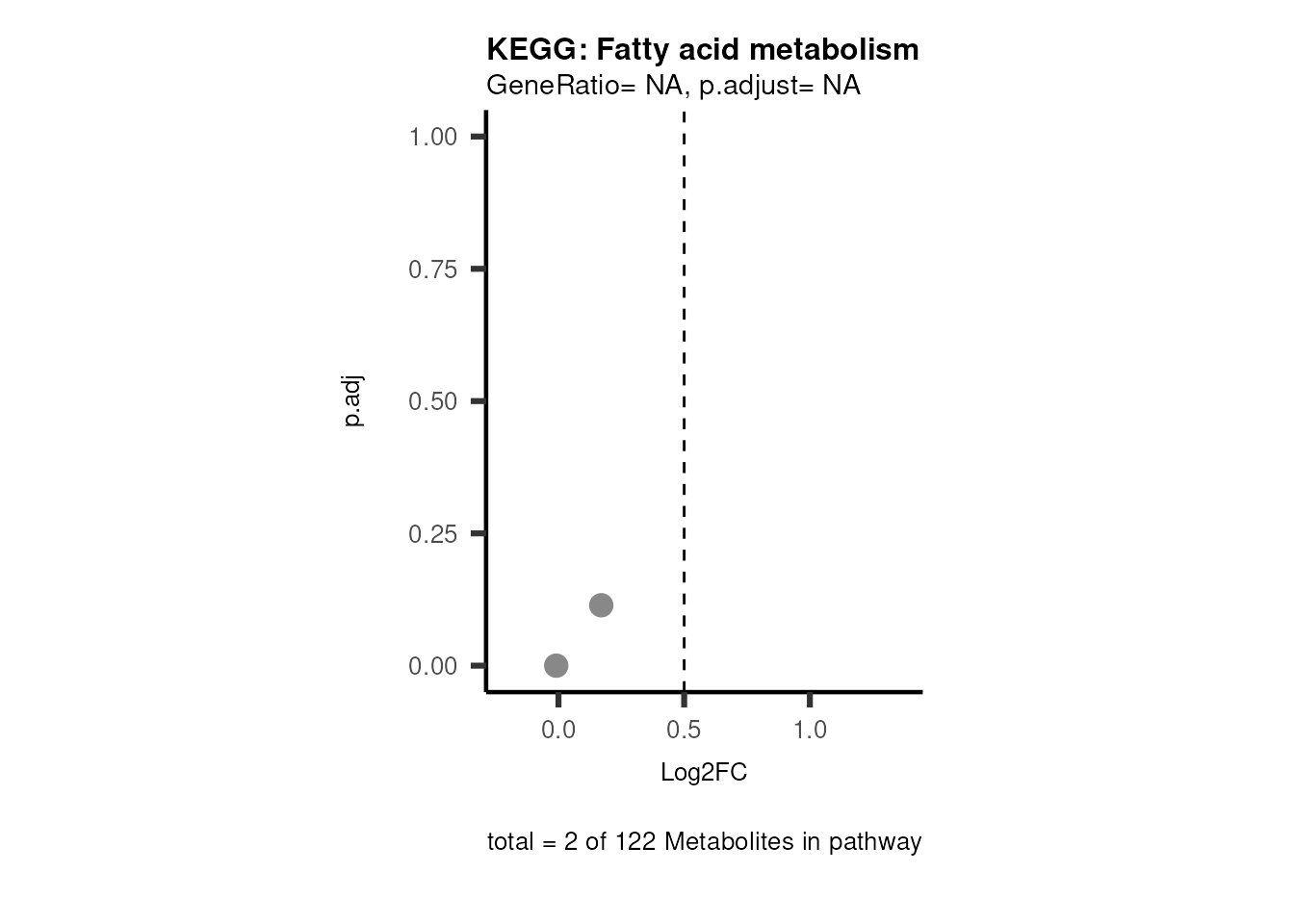

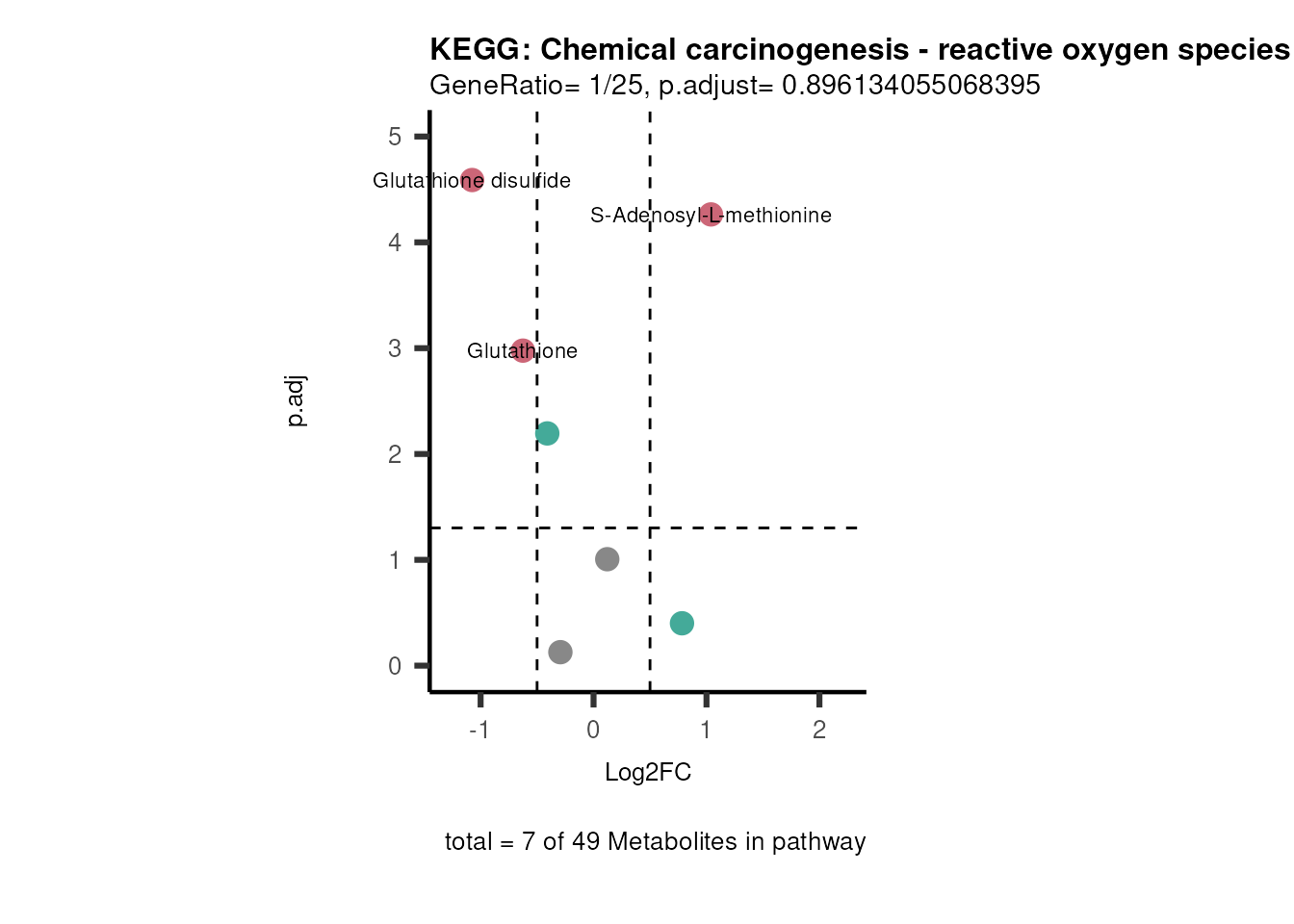

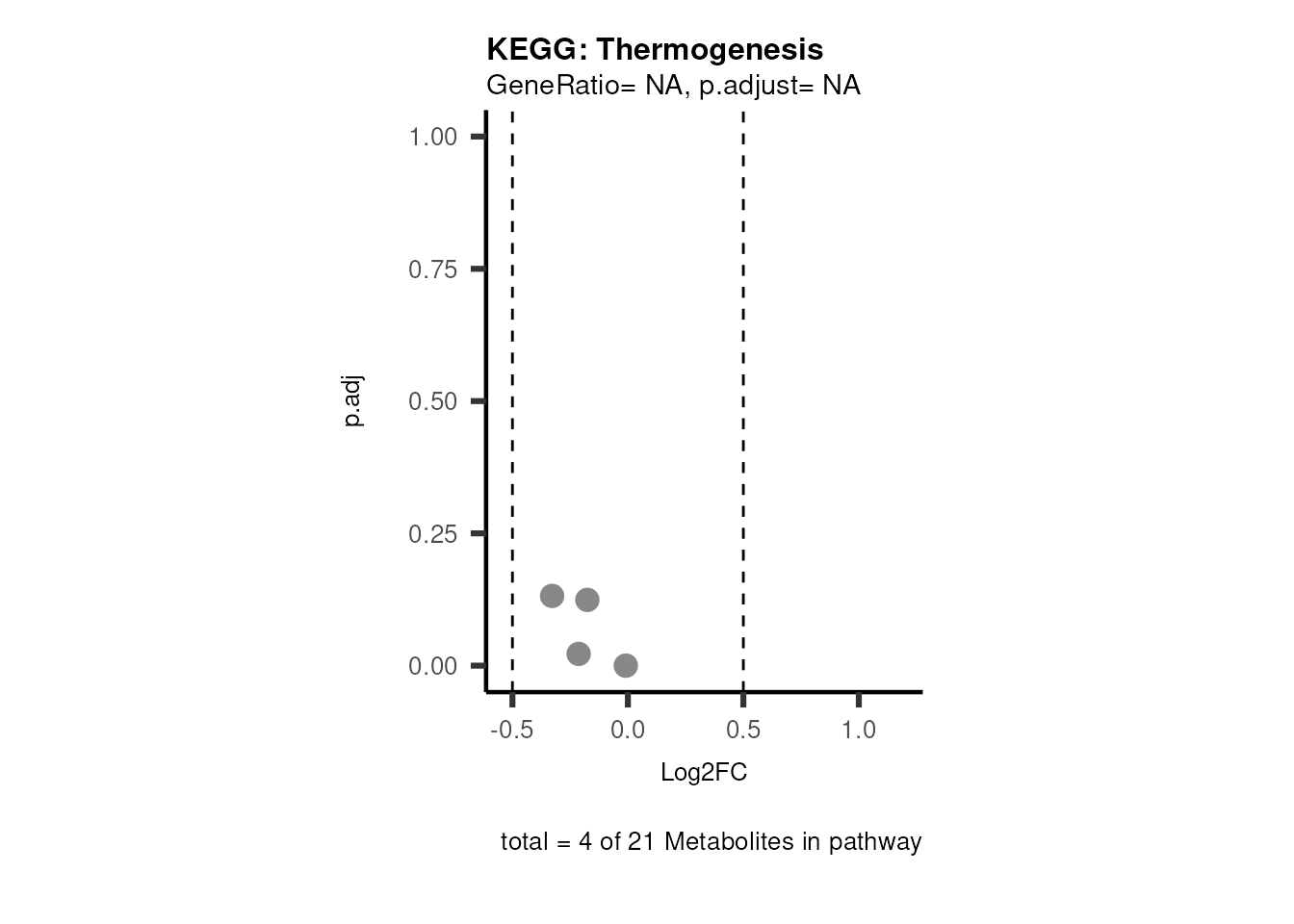

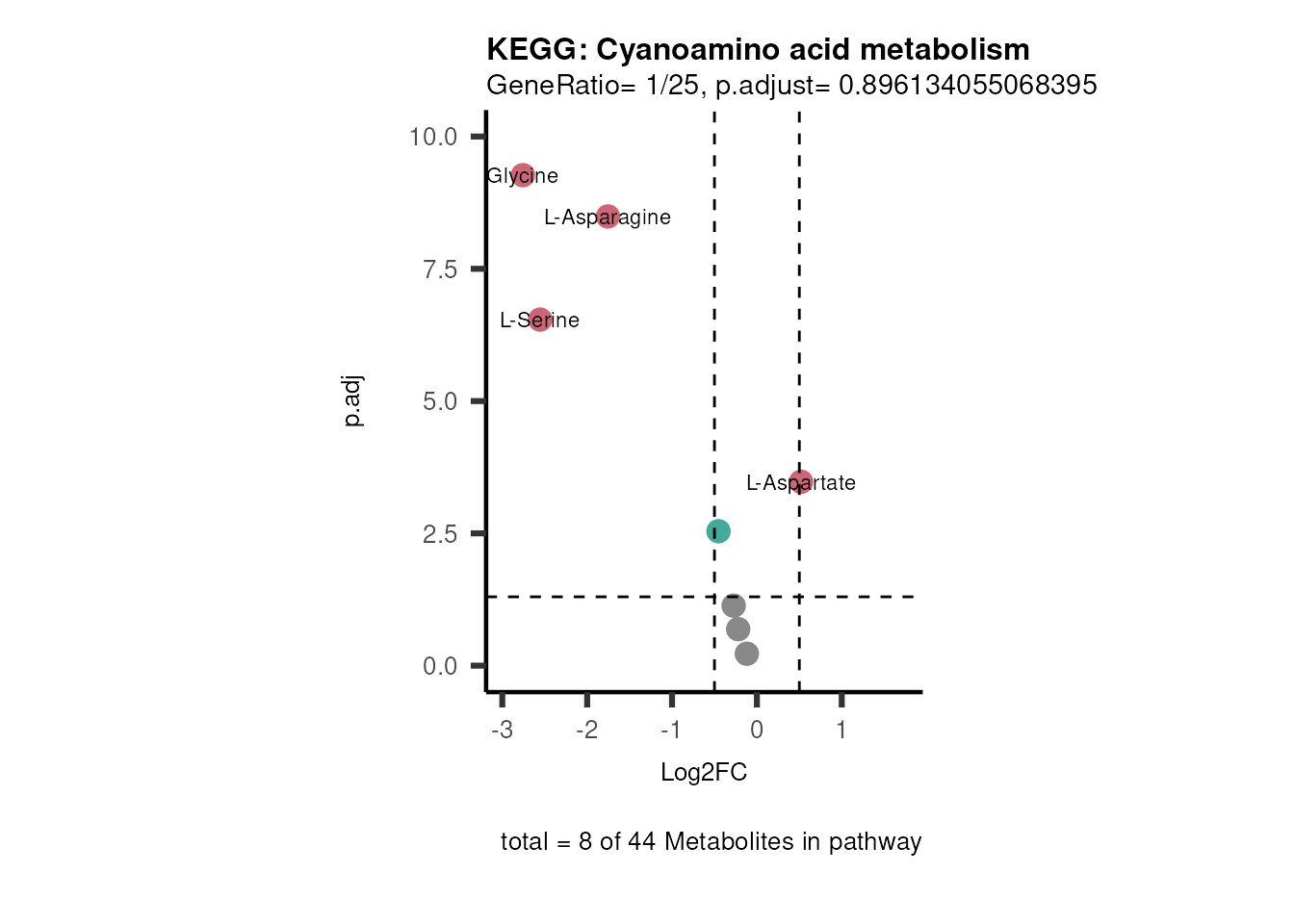

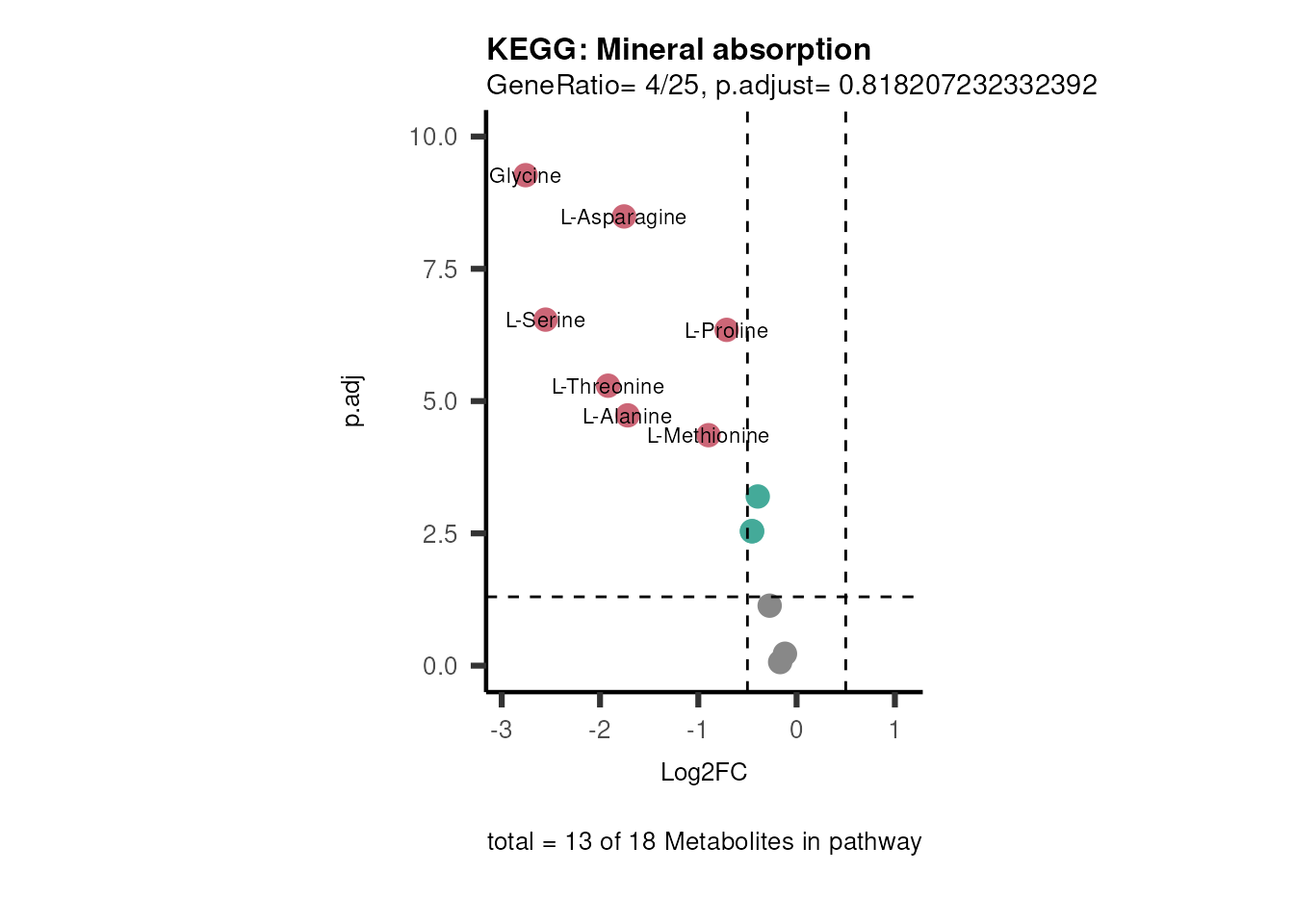

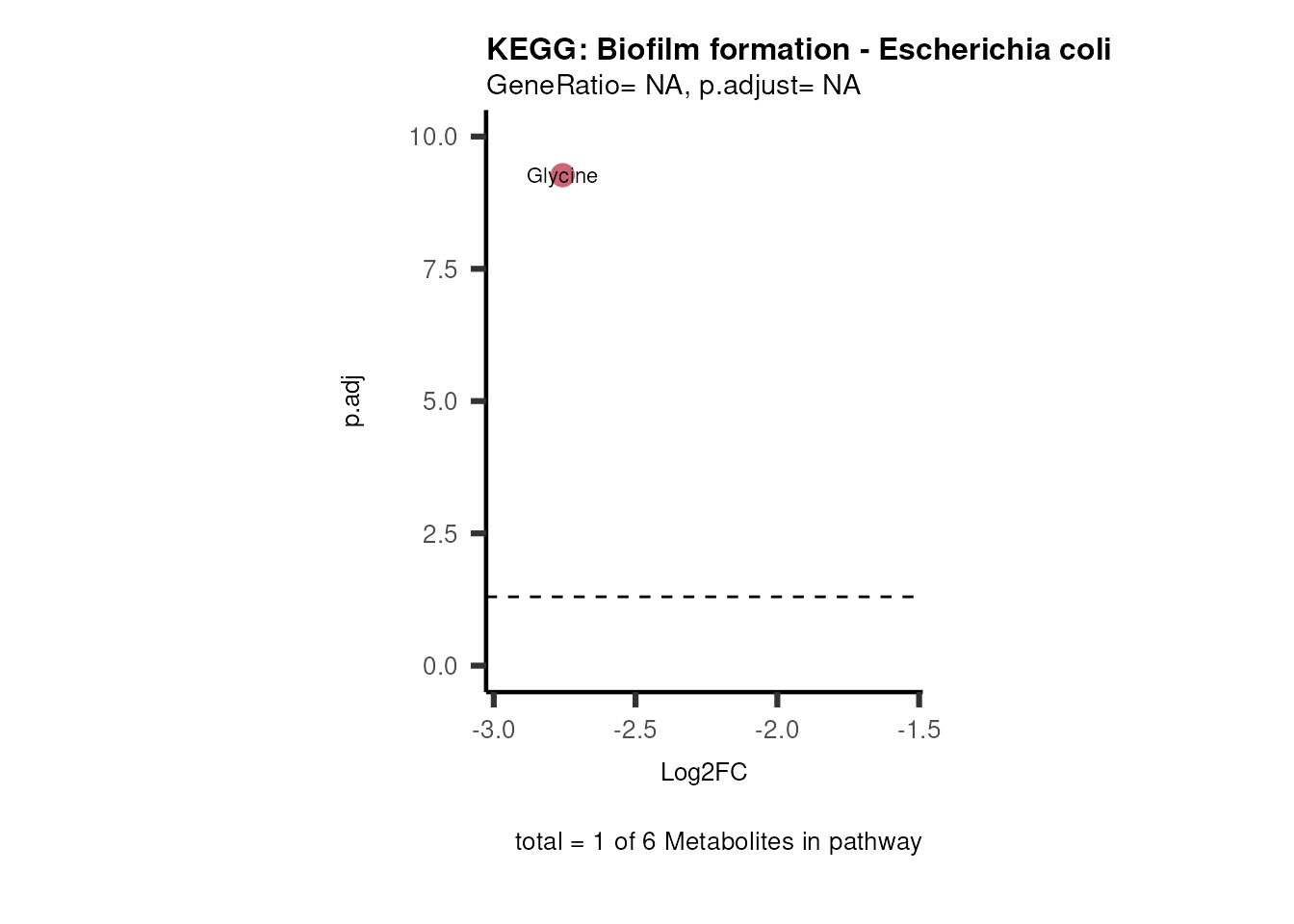

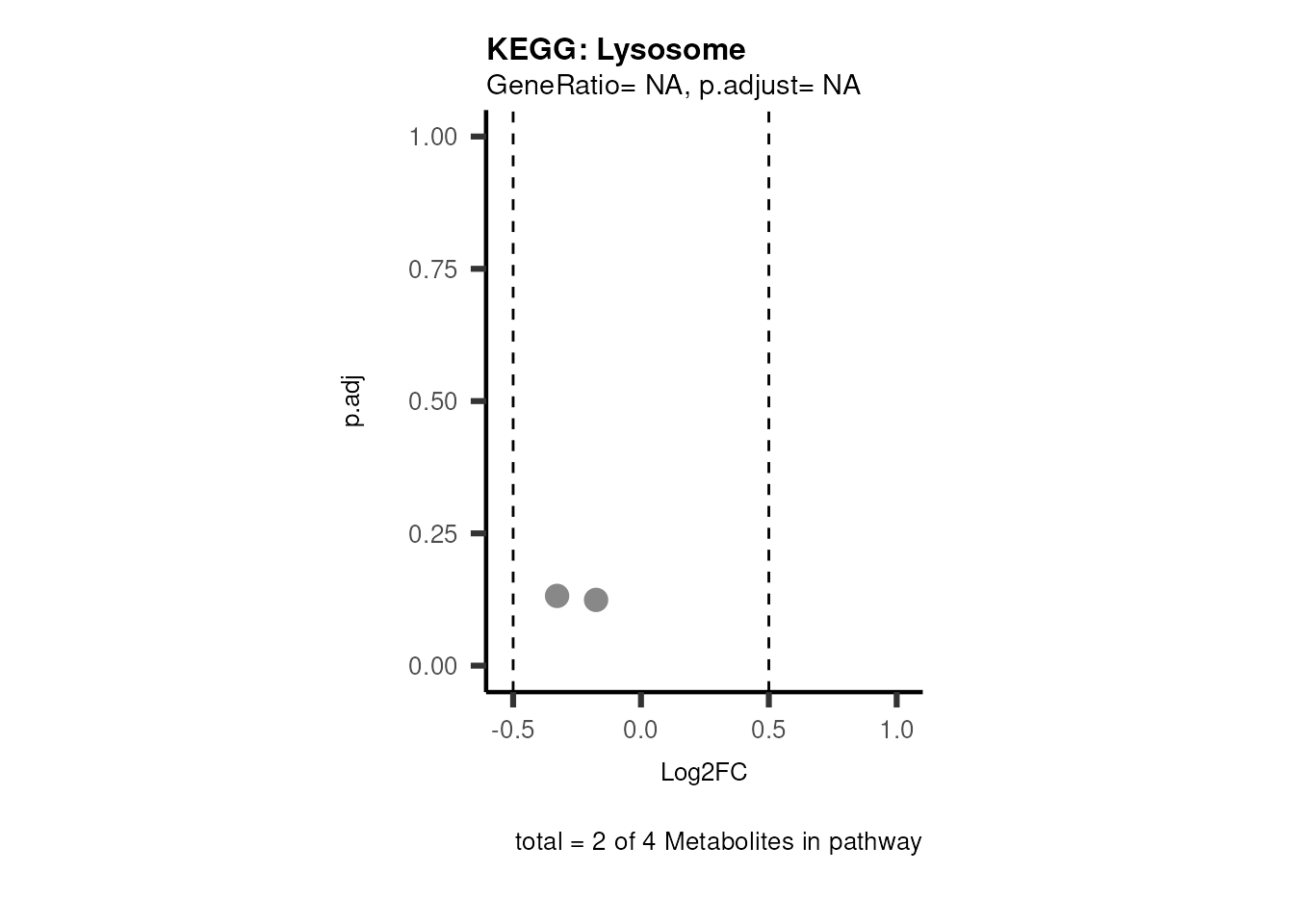

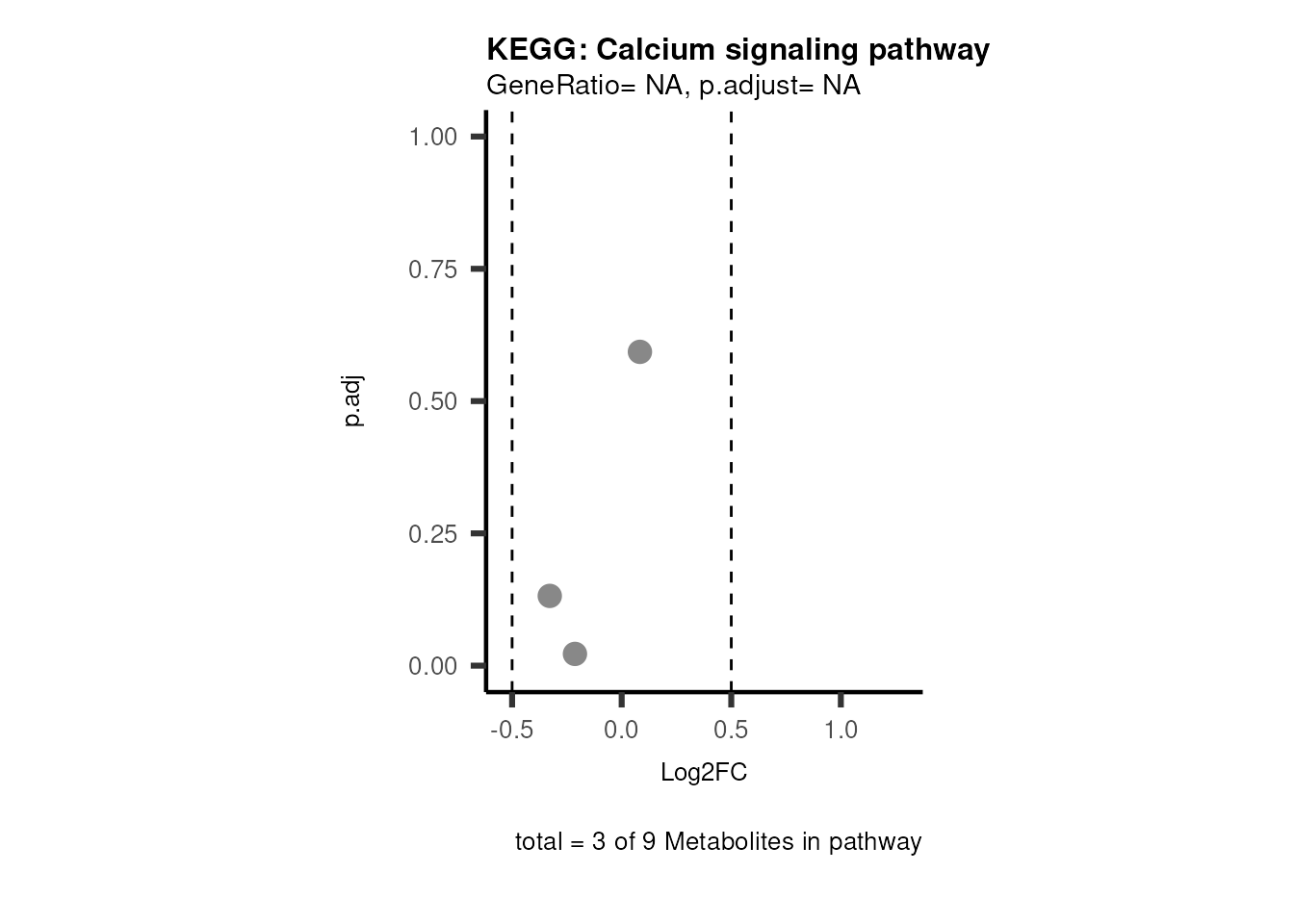

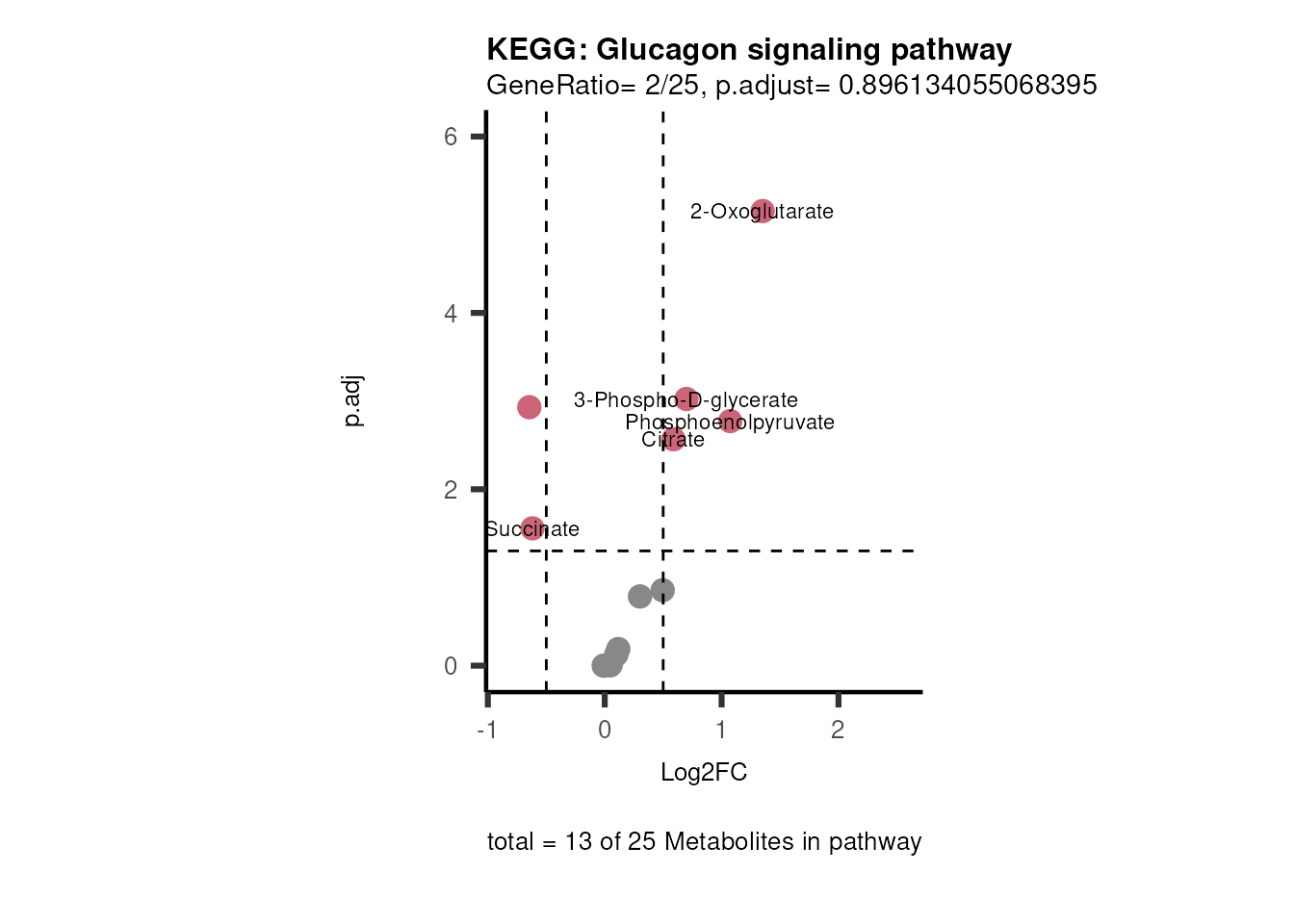

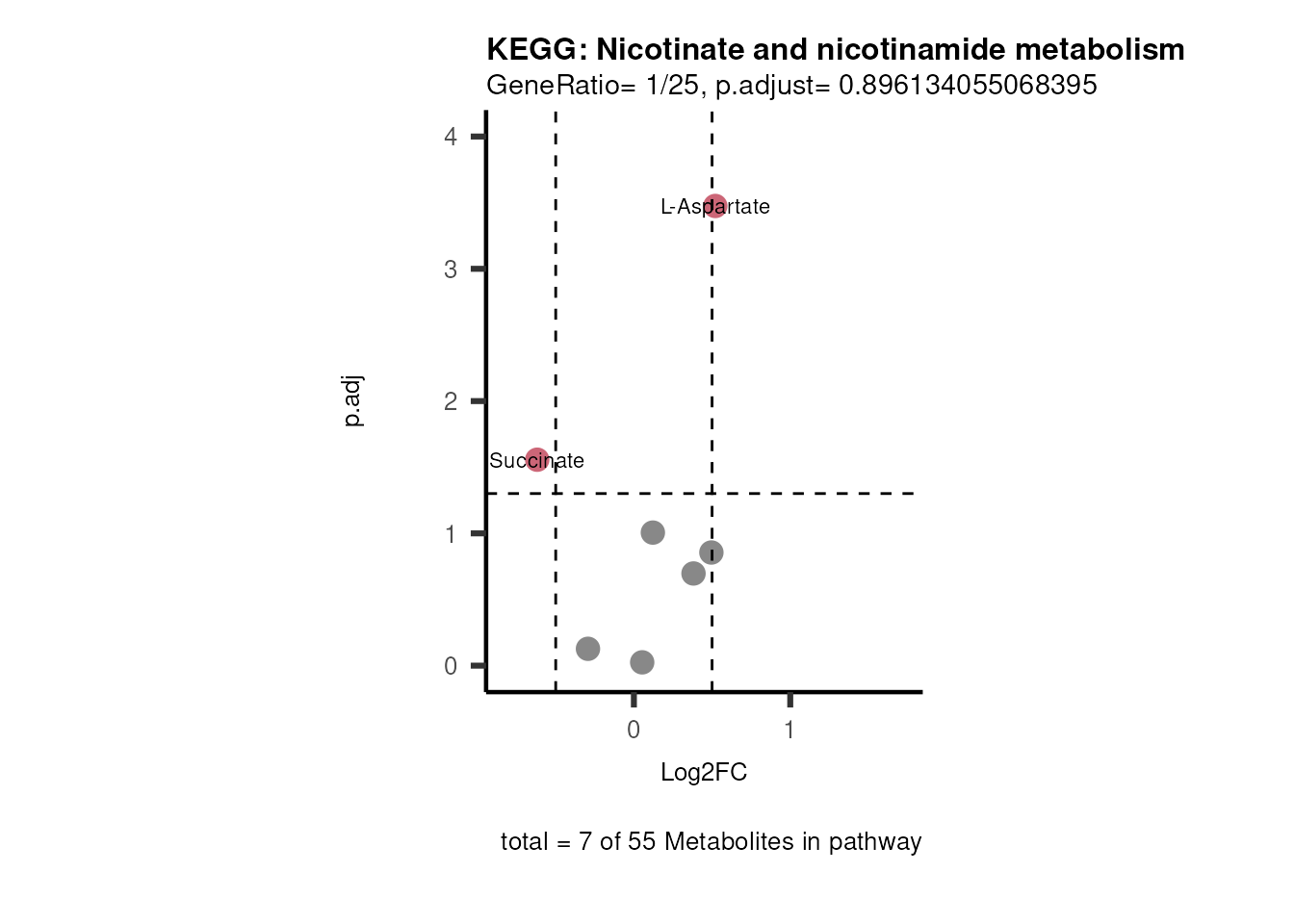

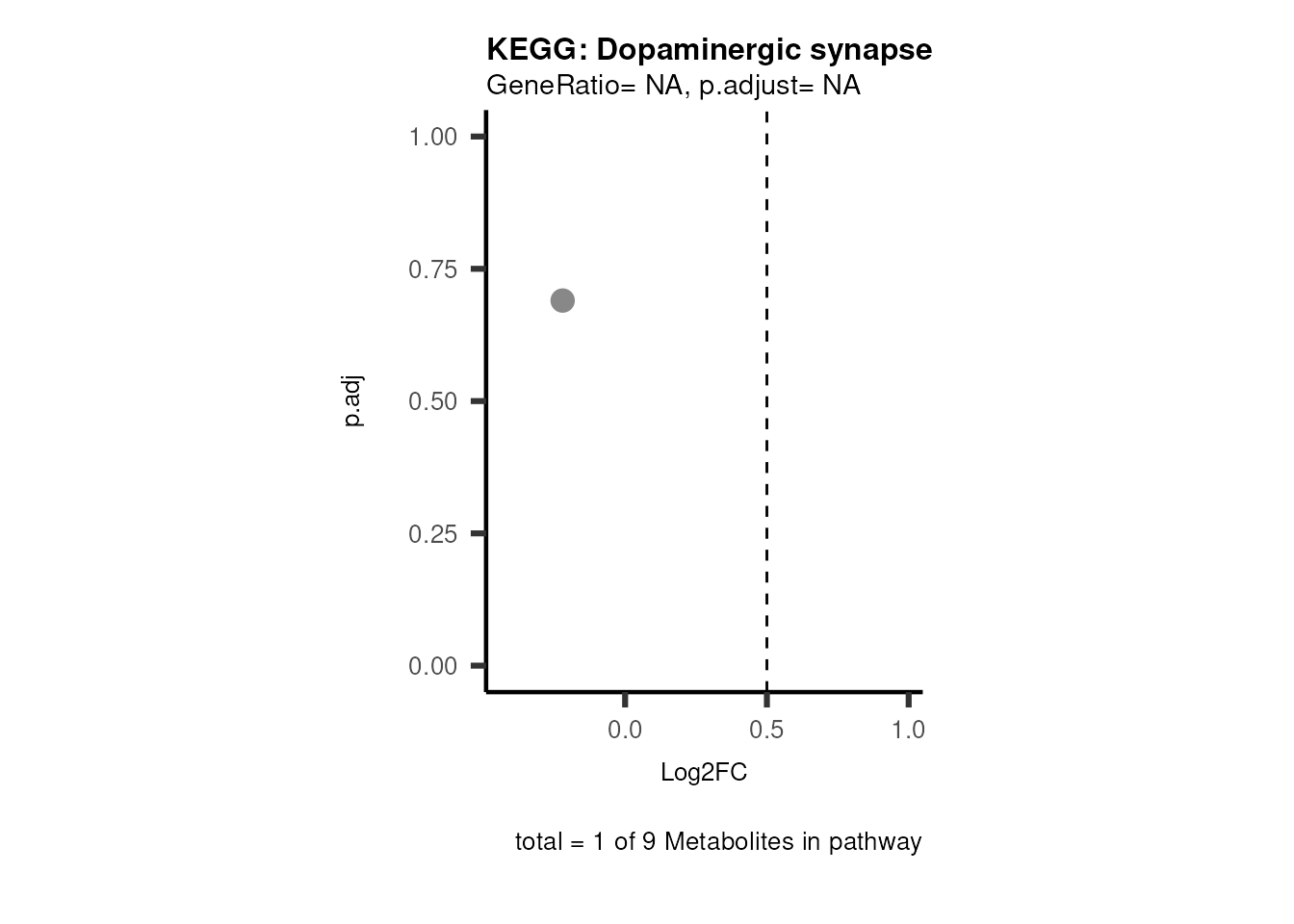

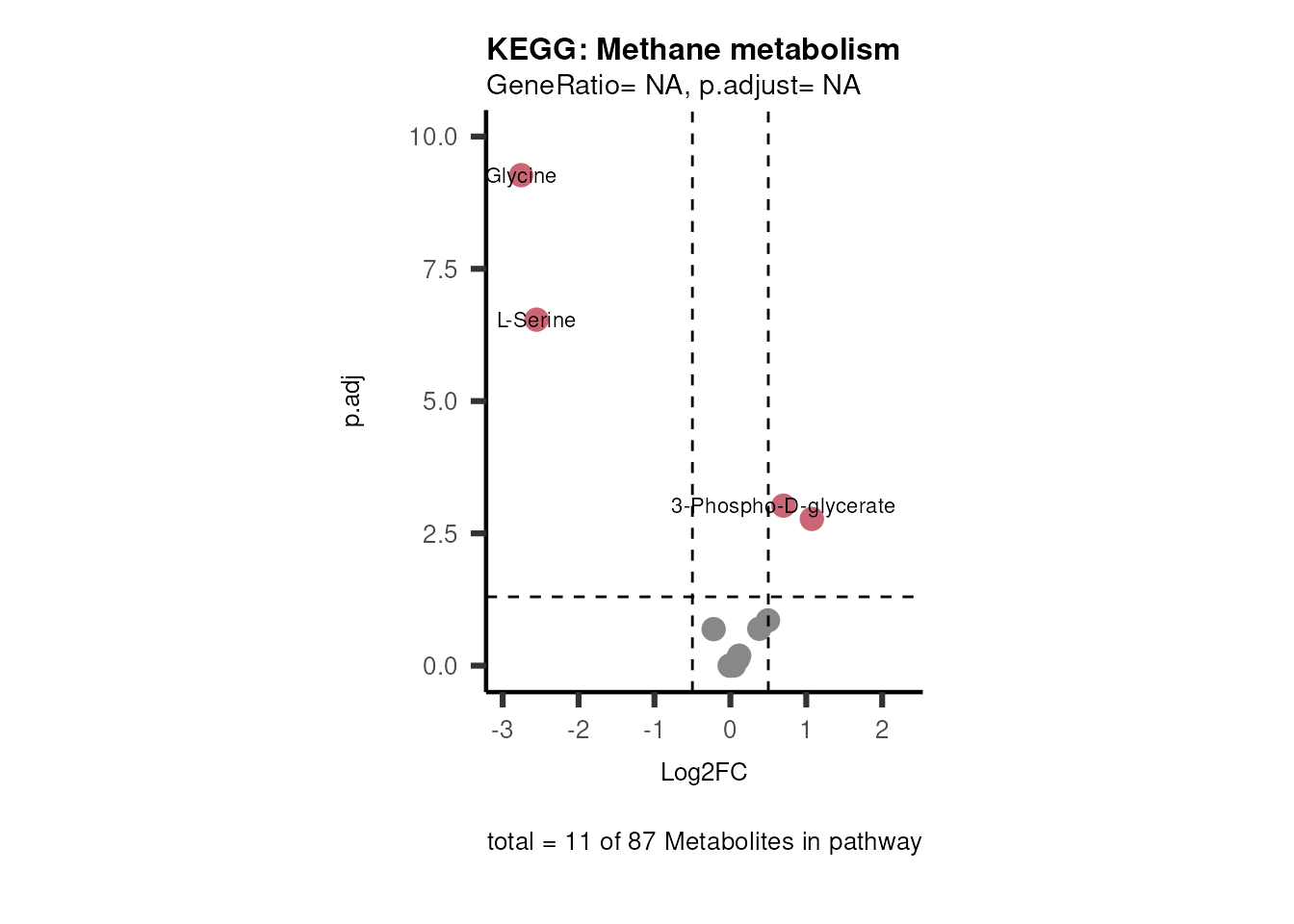

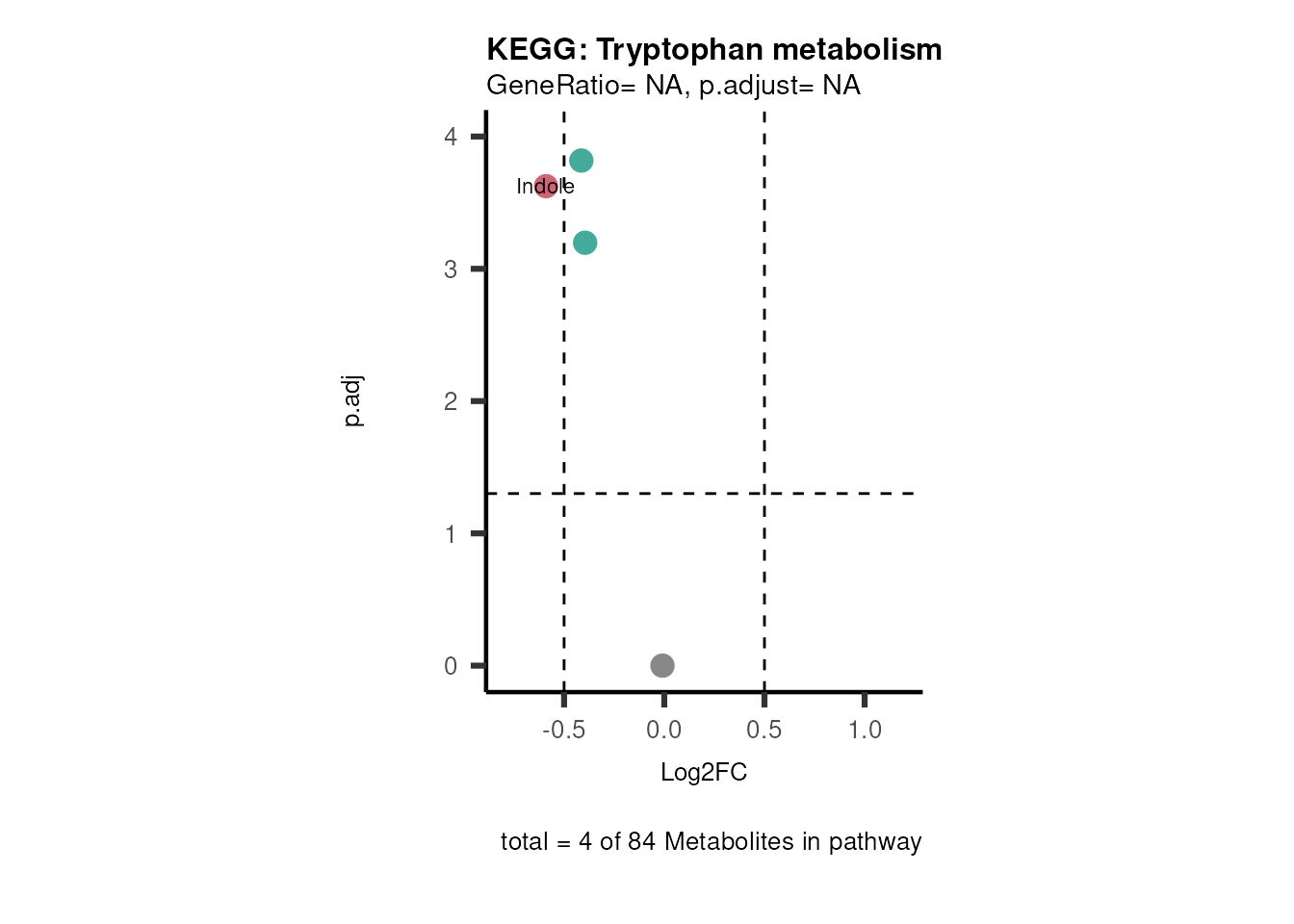

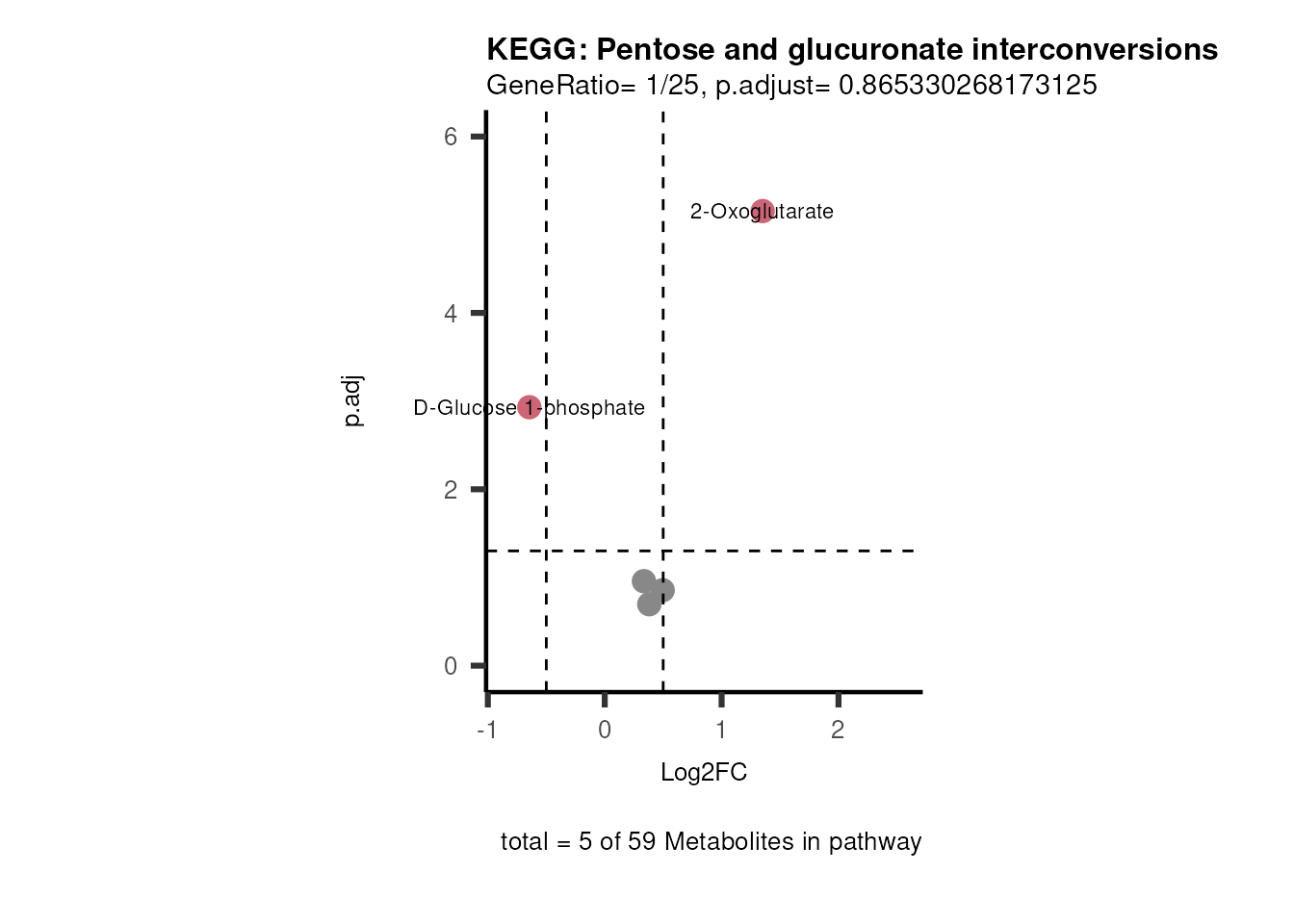

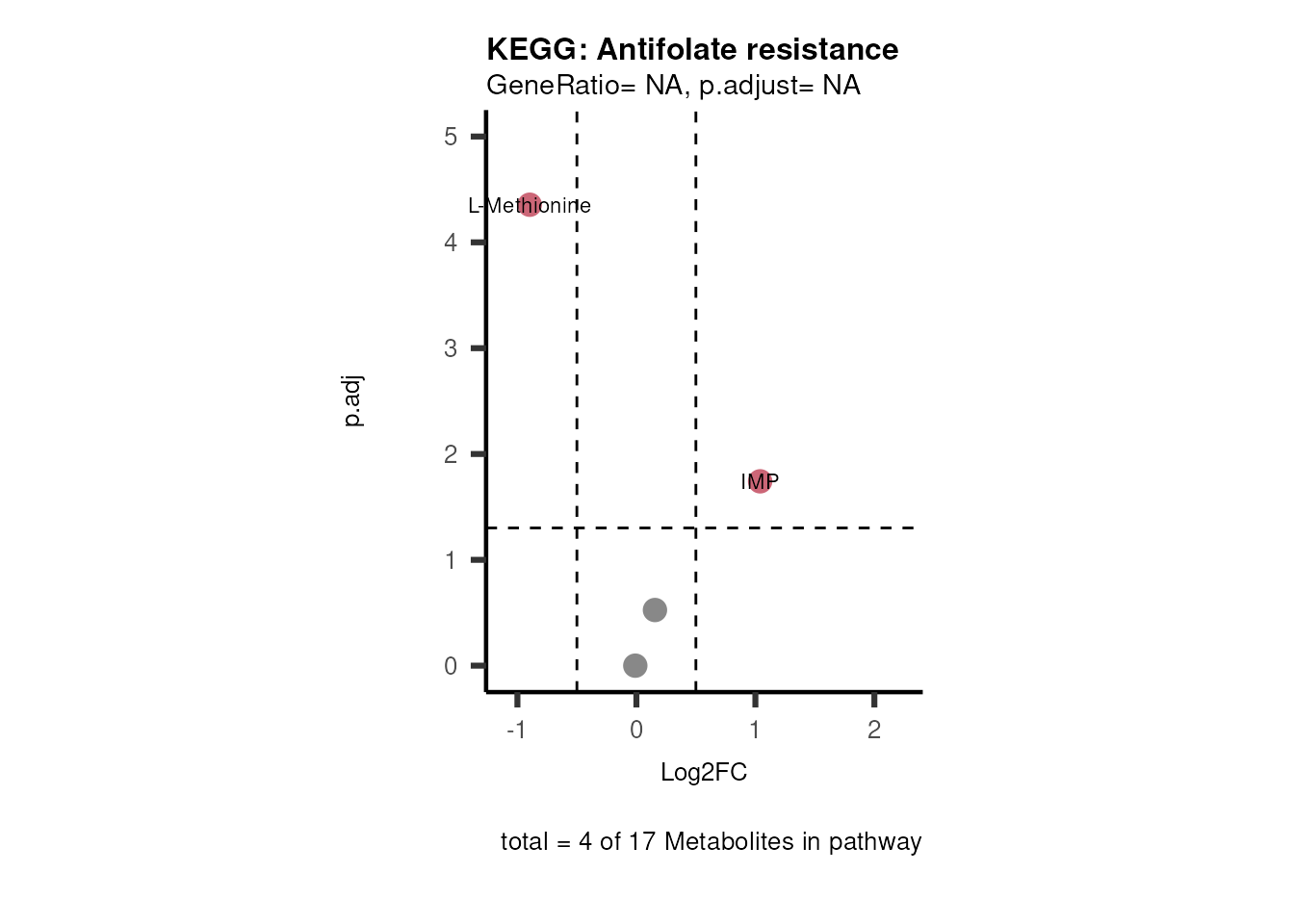

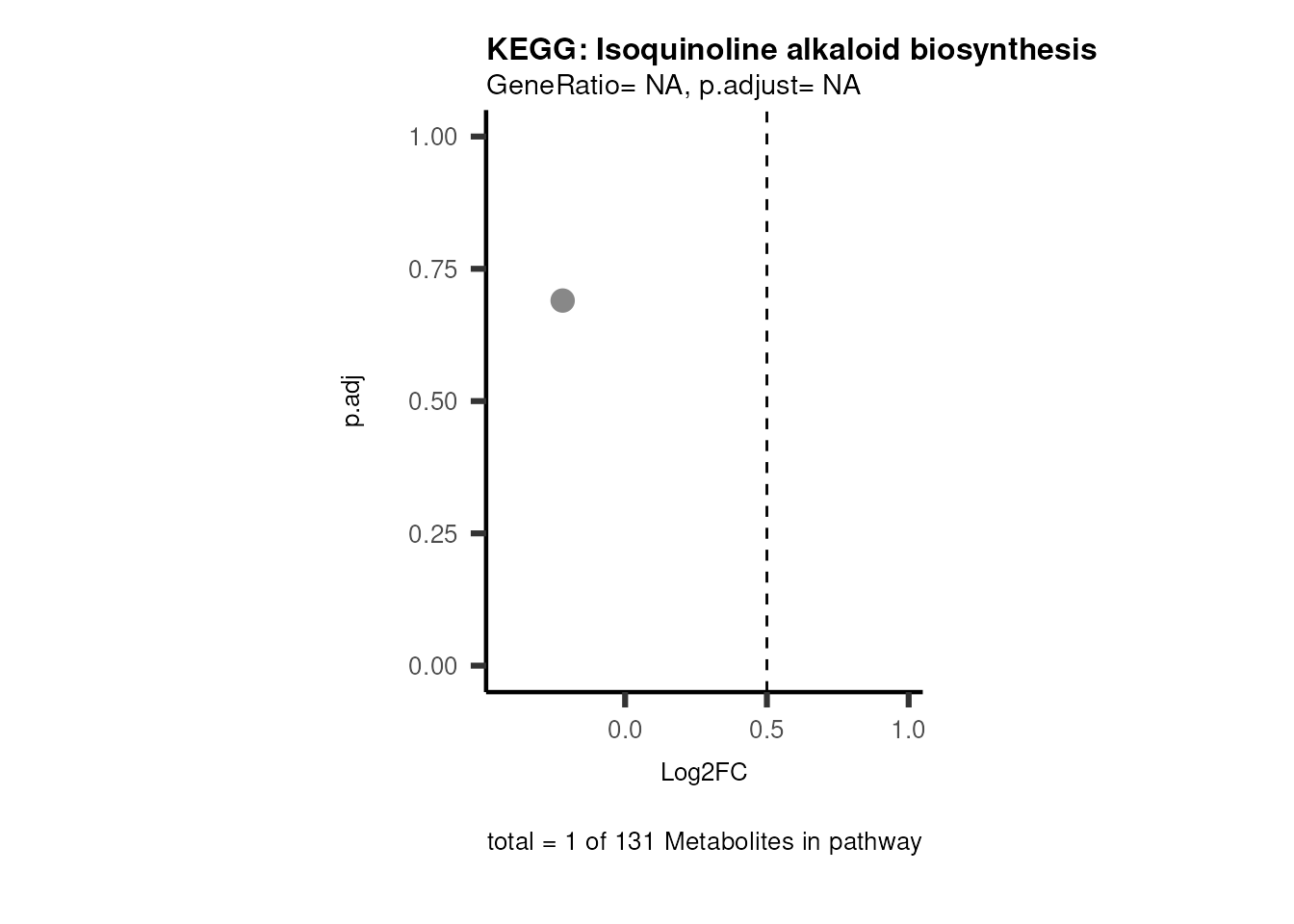

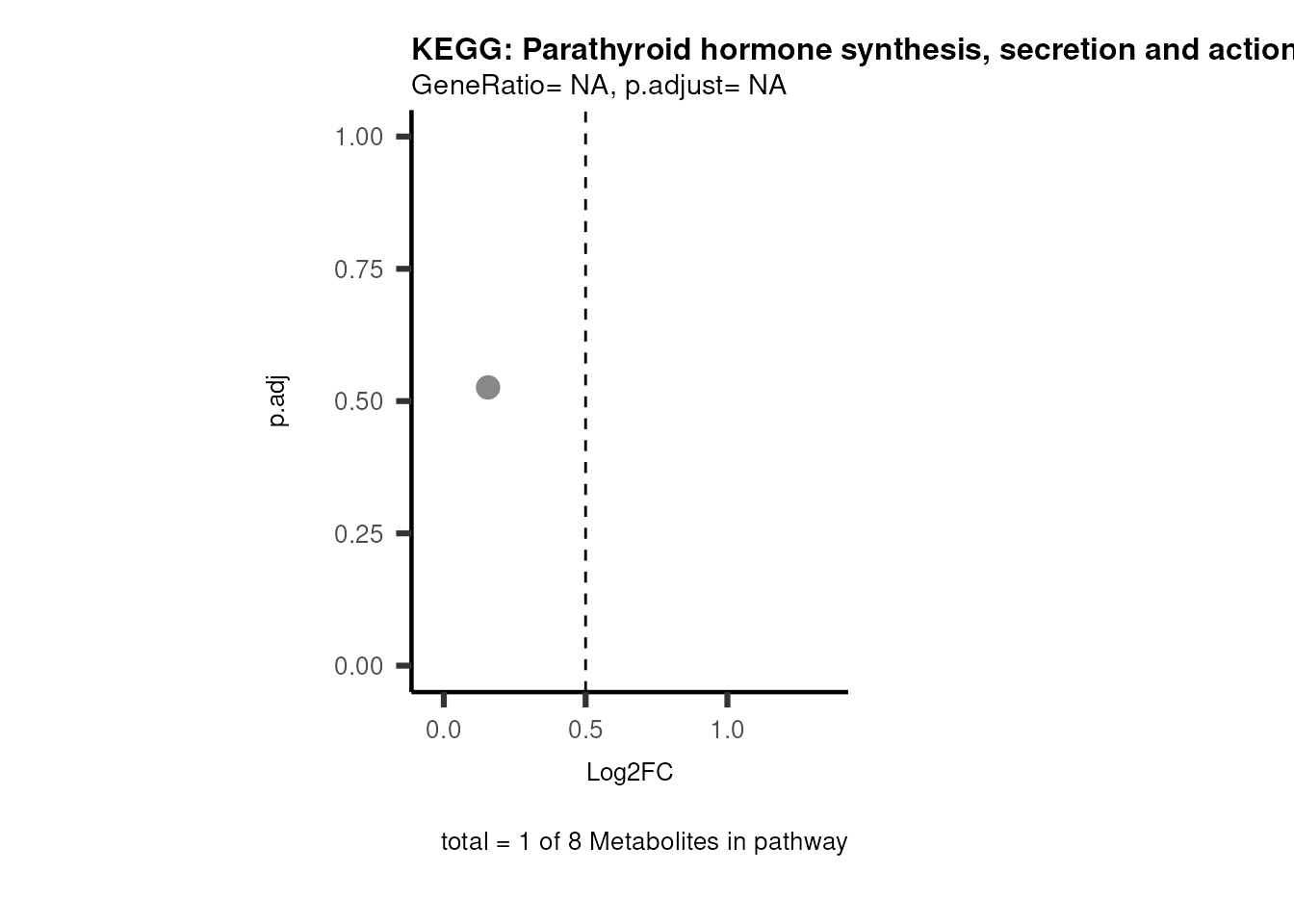

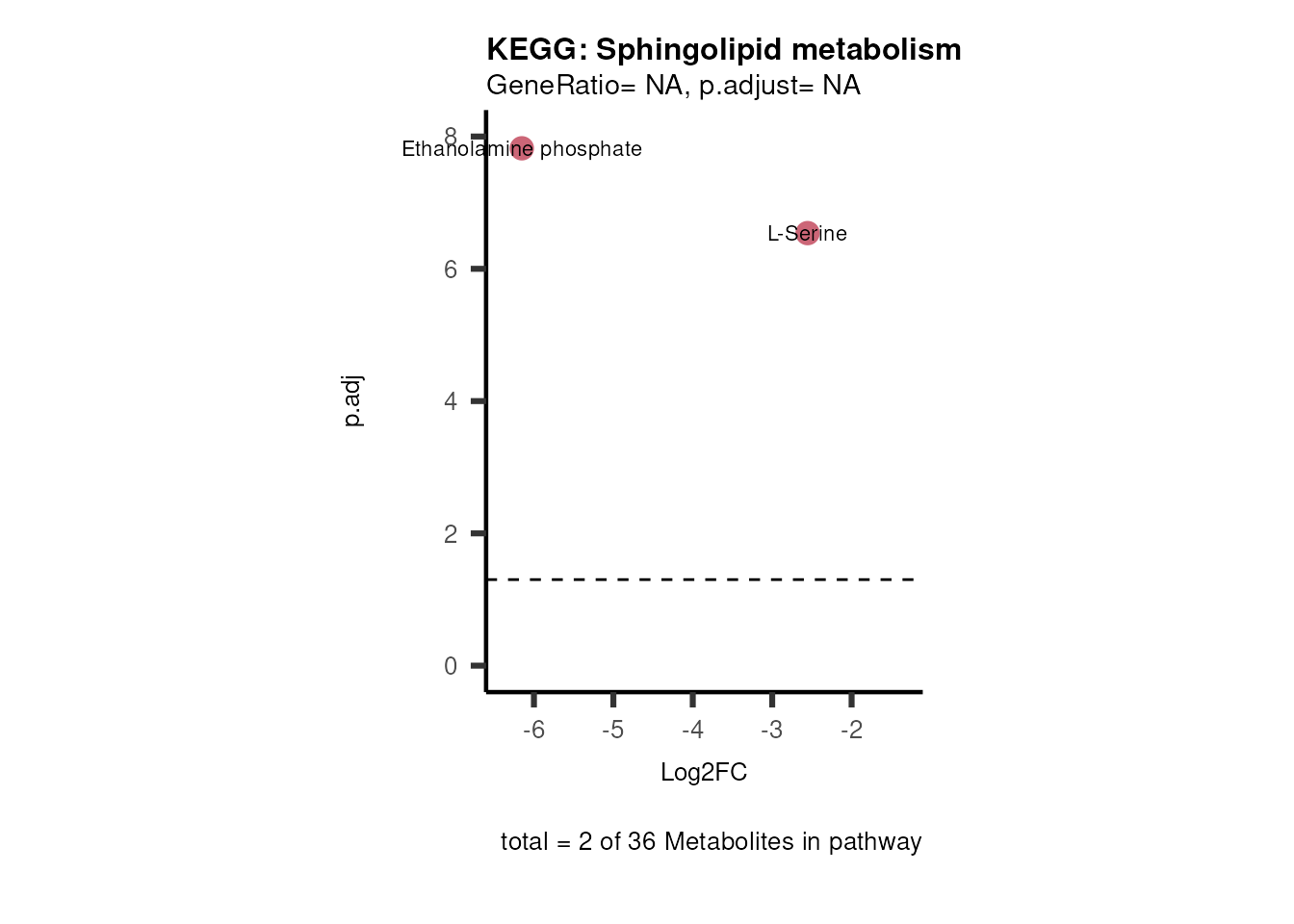

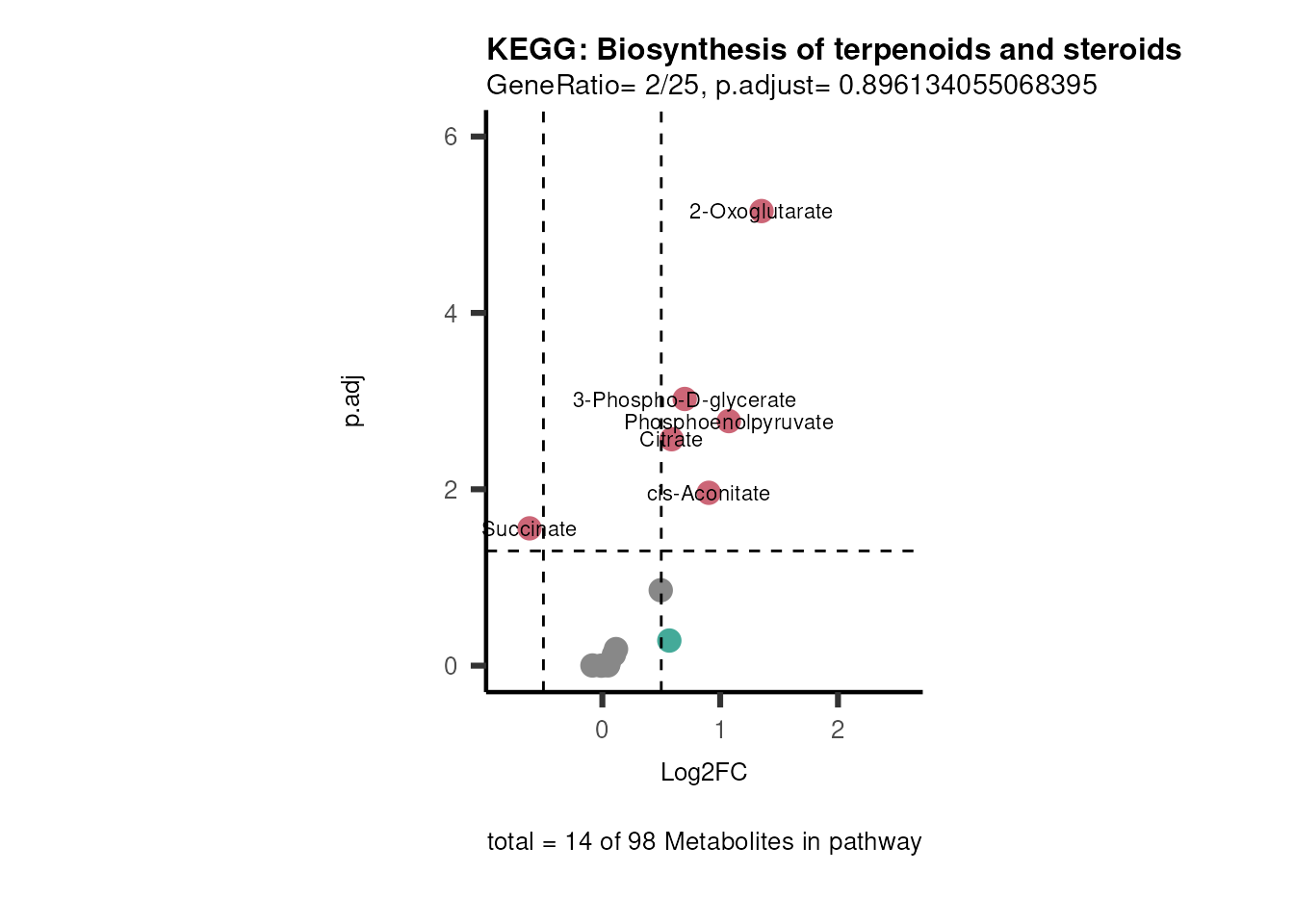

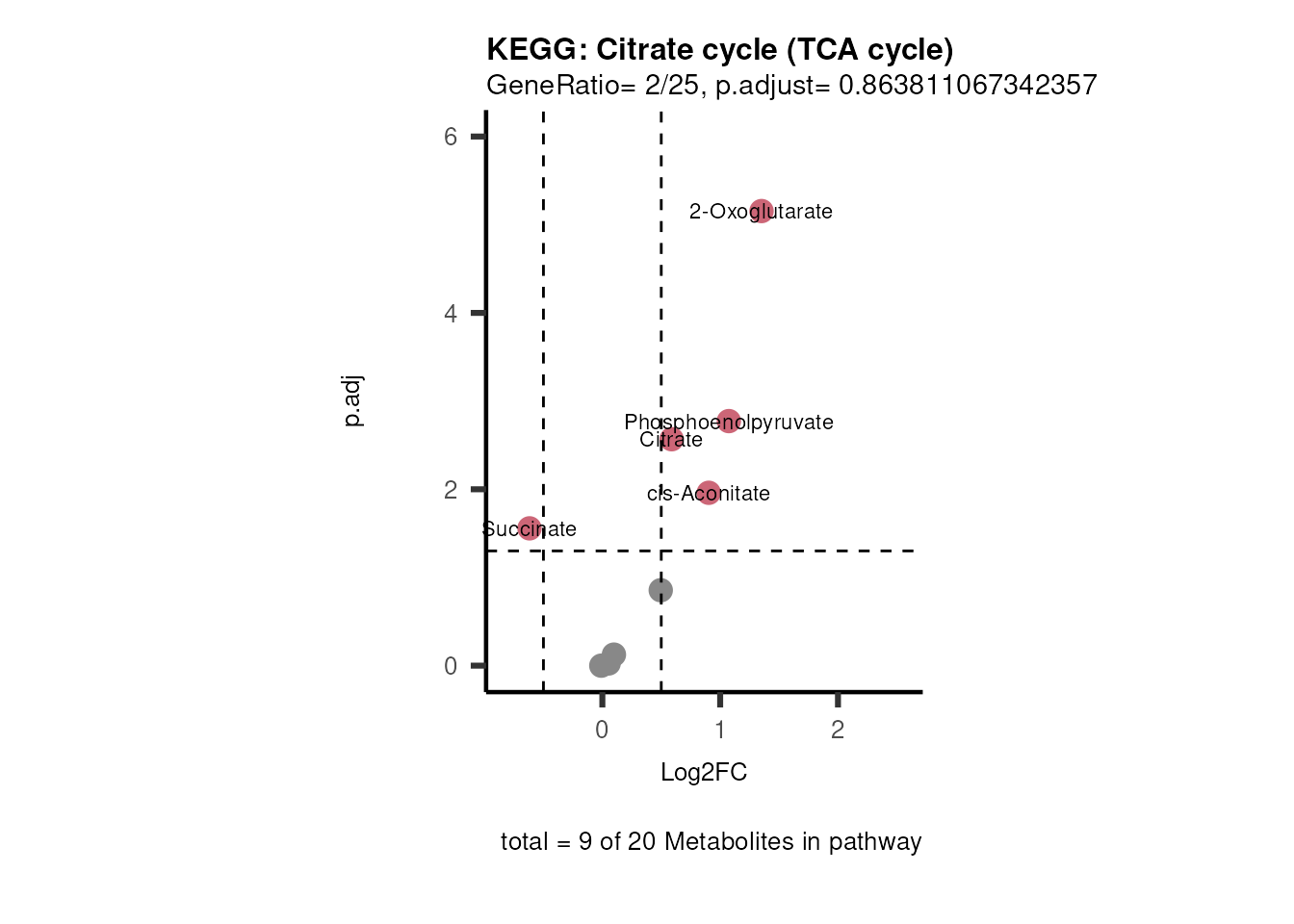

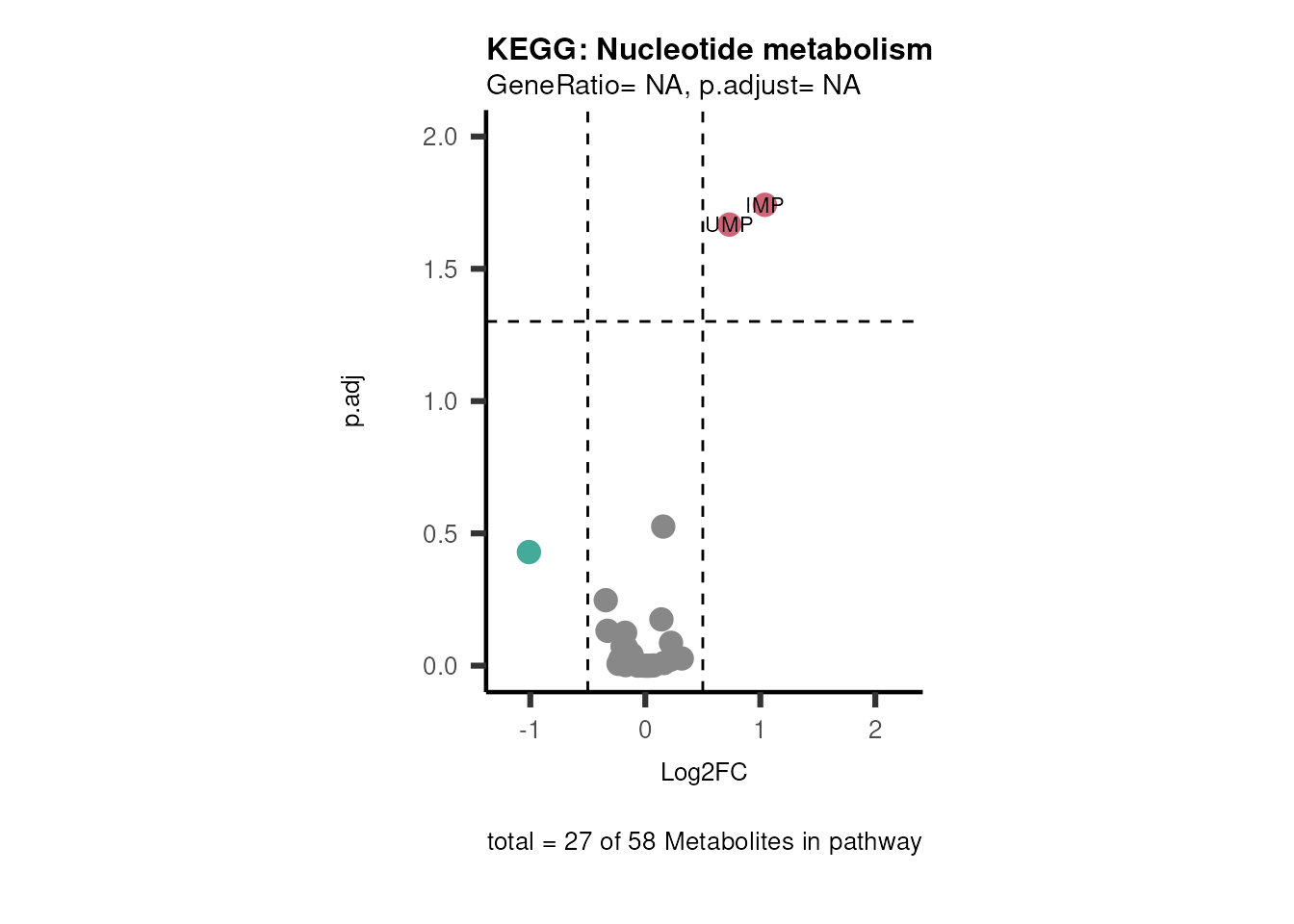

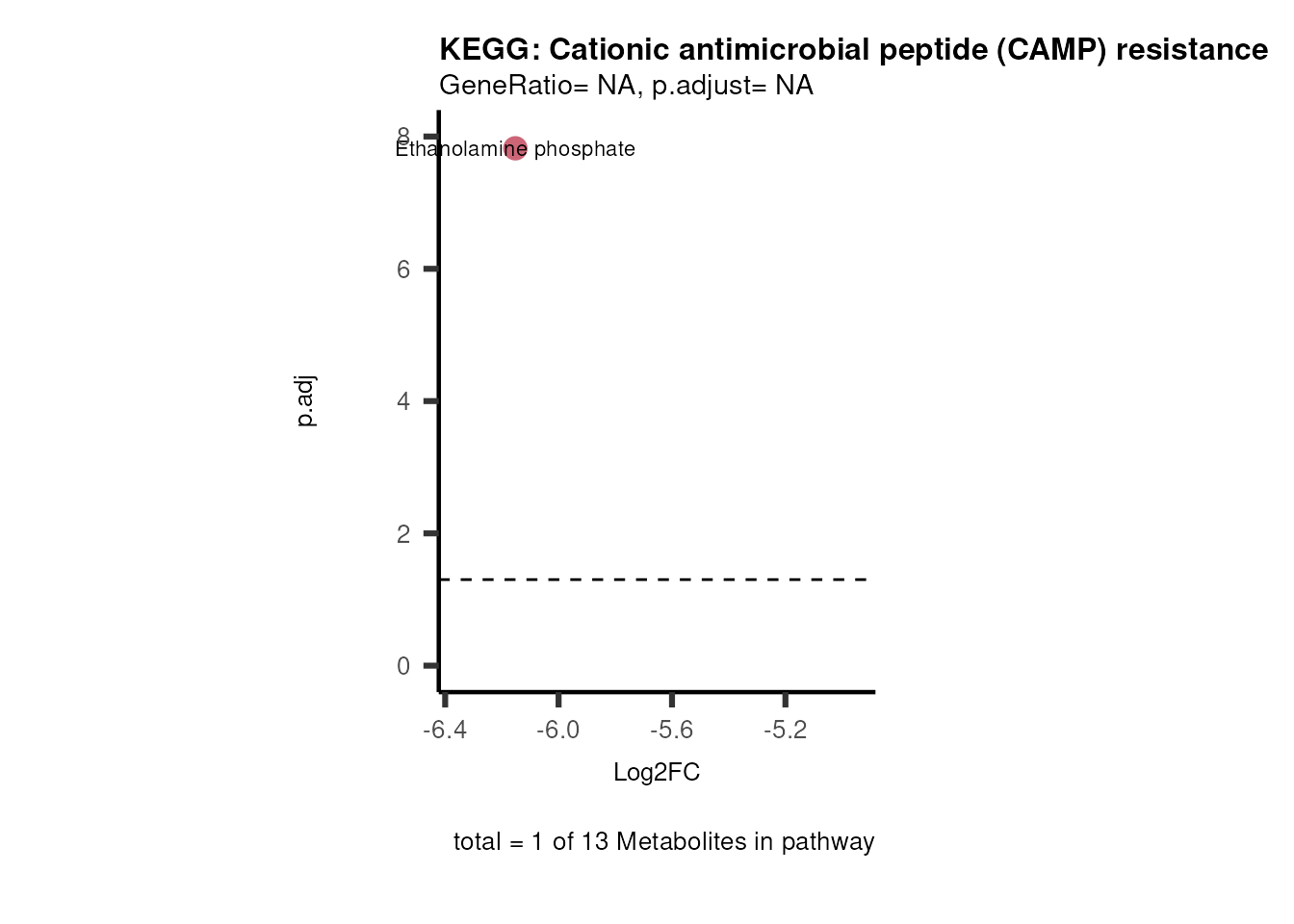

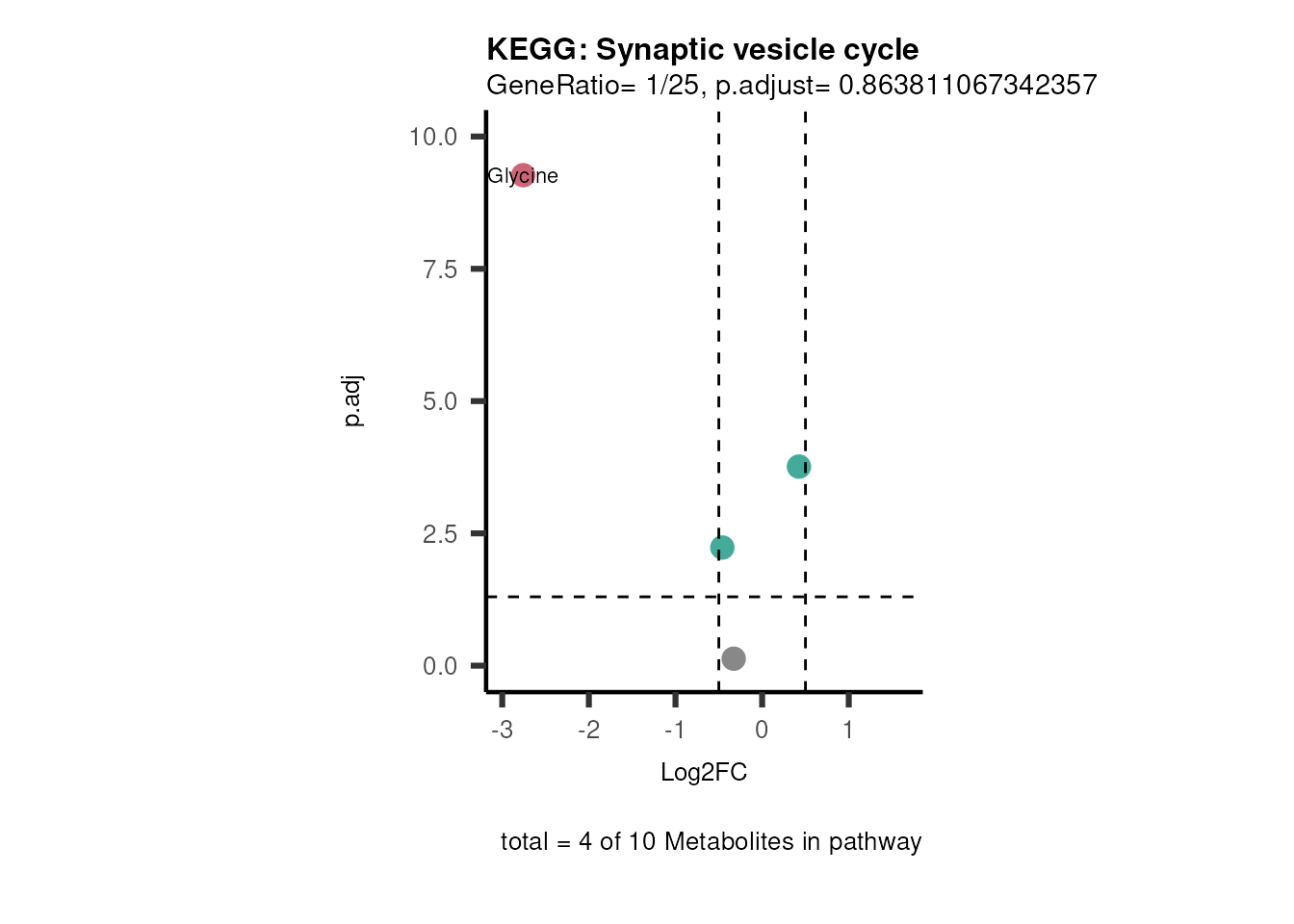

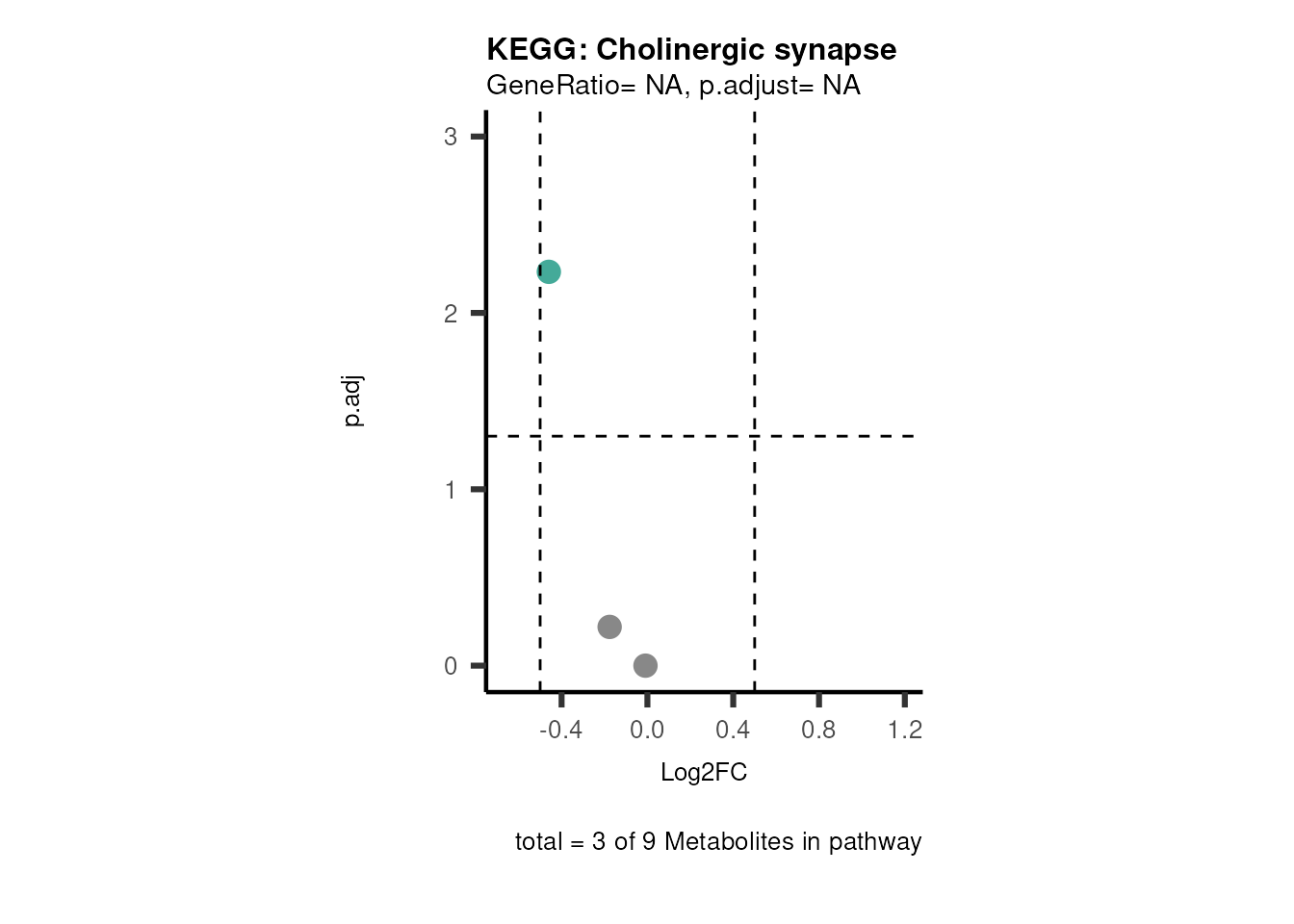

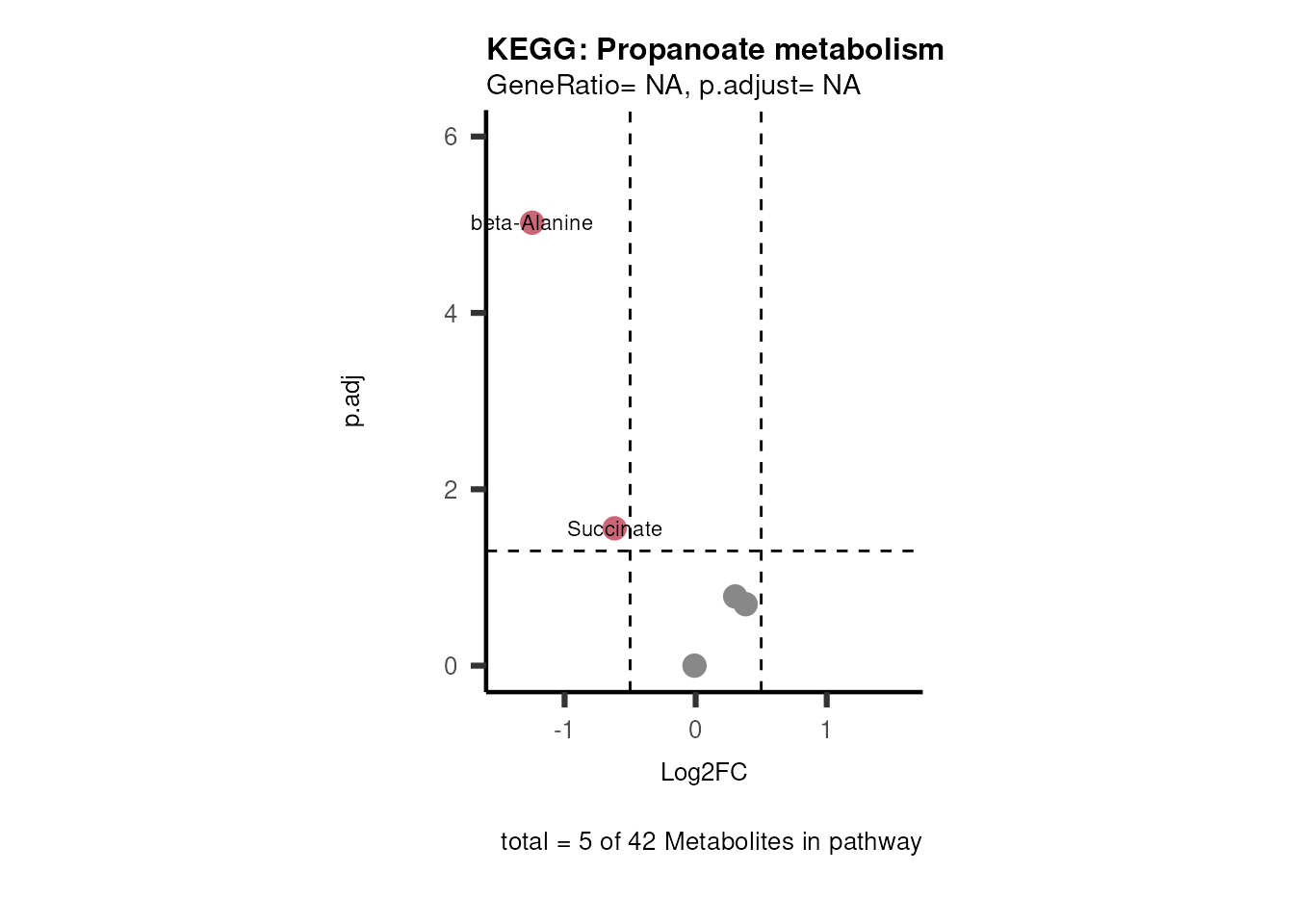

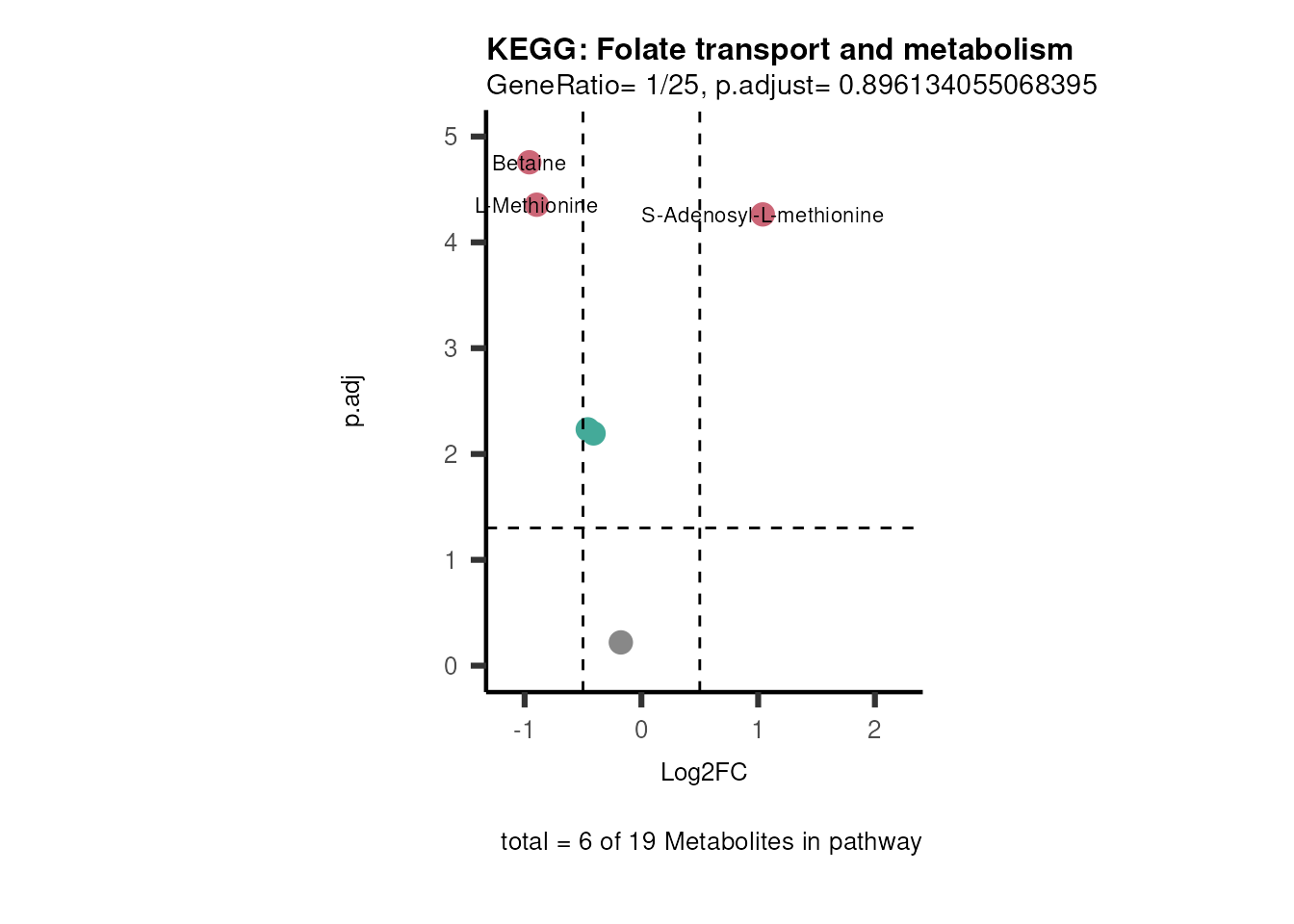

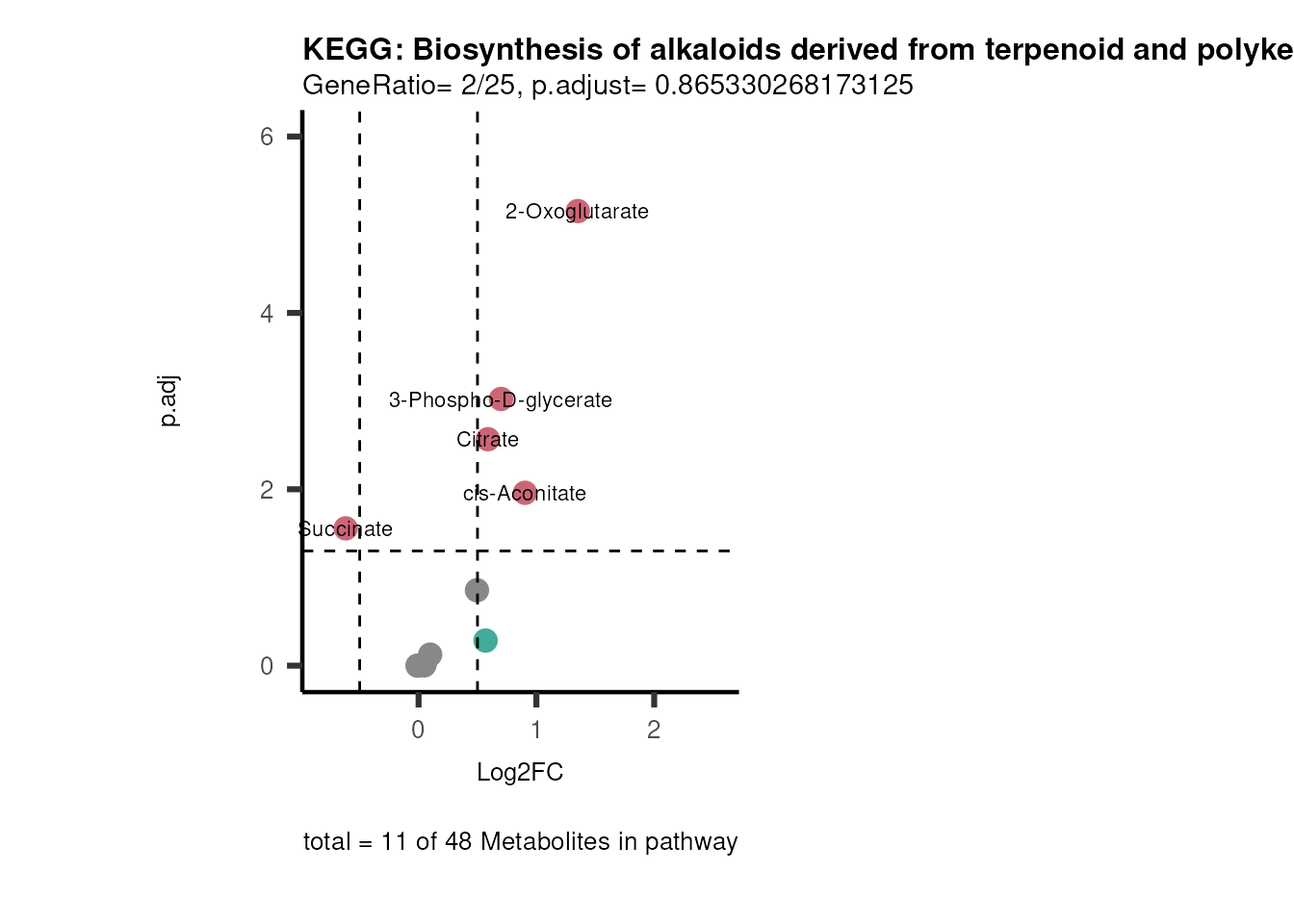

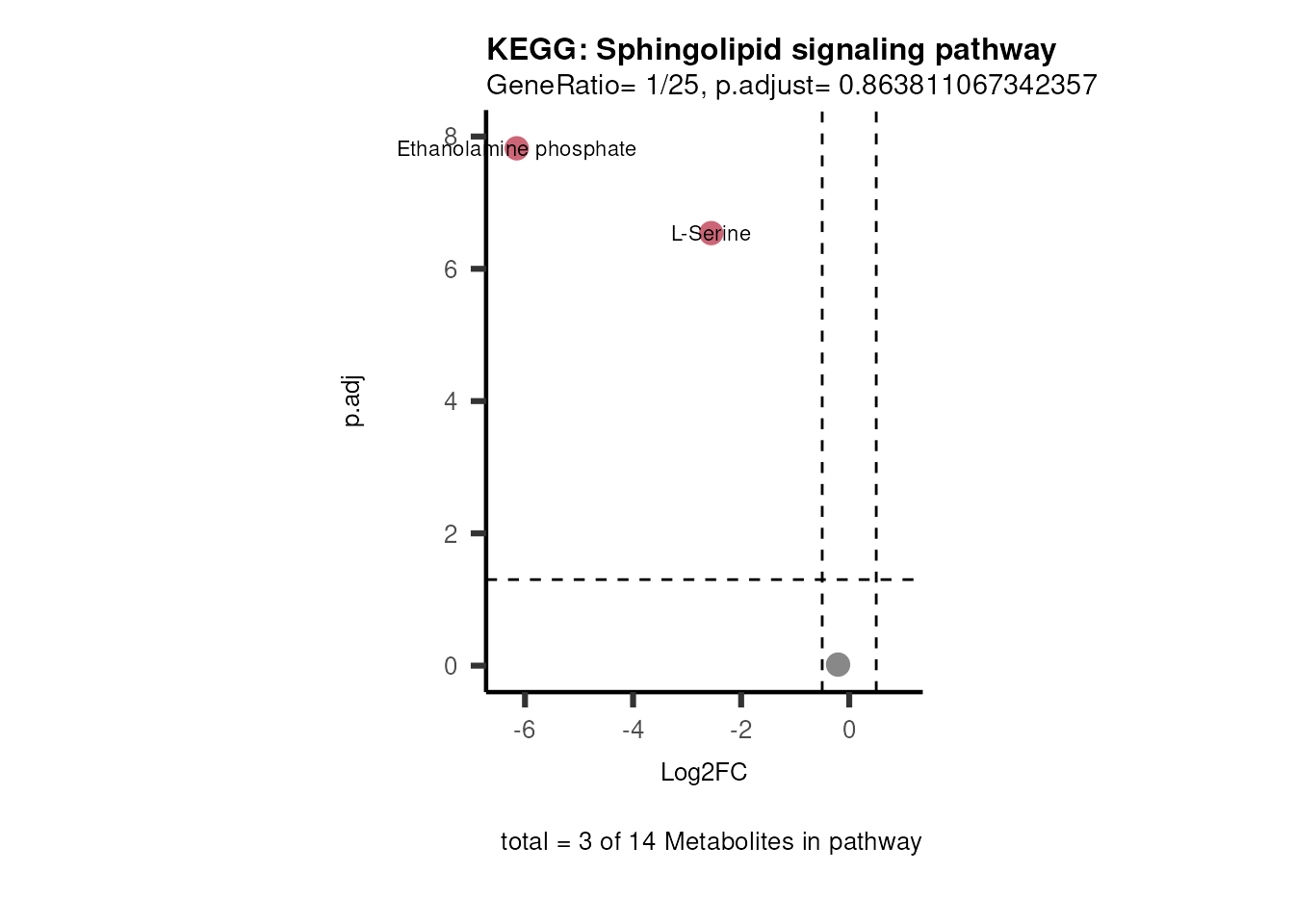

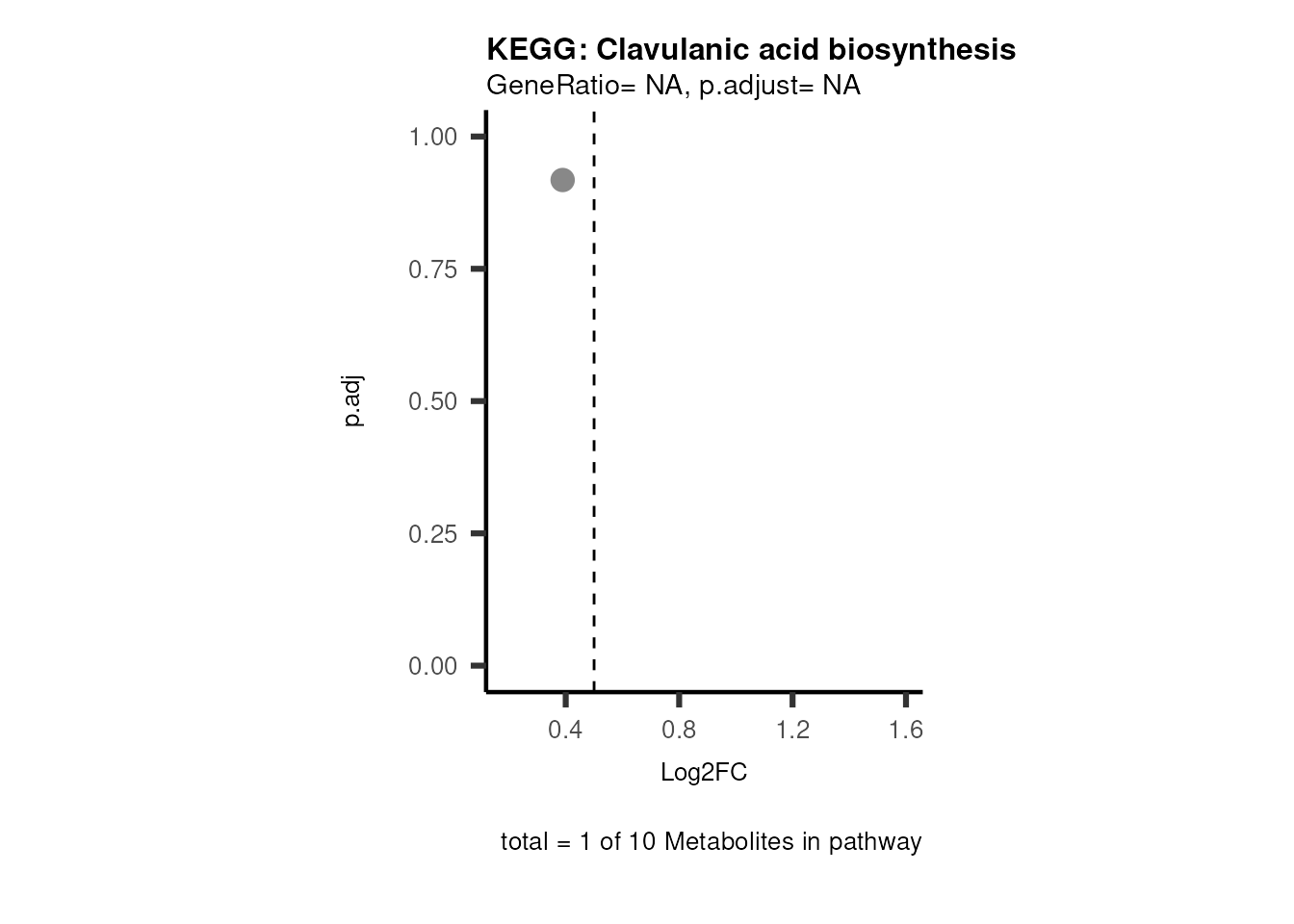

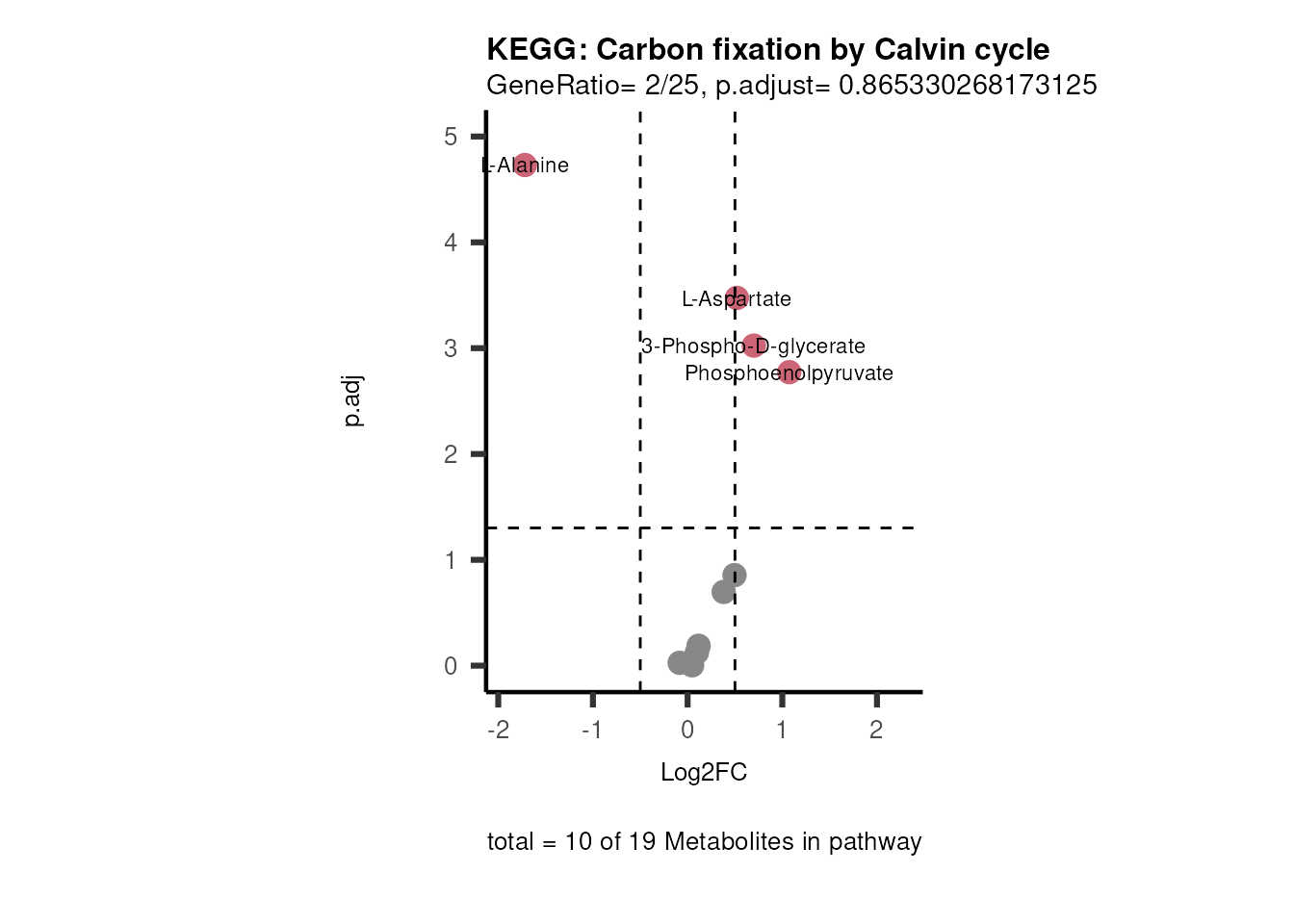

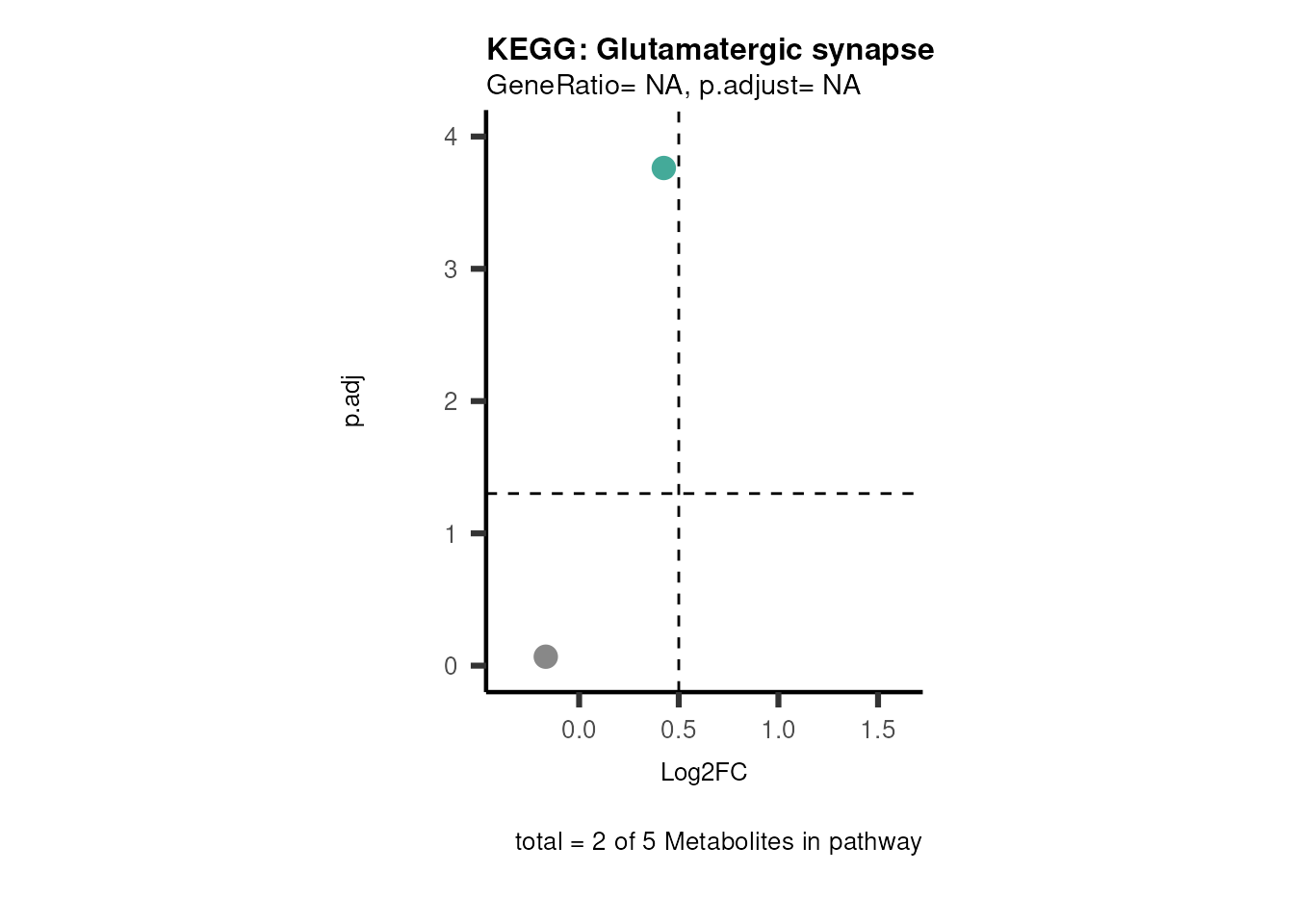

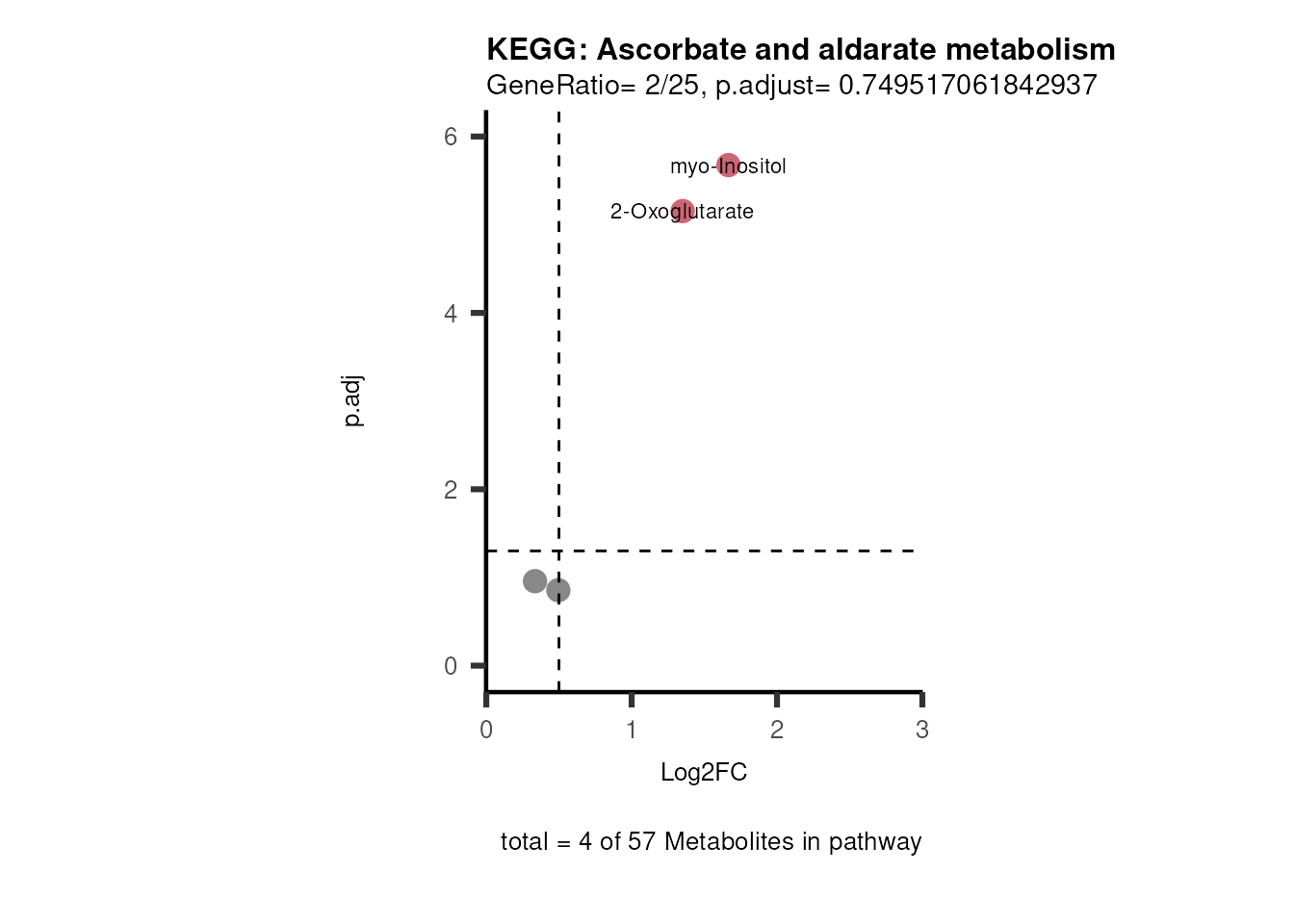

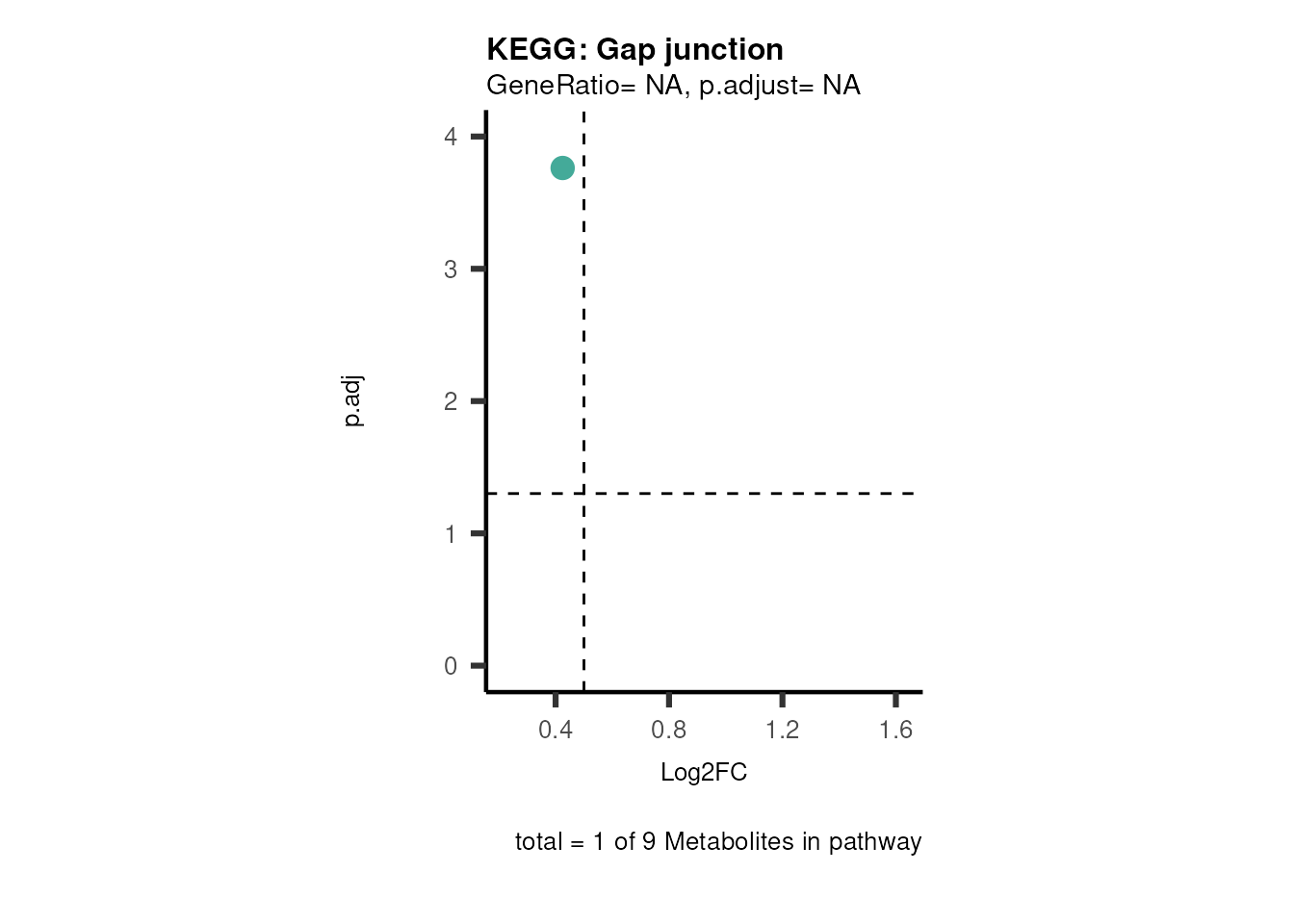

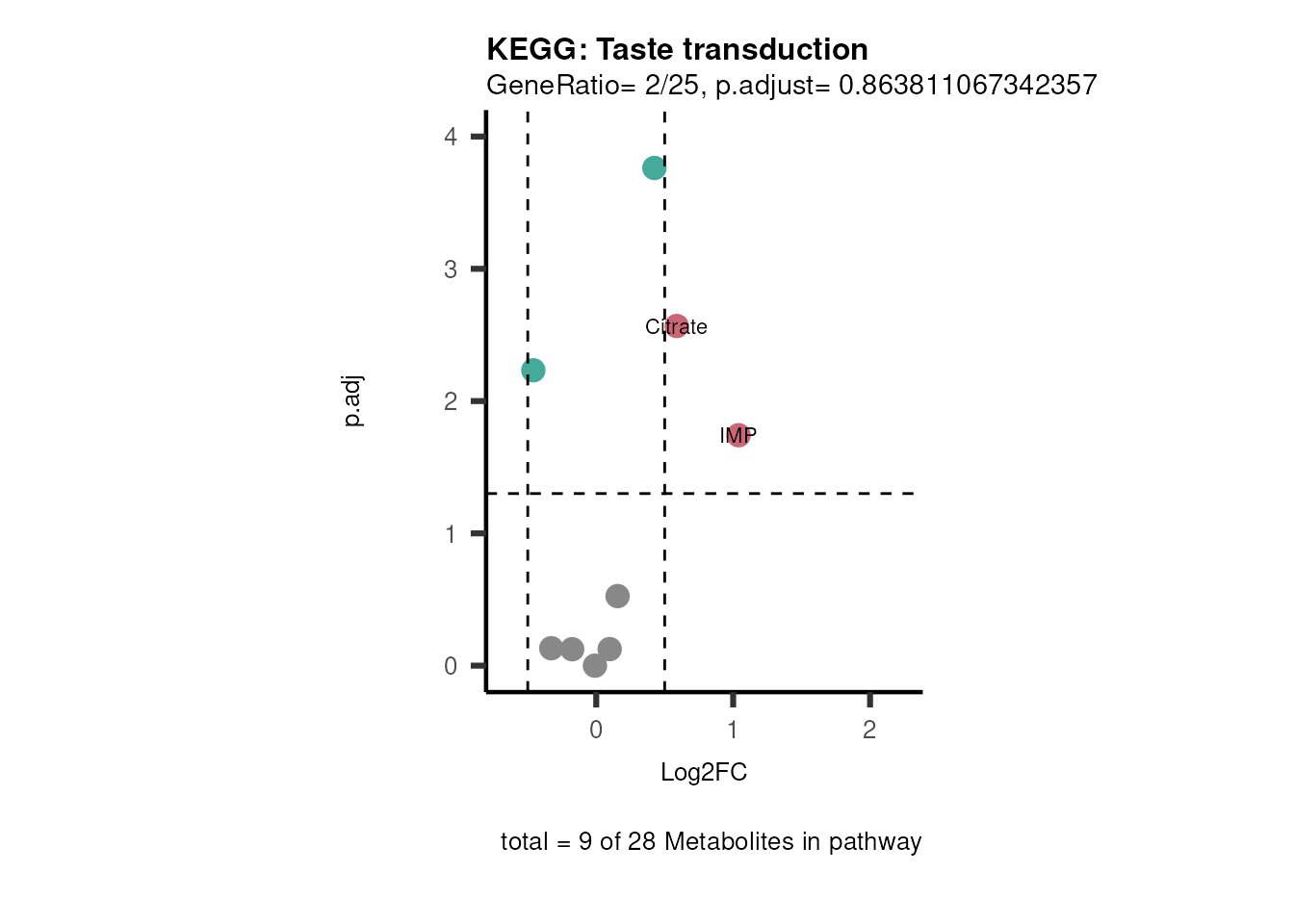

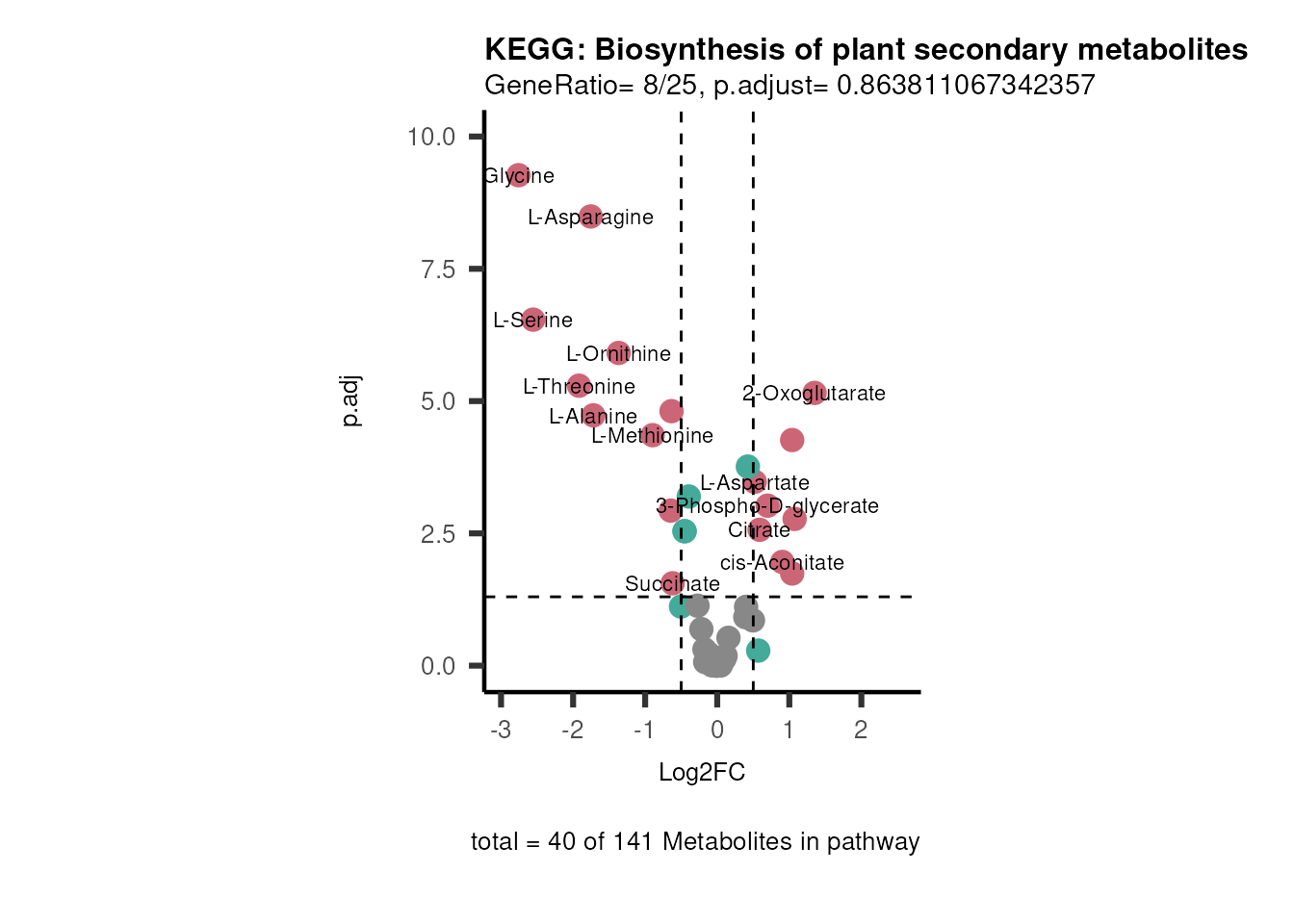

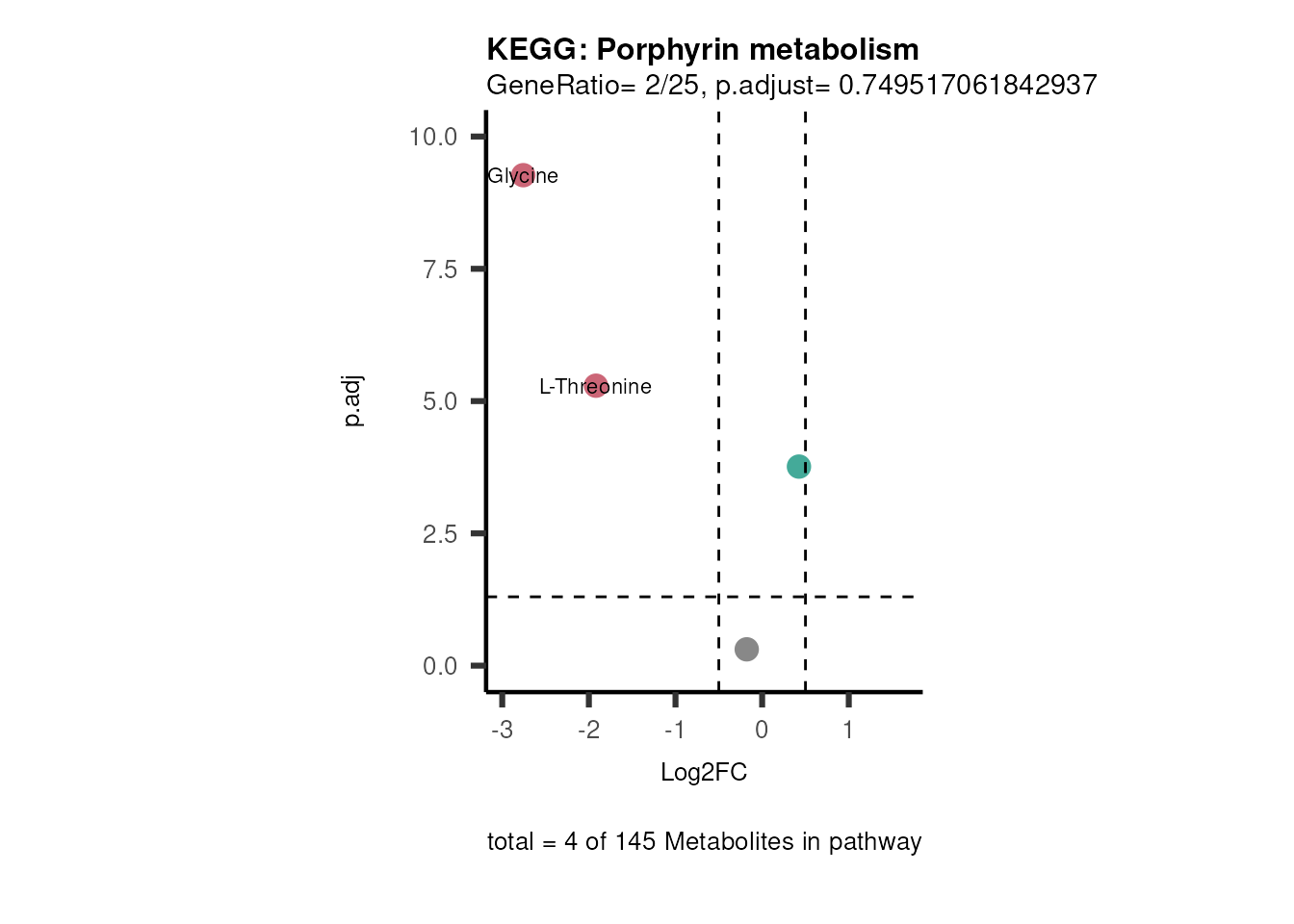

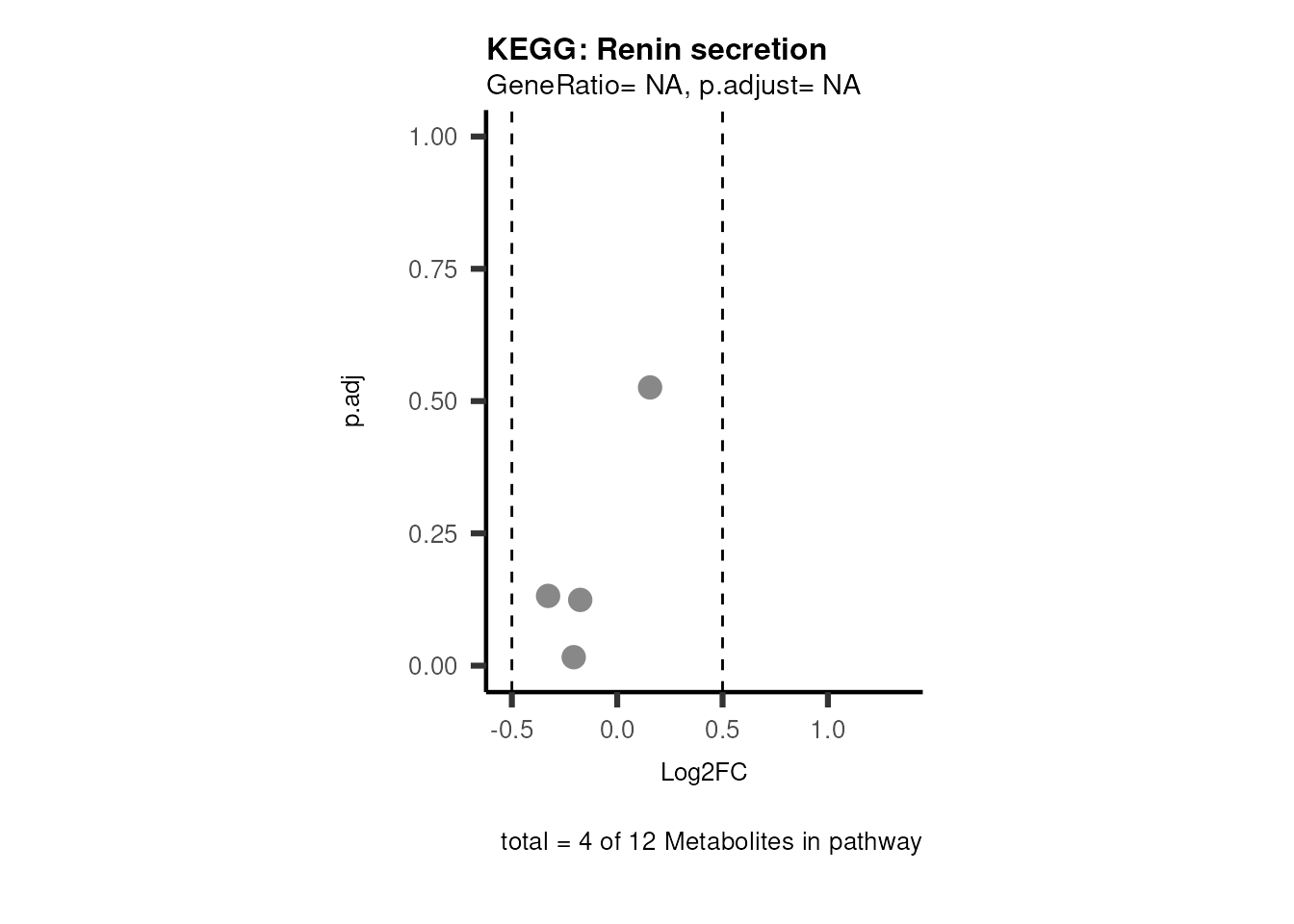

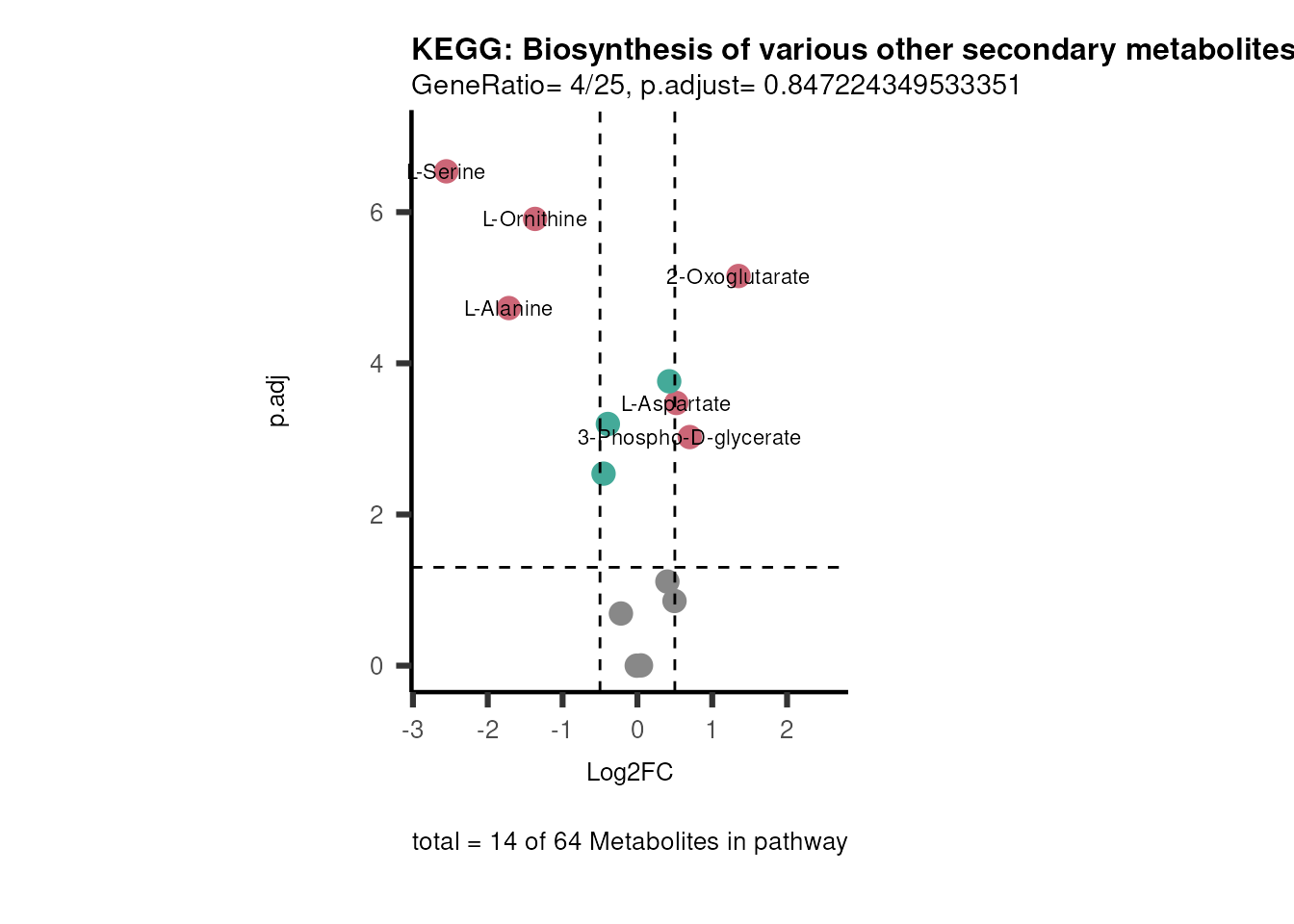

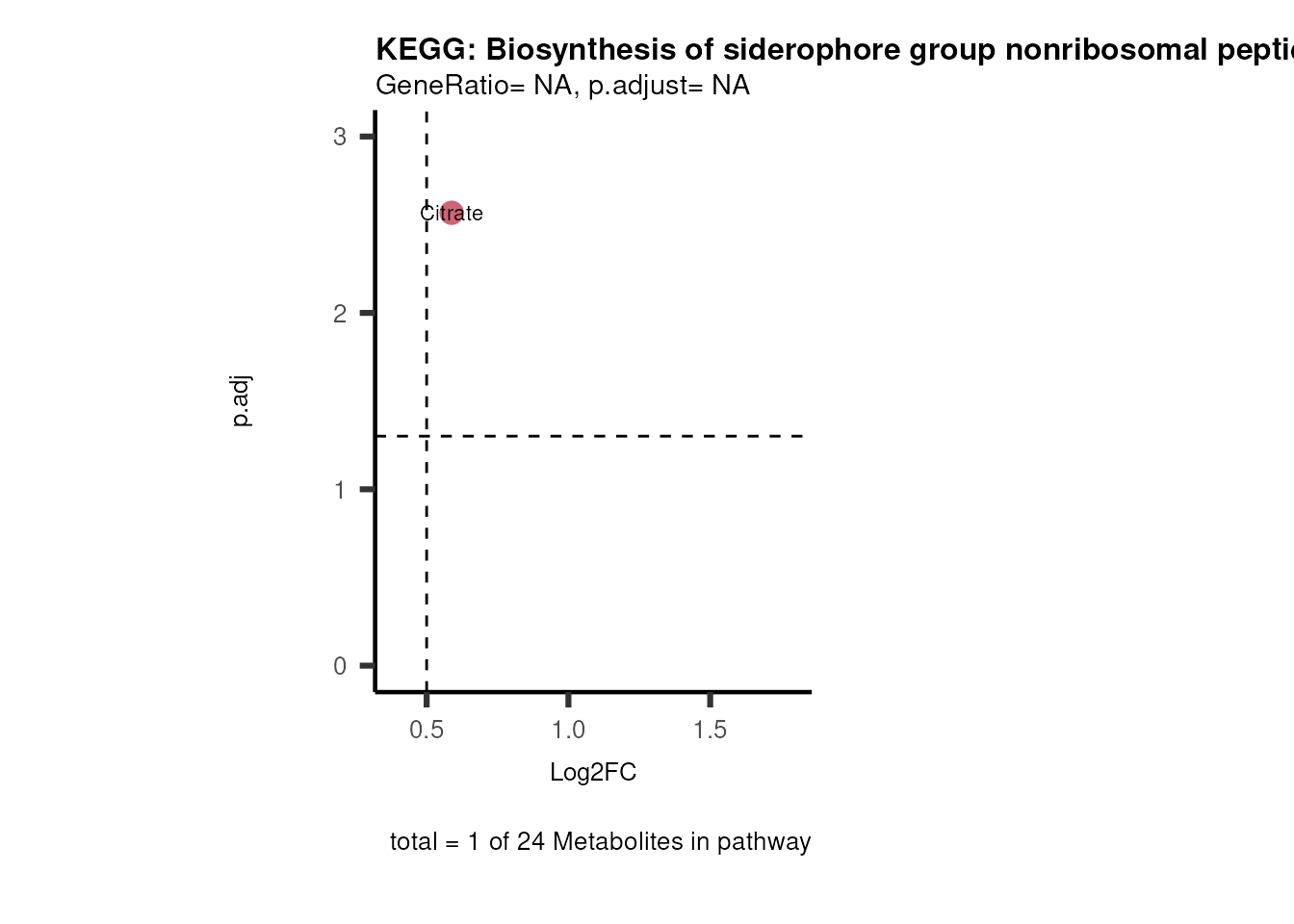

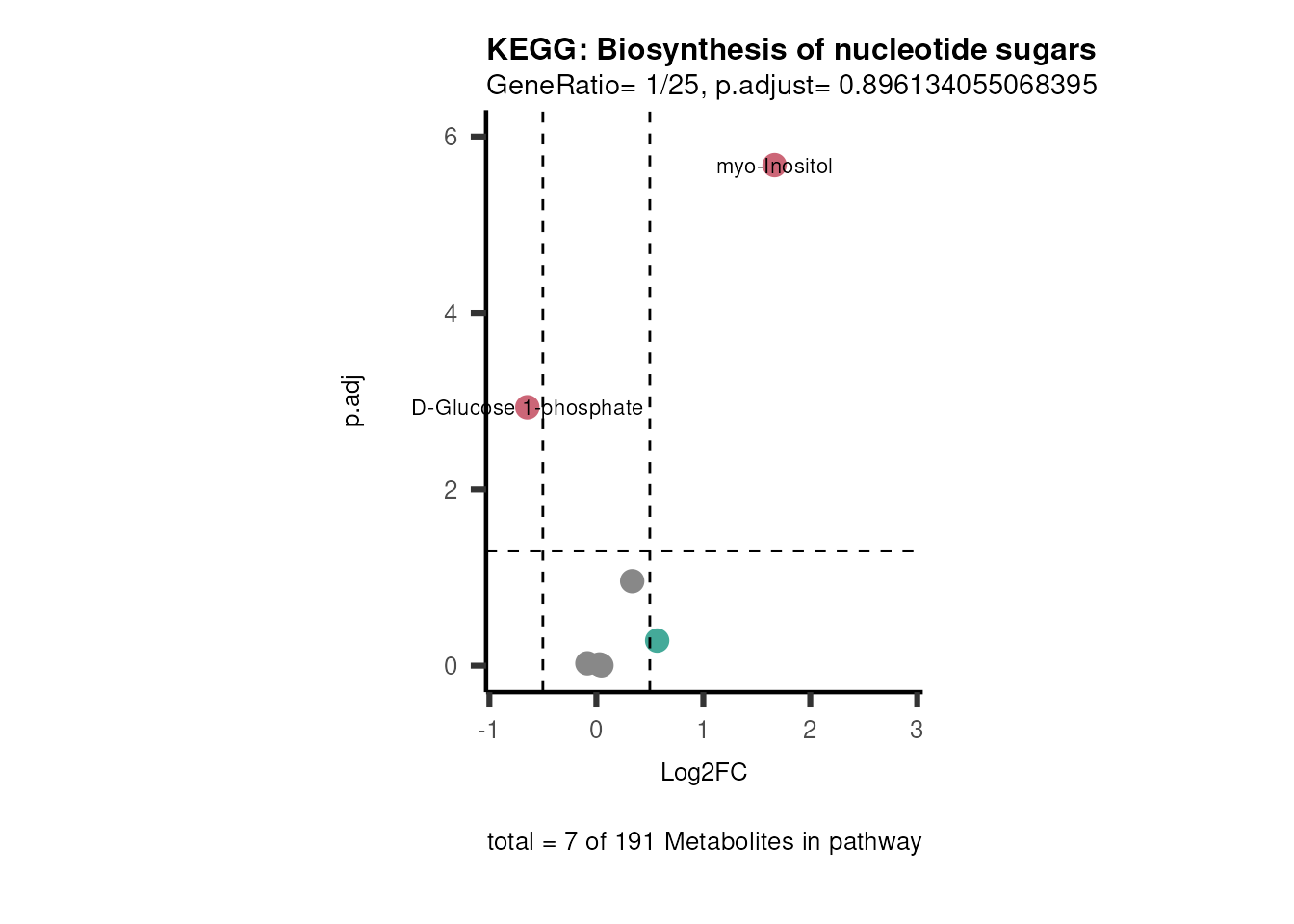

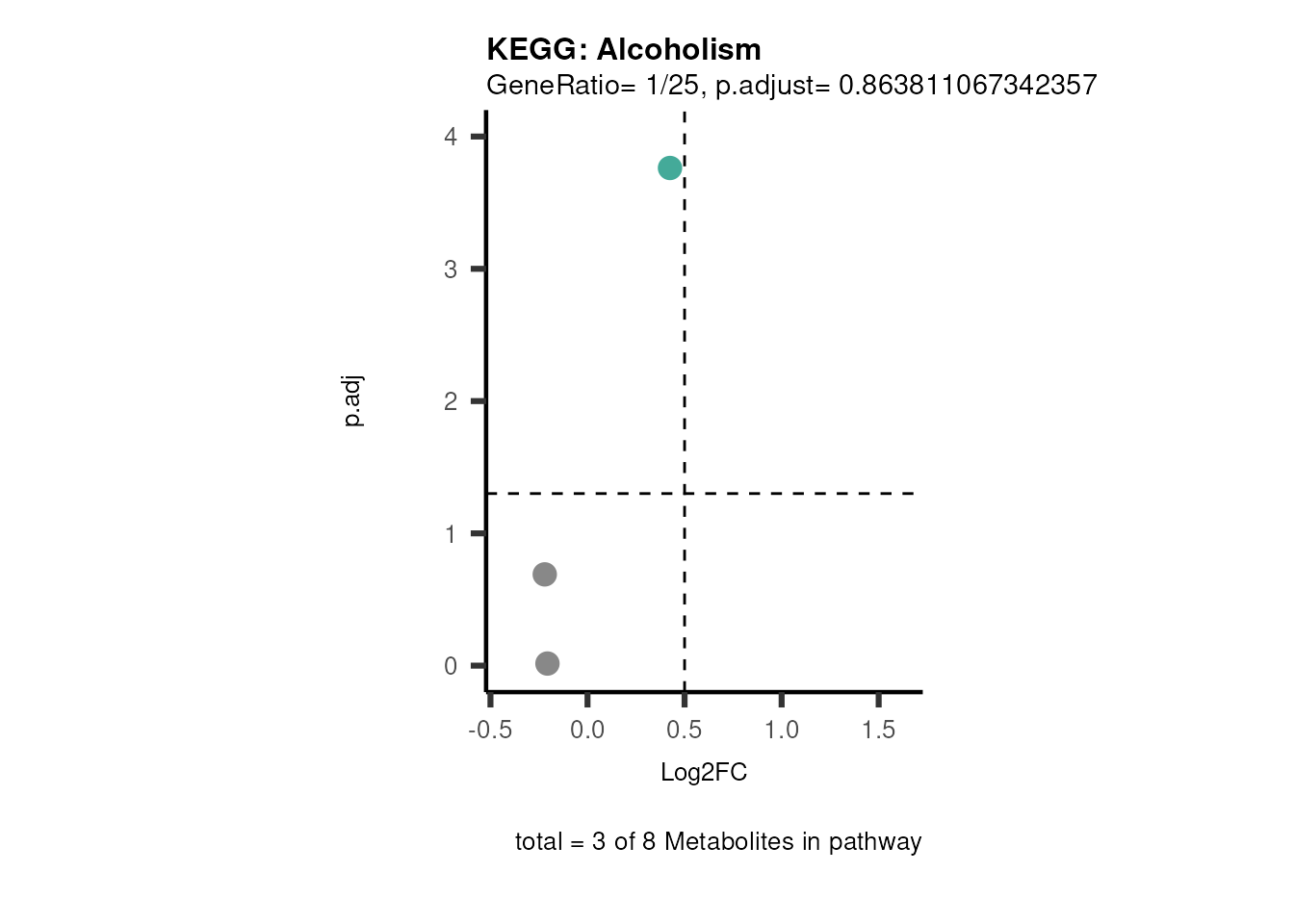

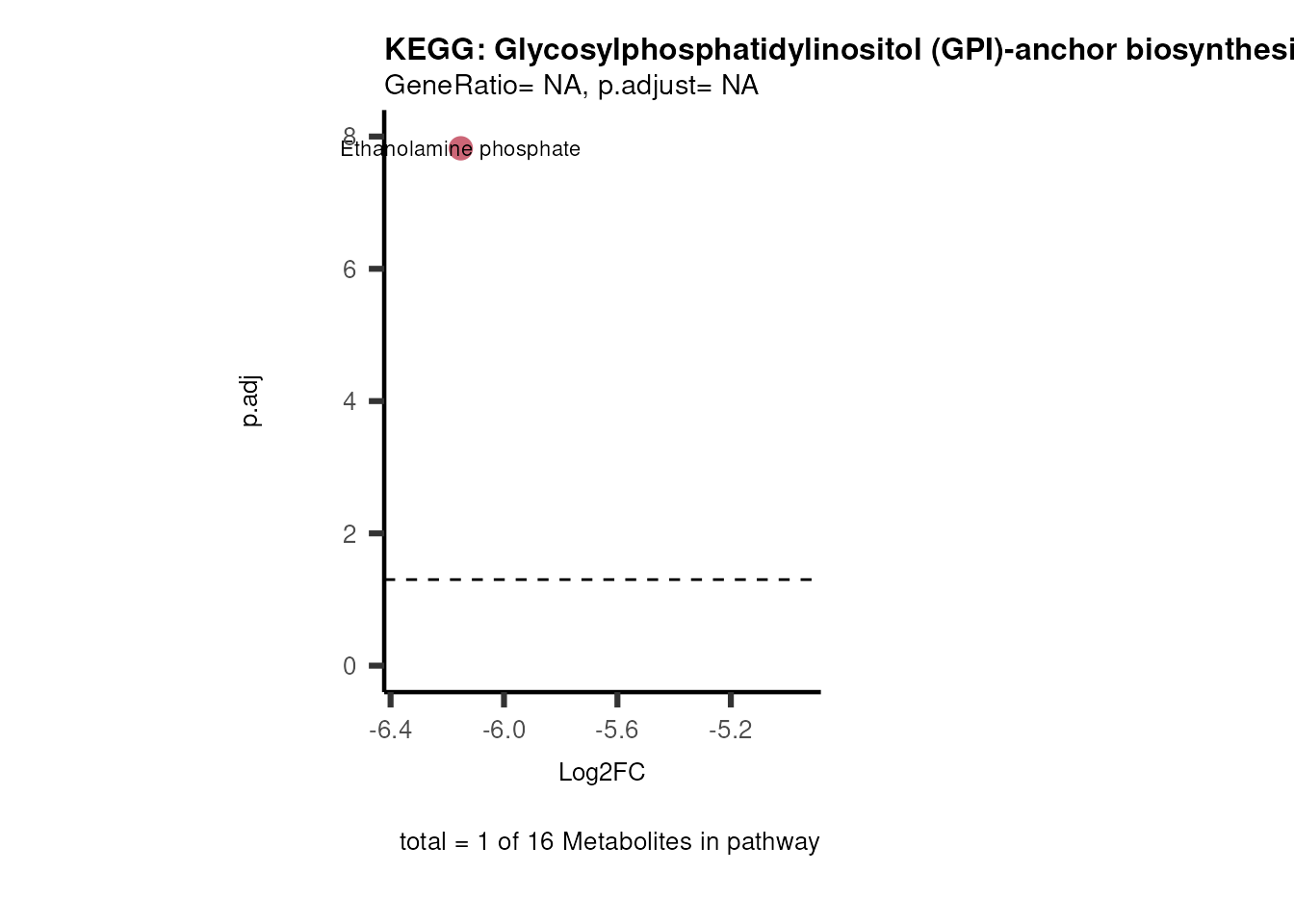

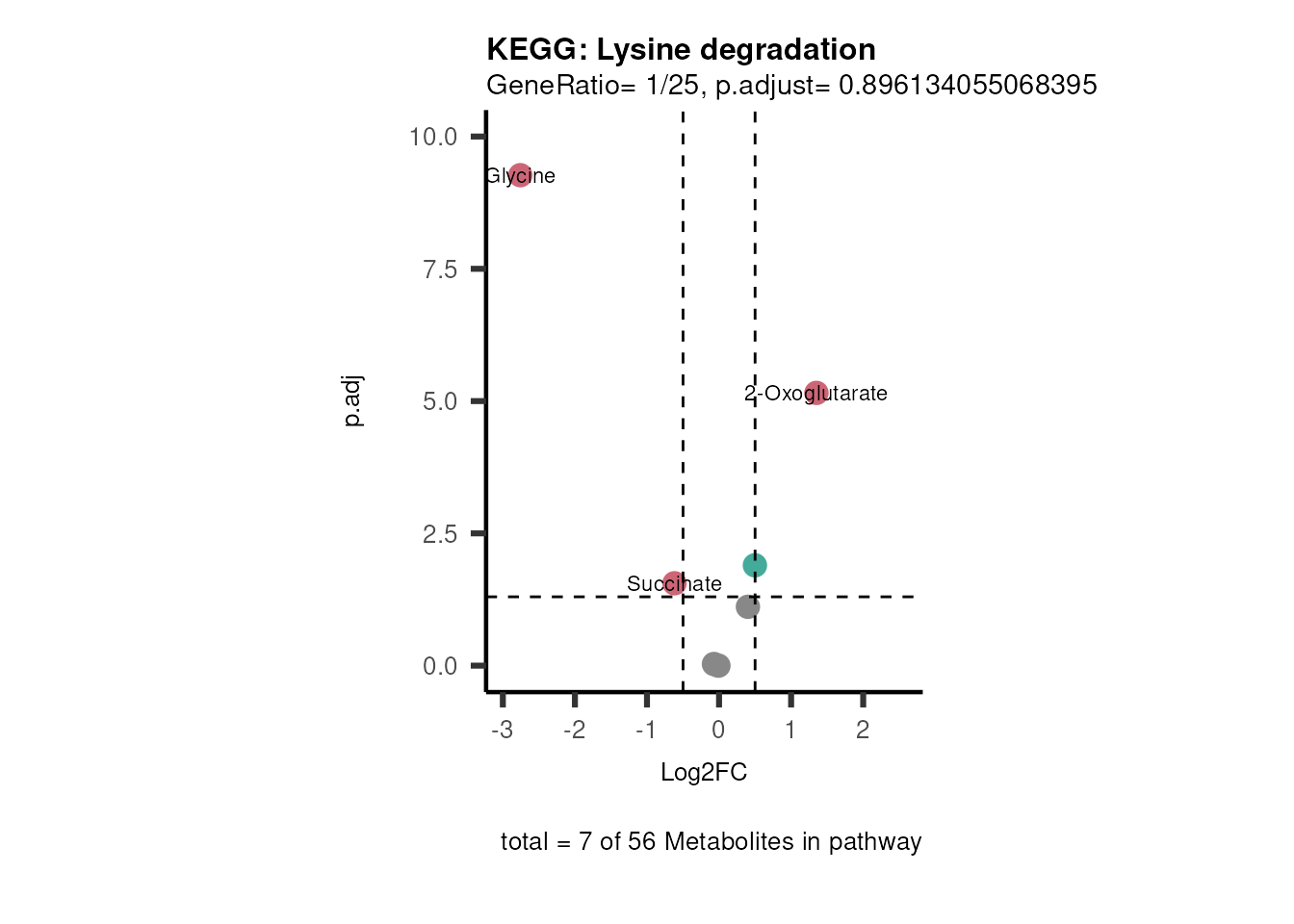

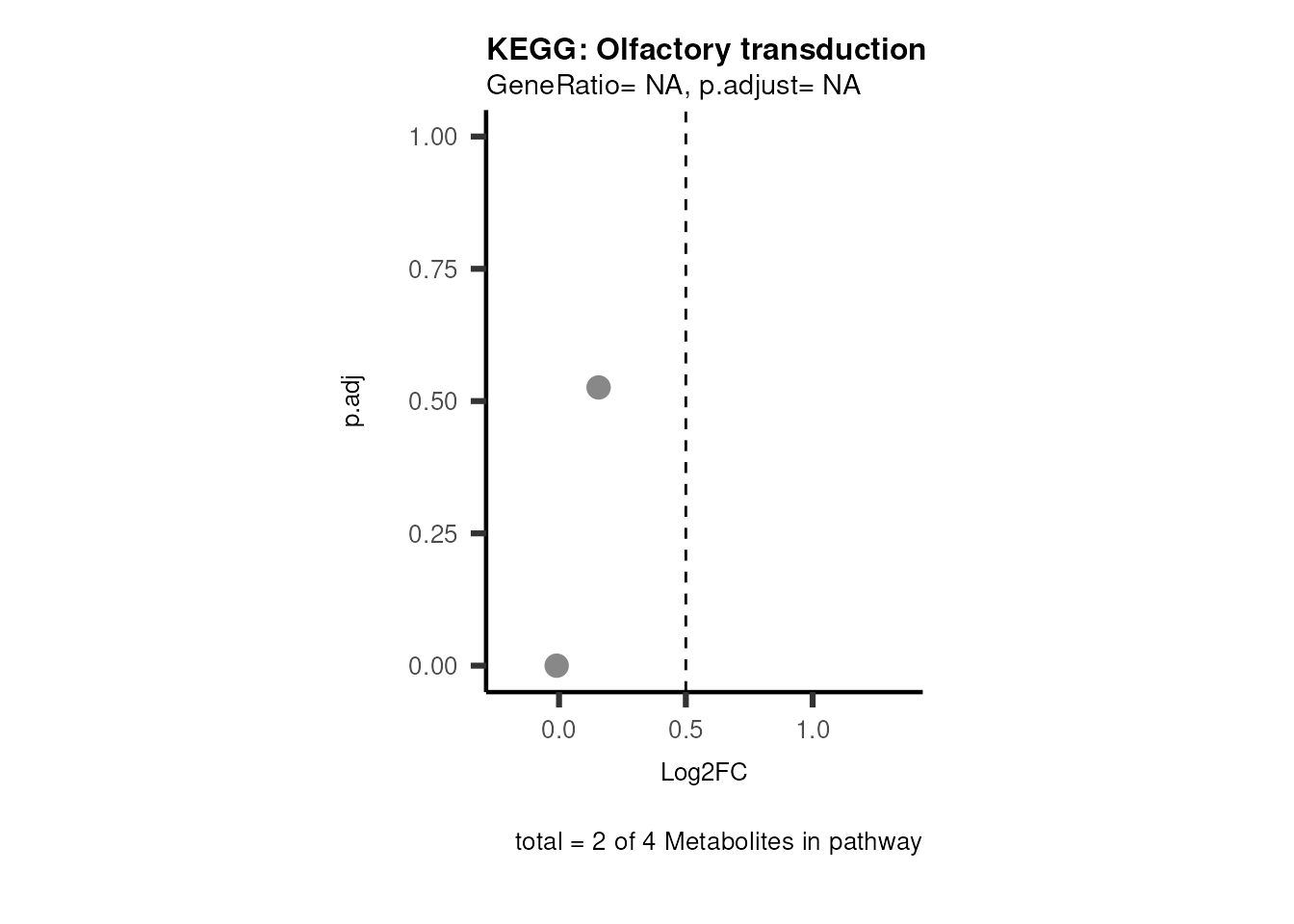

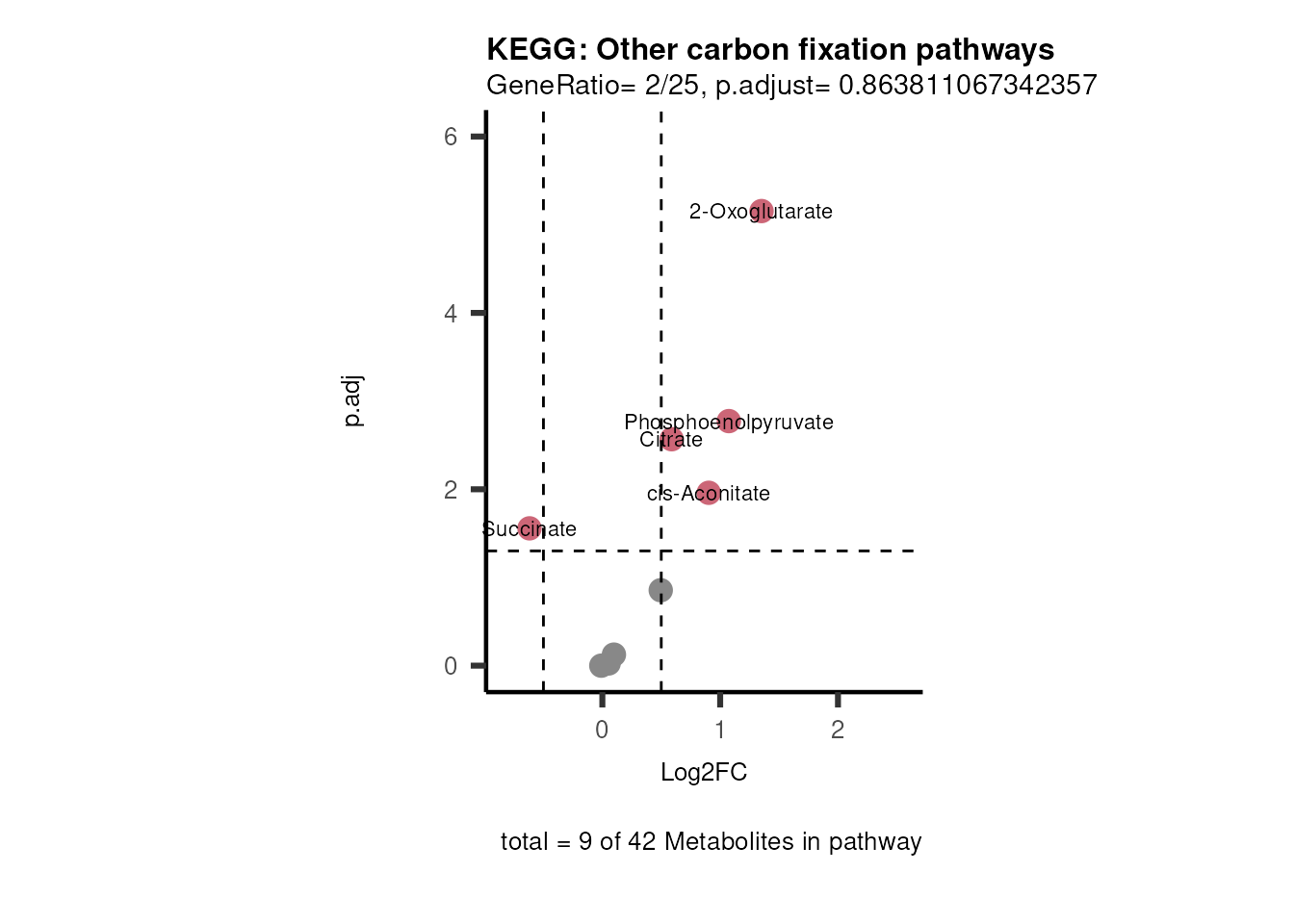

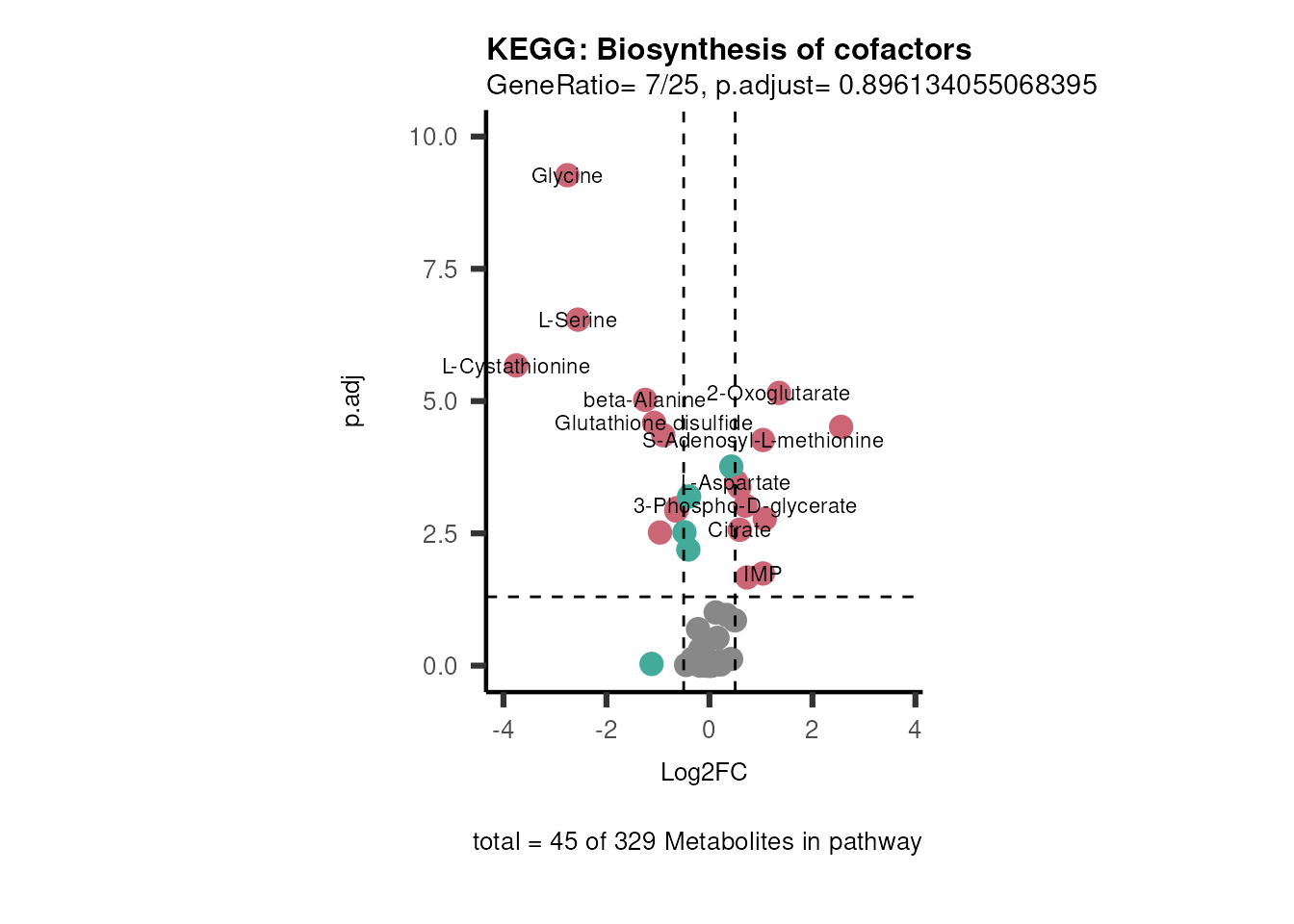

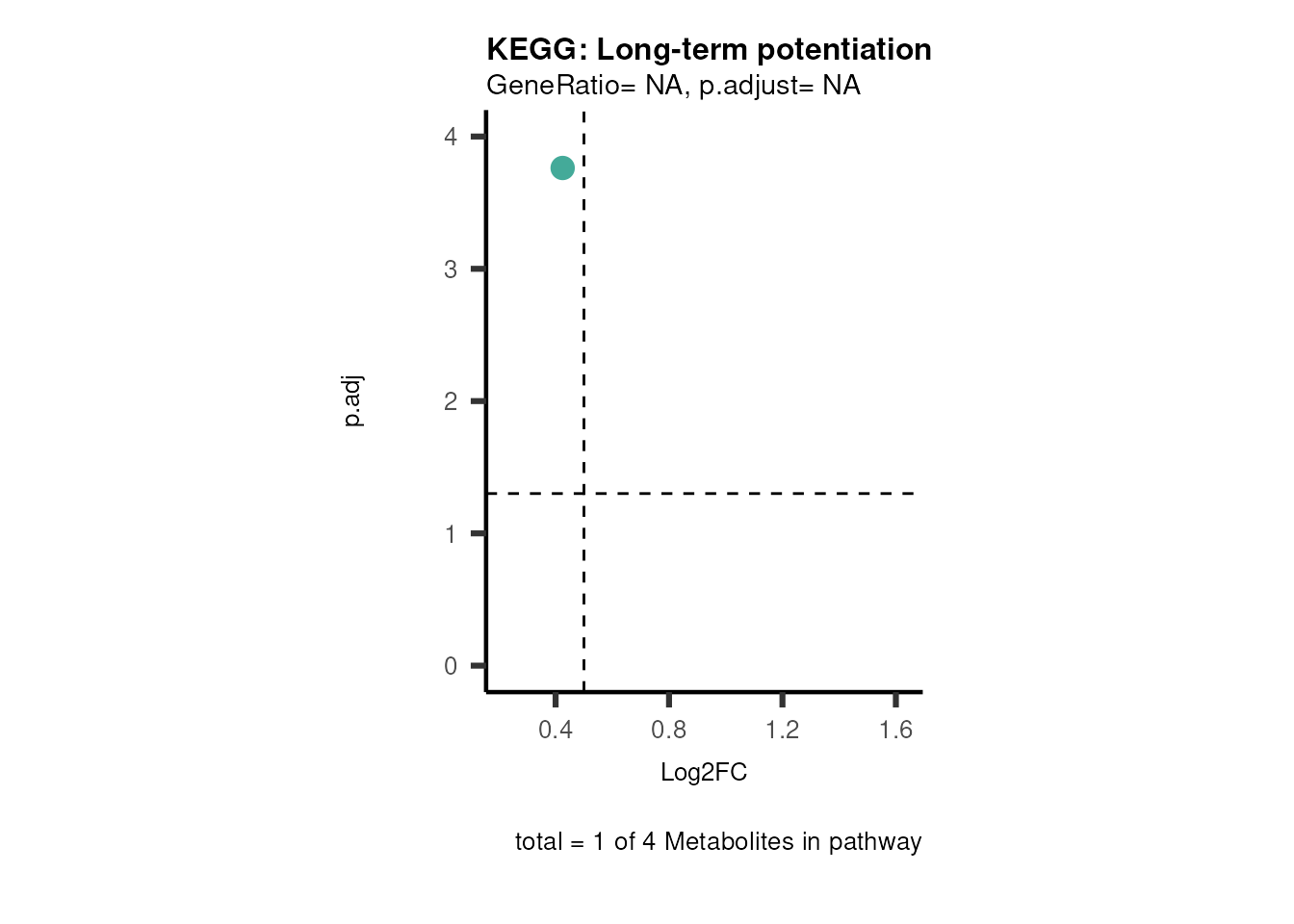

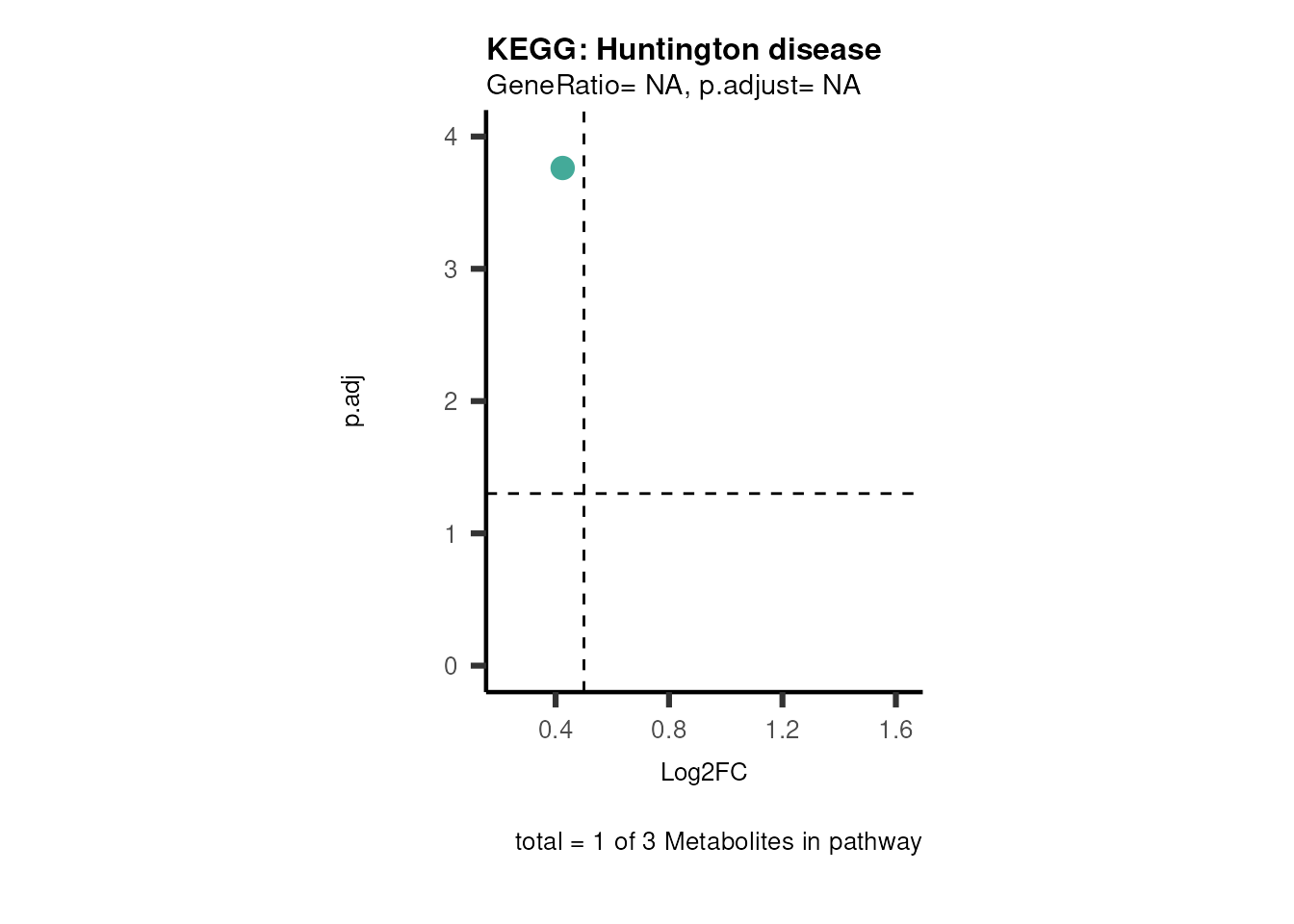

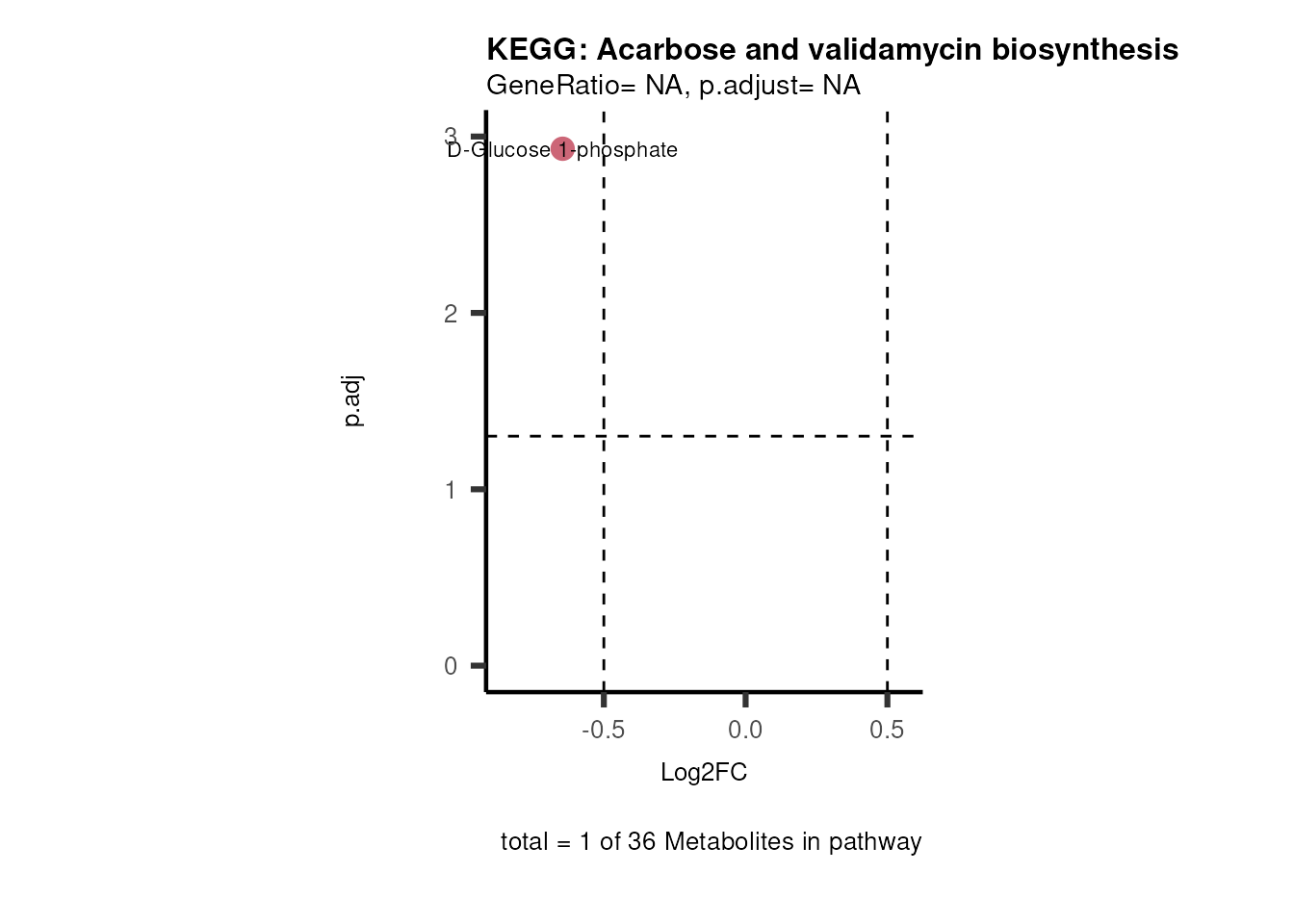

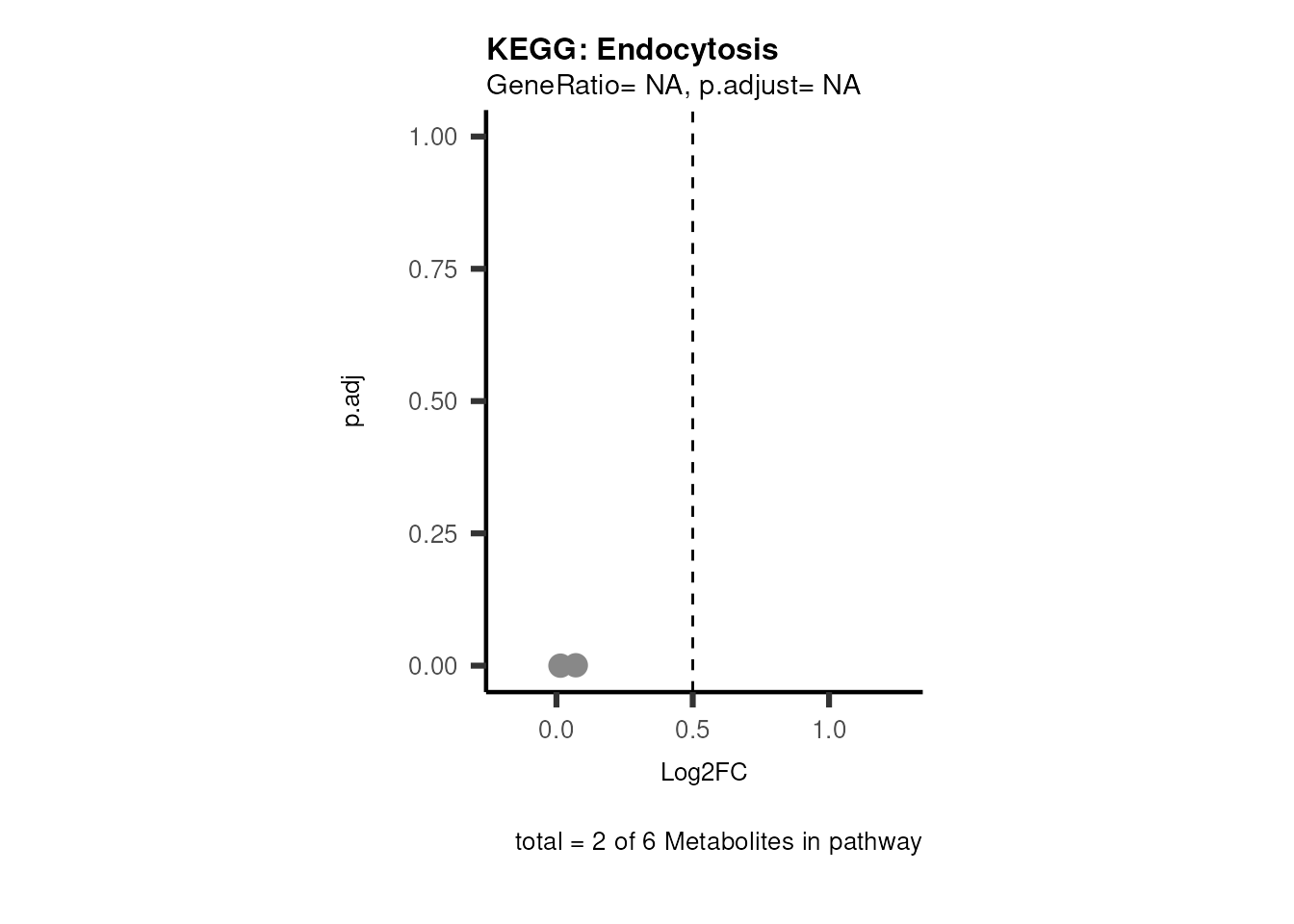

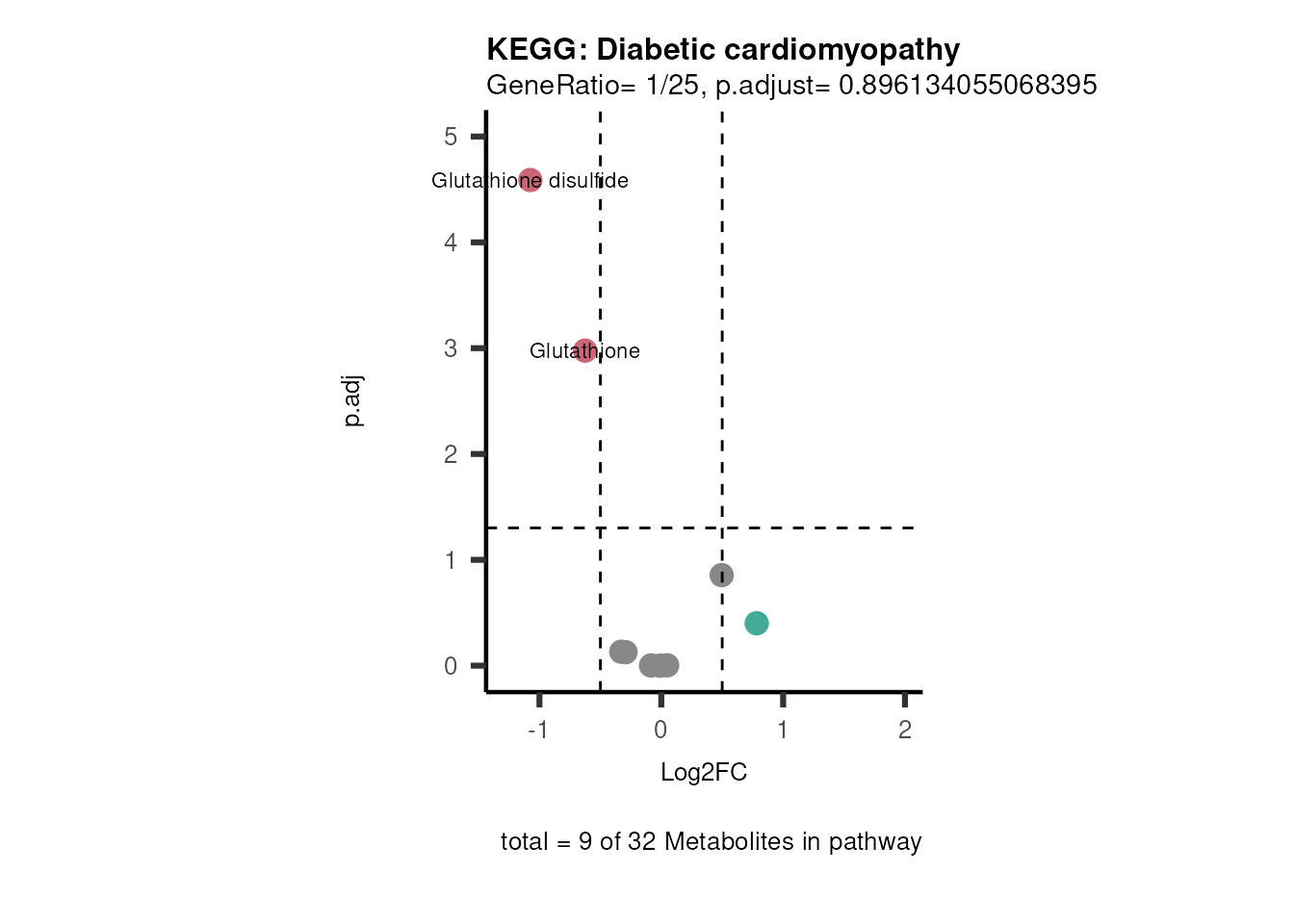

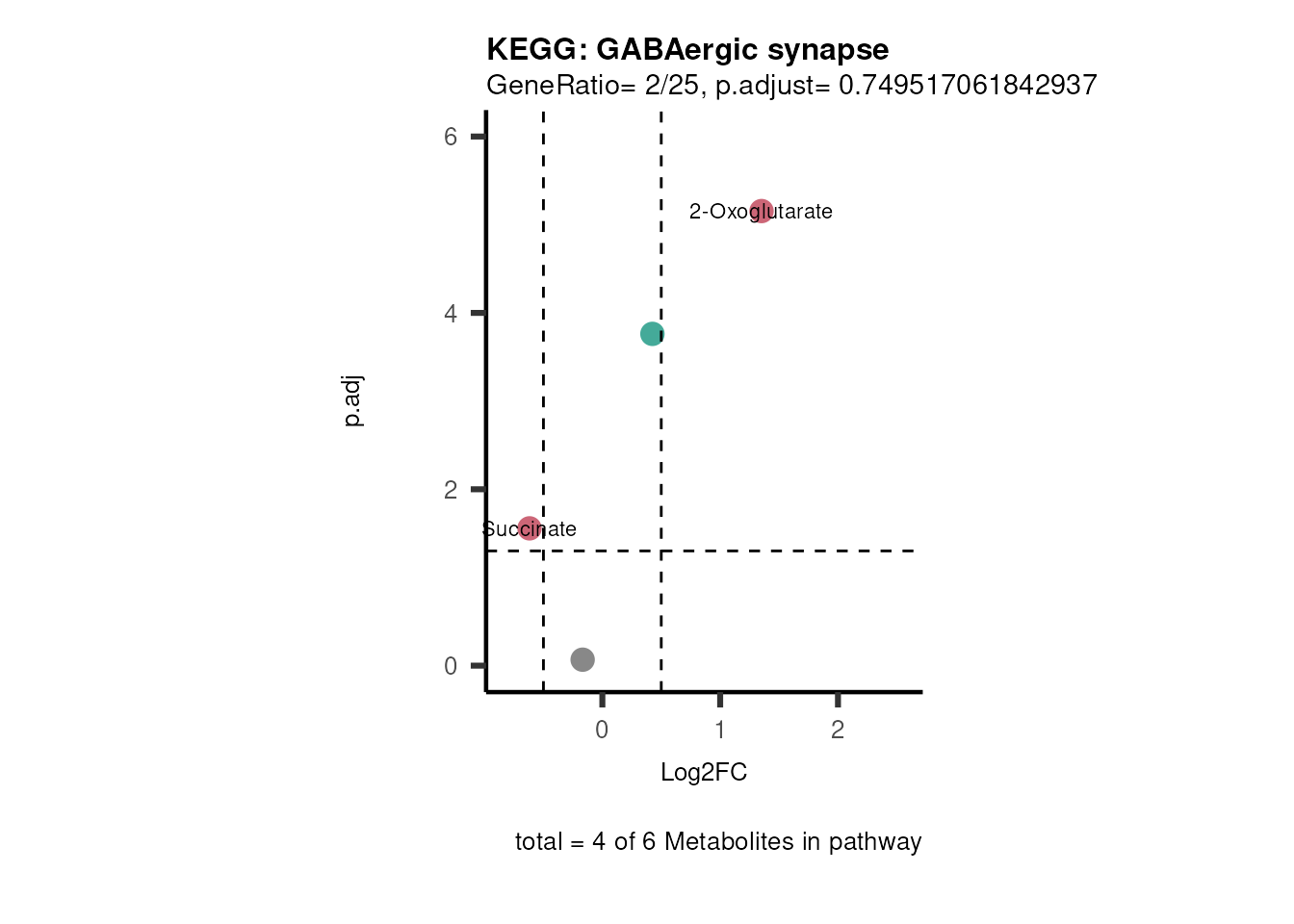

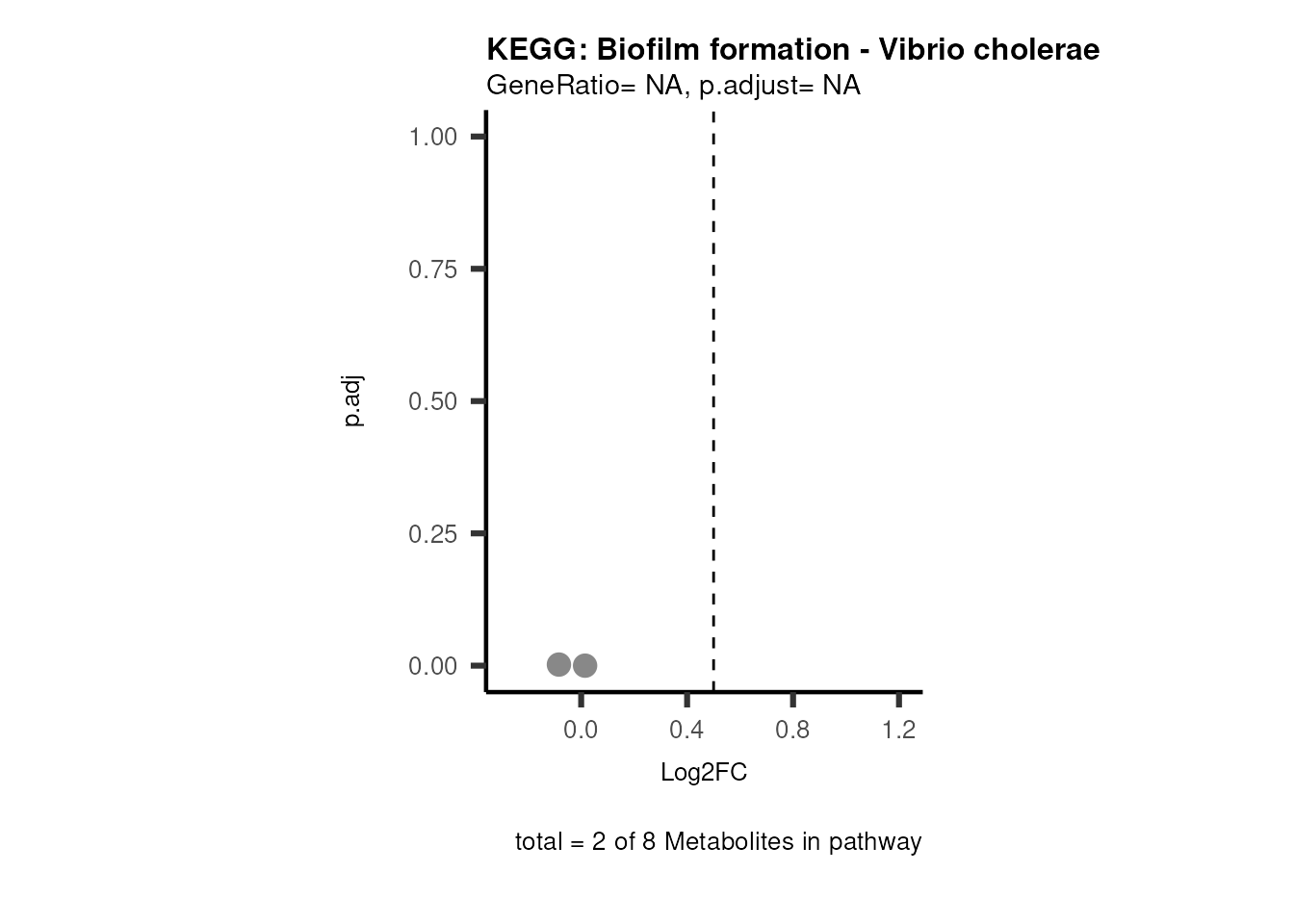

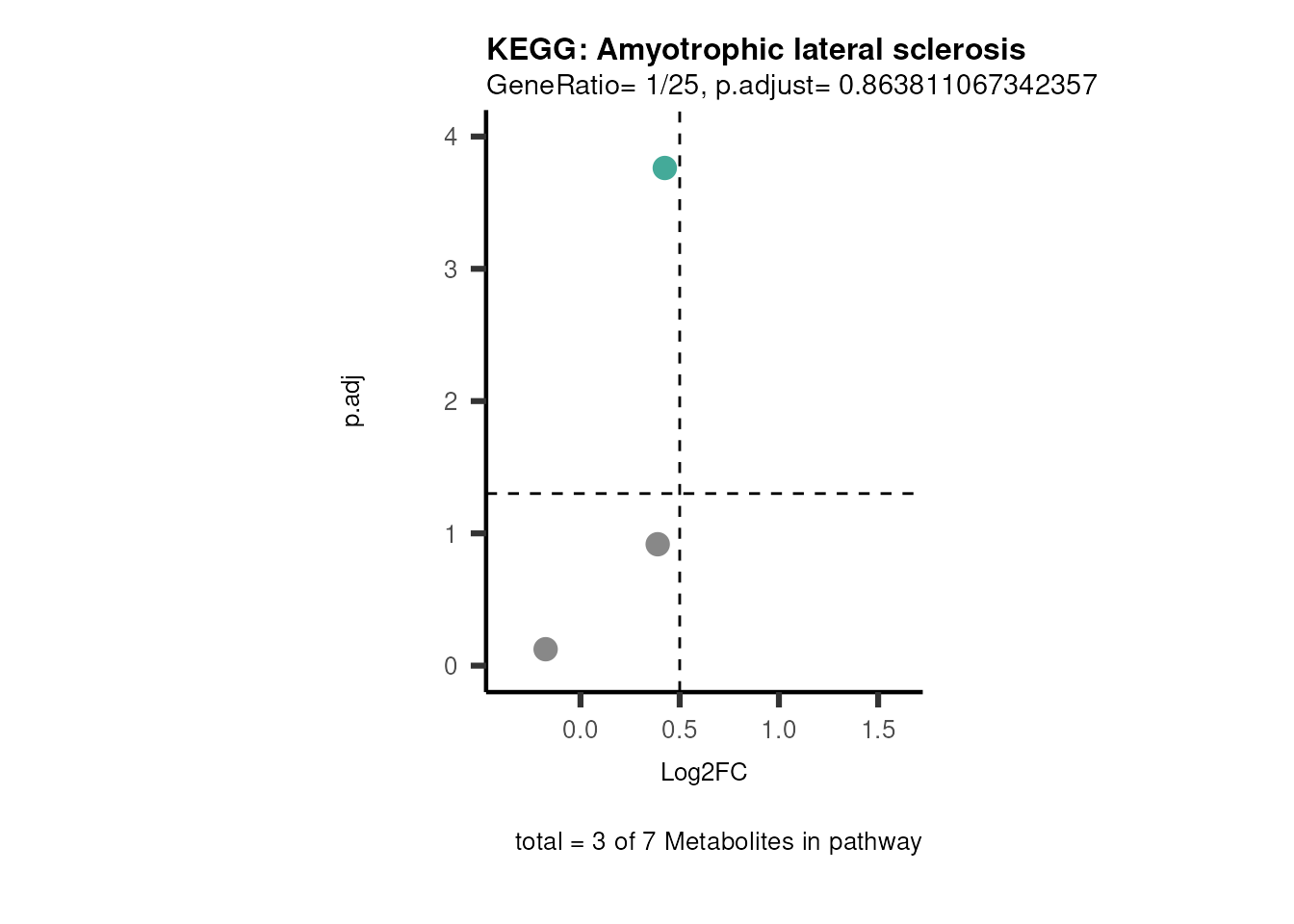

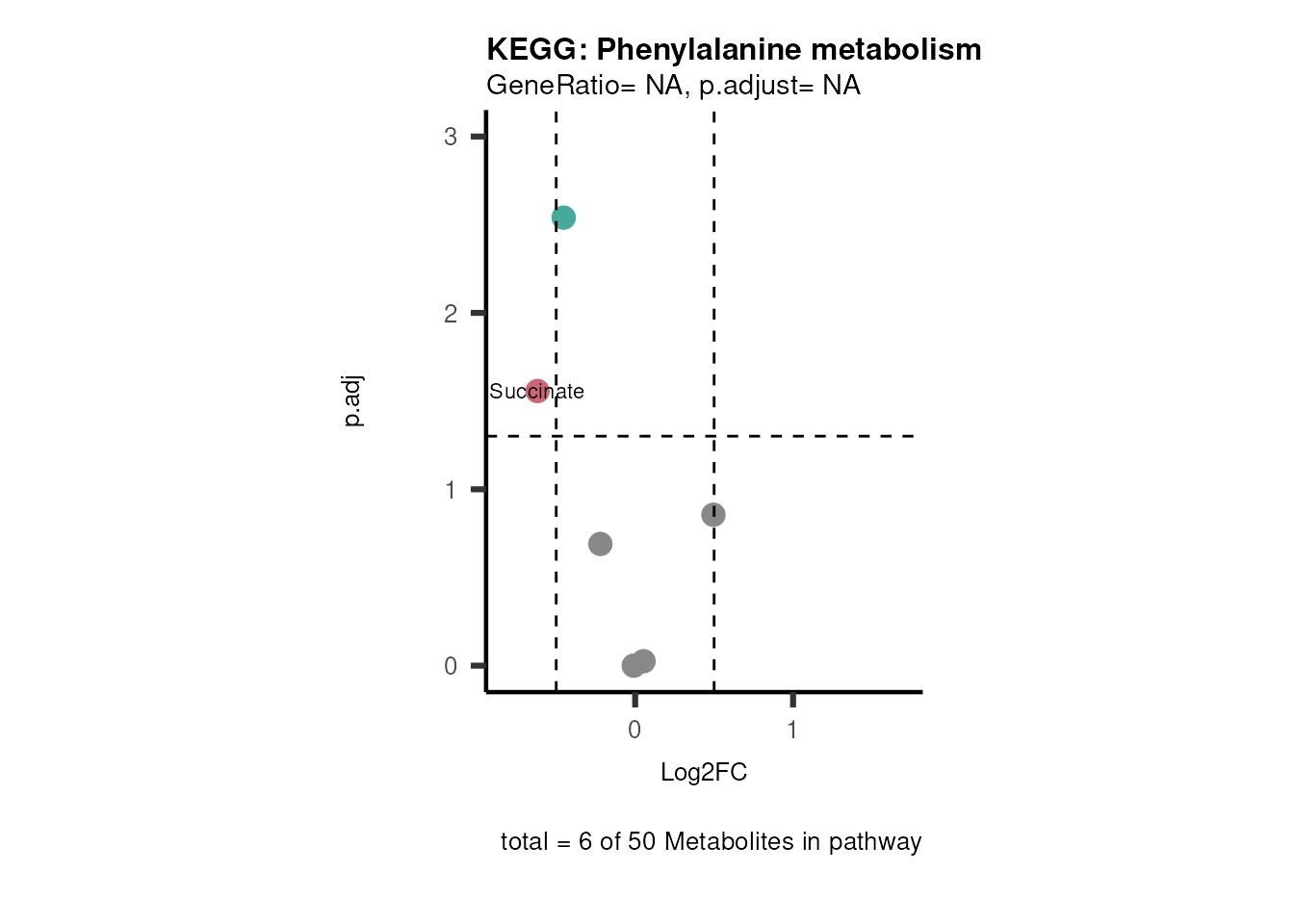

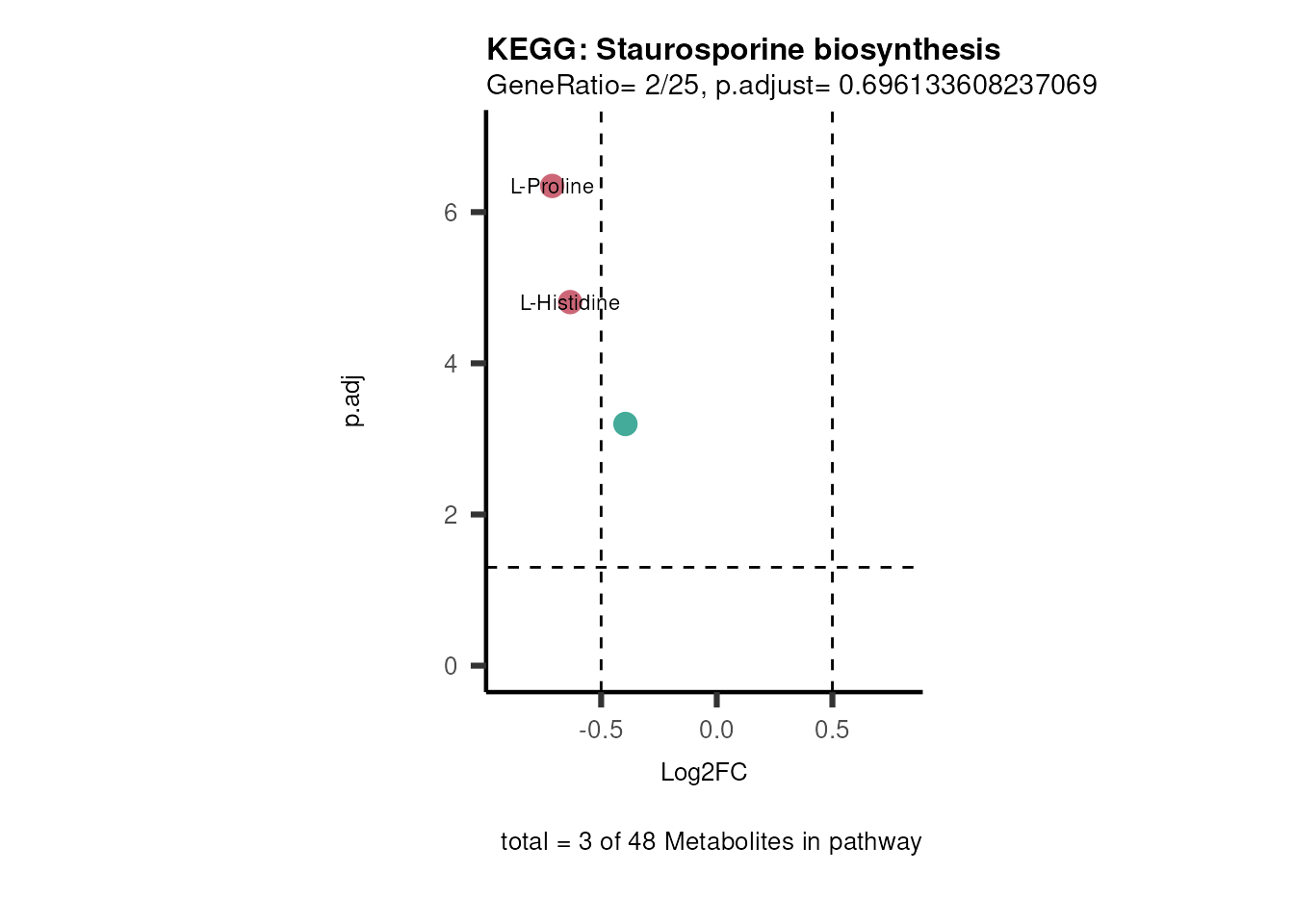

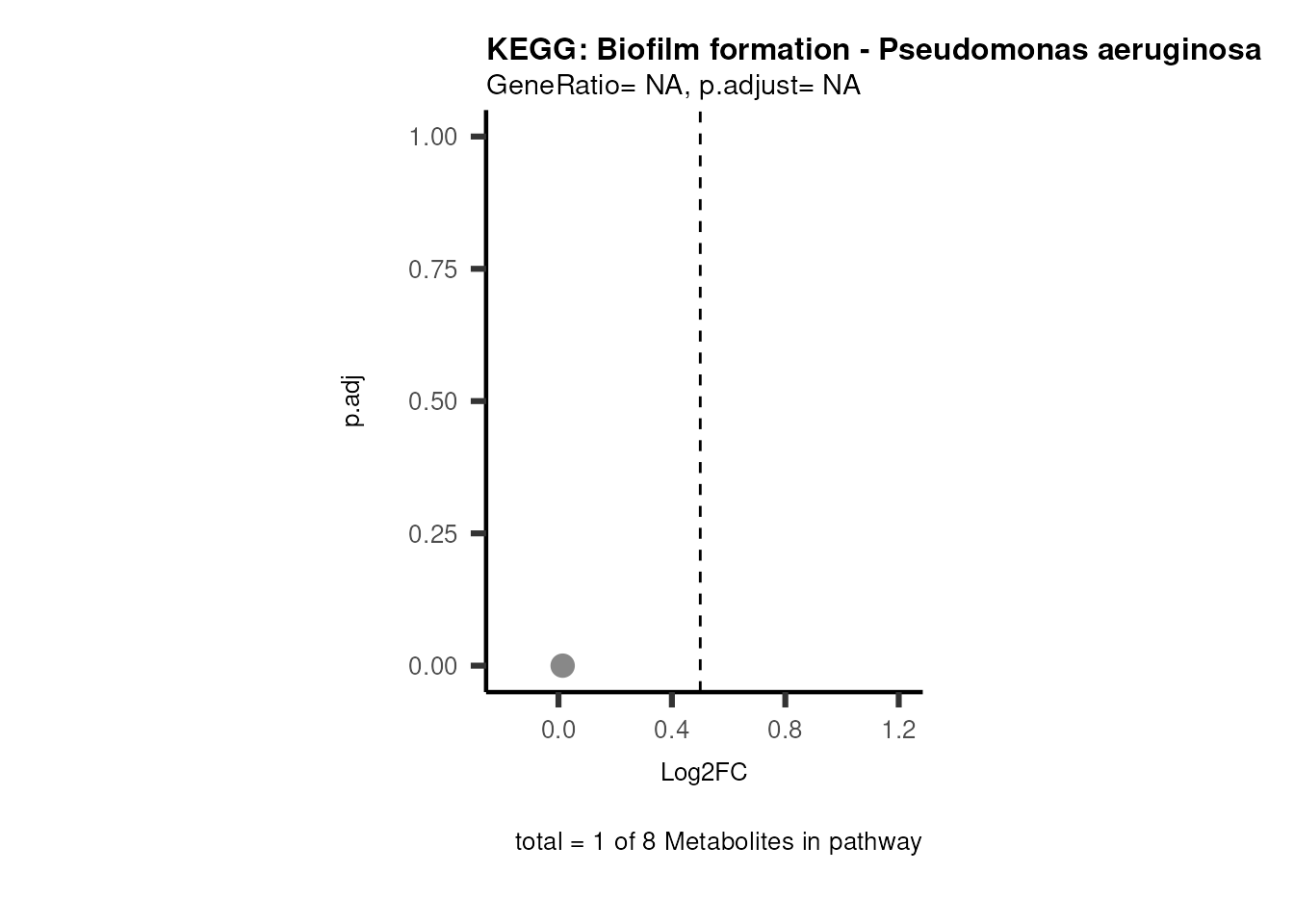

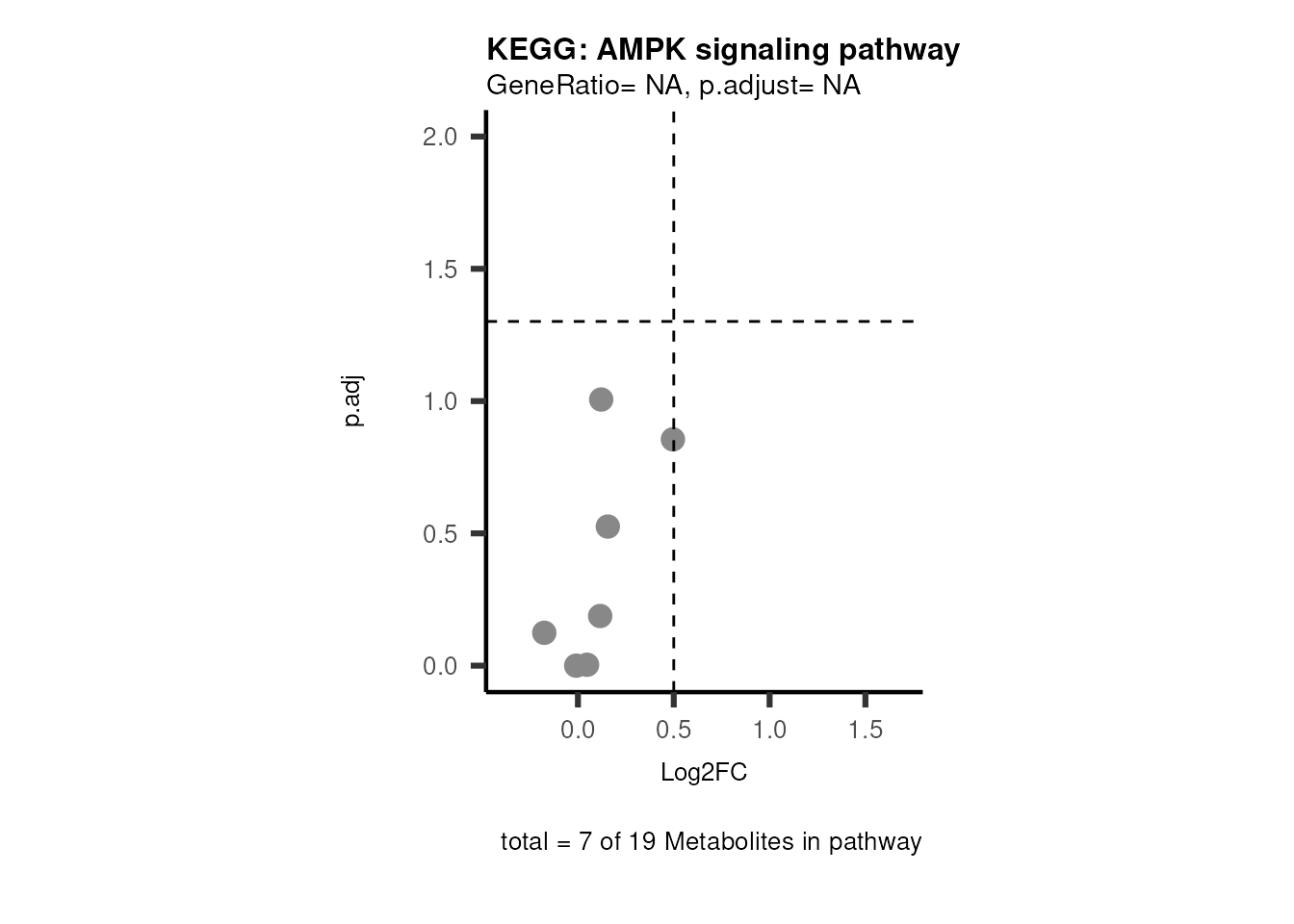

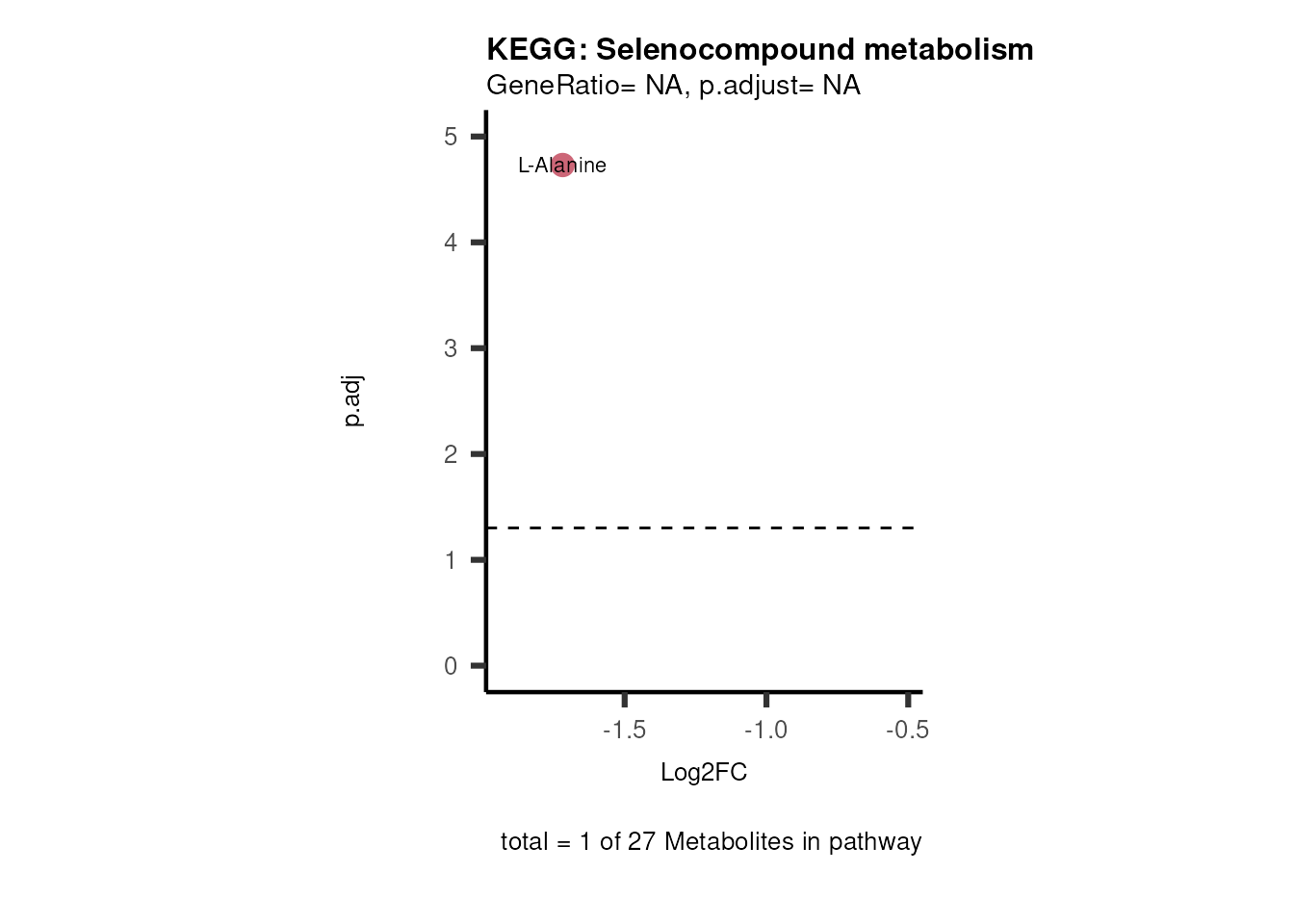

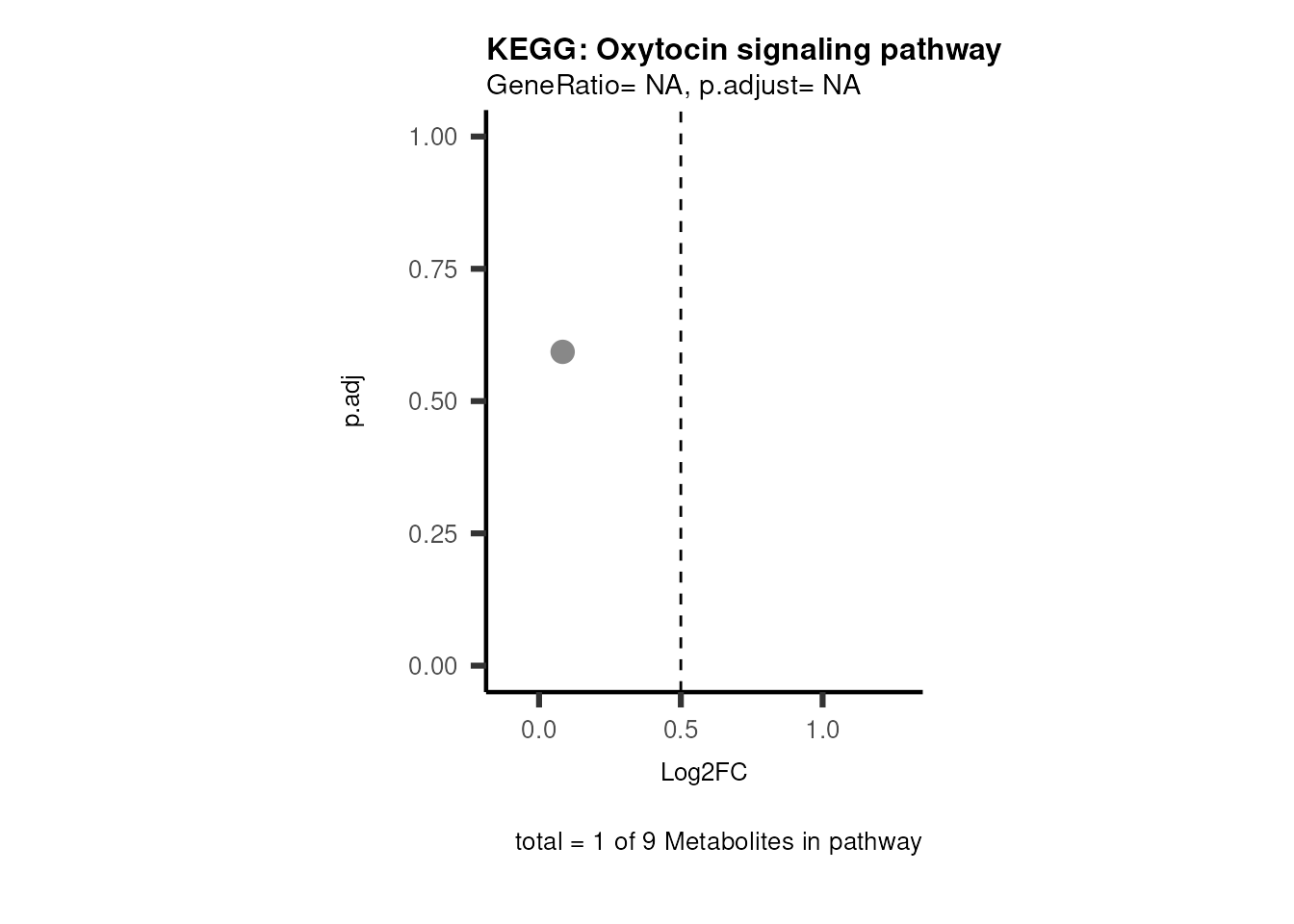

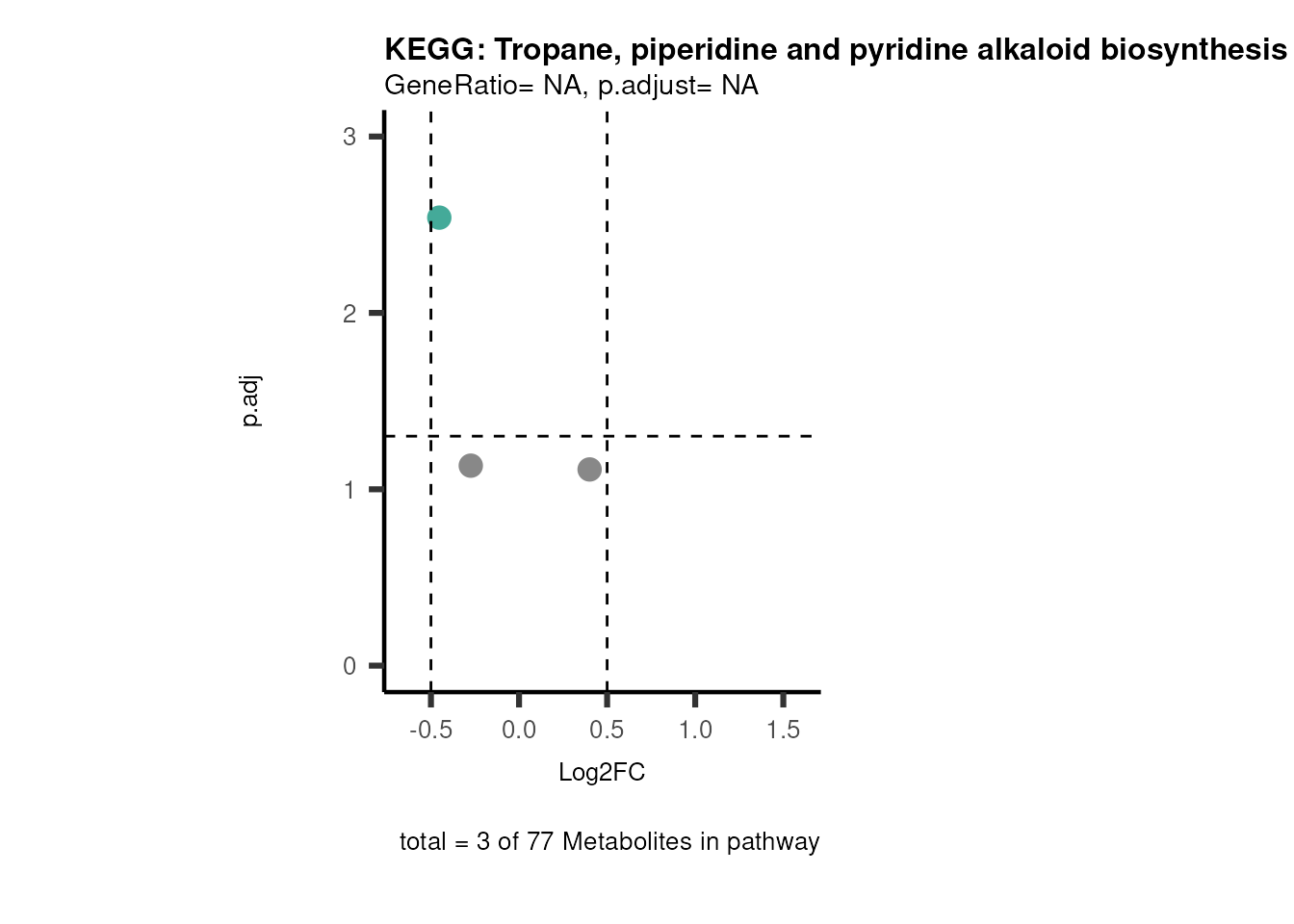

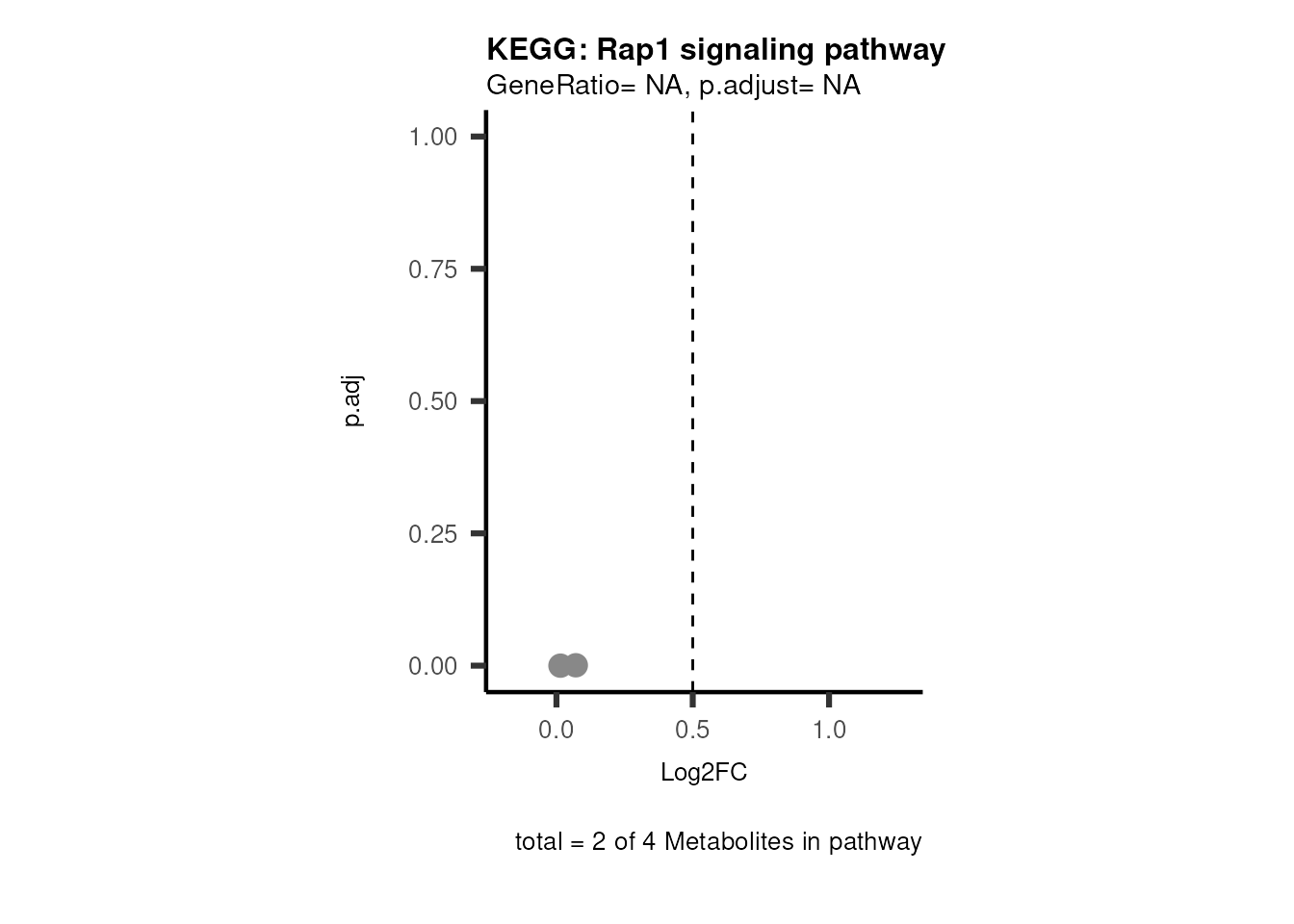

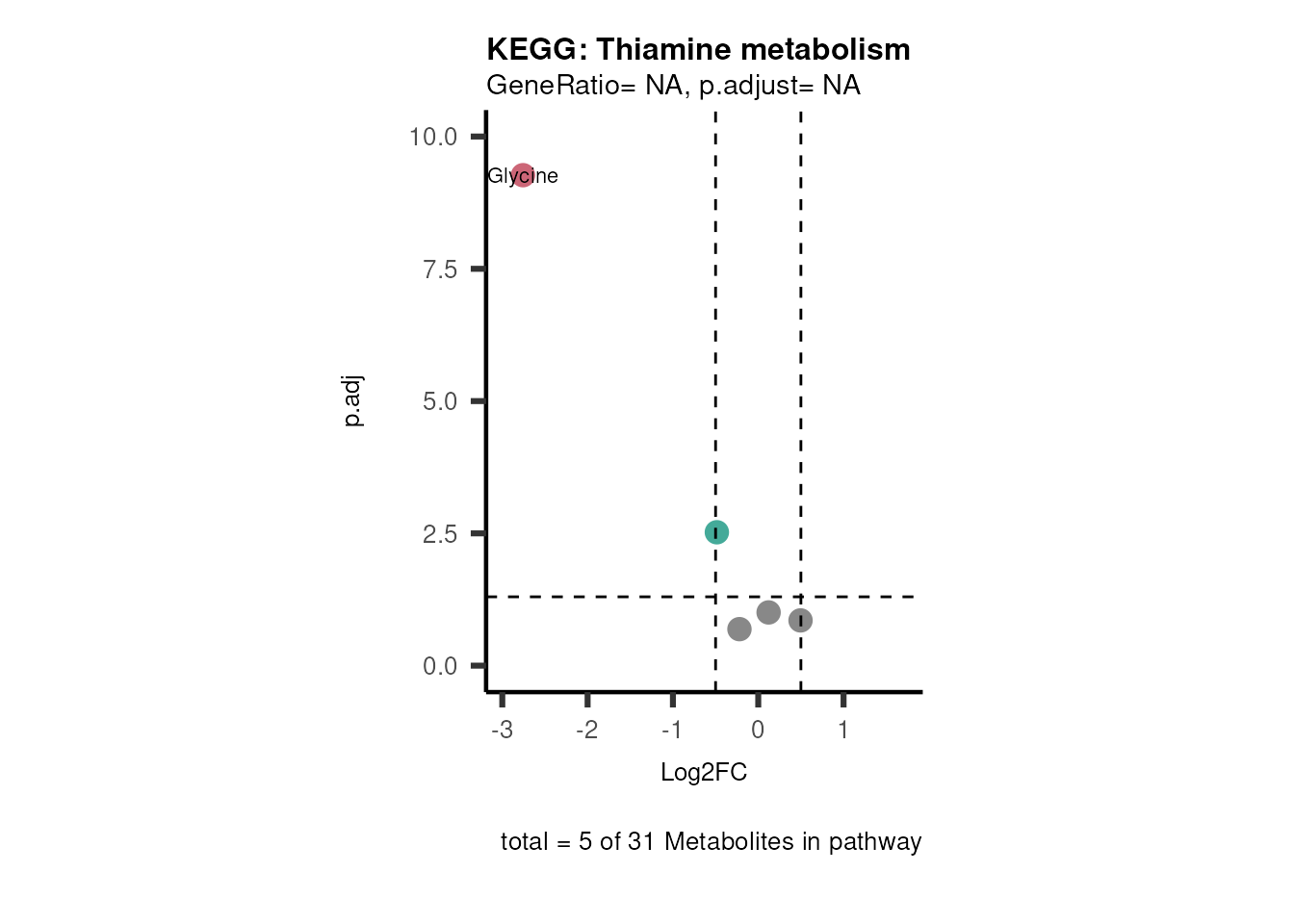

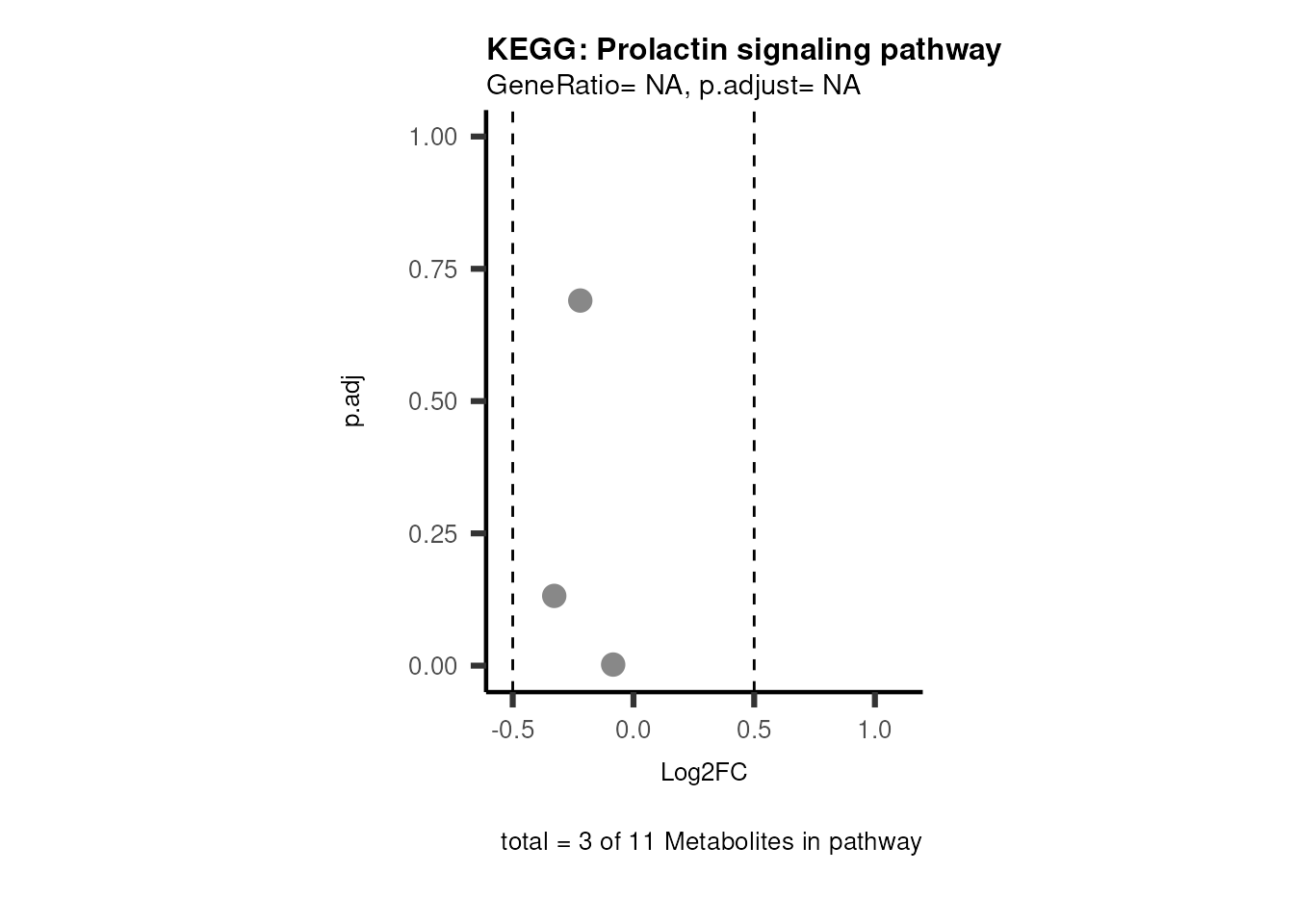

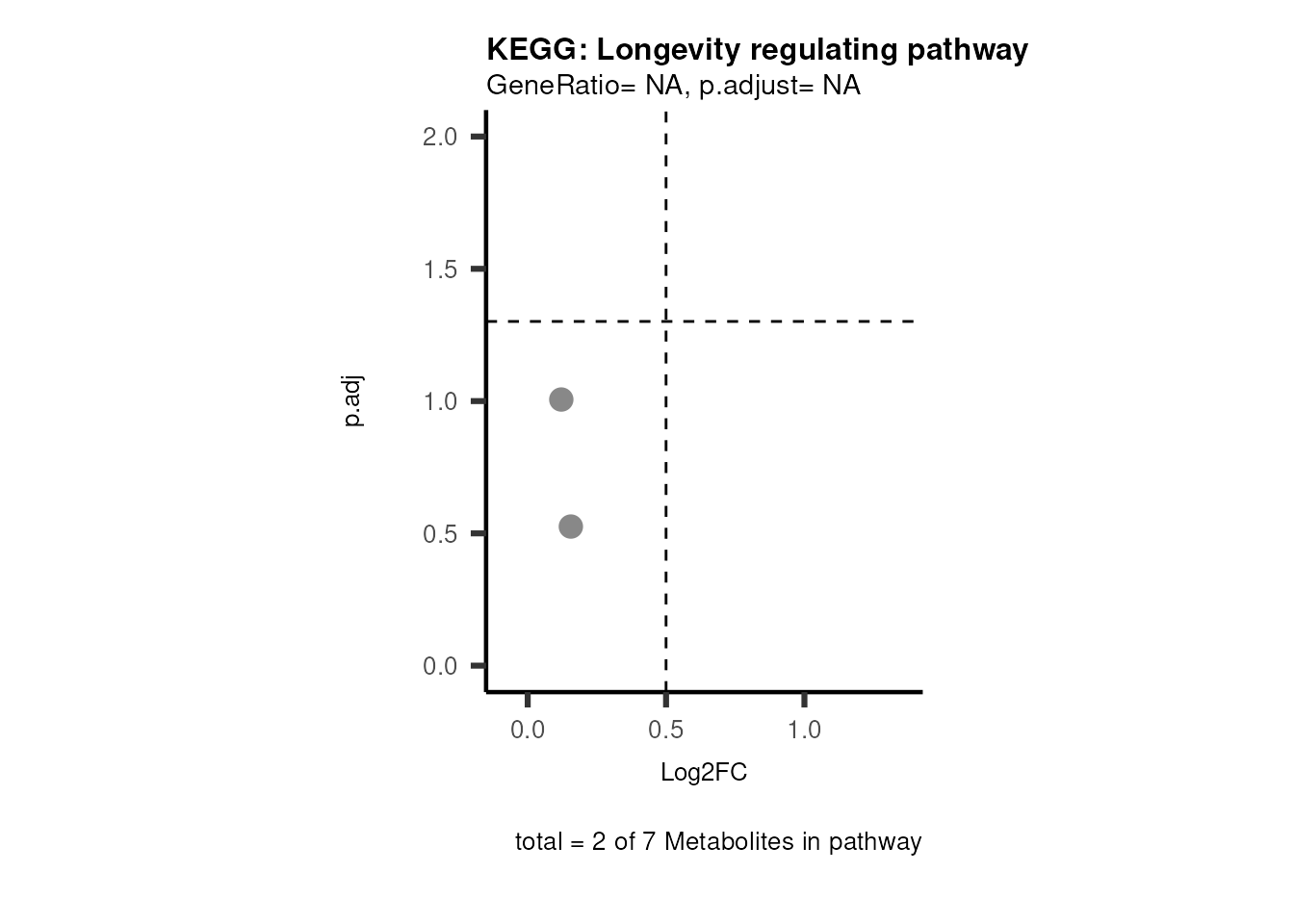

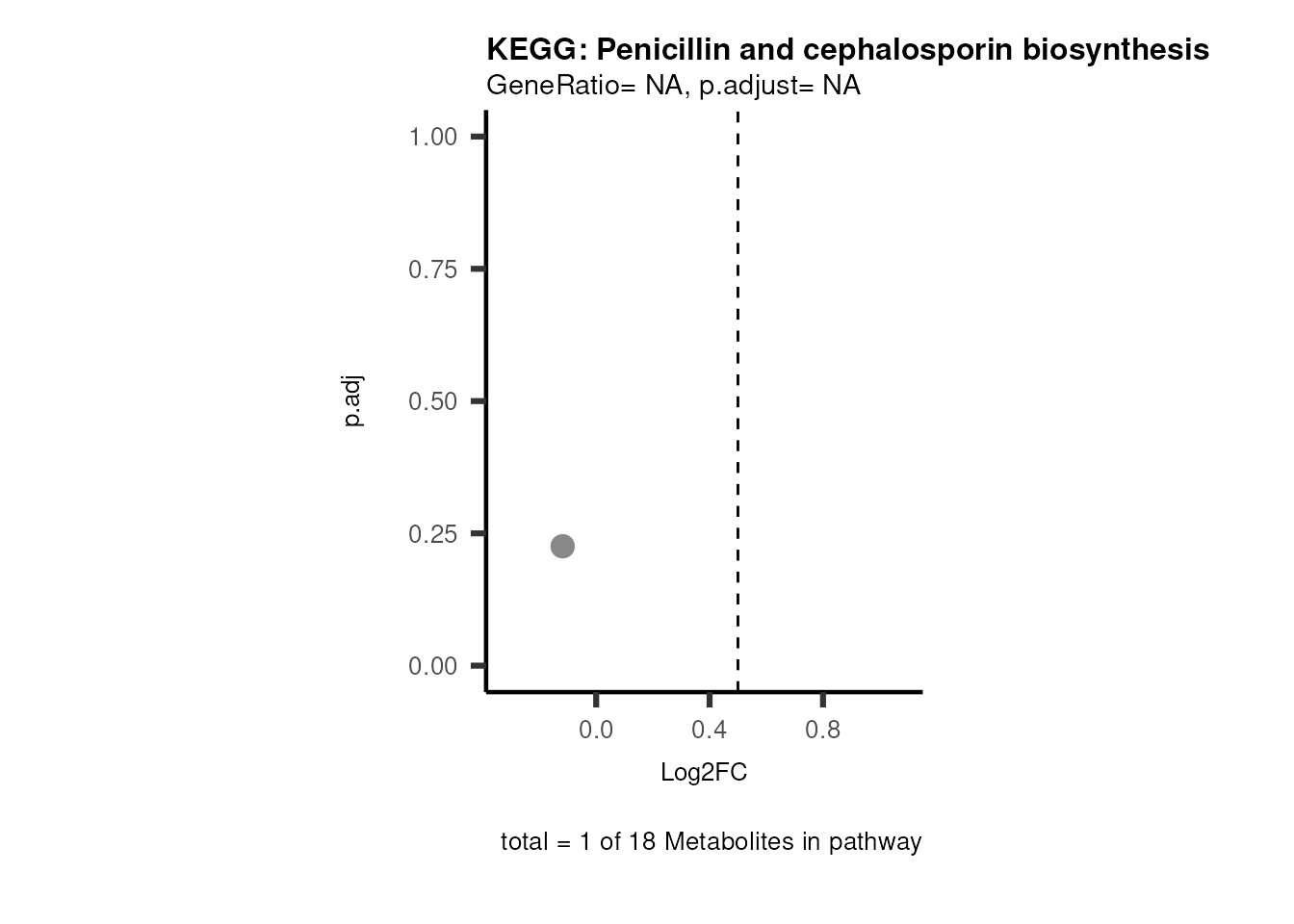

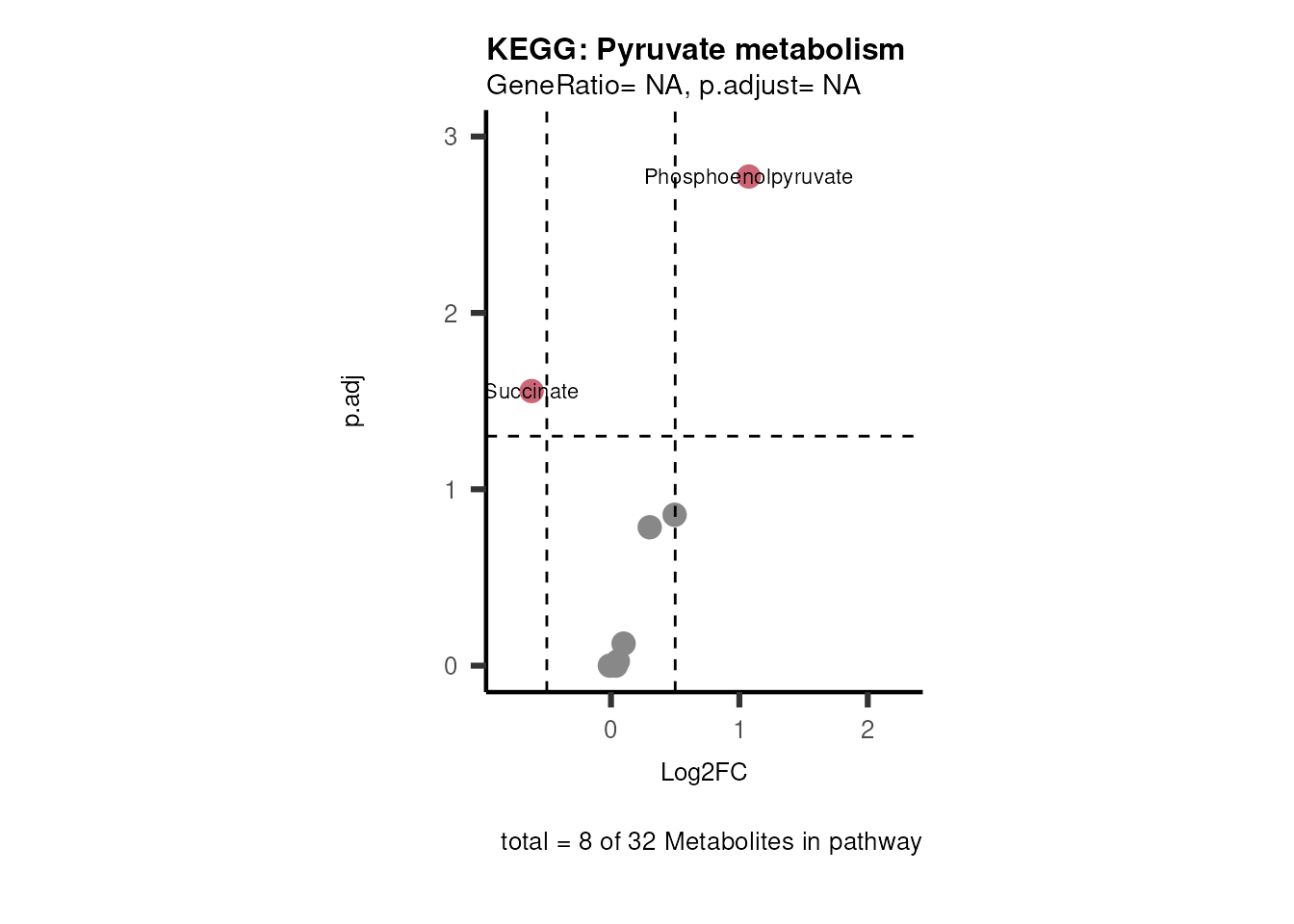

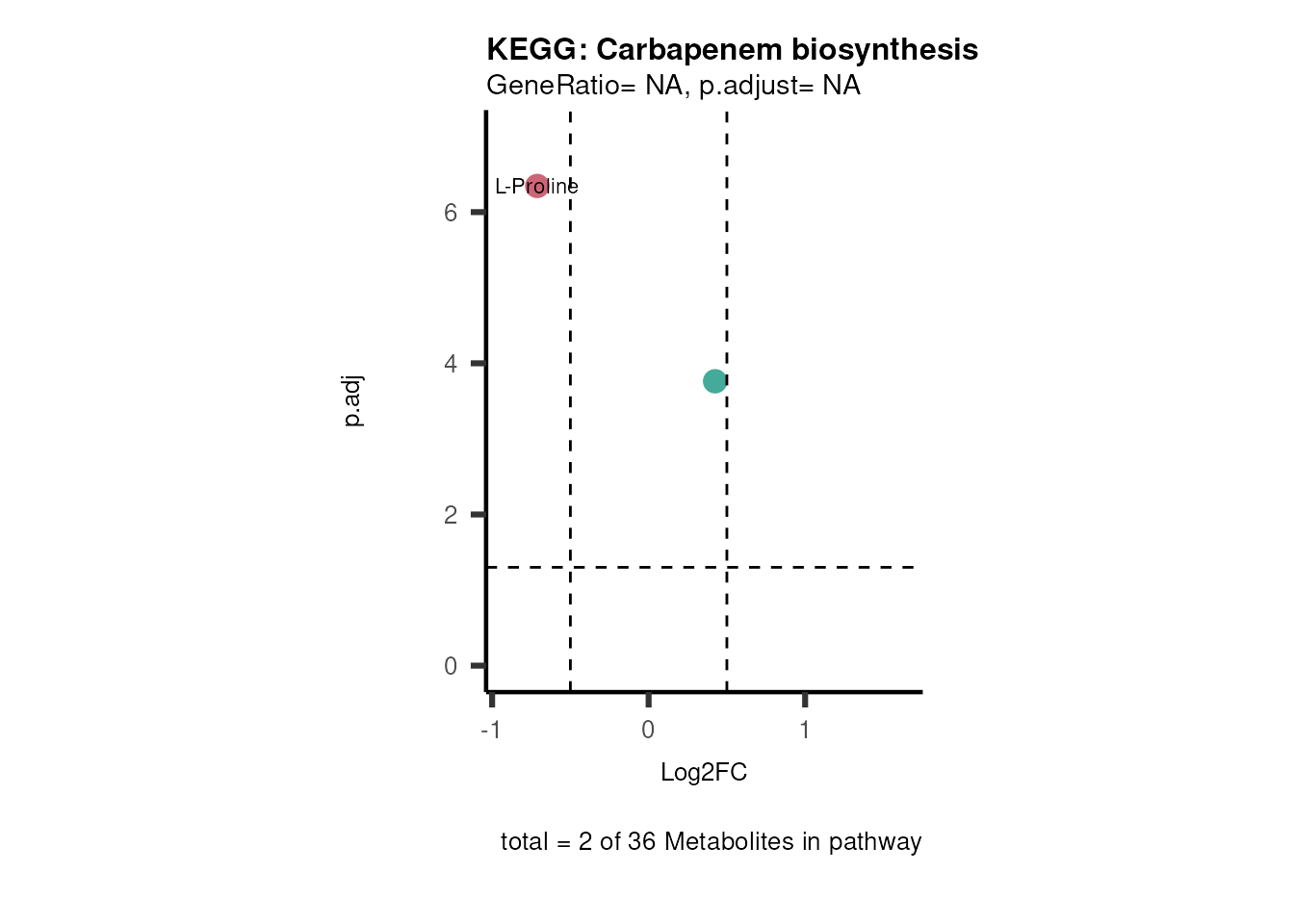

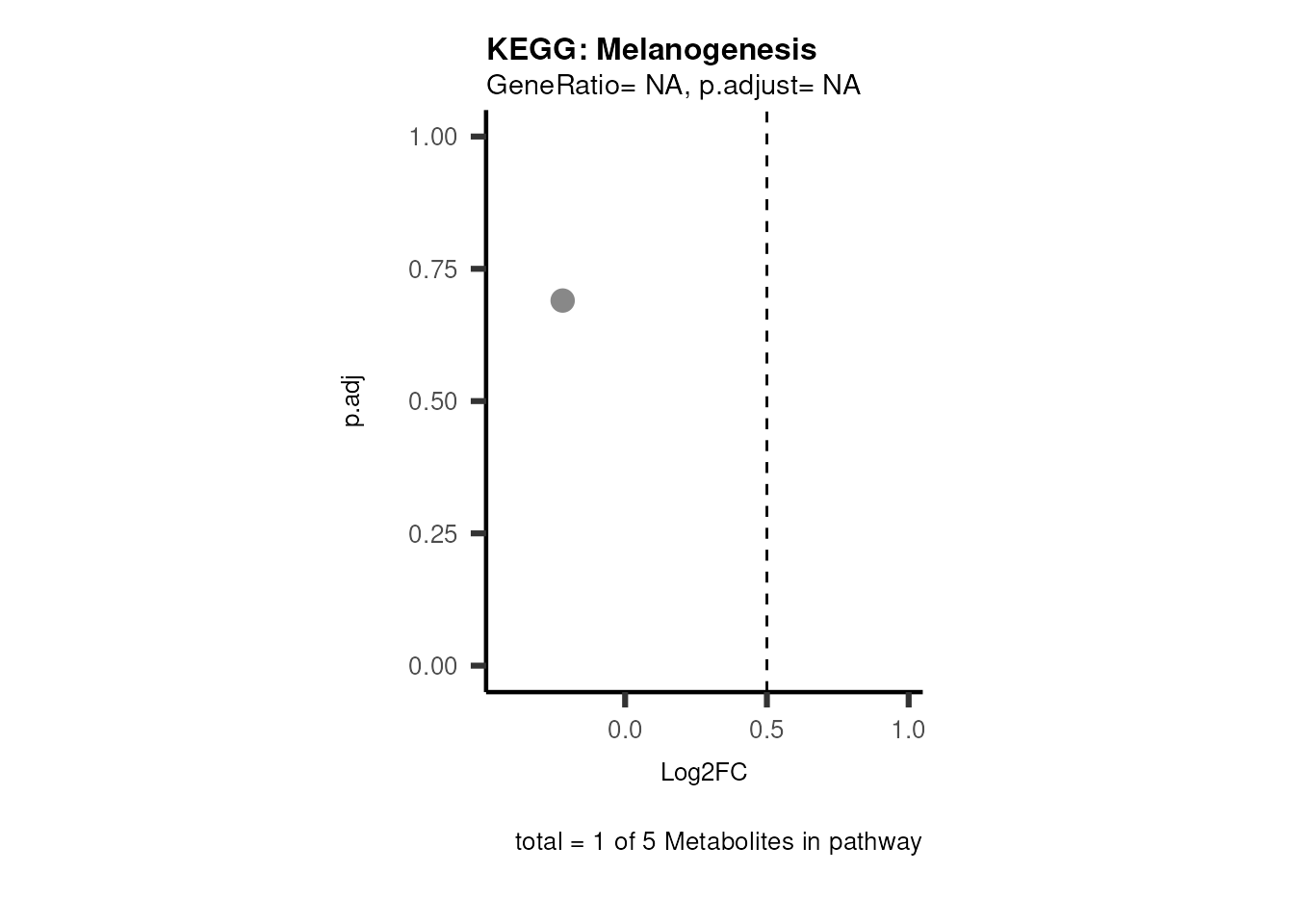

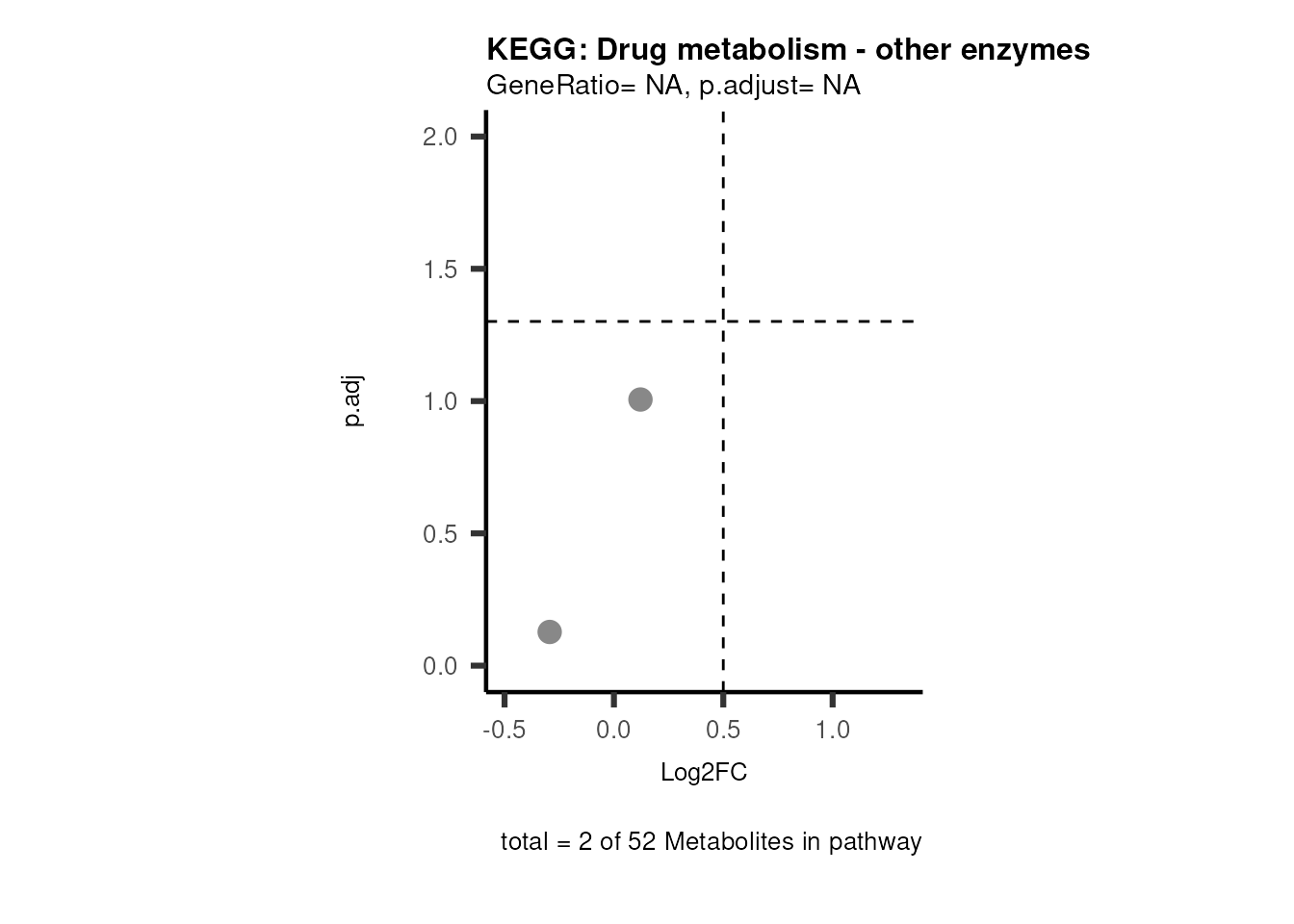

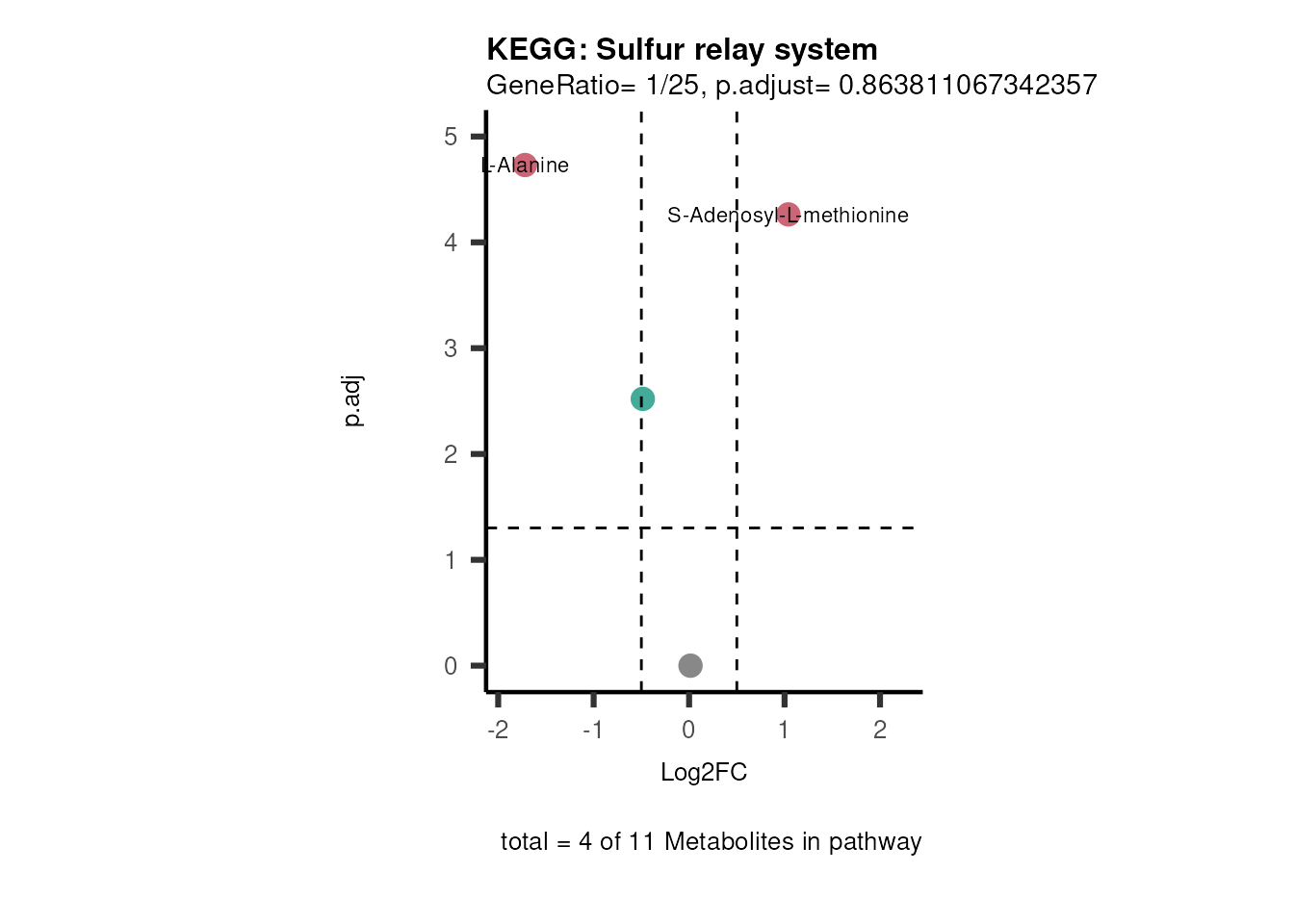

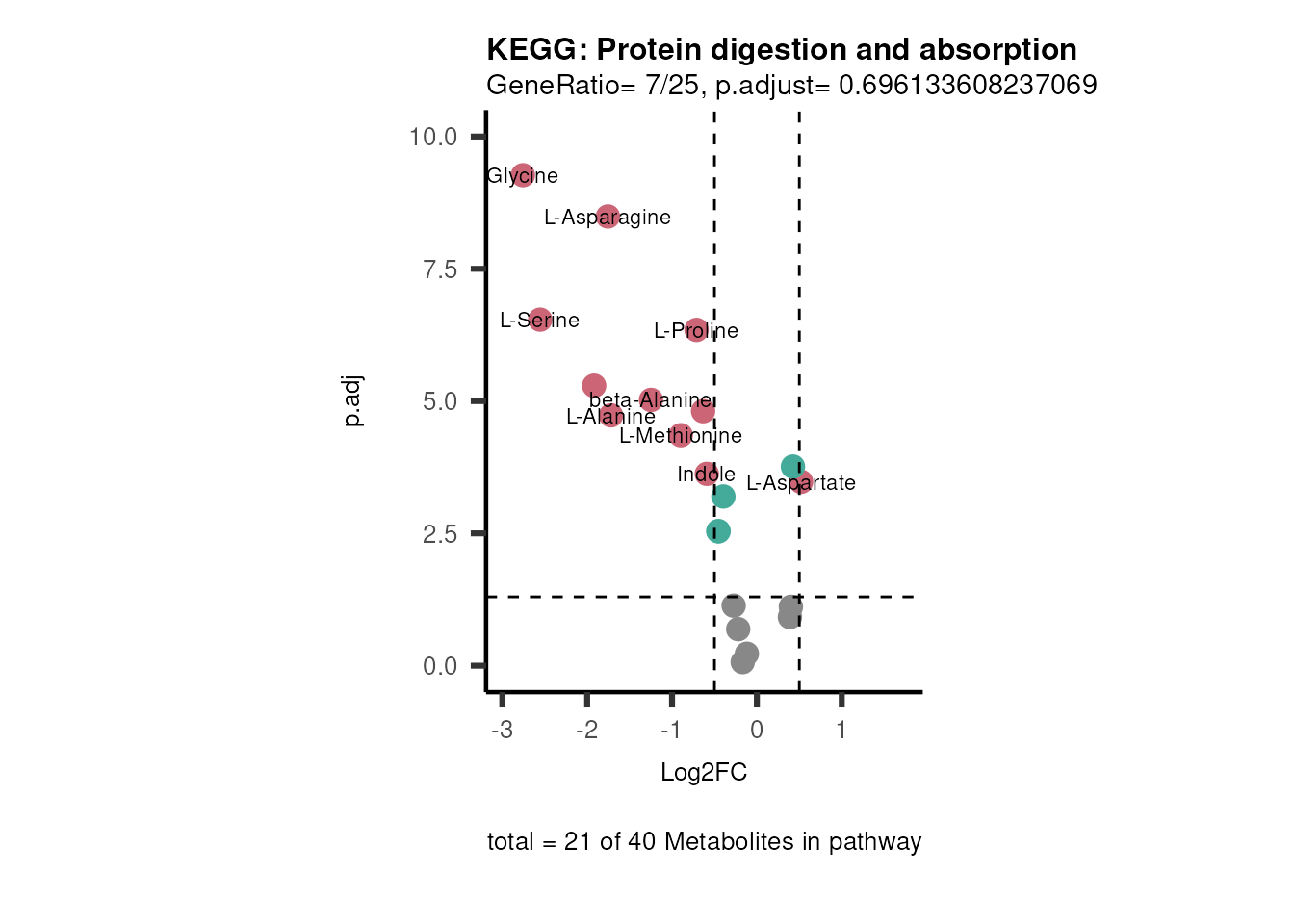

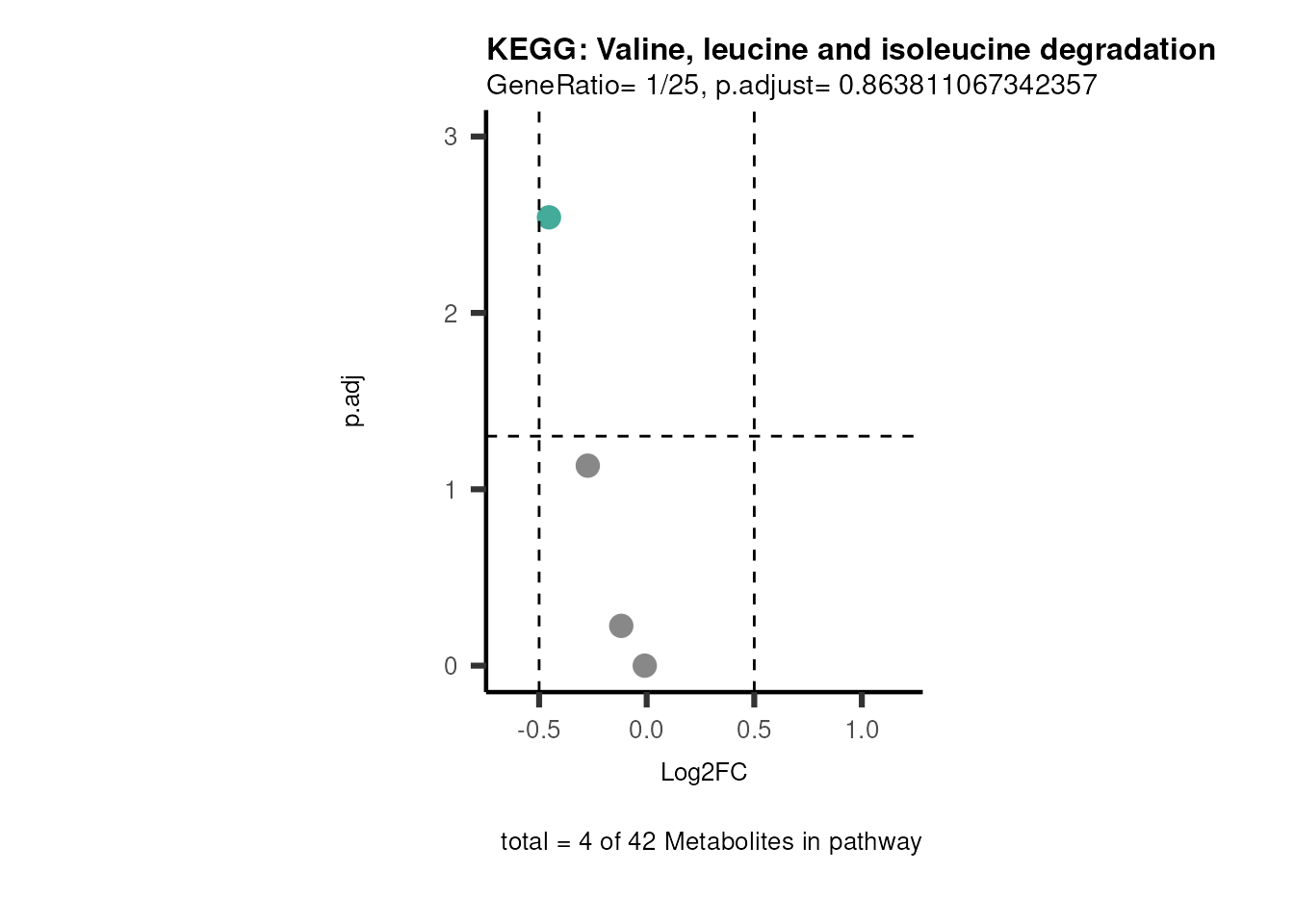

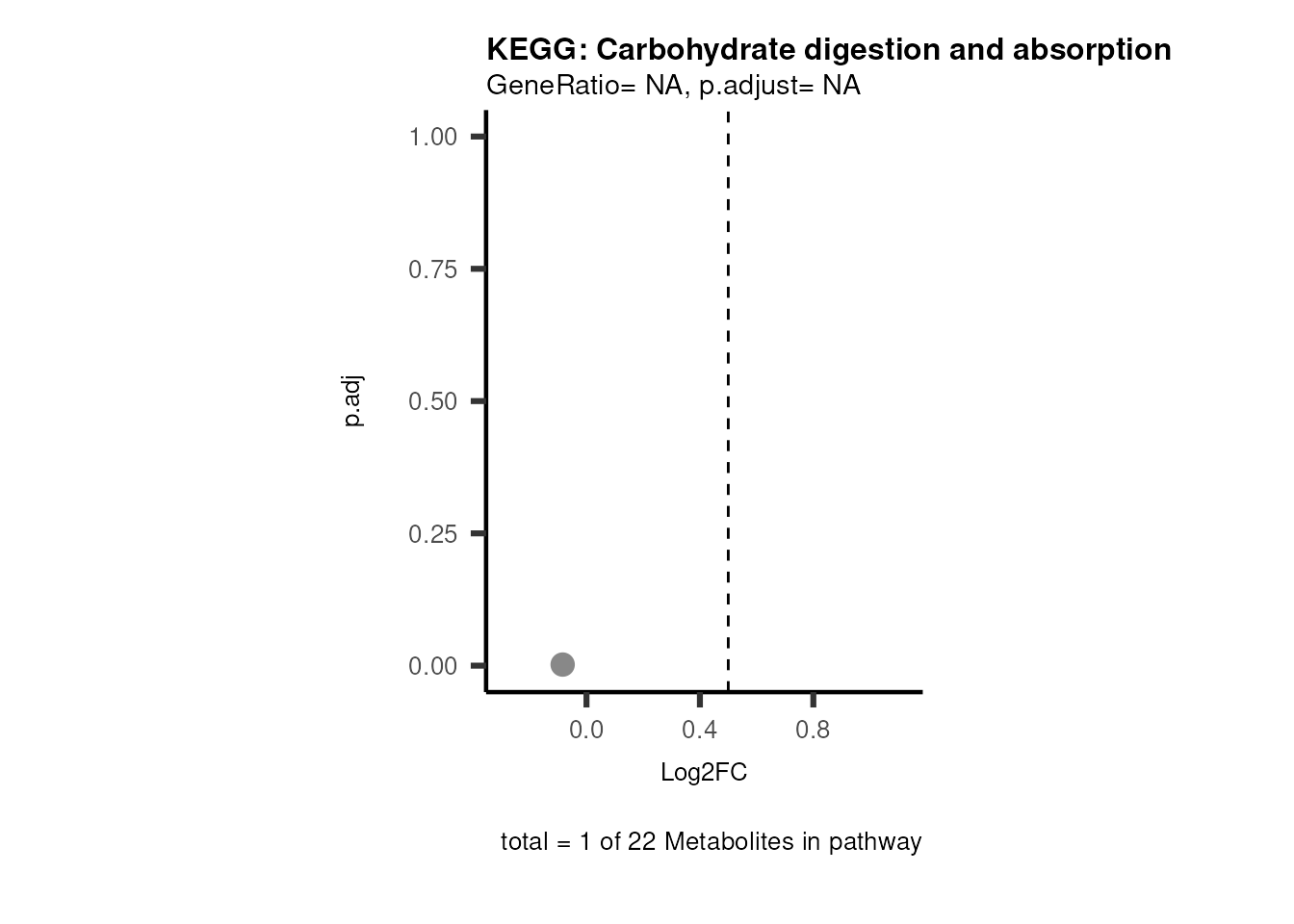

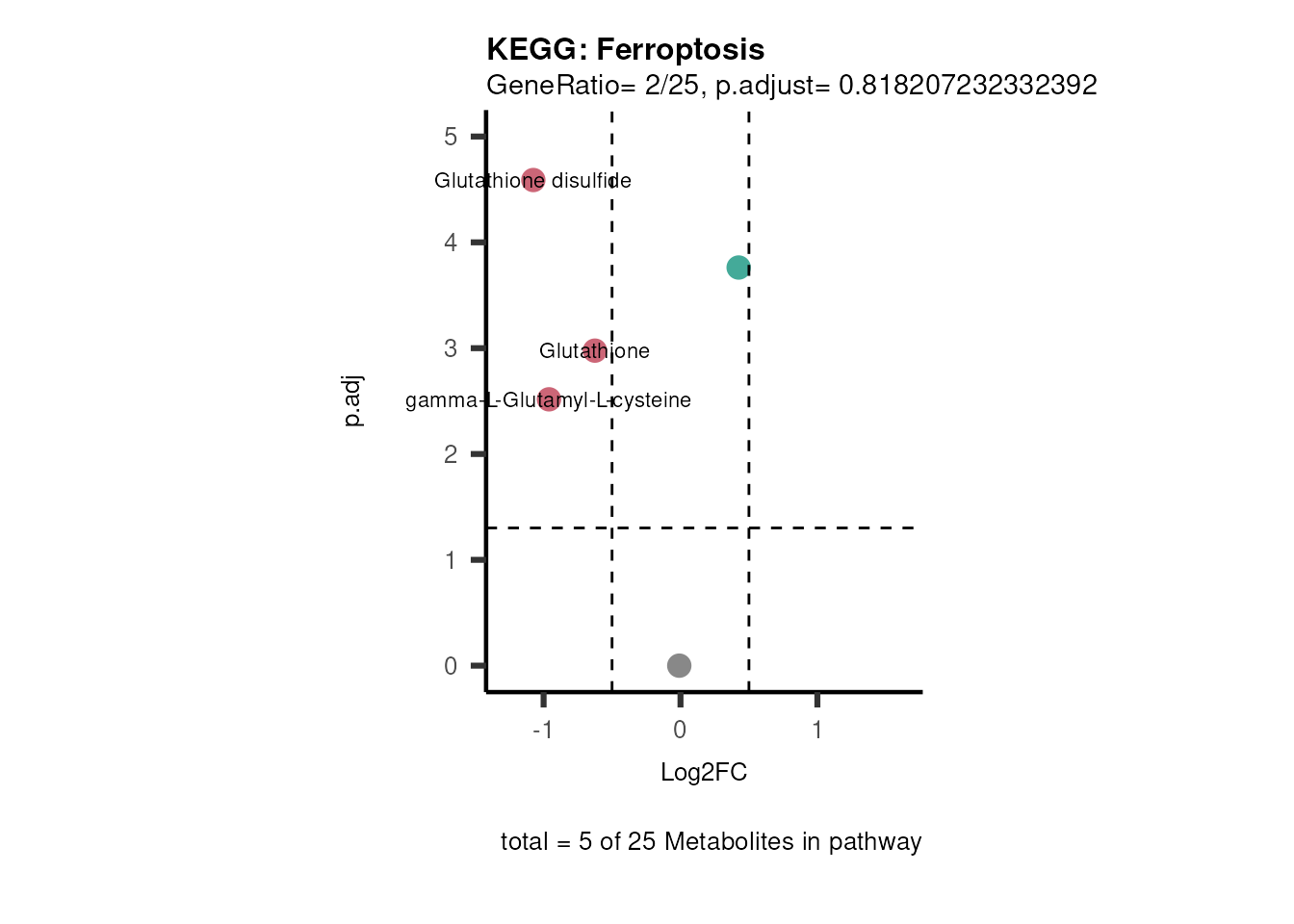

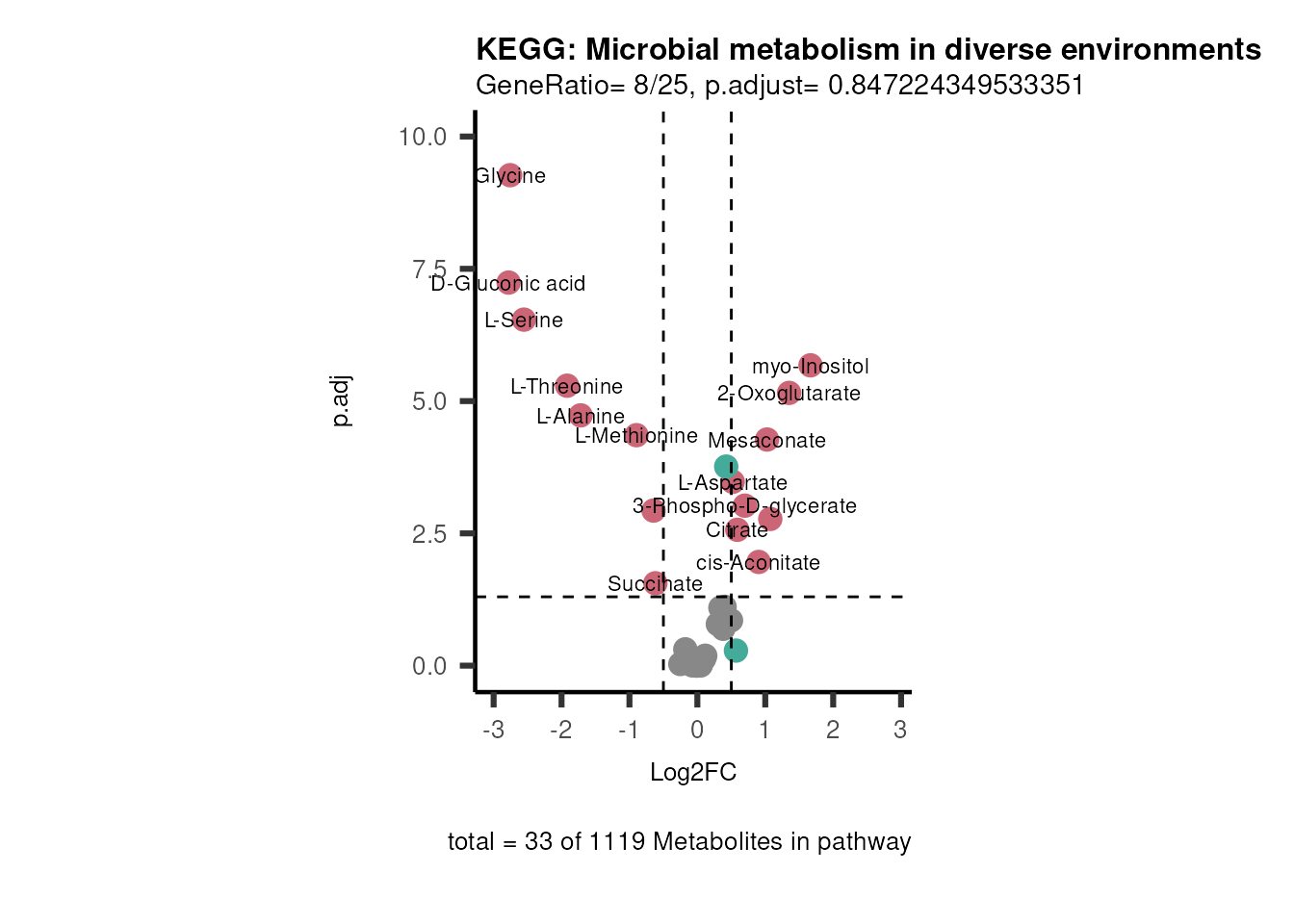

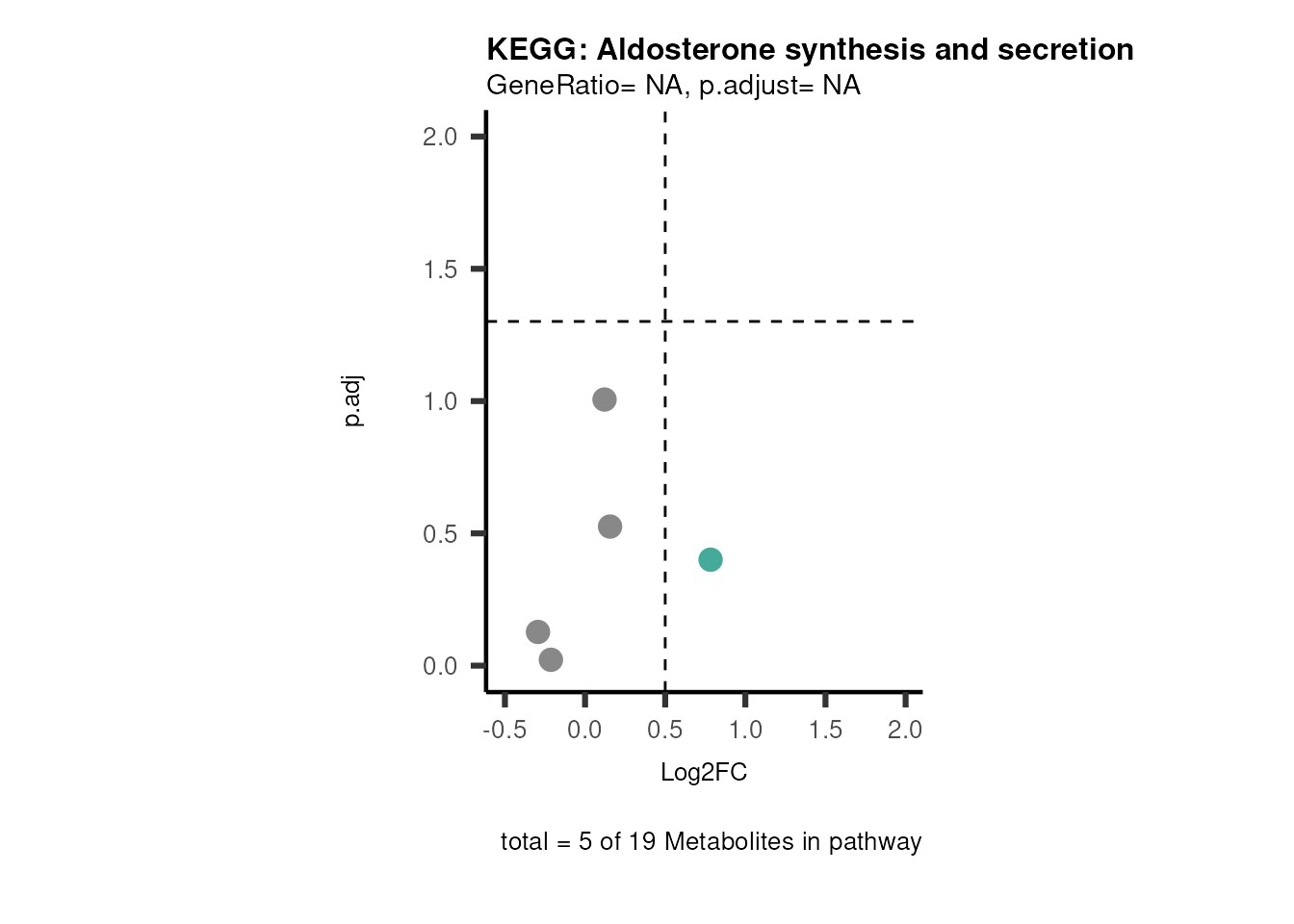

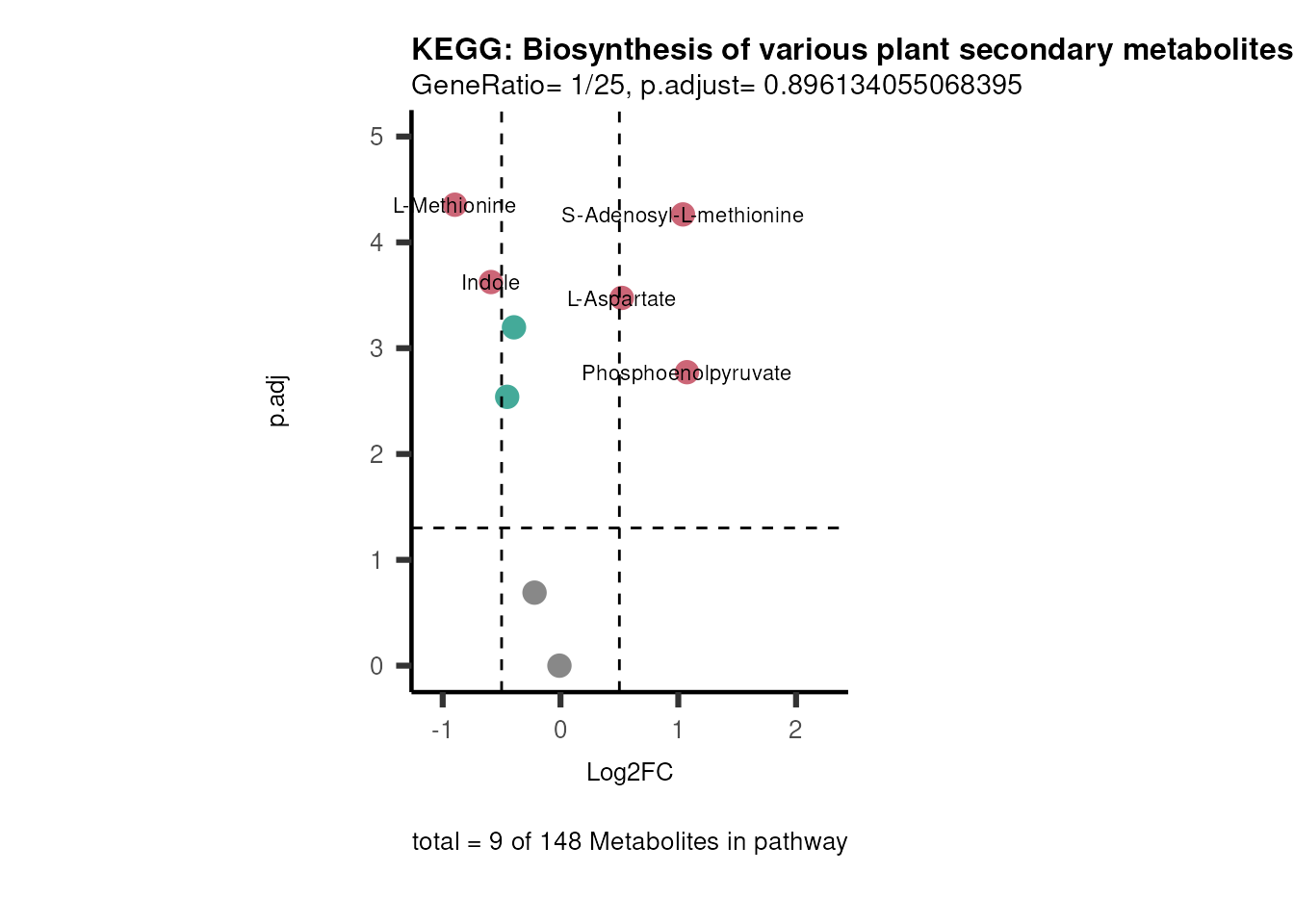

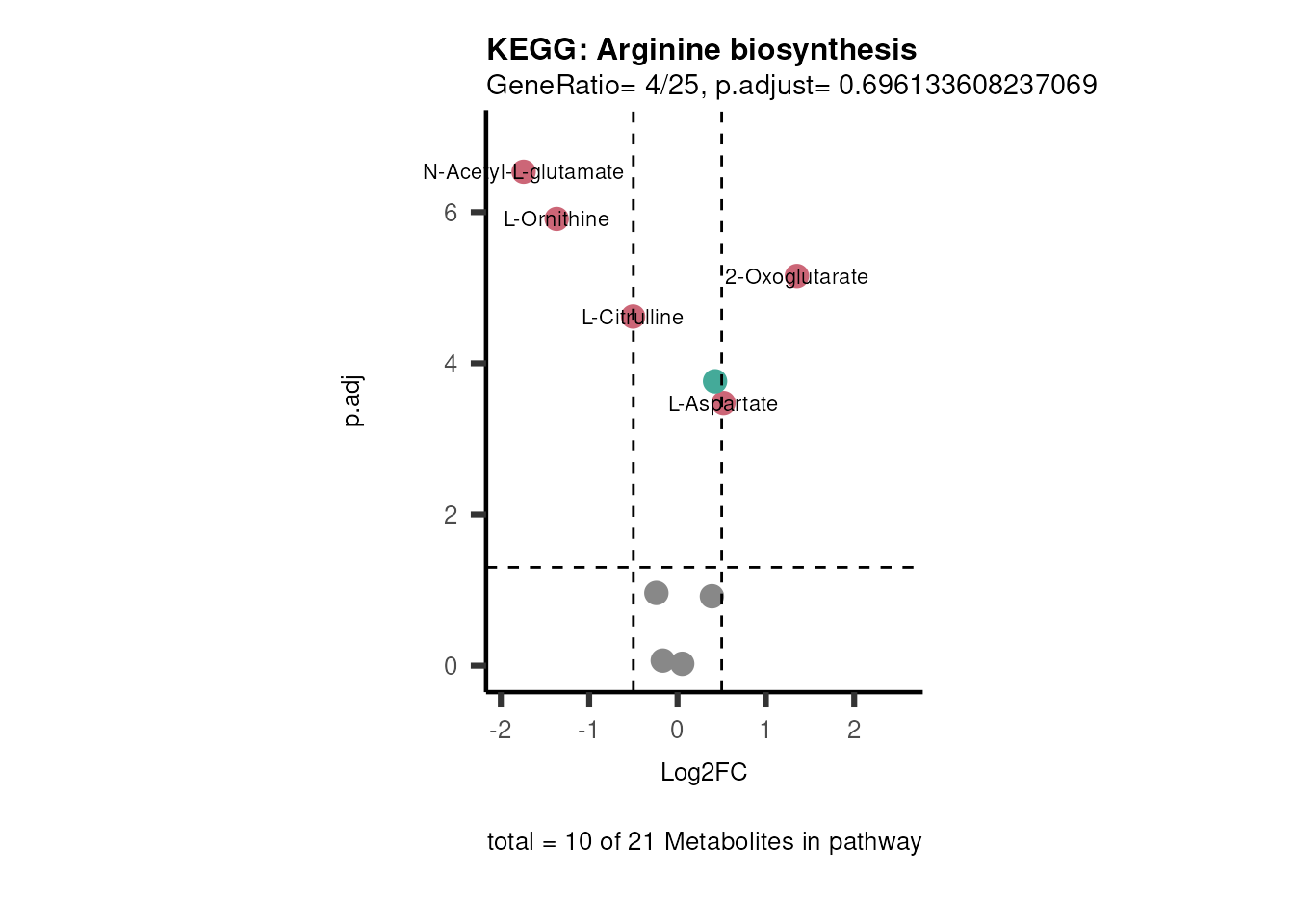

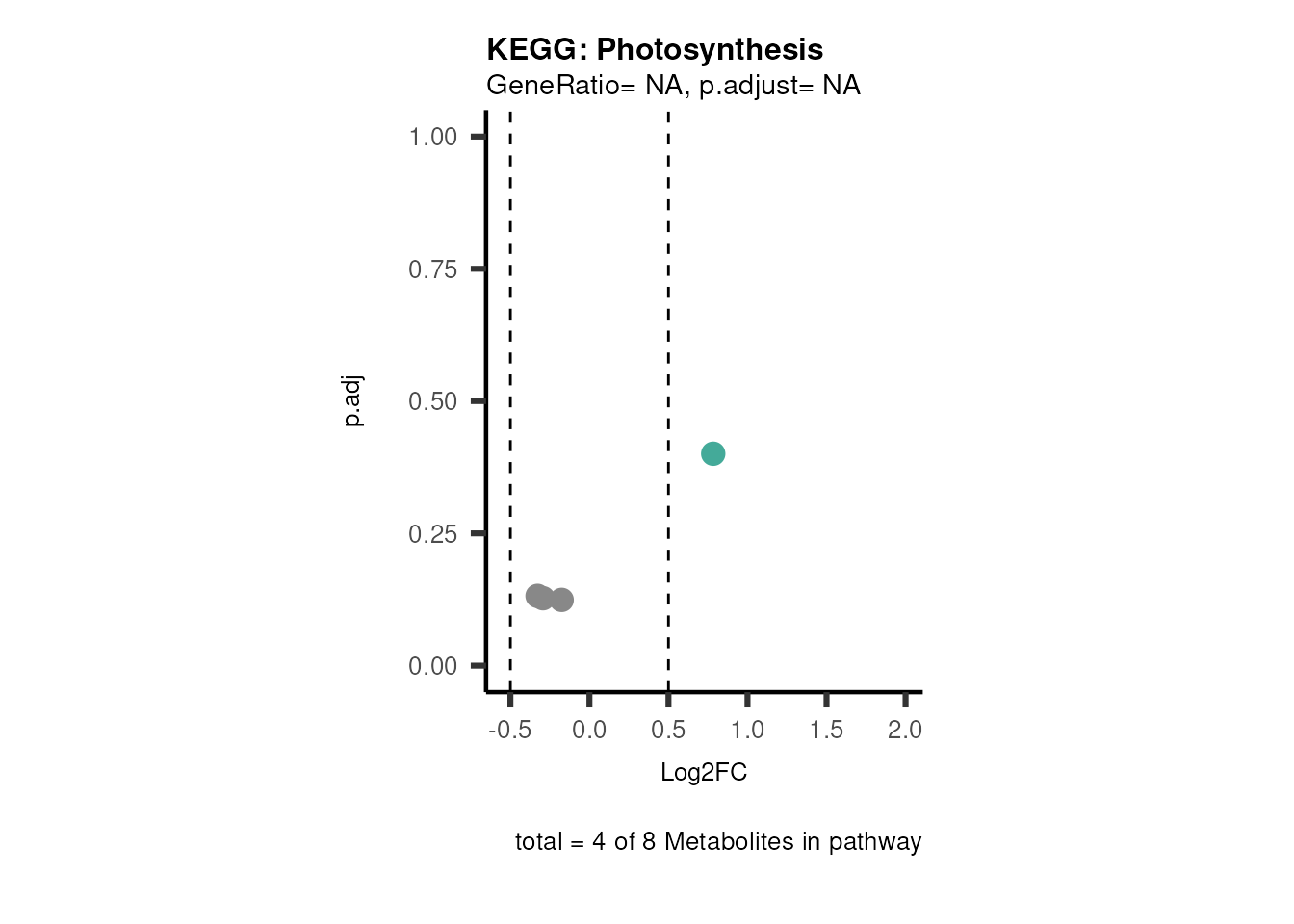

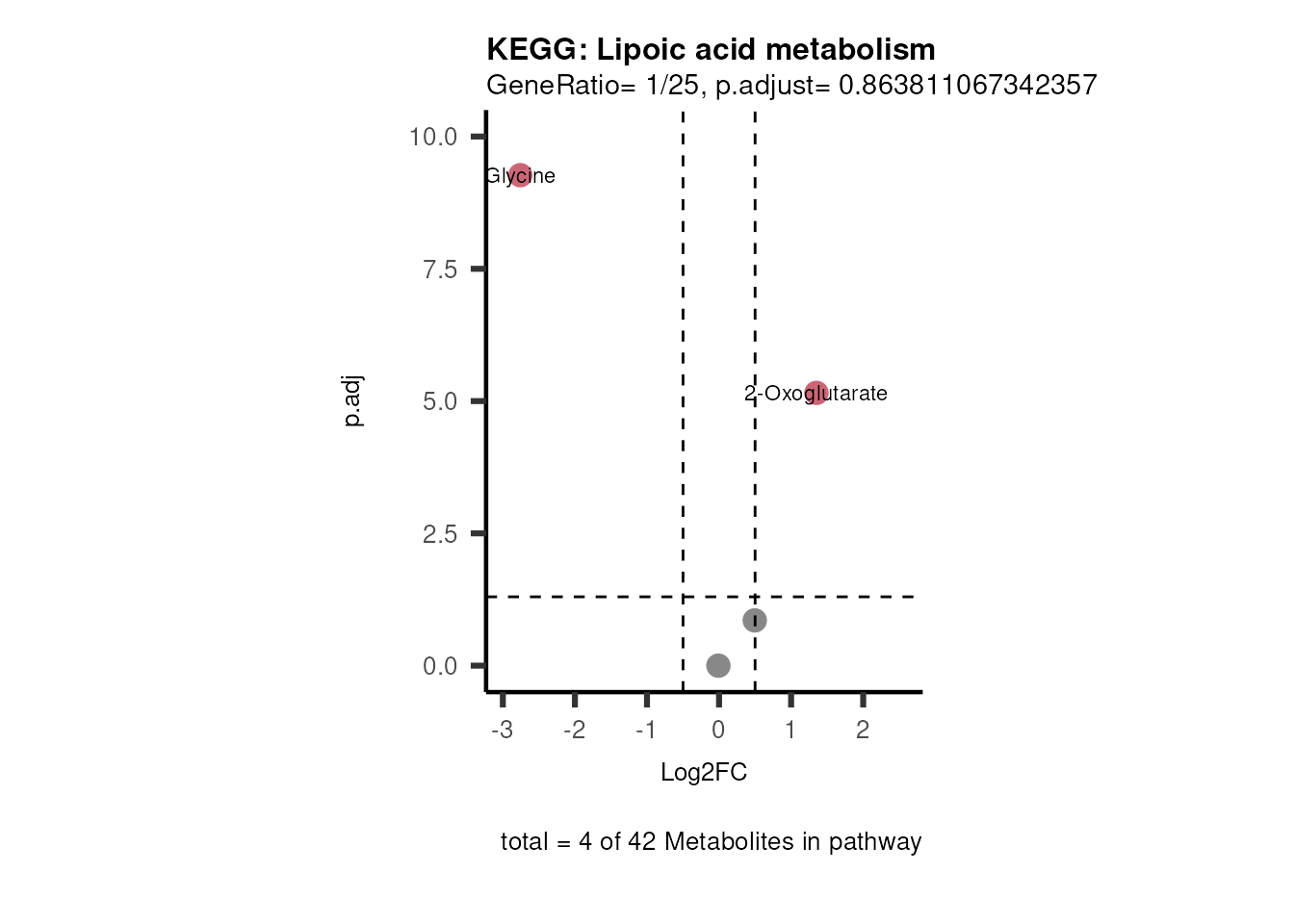

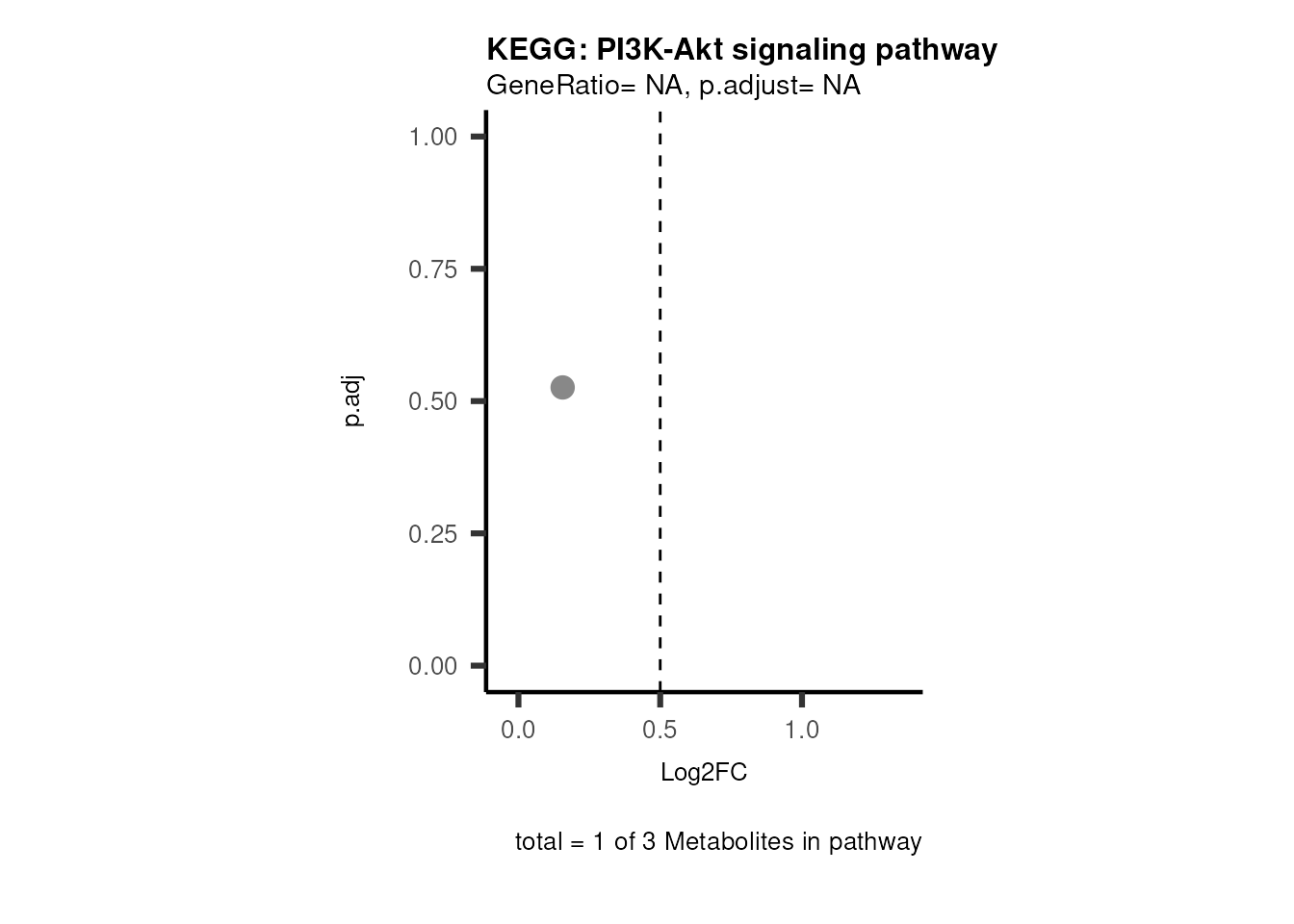

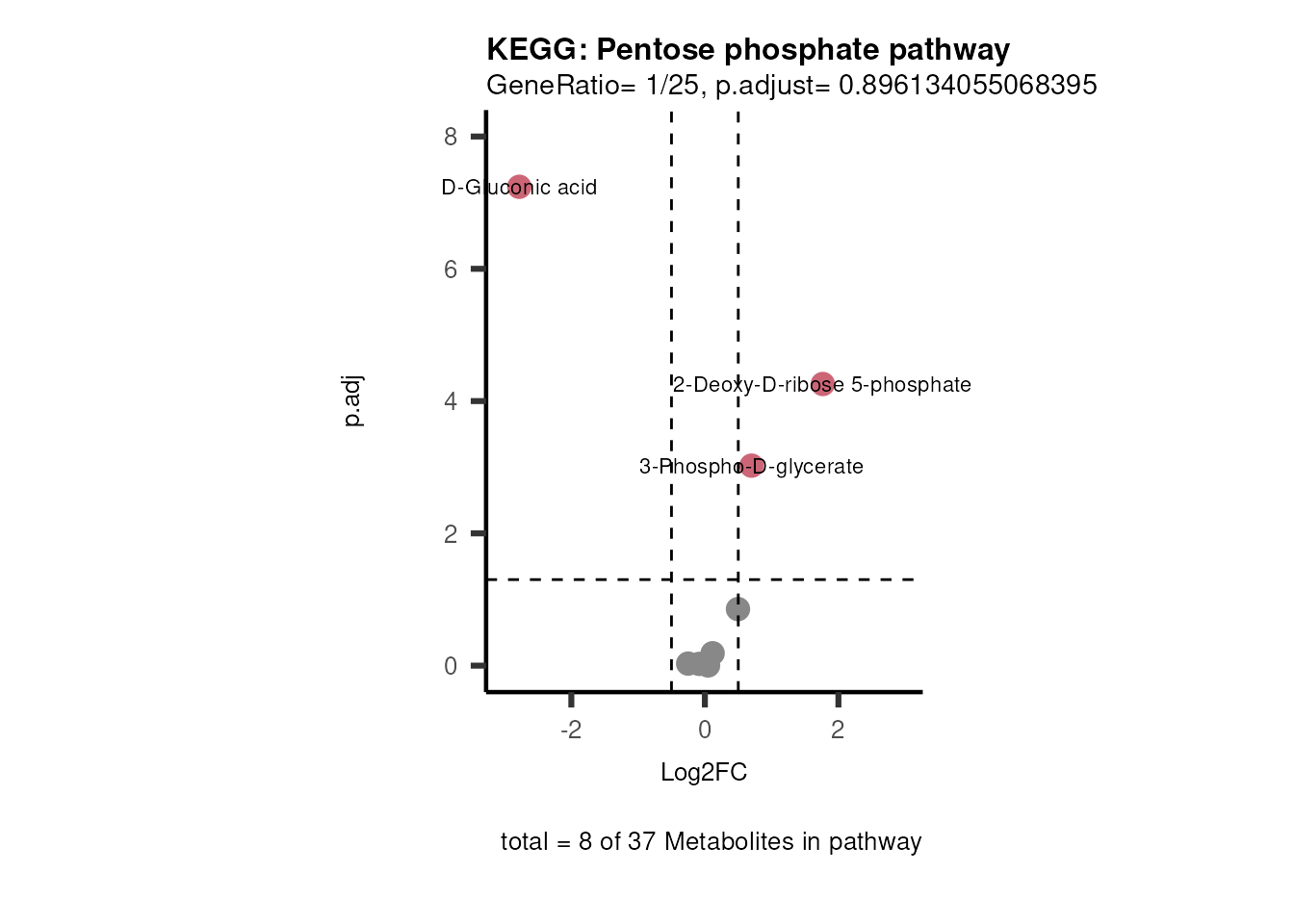

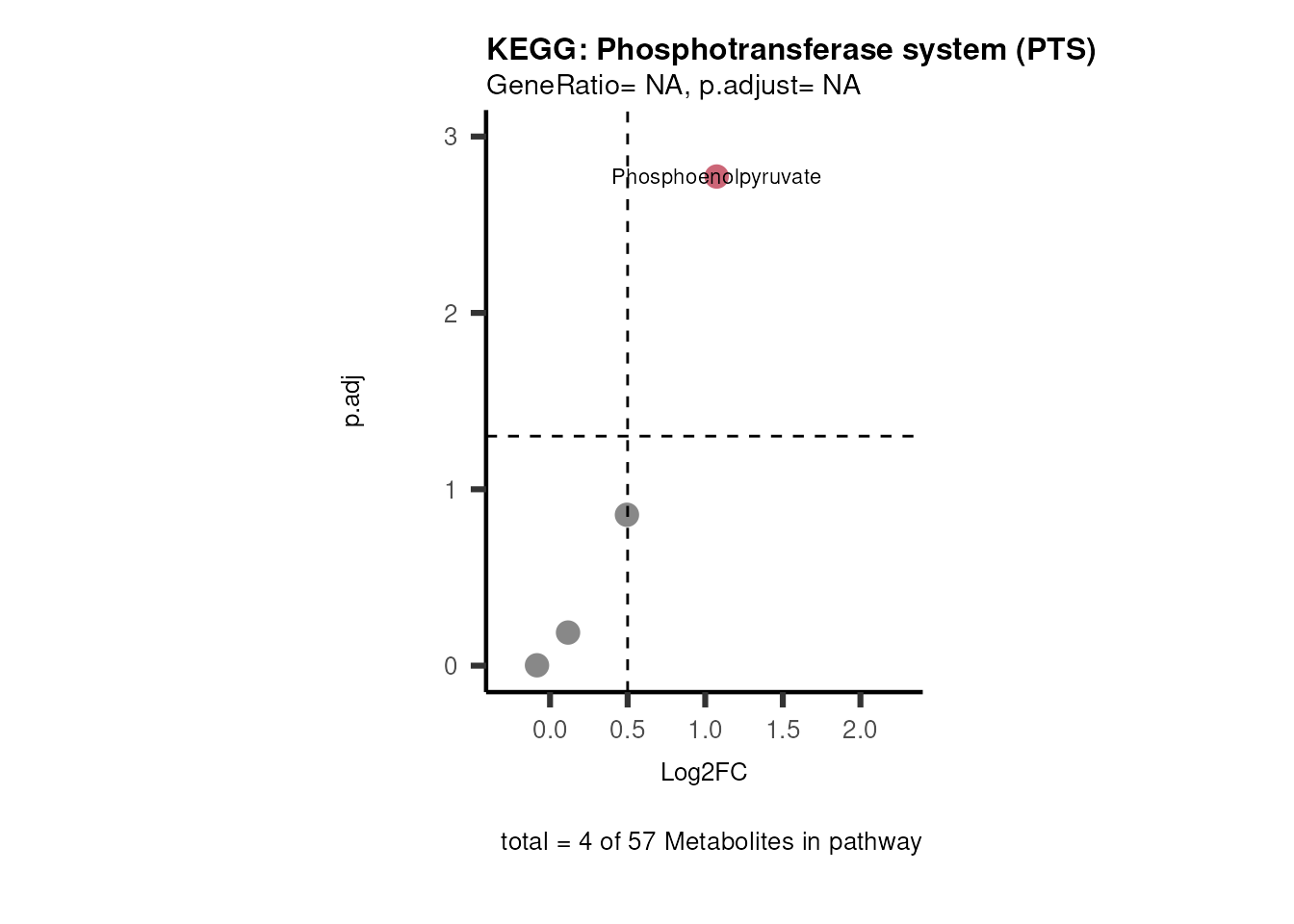

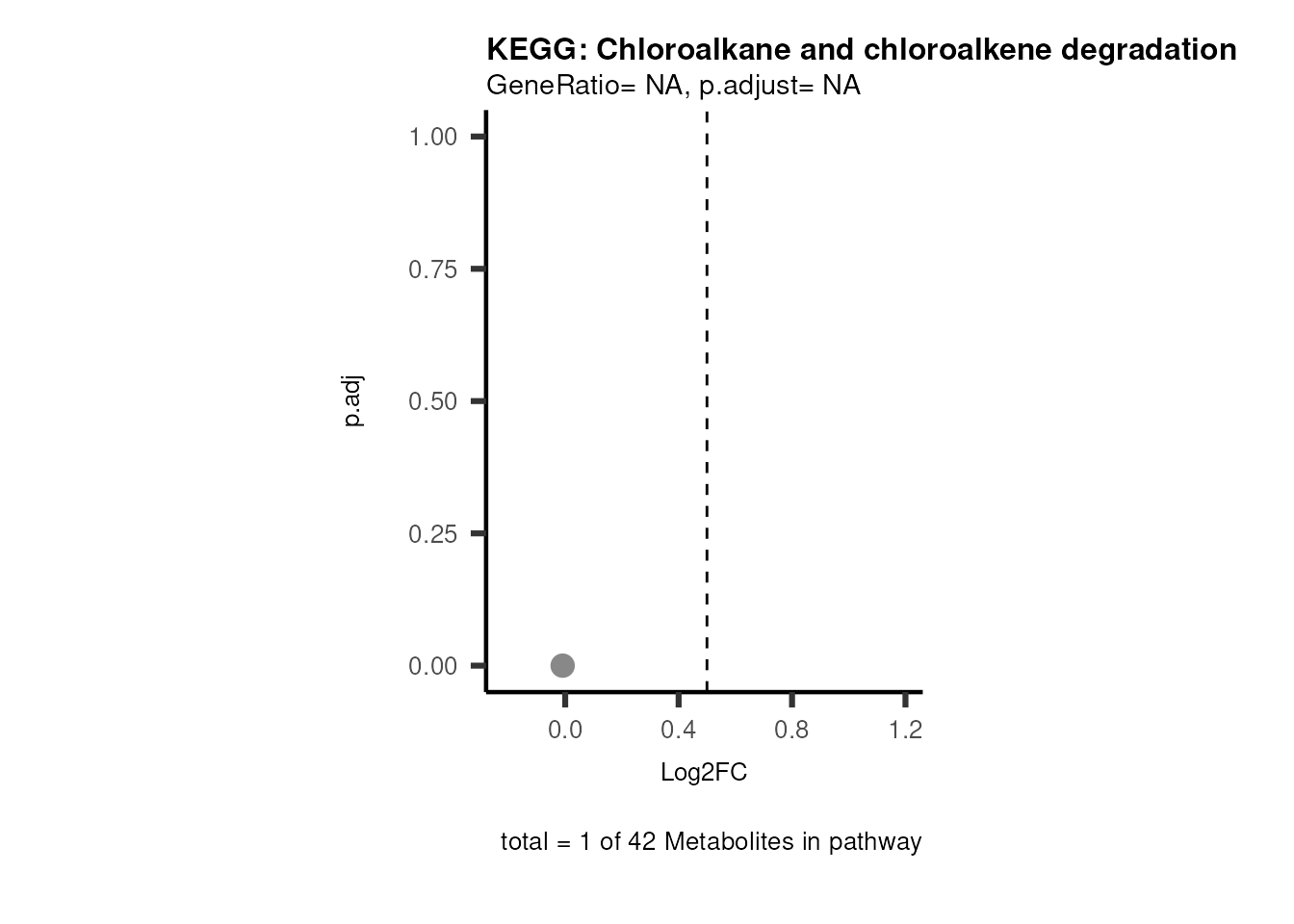

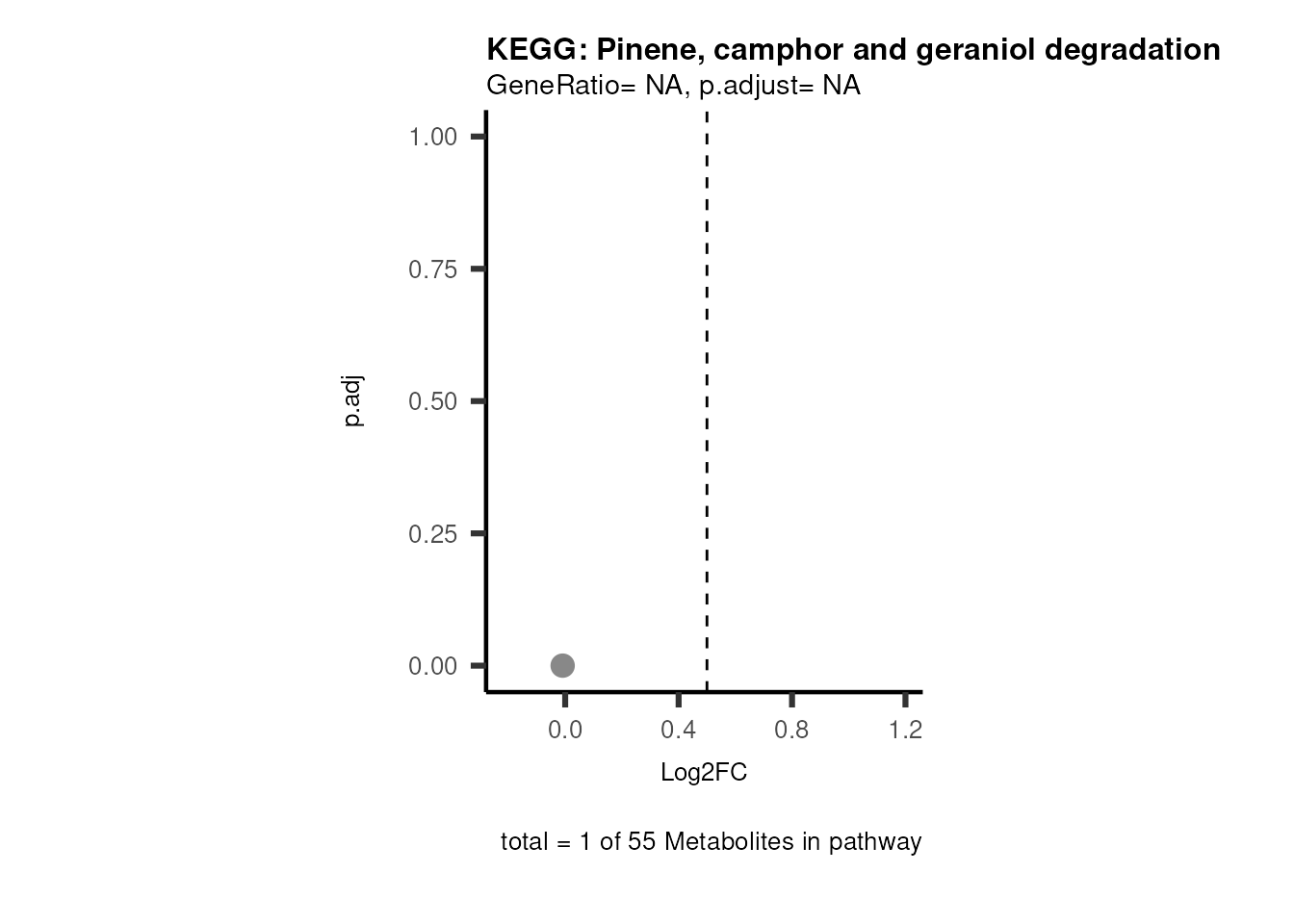

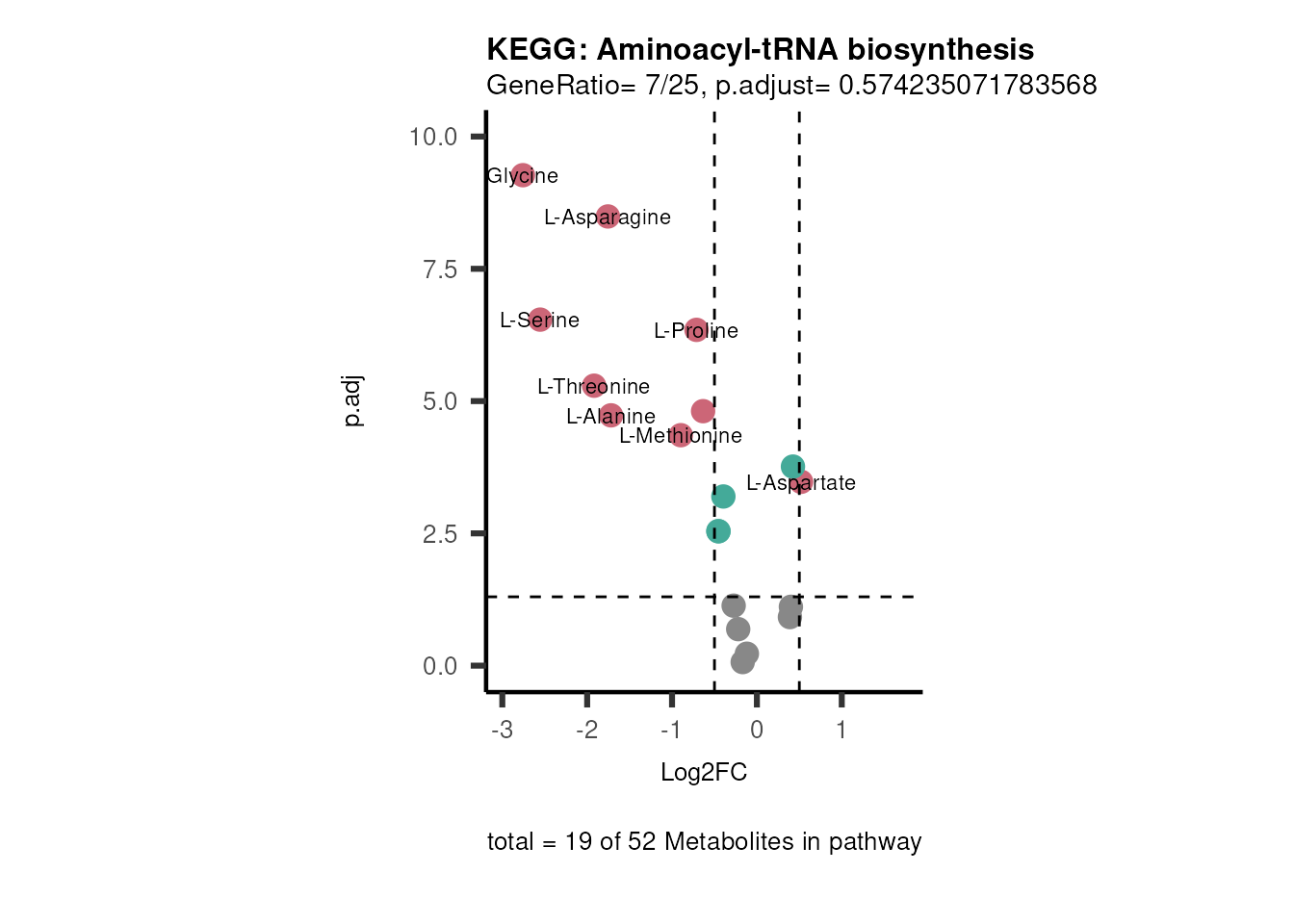

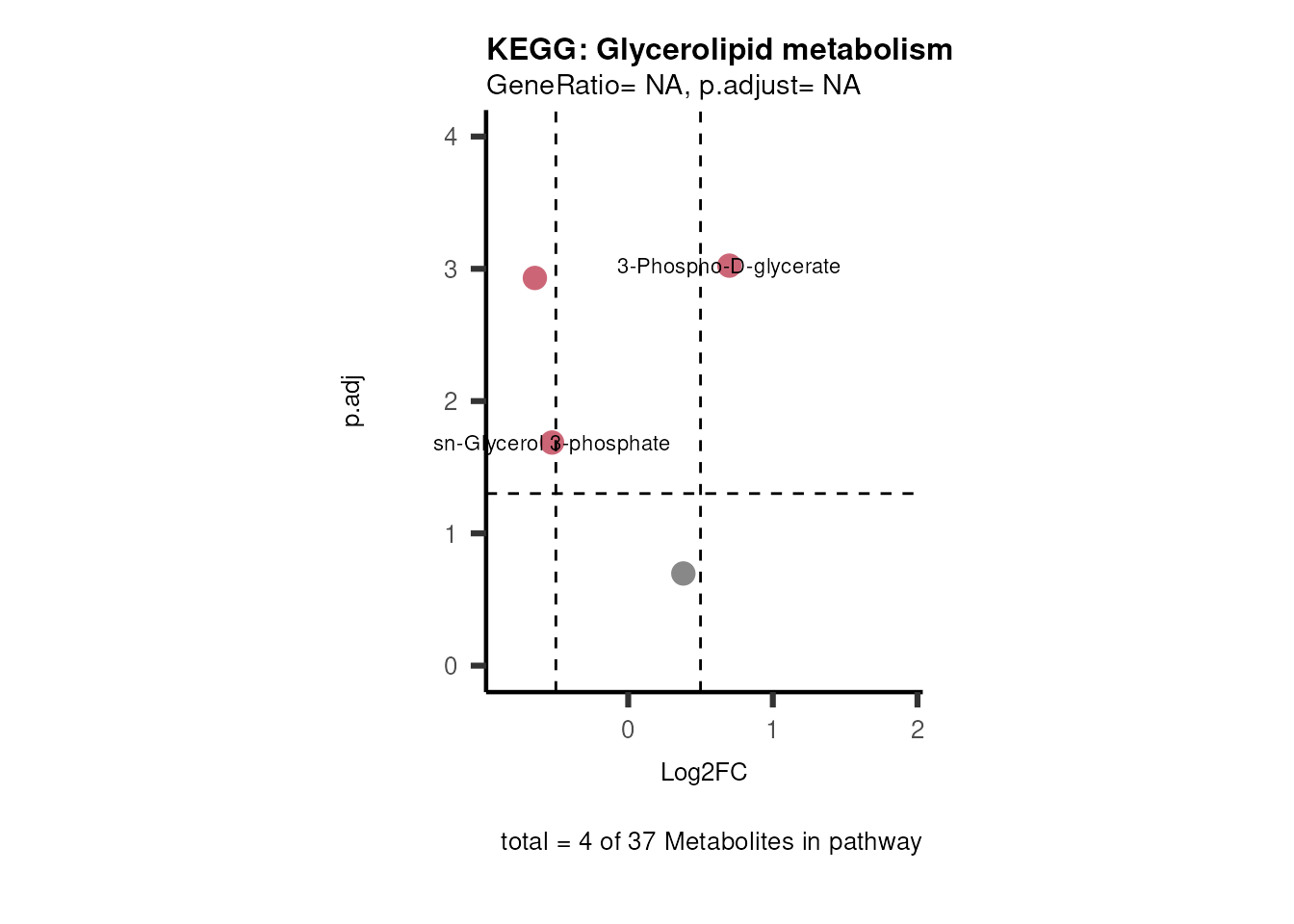

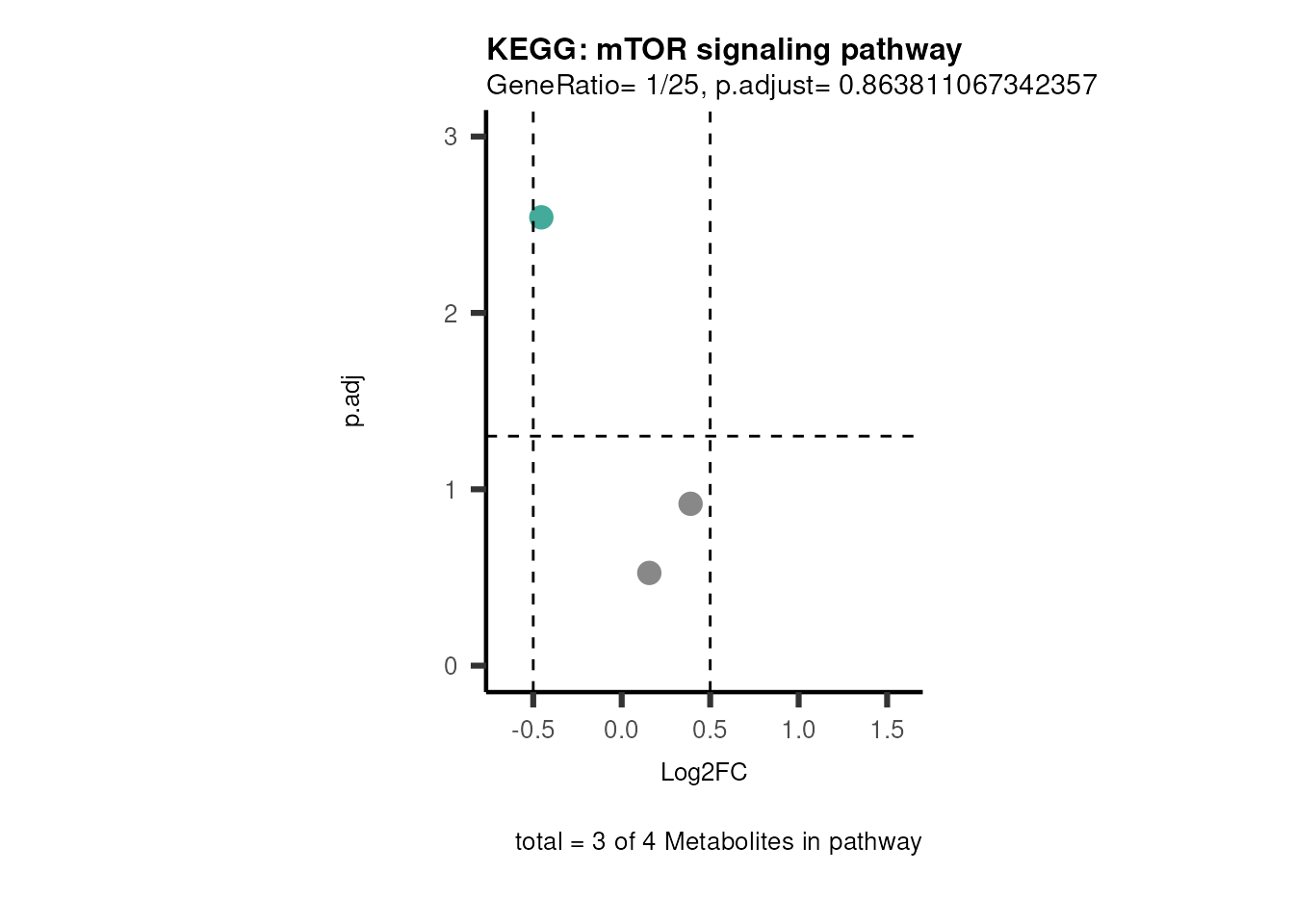

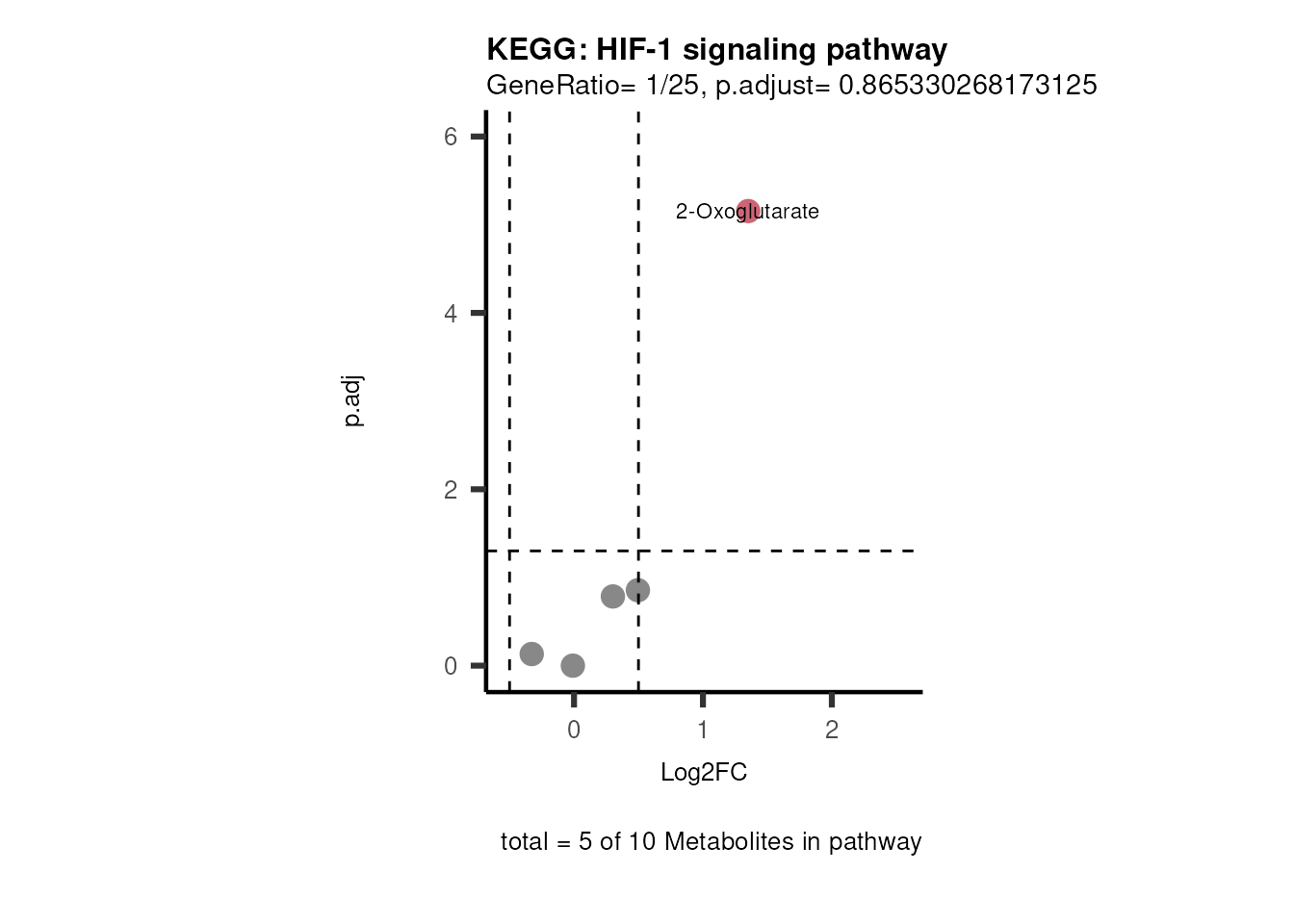

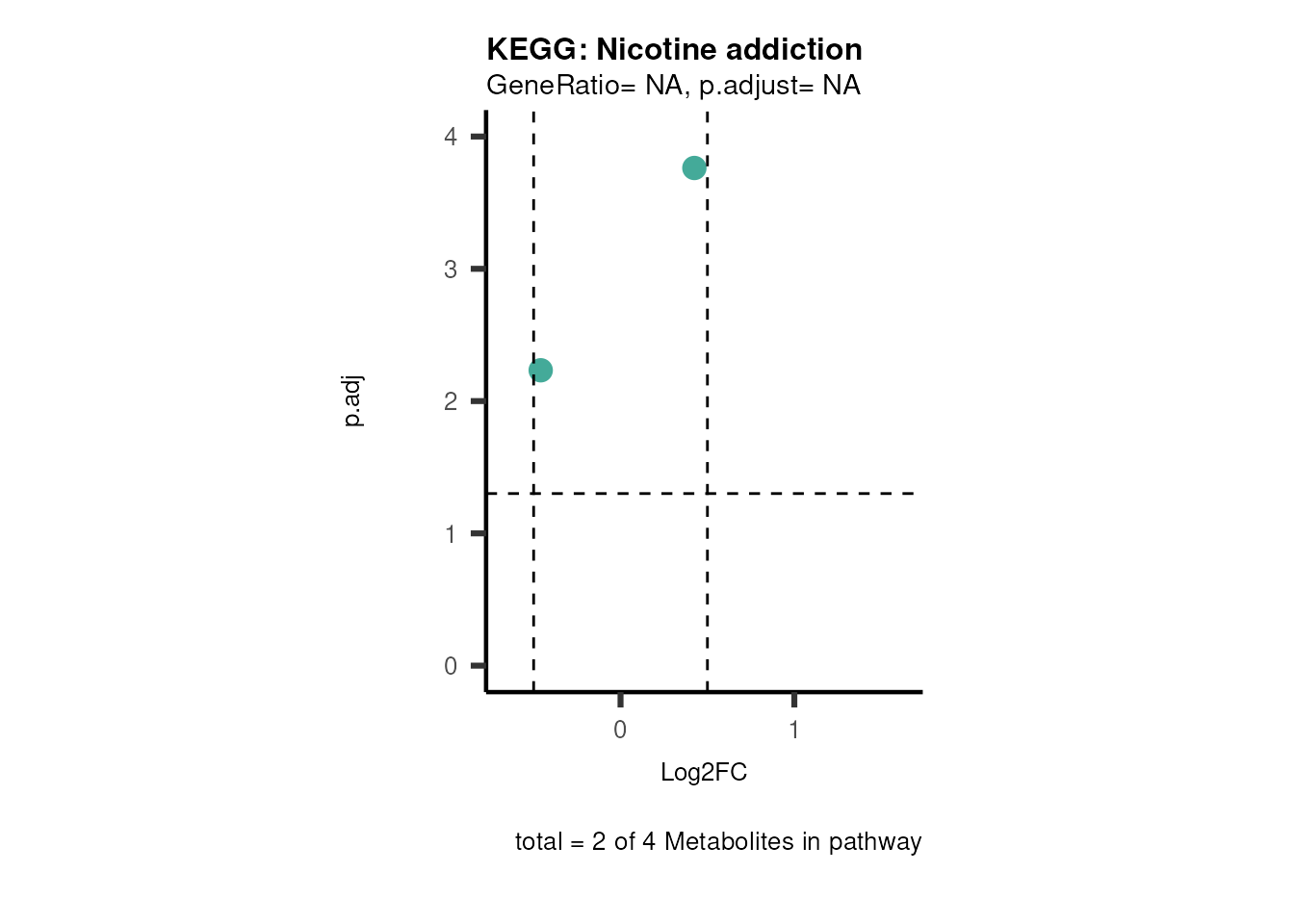

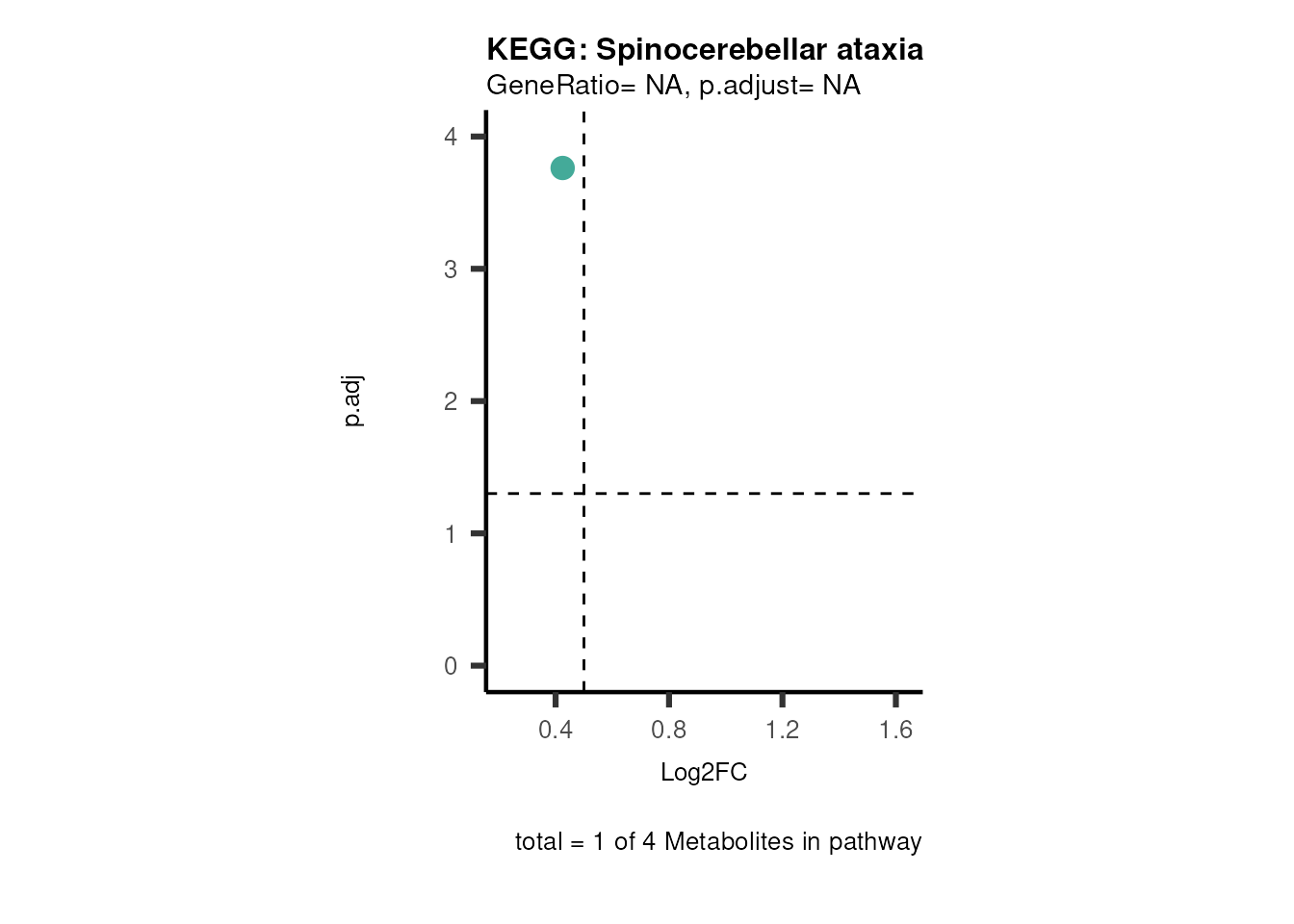

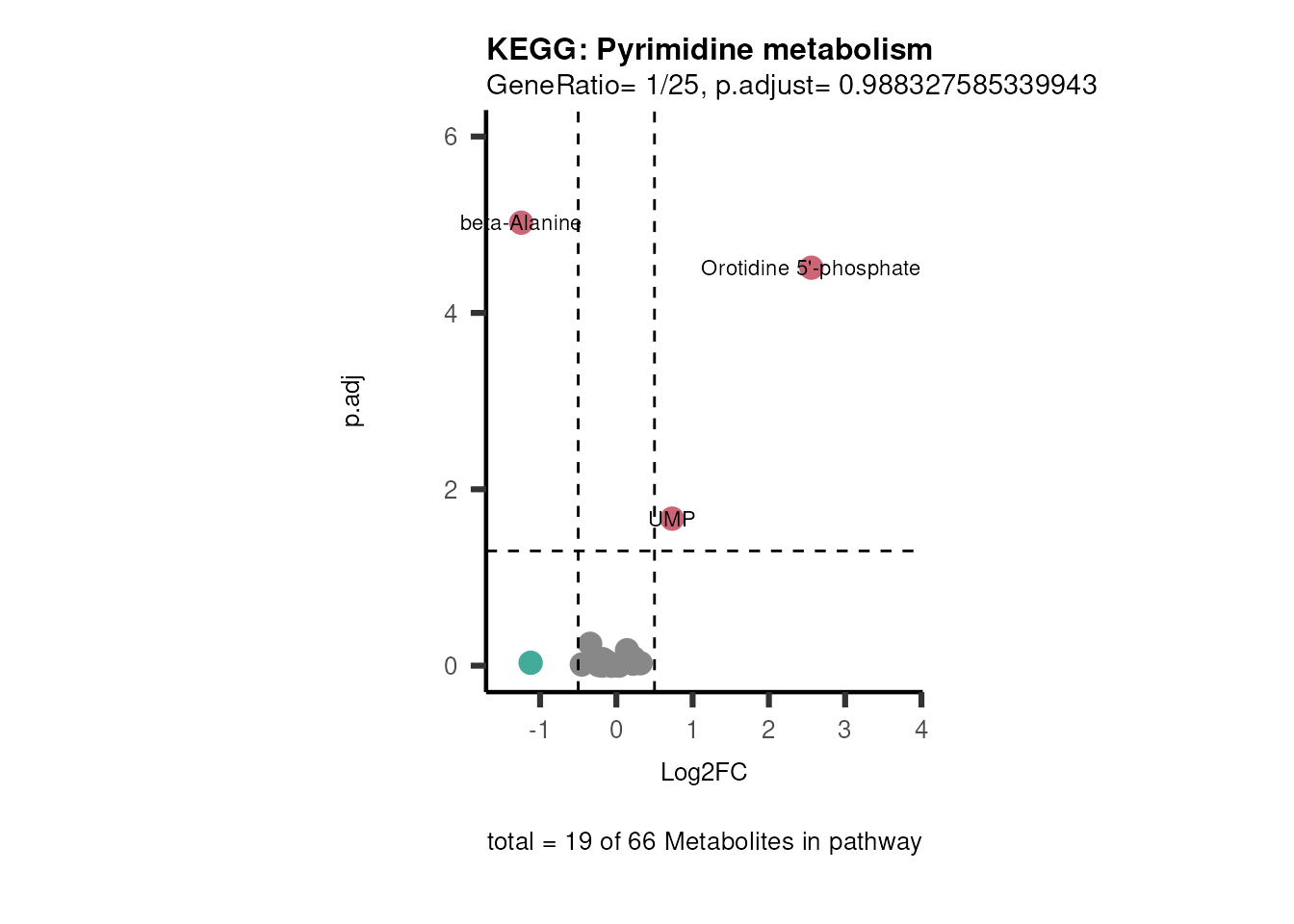

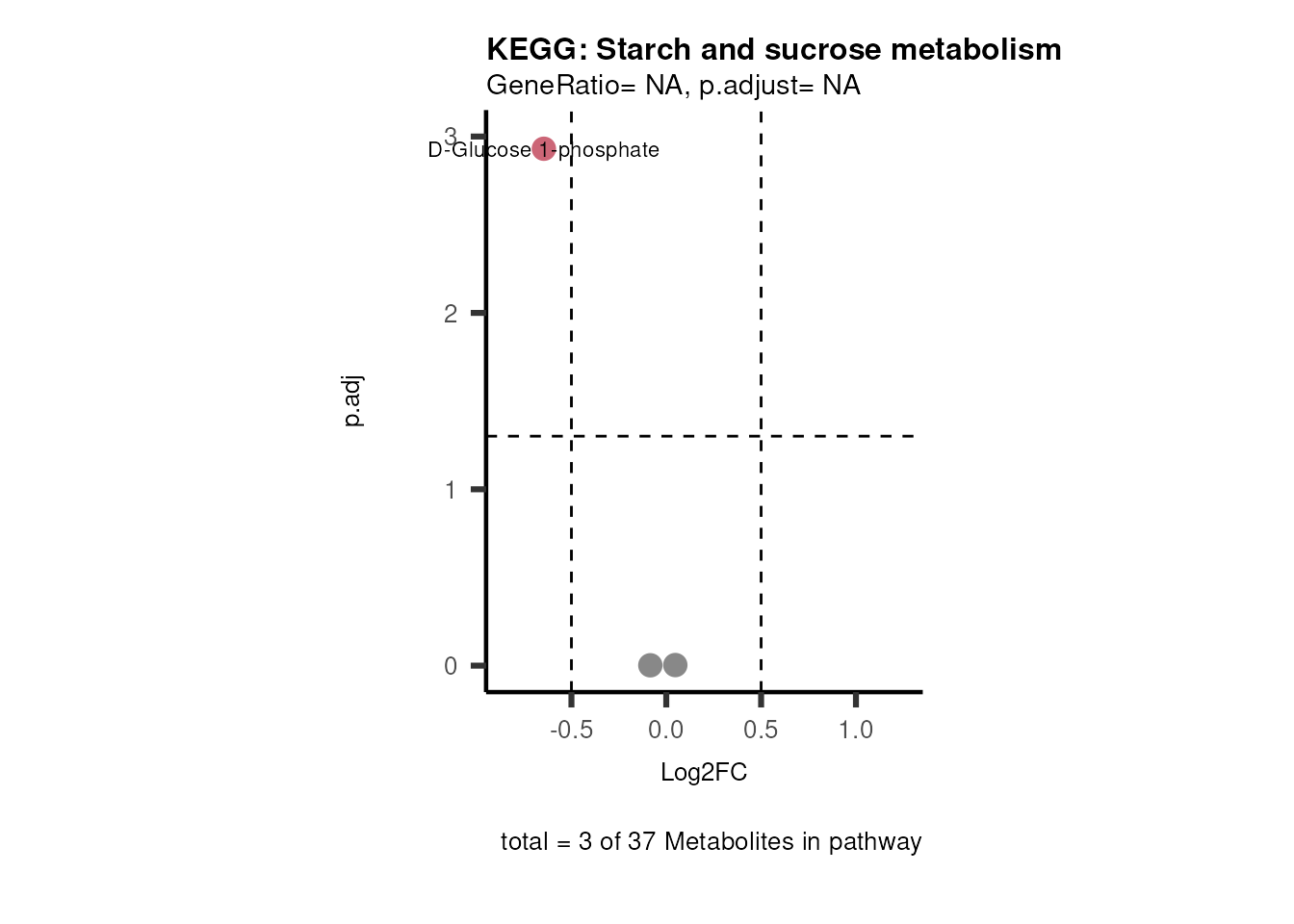

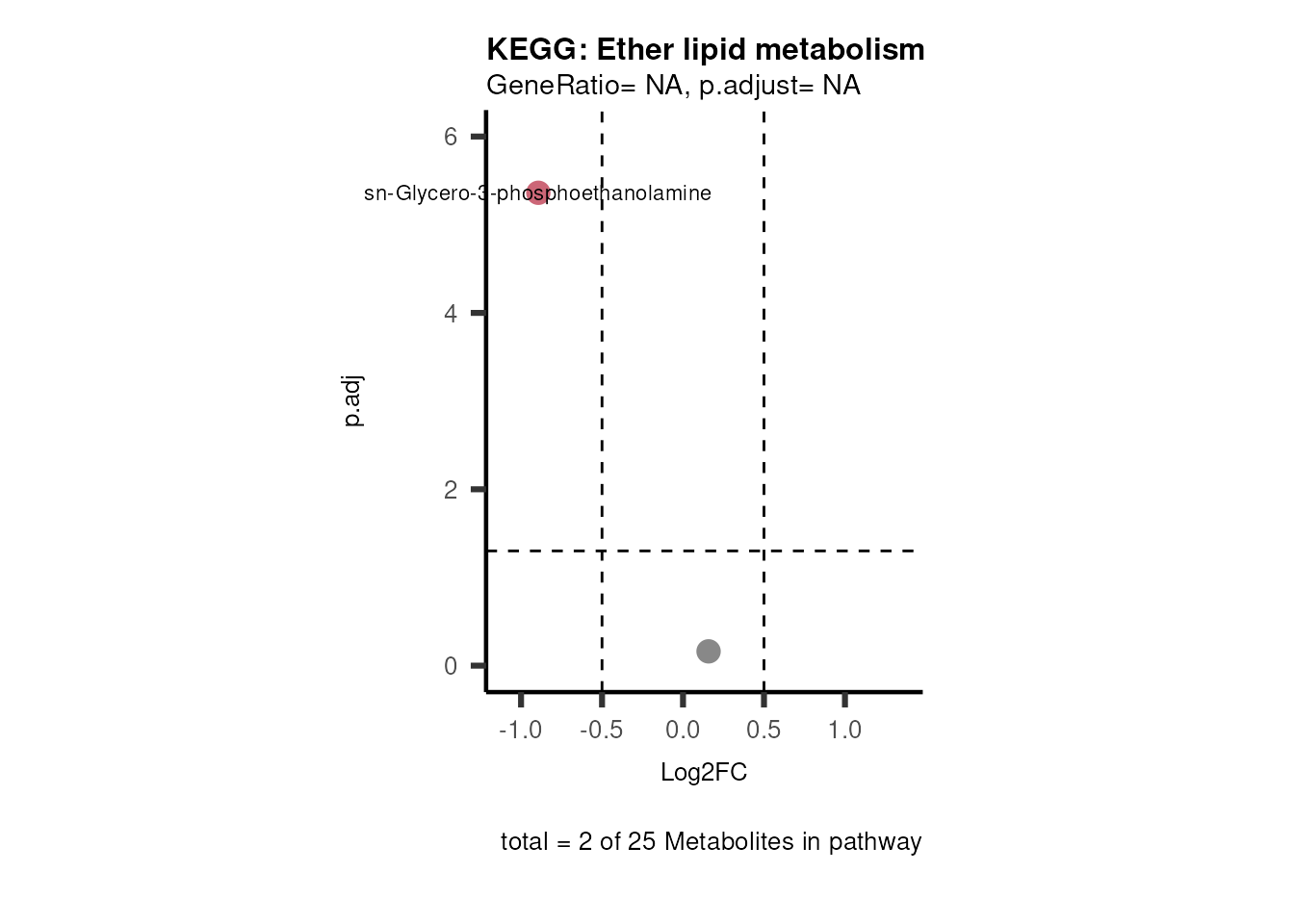

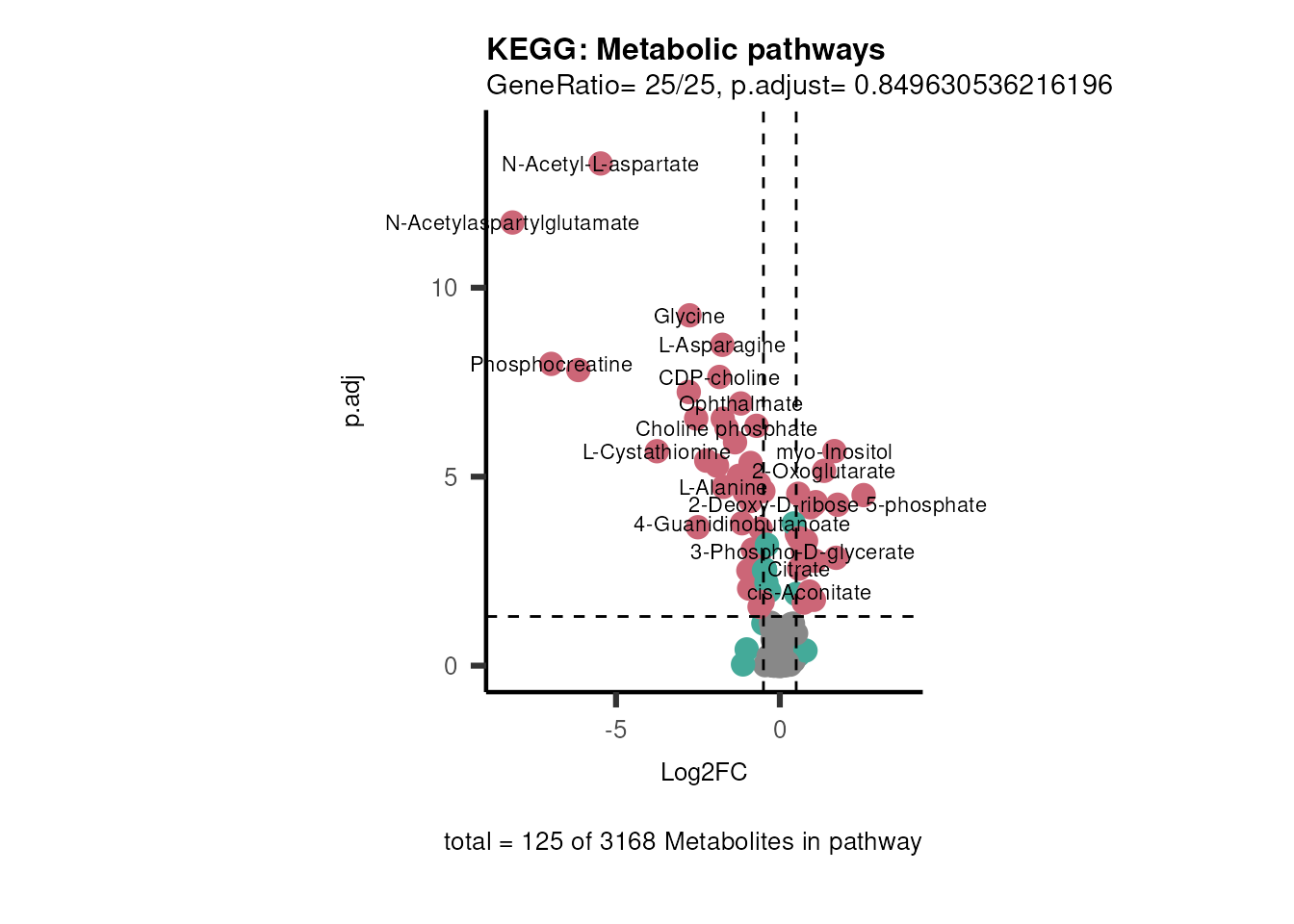

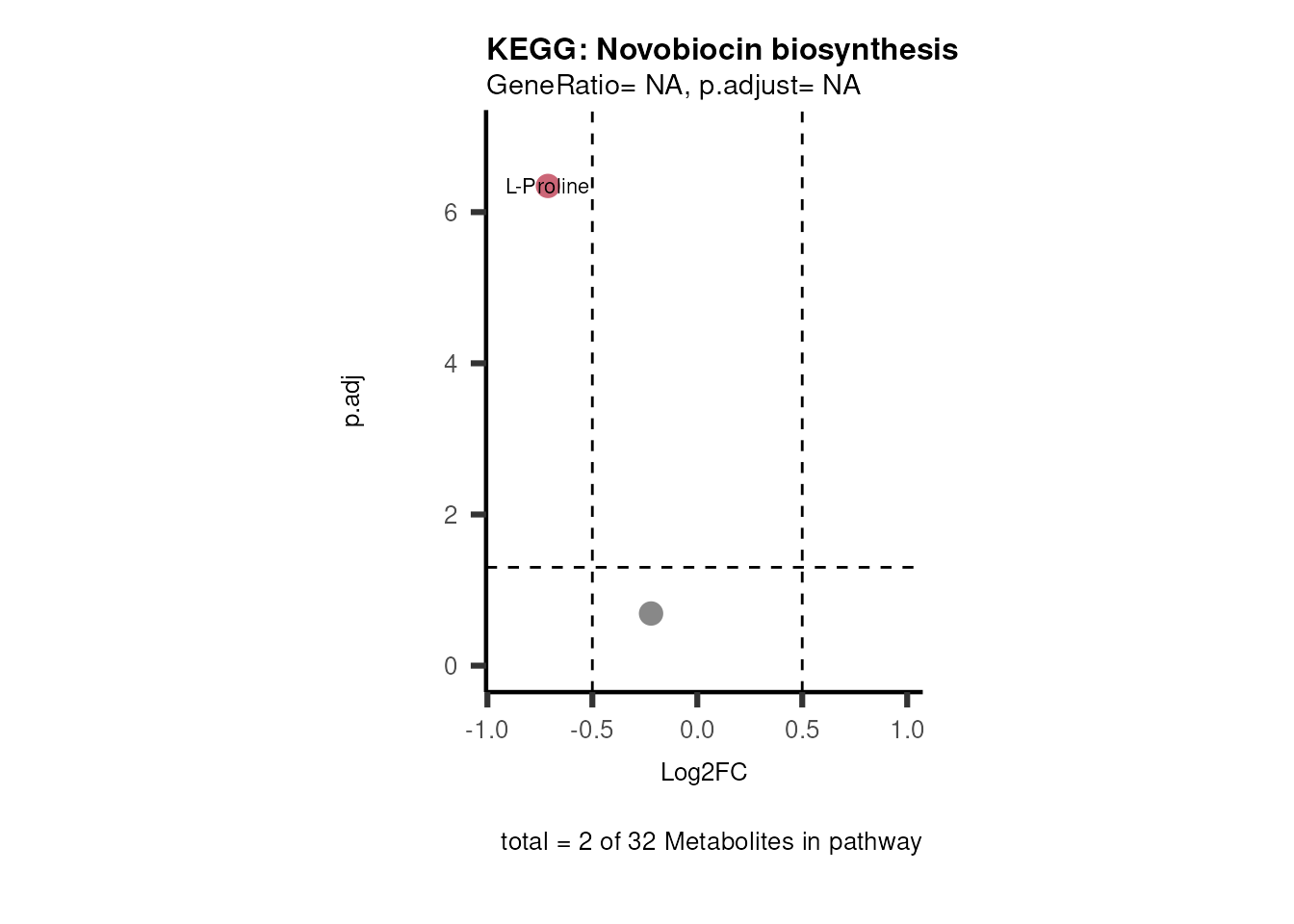

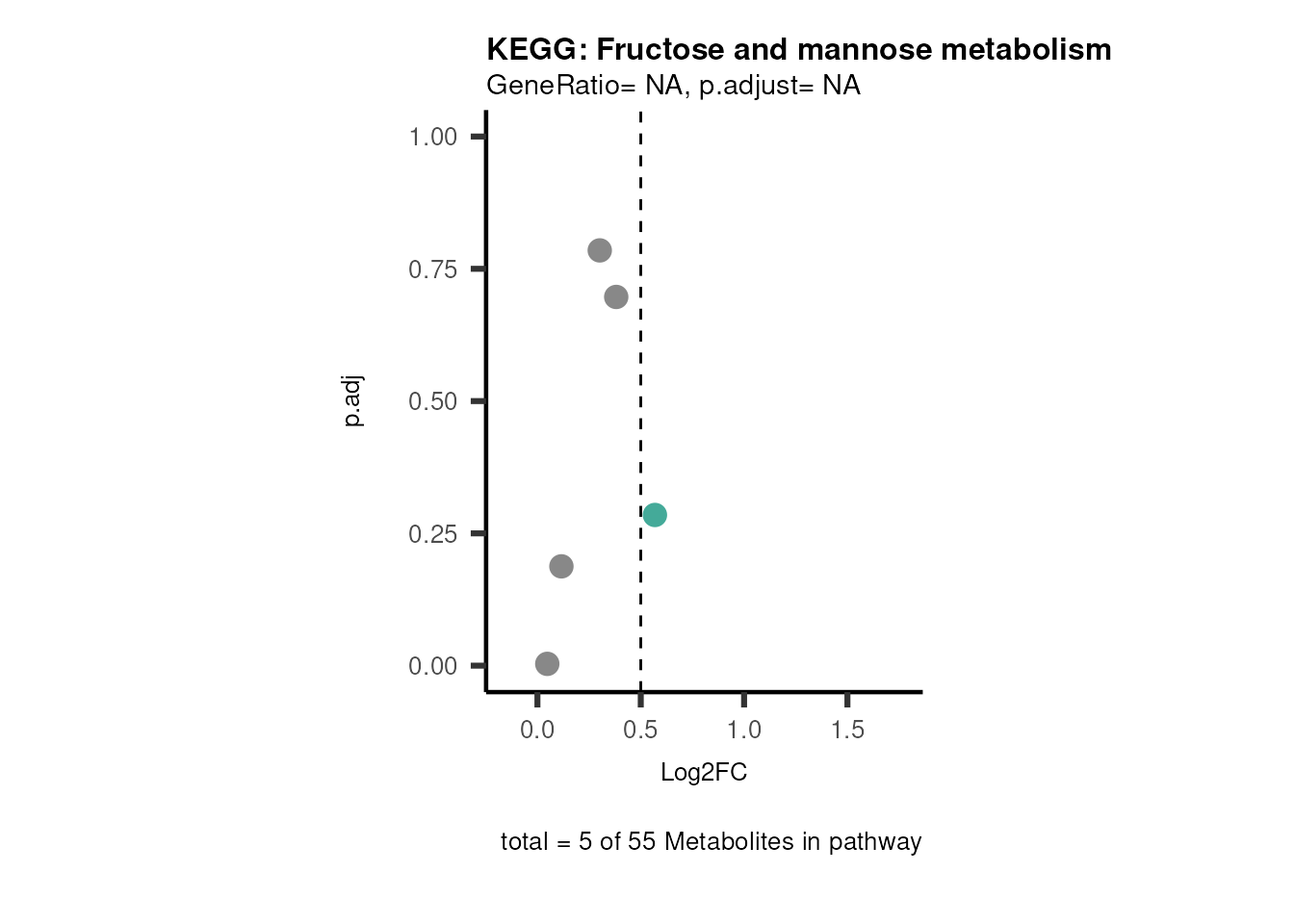

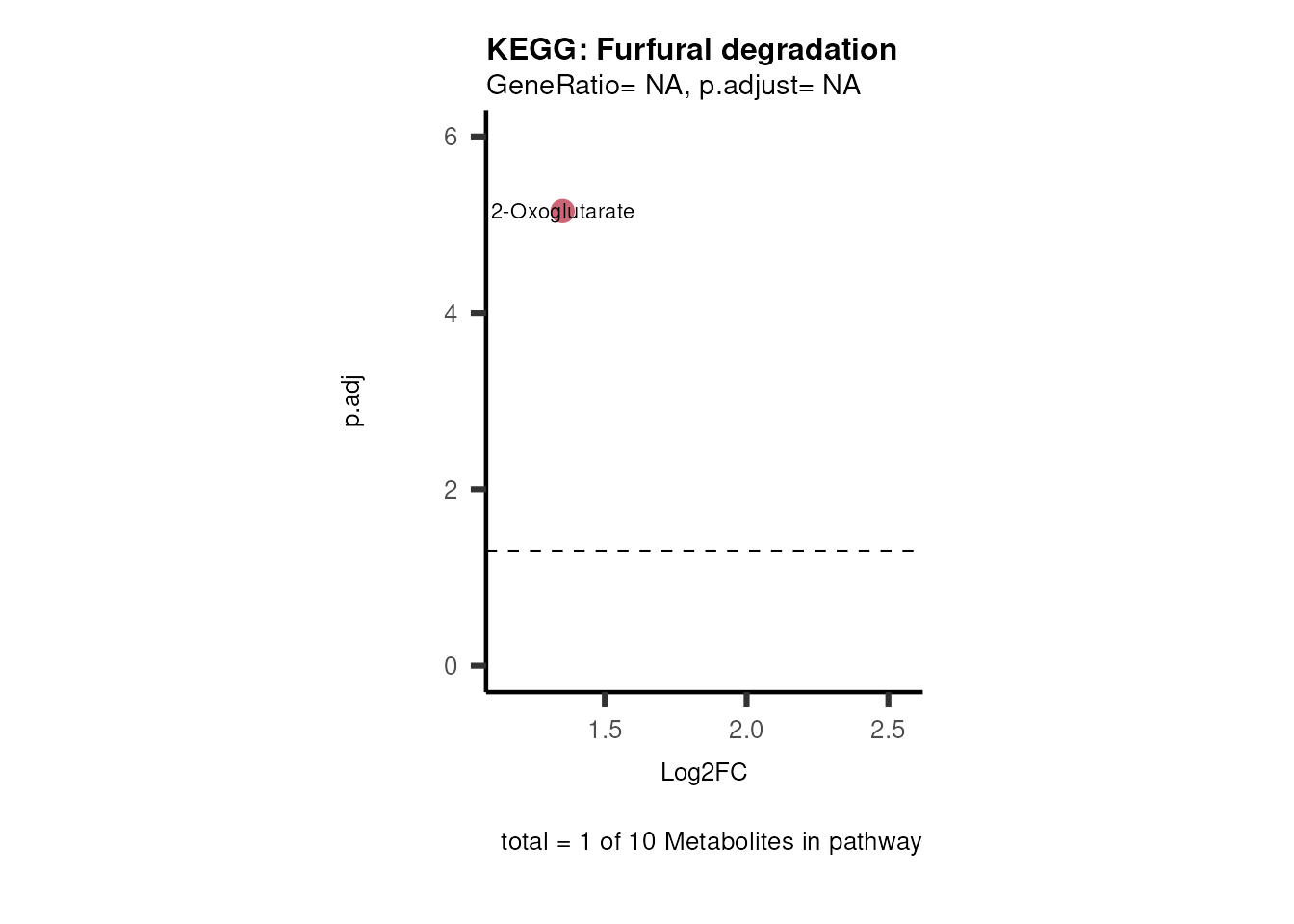

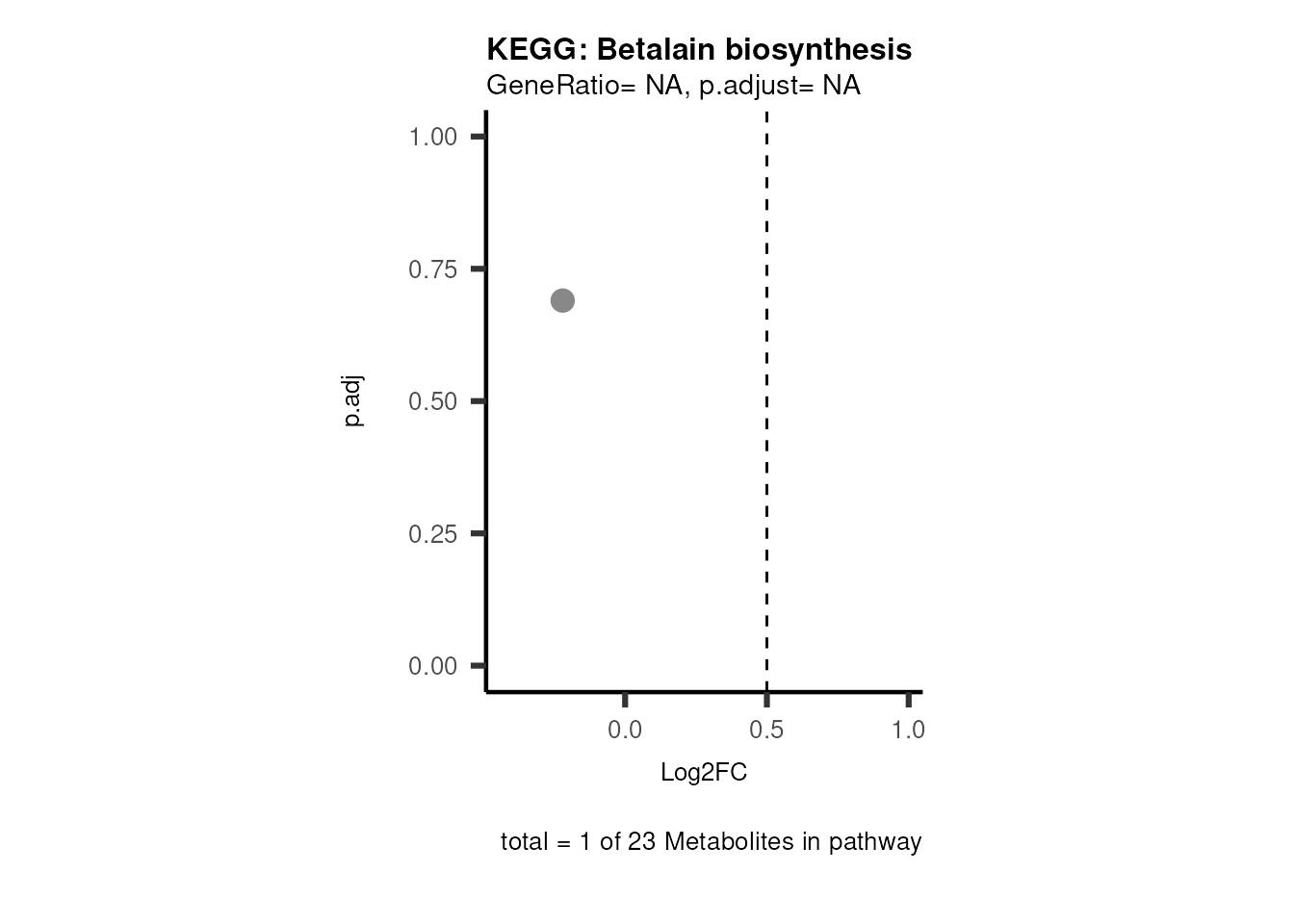

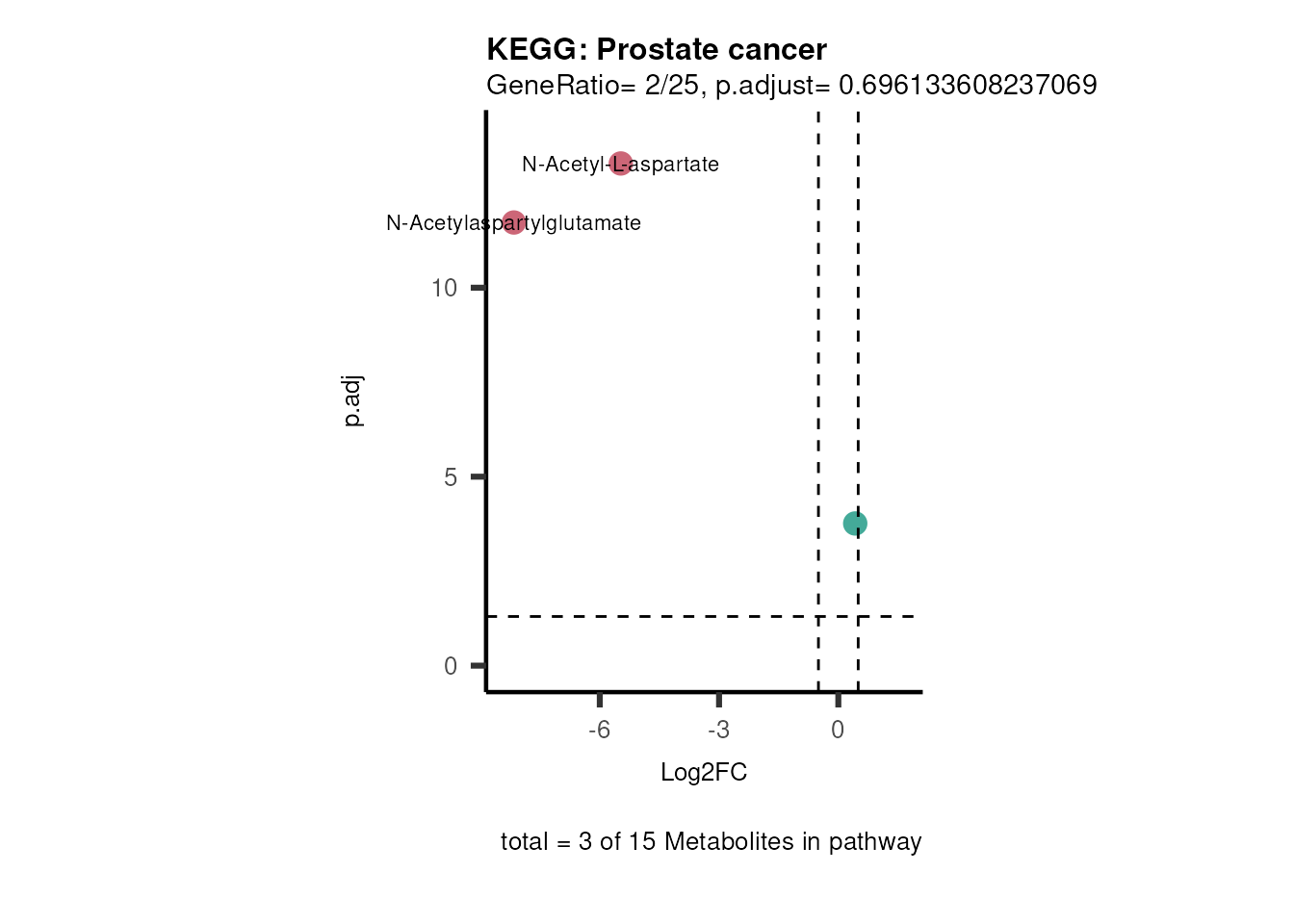

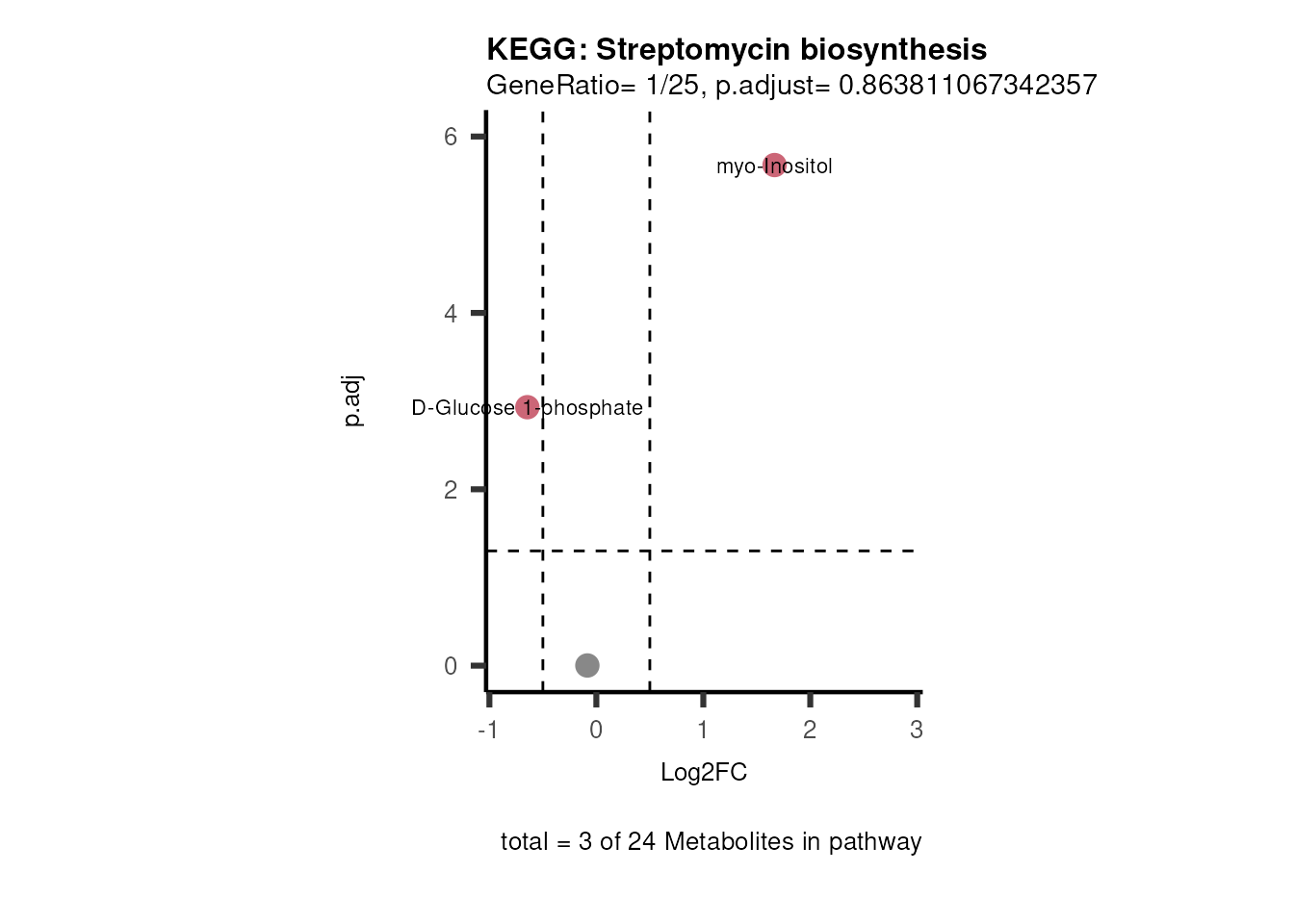

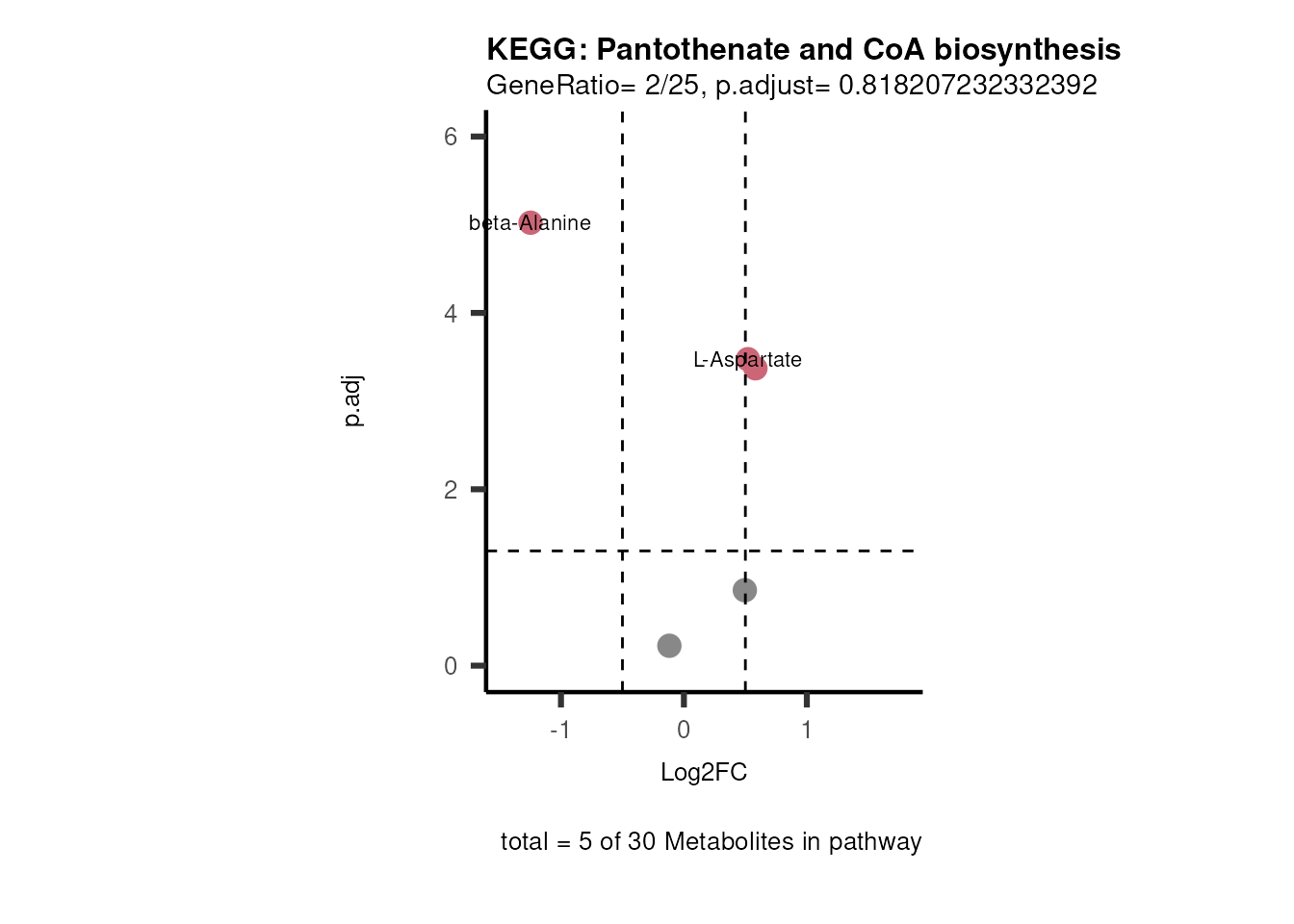

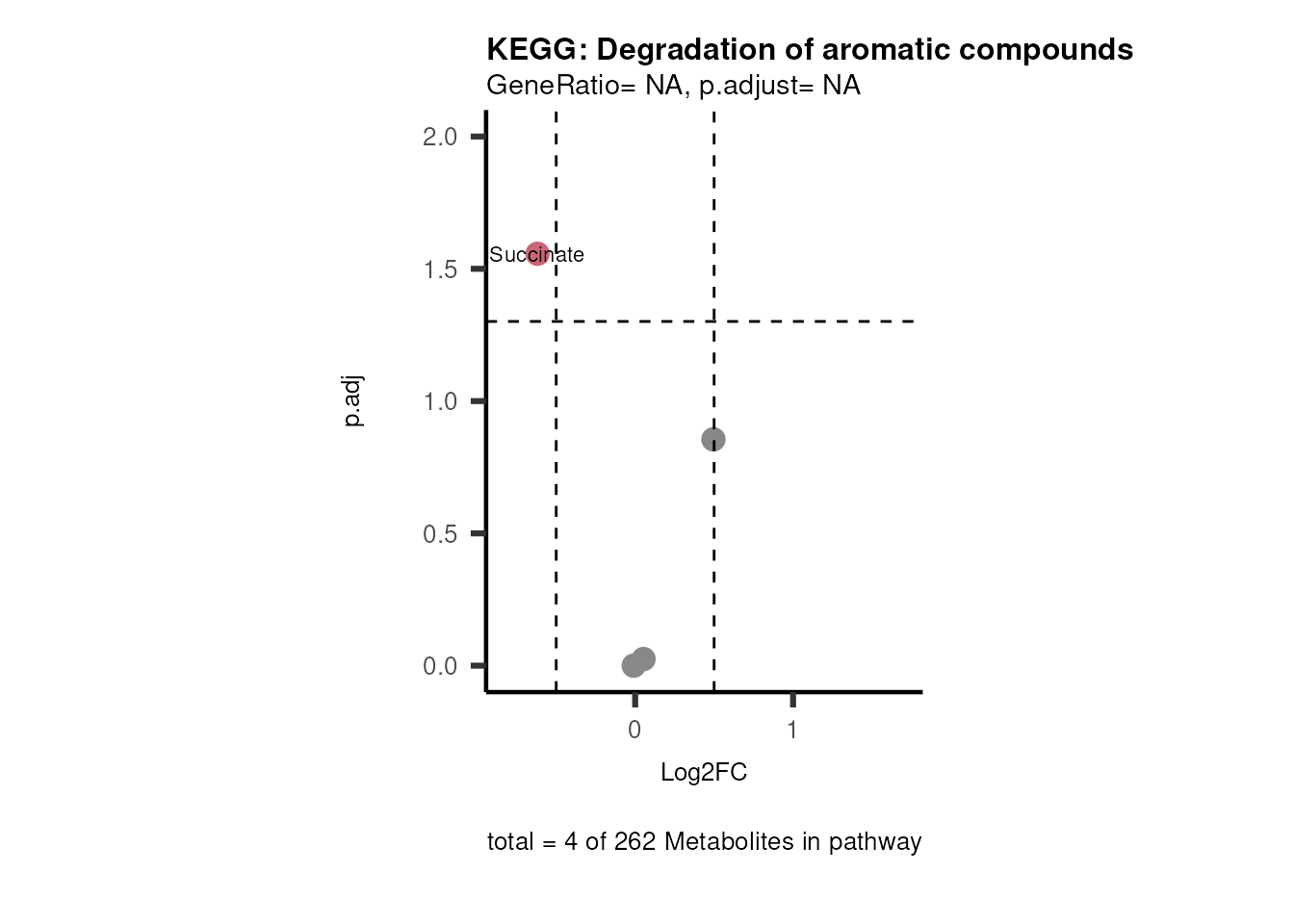

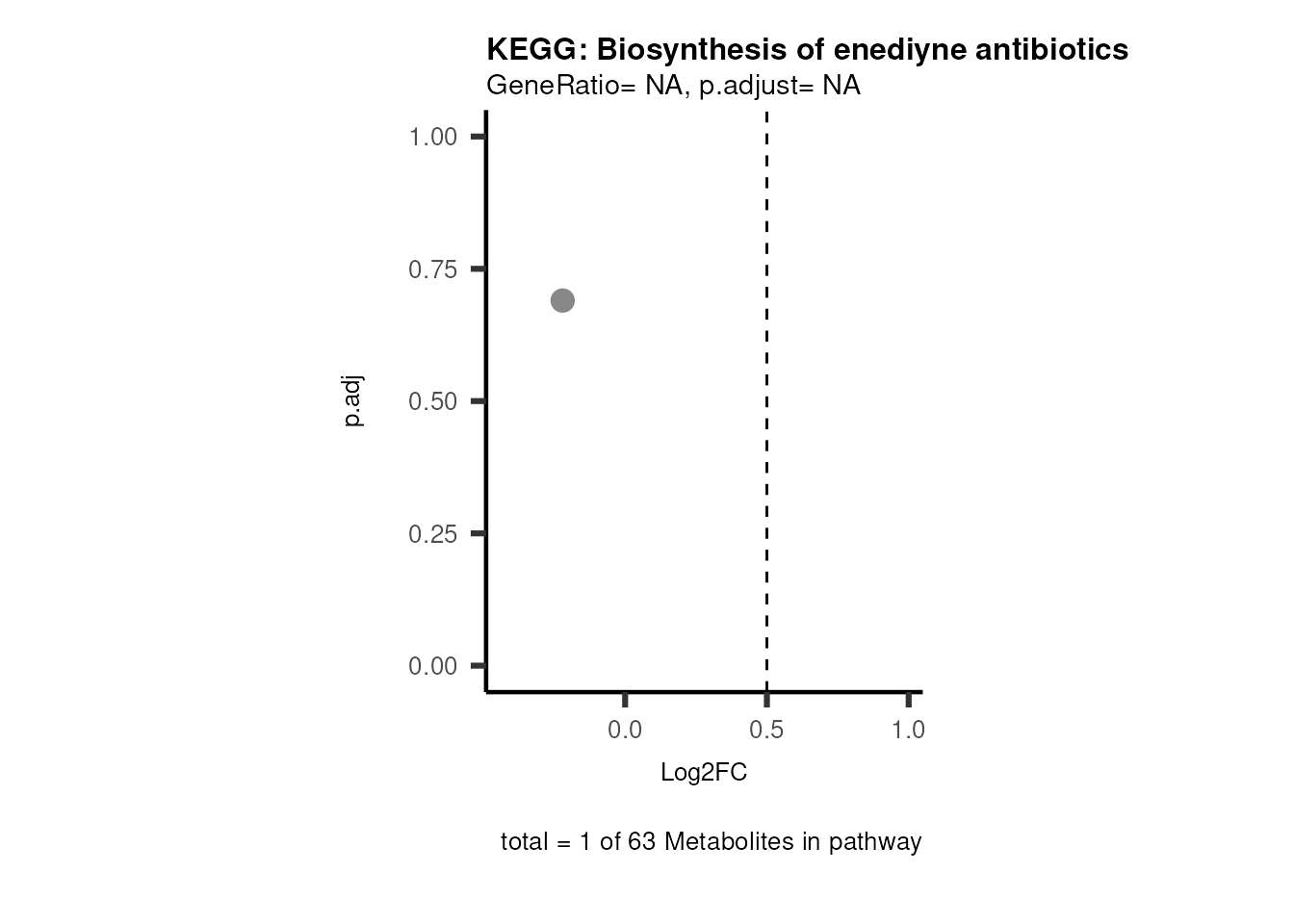

viz_volcano(plot_types="PEA",
metadata_info= c(PEA_Pathway="term",# Needs to be the same in both, metadata_feature and data2.
PEA_stat="p.adjust",#Column data2
PEA_score="GeneRatio",#Column data2
PEA_Feature="Metabolite"),# Column metadata_feature (needs to be the same as row names in data)
metadata_feature= KEGG_Pathways,#Must be the pathways used for pathway analysis
data= InputPEA,# Must be the data you have used as an input for the pathway analysis
data2= InputPEA2,#Must be the results of the pathway analysis
plot_name= "KEGG",
subtitle= "PEA" ,
select_label = NULL)

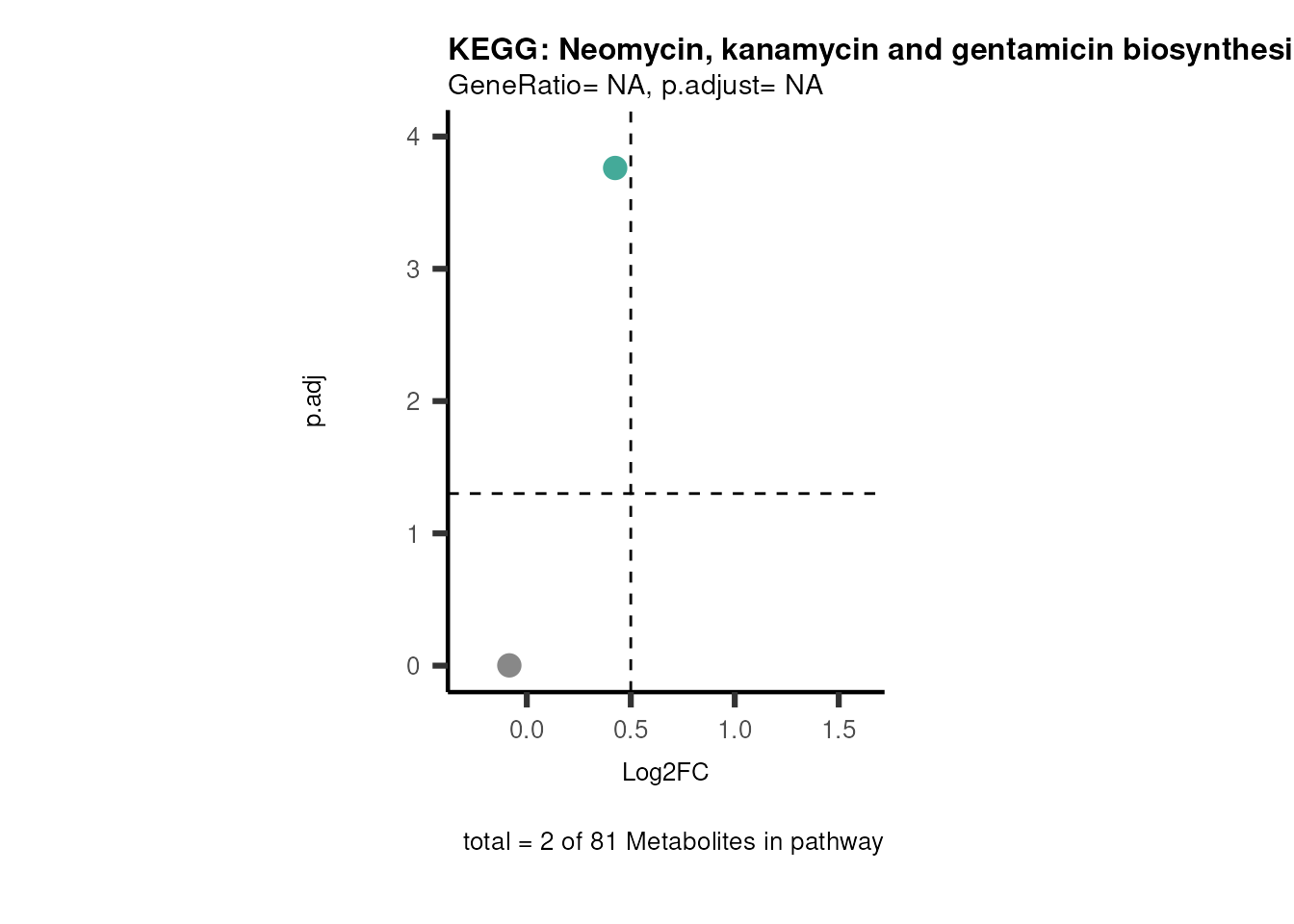

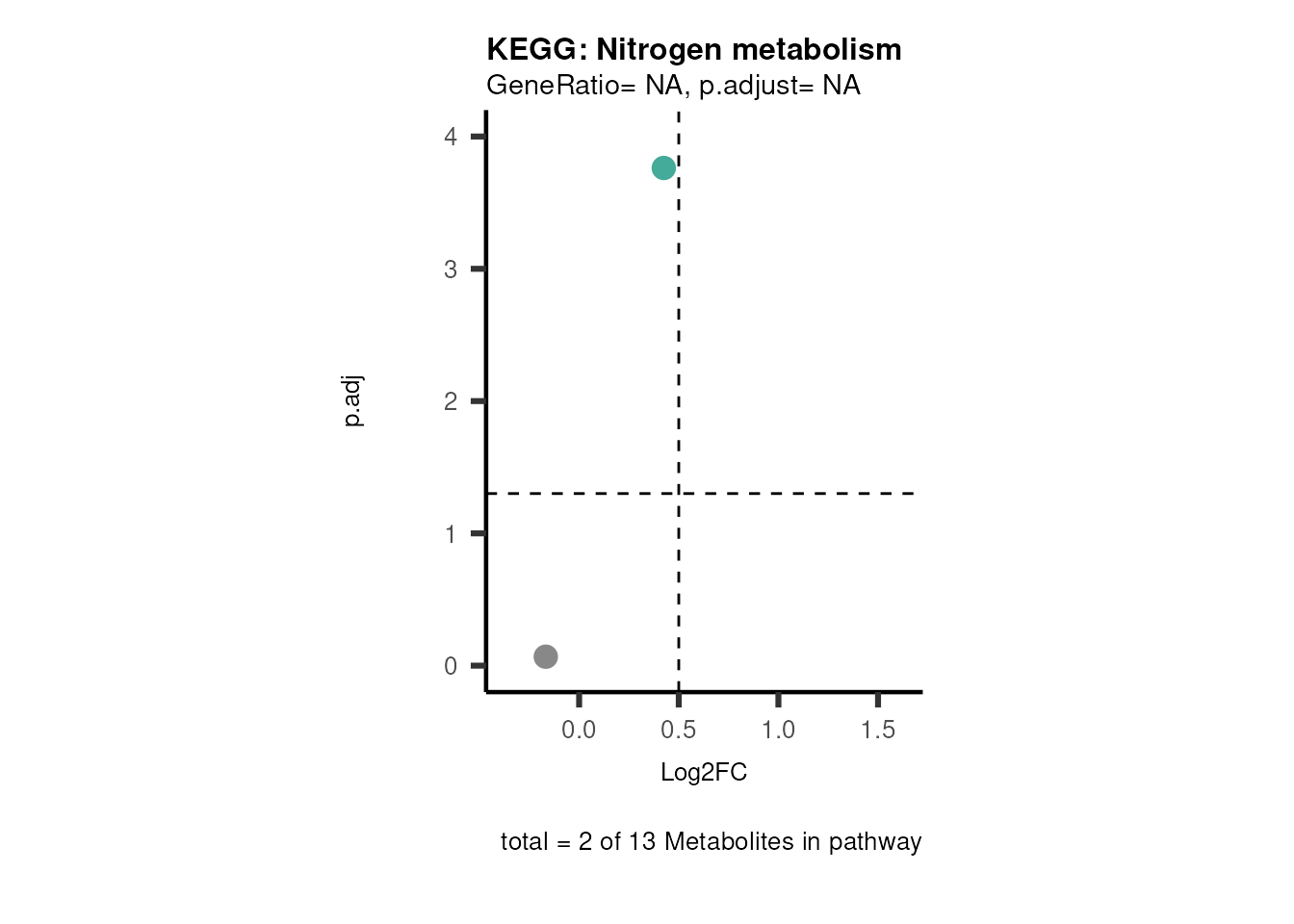

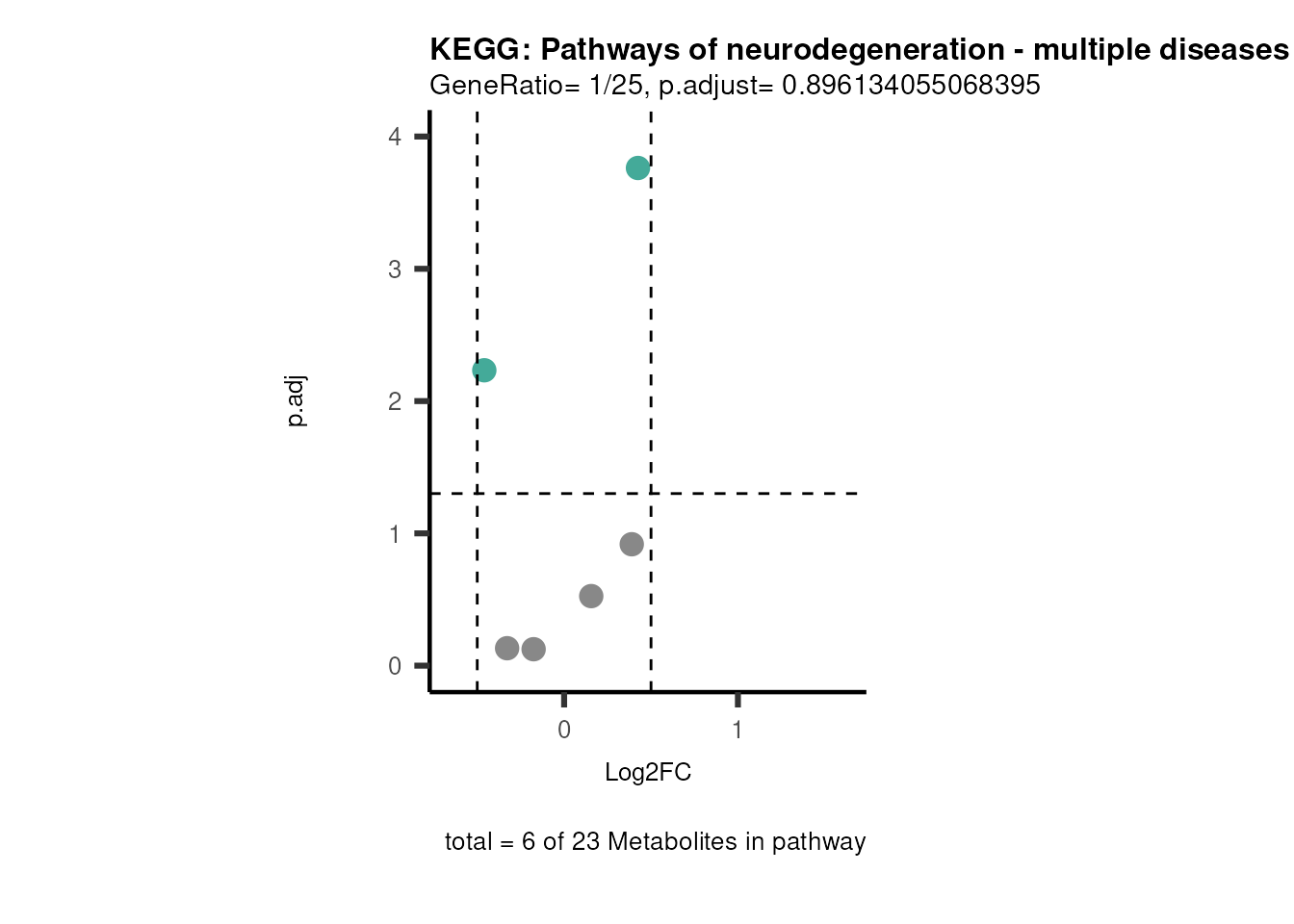

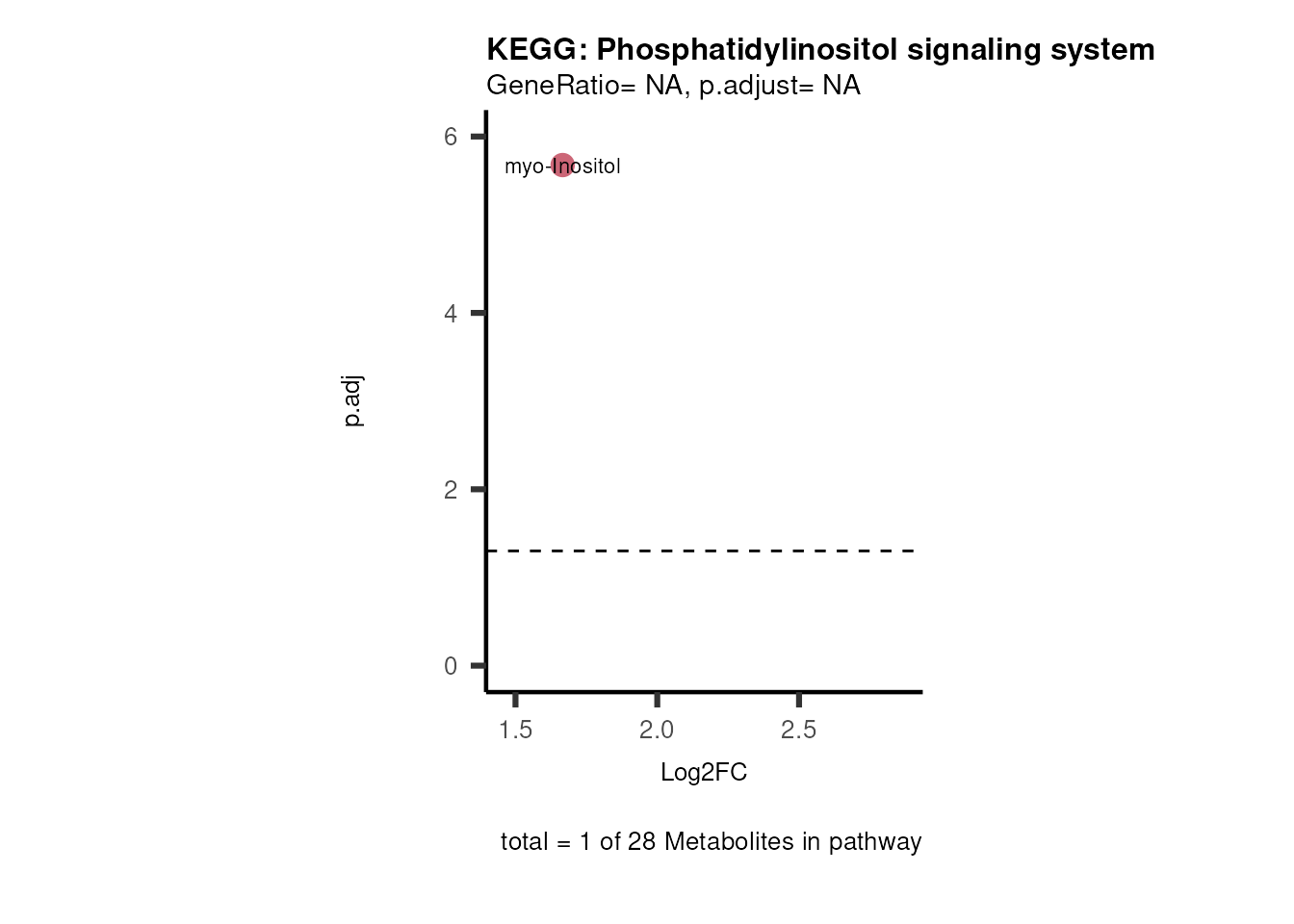

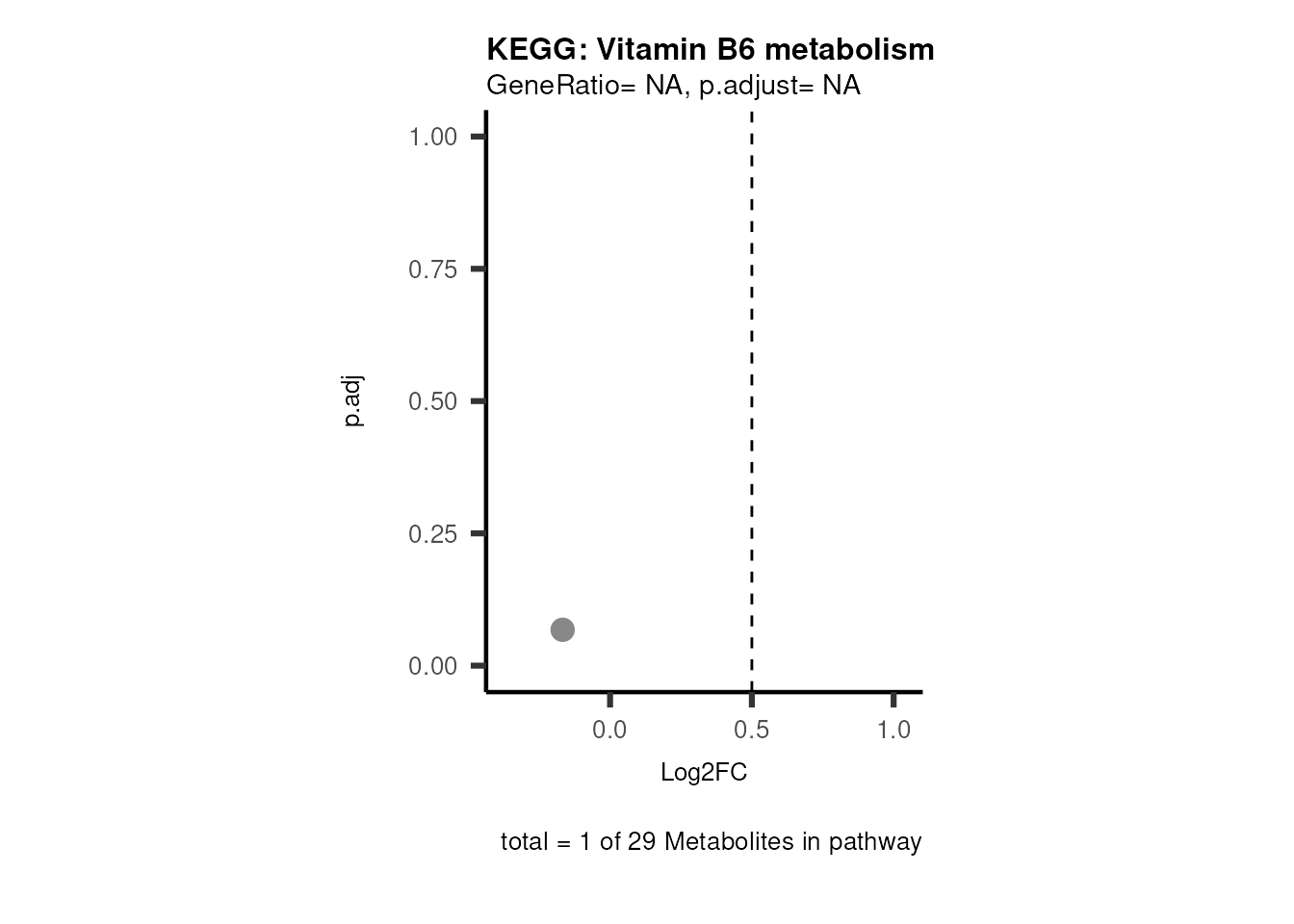

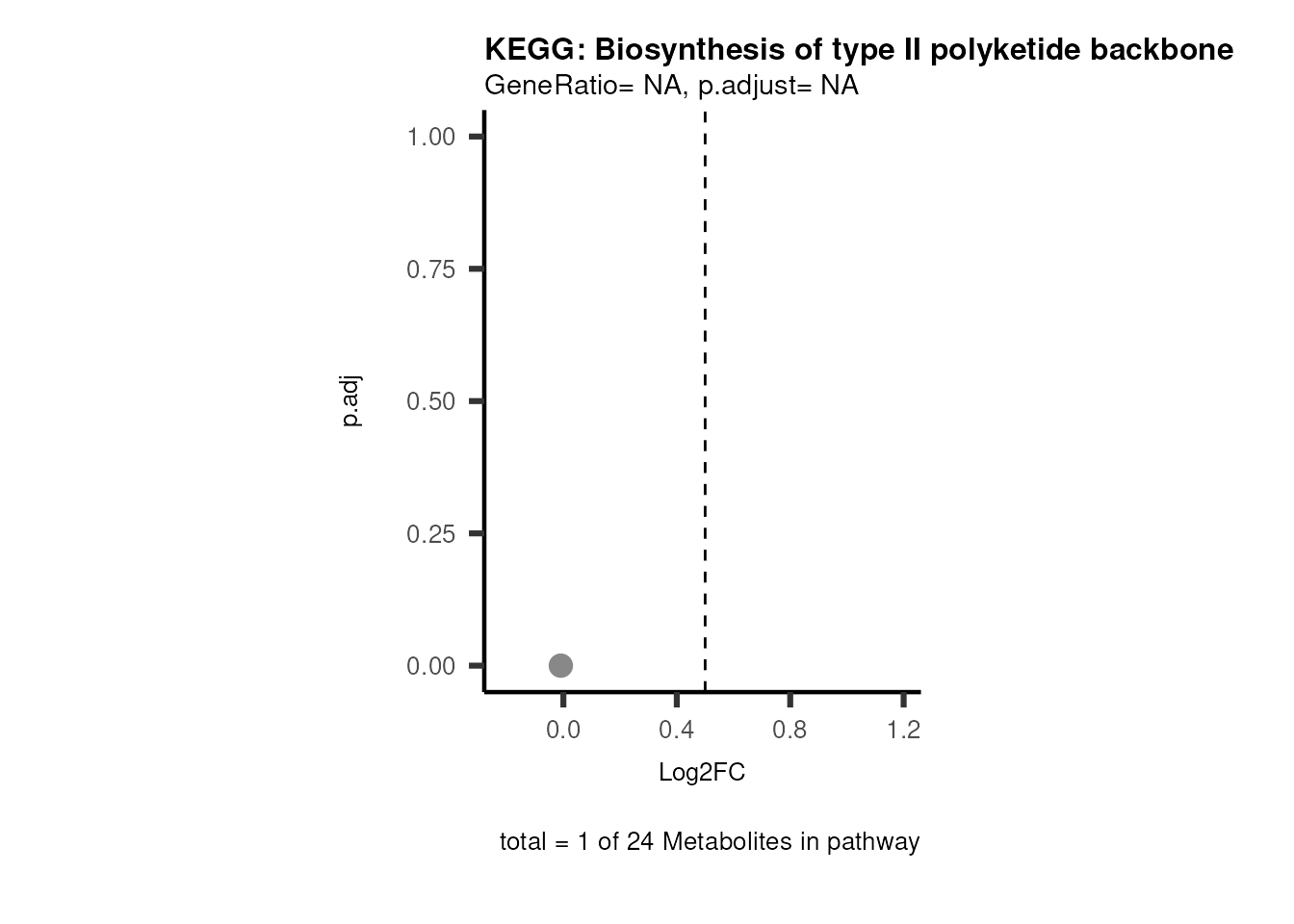

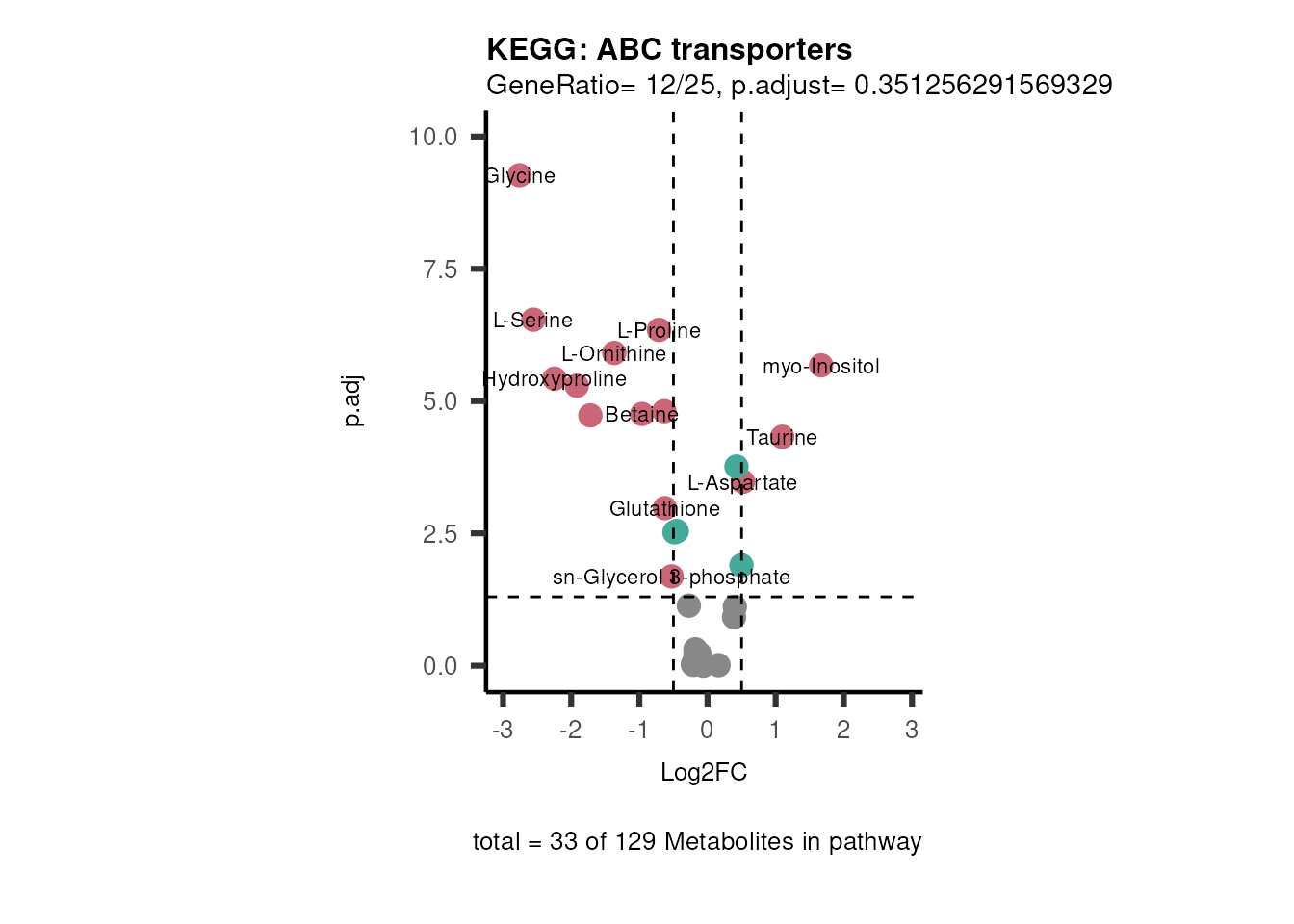

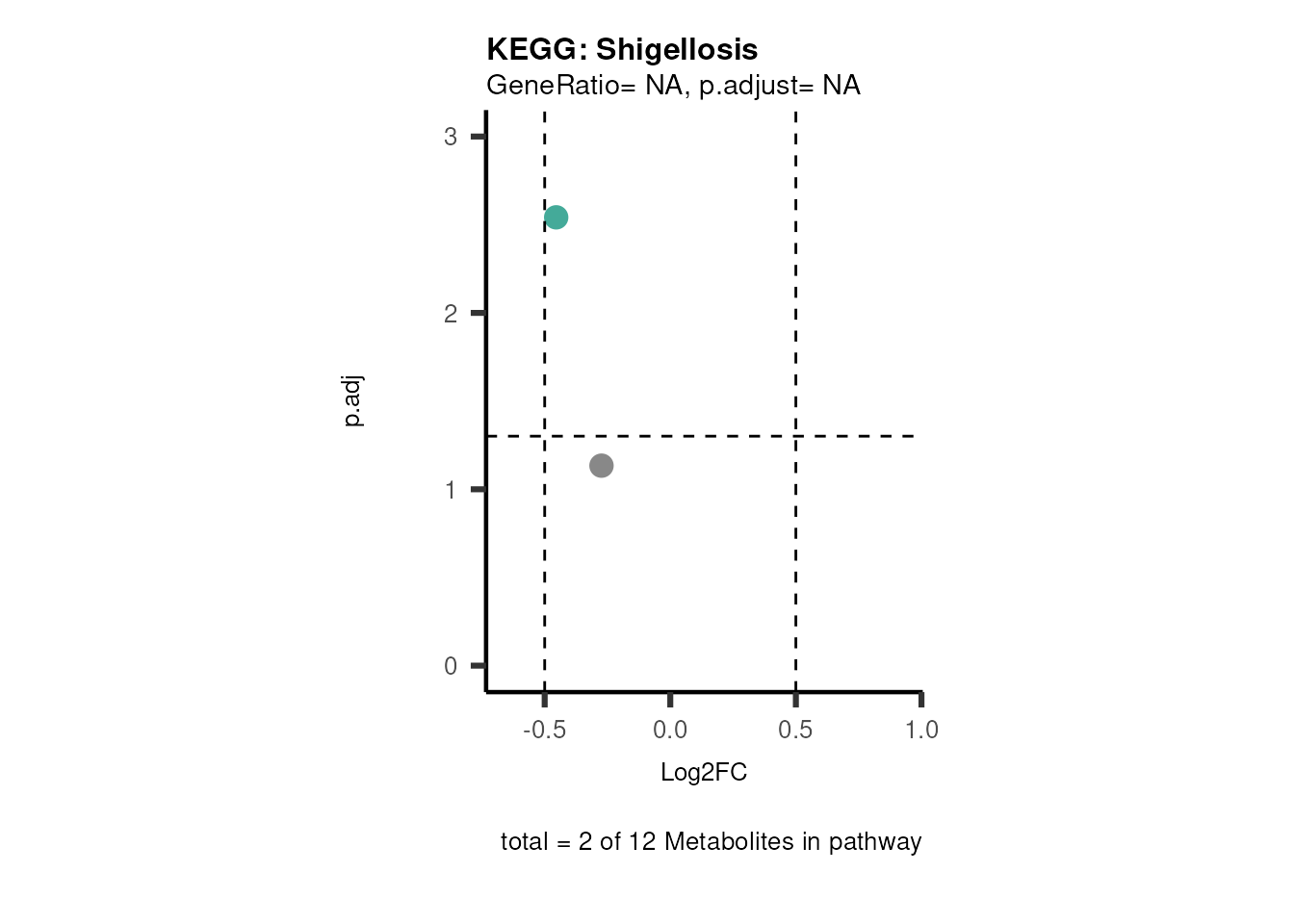

Session information

#> R version 4.6.1 (2026-06-24)
#> Platform: x86_64-pc-linux-gnu
#> Running under: Ubuntu 24.04.4 LTS
#>
#> Matrix products: default
#> BLAS:   /usr/lib/x86_64-linux-gnu/openblas-pthread/libblas.so.3
#> LAPACK: /usr/lib/x86_64-linux-gnu/openblas-pthread/libopenblasp-r0.3.26.so;  LAPACK version 3.12.0
#>
#> locale:
#>  [1] LC_CTYPE=en_US.UTF-8       LC_NUMERIC=C               LC_TIME=en_US.UTF-8        LC_COLLATE=en_US.UTF-8
#>  [5] LC_MONETARY=en_US.UTF-8    LC_MESSAGES=en_US.UTF-8    LC_PAPER=en_US.UTF-8       LC_NAME=C
#>  [9] LC_ADDRESS=C               LC_TELEPHONE=C             LC_MEASUREMENT=en_US.UTF-8 LC_IDENTIFICATION=C
#>
#> time zone: Etc/UTC
#> tzcode source: system (glibc)
#>
#> attached base packages:
#> [1] stats     graphics  grDevices utils     datasets  methods   base
#>
#> other attached packages:
#> [1] tibble_3.3.1      ggfortify_0.4.24  ggplot2_4.0.3     rlang_1.3.0       dplyr_1.2.1       magrittr_2.0.5
#> [7] MetaProViz_4.99.0 BiocStyle_2.40.0
#>
#> loaded via a namespace (and not attached):
#>   [1] RColorBrewer_1.1-3          rstudioapi_0.19.0           jsonlite_2.0.0              magick_2.9.1
#>   [5] ggbeeswarm_0.7.3            farver_2.1.2                rmarkdown_2.32              fs_2.1.0
#>   [9] ragg_1.5.2                  vctrs_0.7.3                 memoise_2.0.1               tinytex_0.61
#>  [13] rstatix_1.1.0               htmltools_0.5.9             S4Arrays_1.12.1             progress_1.2.3
#>  [17] curl_8.0.0                  ComplexUpset_1.3.3          decoupleR_2.17.0            broom_1.0.13
#>  [21] cellranger_1.1.0            SparseArray_1.12.3          Formula_1.2-6               sass_0.4.10
#>  [25] parallelly_1.48.0           bslib_0.12.0                htmlwidgets_1.6.4           desc_1.4.3
#>  [29] plyr_1.8.9                  httr2_1.3.0                 lubridate_1.9.5             cachem_1.1.0
#>  [33] igraph_2.3.4                lifecycle_1.0.5             pkgconfig_2.0.3             Matrix_1.7-6
#>  [37] R6_2.6.1                    fastmap_1.2.0               MatrixGenerics_1.24.0       digest_0.6.39
#>  [41] colorspace_2.1-3            patchwork_1.3.2             S4Vectors_0.50.3            textshaping_1.0.5
#>  [45] GenomicRanges_1.64.0        RSQLite_3.53.3              ggpubr_1.0.0                labeling_0.4.3
#>  [49] timechange_0.4.0            polyclip_1.10-7             httr_1.4.9                  abind_1.4-8
#>  [53] compiler_4.6.1              bit64_4.8.6                 withr_3.0.3                 S7_0.2.2
#>  [57] backports_1.5.1             BiocParallel_1.46.0         viridis_0.6.5               carData_3.0-6
#>  [61] DBI_1.3.0                   logger_0.4.3                OmnipathR_4.1.0             ggforce_0.5.0
#>  [65] R.utils_2.13.0              ggsignif_0.6.4              cosmosR_1.20.0              MASS_7.3-66
#>  [69] rappdirs_0.3.4              DelayedArray_0.38.2         sessioninfo_1.2.4           scatterplot3d_0.3-45
#>  [73] gtools_3.9.5                tools_4.6.1                 vipor_0.4.7                 otel_0.2.0
#>  [77] beeswarm_0.4.0              zip_3.0.2                   R.oo_1.27.1                 glue_1.8.1
#>  [81] grid_4.6.1                  checkmate_2.3.4             reshape2_1.4.5              generics_0.1.4
#>  [85] gtable_0.3.6                tzdb_0.5.0                  R.methodsS3_1.8.2           tidyr_1.3.2
#>  [89] hms_1.1.4                   tidygraph_1.3.1             xml2_1.6.0                  car_3.1-5
#>  [93] XVector_0.52.0              BiocGenerics_0.58.1         ggrepel_0.9.8               pillar_1.11.1
#>  [97] stringr_1.6.0               vroom_1.7.1                 limma_3.68.5                later_1.4.8
#> [101] splines_4.6.1               tweenr_2.0.3                lattice_0.22-9              bit_4.6.0
#> [105] tidyselect_1.2.1            knitr_1.52                  gridExtra_2.3.1             bookdown_0.48
#> [109] IRanges_2.46.0              Seqinfo_1.2.0               SummarizedExperiment_1.42.0 svglite_2.2.2
#> [113] stats4_4.6.1                xfun_0.61                   graphlayouts_1.2.5          Biobase_2.72.0
#> [117] statmod_1.5.2               factoextra_2.2.0            matrixStats_1.5.0           pheatmap_1.0.13
#> [121] stringi_1.8.9               yaml_2.3.12                 kableExtra_1.4.1            evaluate_1.0.5
#> [125] codetools_0.2-20            tcltk_4.6.1                 ggraph_2.2.2                qvalue_2.44.0
#> [129] hash_2.2.6.4                BiocManager_1.30.27         Polychrome_1.6.2            cli_3.6.6
#> [133] systemfonts_1.3.2           jquerylib_0.1.4             EnhancedVolcano_1.31.0      Rcpp_1.1.2
#> [137] readxl_1.5.0.1              XML_3.99-0.25               parallel_4.6.1              pkgdown_2.2.1
#> [141] readr_2.2.0                 blob_1.3.0                  prettyunits_1.2.0           viridisLite_0.4.3
#> [145] scales_1.4.0                writexl_2.0.1               inflection_1.3.7            purrr_1.2.2
#> [149] crayon_1.5.3                rvest_1.0.5

Bibliography

Badia-I-Mompel, Pau, Jesús Vélez Santiago, Jana Braunger, et al. 2022. “decoupleR: Ensemble of Computational Methods to Infer Biological Activities from Omics Data.” Bioinformatics Advances 2 (1): vbac016. https://doi.org/10.1093/bioadv/vbac016.

Bijlsma, Sabina, Ivana Bobeldijk, Elwin R Verheij, et al. 2006. “Large-Scale Human Metabolomics Studies: A Strategy for Data (Pre-) Processing and Validation.” Analytical Chemistry 78 (2): 567–74. https://doi.org/10.1021/ac051495j.

Farr, Elias, Daniel Dimitrov, Christina Schmidt, et al. 2024. “MetalinksDB: A Flexible and Contextualizable Resource of Metabolite-Protein Interactions.” Briefings in Bioinformatics, no. 4 (May). https://doi.org/10.1093/bib/bbae347.

Hotelling, Harold. 1931. “The Generalization of Student’s Ratio.” The Annals of Mathematical Statistics 2 (3): 360–78. https://doi.org/10.1214/aoms/1177732979.

Kanehisa, M, and S Goto. 2000. “KEGG: Kyoto Encyclopedia of Genes and Genomes.” Nucleic Acids Research 28 (1): 27–30. https://doi.org/10.1093/nar/28.1.27.

Lord, Samuel J, Katrina B Velle, R Dyche Mullins, and Lillian K Fritz-Laylin. 2020. “SuperPlots: Communicating Reproducibility and Variability in Cell Biology.” The Journal of Cell Biology, no. 6 (June). https://doi.org/10.1083/jcb.202001064.

Mora, Ariane, Christina Schmidt, Brad Balderson, Christian Frezza, and Mikael Bodén. 2024. “SiRCle (Signature Regulatory Clustering) Model Integration Reveals Mechanisms of Phenotype Regulation in Renal Cancer.” Genome Medicine 16 (1): 144. https://doi.org/10.1186/s13073-024-01415-3.

Sciacovelli, Marco, Aurelien Dugourd, Lorea Valcarcel Jimenez, et al. 2022. “Dynamic Partitioning of Branched-Chain Amino Acids-Derived Nitrogen Supports Renal Cancer Progression.” Nature Communications 13 (1): 7830. https://doi.org/10.1038/s41467-022-35036-4.

Wei, Runmin, Jingye Wang, Mingming Su, et al. 2018. “Missing Value Imputation Approach for Mass Spectrometry-Based Metabolomics Data.” Scientific Reports 8 (1): 663. https://doi.org/10.1038/s41598-017-19120-0.

Wulff, Jacob E., and Matthew W. Mitchell. 2018. “A Comparison of Various Normalization Methods for LC/MS Metabolomics Data.” Advances in Bioscience and Biotechnology 09 (08): 339–51. https://doi.org/10.4236/abb.2018.98022.

Christina Schmidt

Dimitrios Prymidis

Loading the example data

Run MetaProViz Analysis

Pre-processing

DMA

ORA using the dma results

MCA

MCA-2Cond

MetalinksDB interactions of a metabolite cluster

ORA on each metabolite cluster

Run MetaProViz Visualisation

PCA plots

Heatmaps

Superplots

Volcano plot

Standard

Comparison

PathwayEnrichmentAnalysis

Session information

Bibliography
